Earth Rods & Components

An effective earthing system is a fundamental requirement of any modern structure or system for both operational and safety reasons.

Unicrimp

Earth Rods & Components

Published: 28 February 2019 · Category: Product Catalogues & Brochures

An effective earthing system is a fundamental requirement of any modern structure or system for both operational and safety reasons.

From this document

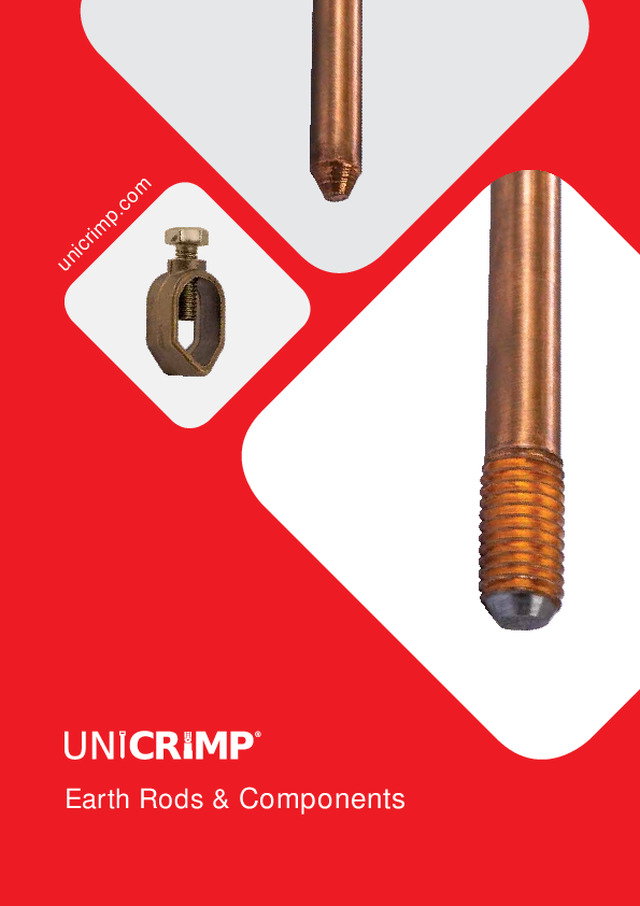

om p. c ri m ic un Earth Rods & Components Installation & Testing An effective earthing system is a fundamental requirement of any modern structure or system for both operational and safety reasons. Without such a system, the safety of a structure, the equipment contained within it and its occupants are compromised. Single Rod Install. Earth Rod Testing. QEPIPPLA As per 18th Edition Wiring Regulations BS7671 Clause 643.7.2 Earth Electrode Resistance. Inspection pits for easy access and period inspection/testing. There’s a growing need for improved reliable earthing as current infrastructure is ageing and deteriorating and the increased use of plastics in services, reduces earthing possibilities. Earth rods offer a simple reliable solution to ongoing concerns. QEP38CC CPE The earth cable is clamped to the top of the rod. test instrument Minimum Depth: 1m A Driving Stud Attaches to the top end of the rod protecting against damage when hammering the rod into ground. A simple earthing job might require a single 3/8 earth rod. Minimum Depth: 1m QEP3812 3m 15 - 25m 3m 15 - 25m If the required resistance is not low enough additional rods are installed to make the depth greater until the resistance is lowered to the required value. Multiple Rod Install. QEPIPCON Inspection pits for easy access and period inspection/testing. A Coupler QEP58CC Joins multiple rods together for improved performance. The earth cable is clamped to the top of the rod. QEP5812T 1200mm long and available in...
