Thorn - Product Brochure - PopPack LED - 2015

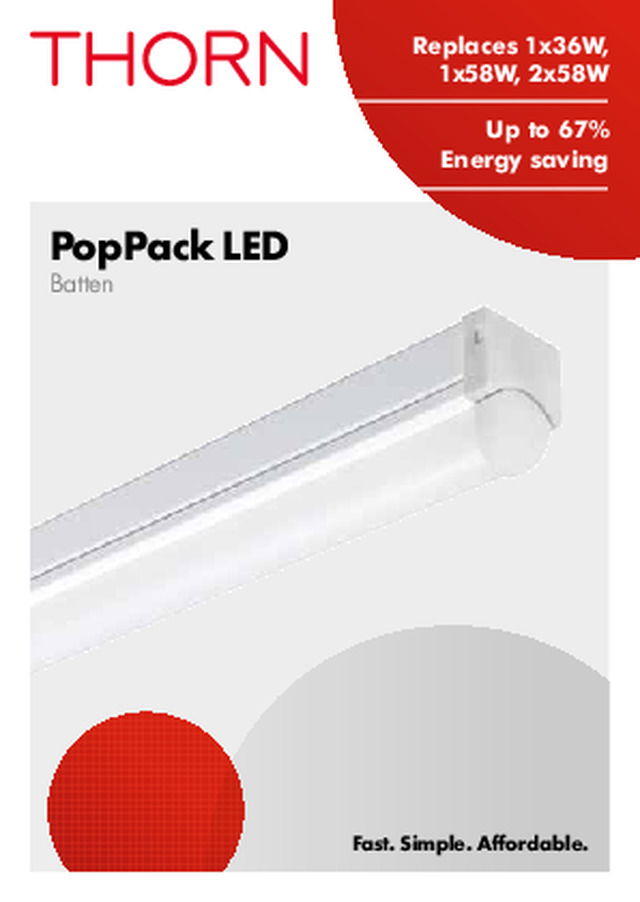

Fast. Simple. Affordable. PopPack LED Batten Replaces 1x36W,  1x58W, 2x58W Up to 67%   Energy saving

Performance • LED direct replacement for traditional single and twin T8/T5 fluorescent batten. • Only 28W, 41W and 60W total load, up to 67% energy reduction vs traditional switch start. • Further savings can be achieved via the DALI dimmable version. • Over 110Llm/W – exceeding building regulation requirements. • 50 000 hours rated life, equivalent to 10 years at 16 hours per day, 6 days per week operation. • Integral 3 hour emergency option reduces installation time and complexity. Standards LED

Construction • Batten: pre-coated roll form steel, white (RAL9016). • End caps/lamp holders: injection moulded polycarbonate, white. • Diffuser: textured opal acrylic. Replaces: 3000lm - 1x36W T8  4500lm - 1x58W T8  6500lm - 2x58W T8

Installation • 4/6 way terminal block with capacity for loop in/out 2.5mm² cables. • Ambient temperature: -20 to +25° for the standard product, 0-25° for the emergency versions, normal, dry, indoor atmospheres. • Fixation to central BESA fixing or entrance through spine. • Through wiring possible through knock out holes in the spine and end caps. Easy alignment through slots in the spine. • Suitable for mounting end-to-end (except emergency versions - recommended minimum space between luminaires 50mm).

Energy and cost savings 67%  EnErgy  Saving  £3,962  annual  Saving  10 yEArS  liFE   TiME Based on:• Warehouse facility, complete building direct upgrade.• Luminaires – 50 x 6500lm LED vs 50 x 2x58W switch start. • Usage 16hrs/day, 6 days per week, 4992hrs/year. • Energy price - £0.15/KWh.

Ordering Guide Product Dimensions 60 1168 - 3000Lm/4500Lm 1728 - 6500Lm 74 825600 HF - High frequency electronic ballast HFI - DALI dimmable ballast Option Description Circuit Power (W) Wt (Kg) SAP Code Cat No. POPPACK LED HF POPPACK BATTEN LED 3000 HF 840 28.0 1.2 96242241 PP3000Z POPPACK BATTEN LED 4500 HF 840 41.0 1.2 96242245 PP4500Z POPPACK BATTEN LED 6500 HF 840 60.0 1.2 96242249 PP6500Z HF Emergency POPPACK BATTEN LED 3000 HF E3 840 28.0 1.2 96242242 PP3000ZE POPPACK BATTEN LED 4500 HF E3 840 41.0 1.2 96242246 PP4500ZE POPPACK BATTEN LED 6500 HF E3 840 60.0 1.2 96242250 PP6500ZE HF Dimming POPPACK BATTEN LED 3000 HFI 840 28.0 1.7 96242243 PP3000D POPPACK BATTEN LED 4500 HFI 840 41.0 1.7 96242247 PP4500D POPPACK BATTEN LED 6500 HFI 840 60.0 1.7 96242251 PP6500D HF Dimming Emergency POPPACK BATTEN LED 3000 HFI E3 840 28.0 1.7 96242244 PP3000DE POPPACK BATTEN LED 4500 HFI E3 840 41.0 1.7 96242248 PP4500DE POPPACK BATTEN LED 6500 HFI E3 840 60.0 1.7 96242252 PP6500DE

Sample Layout PopPack LED Room height 5m Work Plane 0m Maintenance factor  0.8 Reflectances Ceiling: 50% Wall: 30% Floor: 20% Cat. No. PP6500Z Lamp LED Lumens 6550lm Lux 281 lux 10m 20m 3.3m 2.8m

Thorn Contractor Range CONTACT DETAILS Fast. Simple. Affordable. We offer products with outstanding quality, easy installation and competitive prices. All of this is provided to you in close cooperation with your local wholesaler. Save time. Save money. Save energy. With our comprehensive portfolio you can realise smaller and larger projects in a fast, cost-effective and energy-efficient manner. According to project requirements, solutions with conventional technology as well as up-to-date LED luminaires can be implemented - depending on your budget. Telephone: UK: 0844 855 4810     IRE: +353 (0) 1 4922877 email: [email protected] website: www.thornlighting.co.uk/POPR 5 Year Warranty As a globally leading luminaire manufacturer, Thorn Lighting provides a five-year warranty for its complete product range within all European Countries. www.thornlighting.co.uk/warranty
