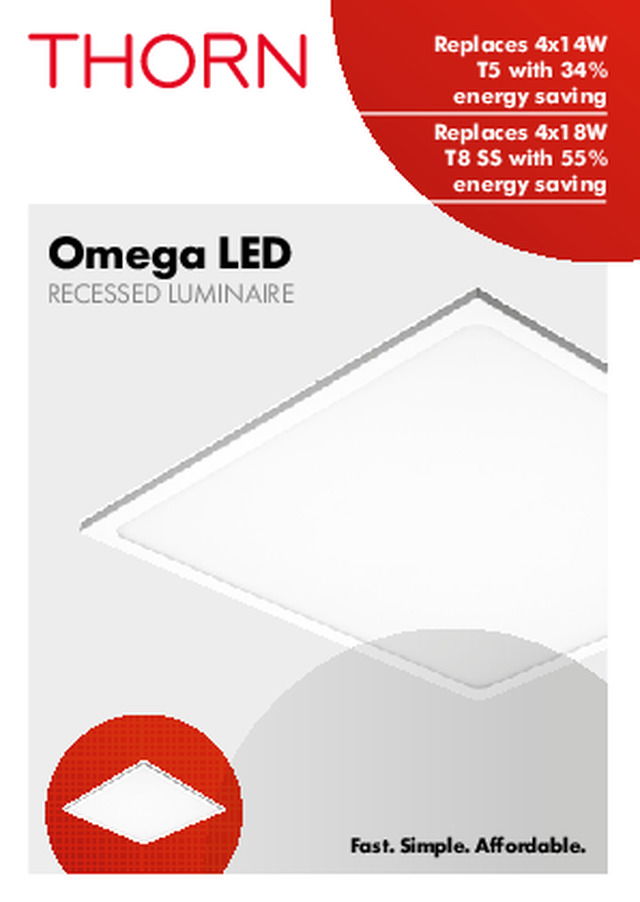

Thorn - Product Brochure - Omega LED - 2015
Thorn - Product Brochure - Omega LED - 2015
Thorn Contractor Range Telephone: 0844 855 4810 email: [email protected] website: www.thornlighting.co.uk/OMGL CONTACT DETAILS Fast. Simple. Affordable. We offer products with outstanding quality, easy installation and competitive prices. All of this is provided to you in close cooperation with your local wholesaler. Save time. Save money. Save energy. With our comprehensive portfolio you can realise smaller and larger projects in a fast, cost-effective and energy-efficient manner. According to project requirements, solutions with conventional technology as well as up-to-date LED luminaires can be implemented - depending on your budget. Omega LED RECESSED LUMINAIRE Product Dimensions Ordering Guide Replaces 4x14W T5 with 34% energy saving Replaces 4x18W T8 SS with 55% energy saving Fast. Simple. Affordable. Option Description SAP Code Cat No. 300x300 HF OMEGA LED 1000 HF L830 96602036 OM1000Z3K OMEGA LED 1000 HF L840 96602040 OM1000Z4K HF Emergency OMEGA LED 1000 HF E3 L830 96602038 OM1000ZE3K OMEGA LED 1000 HF E3 L840 96602042 OM1000ZE4K HFIX Dimming OMEGA LED 1000 HFIX L830 96602037 OM1000X3K OMEGA LED 1000 HFIX L840 96602041 OM1000X4K HFIX Dimming Emergency OMEGA LED 1000 HFIX E3 L830 96602039 OM1000XE3K OMEGA LED 1000 HFIX E3 L840 96602043 OM1000XE4K 600x600 HF OMEGA LED 3250 HF L830 597 96241575 OM3250Z3K OMEGA LED 3250 HF L840 597 96241576 OM3250Z4K HF Emergency OMEGA LED 3250 HF E3 L830 597 96241583 OM3250ZE3K OMEGA LED 3250 HF E3 L840 597 96241584 OM3250ZE4K HFIX Dimming OMEGA LED 3250 HFIX L830 597 96241579 OM3250X3K OMEGA LED 3250 HFIX L840 597 96241580 OM3250X4K HFIX Dimming Emergency OMEGA LED 3250 HFIX E3 L830 597 96241585 OM3250XE3K OMEGA LED 3250 HFIX E3 L840 597 96241586 OM3250XE4K 300x1200 HF OMEGA LED 4000 HF L830 297x1197 96241587 OM4000Z3K OMEGA LED 4000 HF L840 297x1197 96241588 OM4000Z4K HF Emergency OMEGA LED 4000 HF E3 L830 297x1197 96241591 OM4000ZE3K OMEGA LED 4000 HF E3 L840 297x1197 96241592 OM4000ZE4K HFIX Dimming OMEGA LED 4000 HFIX L830 297x1197 96241589 OM4000X3K OMEGA LED 4000 HFIX L840 297x1197 96241590 OM4000X4K HFIX Dimming Emergency OMEGA LED 4000 HFIX E3 L830 297x1197 96241593 OM4000XE3K OMEGA LED 4000 HFIX E3 L840 297x1197 96241594 OM4000XE4K Option Description SAP Code Cat No. Accessories OMEGA LED SURFACE MTG KIT 300 96241821 OMSM1000KIT OMEGA LED SURFACE MTG KIT 597 96241603 OMSM3250KIT OMEGA LED SURFACE MTG KIT 297X1197 96241760 OMSM4000KIT OMEGA LED SUSPENSION KIT 96241604 OMSUSKIT GRIPPLE SAFETY WIRE 96239327 300 597 300 597 12 1197 12 297 5 Year Warranty As a globally leading luminaire manufacturer, Thorn Lighting provides a fi ve-year warranty for its complete product range within all European Countries. Effective from 1st May 2015. Omega LED A6 Roll Fold UK_print spec_06.indd 1 31/03/2015 12:02
• Recessed: lay in only for most suspended T15/24 ceilings • With the use of simple mounting kits, the recessed version offers increased flexibility, for use where either surface or suspended mounting is required • 300x300: suitable for pull up installations (concealed and plaster board ceilings) • Surface: collar type - fixed to the ceiling with 4 screws via keyhole slots • Suspended: suspended via adjustable wire suspension (1500mm), 4 fixing points to the ceiling. 300x300 is not suitable for suspension mounting Installation Energy and cost savings Based on: Office area - 9.6m x 9.6m x 3m Lux level - 425lx Luminaires - 16 x 3250lm LED vs 16 x 4x14W HF T5 linear fluorescentUsage - 3389hrs/year. Energy price - £0.07/Kwh 35% ENERGY SAVING £82.40 ANNUAL SAVING 15YRS LIFE TIME • 3250lm LED edge lit panel, one for one replacement for traditional 4x18W T26 (T8) compact fluorescent panel • Only 40W total load, up to 55% energy saving vs fluorescent equivalents • 80Llm/W – exceeding building regulation requirements • 50 000 hours rated life, equivalent to 13 years at 10 hours per day operation • Choice of 3000K warm white or 4000K cool white to suit application use • Standard DALI dimming further increases energy savings • Integral 3 hour emergency option reduces installation time and complexity Performance • White finish steel body/diffuser UV-stabilized, opal acrylic • Sealed to IP44 as standard, suitable for use in hospitals or restrooms without the need for separate attachments • Available in 3 sizes: 300x300mm: 1000lm, 600x600mm: 3250lm, 300x1200mm: 4000lm Construction Standards 3250lm LED edge lit panel, direct replacement for traditional fl uorescent panel Sample layout - Office area Mounting height 3.0m Work Plane 0.75m Maintenance factor 0.80 Refl ectances Ceiling: 70% Wall: 50% Floor: 20% Luminaire OMEGA 3250 LED Lamp LED Lumens 3250 lm Lux 425 lx 9.6m 9.6m Office Area - 9.6m x 9.6m x 3m - 16 luminaires • Recessed • Surface mounted • Suspended LED Omega LED A6 Roll Fold UK_print spec_06.indd 2 31/03/2015 12:02
