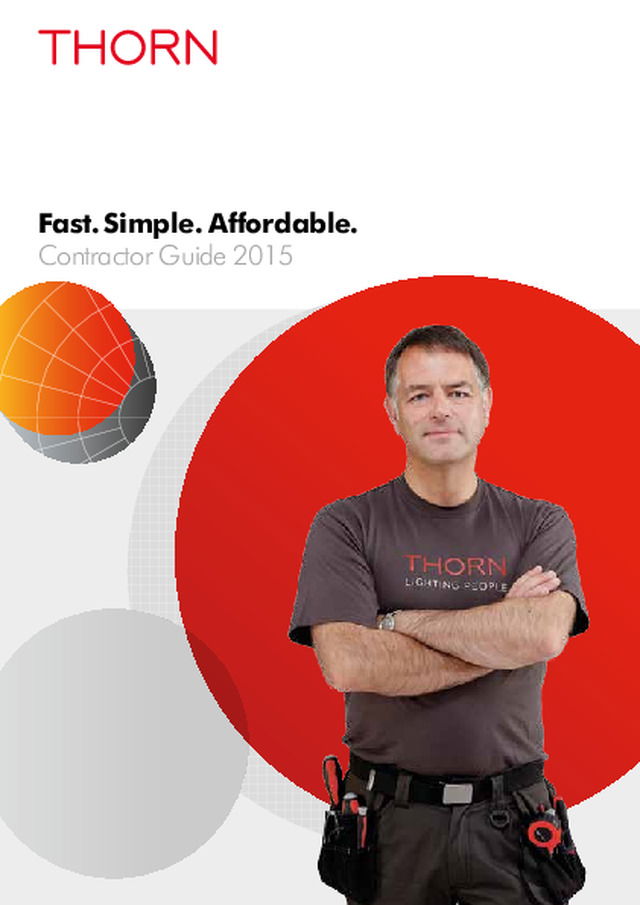

Fast. Simple. Affordable. Contractor Guide 2015

Thorn contractor guide  The easy way to buy Save time. Save money. Save energy. With our comprehensive portfolio you can realise smaller and larger projects in a fast, cost-effective and energy-efficient manner. According to project requirements, solutions with conventional technology as well as up-to-date LED luminaires can be implemented – depending on your budget. We offer products with outstanding  quality, easy installation and competitive  prices. All this is provided to you in close  cooperation with your local wholesaler. Fast.Simple.  Affordable.   The Contractor range.

5 Year Warranty As a globally leading luminaire manufacturer,   Thorn Lighting provides a five-year warranty for  its complete product range within all European  Countries. Effective from 1st May 2015.  www.thornlighting.co.uk/warranty

04     www.thornlighting.co.uk To support our eControl philosophy and improve our ease to do business with we have now rolled out an initiative to simplify ordering our products. To support this we are listing all of our indoor and outdoor luminaires with an alpha numeric catalogue number in addition to the SAP code and SAP description.  The benefits of this initiative are:• Easily identifiable part numbers by product range• Clear and consistent logic across indoor and outdoor product offers• Orders into our business can now be accepted for all products using a catalogue reference number• Simplified order placement and processing• Reduction in order complexity and potential ordering errors We recognise the importance of making it easier to identify our  products through our ordering guides and part numbering system Understanding our  catalogue numbers LE R  128 Z  E  PR  W  LER128ZEPRW  – Sample catalogue number  Range (eg.) Sub-range LED lumen output Gear Emergency Optic Colour Miscellaneous AQ   AquaForce E  Eco 2000  2000 lumens Z  High Frequency E  3hr standard emergency LV  Louvre W  White PB  Plasterboard version CH  Chalice S  Small 4000  4000 lumens D   DSI/DALI dimmable EX  3hr adressable emergency OP  Opal B  Black/Blue FIL  Filter LE  Leopard L   Large 6000   6000 lumens X  DALI dimmable EH  3hr high output emergency PR  Prismatic G  Grey/Green REF  Reflector JU  Jupiter Shape 14000  14000 lumens ZS   High Frequency + Sensor MP  Micro prism tech/perforated R  Red DIF  Diffuser MN  Menlo R  Round Lamp no + wattage DS   DSI/DALI dim + Sensor RK  Rack Y  Yellow 3K  3000K  S  Square 135   1 x 35W DC   DSI/DALI dim + Corridor Function WD  Wide 4K  4000K  Mounting option 249   2 x 49W NW  Narrow C  Connect version  R  Recessed 314   3 x 14W SP  Spot SR  Semi-recessed 424  4 x 24W FL  Flood SF  Surface 170   1 x 70W M  Medium beam S   Suspended 150  1 x 150W AS  Asymetric SS  System Suspended MB  Mirrorbrite SSF   System Surface SB  Satinbrite DI  Direct/Indirect SDI  System Direct/Indirect

www.thornlighting.co.uk     05 Understanding  our  catalogue  numbers Notes:The logic set out below is followed as closely as possible for all Indoor/Outdoor Product ranges within the Thorn Lighting portfolio. As all ranges differ in scope the requirement for each element of the catalogue number is defined range by range, where some ranges require more fields than others.The examples above show for each element of the catalogue number how some of the most common product features are defined.In some instances the same abbreviation may be used for different features.  eg B = Black, B = Blue or MP = Microprism technology, MP = Microperforated.  This is not the case if both these features are common to the same product range and an extra letter may  be used to differentiate each version. LE R  128 Z  E  PR  W Range (eg.) Sub-range LED lumen output Gear Emergency Optic Colour Miscellaneous AQ   AquaForce E  Eco 2000  2000 lumens Z  High Frequency E  3hr standard emergency LV  Louvre W  White PB  Plasterboard version CH  Chalice S  Small 4000  4000 lumens D   DSI/DALI dimmable EX  3hr adressable emergency OP  Opal B  Black/Blue FIL  Filter LE  Leopard L   Large 6000   6000 lumens X  DALI dimmable EH  3hr high output emergency PR  Prismatic G  Grey/Green REF  Reflector JU  Jupiter Shape 14000  14000 lumens ZS   High Frequency + Sensor MP  Micro prism tech/perforated R  Red DIF  Diffuser MN  Menlo R  Round Lamp no + wattage DS   DSI/DALI dim + Sensor RK  Rack Y  Yellow 3K  3000K  S  Square 135   1 x 35W DC   DSI/DALI dim + Corridor Function WD  Wide 4K  4000K  Mounting option 249   2 x 49W NW  Narrow C  Connect version  R  Recessed 314   3 x 14W SP  Spot SR  Semi-recessed 424  4 x 24W FL  Flood SF  Surface 170   1 x 70W M  Medium beam S   Suspended 150  1 x 150W AS  Asymetric SS  System Suspended MB  Mirrorbrite SSF   System Surface SB  Satinbrite DI  Direct/Indirect SDI  System Direct/Indirect

06     www.thornlighting.co.uk Contents Recessed Surface Mounted Downlights Battens Waterproof Industrial 08 Omega LED 16 Diffusalux 24 Lightstream 2 32 PopPack LED 42 AquaForce II LED 10 Omega Pro 18 Punch II 26 Cetus LED 34 PopPack 44 AquaForce II 12 Omega 2 T5 ECO 20 College LED 28 Chalice 190 LED ECO 38 PopPack Pro 46 ImpactForce LED 14 IndiQuattro 22 College 30 D-CO LED Downlights 40 Arrowslim 48 CorrosionForce LED

www.thornlighting.co.uk     07 Contents Industrial Wall Mounted Emergency Exterior Street Lighting 50 HiPak Pro LED 58 Loire LED 66 Voyager Compact LED 74 Piazza II 82 D-CO LED Recessed 52 Hi-Rack 60 Danube LED 68 Voyager E LED 76 Chartor 84 Isaro LED 54 Leopard LED 62 Club LED 70 Voyager Twin Spot 78 D-CO LED Bollard 86 Isaro 56 Leopard 64 Novaline LED 72 Sonpak LX 80 D-CO LED Floodlight 88 Celest

08     www.thornlighting.co.uk Omega LED Recessed Indoor  Lighting LED edge lit panel, direct replacement for traditional T8 linear fluorescent with additional choice of installation method•   Only 40W total load, up to 55% energy saving vs fluorescent equivalents •   100Llm/W – exceeding building regulation requirements•   50 000 hours rated life, equivalent to 13 years at 10 hours per day operation •   Choice of 3000K warm white or 4000K cool white to suit application use •   Standard DALI dimming further increases energy savings•   Integral 3 hour emergency option reduces installation time and complexity   1197 12 297 300 597 300 597 12 300x300 300x1200 Installation Options Standards Omega LED 12m 12m 2.4m 2.4m Room height 2.8m Work Plane 0.75m Maintenance factor  0.8 Reflectances Ceiling: 80% Wall: 60% Floor: 20% Cat. No. OM3250Z4K Lamp  LED Lumens  3250 lm Lux 479 lux Materials and Finish•   Body: mild steel sheet, white (RAL9016)•   Diffuser: UV-stabilized, opal acrylic Installation and Mounting•   Recessed: lay in for most suspended T15/24 ceilings.•   300x300 suitable for pull up installations  (concealed & plasterboard ceilings). •   Surface: collar type – fixed to the ceiling with 4 screws via keyhole slots, product to be layed in. •   Suspended: suspended via adjustable wire suspension (1500mm), 4 fixing points to the ceiling, 300x300 is not suitable for suspension mounting.

www.thornlighting.co.uk     09 Indoor  Lighting Ordering Guide Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. OMEGA LED - 300x300 1000lm HF OMEGA LED 1000 HF L830 12.3 2.3 96602036 OM1000Z3K OMEGA LED 1000 HF L840 12.3 2.3 96602040 OM1000Z4K HF Emergency OMEGA LED 1000 HF E3 L830 12.3 3.8 96602038 OM1000ZE3K OMEGA LED 1000 HF E3 L840 12.3 3.8 96602042 OM1000ZE4K HF Dimming OMEGA LED 1000 HFIX L830 12.3 2.3 96602037 OM1000X3K OMEGA LED 1000 HFIX L840 12.3 2.3 96602041 OM1000X4K HF Dimming Emergency OMEGA LED 1000 HFIX E3 L830 12.3 3.8 96602039 OM1000XE3K OMEGA LED 1000 HFIX E3 L840 12.3 3.8 96602043 OM1000XE4K OMEGA LED - 600x600 3250lm HF OMEGA LED 3250 HF L830 597 32.0 5.0 96241575 OM3250Z3K OMEGA LED 3250 HF L840 597 32.0 5.0 96241576 OM3250Z4K HF Emergency OMEGA LED 3250 HF E3 L830 597 32.0 6.1 96241583 OM3250ZE3K OMEGA LED 3250 HF E3 L840 597 32.0 6.1 96241584 OM3250ZE4K HF Dimming OMEGA LED 3250 HFIX L830 597 32.0 5.0 96241579 OM3250X3K OMEGA LED 3250 HFIX L840 597 32.0 5.0 96241580 OM3250X4K HF Dimming Emergency OMEGA LED 3250 HFIX E3 L830 597 32.0 6.1 96241585 OM3250XE3K OMEGA LED 3250 HFIX E3 L840 597 32.0 6.1 96241586 OM3250XE4K OMEGA LED - 600x600 3900lm HF OMEGA LED 3900 HF L830 597 40.0 5.0 96627648 OM3900Z3K OMEGA LED 3900 HF L840 597 40.0 5.0 96627647 OM3900Z4K HF Emergency OMEGA LED 3900 HF E3 L830 597 40.0 6.1 96627640 OM3900ZE3K OMEGA LED 3900 HF E3 L840 597 40.0 6.1 96627639 OM3900ZE4K HF Dimming OMEGA LED 3900 HFIX L830 597 40.0 5.0 96627644 OM3900X3K OMEGA LED 3900 HFIX L840 597 40.0 5.0 96627643 OM3900X4K HF Dimming Emergency OMEGA LED 3900 HFIX E3 L830 597 40.0 6.1 96627638 OM3900XE3K OMEGA LED 3900 HFIX E3 L840 597 40.0 6.1 96627637 OM3900XE4K OMEGA LED - 300x1200 4000lm HF OMEGA LED 4000 HF L830 297x1197 44.4 4.6 96241587 OM4000Z3K OMEGA LED 4000 HF L840 297x1197 44.4 4.6 96241588 OM4000Z4K HF Emergency OMEGA LED 4000 HF E3 L830 297x1197 44.4 6.1 96241591 OM4000ZE3K OMEGA LED 4000 HF E3 L840 297x1197 44.4 6.1 96241592 OM4000ZE4K HF Dimming OMEGA LED 4000 HFIX L830 297x1197 44.4 4.6 96241589 OM4000X3K OMEGA LED 4000 HFIX L840 297x1197 44.4 4.6 96241590 OM4000X4K HF Dimming Emergency OMEGA LED 4000 HFIX E3 L830 297x1197 44.4 6.1 96241593 OM4000XE3K OMEGA LED 4000 HFIX E3 L840 297x1197 44.4 6.1 96241594 OM4000XE4K

10     www.thornlighting.co.uk Omega Pro Recessed Indoor  Lighting Glare controlled LED edge lit panel, direct replacement  for traditional T8 linear fluorescent for use in applications using VDU screens•   UGR 19•   Only 40W total load, up to 55% energy saving vs fluorescent equivalents •   100Llm/W – exceeding building regulation requirements •   50 000 hours rated life, equivalent to 13 years at 10 hours per day operation •   Choice of 3000K warm white or 4000K cool white to suit application use •   Standard DALI dimming further increases energy savings•   Integral 3 hour emergency option reduces installation time and complexity 605 605 92 597 597 12 Materials and Finish•   Body: mild steel sheet, white (RAL9016)•   Diffuser: UV-stabilized, opal acrylic Installation and Mounting•   Recessed: lay in for most suspended T15/24 ceilings. •   Surface: collar type – fixed to the ceiling with 4 screws via keyhole slots, product to be layed in. •   Suspended: suspended via adjustable wire suspension (1500mm), 4 fixing points to the ceiling. Installation Options Standards

www.thornlighting.co.uk     11 Indoor  Lighting Ordering Guide Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. OMEGA PRO HF OMEGA PRO 4100 HF Q597 LED840 41.0 5.6 96627254 OMP4100Z4K OMEGA PRO 4100 HF Q597 LED830 41.0 5.6 96627259 OMP4100Z3K OMEGA PRO 4100 HF Q597 MRM LED840 41.0 6.0 96637287 OMP4100Z4KM OMEGA PRO 4100 HF Q597 MRM LED830 41.0 6.0 96637292 OMP4100Z3KM HF  Emergency OMEGA PRO 4100 HF E3 Q597 LED840 41.0 7.2 96627258 OMP4100ZE4K OMEGA PRO 4100 HF E3 Q597 LED830 41.0 7.2 - OMP4100ZE3K OMEGA PRO 4100 HF E3 Q597 MRM LED840 41.0 7.6 96637291 OMP4100ZE4KM OMEGA PRO 4100 HF E3 Q597 MRM LED830 41.0 7.6 - OMP4100ZE3KM HF Dimming OMEGA PRO 4100 HFIX Q597 LED840 41.0 5.6 96627255 OMP4100D4K OMEGA PRO 4100 HFIX Q597 LED830 41.0 5.6 96627260 OMP4100D3K OMEGA PRO 4100 HFIX Q597 MRM LED840 41.0 6.0 96637288 OMP4100D4KM OMEGA PRO 4100 HFIX Q597 MRM LED830 41.0 6.0 96637293 OMP4100D3KM HF Dimming  Emergency OMEGA PRO 4100 HFIX E3 Q597 LED840 41.0 7.2 96637278 OMP4100DE4K OMEGA PRO 4100 HFIX E3 Q597 LED830 41.0 7.2 - OMP4100DE3K OMEGA PRO 4100 HFIX E3 Q597 MRM LED840 41.0 7.6 96637297 OMP4100DE4KM OMEGA PRO 4100 HFIX E3 Q597 MRM LED830 41.0 7.6 - OMP4100DE3KM

12     www.thornlighting.co.uk Omega 2 T5 ECO Recessed Indoor  Lighting Quick to install recessed modular luminaire with sensor options for greater energy savings•   Up to 70% energy savings possible with DALI and   sensor version •   Pre-fitted lamps and quick access terminal block   reduces the installation time •   75% LOR (UGR 19 at 3000 cd) allows lower number of fittings vs 4x18W T26 (T8) and reduced maintenance cost;  in line with EN12464-1 •   Supplied with protective film which can be easily   removed after the refurbishment is finished Quick access hatch 622 622 44 8 Materials and Finish•   Body: steel sheet, white (RAL9016)•   Louvre: highly reflective mirrorbrite aluminium Installation and Mounting•   Ceiling recessed: lay in only for most suspended   600x600 T15/24 ceilings. •   Lamps pre-fitted.•   Quick access hatch and protective film included. Installation Options Standards

www.thornlighting.co.uk     13 Indoor  Lighting Ordering Guide Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. OMEGA 2 T5 ECO HF OMEGA2 ECO 3x14 HF IS DMB L840 47.1 3.0 96241697 OME314ZMB OMEGA2 ECO 4x14 HF IS DMB L840 61.7 3.1 96241698 OME414ZMB HF Emergency OMEGA2 ECO 3x14 HF E3 IS DMB L840 47.1 3.1 96241703 OME314ZEMB OMEGA2 ECO 4x14 HF E3 IS DMB L840 61.7 3.2 96241704 OME414ZEMB HF Dimming OMEGA2 ECO 3x14 HFIX IS DMB L840 46.5 3.0 96241699 OME314XMB OMEGA2 ECO 4x14 HFIX IS DMB L840 60.5 3.1 96241700 OME414XMB HF Dimming Emergency OMEGA2 ECO 3x14 HFIX E3 IS DMB L840 46.5 3.1 96241705 OME314XEMB OMEGA2 ECO 4x14 HFIX E3 IS DMB L840 60.5 3.2 96241706 OME414XEMB ACCESSORIES SENSA SENRC - 0.1 96004175 S3IRHH Omega 2 T5 ECO Room height 2.8m Work Plane 0.75m Maintenance factor  0.8 Reflectances Ceiling: 80% Wall: 60% Floor: 20% Cat. No. OME414ZMB Lamp  T5 Lumens  3605 lm Lux 557 lux 12m 12m 2.4m 2.4m

14     www.thornlighting.co.uk IndiQuattro Recessed Indoor  Lighting 597 2xLV 597 574 493 71 574 71 597 296 597 1x LVR 597 574 493 71 574 71 597 210 A range of slim recessed fluorescent direct/indirect  luminaires providing efficient and well balanced task and ambient lighting•  Easy to install and maintain, even in shallow ceiling    voids, due to robust but slim 70 mm body with easily   removed and retained optics•   Fast access to terminal block via flap in rear of body•   High light output and efficacy 55 Llm/W, as well as luminance limit options below 1500 cd/m² or 3000 cd/m² •   The same great looking IndiQuattro louvre and diffuser optics and a shallow coffer for good architectural integration and ceiling brightness impression •   Supplied complete with lamp(s) Materials and Finish•   Body: white pre-painted steel (close to RAL 9010)•   Coffer: sheet steel, post painted textured white   (close to RAL 9010) •   Diffuser: micro-perforated white painted steel   or reeded opal acrylic •   Louvre: aluminium in Satinbrite finish with   micro-perforated white-painted steel sides Installation and Mounting•   Suitable for lay-in only into 15mm or 24mm   exposed tee grids. •   Luminaire is offered into the ceiling and simply   lays onto the ceiling grid, with easy electrical  connection via external access flap on rear of body.  •   Optics are easily removed and self-retained on   one side for ease of lamp access Indiquattro Room height 2.8m Work Plane 0.75m Maintenance factor  0.8 Reflectances Ceiling: 80% Wall: 60% Floor: 20% Cat. No. IQ155ZLV Lamp  CFL Lumens  2400 lm Lux 504 lux 12m 12m 2.4m 2.4m Installation Options Standards

www.thornlighting.co.uk     15 Indoor  Lighting Ordering Guide Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. INDIQUATTRO HF IQ 1x55W TC-L HF LV L840 57.0 3.7 96239769 IQ155ZLV IQ 2x24W T16 HF LV L840 49.0 3.7 96239767 IQ224ZLV IQ 2x40W TC-L HF LV L840 90.0 3.9 96239766 IQ240ZLV IQ 2x55W TC-L HF LV L840 97.0 3.9 96547374 IQ255ZLV IQ 4x14W T16 HF LV L840 63.0 3.9 96547375 IQ414ZLV HF  Emergency IQ 1x55W TC-L HF E3 LV L840 57.0 4.7 96547399 IQ155ZELV IQ 2x24W T16 HF E3 LV L840 49.0 4.5 96547411 IQ224ZELV IQ 2x40W TC-L HF E3 LV L840 90.0 4.8 96547400 IQ240ZELV IQ 2x55W TC-L HF E3 LV L840 97.0 4.9 96547410 IQ255ZELV IQ 4x14W T16 HF E3 LV L840 67.0 4.5 96547412 IQ414ZELV HF  Dimming IQ 1x55W TC-L HFI LV L840 60.0 4.8 96549971 IQ155DLV IQ 2x24W T16 HFI LV L840 49.5 4.8 96549980 IQ224DLV IQ 2x40W TC-L HFI LV L840 86.0 4.6 96549989 IQ240DLV IQ 2x55W TC-L HFI LV L840 117.0 4.3 96550004 IQ255DLV IQ 4x14W T16 HFIX LV L840 60.5 4.7 96549998 IQ414XLV HF Dimming Emergency IQ 1x55W TC-L HFI E3 LV L840 60.0 5.2 96549967 IQ155DELV IQ 2x24W T16 HFI E3 LV L840 49.5 5.4 96549976 IQ224DELV IQ 2x40W TC-L HFI E3 LV L840 86.0 3.9 96549985 IQ240DELV IQ 2x55W TC-L HFI E3 LV L840 117.0 5.2 96550005 IQ255DELV IQ 4x14W T16 HFIX E3 LV L840 60.5 5.2 96550001 IQ414XELV Micro-perforated and reed opal diffuser versions available. Visit www.thornlighting.co.uk/INDQ for more information

16     www.thornlighting.co.uk Diffusalux Surface Mounted Indoor  Lighting A range of curved profile linear fluorescent luminaires with clear or opal diffusers for surface or suspended mounting•   Light control is enhanced through curved shape   prism diffuser •   Surface, suspended or conduit mounting possible•   All versions balanced•   Supplied complete with lamp(s) Materials and Finish•   Body: white pre-painted steel•   End caps: polycarbonate•   Diffuser: precision extruded clear prismatic or opal styrene (polycarbonate for emergency versions) Installation and Mounting•   Cable entry holes (Ø21.5mm) in the centre of the   back spine.  •   Optional cable entry through each end cap.•   Fitting supplied with end cap sealing grommets   and ‘quick fix’ horseshoe sliding washers for direct  screw fixing to surface. •   5 x 2 x 2.5mm² piano key terminal block suitable   for easy and quick looping.  •   Standard BESA fixings included. 90 217 49W   1425mm  58W  1500mm  49W   1520mm  58W  1571mm  600 T5 (T16) + T8 (T26) Diffusalux 10m 8m 2.4m 3m Room height 3.0m Work Plane 0.75m Maintenance factor  0.8 Reflectances Ceiling: 80% Wall: 60% Floor: 20% Cat. No. DF149ZCL Lamp  T5 Lumens  4075 lm Lux 336 lux Installation Options Standards

www.thornlighting.co.uk     17 Indoor  Lighting Ordering Guide Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. DIFFUSALUX HF DIFFUSALUX 1x28W HF PS CL L840 30.6 3.4 96535877 DF128ZCL DIFFUSALUX 1x35W HF PS CL L840 37.6 4.2 96535879 DF135ZCL DIFFUSALUX 1x49W HF PS CL L840 52.3 4.6 96535883 DF149ZCL DIFFUSALUX 2x28W HF PS CL L840 61.2 3.6 96535889 DF228ZCL DIFFUSALUX 2x35W HF PS CL L840 75.5 4.4 96535891 DF235ZCL DIFFUSALUX 2x49W HF PS CL L840 106.6 4.6 96535895 DF249ZCL HF  Emergency DIFFUSALUX 1x35W HF PC CL E3 L840 37.8 6.1 96535901 DF135ZECL DIFFUSALUX 1x49W HF PC CL E3 L840 52.2 6.1 96535904 DF149ZECL DIFFUSALUX 2x35W HF PC CL E3 L840 76.0 6.4 96535909 DF235ZECL DIFFUSALUX 2x49W HF PC CL E3 L840 106.0 6.4 96535912 DF249ZECL HF Dimming DIFFUSALUX 1x35W HFI PS CL L840 - 4.2 96241140 DF135DCL DIFFUSALUX 1x49W HFI PS CL L840 - 4.6 96241142 DF149DCL DIFFUSALUX 2x35W HFI PS CL LI840 74.5 4.4 96241141 DF235DCL DIFFUSALUX 2x49W HFI PS CL L840 106.0 4.6 96549151 DF249DCL HF Dimming Emergency DIFFUSALUX 1x35W HFI PC CL E3 L840 - 6.1 96241143 DF135DECL DIFFUSALUX 1x49W HFI PC CL E3 L840 - 6.1 96241145 DF149DECL DIFFUSALUX 2x35W HFI PC CL E3 L840 - 6.4 96241144 DF235DECL DIFFUSALUX 2x49W HFI PC CL E3 L840 - 6.4 96241146 DF249DECL ACCESSORIES Lock-Set (2 pce) - 0.0 96004393 LKSET2 WIRE SUSPENSION KIT 1,5M - 0.2 96204619 WSPK1500 Opal diffuser versions available. Visit www.thornlighting.co.uk/DFX2 for more information

18     www.thornlighting.co.uk Punch II Surface Mounted Indoor  Lighting A range of surface mounted or suspended luminaires, combining T16 (T5) direct lighting with louvres for high  light output•   Smooth, rounded body design gives unobtrusive appearance •   Excellent optical performance with LOR up to 74%•   Surface luminaires can also be suspended for   suspended direct illumination •   Supplied complete with lamp(s) Materials and Finish•   Body: sheet steel painted white (close to RAL9010)•   End cap: moulded in white polycarbonate•   Louvres: aluminium anodised. Installation and Mounting•   Electrical installation via piano-key terminal blocks,   two cable entry points at centre of fitting. •   Hinged louvre for ease of lamp replacement. •   Surface versions mounted with spacers via keyholes   and C-washers. Single/twin surface and DI versions  can be suspended via optional wire suspension kits  (to be ordered separately), close offset rod or  pendant rod kits.  •   Continuous line mounting of luminaires via   optional connect kit. •   BESA accessory kit available. 69 169 28W: 1320 -  35W: 1620 28W: 1110 -  35W: 1410 600 69 255 69 400 640 640 385 Installation Options Standards

www.thornlighting.co.uk     19 Indoor  Lighting Satinbrite louvre versions available. Visit www.thornlighting.co.uk/PNC5 for more information Ordering Guide Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. PUNCH II – SURFACE MOUNTED HF PUNCH II 1x28W T16 HF DMB L840 31.0 3.4 96536190 PU128ZMB PUNCH II 1x35W T16 HF DMB L840 39.0 4.6 96536195 PU135ZMB PUNCH II 1x49W T16 HF DMB L840 53.0 4.1 96547358 PU149ZMB PUNCH II 2x28W T16 HF DMB L840 61.0 4.8 96536221 PU228ZMB PUNCH II 2x35W T16 HF DMB L840 77.0 6.3 96536229 PU235ZMB PUNCH II 2x49W T16 HF DMB L840 107.0 5.5 96547362 PU249ZMB PUNCH II 4x14W T16 HF DMB L840 63.0 4.5 96536262 PU414ZMB HF  Emergency PUNCH II 1x28W T16 HF DMB E3 L840 35.9 4.4 96536191 PU128ZEMB PUNCH II 1x35W T16 HF DMB E3 L840 44.5 5.6 96536196 PU135ZEMB PUNCH II 1x49W T16 HF DMB E3 L840 58.2 5.1 96547359 PU149ZEMB PUNCH II 2x28W T16 HF DMB E3 L840 66.5 5.8 96536222 PU228ZEMB PUNCH II 2x35W T16 HF DMB E3 L840 84.4 7.3 96536230 PU235ZEMB PUNCH II 2x49W T16 HF DMB E3 L840 112.0 6.5 96547363 PU249ZEMB PUNCH II 4x14W T16 HF DMB E3 L840 62.0 5.6 96536263 PU414ZEMB HF Dimming PUNCH II 2x28W T16 HFI DMB L840 60.5 12.8 96549846 PU228DMB PUNCH II 2x35W T16 HFI DMB L840 74.5 4.8 96549860 PU235DMB PUNCH II 2x49W T16 HFI DMB L840 105.5 8.5 96549870 PU249DMB PUNCH II 4x14W T16 HFIX DMB L840 60.5 6.3 96549894 PU414XMB HF Dimming Emergency PUNCH II 2x28W T16 HFI DMB E3 L840 60.5 12.5 96549845 PU228DEMB PUNCH II 2x35W T16 HFI DMB E3 L840 74.5 8.5 96549859 PU235DEMB PUNCH II 2x49W T16 HFI DMB E3 L840 106.0 8.5 96549869 PU249DEMB PUNCH II 4x14W T16 HFIX DMB E3 L840 60.5 5.5 96549895 PU414XEMB PUNCH II – SUSPENDED HF PUNCH II DI 1x28W T16 HF DMB LI840 31.0 3.4 96547368 PUDI128ZMB PUNCH II DI 1x35W T16 HF DMB LI840 39.0 4.6 96547369 PUDI135ZMB PUNCH II DI 1x49W T16 HF DMB LI840 53.0 4.6 96547370 PUDI149ZMB PUNCH II DI 2x28W T16 HF DMB LI840 61.0 4.8 96547371 PUDI228ZMB PUNCH II DI 2x35W T16 HF DMB LI840 77.0 6.3 96547372 PUDI235ZMB PUNCH II DI 2x49W T16 HF DMB LI840 107.0 6.3 96547373 PUDI249ZMB HF  Emergency PUNCH II DI 1x35W T16 HF DMB E3 LI840 44.5 5.6 96547381 PUDI135ZEMB PUNCH II DI 1x49W T16 HF DMB E3 LI840 58.2 5.6 96547382 PUDI149ZEMB PUNCH II DI 2x28W T16 HF DMB E3 LI840 66.5 5.8 96547383 PUDI228ZEMB PUNCH II DI 2x35W T16 HF DMB E3 LI840 84.4 7.3 96547384 PUDI235ZEMB PUNCH II DI 2x49W T16 HF DMB E3 LI840 112.0 7.3 96547385 PUDI249ZEMB HF Dimming PUNCH II DI 2x28W T16 HFI DMB LI840 60.5 8.2 96549852 PUDI228DMB PUNCH II DI 2x35W T16 HFI DMB LI840 74.5 8.3 96549866 PUDI235DMB PUNCH II DI 2x49W T16 HFI DMB LI840 105.5 8.5 96549875 PUDI249DMB HF Dimming Emergency PUNCH II DI 2x28W T16 HFI DMB E3 LI840 60.5 6.1 96549851 PUDI228DEMB PUNCH II DI 2x35W T16 HFI DMB E3 LI840 74.5 8.3 96549865 PUDI235DEMB PUNCH II DI 2x49W T16 HFI DMB E3 LI840 106.0 8.5 96549874 PUDI249DEMB Punch II 10m 8m 3m 3m Room height 3.0m Work Plane 0.75m Maintenance factor  0.8 Reflectances Ceiling: 80% Wall: 60% Floor: 20% Cat. No. PU235ZMB Lamp  T5 Lumens  4891 lm Lux 483 lux

20     www.thornlighting.co.uk College LED Surface Mounted Indoor  Lighting 90 217 600 1450 A range of curved profile LED luminaires with clear  prismatic diffusers for surface or suspended mounting•   Clear prismatic diffuser in tough polycarbonate for specific light control and impact resistance •   Rigidly fixed diffuser held in place by screwed on polycarbonate end caps for improved diffuser security and vandal/impact resistance •   Sealed to IP44•   80Llm/W – exceeding building regulation requirements•   50 000 hours rated life•   Integral 3 hour emergency option reduces installation time and complexity Materials and Finish•   Body and gear tray: white galvanised pre-painted steel.•   End caps: polycarbonate•   Diffuser: precision extruded clear prismatic polycarbonate Installation and Mounting•   Two cable entry holes (Ø21.5mm) in the centre of   the back spine.  •   Optional cable entry through each end cap. •   Fitting supplied with sealing grommets and ‘quick-fix’ horseshoe sliding washers for direct screw fixing  to surface.  •   Standard BESA fixings. •   5 x 2 x 2.5mm² piano key terminal block   supplied for easy and quick looping.  •   5 x 2 x 2.5mm² + 3 x 2 x 2.5mm² piano key   terminal block for dimmable emergency versions. Installation Options Standards

www.thornlighting.co.uk     21 Indoor  Lighting Ordering Guide Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. COLLEGE LED HF COLLEGE LED 2900 HF PC CL L840 34.8 4.7 96241614 CO2900ZCL COLLEGE LED 4650 HF PC CL L840 61.4 4.6 96241610 CO4650ZCL HF  Emergency COLLEGE LED 2900 HF E3 PC CL L840 34.8 5.2 96241615 CO2900ZECL COLLEGE LED 4650 HF E3 PC CL L840 61.4 5.1 96241611 CO4650ZECL HF Dimming COLLEGE LED 2900 HFIX PC CL L840 36.3 4.8 96241616 CO2900XCL COLLEGE LED 4650 HFIX PC CL L840 63.0 4.8 96241612 CO4650XCL HF Dimming Emergency COLLEGE LED 2900 HFIX E3 PC CL L840 36.3 5.3 96241617 CO2900XECL COLLEGE LED 4650 HFIX E3 PC CL L840 63.0 5.3 96241613 CO4650XECL College LED 10m 8m 3m 3m Room height 3.0m Work Plane 0.75m Maintenance factor  0.8 Reflectances Ceiling: 80% Wall: 60% Floor: 20% Cat. No. CO4650ZCL Lamp  LED Lumens  4650 lm Lux 310 lux

22     www.thornlighting.co.uk College Surface Mounted Indoor  Lighting A range of curved profile linear fluorescent luminaires with clear prismatic diffusers for surface or suspended mounting•   Clear prismatic diffuser in tough polycarbonate for specific light control and impact resistance •   Rigidly fixed diffuser held in place by screwed on polycarbonate end caps for improved diffuser security and vandal/impact resistance •   Sealed to IP44•   Easy to remove and replace gear cover protects components •   Supplied complete with lamp(s) Materials and Finish•   Body and gear tray: white galvanised pre-painted steel.•   End caps: polycarbonate•   Diffuser: precision extruded clear prismatic polycarbonate Installation and Mounting•   Two cable entry holes (Ø21.5mm) in the centre of the back spine.  •   Optional cable entry through each end cap. •   Fitting supplied with sealing grommets and ‘quick-fix’ horseshoe sliding washers for direct screw fixing  to surface. •   Standard BESA fixings. •   T5 x 2 x 2.5mm² piano key terminal block   supplied for easy and quick looping.  •   T5 x 2 x 2.5mm² + 3 x 2 x 2.5mm² piano key   terminal block for dimmable emergency versions. College 10m 8m 2.4m 3m Room height 3.0m Work Plane 0.75m Maintenance factor  0.8 Reflectances Ceiling: 80% Wall: 60% Floor: 20% Cat. No. CO149ZCL Lamp  T5 Lumens  3049 lm Lux 336 lux Installation Options Standards 90 217 600 1450

www.thornlighting.co.uk     23 Indoor  Lighting Ordering Guide Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. COLLEGE HF COLLEGE 1x28W HF PC CL L840 30.6 4.0 96535821 CO128ZCL COLLEGE 1x35W HF PC CL L840 37.6 4.3 96535822 CO135ZCL COLLEGE 1x49W HF PC CL L840 52.3 4.5 96535824 CO149ZCL COLLEGE 2x28W HF PC CL L840 61.2 4.2 96535826 CO228ZCL COLLEGE 2x35W HF PC CL L840 75.5 4.3 96535828 CO235ZCL COLLEGE 2x49W HF PC CL L840 106.6 4.3 96535830 CO249ZCL HF  Emergency COLLEGE 1x28W HF E3 PC CL L840 30.4 5.7 96535866 CO128ZECL COLLEGE 1x35W HF E3 PC CL L840 37.8 5.8 96535867 CO135ZECL COLLEGE 1x49W HF E3 PC CL L840 52.2 5.8 96535869 CO149ZECL COLLEGE 2x28W HF E3 PC CL L840 60.2 6.0 96535871 CO228ZECL COLLEGE 2x35W HF E3 PC CL L840 76.0 6.5 96535873 CO235ZECL COLLEGE 2x49W HF E3 PC CL L840 106.0 7.1 96535875 CO249ZECL HF Dimming COLLEGE 1x35W HFI PC CL L840 39.0 4.2 96549136 CO135DCL COLLEGE 1x49W HFI PC CL L840 53.0 5.2 96549141 CO149DCL COLLEGE 2x28W HFI PC CL L840 60.5 4.3 96549145 CO228DCL COLLEGE 2x35W HFI PC CL L840 74.5 4.3 96549150 CO235DCL COLLEGE 2x49W HFI PC CL L840 105.5 5.4 96549132 CO249DCL HF Dimming Emergency COLLEGE 1x35W HFI E3 PC CL L840 39.0 5.8 96549135 CO135DECL COLLEGE 1x49W HFI E3 PC CL L840 53.0 5.8 96549140 CO149DECL COLLEGE 2x28W HFI E3 PC CL L840 60.5 4.1 96549144 CO228DECL COLLEGE 2x35W HFI E3 PC CL L840 74.5 5.5 96549149 CO235DECL COLLEGE 2x49W HFI E3 PC CL L840 106.0 7.1 96549131 CO249DECL

24     www.thornlighting.co.uk Lightstream 2 Downlights Indoor  Lighting Multi-purpose, high efficiency, fire rated downlight range, delivers quick payback and peace of mind•   Competitive multi-purpose downlight with a one year payback (vs 50W halogen), ideal for lighting homes and public buildings •   5W and 8W dimmable LED lamp options, available in three different finishes and an IP65 version for bathrooms •   Designed for safety and peace of mind with fire rated fittings and compliance with the UK building regulations part B, C, E, L and P •   Supplied complete with LED lamp Materials and Finish•   Housing: rolled sheet steel, perforated on top•   Gasket: silicon•   Retaining springs: stainless steel•   Intumescent material: carbon polymer compound•   Bezels: white, satin nickel or chrome available Installation and Mounting•   Suitable for recessed ceiling mounting, ceiling thickness must not exceed 35mm. Adequate free air circulation of at least 50mm around the luminaire has to be ensured.  •   Cut-out diameters:  •   Fire hood IP65 – 72mm  •   Fire hood IP20 – 75mm  •   IP20 adjustable – 80mm  •   IP20 deep recessed – 75mm Installation Options Standards

www.thornlighting.co.uk     25 Indoor  Lighting Ordering Guide Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. LIGHTSTREAM 2 – IP20 Dimmable, with fire hood LS2 FH 8W LED PAR16 IP20 CHR 830 8.5 0.4 96547953 LSF400CH30 LS2 FH 8W LED PAR16 IP20 CHR 840 8.5 0.4 96547954 LSF400CH42 LS2 FH 8W LED PAR16 IP20 SN 830 8.5 0.4 96547951 LSF400SN30 LS2 FH 8W LED PAR16 IP20 SN 840 8.5 0.4 96547952 LSF400SN42 LS2 FH 8W LED PAR16 IP20 WHI 830 8.5 0.4 96547949 LSF400W30 LS2 FH 8W LED PAR16 IP20 WHI 840 8.5 0.4 96547950 LSF400W42 LS2 FH 5W DIM LED MR16 IP20 CHR 827 4.8 0.4 96547981 LSF230CH27 LS2 FH 5W DIM LED MR16 IP20 SN 827 4.8 0.4 96547979 LSF230SN27 LS2 FH 5W DIM LED MR16 IP20 WHI 827 4.8 0.4 96547977 LSF230W27 Dimmable, adjustable 0-30° LS2 8W LED PAR16 IP20 CHR 830 0-30° 8.5 0.3 96547969 LSA400CH30 LS2 8W LED PAR16 IP20 SN 830 0-30° 8.5 0.3 96547967 LSA400SN30 LS2 8W LED PAR16 IP20 WHI 830 0-30 8.5 0.3 96547965 LSA400W30 LS2 8W LED PAR16 IP20 WHI 840 0-30° 8.5 0.3 96547966 LSA400W42 LS2 5W DIM LED MR16 IP20 CHR 827 0-30 4.8 0.3 96240112 LSA230CH27 LS2 5W DIM LED MR16 IP20 SN 827 0-30 4.8 0.3 96240110 LSA230SN27 LS2 5W DIM LED MR16 IP20 WHI 827 0-30 4.8 0.3 96240108 LSA230W27 Dimmable, deep recessed, adjustable 0-20° LS2 8W LED PAR16 IP20 DR CHR 830 0-20° 8.5 0.3 96547975 LSD400CH30 LS2 8W LED PAR16 IP20 DR SN 830 0-20° 8.5 0.3 96547973 LSD400SN30 LS2 8W LED PAR16 IP20 DR WHI 830 0-20 8.5 0.3 96547971 LSD400W30 LS2 8W LED PAR16 IP20 DR WHI 840 0-20° 8.5 0.3 96547972 LSD400W42 LS2 5W DIM LED MR16 IP20 DR CHR 827 0-20 4.8 0.3 96240118 LSD230CH27 LS2 5W DIM LED MR16 IP20 DR SN 827 0-20 4.8 0.3 96240116 LSD230SN27 LS2 5W DIM LED MR16 IP20 DR WHI 827 0-20 4.8 0.3 96240114 LSD230W27 LIGHTSTREAM 2 – IP65 Dimmable, with fire hood LS2 FH 8W LED PAR16 IP65 CHR 830 8.5 0.5 96547959 LS65F400CH30 LS2 FH 8W LED PAR16 IP65 CHR 840 8.5 0.5 96547960 LS65F400CH42 LS2 FH 8W LED PAR16 IP65 SN 830 8.5 0.5 96547957 LS65F400SN30 LS2 FH 8W LED PAR16 IP65 SN 840 8.5 0.5 96547958 LS65F400SN42 LS2 FH 8W LED PAR16 IP65 WHI 830 8.5 0.5 96547955 LS65F400W30 LS2 FH 8W LED PAR16 IP65 WHI 840 8.5 0.5 96547956 LS65F400W42 LS2 FH 5W DIM LED MR16 IP65 CHR 827 4.8 0.4 96547987 LS65F230CH27 LS2 FH 5W DIM LED MR16 IP65 SN 827 4.8 0.4 96547985 LS65F230SN27 LS2 FH 5W DIM LED MR16 IP65 WHI 827 4.8 0.4 96547983 LS65F230W27 ACCESSORIES LS2 FIRE HOOD ADJ/DR 30/60 MIN - 1.0 96240080 LS2HOOD

26     www.thornlighting.co.uk Cetus LED Downlights Indoor  Lighting Recessed LED downlight with low height, direct replacement for traditional 1x26W or 2x26W compact fluorescent downlights•   Direct replacement for traditional 1x26W or 2x26W compact fluorescent downlights with up to 65%  energy saving •   Only 88mm overall height to allow installation into low and restricted ceiling voids •   Sealed to IP44 as standard, suitable for use in bathrooms without the need for separate attachments •   50 000 hours rated life•   Integral 3 hour emergency option reduces installation time and complexity Materials and Finish•   Housing/body: aluminium, powder coated white   RAL 9016 •   Reflector: powder coated white RAL 9016 Installation and Mounting•   Tool free installation direct out of box•   Suitable for a wide range of ceiling types and   depths from 1-40mm thickness •   Overall height of 88mm allows installation into   low and restricted ceiling voids. •   Remote driver for quick and easy installation and   maintenance. •   Cut out diameter = 190mm Ø190mm (200mm Maximum) 215 88 100x50 30 CETUS LED 1000LM Ø190mm (200mm Maximum) 215 88 145x50 30 CETUS LED 2000LM Installation Options Standards

www.thornlighting.co.uk     27 Indoor  Lighting Ordering Guide Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. CETUS LED HF CETUS LED 1000 HF 830 12.8 0.7 96242095 CU1000Z3K CETUS LED 1000 HF 840 12.8 0.7 96242096 CU1000Z4K CETUS LED 2000 HF 830 24.6 0.7 96242097 CU2000Z3K CETUS LED 2000 HF 840 24.6 0.7 96242098 CU2000Z4K HF  Emergency CETUS LED 1000 HF E3 830 12.8 1.8 96242209 CU1000ZE3K CETUS LED 1000 HF E3 840 12.8 1.8 96242099 CU1000ZE4K CETUS LED 2000 HF E3 830 24.6 1.8 96242210 CU2000ZE3K CETUS LED 2000 HF E3 840 24.6 1.8 96242100 CU2000ZE4K Cetus LED Room height 2.7m Work Plane 0m Maintenance factor  0.8 Reflectances Ceiling: 80% Wall: 60% Floor: 20% Cat. No. CU2000Z4K Lamp  LED Lumens  2000 lm Lux 216 lux 15m 2.5m 2.4m

28     www.thornlighting.co.uk Chalice 190 LED ECO Downlights Indoor  Lighting Professional LED downlight for direct replacement for conventional CFL downlights up to 2x32W•   Up to 70% energy reduction vs CFL downlights, reducing the energy bill. Further savings can be achieved via the DALI dimmable version in combination with remote presence daylight sensors •   Ideal refurbishment solution with the same standard Chalice cut-out diameter (190mm) plus accessories for easy replacement and reduced installation time •   Tuneable white option (2700-6500K) to allow lighting adjustments to create atmosphere and ambience Materials and Finish•   Body: Polycarbonate, black•   Mounting clips: Stainless steel; tuneable – Polycarbonate•   Bezel and frame: Polycarbonate, white (RAL9016)•   Reflector: Satinbrite Polycarbonate•   Module support: white painted steel sheet•   Heat sink: aluminium, black Installation and Mounting•   Stainless steel wings / adjustable black clips   for ceiling thicknesses of 5-40 mm. •   No tools required.•   Cut-out diameter 190mm 205 174 190mm Tuneable/Twist white 205 190 150 1000/2000 lm 140 3000lm ECO version Chalice LED Eco Room height 2.7m Work Plane 0m Maintenance factor  0.8 Reflectances Ceiling: 80% Wall: 60% Floor: 20% Cat. No. CHE2000Z4K Lamp  LED Lumens  2000 lm Lux 235 lux 15m 2.5m 2.4m Installation Options Standards

www.thornlighting.co.uk     29 Ordering Guide Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. CHALICE 190 LED ECO HF CHALICE 190H LED ECO 1000 HF L830 13.2 1.0 96241516 CHE1000Z3K CHALICE 190H LED ECO 1000 HF L840 13.2 1.0 96241517 CHE1000Z4K CHALICE 190H LED ECO 2000 HF L830 25.0 1.0 96241520 CHE2000Z3K CHALICE 190H LED ECO 2000 HF L840 25.0 1.0 96241521 CHE2000Z4K CHALICE 190H LED ECO 3000 HF L830 36.0 1.5 96241526 CHE3000Z3K CHALICE 190H LED ECO 3000 HF L840 33.0 1.5 96241527 CHE3000Z4K HF  Emergency CHALICE 190H LED ECO 1000 HF E3 L830 13.2 1.9 96241530 CHE1000ZE3K CHALICE 190H LED ECO 1000 HF E3 L840 13.2 1.9 96241531 CHE1000ZE4K CHALICE 190H LED ECO 2000 HF E3 L830 25.0 1.9 96241534 CHE2000ZE3K CHALICE 190H LED ECO 2000 HF E3 L840 25.0 1.9 96241535 CHE2000ZE4K CHALICE 190H LED ECO 3000 HF E3 L830 36.0 2.4 96241538 CHE3000ZE3K CHALICE 190H LED ECO 3000 HF E3 L840 33.0 2.4 96241539 CHE3000ZE4K HF Dimming CHALICE 190H LED ECO 1000 HFI-X L830 13.2 1.0 96241518 CHE1000X3K CHALICE 190H LED ECO 1000 HFI-X L840 13.2 1.0 96241519 CHE1000X4K CHALICE 190H LED ECO 2000 HFI-X L830 25.0 1.0 96241522 CHE2000X3K CHALICE 190H LED ECO 2000 HFI-X L840 25.0 1.0 96241524 CHE2000X4K CHALICE 190H LED ECO 3000 HFI-X L830 36.0 1.6 96241528 CHE3000X3K CHALICE 190H LED ECO 3000 HFI-X L840 33.0 1.6 96241529 CHE3000X4K HF Dimming Emergency CHALICE 190H LED ECO 1000 HFI-X E3 L830 13.2 1.9 96241532 CHE1000XE3K CHALICE 190H LED ECO 1000 HFI-X E3 L840 13.2 1.9 96241533 CHE1000XE4K CHALICE 190H LED ECO 2000 HFI-X E3 L830 25.0 1.9 96241536 CHE2000XE3K CHALICE 190H LED ECO 2000 HFI-X E3 L840 25.0 1.9 96241537 CHE2000XE4K CHALICE 190H LED ECO 3000 HFI-X E3 L830 36.0 2.5 96241540 CHE3000XE3K CHALICE 190H LED ECO 3000 HFI-X E3 L840 33.0 2.5 96241541 CHE3000XE4K Tunable White CHALICE 190H LED 800 HFI CL2 L927-65 14.8 1.5 96241419 CH800D927-65 CHALICE 190H LED 1800 HFI CL2 L927-65 27.1 2.1 96241420 CH1800D927-65 Indoor  Lighting

30     www.thornlighting.co.uk D-CO LED Downlights Downlights Indoor  Lighting A range of stylish, high performance and long lasting  LED downlights•   High quality and stylish body and LED energy efficiency advantages allows use of the product in different applications, from simple halogen replacement to  accent lighting •   “Fit and forget” installation (50 000 hrs at 70% of luminous flux remaining) with plug and socket for quick and tool free connection •   KIT versions available – pre-wired fittings with driver, ready to install straight from the box •   Choice of colour temperatures (3000/4000K),   cool beam, no IR/UV radiation Materials and Finish•   Housing: aluminium, painted titan-grey or white•   Cables: halogen free Installation and Mounting•   Fixed to ceiling with an easily handled feather spring   (one hand grip) •   Electrical connection by plug and socket for easy and   quick installation 24 Ø28 17 2 27 35 35 Ø40 Ø30 D-CO LED 1x1,2W Ø26 60 77 80 36 Ø76 Ø96 Ø72 Ø57 D-CO LED 3x3W Ø80 32 25 D-CO LED 6x1,2W 63 90 98 Ø90 Installation Options Standards

www.thornlighting.co.uk     31 Ordering Guide Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. D-CO LED DOWNLIGHTS 1.2W Mini D-CO LED MINI DL 1x1,2W 3K 20° 350mA GRY 1.2 0.1 96107427 DCM50ASPG3K D-CO LED MINI DL 1x1,2W 4K 20° 350mA GRY 1.2 0.1 96107428 DCM50ASPG4K D-CO LED MINI DL 5/1x1,2W 3K20° 230V KIT 6.0 0.3 96107429 DCM260VSP3KKIT D-CO LED MINI DL 5/1x1,2W 4K20° 230V KIT 6.0 0.3 96107430 DCFK204K 3 x 1.2W D-CO LED DL 3/3x1,2W 3K 24° 230V KIT GRY 3.6 0.5 96107438 DCD540VFLG3KKIT D-CO LED DL 3/3x1,2W 3K 35° 230V KIT GRY 3.6 0.5 96107439 DCD540VMG3KKIT D-CO LED DL 3/3x1,2W 4K 24° 230V KIT GRY 3.6 0.5 96107441 DCD540VFLG4KKIT D-CO LED DL 3/3x1,2W 4K 35° 230V KIT GRY 3.6 0.5 96107442 DCD540VMG4KKIT D-CO LED DL 3x1,2W 3K 24° 350mA GRY 3.6 0.1 96107432 DCD180AFLG3K D-CO LED DL 3x1,2W 3K 35° 350mA GRY 3.6 0.1 96107433 DCD180AMG3K D-CO LED DL 3x1,2W 4K 24° 350mA GRY 3.6 0.1 96107435 DCD180AFLG4K D-CO LED DL 3x1,2W 4K 35° 350mA GRY 3.6 0.1 96107436 DCD180AMG4K 3 x 3W D-CO LED DL 3x3W 3K 60° 230V GRY 11.0 0.3 96107861 DCD210VWDG3K D-CO LED DL 3x3W 4K 60° 230V GRY 11.0 0.3 96107862 DCD210VWDG4K 6 x 1.2W D-CO LED DL 6x1,2W 3K 24° 230V GRY 9.7 0.3 96107444 DCD310VFLG3K D-CO LED DL 6x1,2W 3K 35° 230V GRY 9.7 0.3 96107445 DCD310VMG3K D-CO LED DL 6x1,2W 4K 24° 230V GRY 9.7 0.3 96107447 DCD310VFLG4K D-CO LED DL 6x1,2W 4K 35° 230V GRY 9.7 0.3 96107448 DCD310VMG4K 6 x 1.2W  Gyro D-CO LED DL 6x1,2W GYRO 3K 24° 230V GRY 9.7 0.3 96107450 DCG310VFLG3K D-CO LED DL 6x1,2W GYRO 3K 24° 350mA GRY 7.2 0.3 96108381 DCG310AFLG3K D-CO LED DL 6x1,2W GYRO 3K 35° 230V GRY 9.7 0.3 96107451 DCG310VMG3K D-CO LED DL 6x1,2W GYRO 3K 35° 350mA GRY 7.2 0.3 96108383 DCG310AMG3K D-CO LED DL 6x1,2W GYRO 4K 24° 230V GRY 9.7 0.3 96107453 DCG310VFLG4K D-CO LED DL 6x1,2W GYRO 4K 24° 350mA GRY 7.2 0.3 96108382 DCG310AFLG4K D-CO LED DL 6x1,2W GYRO 4K 35° 230V GRY 9.7 0.3 96107454 DCG310VMG4K D-CO LED DL 6x1,2W GYRO 4K 35° 350mA GRY 7.2 0.3 96108384 DCG310AMG4K 6 x 3W D-CO LED DL 6x3W 3K 35° 230V HP GRY 18.0 0.6 96108377 DCD730VMG3K D-CO LED DL 6x3W 3K 35° 700mA HP GRY 18.0 0.4 96108373 DCD730AMG3K D-CO LED DL 6x3W 4K 35° 230V HP GRY 18.0 0.6 96108378 DCD730VMG4K D-CO LED DL 6x3W 4K 35° 700mA HP GRY 18.0 0.4 96108374 DCD730AMG4K Indoor  Lighting Ø120 105 36 3 56 12 D-CO LED 6x1,2W Gyro Ø105 Ø98 103 31 67 Ø95 84 3 85 15 68 42 D-CO LED 3x1,2W Ø75 3

32     www.thornlighting.co.uk PopPack LED Battens Indoor  Lighting The original PopPack batten with integrated LED technology for ultra-low energy consumption and ideal upgrade for existing PopPack installations•   Up to 67% energy reduction vs traditional switch start   T8 battens. Direct replacement for 1x36W, 1x58W & 2x58W T8 •   Further savings can be achieved via the DALI dimmable options •   100Llm/W – exceeding building regulation requirements•   50 000 hour rated life•   Integral 3 hour emergency option reduces installation time and complexity Materials and Finish•   Batten: pre-coated roll form steel, white (RAL9016)•   End caps/lamp holders: injection moulded   polycarbonate, white •   Diffuser: textured opal acrylic Installation and Mounting•   Direct ceiling mount via central BESA box mounting   •   Through-wiring possible through central cable   entry/exit or via knock out holes in the end caps   •   4/6 way terminal block with capacity for loop in   stroke out of 2.5mm 2  cables •   Fixation of spine to ceiling, then connect via   tool less plug & play connector the light engine  and snap it onto the spine   60 1168 - 3000Lm/4500Lm 1728 - 6500Lm 74 825600 Installation Options Standards

www.thornlighting.co.uk     33 Ordering Guide Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. POPPACK LED HF POPPACK BATTEN LED 3000 HF 840 28.0 1.2 96242241 PP3000Z POPPACK BATTEN LED 4500 HF 840 41.0 1.2 96242245 PP4500Z POPPACK BATTEN LED 6500 HF 840 60.0 1.2 96242249 PP6500Z HF  Emergency POPPACK BATTEN LED 3000 HF E3 840 28.0 1.2 96242242 PP3000ZE POPPACK BATTEN LED 4500 HF E3 840 41.0 1.2 96242246 PP4500ZE POPPACK BATTEN LED 6500 HF E3 840 60.0 1.2 96242250 PP6500ZE HF Dimming POPPACK BATTEN LED 3000 HFI 840 28.0 1.7 96242243 PP3000D POPPACK BATTEN LED 4500 HFI 840 41.0 1.7 96242247 PP4500D POPPACK BATTEN LED 6500 HFI 840 60.0 1.7 96242251 PP6500D HF Dimming Emergency POPPACK BATTEN LED 3000 HFI E3 840 28.0 1.7 96242244 PP3000DE POPPACK BATTEN LED 4500 HFI E3 840 41.0 1.7 96242248 PP4500DE POPPACK BATTEN LED 6500 HFI E3 840 60.0 1.7 96242252 PP6500DE Indoor  Lighting PopPack LED Room height 5m Work Plane 0m Maintenance factor  0.8 Reflectances Ceiling: 50% Wall: 30% Floor: 20% Cat. No. PP6500Z Lamp  LED Lumens  6550lm Lux 281 lux 10m 20m 3.3m 2.8m

34     www.thornlighting.co.uk PopPack Battens Indoor  Lighting The original popular range fluorescent batten•   Adjustable twin lampholder alters distribution, to suit desired mounting height •   Tool free, clip-on cover plate for quick installation•   Twist-lock lampholders for reliable electrical contact•   A range of diffusers and reflectors covering every application requirement •   Supplied complete with lamp(s) Materials and Finish•   Batten: rolled steel section in pre-coated high   reflectivity white paint •   Lampholder assembly: tough white polycarbonate Installation and Mounting•   Four-way terminal block with capacity for   2 x 2.5mm² cables. •   Angled terminal block for easy wiring. •   Ambient temperature: -5°C to 25°C, normal, dry,   indoor atmospheres.  •   Fixings via two BESA piercings, one central and two   at fixing centres: 600mm – 500mm, 1200/1500/1800mm – 600mm. •   Bare battens can be mounted end-to-end   (except emergency versions – recommended minimum space between luminaires 50mm). •   Emergency fixing centres: 600mm, 1110mm and 1410mm 82 60 42 81 82 125 64 78 42 60 94 109 121 78 78 42 60 Installation Options Standards

www.thornlighting.co.uk     35 Indoor  Lighting

36     www.thornlighting.co.uk PopPack Battens Indoor  Lighting Ordering Guide Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. POPPACK – T5 HIGH EFFICIENCY (HE)  HF POPPACK BATTEN 1x14W T16 HF L840 17.5 0.7 96550703 PP114Z POPPACK BATTEN 1x28W T16 HF L840 32.0 1.2 96550704 PP128Z POPPACK BATTEN 1x35W T16 HF L840 37.8 1.5 96550705 PP135Z POPPACK BATTEN 2x14W T16 HF L840 35.0 0.8 96550706 PP214Z POPPACK BATTEN 2x28W T16 HF L840 64.0 1.4 96550707 PP228Z POPPACK BATTEN 2x35W T16 HF L840 75.0 1.7 96550708 PP235Z HF  Emergency POPPACK BATTEN 1x14W T16 HF E3 L840 17.5 1.6 96550715 PP114ZE POPPACK BATTEN 1x28W T16 HF E3 L840 32.0 2.1 96550716 PP128ZE POPPACK BATTEN 1x35W T16 HF E3 L840 37.8 2.4 96550717 PP135ZE POPPACK BATTEN 2x14W T16 HF E3 L840 35.0 1.7 96550718 PP214ZE POPPACK BATTEN 2x28W T16 HF E3 L840 64.0 2.3 96550719 PP228ZE POPPACK BATTEN 2x35W T16 HF E3 L840 75.0 2.6 96550720 PP235ZE HF  Dimming POPPACK BATTEN 1x14W T16 HFI L840 17.5 2.5 96550727 PP114D POPPACK BATTEN 1x28W T16 HFI L840 32.0 1.3 96550728 PP128D POPPACK BATTEN 1x35W T16 HFI L840 37.8 1.5 96550729 PP135D POPPACK BATTEN 2x14W T16 HFI L840 35.0 2.6 96550730 PP214D POPPACK BATTEN 2x28W T16 HFI L840 64.0 1.5 96550731 PP228D POPPACK BATTEN 2x35W T16 HFI L840 75.0 1.7 96550732 PP235D HF Dimming Emergency POPPACK BATTEN 1x14W T16 HFI E3 L840 17.5 3.4 96550739 PP114DE POPPACK BATTEN 1x28W T16 HFI E3 L840 32.0 3.4 96550740 PP128DE POPPACK BATTEN 1x35W T16 HFI E3 L840 37.8 2.2 96550741 PP135DE POPPACK BATTEN 2x14W T16 HFI E3 L840 35.0 2.4 96550742 PP214DE POPPACK BATTEN 2x28W T16 HFI E3 L840 64.0 2.4 96550743 PP228DE POPPACK BATTEN 2x35W T16 HFI E3 L840 75.0 2.2 96550744 PP235DE POPPACK – T5 HIGH OUTPUT (HO)  HF POPPACK BATTEN 1x24W T16 HF L840 25.0 0.7 96550709 PP124Z POPPACK BATTEN 1x49W T16 HF L840 52.2 1.5 96550711 PP149Z POPPACK BATTEN 1x54W T16 HF L840 57.0 1.2 96550710 PP154Z POPPACK BATTEN 2x24W T16 HF L840 48.5 0.8 96550712 PP224Z POPPACK BATTEN 2x49W T16 HF L840 110.6 1.7 96550714 PP249Z POPPACK BATTEN 2x54W T16 HF L840 120.0 1.4 96550713 PP254Z HF  Emergency POPPACK BATTEN 1x24W T16 HF E3 L840 25.0 1.6 96550721 PP124ZE POPPACK BATTEN 1x49W T16 HF E3 L840 52.2 2.4 96550723 PP149ZE POPPACK BATTEN 1x54W T16 HF E3 L840 57.0 2.1 96550722 PP154ZE POPPACK BATTEN 2x24W T16 HF E3 L840 48.5 1.7 96550724 PP224ZE POPPACK BATTEN 2x49W T16 HF E3 L840 110.6 2.6 96550726 PP249ZE POPPACK BATTEN 2x54W T16 HF E3 L840 120.0 2.3 96550725 PP254ZE HF  Dimming POPPACK BATTEN 1x24W T16 HFI L840 25.0 2.5 96550733 PP124D POPPACK BATTEN 1x49W T16 HFI L840 52.2 1.5 96550735 PP149D POPPACK BATTEN 1x54W T16 HFI L840 57.0 1.3 96550734 PP154D POPPACK BATTEN 2x24W T16 HFI L840 48.5 2.6 96550736 PP224D POPPACK BATTEN 2x49W T16 HFI L840 110.6 1.7 96550738 PP249D POPPACK BATTEN 2x54W T16 HFI L840 120.0 1.5 96550737 PP254D HF Dimming Emergency POPPACK BATTEN 1x24W T16 HFI E3 L840 25.0 3.5 96550745 PP124DE POPPACK BATTEN 1x54W T16 HFI E3 L840 52.2 3.5 96550746 PP154DE POPPACK BATTEN 1x49W T16 HFI E3 L840 57.0 2.4 96550747 PP149DE POPPACK BATTEN 2x24W T16 HFI E3 L840 48.5 2.6 96550748 PP224DE POPPACK BATTEN 2x54W T16 HFI E3 L840 110.6 2.6 96550749 PP254DE POPPACK BATTEN 2x49W T16 HFI E3 L840 120.0 2.4 96550750 PP249DE

www.thornlighting.co.uk     37 Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. POPPACK – T8 HF POPPACK BATTEN 1x36W T26 HF L840 35.0 1.9 96229554 PP136Z POPPACK BATTEN 1x58W T26 HF L840 54.0 2.1 96229555 PP158Z POPPACK BATTEN 1x70W T26 HF L840 68.0 2.3 96229556 PP170Z POPPACK BATTEN 2x36W T26 HF L840 70.0 2.1 96229557 PP236Z POPPACK BATTEN 2x58W T26 HF L840 107.0 2.3 96229558 PP258Z POPPACK BATTEN 2x70W T26 HF L840 124.0 2.5 96229559 PP270Z HF  Emergency POPPACK BATTEN 1x36W T26 HF E3 L840 39.0 2.8 96229560 PP136ZE POPPACK BATTEN 1x58W T26 HF E3 L840 60.0 3.1 96229561 PP158ZE POPPACK BATTEN 1x70W T26 HF E3 L840 68.0 3.5 96229562 PP170ZE POPPACK BATTEN 2x36W T26 HF E3 L840 75.0 3.0 96229563 PP236ZE POPPACK BATTEN 2x58W T26 HF E3 L840 115.0 3.3 96229564 PP258ZE POPPACK BATTEN 2x70W T26 HF E3 L840 124.0 3.7 96229565 PP270ZE POPPACK – ATTACHMENTS T5 Prismatic Diffuser POPPACK DIFFUSER 1/2x14/24 PR - 0.3 96550751 PP14/24PRDIF POPPACK DIFFUSER 1/2x28/54 PR - 0.5 96550752 PP28/54PRDIF POPPACK DIFFUSER 1/2x35/49 PR - 0.7 96550753 PP35/49PRDIF T5 Narrow Reflector POPPACK REFLECTOR 1/2x14/24 RNW - 0.5 96550763 PP14/24NWREF POPPACK REFLECTOR 1/2x28/54 RNW - 1.0 96550764 PP28/54NWREF POPPACK REFLECTOR 1/2x35/49 RNW - 1.3 96550765 PP35/49NWREF T8 Opal Diffuser POPPACK DIFFUSER 1x36 OP - 0.6 96012850 PP136OPDIF POPPACK DIFFUSER 1x58 OP - 1.2 96007456 PP158OPDIF POPPACK DIFFUSER 1x70 OP - 1.4 96217844 PP170OPDIF POPPACK DIFFUSER 2x36 OP - 0.9 96217840 PP236OPDIF POPPACK DIFFUSER 2x58 OP - 1.7 96217841 PP258OPDIF POPPACK DIFFUSER 2x70 OP - 1.9 96217842 PP270OPDIF T8 Prismatic Diffuser POPPACK DIFFUSER 1x36 PR - 0.6 96014688 PP136PRDIF POPPACK DIFFUSER 1x58 PR - 1.2 96008902 PP158PRDIF POPPACK DIFFUSER 1x70 PR - 1.4 96217836 PP170PRDIF POPPACK DIFFUSER 2x36 PR - 0.9 96014716 PP236PRDIF POPPACK DIFFUSER 2x58 PR - 1.7 96014774 PP258PRDIF POPPACK DIFFUSER 2x70 PR - 1.9 96217834 PP270PRDIF T5 Prismatic Diffuser POPPACK REFLECTOR 1/2x36 RWD - 0.6 96014870 PP36WDREF POPPACK REFLECTOR 1/2x58 RWD - 0.8 96200583 PP58WDREF POPPACK REFLECTOR 1/2x70 RWD - 0.9 96217778 PP70WDREF T5 Narrow Reflector POPPACK REFLECTOR 1/2x36 RNW - 0.6 96014640 PP36NWREF POPPACK REFLECTOR 1/2x58 RNW - 0.8 96014695 PP58NWREF POPPACK REFLECTOR 1/2x70 RNW - 0.9 96217849 PP70NWREF Indoor  Lighting PopPack Room height 5m Work Plane 0m Maintenance factor  0.8 Reflectances Ceiling: 50% Wall: 30% Floor: 20% Cat. No. PP258Z+PP58NWREF Lamp  T8 Lumens  6781 lm Lux 273 lux 10m 20m 3.3m 4m

38     www.thornlighting.co.uk PopPack Pro Battens Indoor  Lighting Innovative fluorescent batten range featuring patented quick-fix mounting, sensor/emergency plug-ins and attachments•   Contemporary slimline design•   Quick and easy installation using patented quick fix   mounting plate •   Flexibility – plug and play sensor/emergency modules for   safe and simple conversion •   A choice of attachments with outstanding optical performance•   Supplied complete with lamp(s) Materials and Finish•   Batten: pre-coated roll form steel, white•   End caps/lamp holders: injection moulded   polycarbonate, white FixExpress mounting plates:  injection moulded polycarbonate, white •   Sensor and emergency modules: injection moulded polycarbonate •   ClipLine diffusers: opal acrylic Installation and Mounting•   FixExpress mounting plates to ensure rapid installation directly onto a surface or BESA box (for trunking via 20mm connectors an accessory kit is required). •   600mm fixing centres except for 14/24W versions   which are at 445mm centres.  •   Supplied with a screw terminal block that accepts   2x2.5mm 2 cable and is suitable for loop in/loop   out wiring  •   All internal wiring uses halogen free cable. •   Sensor and emergency modules push fit on the ends,   after the end caps have been removed, and are  connected with ‘one-way’ plugs and sockets  (not suitable for 14/24W versions) PopPack Pro Room height 5m Work Plane 0m Maintenance factor  0.8 Reflectances Ceiling: 50% Wall: 30% Floor: 20% Cat. No. PPP235Z+PPP35/49REF Lamp  T5 Lumens  5478 lm Lux 303 lux 10m 20m 2.5m 4m Installation Options Standards

www.thornlighting.co.uk     39 Ordering Guide Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. POPPACK PRO HF POPPACK PRO 1x14W T16 HF L840 16.0 1.0 96548068 PPP114Z POPPACK PRO 1x28W T16 HF L840 31.0 1.2 96548069 PPP128Z POPPACK PRO 1x35W T16 HF L840 39.0 1.3 96548071 PPP135Z POPPACK PRO 1x49W T16 HF L840 53.0 1.3 96548073 PPP149Z POPPACK PRO 1x54W T16 HF L840 58.0 1.2 96548075 PPP154Z POPPACK PRO 2x28W T16 HF L840 61.0 1.2 96548070 PPP228Z POPPACK PRO 2x35W T16 HF L840 76.0 1.4 96548072 PPP235Z POPPACK PRO 2x49W T16 HF L840 107.0 1.4 96548074 PPP249Z POPPACK PRO 2x54W T16 HF L840 115.0 1.2 96548076 PPP254Z HF  Dimming POPPACK PRO 1x49W T16 HFI L840 53.0 5.4 96549703 PPP149D POPPACK PRO 1x54W T16 HFI L840 58.0 2.1 96549705 PPP154D POPPACK PRO 2x49W T16 HFI L840 105.5 2.3 96549706 PPP249D POPPACK PRO 2x54W T16 HFI L840 116.5 1.6 96549707 PPP254D HF with Clipline Diffuser POPPACK PRO 1x24W T16 HF OP L840 26.0 1.2 96548077 PPP124ZOP POPPACK PRO 1x49W T16 HF OP L840 53.0 1.7 96548078 PPP149ZOP POPPACK PRO 1x54W T16 HF OP L840 58.0 1.5 96548080 PPP154ZOP POPPACK PRO 2x49W T16 HF OP L840 107.0 1.9 96548079 PPP249ZOP POPPACK PRO 2x54W T16 HF OP L840 115.0 1.6 96548081 PPP254ZOP Emergency & Control Modules POPPACK LED E3 KIT 2.0 0.4 96504901 PPPE POPPACK LED E3T KIT 2.0 0.4 96504902 PPPET POPPACK SLD KIT - 0.2 96504903 PPPS Indoor  Lighting

40     www.thornlighting.co.uk Arrowslim Battens Indoor  Lighting A slim profile T16 (T5) batten with simple design aesthetic and a choice of diffusers, reflectors and connect versions•   Ultra slim profile design (38mm width)•   Three-position rotating lampholder provides maximum mounting flexibility for single lamp versions •   Diffuser and reflector attachments available to enhance lighting performance •   Connect, ready to install, versions for rapid installation•   Supplied complete with lamp(s) Materials and Finish•   Spine: steel, white enamel finish (RAL 9010)•   Lampholder: polycarbonate, white finish•   Diffuser: clear reeded polycarbonate and clear   reeded acrylic •   Reflector: steel, white enamel finish (RAL 9010) Installation and Mounting•   Suitable for surface mounting or in recessed areas. •   Surface mounting via keyhole slots. •   On single lamp versions, three position rotating lampholders allows lamp to be located either side of the spine.  •   For Connect version fix and connect first luminaire then simply plug in and fix subsequent luminaires.  •   Use intermediate connectors to feed other rows up to 10A maximum.  •   Different connection kit options available. •   Cover plates and reflector attachments retained by plastic spring latches Arrowslim Single lamp Arrowslim Twin lamp 89.6 53.1 94.9 89.6 53.1 94.9 65 68.6 37.8 21.4 37.8 41.4 37.8 70.2 61.5 37.8 65.0 50.2 Installation Options Standards

www.thornlighting.co.uk     41 Indoor  Lighting Ordering Guide Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. ARROWSLIM HF ARROSLM 1x14W L840 16.0 0.8 96211392 AR114Z ARROSLM 1x21W L840 23.0 0.9 96211394 AR121Z ARROSLM 1x28W L840 31.0 1.1 96211396 AR128Z ARROSLM 1x35W L840 38.0 1.4 96211398 AR135Z ARROSLM 1x49W L840 53.0 1.4 96211408 AR149Z ARROSLM 1x54W L840 58.0 1.4 96211410 AR154Z ARROSLM 1x80W L840 85.0 1.4 96211412 AR180Z ARROSLM 2x21W L840 45.0 1.0 96211402 AR221Z ARROSLM 2x28W L840 60.0 1.2 96211404 AR228Z ARROSLM 2x35W L840 76.0 1.6 96211406 AR235Z ARROSLM 2x49W L840 105.0 1.6 96211414 AR249Z ARROSLM 2x54W L840 116.0 1.6 96211416 AR254Z HF  Emergency (R-Remote) ARROSLM 1x28W E3R 31.0 2.3 96211446 AR128ZER ARROSLM 1x35W E3 38.0 2.5 96211450 AR135ZE ARROSLM 1x49W E3 53.0 2.5 96211453 AR149ZE ARROSLM 1x54W E3R 58.0 2.3 96211448 AR154ZER ARROSLM 2x28W E3R 60.0 2.5 96211447 AR228ZER ARROSLM 2x35W E3 76.0 2.8 96211452 AR235ZE ARROSLM 2x54W E3R 116.0 2.5 96211449 AR254ZER ARROSLM 2x49W E3 105.0 2.7 96211454 AR249ZE HF  Dimming ARROSLM 1x21W HFI 840 23.0 1.0 96549647 AR121D ARROSLM 1x28W HFI 840 30.5 1.1 96549653 AR128D ARROSLM 1x35W HFI 840 38.0 1.6 96549662 AR135D ARROSLM 1x49W HFI 840 53.0 1.5 96549674 AR149D ARROSLM 1x54W HFI L840 58.0 1.5 96549676 AR154D ARROSLM 2x21W HFI 840 45.5 1.2 96549683 AR221D ARROSLM 2x28W HFI 840 60.0 1.5 96549687 AR228D ARROSLM 2x35W HFI 840 74.5 1.7 96549688 AR235D ARROSLM 2x49W HFI 840 105.0 1.7 96549696 AR249D ARROSLM 2x54W HFI 840 116.5 1.4 96549698 AR254D HF Dimming Emergency ARROSLM 1x35W HFI E3 840 39.0 2.9 96549663 AR135DE ARROSLM 1x49W HFI E3 53.0 24.0 96549671 AR149DE ARROSLM 2x35W HFI E3 74.5 2.9 96549689 AR235DE ARROSLM 2x49W HFI E3 106.0 1.2 96549693 AR249DE ATTACHMENTS Reflectors ARROSLM ASYM REFLECTOR 1x49W - 0.5 96309200 AR149ASYREF ARROSLM ASYM REFLECTOR 1x54W - 0.4 96309199 AR154ASYREF ARROSLM REFLECTOR 1/2x49 - 1.0 96218674 AR49REF ARROSLM REFLECTOR 1/2x54 - 0.8 96218673 AR54REF Diffusers ARROSLM DIFFUSER 1x49 RE AC - 0.4 96218587 AR149ACRDIF ARROSLM DIFFUSER 1x54 RE AC - 0.3 96218585 AR154ACRDIF ARROSLM DIFFUSER 1x14 RE PC - 0.1 96218597 AR114PCRDIF ARROSLM DIFFUSER 1x21 RE PC - 0.2 96218599 AR121PCRDIF ARROSLM DIFFUSER 1x49 RE PC - 0.4 96218595 AR149PCRDIF ARROSLM DIFFUSER 1x54 RE PC - 0.3 96218593 AR154PCRDIF ARROSLM DIFFUSER 2x28 RE PC - 0.4 96218594 AR228PCRDIF ARROSLM DIFFUSER 2x49 RE PC - 0.5 96218596 AR249PCRDIF CONNECT HF Connect ARROSLM CONNECT 1x14W L840 16.0 0.8 96211418 AR114ZC ARROSLM CONNECT 1x21W L840 23.0 1.0 96211420 AR121ZC ARROSLM CONNECT 1x28W L840 31.0 1.2 96211422 AR128ZC ARROSLM CONNECT 1x35W L840 38.0 1.5 96211424 AR135ZC ARROSLM CONNECT 1x49W L840 53.0 1.4 96211434 AR149ZC ARROSLM CONNECT 1x54W L840 58.0 1.6 96211436 AR154ZC ARROSLM CONNECT 1x80W L840 85.0 1.6 96211438 AR180ZC ARROSLM CONNECT 2x21W L840 45.0 1.2 96211428 AR221ZC ARROSLM CONNECT 2x28W L840 60.0 1.4 96211430 AR228ZC ARROSLM CONNECT 2x35W L840 76.0 1.7 96211432 AR235ZC ARROSLM CONNECT 2x49W L840 105.0 1.8 96211440 AR249ZC ARROSLM CONNECT 2x54W L840 116.0 1.5 96211442 AR254ZC Connect Accessories ARROSLM 0.5M INT CONNECTOR TWN (M&F) - 0.1 96217797 ARIC500LSOH ARROSLM 1.0M INT CONNECTOR TWN (M&F) - 0.1 96217796 ARIC1000LSOH ARROSLM 1.0M WHITE START LEAD - 0.1 96217798 ARMCLSOH ARROSLM CLOSE CONNECTOR PACK OF 5 - 0.0 96004223 ARCC ARROSLM CONNECTORS TWN PACK OF 5 (M&F) - 0.0 96007454 ARSC ARROSLM LOCK SLDE TWN PACK OF 5 (M&F) - 0.0 96008186 ARLS ARROSLM T16 DIFFUSER CPL 1 WHI - 0.2 96218786 ARCPL1 ARROSLM T16 DIFFUSER CPL 2 WHI - 0.2 96218787 ARCPL2

42     www.thornlighting.co.uk AquaForce II LED Waterproof Indoor  Lighting A range of IP65 rated LED luminaires for high quality low energy lighting in wet, dusty environments•   The traditional design gives an aesthetically pleasing appearance – ideal for direct replacement on refurbishment projects •   Installation features include quick fix with Connect options, through wiring and BESA box compatibility (600mm spacing) •   Highly efficient LEDs reduce energy consumption and costs, and provide further savings arising from longer maintenance lifecycles •   102Llm/W – exceeding building regulation requirements•   50 000 hour rated life•   Integral 3 hour emergency option reduces installation time and complexity Materials and Finish•   Canopy: polycarbonate•   Diffuser: polycarbonate with linear prisms•   Gasket: expanded polyurethane•   Toggles: stainless steel•   Gear tray: steel, white enamelled finish Installation and Mounting•   Cable entry positions at the back and each end   of the fitting.  •   Supplied with IP65 grommet. •   Stainless steel quick fix brackets supplied with   each luminaire.  •   Stainless steel toggles are captive in the canopy   to prevent loss during maintenance.  •   Steel gear tray is retained and suspended by   spring latches.  •   Conduit mounting, chain suspension and catenary suspension kits are all available as accessories.  111 64 47 143 1300 - 4300 lm 1600 - 6400 lm Installation Options Standards

www.thornlighting.co.uk     43 Ordering Guide Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. AQUAFORCE II LED HF AQUAF2 LED 4300 HF L840 41.7 2.4 96241869 AQ4300Z AQUAF2 LED 6400 HF L840 61.8 2.8 96241871 AQ6400Z HF Quick Connect AQUAF2 LED 4300 HF QF CONNECT L840 41.7 2.6 96241870 AQ4300ZQF AQUAF2 LED 6400 HF QF CONNECT L840 61.8 3.0 96241872 AQ6400ZQF HF Through Wire AQUAF2 LED 4300 HF TW L840 41.7 2.8 96241941 AQ4300ZTW AQUAF2 LED 6400 HF TW L840 61.8 3.3 96241944 AQ6400ZTW HF  Emergency AQUAF2 LED 4300 HF E3 L840 41.7 2.7 96241939 AQ4300ZE AQUAF2 LED 6400 HF E3 L840 61.8 3.1 96241942 AQ6400ZE HF Dimming AQUAF2 LED 4300 HFI L840 41.7 2.5 96241940 AQ4300D AQUAF2 LED 6400 HFI L840 61.8 2.9 96241943 AQ6400D Accessories FORCE2 FIX/CH KIT - 0.0 96503167 AQCHS FORCE2 MCA KIT - 0.1 96233817   Indoor  Lighting Aquaforce II LED Room height 5m Work Plane 0m Maintenance factor  0.8 Reflectances Ceiling: 50% Wall: 30% Floor: 20% Cat. No. AQ6400Z Lamp  LED Lumens  6400 lm Lux 289 lux 10m 20m 2.5m 4m

44     www.thornlighting.co.uk AquaForce II Waterproof Indoor  Lighting A highly durable, IP65 rated, luminaire for use in wet  and dusty areas, where reliability is important.•   Deep gasket channel for an assured IP65 seal•   Suspendable gear tray for easy maintenance•   Connect, ready to install versions•   Supplied complete with lamp(s) Materials and Finish•   Canopy and diffuser: injection moulded fire retardant polycarbonate. •   Gear tray: sheet steel, white enamel finish•   Toggles: polycarbonate (stainless steel available) Installation and Mounting•   Cable entry positions at the back and each end of   the fitting. •   Stainless steel quick-fix brackets supplied with   each luminaire.  •   Toggle clips easy to fit and close by hand.•   Connect versions available with fast electrical   connection facility.  •   Conduit box mounting, chain suspension,   conduit suspension and catenary suspension kits,  plus through wire kits are all available.  111 64 47 143 T26 1300 - 36W 1600 - 58W 1864 - 70W T16 1300 - 28W 1600 - 35W 1600 - 49W 111 64 47 143 T26 1300 - 36W 1600 - 58W 1864 - 70W T16 1300 - 28W 1600 - 35W 1600 - 49W 111 64 47 90 T26 1300 - 36W 1600 - 58W 1864 - 70W T16 1300 - 28W 1600 - 35W 1600 - 49W 1600 - 80W 111 64 47 90 T26 1300 - 36W 1600 - 58W 1864 - 70W T16 1300 - 28W 1600 - 35W 1600 - 49W 1600 - 80W Aquaforce II Room height 5m Work Plane 0m Maintenance factor  0.8 Reflectances Ceiling: 50% Wall: 30% Floor: 20% Cat. No. AQ249Z Lamp  T5 Lumens  8239 lm Lux 325 lux 10m 20m 2.5m 4m Installation Options Standards

www.thornlighting.co.uk     45 Ordering Guide Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. AQUAFORCE II – T5 HF AQUAF2 1x28W T16 HF L840 31.5 2.1 96236923 AQ128Z AQUAF2 1x35W T16 HF L840 39.0 2.4 96236924 AQ135Z AQUAF2 1x49W T16 HF L840 54.5 2.5 96236925 AQ149Z AQUAF2 1x80W T16 HF L840 86.0 2.5 96236926 AQ180Z AQUAF2 2x28W T16 HF L840 62.0 2.5 96236927 AQ228Z AQUAF2 2x35W T16 HF L840 77.0 2.5 96236928 AQ235Z AQUAF2 2x49W T16 HF L840 109.0 2.5 96236929 AQ249Z HF  Emergency AQUAF2 1x28W T16 HF E3 L840 31.5 2.9 96236930 AQ128ZE AQUAF2 1x35W T16 HF E3 L840 39.0 2.9 96236931 AQ135ZE AQUAF2 1x49W T16 HF E3 L840 54.5 3.5 96236932 AQ149ZE AQUAF2 2x28W T16 HF E3 L840 62.0 3.5 96236933 AQ228ZE AQUAF2 2x35W T16 HF E3 L840 77.0 4.7 96236934 AQ235ZE AQUAF2 2x49W T16 HF E3 L840 109.0 3.5 96236935 AQ249ZE AQUAFORCE II – T8 HF  AQUAF2 1x36W T26 HF L840 35.5 1.8 96503023 AQ136Z AQUAF2 1x58W T26 HF L840 54.5 1.8 96503046 AQ158Z AQUAF2 1x70W T26 HF L840 68.0 3.7 96503069 AQ170Z AQUAF2 2x36W T26 HF L840 72.0 2.6 96503092 AQ236Z AQUAF2 2x58W T26 HF L840 107.0 3.1 96503115 AQ258Z AQUAF2 2x70W T26 HF L840 130.0 3.0 96503138 AQ270Z HF  Emergency AQUAF2 1x36W T26 HF E3 L840 35.5 2.6 96503031 AQ136ZE AQUAF2 1x58W T26 HF E3 L840 54.5 3.1 96503054 AQ158ZE AQUAF2 1x70W T26 HF E3 L840 68.0 4.0 96503077 AQ170ZE AQUAF2 2x36W T26 HF E3 L840 72.0 3.4 96503100 AQ236ZE AQUAF2 2x58W T26 HF E3 L840 107.0 4.1 96503123 AQ258ZE AQUAF2 2x70W T26 HF E3 L840 130.0 4.0 96503146 AQ270ZE HF  Connect AQUAF2 1x36W T26 HF CON L840 35.5 1.9 96503041 AQ136ZC AQUAF2 1x58W T26 HF CON L840 54.5 2.5 96503064 AQ158ZC AQUAF2 1x70W T26 HF CON L840 68.0 3.0 96503087 AQ170ZC AQUAF2 2x36W T26 HF CON L840 72.0 1.9 96503110 AQ236ZC AQUAF2 2x58W T26 HF CON L840 107.0 2.5 96503133 AQ258ZC AQUAF2 2x70W T26 HF CON L840 130.0 3.0 96503156 AQ270ZC Indoor  Lighting Visit www.thornlighting.co.uk/AQU2 for accessory information

46     www.thornlighting.co.uk ImpactForce LED Industrial Indoor  Lighting A high performance impact resistant, IP65 proof  fluorescent range•   Unique shape and flush toggle design promotes   easy cleaning •   For quick and easy maintenance, gear tray simply   hangs from internal clips •   Vandal resistant•   Certified for use in food processing plants from a hygiene point of view (HACCP/IFS/BRC Standard) •   91Llm/W – exceeding building regulation requirements•   50 000 hour rated life Materials and Finish•   Canopy: glass-fibre reinforced polyester•   Diffuser: polycarbonate with linear prisms•   Gasket: expanded polyurethane•   Toggles: stainless steel•   Gear tray: steel, white enamelled finish Installation and Mounting•   Cable entry positions at the back and each end   of the fitting. •   Supplied with IP65 grommet. •   Stainless steel quick-fix brackets supplied with   each luminaire.  •   Stainless steel toggles are captive in the canopy   to prevent loss during maintenance, and steel  gear tray is retained by spring latches.  •   BESA box and conduit mounting, chain suspension   and catenary suspension kits, plus through wire  kits are all available as accessories.  •   Looping in and out possible it one end.•   LSOH cabling as standard. 32 113 111 720 900 287 347 124 184 156 216 1594 32 LED Installation Options Standards

www.thornlighting.co.uk     47 Ordering Guide Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. IMPACTFORCE LED HF Dimming IMPACTF2 LED 4260 HFI L840 47.0 3.2 96241738 IF4260D Indoor  Lighting T5 fluorescent versions available. Visit www.thornlighting.co.uk/IMPF for more information Impactforce LED Room height 3m Work Plane 0m Maintenance factor  0.8 Reflectances Ceiling: 50% Wall: 30% Floor: 20% Cat. No. IF4260D Lamp  LED Lumens  4260 lm Lux 312 lux 10m 20m 2m 4m

48     www.thornlighting.co.uk CorrosionForce LED Industrial Indoor  Lighting A corrosion resistant IP65 proof fluorescent range for use in all atmospheres laden with salts acids and mineral oils•   Good resistance to chemicals and corrosion (polycarbonate free) •   Unique shape and flush toggle design promotes easy cleaning •   For quick and easy maintenance, gear tray simply hangs from internal clips •   Certified for use in food processing plants from a hygiene point of view (HACCP/IFS/BRC Standard) •   91Llm/W – exceeding building regulation requirements•   50 000 hour rated life Materials and Finish•   Canopy: glass-fibre reinforced polyester•   Diffuser: PMMA with linear prisms•   Gasket: expanded polyurethane•   Toggles: stainless steel•   Gear tray: steel, white enamelled finish Installation and Mounting•   Cable entry positions at the back and each end of   the fitting. •   Supplied with IP65 grommet. •   Stainless steel quick-fix brackets supplied with   each luminaire.  •   Stainless steel toggles are captive in the canopy to prevent loss during maintenance, and steel gear tray is retained by spring latches.  •   BESA box and conduit mounting, chain suspension and catenary suspension kits, plus through wire kits are all available as accessories.  •   Looping in and out possible at one end•   LSOH cabling as standard. 168 6 53 104 Installation Options Standards

www.thornlighting.co.uk     49 Ordering Guide Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. CORROSIONFORCE LED HF Dimming CORRF2 LED 4260 HFI L840 47.0 2.0 96241739 CF4260D Indoor  Lighting T5 fluorescent versions available. Visit www.thornlighting.co.uk/CORR for more information Corrosionforce LED Room height 3m Work Plane 0m Maintenance factor  0.8 Reflectances Ceiling: 50% Wall: 30% Floor: 20% Cat. No. CF4260D Lamp  LED Lumens  4260 lm Lux 314 lux 10m 20m 2m 4m

50     www.thornlighting.co.uk HiPak Pro LED Industrial Indoor  Lighting Robust, low maintenance, energy saving industrial LED High Bay•   Ideal alternative to 250/400W solutions – up to 45% more energy efficient •   Dedicated individual LED optics for precise light control for racking and open areas •   Integral PIR sensor and DALI dimmable to maximise energy savings •   Dedicated body profile and on board thermal management system ensures LED performance and lifetime •   87 Llm/W – exceeding building regulation requirements•   50 000 hour rated life Materials and Finish•   Housing: anodised aluminium extrusion with steel powder coated end caps (close to RAL 9006). •   Reflector: high grade MIRO 5 aluminium with plastic   front cover. Installation and Mounting•   All mounting kits to be ordered separately and clip tool free onto the back of the body. •   For chain suspension use kit HPCH•   For trunking mounting via 20mm holes use bracket HPBRA•   For catenary suspension use kit HPMCA. •   To mechanically join two luminaires together both a mounting kit and accessory HPBRJT need to be ordered.  •   A 2.5mm² piano key terminal block is accessed via a sliding gear tray cover offering two 20mm cable entries.  •   Integral sensor versions offer movement detection as well as daylight control and can be mounted up to 16m heights.  •   Hand held programmer can be used from the floor to customise sensor settings.  •   Emergency versions suitable for maximum ambient temperature up to 30°C. 271 92 756 802 294 97 IP43 Installation Options Standards

www.thornlighting.co.uk     51 Ordering Guide Indoor  Lighting High ambient temperature versions available. Visit www.thornlighting.co.uk/HIPP for more information Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. HIPAK PRO LED – IP20 HF Dimming rack optic  and sensor HIPAK LED IP20 13000 HFIS-X RK L840 150.0 9.3 96551779 HP13000XSRK HIPAK LED IP20 14000 HFIS-X RK L740 150.0 9.3 96241487 HP14000XSRK HIPAK LED IP20 13000 HFIS-X E3 RK L840 150.0 9.7 96551780 HP13000XSERK HIPAK LED IP20 14000 HFIS-X E3 RK L740 150.0 9.7 96241488 HP14000XSERK HF Dimming wide optic  and sensor HIPAK LED IP20 13000 HFIS-X WD L840 150.0 9.3 96551783 HP13000XSWD HIPAK LED IP20 14000 HFIS-X WD L740 150.0 9.3 96241491 HP14000XSWD HIPAK LED IP20 13000 HFSI-X E3 WD L840 150.0 9.7 96551784 HP13000XSEWD HIPAK LED IP20 14000 HFIS-X E3 WD L740 150.0 9.7 96241492 HP14000XSEWD HIPAK PRO LED – IP43 HF Dimming rack optic HIPAK LED IP43 13000 HFI-X RK L840 150.0 8.8 96551777 HP13000XRK HIPAK LED IP43 14000 HFI-X RK L740 150.0 8.8 96241485 HP14000XRK HIPAK LED IP43 13000 HFI-X E3 RK L840 150.0 9.2 96551778 HP13000XERK HIPAK LED IP43 14000 HFI-X E3 RK L740 150.0 9.2 96241486 HP14000XERK HF Dimming wide optic HIPAK LED IP43 13000 HFI-X WD L840 150.0 8.8 96551781 HP13000XWD HIPAK LED IP43 14000 HFI-X WD L740 150.0 8.8 96241489 HP14000XWD HIPAK LED IP43 13000 HFI-X E3 WD L840 150.0 9.2 96551782 HP13000XEWD HIPAK LED IP43 14000 HFI-X E3 WD L740 150.0 9.2 96241490 HP14000XEWD HIPAK PRO LED – IP66 HF Rack optic HIPAK LED IP66 12500 HF ML RK L840 150.0 13.9 96551789 HP12500ZRKIP66 HIPAK LED IP66 13500 HF ML RK L740 150.0 13.9 96241929 HP13500ZRKIP66 HIPAK LED IP66 12500 HF ML E3 RK L840 150.0 14.3 96551790 HP12500ZERKIP66 HIPAK LED IP66 13500 HF ML E3 RK L740 150.0 14.3 96241930 HP13500ZERKIP66 HF Wide optic HIPAK LED IP66 12500 HF ML WD L840 150.0 13.9 96551791 HP12500ZWDIP66 HIPAK LED IP66 13500 HF ML WD L740 150.0 13.9 96241931 HP13500ZWDIP66 HIPAK LED IP66 12500 HF ML E3 WD L840 150.0 14.3 96551792 HP12500ZEWDIP66 HIPAK LED IP66 13500 HF ML E3 WD L740 150.0 14.3 96241932 HP13500ZEWDIP66 HF Dimming rack optic HIPAK LED IP66 12500 HFI-X ML RK L840 150.0 13.9 96551785 HP12500XRKIP66 HIPAK LED IP66 13500 HFI-X ML RK L740 150.0 13.9 96241493 HP13500XRKIP66 HIPAK LED IP66 12500 HFI-X ML E3 RK L840 150.0 14.3 96551786 HP12500XERKIP66 HIPAK LED IP66 13500 HFI-X ML E3 RK L740 150.0 14.3 96241494 HP13500XERKIP66 HF Dimming wide optic HIPAK LED IP66 12500 HFI-X ML WD L840 150.0 13.9 96551787 HP12500XWDIP66 HIPAK LED IP66 13500 HFI-X ML WD L740 150.0 13.9 96241495 HP13500XWDIP66 HIPAK LED IP66 12500 HFI-X ML E3 WD L840 150.0 14.3 96551788 HP12500XEWDIP66 HIPAK LED IP66 13500 HFI-X ML E3 WD L740 150.0 14.3 96241496 HP13500XEWDIP66 ACCESSORIES HIPAK LED BRA - 0.4 96241497 HPBRA HIPAK PRO KIT FIX BRA JOINT - 0.9 96241508 HPBRJT HIPAK PRO KIT FIX MCA - 0.2 96241515 HPMCA HIPAK PRO KIT FIX/CH - 0.2 96241507 HPCH IP66 HiPak Pro LED Room height 12m Work Plane 0m Maintenance factor  0.8 Reflectances Ceiling: 50% Wall: 30% Floor: 20% Cat. No. HP13000XWD Lamp  LED Lumens  13000 lm Lux 312 lux 30m 3.8m 6m 15m

52     www.thornlighting.co.uk Hi-Rack Industrial Indoor  Lighting A range of fluorescent luminaires with ‘area’ or ‘rack’ reflectors for interior spaces with high ceilings•   Optional integral sensor maximises energy savings compared to traditional HID hi-bays •   Quick and simple installation – external direct wiring access removes the need to dismantle the luminaire •   High output emergency solutions enable higher mounting  heights, with better spacings, to be achieved•   Plastic cover versions available•   Supplied complete with lamps Materials and Finish•   Housing: white steel with polycarbonate end caps•   Reflector: high grade aluminium, wide optic – Satinbrite, rack optic – Mirrorbrite •   Attachment cover: UV stable polycarbonate Installation and Mounting•   Mounting kits to be ordered separately.•   100mm gap must be left between the top of the luminaire and any surface.  •   For wire suspension, accessory kit HRMSWK slides directly on to the back of the body and can be easily adjusted. Accessory kit HRBRFK allows trunking mounting via 20mm holes or rod mounting via 10mm holes. For canalis trunking system mounting accessory HRBRFK2 can be used via M6 screw fixings.  •   A 2.5mm² piano key terminal block is accessed externally via a hinged lid.  •  Integral sensor versions come factory pre set as follows    (off time delay – 10 minutes, after off time delay lights stay   on at 10% for 3 hours then turn off, daylight linking   deactivated) can be mounted up to 16m. Coverage is on   a 1:1 ratio i.e. at 16m height, the detectors footprint is a   16m diameter circle. •  Hand held programmer can be used from the floor   to customise sensor settings 1060 310 1200 1504 390 390 390 106 164 194 Installation Options Standards Hi-Rack Room height 12m Work Plane 0m Maintenance factor  0.8 Reflectances Ceiling: 50% Wall: 30% Floor: 20% Cat. No. HR480ZWD Lamp  T5 Lumens  21771lm Lux 289 lux 30m 5m 7.5m 15m

www.thornlighting.co.uk     53 Ordering Guide Indoor  Lighting High output emergency versions available. Visit www.thornlighting.co.uk/HIRK for more information Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. HI-RACK – WIDE OPTIC HF HI-RACK 4x49W HF WD L840 214.0 5.6 96535219 HR449ZWD HI-RACK 4x80W HF WD L840 350.0 5.6 96535227 HR480ZWD HF  Emergency HI-RACK 4x49W HF E3 WD L840 214.0 6.6 96535220 HR449ZEWD HI-RACK 4x80W HF E3 WD L840 350.0 6.6 96535228 HR480ZEWD HF Dimming HI-RACK 4x49W HFI WD L840 212.0 10.5 96549193 HR449DWD HI-RACK 4x80W HFI WD L840 335.0 10.8 96549215 HR480DWD HF Dimming Emergency  HI-RACK 4x49W HFI E3 WD L840 212.0 6.6 96549185 HR449DEWD HI-RACK 4x80W HFI E3 WD L840 335.0 8.5 96549209 HR480DEWD HF Dimming with Sensor HI-RACK 4x49W HFSI WD L840 212.0 7.1 96549205 HR449DSWD HI-RACK 4x80W HFSI WD L840 335.0 10.5 96549225 HR480DSWD HF Dimming Em with Sensor HI-RACK 4x49W HFSI E3 WD L840 212.0 15.5 96549197 HR449DSEWD HI-RACK 4x80W HFSI E3 WD L840 335.0 8.2 96549219 HR480DSEWD HI-RACK – RACK OPTIC HF HI-RACK 4x49W HF RK L840 214.0 5.6 96535203 HR449ZRK HI-RACK 4x80W HF RK L840 350.0 5.6 96535211 HR480ZRK HF  Emergency HI-RACK 4x49W HF E3 RK L840 214.0 6.6 96535204 HR449ZERK HI-RACK 4x80W HF E3 RK L840 350.0 6.6 96535212 HR480ZERK HF Dimming HI-RACK 4x49W HFI RK L840 212.0 10.2 96549191 HR449DRK HI-RACK 4x80W HFI RK L840 335.0 10.0 96549213 HR480DRK HF Dimming Emergency  HI-RACK 4x49W HFI E3 RK L840 212.0 6.6 96549183 HR449DERK HI-RACK 4x80W HFI E3 RK L840 335.0 6.6 96549207 HR480DERK HF Dimming with Sensor HI-RACK 4x49W HFSI RK L840 212.0 8.2 96549203 HR449DSRK HI-RACK 4x80W HFSI RK L840 335.0 11.6 96549223 HR480DSRK HF Dimming Em with Sensor HI-RACK 4x49W HFSI E3 RK L840 212.0 6.9 96549195 HR449DSERK HI-RACK 4x80W HFSI E3 RK L840 335.0 8.5 96549217 HR480DSERK ACCESSORIES HI-RACK KIT FIX BRA - 0.8 96535235 HRBRFK HI-RACK KIT FIX BRA 2 - 0.7 96239583 HRBRFK2 HI-RACK KIT MSW - 0.1 96535236 HRMSWK

54     www.thornlighting.co.uk Leopard LED Wall Mounted Indoor  Lighting Series of vandal resistant LED luminaires for wall or ceiling mounting, direct alternative to traditional 2D luminaires•   Sealed to IP65 for exterior applications when supplied   gasket fitted •   Energy saving sensor options, luminaire is activated when movement has been detected, then will switch off •   Integral emergency version as standard•   92 Llm/W – exceeding building regulation requirements•   1200lm replaces 28W 2D, 1900lm replaces 38W 2D•   50 000 hour rated life Materials and Finish•   Bodies: polycarbonate, white•   Diffusers: polycarbonate opal prismatic•   Geartray: Pre-coated steel Installation and Mounting•   Suitable for surface mounting with rear BESA provision.•   Side entry (25mm conduit) for through wiring with entry into 3 way terminal block suitable to accept 2 x 2.5mm. •   Vandal resistant screw kit available as an accessory. •   All internal components are fixed to a white pre-coated gear tray which has a unique (tool free) click fit into base. •   Screw fixed diffuser. Installation Options Standards

www.thornlighting.co.uk     55 Ordering Guide Indoor  Lighting Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. LEOPARD LED – SMALL BODY HF &  Emergency LEOPARD 1200 LED OP RD WHT L840 13.0 0.9 96617046 LER12ZOPW LEOPARD 1200 LED E3 OP RD WHT L840 13.0 1.2 96617047 LER12ZEOPW LEOPARD LED – LARGE BODY HF LEOPARD 1200 LED OP RD WHT L840 13.0 1.3 96242233 LERL12ZOPW LEOPARD 1900 LED OP RD WH L840 20.4 1.3 96617051 LERL19ZOPW HF  Emergency LEOPARD 1200 LED E3 OP RD WHT L840 13.0 1.6 96242234 LERL12ZEOPW LEOPARD 1900 LED E3 OP RD WH L840 20.4 1.6 96617052 LERL19ZEOPW HF Sensor LEOPARD 1200 LED MWS OPRD WHI L840 13.0 1.4 96242235 LERL12ZSOPW LEOPARD 1900 LED MWS OP RD WHT L840 20.4 1.4 96242237 LERL19ZSOPW HF Sensor Emergency LEOPARD 1200 LED E3 MWS OPRD WHI L840 13.0 1.7 96242236 LERL12ZSEOPW LEOPARD 1900 LED E3 MWS OP RD WHT L840 20.4 1.7 96242238 LERL19ZSEOPW Leopard LED Room height 1.8m Work Plane 0m Maintenance factor  0.8 Reflectances Ceiling: 50% Wall: 30% Floor: 20% Cat. No. LERL19ZOPW Lamp  LED Lumens  1900 lm Lux 121 lux 15m 2m 1.7m

56     www.thornlighting.co.uk Leopard Wall Mounted Indoor  Lighting Series of vandal resistant luminaires for wall or ceiling mounting, in black or white with opal or prismatic diffusers•   Sealed to IP65 for exterior applications when supplied gasket fitted •   Energy saving sensor options, luminaire is activated when movement has been detected, then will switch off •   28W 2D integral emergency version as standard•   Choice of diffuser, body shape and colour•   HF control gear as standard•   Supplied complete with lamp Materials and Finish•   Bodies: polycarbonate, black or white•   Diffusers: polycarbonate opal and clear honeycomb prismatic •   Gear-tray: Pre-coated steel Installation and Mounting•   Suitable for surface mounting with rear BESA provision•   Side entry (25mm conduit) for through wiring with entry into 3 way terminal block suitable to accept 2 x 2.5mm. •   Vandal resistant screw kit available as an accessory. •   All internal components are fixed to a white pre-coated gear tray which has a unique (tool free) click fit into base. •   Screw fixed diffuser Installation Options Standards

www.thornlighting.co.uk     57 Ordering Guide Indoor  Lighting Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. LEOPARD – ROUND SMALL BODY Prismatic, White LEOPARD 1x16W TC-DD HF PR RD WHI L830 18.0 1.1 96238460 LER116ZPRW Prismatic, Black LEOPARD 1x16W TC-DD HF PR RD BLK L830 18.0 1.1 96238459 LER116ZPRB Opal, White LEOPARD 1x16W TC-DD HF OP RD WHI L830 18.0 1.1 96238458 LER116ZOPW Opal, Black LEOPARD 1x16W TC-DD HF OP RD BLK L830 18.0 1.1 96238457 LER116ZOPB LEOPARD – ROUND LARGE BODY Prismatic, White LEOPARD 1x28W TC-DDEL HF PR RD WHI L840 32.0 1.8 96230498 LER128ZPRW LEOPARD 1x28W TC-DDEL HF E3 PR RD WHI L840 33.0 2.8 96230490 LER128ZEPRW LEOPARD 1x28W TC-DDEL HF MWS PRRD WHI L84 32.0 1.9 96239802 LER128ZSPRW LEOPARD 1x28W TC-DDEL HF MWS E3 PRRD WH L84 33.0 2.9 96239810 LER128ZSEPRW LEOPARD 1x38W TC-DDEL HF PR RD WHI L840 41.0 1.8 96238468 LER138ZPRW Prismatic,  Black LEOPARD 1x28W TC-DDEL HF PR RD BLK L840 32.0 1.8 96230497 LER128ZPRB LEOPARD 1x28W TC-DDEL HF E3 PR RD BLK 40 33.0 2.8 96230489 LER128ZEPRB LEOPARD 1x28W TC-DDELHF MWS PRRD BLK L84 32.0 1.9 96239801 LER128ZSPRB LEOPARD 1x28W TC-DDELHF MWS E3PRRD BK L84 33.0 2.9 96239809 LER128ZSEPRB LEOPARD 1x38W TC-DDEL HF PR RD BLK L840 41.0 1.8 96238467 LER138ZPRB Opal, White LEOPARD 1x28W TC-DDEL HF OP RD WHI L840 32.0 1.8 96230494 LER128ZOPW LEOPARD 1x28W TC-DDEL HF E3 OP RD WHI 40 33.0 2.8 96230486 LER128ZEOPW LEOPARD 1x28W TC-DDELHF MWS OPRD WHI L84 32.0 1.9 96239797 LER128ZSOPW LEOPARD 1x28W TC-DDELHF MWS E3OPRD WH L84 33.0 2.9 96239806 LER128ZSEOPW LEOPARD 1x38W TC-DDEL HF OP RD WHI L840 41.0 1.8 96238466 LER138ZOPW Opal, Black LEOPARD 1x28W TC-DDEL HF OP RD BLK L840 32.0 1.8 96230493 LER128ZOPB LEOPARD 1x28W TC-DDEL HF E3 OP RD BLK 40 33.0 2.8 96230485 LER128ZEOPB LEOPARD 1x28W TC-DDELHF MWS OPRD BLK L84 32.0 1.9 96239796 LER128ZSOPB LEOPARD 1x28WTC-DDELHF MWS E3OPRD BK L84 33.0 2.9 96239805 LER128ZSEOPB LEOPARD 1x38W TC-DDEL HF OP RD BLK L840 41.0 1.8 96238465 LER138ZOPB ACCESSORIES LEOPARD 1X28W TC-DD HF E3 CONVERSION KIT - 1.5 96010367 LE128EKIT LEOPARD PHOTOCELL KIT - 0.3 96010365 LEPCKIT LEOPARD VANDAL PROOF SCREW KIT - 0.1 96010366 LEVPKIT High output emergency versions available. Visit www.thornlighting.co.uk/LPRD for more information

58     www.thornlighting.co.uk Loire LED Wall Mounted Indoor  Lighting Decorative luminaire for wall or ceiling mounting with dome shaped diffuser in glass or polycarbonate•   Sealed to IP65•   Supplied with Quick Fix Bracket for safe and rapid electrical installation •   Integral emergency version as standard•   Direct replacement for traditional 28W 2D•   50 000 hour rated life Materials and Finish•   Body: die-cast aluminium•   Bezel: polycarbonate white finish•   Diffuser: opal polycarbonate Installation and Mounting•   Suitable for surface mounting on wall or ceiling for both interior and exterior use.  •   Quick Fix Bracket is screw fixed onto mounting surface by 4 oblong holes (4.5mm x 10mm). •   Mains connection via 6x2x2.5mm² terminal block. •   ‘Light Box’ mechanically and electrically auto-connected to the Quick Fix Bracket.  •   For loop wiring there are two Ø20mm cable entry holes on the Quick Fix Bracket. 116 45 Ø 285 Installation Options Standards

www.thornlighting.co.uk     59 Ordering Guide Indoor  Lighting Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. LOIRE LED HF  LO 1200 LED HF OP RD WHI L840 15.5 1.6 96241358 LO1200Z HF Emergency LO 1200 LED HF E3 OP RD WHI L840 15.5 1.8 96241359 LO1200ZE Loire LED Room height 1.8m Work Plane 0m Maintenance factor  0.8 Reflectances Ceiling: 50% Wall: 30% Floor: 20% Cat. No. LO1200Z Lamp  LED Lumens  1200 lm Lux 100 lux 15m 2m 1.3m

60     www.thornlighting.co.uk Danube LED Wall Mounted Indoor  Lighting Stylish luminaire for wall or ceiling mounting with low profile flared bezel and diffuser•   Sealed to IP65•   Supplied with Quick Fix Bracket for safe and rapid electrical installation •   Integral emergency version as standard•   Direct replacement for traditional 28W 2D•   50 000 hour rated life Materials and Finish•   Body: die-cast aluminium •   Diffuser: opal polycarbonate •   Bezel: polycarbonate, white Installation and Mounting•   Suitable for surface mounting on wall or ceiling for both interior and exterior use.  •   Quick Fix Bracket is screw fixed onto mounting surface by   4 oblong holes (4.5mm x 10mm). •   Mains connection via 6x2x2.5mm² terminal block. •   ‘Light Box’ mechanically and electrically auto-connected to the  Quick Fix Bracket.  •   For loop wiring there are two Ø20mm cable entry holes on the Quick Fix Bracket. 73  48 Ø 285Ø 226 Installation Options Standards

www.thornlighting.co.uk     61 Ordering Guide Indoor  Lighting Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. DANUBE LED HF  DA 1200 LED HF OP RD WHI L840 15.5 1.6 96241362 DA1200ZOP HF Emergency DA 1200 LED HF E3 OP RD WHI L840 15.5 1.8 96241363 DA1200ZEOP Danube LED Room height 1.8m Work Plane 0m Maintenance factor  0.8 Reflectances Ceiling: 50% Wall: 30% Floor: 20% Cat. No. DA1200ZOP Lamp  LED Lumens  1200 lm Lux 97 lux 15m 2m 1.3m

62     www.thornlighting.co.uk Club LED Wall Mounted Indoor  Lighting Stylish, tough wall or ceiling mounted luminaire with the emphasis on its slim section•   Sealed to IP54•   Choice of bezel colour, complemented by an opal diffuser•   Energy saving sensor options, luminaire is activated when movement has been detected, then will switch off •   Integral emergency version as standard•   Direct replacement for traditional 28W 2D•   50 000 hour rated life Materials and Finish•   Body and trim: injection moulded polycarbonate.•   Diffuser: opal polycarbonate.•   Body and trim colours: white body with white or polished chrome trim. Installation and Mounting•   Suitable for surface mounting. •   Rear BESA mounting provision•   Cable entry into 3 way terminal block suitable to   accept 2x2.5mm 2 . 105 327      Installation Options Standards

www.thornlighting.co.uk     63 Ordering Guide Indoor  Lighting Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. CLUB LED White CLUB 1000 LED OP HF RD WHT L840 13.0 1.5 96617056 CL10ZW CLUB 1000 LED E3 HF OP RD WHT L840 13.0 1.7 96617057 CL10ZEW CLUB 1000 LED MWS OPRD WHI L840 13.0 1.6 96242239 CL10ZSW CLUB 1000 LED E3 MWS OPRD WHI L840 13.0 1.8 96242240 CL10ZSEW Chrome CLUB 1000 LED OP HF RD CHR L840 13.0 1.5 96242253 CL10ZCH CLUB 1000 LED E3 HF OP RD CHR L840 13.0 1.7 96242254 CL10ZECH CLUB 1000 LED MWS OPRD CHR L840 13.0 1.6 96242255 CL10ZSCH CLUB 1000 LED E3 MWS OPRD CHR L840 13.0 1.8 96242256 CL10ZSECH Club LED Room height 1.8m Work Plane 0m Maintenance factor  0.8 Reflectances Ceiling: 50% Wall: 30% Floor: 20% Cat. No. CL10ZW Lamp  LED Lumens  1000 lm Lux 108 lux 2m 15m 1m

64     www.thornlighting.co.uk Novaline LED Wall Mounted Indoor  Lighting A slim circular luminaire for wall or ceiling mounting,  which blends with most architectural styles•   Sleek design with a diffuser that can be removed   without tools •   Available white or satin chrome finish•   Sealed to IP40 with aluminium body•   Integral emergency version as standard•   Direct replacement for traditional 28W & 38W 2D•   50 000 hour rated life Materials and Finish•   Body: spun aluminium – white or satin chrome finish.•   Diffuser: opal polycarbonate. Installation and Mounting•   Wall or ceiling mounting for interior use. •   Simple installation with central BESA fixings and   rear cable entry.  •   3-way mains terminal block   (4-way for emergency version). Novaline LED 2,8m 3,85m Installation Options Standards Novaline LED 150lx 5.5m 2.92m Mounting height 2.8/3.85mLux 150 lux

www.thornlighting.co.uk     65 Ordering Guide Indoor  Lighting Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. NOVALINE LED – WHITE HF NOVALINE 1000 LED HF OP RD WHI L840 17.0 2.0 96240705 NV1000ZW NOVALINE 2000 LED HF OP RD WHI L840 28.0 3.0 96241217 NV2000ZW HF Emergency NOVALINE 1000 LED HF E3 OP RD WHI L840 17.0 2.3 96240707 NV1000ZEW NOVALINE 2000 LED HF E3 OP RD WHI L840 28.0 3.3 96241219 NV2000ZEW HF Sensor NOVALINE 1000 LED HF MWS OP RD WHI L840 17.0 2.1 96240706 NV1000ZSW NOVALINE 2000 LED HF MWS OP RD WHI L840 28.0 3.1 96241218 NV2000ZSW HF Emergency Sensor NOVALINE 1000 LED HF MWS E3 OP RD WHI L840 17.0 2.4 96240708 NV1000ZSEW NOVALINE 2000 LED HF MWS E3 OP RD WHI L840 28.0 3.4 96241220 NV2000ZSEW NOVALINE LED – CHROME HF NOVALINE 1000 LED HF OP RD CHR L840 17.0 2.0 96241325 NV1000ZCH NOVALINE 2000 LED HF OP RD CHR L840 28.0 3.0 96241321 NV2000ZCH HF Emergency NOVALINE 1000 LED HF E3 OP RD CHR L840 17.0 2.3 96241327 NV1000ZECH NOVALINE 2000 LED HF E3 OP RD CHR L840 28.0 3.3 96241323 NV2000ZECH HF Sensor NOVALINE 1000 LED HF MWS OP RD CHR L840 17.0 2.1 96241326 NV1000ZSCH NOVALINE 2000 LED HF MWS OP RD CHR L840 28.0 3.1 96241322 NV2000ZSCH HF Emergency Sensor NOVALINE 1000 LED HF MWS E3 OP RD CHR L840 17.0 2.4 96241328 NV1000ZSECH NOVALINE 2000 LED HF E3 MWS OP RD CHR L840 28.0 3.4 96241324 NV2000ZSECH Novaline LED Room height 1.8m Work Plane 0m Maintenance factor  0.8 Reflectances Ceiling: 50% Wall: 30% Floor: 20% Cat. No. NV2000ZW Lamp  LED Lumens  2000 lm Lux 113 lux 2m 15m 2.4m

66     www.thornlighting.co.uk Voyager Compact LED Emergency Indoor  Lighting LED emergency luminaire suitable for maintained or  non-maintained operation, offering low maintenance in  multiple applications•   100lm LED, direct replacement for traditional 8W   emergency bulkhead •   Sealed to IP65•   Maintained and non-maintained operation within the same luminaire, reducing installation complexity •   Low energy consumption – only 3W in maintained mode•   50 000 hours rated life without the need for lamp changes•   Suitable for escape routes and anti-panic/ open areas•   Conical and side optical prisms to maximise performance and spacing •   20m viewing distance when used as an exit sign –   ISO and BSEN legend kits available Materials and Finish•   Base: Polycarbonate, white•   Secondary cowl: Polycarbonate, white•   Diffuser: Polycarbonate, clear Installation and Mounting•   4 x screw fixing complete with drilling guide points•   BESA and side entry facility•   Loop in/loop out terminal block with rising clamps to prevent excessive tightening and cable damage •   One piece installation – no mounting kit necessary 207 116 70 Installation Options Standards

www.thornlighting.co.uk     67 Ordering Guide Indoor  Lighting Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. VOYAGER COMPACT LED Luminaire VOYAGER BULKHEAD E3 MTD/NMTD 3.0 0.5 96242092 VYBE3 Legend Kits VOYAGER BULKHEAD EURO 7010 LEGEND KIT - 0.1 96242093 VYLKE VOYAGER BULKHEAD ISO LEGEND KIT - 0.1 96242094 VYLKI

68     www.thornlighting.co.uk Voyager E LED Emergency Indoor  Lighting Self-contained wall mounted 3 hour maintained LED  emergency exit sign•   IP20 rated for indoor use•   Low energy consumption – only 5.6W•   50 000 hours rated life without the need for lamp changes•   Suitable for escape routes and anti-panic/ open areas•   Arrow down ISO included for escape route signage applications Materials and Finish•   Body: white steel•   Panel: polycarbonate Installation and Mounting•   Wall mounting with Ø20mm cable entry top and rear•   Screw fixings (3) on rear•   4 way terminal block 2x1.5mm 2 158 85 324 200 70 VOYAGER LED EXIT SIGN VOYAGER LED BULKHEAD 79 350 100 Installation Options Standards

www.thornlighting.co.uk     69 Ordering Guide Indoor  Lighting Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. VOYAGER E LED Luminaire VOYAGER E LED EXIT SIGN BOX 3.0 1.7 96241058 VYELEDEXIT VOYAGER E LED BULKHEAD E3M 5.6 0.8 96241057 VYELEDBM VOYAGER E LED BULKHEAD E3NM 5.6 0.8 96241056 VYELEDBNM Legend VOYAGER E KIT EDP OP PC - 0.5 96237078 VYEKIT

70     www.thornlighting.co.uk Voyager Twin Spot Emergency Indoor  Lighting A non-maintained, tungsten halogen twin spot luminaire for large open area and high risk applications•   Switches to emergency operation instantaneously ( 250mS) - ideal for high risk areas such as machine shops, control rooms and intensive care units •   Adjustable head to match light output to application•   3 hour duration for 20W versions, 1 hour for 55W ratings•   Maintenance free 12V batteries – sealed lead acid 4-7 year design life •   24 hour recharge period•   Low voltage cut off, thermal and reverse polarity protection •   Weatherproof IP65 versions available Materials and Finish•   IP20: mild steel enclosure•   IP65: polycarbonate enclosure Installation and Mounting•   IP20: Enclosure has an easy access front panel.•   IP65: Enclosure has screw locked front panel seal. Lamps separately supplied on angle brackets, with glands for wiring remotely to the enclosure.  Glanding points on side for cable gland fixing.  •   Cable entry: provision for 20mm knockouts. •   Current consumption: 0.1A •   Units should be mounted at least 30° above the   line of sight. 74 343 200 150 130 280 280 Standards

www.thornlighting.co.uk     71 Ordering Guide Indoor  Lighting Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. VOYAGER TWIN SPOT IP20 VOYAGER TWINSPOT 2x20W E3NM IP20 LI - 8.6 96004128 VYTS203NMIP20 VOYAGER TWINSPOT 2x55W E1NM IP20 LI - 9.0 96211175 VYTS551NMIP20 IP65 VOYAGER TWINSPOT 2x20W E3NM IP65 LI - 8.5 96102984 VYTS203NMIP65 VOYAGER TWINSPOT 2x55W E1NM IP65 LI - 8.2 96211177 VYTS551NMIP65

72     www.thornlighting.co.uk Sonpak LX Area Floodlighting Outdoor  Lighting A range of easy to install performance floodlights supplied complete with lamp•   Asymmetric reflector•   Integral control gear and sealed to IP65•   Easy to install with drop down front glass and cable entry.•   Vandal resistant option with polypropylene body and high impact clear polycarbonate visor. Exterior optical attachments available •   Supplied complete with lamp Materials and Finish 70W•   Body: polypropylene, black colour, reinforced with   fibreglass and mineral loads.  •   Lens : self-extinguishing polycarbonate or flat toughened glass, thickness 5mm. •   Reflector: Hammered aluminium sheet •   Screws: Chrome-galvanised steel.•   Cable gland: M20 cable gland Ø9-11 mm.•   Gasket: anti-ageing rubber.•   Bracket : in steel and (black colour) RAL 9005, can be   fixed through M6 screws, supplied with graduated  scale for floodlight aiming  150-400W•   Body: Die-cast aluminium alloy UNI EN 46100,   painted with polyester powders, black colour  •   Lens: Flat toughened glass, thickness 5mm. •   Reflector: Hammered aluminium sheet •   Screws: Chrome-galvanised steel.•   Cable gland: PG 13.5 nylon cable gland for cables Ø9-12 mm.•   Gasket: anti-ageing foamed silicone.•   Bracket: in steel and black colour RAL 9005, fixed with M10 screws maximum; supplied with graduated scale  for floodlight aiming 377 406 130 522 422 460 250 Ø13Ø21 82 Installation and Mounting•   All products have one cable glanded entry for Ø9-11mm cable. 3 pole terminal blocks. •   70W stirrup fixed by single bolt through Ø16mm hole.•   Two additional Ø11mm fixing holes at 100mm centres, with a further two Ø13mm fixing holes at 180mm centres •   150-400W stirrup fixed by single bolt through Ø21mm hole.•   Two additional Ø13mm fixing holes at 250mm centres•   Cable gland and stirrup already mounted on body. Installation Options Standards

www.thornlighting.co.uk     73 Ordering Guide Outdoor  Lighting Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. SONPAK – 70W Floodlight SONPAK LX 70W 240V HIT-DE/RX7s A/S P 85.0 2.7 96232643 OTXPM70 SONPAK LX 70W 240V HIT-DE/RX7s/730 A/S 85.0 2.7 96232642 OTXM70 SONPAK LX 70W 240V HSE-I/E27 A/S P 84.0 2.7 96232641 OTXPS70 SONPAK LX 70W 240V HSE-I/E27/220 A/S 84.0 2.7 96232640 OTXS70 Attachment SONPAK LX FIX/MA 76 - 1.6 96250695 OTX76S SONPAK – 150-400W Floodlight SONPAK LX 70W 240V HIT-DE/RX7s A/S P 85.0 2.7 96232643 OTXPM70 SONPAK LX 70W 240V HIT-DE/RX7s/730 A/S 85.0 2.7 96232642 OTXM70 SONPAK LX 70W 240V HSE-I/E27 A/S P 84.0 2.7 96232641 OTXPS70 SONPAK LX 70W 240V HIT-DE/RX7s/730 A/S 85.0 2.7 96232642 OTXM70 SONPAK LX 70W 240V HSE-I/E27 A/S P 84.0 2.7 96232641 OTXPS70 SONPAK LX 70W 240V HSE-I/E27/220 A/S 84.0 2.7 96232640 OTXS70 Attachment SONPAK LX 150/250/400W WG - 0.5 96250694 OTX250WG SONPAK LX FIX/MA 76 - 1.6 96250695 OTX76S

74     www.thornlighting.co.uk Piazza II Wall Mounted Outdoor  Lighting Robust, IP65 luminaires designed to provide security, surround or accent illumination with a touch of style•   Excellent light distribution and uniformity   (up to 11m spacing) •   Versions with built-in photocell or emergency lighting•   Multi-option mounting: wall or brackets for corners   and poles •   Supplied complete with lamp Materials and Finish•   Body: polycarbonate, anthracite finish•   Diffuser: polycarbonate. Small: smooth opal.   Large: clear prismatic, smooth opal •   Eyelid: polycarbonate, anthracite finish•   Pole/wall mounting brackets: galvanised steel,   polyester powder coated Installation and Mounting•   20mm cable entry via rear grommeted hole or top and side conduit entries.  •   Internal or external corner installation possible with wall bracket accessory. •   Pole mounting brackets allow 1 to 4 large luminaires on one pole between 60mm and 76mm diameter.  •   Recommended mounting height:   Large 3-6m;  Small 1-3m Installation Options Standards

www.thornlighting.co.uk     75 Outdoor  Lighting Ordering Guide Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. PIAZZA – SMALL Opal PIAZZA II S 1x18W TC-TEL HF OP FR L840 19.0 1.1 96233240 PZSF18O PIAZZA II S 1x26W TC-TEL HF OP FR L840 27.0 1.2 96233242 PZSF26O PIAZZA II S 1x35W HIT-CE G12 HF OP FR LI 43.0 1.4 96233244 PZSM35O PIAZZA II S 2x18W TC-DEL HF OP FR L840 38.0 1.3 96233276 PZSF218O PIAZZA II S 2x26W TC-DEL HF OP FR L840 51.0 1.3 96233277 PZSF226O Emergency Opal PIAZZA II S 1x18W TC-TEL HF E3 OP FR LI8 24.0 1.8 96233241 PZSF18EO PIAZZA – LARGE Prismatic PIAZZA II L 1x42W TC-T HF PR RAL L840 46.0 2.1 96233272 PZLF42P PIAZZA II L 50W 240V HSE PR RAL LI 63.0 3.6 96233252 PZLS50P PIAZZA II L 70W 240V HIT-CE E27 PR RAL L 85.0 3.6 96233235 PZLM70P PIAZZA II L 70W 240V HSE-I PR RAL LI 85.0 3.5 96233234 PZLSE70P PIAZZA II L 70W 240V HST PR RAL LI 85.0 3.6 96233264 PZLST70P PIAZZA II L 70W HIT DGE E27 PR RAL LI 78.0 2.5 96233267 PZLM70ZP Prismatic with Photocell PIAZZA II L 70W 240V HSE-I P PR RAL LI 85.0 3.5 96233237 PZLSE70PP PIAZZA II L 70W 240V HST P PR RAL LI 85.0 3.6 96233233 PZLST70PP Prismatic Emerg PIAZZA II L 1x42W TC-TEL HF E3 PR RAL L 47.0 3.1 96241455 PZLF42EP Opal PIAZZA II L 1x42W TC-TEL HF OP RAL L840 46.0 2.1 96233273 PZLF42O Opal Emerg PIAZZA II L 1x42W TC-TEL HF E3 OP RAL L 47.0 3.1 96241454 PZLF42EO Attachments PIAZZA II L BRACKET EXT MWA - 0.4 96233286 PZLXWB PIAZZA II L BRACKET INT MWA MA76 - 0.3 96233246 PZLWPB PIAZZA II L BRACKET x4 MWA MA76 - 0.3 96233731 PZLPB4 PIAZZA II L MA76 2XTORQUE CLIP - 0.3 96233730 PZLTC

76     www.thornlighting.co.uk Chartor Urban Amenity Lighting Outdoor  Lighting A range of robust, circular aluminium bollards for pedestrian paths, parks and gardens•   Simple design that appears unobtrusive in the landscape•   Choice of fresnel lens or louvre optic to optimise comfort and performance •   Robust construction•   Choice of discharge or CFL sources•   Flange or root mounted•   Supplied complete with lamp Materials and Finish•   Head: die-cast aluminium, painted textured grey close to RAL7043. •   Optic: fresnel lens in clear polycarbonate or aluminised plastic louvres protected by clear polycarbonate sleeve.  •   Post: Aluminium, textured grey finish. Installation and Mounting•   Flange or root mounting, latter option embeds 450mm into the ground.  •   250mm flange plate version fixes via four Ø15mm holes at 200mm centres.  •   Ø60mm central hole for wiring. •   Three way terminal block for 2 x 4mm 2  cable. 580 230 Ø140 810 250 200  Ø60 470 Ø140  810 Installation Options Standards

www.thornlighting.co.uk     77 Ordering Guide Outdoor  Lighting Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. CHARTOR BOLLARD Heads CHARTOR HEAD LF - 1.4 96011221 CAFL CHARTOR HEAD LV - 1.6 96011222 CALV Gears CHARTOR 50W HSE AE/L 63.0 0.0 96546804 CA50 CHARTOR GT 18W TC-D/L 28.0 0.0 96546803 CA18 Posts CHARTOR MGR - 3.4 96011247 CABOLRT CHARTOR MPL - 3.0 96011220 CABOLFP

78     www.thornlighting.co.uk D-CO LED Bollard Urban Amenity Lighting Outdoor  Lighting A contemporary slim bollard offering comfortable  visual guidance•   Comfortable white light with no glare provided by   a semi-opal anti-UV PC diffuser •   Suitable for any application thanks to high specs   and two heights •   60 000 hour lifetime (L80, 25°) ensures low   maintenance costs •   Flange mounting, compatible with root spikes Materials and Finish•   Top and body: aluminium, powder coated grey 900•   Diffuser: semi-opal anti-UV polycarbonate Installation and Mounting•   Suitable for flange mounting. •   500mm root spike (PMB1RT) to be fixed into   concrete base.  •   800mm root spike (PMB2RT) to be fixed into   the ground. Ø153 Ø150 Ø230 140 Ø15 36 174 700/1000 Installation Options Standards

www.thornlighting.co.uk     79 Ordering Guide Outdoor  Lighting Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. D-CO LED BOLLARD Bollard D-CO LED BOLLARD 1000 30L50 830 CL1 14.0 5.5 96262100 DCB23K14 D-CO LED BOLLARD 1000 30L50 840 CL1 14.0 5.5 96262145 DCB24K14 D-CO LED BOLLARD 700 30L50 830 CL1 14.0 4.2 96262101 DCB13K14 D-CO LED BOLLARD 700 30L50 840 CL1 14.0 4.2 96262146 DCB14K14 Adapters MGR BASE PROM/AVENUE/MADISON/DCO - 10.0 96100253 PMB1RT MGR SPIKE PROM/AVENUE/MADISON/DCO - 10.0 96005367 PMB2RT

80     www.thornlighting.co.uk D-CO LED Floodlight Surface Architectural Floodlighting Outdoor  Lighting A range of extremely compact LED floodlights in two  body sizes with a simple aesthetic design•   Supplied with stirrup and ground spike•   Visor to prevent obtrusive light•   Integral power supplies•   Pre-wired with 5m cable Materials and Finish•   Body: aluminium, finished in grey•   Glass: toughened glass•   Gasket: anti-ageing silicone•   Stirrup: aluminium finished in grey•   Spike: aluminium finished in black •   Connection boxes body: PC/ABS blend Installation and Mounting•   Floodlights supplied pre-wired with 5m cable. •   Installation on surface with stirrup or in the ground   with a spike. •   Connection box DCCB21: 3 glanded cable entries   2 x PG13 (in) and 1 x PG9 (out) •   Connection box DCCB26: 8 glanded cable entries   2 x PG13 (in) and 6 x PG9 (out). 50 60 138 180 80 50 156 255 Size 1 Size 2 Installation Options Standards

www.thornlighting.co.uk     81 Ordering Guide Outdoor  Lighting Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. D-CO LED FLOODLIGHT Floodlights Size 1 D-CO F LED FLOOD1 3L35 830 5.0 0.4 96257244 DCF13K12 D-CO F LED FLOOD1 3L35 840 5.0 0.4 96257245 DCF14K12 Floodlights Size 2 D-CO F LED FLOOD2 6L50 830 12.0 0.9 96257246 DCF23K12 D-CO F LED FLOOD2 6L50 840 12.0 0.9 96257247 DCF24K12 Connection boxes CON CABLE BOX 2 ENTRIES 1 EXIT IP67 - 0.3 96257258 DCCB21 CON CABLE BOX 2 ENTRIES 6 EXIT IP67 - 0.4 96257259 DCCB26

82     www.thornlighting.co.uk D-CO LED Recessed Recessed Architectural Floodlighting Outdoor  Lighting A range of LED based, recessed ‘walk-over’ luminaires for guidance and accent applications•   High quality finish•   Complies with the contact temperature standard (EN60598-2-13)•   Plastic end caps supplied for installation in concrete•   Pre-wired with 5m cable Materials and Finish•   Body: aluminium (except medium, PC/ABS blend),   CNC Electrophoresis •   Recessed housing: aluminium (except Maxi – ABS)   with plastic end cap •   Glass: toughened frosted or clear•   Frames/Windows: stainless steel 316L•   Gasket: anti-ageing silicone•   Connection box body: PC/ABS blend Installation and Mounting•   To ensure efficient drainage, gravel must be used to a   depth of 300mm beneath the housing. •   The plastic end cap prevents ingress of concrete during installation.•   All the fittings are supplied with 5m cable. •   Single Mini units are supplied pre-wired with cable with remote gear, recessed box, plastic end cap, connectors and 3 way connection box. •   Mini kit luminaires are individually pre-wired with cable and  supplied with an 8 way connection box, containing gear and connectors – including a specific connector for through wiring.  •   If a single LED fails, the other system LEDs continues to operate. Connector has LED failure alerting display.  Static load: 500kg •   Connection box DCCB21:   3 glanded cable entries 2 x PG13 (in) and 1 x PG9 (out) •   Connection box DCCB26:   8 glanded cable entries 2 x PG13 (in) and 6 x PG9 (out). Installation Options Standards

www.thornlighting.co.uk     83 Ordering Guide Outdoor  Lighting Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. D-CO LED RECESSED Mini D-CO R LED MINI 1L35 830 CL 1.2 0.5 96257228 DCS3K12C D-CO R LED MINI 1L35 830 EW2 1.2 0.5 96257234 DCS3K12W2 D-CO R LED MINI 1L35 830 FR 1.2 0.5 96257231 DCS3K12F D-CO R LED MINI 1L35 840 CL 1.2 0.5 96257227 DCS4K12C Mini Kits D-CO R LED MINI 6X1L35 830 CL KIT 7.2 1.3 96257249 DCS3K12KITC D-CO R LED MINI 6X1L35 830 EW2 KIT 7.2 1.3 96257255 DCS3K12KITW2 D-CO R LED MINI 6X1L35 830 FR KIT 7.2 1.3 96257252 DCS3K12KITF D-CO R LED MINI 6X1L35 840 CL KIT 7.2 1.3 96257248 DCS4K12KITC Medium D-CO R LED MEDIUM 1X1,2W BLU FR 2.7 0.7 96257238 DCORMBF D-CO R LED MEDIUM 1X1,2W WHI 3K FR 2.7 0.7 96257237 DCORM3KF D-CO R LED MEDIUM 1X1,2W WHI 4K FR 2.7 0.7 96257236 DCORM4KF Maxi D-CO R LED MAXI 6L50 830 CL 12.0 3.0 96257240 DCL3K12C D-CO R LED MAXI 6L50 840 CL 12.0 3.0 96257239 DCL4K12C Connection boxes CON CABLE BOX 2 ENTRIES 1 EXIT IP67 - 0.3 96257258 DCCB21 CON CABLE BOX 2 ENTRIES 6 EXIT IP67 - 0.4 96257259 DCCB26

84     www.thornlighting.co.uk Isaro LED Street Lighting Outdoor  Lighting Economic, accurately controlled LED lighting for minor  and major roads•   Excellent heat dissipation and a long life time for low maintenance and a minimum total cost of ownership •   High optical performance with adjustable tilting -20° to +10° for accurate lighting control •   Timeless simple style offers an excellent refurbishment solution and reduces daytime visual impact •   Standalone dimming for optimised energy usage•   50 000 hours rated life without the need for lamp changes Materials and Finish•   Body: die-cast aluminium powder coated grey,   RAL 9006 (other RAL colours on request) •   Bracket: plain die-cast aluminium or powder coated grey, RAL 9006 (other RAL colours on request) •   Enclosures: UV stabilised polycarbonate or   toughened glass •   Screws: stainless steel Installation and Mounting•   Suitable for mounting on top Ø76mm and side Ø60mm and Ø42mm. •   Variable tilting setting: 0° to +10° on post top   mounting and -20° to 0° on lateral mounting, in 5° steps. •   Cable gland for Ø8 to 12mm cable.   Delivered ready to install, complete with factory fitted integral gear tray, all supplied in a single carton. 282 200 113 83 Ø60/76 Scx: 0.069m 2 600 116 Installation Options Standards

www.thornlighting.co.uk     85 Ordering Guide Outdoor  Lighting Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. ISARO LED Flat glass, narrow road distribution ISARO 24L35 NR EFL 740 CL1 MA76 31.0 5.5 96265111 IS26FG76 ISARO 24L50 NR EFL 740 CL1 MA76 40.0 5.5 96265119 IS39FG76 ISARO 24L70 NR EFL 740 CL1 MA76 58.0 5.5 96265130 IS56FG76 ISARO 36L35 NR EFL 740 CL1 MA76 42.0 5.5 96265216 IS38FG76 ISARO 36L50 NR EFL 740 CL1 MA76 61.0 5.6 96265208 IS58FG76 ISARO 36L70 NR EFL 740 CL1 MA76 84.0 5.6 96265197 IS84FG76 Polycarbonate bowl,  wide street  distribution  ISARO 24L35 WS PC 740 CL1 MA76 31.0 5.3 96265154 IS2676 ISARO 24L50 WS PC 740 CL1 MA76 40.0 5.3 96265163 IS3976 ISARO 24L70 WS PC 740 CL1 MA76 58.0 5.3 96265175 IS5676 ISARO 36L35 WS PC 740 CL1 MA76 42.0 5.3 96265257 IS3876 ISARO 36L50 WS PC 740 CL1 MA76 61.0 5.4 96265252 IS5876 ISARO 36L70 WS PC 740 CL1 MA76 84.0 5.4 96265238 IS8476 42mm Spigot, 60mm Spigot, Photocell and Bi-Power versions available.  Visit www.thornlighting.co.uk/ISRL for more information

86     www.thornlighting.co.uk Isaro Street Lighting Outdoor  Lighting Timeless, accurately controlled lighting for minor and  major roads•   High optical performance with adjustable tilting -20° to +10° for accurate lighting control •   Timeless simple style offers an excellent refurbishment solution and reduces daytime visual impact •   Designed for easy installation and maintenance with safe access to the lamp and gear tray from above with automatic disconnection •   Durable and recyclable full aluminium construction,   protected to IP66 Materials and Finish•   Body: die-cast aluminium powder coated grey   RAL 9006 (other RAL colours on request) •   Bracket: plain die-cast aluminium or powder coated grey, RAL 9006 (other RAL colours on request) •   Enclosure: UV stabilised polycarbonate or toughened glass•   Screws and clip: stainless steel•   Reflector: anodised aluminium Installation and Mounting•   Suitable for mounting on top Ø76mm and side Ø42/60mm.•   Variable tilting setting: 0° to +10° on post top mounting and -20° to 0° on lateral mounting in 5° steps. Cable gland for Ø8 to 12mm cable. Access from above to the gear and optic system after quick release of the stainless steel front clip and secure by an automatic disconnection. •   Delivered ready to install, complete with factory fitted integral gear tray and lamp, all supplied in a single carton. 282 113 602 195 276 83 Ø76 282 113 602 146 276 83 Ø60 Installation Options Standards

www.thornlighting.co.uk     87 Ordering Guide Outdoor  Lighting Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. ISARO Isaro Flat glass, electronic ISARO 100W HST-DGE CL1 EFL MA76 /L 109.0 4.8 96261653 ISS100FGZ76 ISARO 140W HIT-DGE CL1 EFL MA76 /L 153.0 6.1 96261636 ISM140FGZ76 ISARO 150W HST-DGE CL1 EFL MA76 /L 161.0 5.4 96261661 ISS150FGZ76 ISARO 45W HIT-DGE CL1 EFL MA76 /L 52.0 5.6 96261684 ISM45FGZ76 ISARO 50W HST DGE CL1 EFL MA76 /L 60.0 5.6 96261677 ISS50FGZ76 ISARO 70W HST DGE CL1 EFL MA76 /L 81.0 5.1 96261670 ISS70FGZ76 ISARO 90W HIT-DGE CL1 EFL MA76 /L 99.0 5.6 96261637 ISM90FGZ76 Isaro  Polycarbonate bowl, electronic ISARO 100W HST-DGE CL1 PC MA76 /L 109.0 4.6 96261652 ISS100Z76 ISARO 140W HIT-DGE CL1 PC MA76 /L 153.0 5.4 96261632 ISM140Z76 ISARO 150W HST-DGE CL1 PC MA76 /L 161.0 5.2 96261662 ISS150Z76 ISARO 45W HIT-DGE CL1 PC MA76 /L 52.0 5.4 96261683 ISM45Z76 ISARO 50W HST DGE CL1 PC MA76 /L 60.0 5.4 96261676 ISS50Z76 ISARO 70W HST DGE CL1 PC MA76 /L 81.0 4.9 96261669 ISS70Z76 ISARO 90W HIT-DGE CL1 PC MA76 /L 99.0 5.4 96261634 ISM90Z76 42mm Spigot, 60mm Spigot and Photocell versions available.  Visit www.thornlighting.co.uk/ISRO for more information

88     www.thornlighting.co.uk Celest Street Lighting Outdoor  Lighting Traditional road lantern incorporating fluorescent white light, combining efficiency and style•   High performance optic optimises TC-L technology (operating from electronic gear) with high energy savings. Suitable for a variety of applications including: secondary roads, bicycle paths, building surroundings, large spaces and vehicle parks •   Engineered to last in any setting and designed with environmental respect and sustainability •   Full IP66 protection of all components with durability and vandal resistance through aluminium and stainless steel construction with polycarbonate enclosure •   Supplied complete with lamp and ready to install Materials and Finish•   Body/Spigot/Spigot canopy: die-cast aluminium   powder coated RAL9006 •   Enclosure: UV stabilised polycarbonate•   Reflector: high purity anodised aluminium•   Gear plate: galvanised steel•   Enclosure gasket: neoprene•   Nema socket gasket: silicone Installation and Mounting•   Integral tool-free rotating spigot secured by 2 screws with safety bolts.  •   Lateral side entry Ø34-60mm x 120mm long spigot. •   Tilted to 0°. Post-top mounting: Ø60/76mm x 80mm long spigot. Tilted to 5°. •   Cable gland for 8mm to 13mm cable. •   Tool-free access to lamp and gear after opening the enclosure via 2 stainless steel clips.  847 134 121 201 Scx: 0.041m 2 Installation Options Standards •   Gear is removed tool-free with retaining straps leaving hands free for wiring. All connections are plug and socket.  •   Delivered ready to install, complete with factory fitted integral gear, all supplied in a single carton.

www.thornlighting.co.uk     89 Ordering Guide Outdoor  Lighting Option Description Circuit  Power (W) Wt (Kg) SAP Code Cat No. CELEST Fixed output CELEST 36W TC-L HFF CL1 PH L830 36.0 5.9 96239676 CE36 CELEST 55W TC-L HFF CL1 PH L830 61.0 6.0 96239677 CE55 CELEST 80W TC-L HFF CL1 PH L830 88.0 5.9 96239678 CE80 Mini Photocell facility CELEST 36W TC-L HFF CL1 PM PH L830 36.0 5.9 96239682 CE36M CELEST 55W TC-L HFF CL1 PM PH L830 61.0 6.4 96239683 CE55M CELEST 80W TC-L HFF CL1 PM PH L830 88.0 5.9 96239684 CE80M Nema Photcell facility CELEST 36W TC-L HFF CL1 PN PH L830 36.0 6.7 96239679 CE36N CELEST 55W TC-L HFF CL1 PN PH L830 61.0 6.7 96239680 CE55N CELEST 80W TC-L HFF CL1 PN PH L830 88.0 5.9 96239681 CE80N Mini/Nema photocells to be ordered separately.

90     www.thornlighting.co.uk Safety  and  Quality Safety and Quality Thorn Lighting is committed to providing its customers with products  and services that are of the highest quality, ensuring safety, reliability  and performance.  Our expertise in meeting these goals is recognised internationally. Thorn is an  active participant in developing the European and International Standards which are used through the Lighting Industry and that third party endorsements, such as BSI approvals/registrations are  based upon.  Quality Assurance   (BSEN/ISO 9000)All activities associated with providing a quality product – design, development, testing, production, despatch, customer service – are covered by BSEN/ISO 9000. The Group’s site at Spennymoor, including UK Distribution, is registered by IQNET to the highest standard, ISO 9001. Additional operations in Europe also operate to the same exacting standards and have achieved EN ISO9001 quality system registration.   Quality in test and    measurement has been  further assessed by BSI, under the scheme of Photometric registration and BSEN ISO/IEC 17025 – Operation of testing laboratories. In-house test facilities cover all aspects of lighting product performance and safety and are considered to be amongst the finest in the world.Environment &  Sustainability Thorn takes seriously its drive to reduce the environmental impact of its business and products. Our ISO 14001 certification for the European factories demonstrates this committment, ensuring our environmental management meets the highest standards.  Acknowledging our responsibility for the environment by having an Environmental Management System means we can identify  and target aspects of our business that impact on the environment and relevant legislation. As part of our sustainability programme we then produce objectives for improvement and our management programme supports this with regular reviews for continual improvement. European Harmonisation For luminaires and lighting components, European harmonisation of national approval marks (above) has been achieved through introduction of the ENEC mark.   The ENEC mark may be    awarded by any one of the  recognised European approval authorities, such as BSI, VDE or SEMKO, in the same way as a  national approval mark. ENEC is important however, because it indicates that the product is suitable for use throughout Europe and that all of the most onerous special national conditions of test standards have been complied with.In the case of lighting components such as ballasts, transformers, emergency lighting units etc. the ENEC mark indicates that both safety and performance standards have been complied with.   The CE mark signifies    that a product conforms  with the requirements of relevant EEC directives. The prime purpose of the mark is to assist customs and market inspectors in facilitating the free trading and movement of products within the EEC.At this time the directives appropriate to general lighting products are the Low Voltage Directive (LVD), the Electromagnetic Compatibility (EMC) Directive and the Energy Related Products Directive (ErP), WEEE (Waste of Electrical and Electronic Equipment Directive) and RoHS (Restriction of Hazardous Substances).CE marking is compulsory to indicate LVD, EMC, RoHS and ErP conformity.Thorn Lighting’s comprehensive compliance with all relevant standards, and implementation of systems to meet them, means its products automatically comply with these directives.

www.thornlighting.co.uk     91 Safety  and  Quality WEEE compliance and approach  Thorn fully complies with the WEEE Directive The latest recast of the Waste of Electrical and Electronic Equipment Directive, 2012/19/EU, came into force on 13th August 2012. Thorn have joined an approved compliance scheme run by Lumicom, a not-for-profit organisation set up by the Lighting Industry Federation to administer the WEEE Directive on behalf of the professional lighting manufacturers in the UK. As a member of an approved compliance scheme Thorn has been given a registration number, WEE/KG0108WX. Since the 1st July 2007 Thorn have been paying its WEEE provider, Lumicom, to manage the collection, recycling and disposal of luminaires.  What does the WEEE directive mean for customers of Thorn Lighting? Thorn Lighting is paying for its responsibility under the directive by paying on a per luminaire basis. For every luminaire that Thorn puts onto the market, as a Producer under the terms of the WEEE Directive, it pays a fee to Lumicom. Therefore you can be sure that every Thorn product you specify or buy is covered in the future under the WEEE Directive. Lumicom will collect, recycle and dispose of Thorn luminaires. There will be no charges from Thorn to cover the cost of collection, recycling and disposal of waste Thorn luminaires at the end of their life. The future cost is covered by the small upfront charge made at the initial sale of the luminaires. Historic Waste  Luminaires stripped out of a building that were manufactured prior to 13th August 2005 are regarded as Historic Waste. As a responsible manufacturer Thorn is also taking responsibility for any products, regardless of the manufacturer, put onto the market before 13th August 2005 as long as the luminaires purchased to replace the old luminaires are manufactured by Thorn.  Products manufactured after 13th August 2005.  These products are identified by the crossed out wheelie-bin symbol. These products are the responsibility of the manufacturer regardless of whose products they are being replaced by. Lamps and Batteries  Thorn is not responsible for the collection, recycling and disposal of lamps. They are the responsibility of the lamp manufacturer marked on the lamp. Most lamps are returned via the Recolight Scheme at www.recolight.com. Batteries are not deemed as WEEE but are covered by the Battery Directive, under the Directive Thorn operate a take back service. All products returned must have their lamps and any  batteries removed before return. RoHS Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment is an EU directive, and products purchased within the European Union must conform to these restrictions. Certain exemptions exist including mercury in lamps, lead in the glass of fluorescent tubes and nickel cadmium in batteries for emergency lighting products. However, these exempted items are still required to be correctly disposed of.Therefore when purchasing exempted items it is important to ascertain how these items will be managed at their end of life, and when removing exempted items it must be ensured that they are handled separatelyAssurance of SafetyUnder the Consumer Protection Act 1987, it is unlawful to make, or hold in stock, or to offer for sale any electrical appliance that is unsafe. In order to give assurance that lighting products are safe, manufacturers have two options: 1. To mark with the symbol of a third party approval  authority.   This is a mark of guarantee endorsed by an independent testing authority. The mark guarantees that compliance has been checked by an independent test house and that third party monitoring of the producing factory’s quality system has been undertaken. 2. Self certification The manufacturer claims that the product is safe and fit for purpose. The value of such a claim is directly related to the standing of the firm making it. In the case of Thorn Lighting, all products are designed, developed, tested and manufactured under the scope of BSEN/ISO 9000 quality systems that are registered and audited by independent third parties. Consequently Thorn products, approval marked or not, are designed, tested and manufactured to the same exacting standards – not all companies apply this principle.

92     www.thornlighting.co.uk Safety  and  Quality Safety and Quality Emergency LightingEmergency lighting is provided when the supply to the mains lighting fails. It helps people avoid panic, restores their confidence and guides them quickly and safely out of the building.Thorn Lighting offers a wide range of emergency lighting luminaires. These may be integrated standard luminaires or separate dedicated emergency units.Thorn luminaires are supplied complete with electronic gear for d.c.operation, white fluorescent tubes and nickel cadmium batteries (unless otherwise stated). A test record card is included so that a maintenance programme can be  followed in accordance with the Code of Practice BS 5266.All Thorn emergency products carry a tamper-evident holographic security label, on both the product and the outer carton. This gives the customer a guarantee of an authentic Thorn emergency lighting product. 3 Authentic Emergency Product Subject British   Standard European  Standard International  Standard Luminaires – Safety BS EN 60598 EN 60598 IEC 60598 Luminaire Track Systems – Safety BS EN 60570 EN 60570 IEC 60570 Luminaires – Performance (General) DD IEC PAS  62772-1 No Standard IEC PAS 62772-1 Luminaires – Performance (LED) DD IEC PAS   62772-2-1 No Standard IEC PAS 62772-2-1 Luminaires – IK Code (Impact  Resistance) BS EN 62262 EN 62262 IEC 62262 +   IEC/TR 62696 EMC Emissions – Lighting BS EN 50015 EN 55015 CISPR 15 EMC Immunity – Lighting BS EN 61547 EN 61547 IEC 61547 EMC Harmonic – Currents BS EN 61000-3-2 EN 61000-3-2 IEC 61000-3-2 EMC Voltage Fluctuation/Flicker BS EN 61000-3-3 EN61000-3-3 IEC 61000-3-3 EMF – Lighting Equipment BS EN 62493 EN 62493 IEC 62493 Photo-biological Safety – Lamps BS EN 62471 EN 62471 IEC 62471 Control Gear – Safety BS EN 61347 EN 61347 IEC 61347 LED Modules – Safety BS EN 62031 EN 62031 IEC 62031 LED Modules – Performance DD IEC PAS 62717 No Standard IEC PAS 62717 Fluorescent Lamps – Safety  BS EN 60081/  BS EN 61199 EN 60081/  EN 61199 IEC 60081/  IEC 61199 HID Lamps – Safety BS EN 62035 EN 62035 IEC 62035 Quality Management Systems BS EN ISO 9001 EN ISO 9001 ISO 9001 Environmental Management Systems BS EN ISO 14001 EN ISO 14001 ISO 14001 Code of Practice – Emergency Lighting BS 5266/  BS EN 1838 EN 1838 Photometric Measurements/Data BS EN 13032 EN13032 CIE 121 Lighting Columns BS 5649 EN 40 StandardsSome of the relevant British Standards, together with their European and International equivalents, relating to lighting are listed in the table.

www.thornlighting.co.uk     93 Safety  and  Quality Safety ClassificationsThe following provides an explanation of some of the most common classifications applied to luminaires:    Class I    Luminaires in this class are electrically  insulated and provided with a connection to earth. Exposed metal parts that could become live in the event of basic insulation failure are protected by earthing. Class II   Class II luminaires are designed    and constructed so that protection  against electric shock does not rely on basic insulation only. This can be achieved by means of reinforced or double insulation. No provision for earthing is provided.     Class III Protection against    electric shock relies on supply at  Safety Extra – Low Voltage (SELV) and in which voltages higher than those of SELV are not generated (max.50V ac rms). Luminaires not suitable for covering with thermally insulating material  Note. Previously luminaires suitable    for covering with thermally insulating  material displayed the F mark. This has been replaced by this warning symbol.      Luminaires not suitable for      direct mounting on normally  flammable surfaces (i.e. suitable only for mounting on non-combustible surfaces)Note. Previously luminaires suitable for mounting on normally combustible surfaces displayed the F mark. This has been replaced by this warning symbol.   Ta classification    Denotes the maximum ambient  temperature in which the luminaire is suitable for use. No ta mark indicates suitable for use in max. 25˚C ambients.   850° hot wire    Abbreviation for compliance with  glow wire test for plastic parts tested at the stated temperature. IK rating IK01 IK02 IK03 IK04 IK05 IK06 IK07 IK08 IK09 IK10 Impact Energy (Joules) 0.15J 0.23J 0.35J 0.5J 0.7J 1J 2J 5J 10J 20J Ingress Protection The ingress protection (IP) code denotes the protection against dust, solid objects and moisture provided by the luminaire enclosure. If no code is marked the luminaire is deemed to be IP20.Ingress protection (IP) codei)   First digit of code denotes protection against dust and solid objects IP2X   No entry of standard test finger to live partsIP3X   No entry of 2.5mm ø probe to the enclosure/live partsIP4X   No entry of 1mm ø probe to the enclosure/live partsIP5X   Dust proof. (no dust deposit around live parts)IP6X   Dust tight (no dust entry)ii)   Second digit of code denotes protection against moisture IPX0   No special protectionIPX1   Protection against drops of condensed waterIPX2   Drip-proof (vertical falling drops of liquid)IPX3   Rain-proof (rain up to angles of 60˚)IPX4   Splash proof (spray from any angle)IPX5   Water jetIPX6   Strong Water jetIPX7   Temporary immersion up to 1mIPX8   Long-term immersion to declared depth Impact Resistance The use of Joules (Newton metres – Nm) has been common for many years. More recently an IK rating normally used for electrical enclosures and cabinets (EN 50102:1995) has emerged as manufacturers apply it to their luminaires, as they also enclose electrical circuits. This chart compares both ratings:

94     www.thornlighting.co.uk Safety  and  Quality Safety and Quality LG7SLL LG7 offers advice on all aspects of lighting design concerned with office spaces and ancillary areas, and for areas using display screen equipment. An addendum published in July 2012 harmonises the document with the requirements in EN12464-1:2011. The document has two main criteria that have to be addressed. The first is the decision that the designer has to take over the required luminance limit of the optic to be used (all luminance limits are based on an average value taken radially around the luminaire at an angle of 65°). The limits for luminance relate to the type of screen and its anti-reflective treatment, together with the software type in use. (See below). Case A means Positive polarity software and normal requirements concerning colour and detail, such as used in office, education etc.Case B means negative polarity and/or higher requirements concerning colour and detail, such as used for CAD colour inspection, etc.Note: Screen high state luminance (see ISO 9241-302) describes the maximum luminance of the white part of the screen and this value is available from the manufacturer of the screen.The second criteria concern the illuminance to the major surfaces within the room. In all enclosed places the maintained illuminance on the major surfaces shall be:Em 50 lx with Uo 0.1 on the walls andEm 30 lx with Uo 0.1 on the ceilingIt is recognised that in some applications such as racked storage, heavy industrial premises, travel terminals, generally due to the size, complexity and operational constraints the desired light levels on these surfaces may not be achievable. In such cases reduced levels are acceptable. In some applications such as offices, education, health care and general areas of entrance, corridors, stairs the walls and ceiling need to be brighter to aid good communications. In these places it is recommended that the maintained illuminance on the major surfaces should be: Em 75 lx with Uo 0.1 on the walls andEm 50 lx with Uo 0.1on the ceiling. Lighting for people using Display Screen Equipment Readers are referred to The Society of Light and Lighting’s (SLL) Lighting Guides 3 and 7 (LG3 & LG7), published in 1996 (an addendum was issued in 2001) and 2005 respectively and to EN12464-1:2011 which updates some elements of the advice they contain. Screen High  State Luminance 200cd/m 2 200cd/m 2 Case A 3000cd/m 2 1500cd/m 2 Case B 1500cd/m 2 1000cd/m 2 Luminance limits for screen types: LG7 recognises that it is hard to achieve the luminance ratios mentioned above in large open plan offices with low ceilings so it makes this statement:“For the ceiling not to appear dark, the average illuminance on the ceiling, from both the direct and reflected components, should be at least 30% of the average horizontal illuminance across the working plane. In large spaces with ceilings less than 2.4m high this may be hard to achieve. If there is no alternative to using recessed luminaires, the ceiling illuminance ratio should still be as close to 30% as possible. It is likely that where ceiling illuminance ratios are lower than 30% a poor visual environment will result. Where reflected light is not sufficient to achieve these levels, additional light from the sides of surface mounted downlights; from uplighting elements of suspended luminaires; from dropped elements of recessed downlights or from supplementary uplights may be needed“.Copies of LG7 can be purchased on-line at www.cibse.org/publications Effective reflectance of  walls between 0.3 and 0.7 Reflectance of floor cavity between 0.2 and 0.3 Relative wall illuminance  0.5 to 0.8 Ceiling cavity reflectance 0.6 minimum Relative ceiling illuminance 0.3 to 0.9 Task illuminance 1.0 Colour RenderingThe European Lighting Application Standard EN 12464-1:2011 and new SLL Lighting Code give design advice concerning minimum colour rendering index figures (Ra). Besides specific Ra’s, recommended in the schedule for various task types, all continuously occupied spaces, that are used for more than two hours, should employ light sources with an Ra of not less than 80. An exception is made for high bay applications where high pressure sodium lamps are accepted.

www.thornlighting.co.uk     95 Safety  and  Quality Local Energy LegislationThe current version of Approved Document L of the Building Regulations for England and Wales, which includes limits on the energy efficiency of lighting in domestic and non-domestic buildings, came into force on October 1, 2010. The amended documents have been published and will come into force on 6th April 2014. Advice on compliance can be obtained by  Thorn offices. Climate Change LegislationClimate Change Levy (CCL) and Enhanced Capital Allowances (ECA). Having chosen the fiscal route to encourage UK commerce and industry to use less energy the UK Government introduced the CCL on all non-domestic energy use in April 2001. To enable businesses to claim 100% first year capital allowances on investments in energy saving equipment the ECA scheme was introduced from 7 August 2001.Businesses are now able to write off the whole cost of their investment against their taxable profit of the period during which they make the investment. Qualifying products have to meet minimum performance targets issued in August 2013. Thorn can help with performance figures for the majority of its luminaires, LED luminaires and controls, which are detailed on the company website. Luminaires for Hazardous AreasThe Atex Directive is a mandatory requirement for all hazardous equipment sold in the EU.Atex Category 1 applies to areas where the risk of explosion is constantly present.Atex Category 2 applies to areas where there is a risk of explosion during normal operation of a building or plant.Atex Category 3 applies to areas where there will only be occasional risk of explosion and only during abnormal operation conditions.Thorn offers product suitable for  Category 2 or 3 areas.

www.pefc.org ISO 9001:2008  Reg: AT-00005/5ISO 14001:2004  Reg: AT-00247/2 Manufacturing  Thorn Lighting Limited  Durhamgate, Spennymoor, County Durham, DL16 6HL Tel:  +44 (0) 1388 420 042  Sales support Tel:  +44 (0) 844 855 4810 Fax:  +44 (0) 844 855 4811 Quotations Tel:  +44 (0) 191 301 3036 [email protected] TCS (After Sales) Tel:  +44 (0) 191 301 3939 [email protected] Technical support Tel:  +44 (0) 844 855 4812 Fax:  +44 (0) 191 301 3107 [email protected] Spare parts Tel:  +44 (0) 191 301 3131 Fax:  +44 (0) 191 301 3038 [email protected] Literature requests Brochures on specific products/ranges [email protected] Thorn Lighting (Ireland) Limited Century House Harolds Cross Road, Dublin 6W Ireland Tel:  +353 0 1 4922 877  Fax:  +353 0 1 4922 724  [email protected] www.thornlighting.co.uk Member of the Lighting  Industry Association Thorn Lighting is constantly developing and improving its products. All descriptions, illustrations,  drawings and specifications in this publication present only general particulars and shall not form  part of any contract. The right is reserved to change specifications without prior notification or  public announcement. All goods supplied by the company are supplied subject to the company’s  General Conditions of Sale, a copy of which is available on request. All measurements are in  millimetres and weights in kilograms unless otherwise stated. Printed on Luxo Light. Publication No: CG_GB Publication Date: 05/15 Download our free  Thorn Lighting Contractor  app     Our new app has the latest contractor product ranges, ‘how to’ application design  guides and details of where you can buy Thorn products. After one quick sync, you  can view the app on the move without the need for internet connectivity. Suitable for mobile and tablet.
