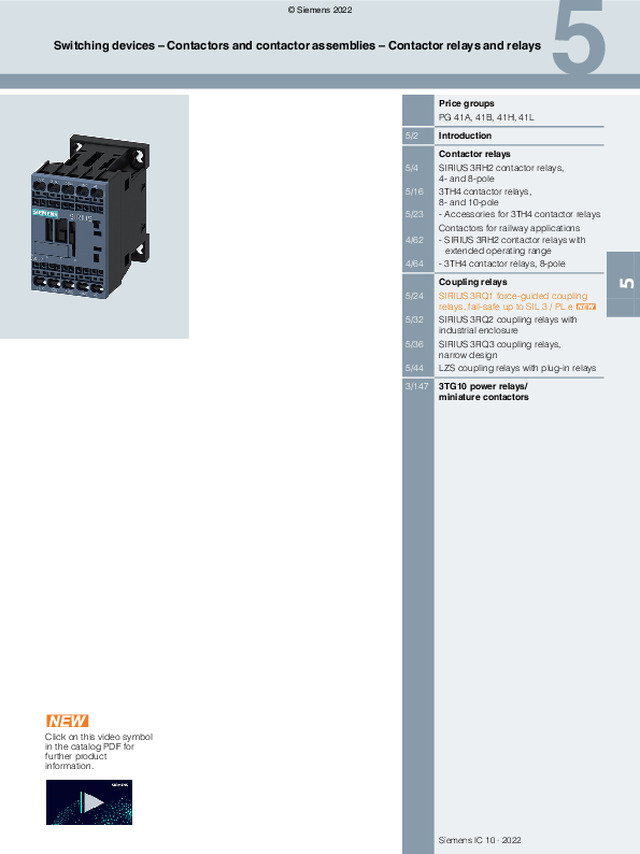

© Siemens 2022 Switching devices – Contactors and contactor assemblies – Contactor relays and relays 5 Price groups PG 41A, 41B, 41H, 41L 5/4 5/16 5/23 4/62 4/64 5/24 Introduction Contactor relays SIRIUS 3RH2 contactor relays, 4- and 8-pole 3TH4 contactor relays, 8- and 10-pole - Accessories for 3TH4 contactor relays Contactors for railway applications - SIRIUS 3RH2 contactor relays with extended operating range - 3TH4 contactor relays, 8-pole Coupling relays SIRIUS 3RQ1 force-guided coupling relays, fail-safe up to SIL 3 / PL e SIRIUS 3RQ2 coupling relays with industrial enclosure SIRIUS 3RQ3 coupling relays, narrow design LZS coupling relays with plug-in relays NEW NEU 5/32 5/36 5/44 3/147 3TG10 power relays/ miniature contactors NEW NEU Click on this video symbol in the catalog PDF for further product information. Siemens IC 10 · 2022 5 5/2 © Siemens 2022 Switching devices – Contactors and contactor assemblies – Contactor relays and relays Introduction ■ Overview More information Homepage, see www.siemens.com/sirius Conversion tool, see www.siemens.com/conversion-tool Industry Mall, see www.siemens.com/product?3RH_3TH 5 The advantages at a glance Size Type S00 3RH21 S00 3RH22 3TH42 3TH43 Article No. Page SIRIUS 3RH2 contactor relays 3RH21 5/12, 5/13 8-pole • Screw or spring-loaded terminals 3RH22 5/12, 5/13 4-pole, latched 3RH24 5/12, 5/13 4-pole Coupling contactor relays • Coils for control by the PLC 3RH21 5/14, 5/15 Contactor relays for railway applications • Coils with...
