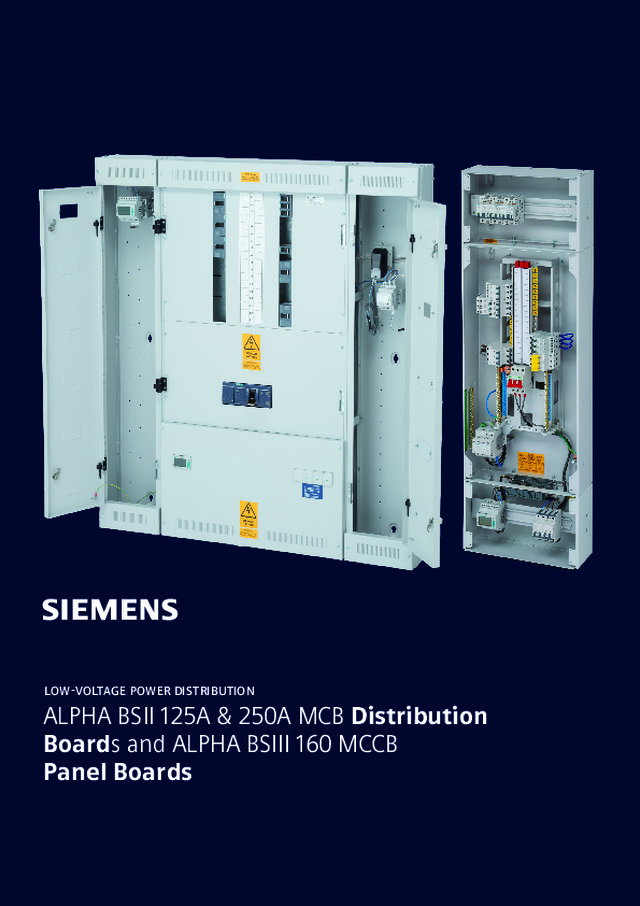

ALPHA BSII 125A & 250A MCB Distribution Boards and ALPHA BSIII 160 MCCB Panel Boards
Siemens

ALPHA BSII 125A & 250A MCB Distribution Boards and ALPHA BSIII 160 MCCB Panel Boards

Safe and Intelligent power distribution - ALPHA BSII

Siemens

ALPHA BSII 125A & 250A MCB Distribution Boards and ALPHA BSIII 160 MCCB Panel Boards

Published: 17 February 2025 · Category: Product Catalogues & Brochures

Safe and Intelligent power distribution - ALPHA BSII

From this document

LOW-VOLTAGE POWER DISTRIBUTION ALPHA BSII 125A & 250A MCB Distribution Boards and ALPHA BSIII 160 MCCB Panel Boards Safe and Intelligent power distribution ALPHA BSII. Totally Integrated Power Distribution. Features • Designed and manufactured in the UK • Type tested and certified in the UK in our ASTA approved laboratories • Fully supported by our UK based technical services team • Modular construction • 1mm sheet steel enclosure painted in RAL 7035 light grey • Degree of protection: IP3X • 10kA for 0.1 second short circuit rating • Utilises 5SL & 5SY MCB, 5SU RCBO, and 5SV AFDD technologies Sivacon S4 Switchboard. 800A to 3200A. 2 ALPHA BSII Distribution Boards from 125A to 250A Alpha BSIII Panel Boards 250A to 800A 3 Specification Highlights 125A Extension enclosures for DIN devices Modular construction Accepts MCBs up to 80A–250A DBs only Accommodates 1 module wide 10kA miniature AFDDs RCBOs with extra-long neutral lead Fully type tested to IEC/BS EN 61439-3 Integral Type 2 surge protection kits Integral & Add-on meter options. Standard or MID Removable gland plates for top and bottom cable entry exit 4 Specification Highlights 250A Suitable Applications • Offices • Tall Buildings • Hotels • Campuses • Entertainment and Leisure • Healthcare • Mixed-use developments 5 Featured Product Miniature 10kA AFDD/RCBO conforms to BS EN 62606 • Full 10kA short circuit rating • Single module 'miniature' MCB sized device • 6A to 32A overload ratings • B and C tripping characteristic...
