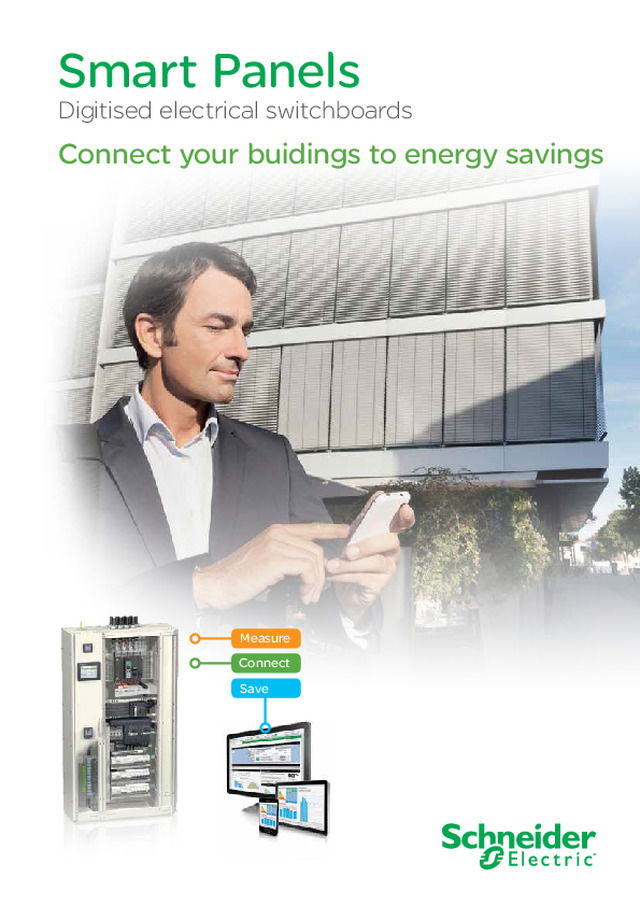

Smart Panels Digitised electrical switchboards Connect your buidings to energy savings Measure Connect Save

2 Putting energy bills under control With reasonable investment, your building can gain quick payback from reduced energy consumption. Going by the European Union’s regulations and by Green Buildings Council, buildings without energy monitoring systems are more expensive to run and likely to suffer capital value depreciation. Solutions from Schneider Electric, the global specialist in energy management,  are designed for both new and existing constructions for immediate savings. Increasing building asset value Like property location, energy efficiency has become a decisive   differentiation factor in asset valuation. Energy-friendly buildings can  appreciate in value from:•  Higher safety and health standards for the inhabitants• Compliance with building codes• Reduced operating costs •  Equipment in energy information systems  Watch short videos to know more about Schneider Electric’s customers successful  20% of a building’s operating

3 Smart Panel for smarter energy use in buildings Analysing consumptions,  to quickly spot corrective actions Automatic metering at the source lets you see exactly how and where the  building is using energy. It also performs intelligent cross references of energy  usage by zones (offices, lobby, storage, parking, etc.) with usage by type  (lighting, heating, hot water for sanitation, etc.).•  Detecting usage issues, such as demand peaks, wastages, leakages•  Planned development of your building’s   energy usage •  Informed occupants committed to meeting environmental and economic  Using less power while  maintaining the same  level of comfort and

38% Residential commercial,  and publicbuildings 33% Transport 27% Industry 2 % Agriculture 4 Getting buildings ready  for energy audits By 2050, the demand for energy is expected to double due to population, economic, and industrial growth around the world. At the same time, we must halve greenhouse gas emissions so as to reduce their catastrophic effects on global warming and climate change. As individuals, companies, industries, and government, we are all stakeholders with a commitment to safeguard our shared future through responsible energy consumption. Buildings use up more energy resources  than the vehicles on roads 300  kWh/m 2 /year: average consumption of  the 280 million active

5 Smart Panel for smarter energy use in buildings Regulations have started imposing efficient energy use Energy efficiency directives for buildings are gradually being incorporated  into national regulations and building codes. By regarding a facility like an  electrical appliance, such as air conditioners and lighting equipment, we can  give it an energy performance rating. Such ratings indicate a building’s energy  Energy Performance Buildings Directive and  EN 15232 standard The Energy Performance of Buildings Directive is applicable to 27 European  member states. This directive requires building automation and control  systems to be set up with energy saving as a key function as outlined in the  EN 15232 standard, also known as ‘The impact of Building Automation on  Energy Efficiency’. This standard outlines four energy performance classes for  BACS with the objective to achieve the best possible efficiency for commercial  Regulations have started imposing efficient energy use A B C D E F G 51 to 90 91 to 150 151 to 230 231 to 330 331 to 450 451 to 590 H I 591 to 750 750 ≤ 50 High energy performance BACS and TBM Advanced BACS and TBM Standard BACS (used as reference) Non energy efficient BACS Energy efficiency categories for Building Automation and Control System   2.8  million  new buildings every year  subjected to maximum  50  kWh/m 2 /year: maximum energy rate   for new constructions in

6 A large chain of small hotels did setup a global energy monitoring system, expecting to: Ensure and monitor customers comfort, and make it the same across all  1 Be more confident in relation to customers health and safety,  and compliance with regulations in force 2 Optimise energy and fluid consumptions, to save money and enable green  3 Financial  director "I was doubtful about the final cost to setup this system. But there was no bad surprise at all. And our facility managers keep it working without any  "We used to have somebody from technical direction visiting the hotels and collecting such data. But there were mistakes and the data packages were far from rich enough to  Energy   corporate   manager Example  POWER AND ENERGY MANAGEMENT IN A    GROUP OF HOTELS

7 Smart Panel for smarter energy use in buildings First priority:   guests comfort and safety Warnings dispatched when customers well-being suspected at stakeIn case of issue with potential impact on guests comfort and safety, hotel attendants are immediately informed. The system sends an alert mail, displayed on:   hotel manager and branch technical manager’s  smartphones   all hotel operating computers (reception, offices etc.)   the electrical switchboard where the fault has been  detected. Comfort and safety dashboards widespreadEvery staff member also has permanent access to  a comfort and safety dashboard showing real-time the key values:  Deep freezers temperature   Key values of heating and air conditioning systems Sanitary hot water temperature Air temperature and humidity on each floorHeadquarters compute historical alarm data  from all hotels, enabling evolution towards predictive maintenance, with clear benefits on planning   Business efficiency Good practices shared   across the company Every three months, hotel managers meet together  with corporate technical and financial directors.  They share their good practices and compare  achieved improvements.  "We decided to equip a pilot site with solar water heating. By relating its energy consumption to the other sites, we could calculate the savings and payback, and decide upon investing in this equipment for other sites". A quarterly incentive awards the most performing hotel teams. But as many have been purchased before transformation, the challenge considers the characteristics of each building: age, thermal isolation, location and climate etc. No achievement without   full staff involvement  Each hotel manager and his technical staff have full-time access to details of their recent energy consumption. Abnormal consumptions are also detected and flagged: overusages, leakages etc. The system breaks down electrical consumption into: HVAC Food conservation: deep freezers and fridges General lighting and lifts Cooking and dishwashing equipment  guest roomsThe whole staff is implicated through periodic information on spared energy and water. Customers information   and green marketing Screens reminding guests environment-friendly behaviors, display to figures of resource savings recently  Energy efficiency Hotel  facility  manager As soon as installed, the system frequently alarmed about one of our deep freezers Computing hourly historical charts  we discovered  temperature was  actually rising too  high during defrost  cycles. We could fix  that and avoid serious  Hotel  director  We  understood  why we regularly  had penalties from  energy providers.   The rated power was exceeded everyday for some minutes, when all rooftops were starting.    We rescheduled  all automatic  equipment, and we  could even lower  our rated power  POWER AND ENERGY MANAGEMENT IN A    GROUP OF HOTELS

POWER AND ENERGY MANAGEMENT IN A    GROUP OF HOTELS 8 Reception desk  Internet   e-mails  notifications   Access to  Offices  Main switchboard (ground floor) Example  Branch Entrance hall Energy server   Temperature   Office lighting,  commercial lighting:  monitoring, control,  UPS main  supply Air conditioning /Heating: Incomer  Basement  floor  Kitchen  Domestic

POWER AND ENERGY MANAGEMENT IN A    GROUP OF HOTELS 9 Smart Panel for smarter energy use in buildings Kitchen & laundry ULP Modbus Ethernet Hard wired Bedroom floor Headquar ters Branch Branch Corporate  energy officer "Most surprising was how each local electrical contractor could replicate and connect the system in each hotel, without much technical  Cooking  Gas Cold water Hot water 1 Hot water 2

10 Energy management  has never been simpler Smart Panels connect you to energy savings Embedded and stand-alone  metering & control capabilities Measure   Integrated communication  interfaces   Ready to connect to energy  management platforms Connect  Data-driven energy efficiency actions  Real time monitoring and control    Access to energy and site  information through on-line services Save Tested, Validated, Documented  Smart Panels architectures Smart Panels have been certified through the "TVDA" quality process of Schneider Electric Tested  in performance labs by experts, in all possible configurations Validated  full functional compatibility of devices

11 Smart Panel for smarter energy use in buildings MEASURE CONNECT SAVE

1 3 1 2 MEASURE 12 Switchboards are the most convenient location to collect data about electrical supplies throughout the building. Everywhere around the world Schneider Electric is acknowledged to provide the most reliable and performing electrical devices for protection, control, and measurement, along with effective switchboard build up systems. From now on, digitalisation can be achieved in multiple ways through combinations of Enerlin'X digital system components with digital features embedded in power operating devices PowerLogic meters Monitor key distribution points 24 hours a day, from generators, substations, and service entrances, to mains, feeders, and loads. All data accessible locally, or remotely through communications. Help improve network reliability by tracking real-time power quality, monitoring equipment status, trending loads, and logging events and alarms. Class 0.5S to 0.2S accuracy enable energy efficiency,  Acti 9 energy meters Metering energy consumed by a single-phase  (iEM2000 series) or a three-phase (iEM3000 series) circuit, basic kWh meters for elementary applications to MID-compliant meters for billing applications, and advanced energy meters capable of measuring a variety of electrical parameters. Data is visible locally or  Power and   energy metering 1 2

3 4 13 Smart Panel for smarter energy use in buildings Masterpact, Compact,   circuit breakers and switches In addition to ensuring the most reliable protections, they support energy management by providing energy consumption data, equipment status, and operational support information. Data is accessible locally or remotely thanks to the embedded Micrologic control units. Masterpact range cover 800 to 6300 A current ratings,  Acti 9 circuit- breakers, residual  current devices,  surge arresters Each Acti 9 protection device also contributes to electrical supply reliability. Easy to fit indicators transmit real-time status  to Enerlin'X system.  RCA additional modules enable resetting controlled  Power supply and protection  monitoring, metering Acti 9 contactors and impulse relays To improve users comfort, lightings or other loads are switched on and off under control of the digital system. Separately ar all together. Upon remote operator's instructions or predefined schedule. While users close to  Circuit and load controls 3 4

3 2 1 CONNECT 14 Enerlin'X digital system Aggregates and computes electrical distribution data from all across the buildings

15 Smart Panel for smarter energy use in buildings Com’X 200    Gathers data from all Enerlin'X devices across the  building    Delivers ready-to-use data to the Internet database  - simple to install & configure  Enerlin'X IFM Modbus connection and  data collection for one  power switching device. Enerlin'X IFE    Ethernet  communication  interface for power  circuit breakers    Embedded web  pages for energy  monitoring & control    Modbus SL master,  with automatic  detection and  configuration of  "slave" devices Enerlin'X IO Provides tailored additional  functions such as  withdrawal cradle position. Acti 9 Smartlink    Collects data from modular or third party devices    Optimised connection and fitting convenience 1 2 Ecoreach   Automatic detection of  connected devices   Test of digital connection,  and consistency checks  with automatic report   Advanced functions to  speed up commissioning  and testing   Enerlin'X firmware upgrade  management   Offline or Online setup of   power devices   Transfer of Settings to   Multiple Devices   Project and digital  architecture library  management. 3

CONNECT 16 Enerlin’X Combination of  consistent energy  servers, interfaces  and displays, to  make web connected  Smart Panels:   Ethernet connected switchboards Ethernet is today the most widespread protocol in professional buildings, with all computers connected to it, and direct link to the Internet.  It features the highest data transmission capabilities.Thanks to Enerlin'X, switchboards can be connected to Ethernet, as simply as any other device, through an RJ45 socket. Enerlin’X  provides the whole interface  between various electrical devices located in the  Enerlin'X digital system

17 Smart Panel for smarter energy use in buildings Enerlin’X design  is largely inspired from   the professional’s strongest expectations:   consistent functions grouped   in the smart components   (e.g. Acti 9 Smartlink)   error free cabling, fast connection- disconnection The embedded web  pages of  Enerlin’X  energy servers  make  setup and configuration   tests simple and  intuitive.  Precise and well- ordered project  documentation  is automatically  generated for  maintenance and future  evolution purpose.   Other pages are  dedicated to simple and  real time monitoring  Numerous tests have been carried out in our labs  in order to ensure a great confidence into the  Enerlin’X digital architectures. Technical guides, available through the web,  step by step explain how to arrange  EnerlinX  components,  so as to transform switchboards  into Smart Panels. Compatible with WAGES metering devices

SAVE 18 Powerview web pages By connecting   a computer or the  Local Area Network to  Smart Panels (Enerlin'X  equipped switchboards)   energy data and  dashboards can be  viewed from anywhere  with just a usual   Enerlin’X FDM128   Monitoring & control of up to 8 power  devices, thanks to LCD touch screen   Digital & graphical view of settings,  electrical parameters & switchgear status   Embedded ready-to-use features   Auto discovery of Modbus SL devices   Simple installation, only Ø22 mm hole

19 Smart Panel for smarter energy use in buildings Power Monitoring Expert Complete, interoperable and scalable supervisory software dedicated to  power monitoring maximises operational efficiency, optimise your power  distribution system, and improve you bottom-line performance.Real-time monitoring, alarming and power quality analyses helps you avoid  critical conditions that can cause equipment failures and downtime.   Track consumption and the cost of power, gas and other resources,   and allocate costs by building, department or process. The software helps  you uncover energy waste, unused system capacity, and shows new ways   to extend equipment performance and life span. Plus, cutting-edge flexibility  for an open system with the integration of third-party devices and systems. Achieve maximum efficiency with ready-to-use device drives, preconfigured  Energy Operation on line On line service available through timely  subscription.Aggregates volumes of raw energy data into  actionable information enhanced by our expert  services. Highly intuitive and easy to use,   it integrates any incoming energy data   and presents it to suit any user.You can normalise and aggregate data for  executives, create reports for energy managers  that combine data form multiple sources, and even  present energy data in your lobby kiosk to share  good energy news with customers   Schneider Electric's energy management solutions cover needs of all buildings, whatever their size and criticality. They provide different mixes of energy management, network management and asset management features. Close up visibility of energy supply system and consumption can be provided  by locally installed software, or by on-line services with improved mobility  and convenience.

UK contact details -  0870 608 8 608 Fax  0870 608 8 606  Ireland contact details -  01 601 2200 Fax  01 601 2201 As a global specialist in energy management with operations in more  than 100 countries, Schneider Electric offers integrated solutions across  multiple market segments, including leadership positions in energy  and infrastructure, industrial processes, building automation and data  centres/networks, as well as a broad presence in residential applications.  Focused on making energy safe, reliable, efficient, productive and green, the company’s 150,000 plus employees achieved sales of 24 billion euros in 2013, through an active commitment to help individuals and organisations Make the most of their energy SM . We are changing our brand names and becoming one Schneider Electric.  You’ll get the same great quality products, but from one name you can remember and trust. This provides you and your customers with the reassurance associated with Schneider Electric. Some of our market leading brands have already become Schneider Electric including Merlin Gerin, Telemecanique, Square D, GET, Mita, Sarel, Himel, Thorsman,  Tower and TAC. Working as one Schneider Electric makes it clearer that our ranges are highly compatible for integrated solutions.   Schneider Electric Ltd Schneider Electric Limited is a company registered in England and Wales. Registered number: 1407228. Registered office: Stafford Park 5, Telford, Shropshire TF3 3BL. © 2015 Schneider Electric. All Rights Reserved. Schneider Electric, Active Energy Management,  Compact, EcoStruxure, ION Enterprise, iRIO, Make the most of your energy, Masterpact,  Micrologic, Power Plant To Plug, Modbus, and PowerLogic are owned by Schneider Electric  Industries SAS, or its affiliated companies in the United States and other countries.  As standards, specifications and designs change from time to time, please ask for confirmation  of the information given in this publication. SE8933  JAN  2015 United Kingdom Stafford Park 5, TelfordShropshire TF3 3BLTel: 0870 608 8 608Fax: 0870 608 8 606www.schneider-electric.com/uk Ireland Head office, Block aMaynooth Business CampusMaynooth, Co. KildareTel: (01) 601 2200Fax: (01) 601 2201www.schneider-electric.com/ie member of
