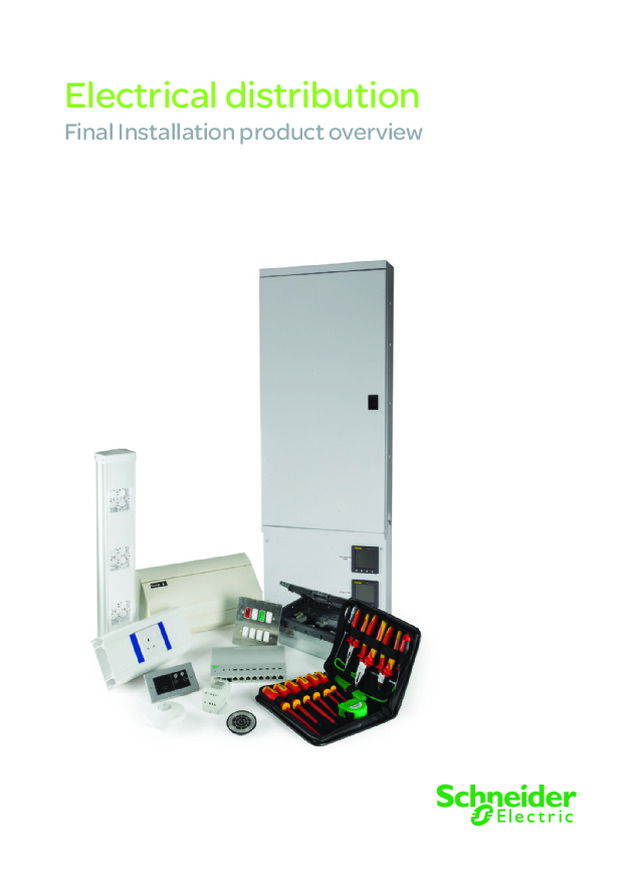

Electrical distribution Final Installation product overview

Make the most of your energy SM

We exceed your electrical needs... Our Final Installation range of products provides a wealth of electrical accessories  - everything from cable clips to panel boards including:   Circuit protection   Cable management   Wiring accessories   Installation materials Our solutions are focused around applications for residential and light commercial environments and complement our extensive portfolio of products. Not only do we supply the equipment but can also provide you with support  and training to ensure that you can maximise opportunities with your customers,  offering them an integrated solution to meet all their needs. Your complete solution

Ultimate Meeting the highest of specifications, Ultimate offers one of the widest ranges and is designed for ease of installation without compromising aesthetics.  The range includes moulded, low profile, flat and screwless flat plate, which are complemented by a grid range. Wiring accessories Sphere Complementing the design and style of Ultimate wiring accessories, Sphere provides wireless lighting control ideally suited to residential developments, hotels and light commercial applications. You can set and control ceiling, wall and freestanding lamps to many different levels of illumination creating interesting scenes simply at the touch of a button. Our wiring devices offer a full solution combining advanced technology, robustness, reliability and distinctive styling. The choice of products and accessories available is extensive and suitable for domestic, commercial or industrial environments.  Our products are manufactured to current UK and international standards using the latest technology to ensure your customer gets the highest level of end user satisfaction. Our wiring devices and cable management products also assist with regulatory compliance, such as Part M.

For more information please contact us on 0780 608 8 608 Ulti Ulti gives you the luxury of wirelessly controlling any lighting switches with  pre-programmed lighting scenes. Ulti offers a bespoke appearance through the use of high quality glass, champagne and silver mirror finishes. Exclusive Exclusive wiring accessories offer exceptional value for money with  a traditional profile. Satisfying the latest standards, Exclusive is ideal  where cost is critical without compromising on quality and is available  in moulded, metalclad and decorative finishes. A fully IP66 rated range  of weatherproof accessories is also available. Clipsal E-Series The E-Series range of polycarbonate wiring devices is designed to withstand the knocks and bumps encountered in more demanding environments.  The E-series also includes a modular range of plates and mechanisms  enabling bespoke switch configurations to be produced simply. 56 Series For more demanding environments where water, chemicals and dust are  a hazard, the 56 Series offers a fully flexible, modular way to meet the  specification. With a full range of switches and control devices as well as industrial sockets, the 56 series is ideal for food processing plants, swimming pools and a host of industrial applications.    Also available in chemical resistant orange   Water and dust protected up to IP66

Domae consumer unit   The Domae range of consumer units offers the ultimate on-site flexibility at a very affordable price.    The range offers consumer units and devices to help with compliance     with the 17th Edition of the Wiring Regulations    All Domae consumer units are fully type tested to BSEN60439-3   The products benefit from a right hand incomer option for easier installation      Front cover locking option on metal units  Available in insulated or metal clad construction Circuit protection A comprehensive range of easy to install solutions from panel boards to consumer units, providing solutions for commercial and residential applications. 17th Edition solutions Garage and Shower  Uses:  Garage and Shower units Qwikline II consumer unit   Qwikline II consumer units are fully type tested to BS EN 60439-3 and CM16 tests, which subject the units and incoming/outgoing devices to a 16kA through fault. They incorporate:   Unique plug-on MCB/RCBO fixing system, which guarantees a correct     connection onto the busbar   Rear clip which increases device security once plugged-on   Control devices that may be installed on any outgoing way   Incoming devices that can be ordered separately giving more than 1,000    combinations from just 46 references 17th Edition solutions

Panel boards Product range:  I-Line Components:  Size 1 250A/400A   Size 2 630A   MCCB’s, switch disconnectors   Fast installation with     plug-on devices Switch and fusegear Twinbreak and Quadbreak The range of industrial fusegear provides an ideal solution where rugged, heavy duty equipment is required to withstand the heaviest use.     Mounting devices on the busbar chambers are offered as part     of the range   Switchboards can be custom built to suit the current requirements of the     installation, whilst allowing for future extensions   The design of the product permits a Form 4 board to be made up on site     as all circuits are separately terminated and glanded off in their own     enclosures   Supplied complete with fuse links   Padlockable handles     Positive contact indication    Features:    Boards are supplied complete    and ready to install. Simply fix to     the wall and fit the required     MCCB’s and switch disconnector     fuse units   The board is item ready     for cabling Distribution boards Product range:  LoadCentre KQII Components:  Single phase type A and 3     phase type B   MCB, RCCB, RCBO’s   Easy installation     - with guaranteed plug-on     system for MCB’s and RCBO’s   Range of 3 and 4 pole incoming     devices   Control devices such as     contactors, time clocks and     impuse relays can be mounted     in any unused outgoing way   Two frame sizes 125A B boards     and 250A B boards with up    to 72SP ways

Perimeter Product ranges:  Cableline   Consort   Carlton   Aluminium   Bench   Steel perimeter   Antimicrobial Cable management Floor systems The Mita floor box range contains a portfolio of products for installation of British Standard outlets for power and data in raised floor applications.  Floor boxes have anti carpet trips, a metal base box, 3 or 4 outlets and a lid which can be infilled with various flooring materials. We specialise in the manufacture, development and production of cable management systems for residential, commercial and industrial markets. We also have a large range of cable trays and ladders in our industrial range. Cableline Ultra 60 Consort Delta 105 Calton skirting   Available in sizes ranging from     80 x 21mm to 210 x 52mm   Choose from a range of single,    twin and multi-compartmental     styles, colours and finishes   Aluminium trunking available in     sizes ranging from 100 x 52mm     to 217 x 52mm 3 and 4 compartmental floor boxes  High capacity   Quick-fix function for a tool-free, secure fit   Plastic or stainless steel trim   Pre-wired options   Provision for RCD protection   Plastic floor boxes have a pre-wired option

Pre-wired Pre-wired products assist in meeting tight installation deadlines,  due to reduced installation time from minimal on-site wiring.Skilled personnel are freed up to work on more demanding and value  adding activities. Product ranges:  PM series desk modules   Desktop modules   Pre-wired trunking   Pre-assembled units Poles and posts Power poles and posts are a highly cost-effective answer to the problem  of providing electrical communications services to island workstations  in offices, showrooms and other open-plan spaces.  Ranges:  PVC poles   Aluminium poles   Service posts   Indusign poles   Bespoke   WB fibre optic ROCM Product ranges:  Round and oval conduit   Channel   Mini and coiled mini trunking   Midi trunking   TRK heavy duty trunking   Self adhesive trunking   Switch and socket boxes   Installation components   Flexible conduits Features:   Ease of installation   Easy to relocate to facilitate changes     In demand / relocations   Dual sided   Clip-in accessory mounting boxes can be     installed at any height and can be retrofitted Self adhesive trunking

Air movement Light and air Fixed and portable heating Product ranges:  Hand dryers   Bathroom heaters   Oil filled radiators Indoor lighting Product ranges:  Downlighters ( fire rated or die     cast, available in mains, low     voltage or low energy) Outdoor lighting Our outstanding range of amenity luminates has been designed to encompass durability with practical design and excellent lighting performance.Product ranges:  Drums A range of solutions that look great and are easy to install, offering convenience and flexibility.   Shaver lights and shower lights   Fluorescent battens    T4 and T5 mini battens   Convector heaters   Portable fan heaters   Glass panel heaters  Standard range: A comprehensive choice of mains, low voltage and humidstat options in 100mm and 150mm.  Ultra slimline models incorporate 12mm projection in white moulded and chrome effect. Designer range: The 100mm turbo is available in stylish frosted or black glass finish to give a contemporary  feel to any modern bathroom or kitchen. Ducting and accessories: A full range of vents and ducting is available for residential and commercial installation.   Bulkhead

Schneider Electric - your complete solution supplier With an extensive portfolio of products, we offer you a complete solution  for all your electrical needs. For more information call 0870 608 8 608     or visit www.schneider-electric.co.uk Installation materials As a worldwide market leader, we supply high quality fixings,  components and materials to all building and construction trades. Power tool accessories Screws Plugs and wall anchors Hand tools Site power and lighting Cable fixings Tape and cable ties Foams and adhesives Cable reels and   trailing leads

Nationwide support on one number -  0870 608 8 608 Fax 0870 608 8 606 Schneider Electric, the global specialist in energy management,  offers integrated solutions making energy safer, more reliable, efficient and productive in the energy and infrastructure, industry,  data centres and networks, buildings and residential markets.  With sales of  € 15.8 billion in 2009, the company’s 100,000+ employees in over   100 countries help individuals and organisations make the most of their energy. We are changing our brand names and becoming one Schneider Electric.  You’ll get the same great quality products, but from one name you can remember and trust. This provides you and your customers with the reassurance associated with Schneider Electric. Some of our market leading brands have already become Schneider Electric including Merlin Gerin, Telemecanique, Mita, Sarel, Himel, Thorsman, Tower and TAC. Working as one Schneider Electric makes it clearer that our ranges are highly compatible for integrated solutions.   Schneider Electric Ltd United KingdomStafford Park 5, TelfordShropshire TF3 3BLTel: 0870 608 8 608Fax: 0870 608 8 606www.schneider-electric.co.uk IrelandHead office, Block aMaynooth Business CampusMaynooth, Co. KildareTel: (01) 601 2200Fax: (01) 601 2201www.schneider-electric.ie As standards, specifications and designs change from time to time,  please ask for confirmation of the information given in this publication SE7107  OCT  2010 member of .co.uk FSC logo FSC76980 SE7107-OBC.pdf   1 16/11/2010   18:46
