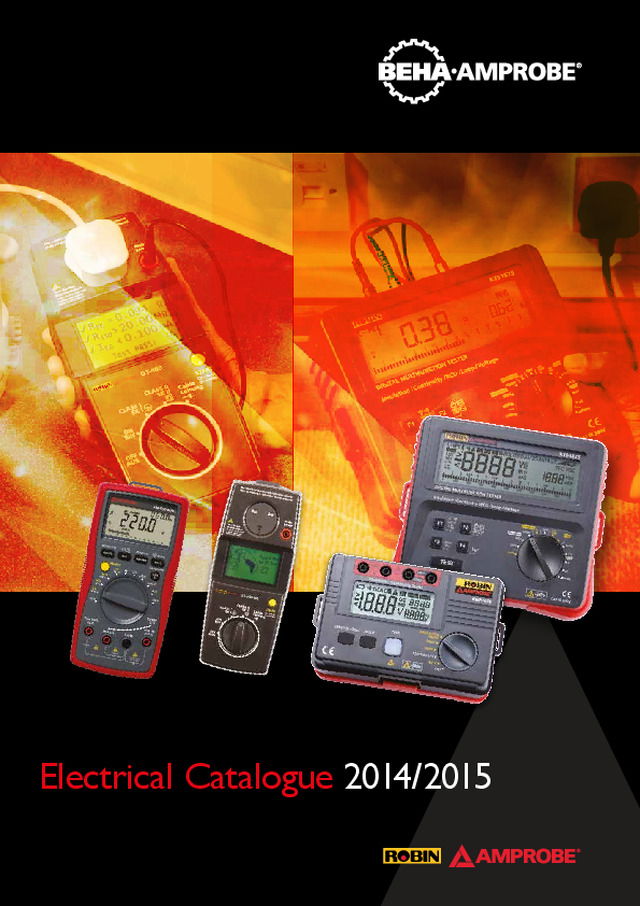

Robin-Amprobe - Electrical Catalogue 2014

Electrical Test Equipment from Beha-Amprobe Beha-Amprobe two of the most famous brands in the US and Germany have now incorporated Robin Installation testers within the range  available to customers in the UK and Ireland.  Beha-Amprobe offers wide range of cost-effective, innovative test equipment specifically designed to make the electrician’s job faster  and easier. This includes the Robin range of single, dual and multifunction 17th Edition  Installation Testers specifically designed for testing fixed installations in the UK and Ireland.  Beha-Amprobe products are sold and supported by a wide range of dealers and are backed up by a professional support service. The vast  array of Beha-Amprobe products, plus the incorporation of the Robin electrical range, means the UK electrician has a one stop shop for  quality, value-priced products which include 17th Edition Installation Testers, Voltage Detectors,  Multimeters, Clamp Meters, Thermometers  and Two Pole Testers - one of the largest ranges available to the electrical contractor and engineer. Single & Dual Function   Installation Testers  . . . . . . . . . . . . . . . 3Portable Appliance Testers   . . . . . . . . 7Electrical Testers   . . . . . . . . . . . . . . . . 9Clamp-on Meters  . . . . . . . . . . . . . . . 12Digital Multimeters  . . . . . . . . . . . . . . 15 Temperature Measurement   . . . . . . . 18 Other Test Equipment  . . . . . . . . . . . 21

Single and Dual Function Installation Testers Multifunction Installation Testers The five new Robin-Amprobe single function  testers give total flexibility, choose the tester  you need for the job.  Also available in a kit of  three for 17th Edition test capability. Robin-Amprobe Dual and Multifunction Testers  are specifically designed and built for the UK  electrician. Choose the KTS1625  for your 17th Edition test solution. 3

n    Three levels of trip currents (x1/2, x1, x5) for complete range of testing applications - Fast Trip Function (KMP7020) - Ramp Test (KMP7021) n    3-LED proper connection indicator n    Phase switch selection 0° and 180° for positive and negative semi-cycle testing n     Designed to allow testing to BS7671 IEE 17th Edition regulations n    Large display n    Safety CAT III 300V n    Non Trip Loop test n  Fast testing n    Instant reading n    20, 200 & 2000Ω Loop measurement ranges n    PSC measurement up to 20kA n    Displays mains voltage before test n    Instant correct wiring status check n    Designed to allow testing to BS7671 IEE 17th Edition regulations n    Backlight display n    Low Battery Indication n    CAT III 300V KMP7020/KMP7021 Digital RCD Tester KMP7030 Loop Impedance Tester Robin-Amprobe RCD testers are simple to use devices designed to check for correct operation of RCD devices. They feature three levels of trip currents with either Fast Trip or Ramp Test for complete range of testing applications.  A residual-current device (RCD) disconnects a circuit whenever the electric current is not balanced between the energised and the neutral conductors. The imbalance indicates that there is a leakage current outside of the system sometimes caused by the person accidentally touching the energised part of the circuit, and sometimes by lack of sufficient insulation (excessive moisture or worn out, poor quality insulation materials). RCDs are designed to disconnect quickly to mitigate the harm caused by such shocks and to avoid current leaks which may lead to fire and other  dangerous situations. Loop testing is a quick, convenient, and highly specific method of evaluating an electrical circuit for its ability to engage protective devices (circuit breakers, fuses, RCD’s). A “loop” is defined by including unsuspected elements, where current has found parallel paths to ground. A ground loop determines the effectiveness of protective devices, therefore it is crucial to be able to measure it, in order to detect and correct problems. KMP7020 KMP7021 4

Single-Function Installation Testers KMP7010 Ground Resistance Tester Robin-Amprobe Ground Resistance Testers are designed to measure resistance of the grounding systems to verify that the system has low enough resistance to provide protection for people, equipment and structures. A properly functioning grounding system is a critical safety feature of an electrical system. It is used to mitigate the risk when exposed metal parts come in contact with dangerous voltages in the event an installation fails. The building structures are protected by grounding systems to divert energy of lightning strikes straight to ground. Connections to ground limit the build-up of static electricity when handling flammable products or when repairing electronic devices. n    Measures Earth ground resistance -  3 point (fall of potential) or 2 point tests n    Voltage measurement prevents false measurements n    Test leads, auxiliary electrodes are included for a complete instrument n    Built-in memory to store 20 measurements n    Designed to allow testing to BS7671 IEE 17th  Edition regulations n    Safety CAT III 600V KMP7036 Insulation-Continuity Tester n    Tests insulation of wires, cables, transformers and electrical motors n   Selectable test voltages 250V, 500V and 1000V n    Test button hold to perform the Dielectric Absorption Ratio Test n   Continuity test @ 200mA short-circuit n    Designed to allow testing to BS7671 IEE 17th Edition regulations n    Built in voltmeter and red light warning for live circuit indication n    Automatic discharge of test object after completion of measurement n   Test lead resistance zero facility n   Safety CAT III 600V The Robin-Amprobe Insulation-Continuity Tester is designed to diagnose and prevent the breakdown of the insulation in various parts of the electrical system such as wires, transformers and motors. The KMP7036 features three testing voltages covering wide range of commercial and residential applications.  The quality of insulation is critical to assure proper, uninterrupted and safe functioning of electrical circuits. 17A Kits - Single Function Installation Testers KMP7036 Insulation Tester KMP7036 Insulation Tester Carry case included  with both kits KMP7030 Earth Loop Impedance Tester KMP7030 Earth Loop Impedance Tester KMP7020 RCD Tester KMP7021 RCD Tester + + 17B + + 5

KMP7100 Dual Function Loop /  RCD Tester Robin-Amprobe KMP7100 is a dual function installation tester combining both Earth Loop Impedance tester and RCD tester in one compact easy to use package. Ideal for use with the Robin Amprobe 7036 Insulation tester. n  Loop Functions   - Non Trip Loop test  - Fast testing  - 20, 200 & 2000Ω Loop measurement ranges  - PSC measurement up to 20kA  - Displays mains voltage before test  - Instant correct wiring status check n   RCD Functions   -   Three levels of trip currents (X1/2, X1, X5)  for complete range of testing applications   -  Phase switch selection 0° and 180° for  positive and negative semi-cycle testing   - Test pulse sensitive (DC) RCDs  - Auto RCD test  - Selectable 25V/50V fault voltage for RCD test n    Designed to allow testing to BS7671 IEE 17th Edition regulations n    Displays mains voltage before test n    “Test lock” for automatic start test when connected to circuit n    Dual measurement result display - primary display for   RCD/Loop measurement, secondary display for circuit voltage n    Built-in Volt meter n    Safety CAT III 300V KTS1625 Digital Multifunction Tester (Insulation / Continuity / Loop / RCD / Voltage Safety and performance are two most critical requirements for every electrical system. The quality of insulation, properly working grounding system and active protection are to assure safety of people, electrical systems and buildings against electrocution, fire, and other equipment damage.  Robin-Amprobe KTS1625 tester verifies the safety of electrical installations in domestic, commercial and industrial applications. It can ensure that fixed wiring is safe and correctly installed to meet the requirements of BS7671 IEE 17th edition wiring regulations. n  Continuity Functions   - Continuity resistance @ 200mA n  Insulation Function  -  Selectable test voltages 250V, 500V & 1000V  n  Line / Loop Impedance Functions   - Prospective earth fault current  - Prospective short-circuit current  - Non Trip Loop test   - Fast testing n  RCD Functions   -  Three levels of trip currents (X½, X1, X5)  for complete range of testing applications   -  Phase switch selection 0° and 180° for  positive and negative semi-cycle testing   - RCD ramp test  - Tests time delayed RCDs (S-type)  - Test pulse sensitive (DC) RCDs  - Auto RCD test n    Designed to allow testing to BS7671 IEE 17th Edition regulations n    Voltage and frequency measurements n    Instant correct wiring status check n    Dual measurement result display n    Large, backlit display n    Low battery indication n    Safety CAT III 300V Accessories for Robin-Amprobe testers ERT2 Earth resistance kit SL17B Standard test lead set e/leads, probes, alligator clips and mains lead TP1625 Test probe with remote test button for KTS1625 SL7030 Standard test lead set for KMP7030 KP1700 Single function tester kit carry bag SL17E Fused test lead set w/probes, alligator clips 6

Portable Appliance Testers Robin-Amprobe Portable Appliance Test – Built Tough to Test the Safety and Integrity of Electrical Appliances 7

GT-400-UK Portable Appliance Tester The new Robin-Amprobe GT-400-UK Portable  Appliance Tester, is a light- weight, portable appliance  tester that tests the integrity of electrical devices. Developed for the commercial electrician or facilities  maintenance persons to carry out a wide variety of safety measurements of electrical appliances, the  GT-400-UK is extremely easy to use. Measuring  earth ground and insulation resistance, as well as  current, the GT-400-UK will ensure safety,   functionality and compliance of regulatory standards. n     Intuitive and simple to use with no training required n      Easily portable for on the go testing n      Fast answers - Instantly measures safety and  integrity of electrical appliances n      Measures earth bond resistance n     Insulation resistance measurements up to 500V n     Substitute Leakage Current measurements  n     Protective Conductor Current measurements n     Rugged with high quality construction for years of service n      Tests appliances for safety in accordance  with the IET Code of Practice, EN 61010 Safety Standards 8

The range of Beha-Amprobe Electrical Testers  include Non-contact & Two Pole Testers. Electrical Testers 9

VP-720-E Voltage Tester LCD with Phase Rotation Additional Features n     Vibration function n     Test of 30mA RCD by both push buttons, avoids unintended tripping of RCD n     Torch function via white LED n     Quick single-hand test on 19 mm contact distance sockets n     Built and certified according to latest voltage tester standard EN-61243-3:2010, DIN VDE 0682-401:2011 n     Voltage test via LCD-Display and LED-Bargraph (12-690V AC/DC) n     Single pole test for phase polarity n     Continuity test n     Two pole phase indication, no third hand required n     Switchable Load of 140 W with two push buttons, tripping of 30 mA RCD n     Automatic AC/DC voltage indication, indication of polarity n     IP 64, splash-proof and dust-tight protection n     Probe tip protection for reducing the danger of injuries (attached to lead - permanently available) 10 VP-700-E Voltage Tester with  Rotary Field Indicator n     Voltage test (12-690V AC/DC) n     Two pole phase rotation indication, no third hand required n     Indication of polarity n     Switchable Load of 140 W with two push buttons, tripping of 30 mA RCD n     IP 64, splash-proof and dust-tight protection n     Probe tip protection for reducing the danger of injuries (attached to lead - permanently available) Additional Features n     No unawared tripping of RCD n     No battery required n     Quick single-hand on 19 mm contact distance outlets, without removing test probe from instrument n     Built and certified according latest voltage tester standard EN-61243-3:2010, DIN VDE 0682-401:2011 VP-710-E Voltage Tester with  Phase Rotation Additional Features n     Quick single-hand on 19 mm contact distance outlets, without removing test probe from instrument n     Torch function via white LED n     Built and certified according latest voltage tester standard EN-61243-3:2010, DIN VDE 0682-401:2011 n     Voltage test (12-690V AC/DC) n     Two pole phase rotation indication, no third hand required n     Single pole test for phase polarity n     Continuity test n     Switchable Load of 140 W with two push buttons, tripping of 30 mA RCD n     Automation AC/DC voltage indication, indication of polarity n     IP 64, splash-proof and dust-tight protection n     Probe tip protection for reducing the danger of injuries (attached to lead - permanently available)

Voltage Testers 11 VP-440 RT Non-contact Voltage  Tester n     Non-contact, optical detection of AC voltages n     50-1000V AC n     Fast, accurate detection of cable breaks in open-ended cables, e.g. cable drums n     Compact, handy design that fits in any pocket n     Wide range of applications in trade and industry 2050-D VOLTfix plus – non-contact  voltage tester VP-450-E Non-contact Voltage   Tester Non-contact, optical and acoustic detection of AC voltages. Fast, exact location of line breaks in cables lying open e.g. cable drums. Reliable, automatic self-test at start-up of the equipment by visual standby display. Compact, handy design, which fits in any pocket. n     CAT III 600 V n     Optical and acoustic detection n     Integrated flashlight n     Compact, handy design n     Optical standby display. n     Non-contact, optical and acoustic detection of AC voltages n     50-600V AC n     Fast, accurate detection of cable breaks in openended cables, e.g. cable drums n     Reliable, automatic self-test of activated device with optical readiness indicator n     Compact, handy design that fits in any pocket n     Wide range of applications in trade and industry Additional Features n     On/off switch n     Fast and accurate locating of fuses and assignment to circuits n     Locating and tracing of cables in walls n     Set consisting of transmitter and receiver in robust carrying case n     Transmitter signal displayed optically and acoustically by the receiver n     Transmitter with integrated BS1363 UK plug enabling easy connection to mains socket n     Simple switching between fuse and cable finder function n     Continuous sensitivity adjustment of receiver ECB50A-E Circuit Breaker Finder

Beha-Amprobe are renowned around  the world for innovative Clamp Meters.    The selection includes the Swivel Clamp  Meter and the high performance  Navigator Clamp. Clamp-on Meters 12

ACDC-400 Clamp Multimeter 400A ACD-20SW Swivel Clamp Meter 400A n     Current, voltage and resistance measurement n     Continuity test with beeper n     Measurement of inrush current (30 ms) n     Automatic and manual range selection n     Integrated measurement memory (data hold) n     Jaw opening: 50 mm n     Auto power-off Additional Features n     Large, clear display ACDC-100 Clamp Multimeter 1000A n     Current, voltage and resistance measurement n     Continuity test with beeper n     Automatic and manual range selection n     Integrated measurement memory (data hold, MIN/MAX) n     Relative measurement n     Additional bar graph display n     Jaw opening: 30 mm n     Auto power-off Additional Features n     AC/DC clamps are also suitable for automotive applications, emergency power supplies and solar technology n     Backlight ACD-14 PLUS Current clamp with dual  display up to 600 A (AC) n     Current, voltage and resistance measurement n     Continuity test with beeper n     Capacitance and frequency measurement n     Temperature measurement n     Measurement of inrush current n     Automatic range selection n     Integrated measurement memory (data hold and MAX hold) n     Jaw opening: 26 mm n     Auto power-off Additional Features n     Dual display n     A measurement range for direct measurement of ionisation currents in heating systems n     Measures current, voltage and resistance n     Audible continuity test n     Diode test n     Auto and manual ranging n     Measured data storage (Data Hold) n     Accomodates conductors up to 30 mm in diameter n     Auto-Power-Off Additional Features n     180 degree rotating head for the perfect display n     Advanced VoltTect non-contact voltage detection Clamp-on Meters 13

14 LH41 Current Clamp Meter AC/DC n     Current measurement from 1 mA AC and DC n     Manual range selection n     Jaw opening: 19 mm n     Automatic zero-point (DC measurement range) n     Integrated 5 s measurement memory (data hold) n     Auto power-off Additional Features n     Minimum resolution: 1 mA n     Shielded against external interference n     Leakage current measurement n     Voltage and resistance measurement n     Continuity test with beeper n     Manual range selection n     Integrated measurement memory (data hold) n     MIN/MAX and relative value measurement n     Additional bar graph display n     Jaw opening: 30 mm n     Auto power-off Additional Features n     Minimum resolution: 0.01 mA n     Range of applications: measurement of leakage or fault currents, current consumption of devices in (customer) service sector without breaking the circuit AC50A Leakage Clamp Meter ACD-50NAV 600A AC Navigator Clamp n     Current, voltage and  resistance measurement n     Measurement of active  power (W) n     Measurement of the  power factor cos ф n     Acoustic continuity test n     Capacity and frequency  measurement n     Harmonics measurement for  current and voltage values  (up to the 25th harmonic) n     THD measurement n     Measurement of the  inrush current n     Display of the rotary  field direction n     Automatic measuring  range selection n     TRMS measurement (ACD- 52NAV, ACD-53NAV,  ACD-54NAV only) n     Integrated measurement  memory (Data Hold,  MIN/MAX) n     Additional bargraph display n     Peak value measurement n     Low Pass frequency filter n     Large clear display with  background light n     Clamp opening 37 mm n     Auto-Power-Off Additional Features n     Real effective value measurement AC+DC (TRMS) n     Contactless voltage detection n     Measurement point illumination by means of white LED ACDC-54NAV 1000A AC/DC TRMS  Navigator Clamp n     Current, voltage and  resistance measurement n     Acoustic continuity test n     Capacity and frequency measurement n     Temperature measurement n     Measurement of effective power (W) n     Measurement of the  power factor cos ф n     Harmonic measurement for  current and voltage values  (up to the 25th harmonic) n     Measurement of the inrush current n     Display of the rotary field direction n     Automatic measuring range selection n     Integrated measurement memory  (Data Hold, MIN/MAX) n     Additional bargraph display n     Peak value measurement n     Low Pass frequency filter n     Large clear display with  background light n     Clamp opening 42 mm n     Auto-Power-Off Additional Features n     Real effective value measurement AC+DC (TRMS) n     Contactless voltage detection n     Measurement point illumination by means of white LED

15 Beha-Amprobe offer a wide range of Digital Multimeters for the UK electrician at  affordable prices. Digital Multimeters

16 AM-520-EUR DMM n     750V AC/DC  n  10A AC/DC  n     Capacitance and frequency measurement n     Temperature measurement n     Automatic and manual range selection n     Auto power off n     Non-contact voltage detection n     Built-in flashlight Contents n     Model AM-520 EUR n     Test leads n     1 x Temperature probe n     Carrying case n     1 x 9V (6F22) battery (installed) n     Users manual n     Hang strap AM-530-EUR DMM TRMS n     AC 750V/DC 1000V n     10A AC/DC n     TRMS measurement n     Capacitance and frequency measurement n     Temperature measurement n     Automatic and manual range selection n     Auto power off n     Non-contact voltage detection n     Built-in flashlight Contents n     Model AM-530 EUR n     Test leads n     1 x Temperature probe n     Carrying case n     1 x 9V (6F22) battery (installed) n     Users manual n     Hang strap AM-500-EUR Compact Size DMM n     Autoranging feature automatically sets up   voltage, current, and    resistance ranges for you n     Voltage up to 600V AC/DC n     Resistance n     Audible continuity n     Diode test n     Data hold n     Auto power off n     Low battery warning n     Safety rated: CAT III 600V Contents n     Model AM-500 EUR n     Test leads n     AAA x 2 n     Users manual AM-510-EUR DMM n     600V AC/DC  n    10A AC/DC  n     Capacitance and frequency measurement n     Temperature measurement n     Automatic and manual range selection n     Auto power off n     Battery test (1,5V and 9V) n     Non-contact voltage detection n     Built-in flashlight Contents n     Model AM-510 EUR n     Test leads n     1 x 9V (6F22) battery (installed) n     Users manual

Digital Multimeters 17 AM-550-EUR DMM TRMS n    1000V AC/DC  n    10A AC/DC  n    TRMS measurement n     Low pass filter for variable frequency drives n     Capacitance and frequency measurement n     Temperature measurement n     Automatic and manual range selection n     Non-contact voltage detection n     Built-in flashlight Contents n     Model AM-550 EUR n     Test leads n     2 x Temperature probe n     Carrying case n     1 x 9V (6F22) battery (installed) n     Users manual n     Hang strap AM-540-EUR DMM n     1000V AC/DC  n     10A AC/DC n     Low pass filter for variable frequency drives n     Capacitance and frequency measurement n     Temperature measurement n     Automatic and manual range selection n     Auto power off n     Non-contact voltage detection n     Built-in flashlight Contents n     Model AM-540 EUR n     Test leads n     2 x Temperature probe n     Carrying case n     1 x 9V (6F22) battery (installed) n     Users manual n     Hang strap PM55A Digital Multimeter n     AutoTect™ feature directs the meter to know if it is measuring AC volts, DC volts or resistance with no user interface n     The AutoTect™ feature has lower input impedance which zero out ghost voltages n     Measures AC/DC current, capacitance, frequency, continuity with beeper plus includes Voltect,™ a built-in, non-contact voltage detector n     Large oversize digital display n     Protective silicon holster included, attached test leads, battery, deluxe carry case and manual n     One-year, no-hassle warranty DM73C Pen Probe Style Digital Multi-Tester n     600 V AC and 600 V DC ranges n     Cat III 300 V safety rated n     Cat II 600 V safety rated n     Improved DC basic accuracy 0.5% n     Resistance to 34 MW n     Continuity beeper n     Includes alligator clip,   ground test lead, spare probe  tip and installed batteries n     3400-count digital display plus analog bargraph n     Auto power off n     UL 3111-1 listedp

The Beha-Amprobe series of infrared and  contact thermometers are a complete line of high performance diagnostic tools designed for HVAC/R, electrical, industrial maintenance applications. Temperature Measurement 18

Temperature Measurement 19 IR-710-EUR Infrared Thermometer (10:1) n     Extremely accurate and reliable n     Precise measurement with distance to spot ratio 10:1 n     Wide temperatures ranges available up to   -0°F to 716°F    (-18°C to 380°C ) n     Rapid response time n     Laser pointer for accurate targeting n     8 seconds auto display hold for easy read-out n     Adjustable emissivity for measuring a variety of materials n     Dual LCD display with backlight n     Selectable ˚F and ˚C IR-720-EUR Infrared Thermometer (20:1) n     Extremely accurate and reliable n     Precise measurement with distance to spotratio 20:1  n     Wide temperatures ranges available up to   -26°F to 1922°F    (-32°C to 1050°C ) n     Rapid response time n     Laser pointer for accurate targeting n     8 seconds auto display hold for easy read-out n     Adjustable emissivity for measuring a variety of materials n     Dual LCD display with backlight n     Selectable ˚F and ˚C IR-750-EUR Infrared Thermometer (50:1) n     Extremely accurate and reliable n     Precise measurement with distance to spot ratio 50:1 n     Wide temperatures ranges available up to   -58°F to 2822°F    (-50°C to 1550°C ) n     Rapid response time n     Laser pointer for accurate targeting n     8 seconds auto display hold for easy read-out n     Adjustable emissivity for measuring a variety of materials n     Dual LCD display with backlight n     Selectable ˚F and ˚C  n    Stores up to 99 data points n    Thermocouple input n    USB interface IR-730-EUR Infrared Thermometer (30:1) n     Extremely accurate and reliable n     Precise measurement with distance to spot ratio 30:1 n     Wide temperatures ranges available up to   -26°F to 2282°F    (-32°C to 1250°C ) n     Rapid response time n     Laser pointer for accurate targeting n     8 seconds auto display hold for easy read-out n     Adjustable emissivity for measuring a variety of materials n     Dual LCD display with backlight n     Selectable ˚F and ˚C

20 TMD-50 Thermometer TMD-50, Type K n     Dual (Temperature measurement with connection for two sensors) n     -60 to 1350 °C, -58 to 2498 °F n     Measurement of the temperature difference n     Connection for two temperature sensors type K n     Switchable for measurement in °C or °F n     Integrated measurement memory (Data Hold) n     MIN/MAX and relative value measurement n     Measurement of the average temperature n    Backlit display n     Auto-Power-Off Additional Features n     Best precision 0.1% n     T1-T2 (temperature difference) n     Shock and impact-resistant by standard protective cover IR608A Infrared Thermometer  Laser Pointer n     Non-contact temperature measurement n     Switchable between °C and °F measurement n     Integrated measurement memory (data hold) n     Backlight n     Distance to spot size ratio: 8:1 n     Auto power-off Additional Features n     Laser-based targeting n     Handy and compact “pistol grip” design IR-450-EUR Pocket Infrared Thermometer n    IR pocket thermometer with     8:1 distance to spot ratio n    Selectable °F / °C n    Holds temperature     reading for 10 seconds n    Bright laser pointer n    Built-in LED flashlight to     illuminate dark areas TH-3 Relative Humidity Temperature Meter n     Dual display n    Relative function monitors   humidity and temperature changes n    Extended probe stem to easily   access air ducts n    Min/Max readings    Data Hold n    Capacitive sensor with   protective cover n    Auto Power off n    Soft Carrying Case n    One-year warranty

Need something a little different? Always check the Beha-Amprobe range. This section has a selection of other Beha-Amprobe test equipment for electrical and HVAC  applications. Other Test Equipment 21

22 TMA10 Anemometer Thermometer Anemometer with remote vane n     Measure CFM by inputting the vent dimensions n     Obtain air flow average by taking up to eight data points n     Vane has three foot cord for measurement flexibility n   Deluxe carrying case   n   Measure air velocity or air flow n     RS232 interface output with optional software and cable, TM-SWA n     Continuous moving average for up to 2 hours LM-100 Light Meter Manual Ranging n     Light measurement n     0-200,000 lux n     Manual range selection n     Silicon sensor n     Integrated measurement memory (data hold, MAX) LAN-1 Lan Cable Tester n     Test pin configuration for:   10/100 base -T cable  10 base-2 cable  RJ45 modular cables  AT&T 258A cable  EIA/TIA 568A/568B cables  Token Ring Cable n     Verify the cable wiring for continuity, opens, shorts or incorrect wiring n     Test installed cable on wall plate or the patch panels by using the Remote Termination module n     Perform Loopback Test or Remote Test n     Buzzer sound warning for error condition in cable n     Two sets of LED lights for Source and Test indication LM-120 Light Meter with   Auto Ranging n    Measure in Lux or Footcandles,     front panel switchable n    Measuring Range to 200,000     Lux or 20,000 Foot candles n    Silicon photodiode     sensor and filter n    Data Hold to freeze reading     on the digital display n    MIN / MAX ability to show    high and low readings n    Autoranging plus Manual Range n    Zero function to null     display before a reading n    Auto Power Off to  PRM4 Phase Sequence and Motor Rotation Tester n     Identifies 3-phase sequence and open phase check n     Motor shaft rotation indication protected by CAT III circuitry n     CAT III 600V rated for both testing segments n     Meets current EN61010 safety requirements, CSA, EN61557-7 n     Supplied with three CAT III  rated color coded large alligator clips and test leads n     Zippered carrying case for portability

Others 23 LM-100 Light Meter Manual Ranging SM-10 Sound Meter n     Measurement of sound level n     30-130 dB n     Measurement according to frequency evaluation filters A and C, with direct display in dB n     Integrated measurement memory (data hold, MAX) n     Switchable between fast and slow response times n     Backlight TACH20 Combo Tachometer n    Measures rotational     and surface speed n    Built-in memory n    Digital Display n    Auto power off function n    Easy to select units     and mode functions n    Contact and non-    contact measurement n    Select rpm using infrared       beam or adapter: m/min, m/sec,  ft/min, ft/sec, in/min, m, ft, and in. n    Includes 6 Adapters, Carrying     Case, Reflective Tapes,  Batteries and User Manual PQ55A Compact Power Analyser n   Comprehensive real time     monitoring, recording and  analysis of three phase    power systems n   True-rms voltage and     current measurement n   Power Factor and     phase angle results n   Power Analysis (apparent,     active and reactive power) TX900 Microwave Leakage  Detector n   Measures for wave leakage     and tests oven power n   8 dipole sensors – allows       detection of plane wave signals  of any polarization n   Temperature compensation     – accurate reading regardless  of ambient temperature changes n   Compact, ergonomic design n   Low battery indication n   Analog Bar Graph n   Auto-zero LT-10-EUR Lamp Tester n     Determine if fluorescent light  bulbs are operational prior to installation or removal  n     Verify voltage presence without  the need for another tool with built-in VolTect™ non-contact    voltage detection  n      Increase  productivity  by minimising trips up and down a ladder  n     All tests performed with easy,  single button operation  n     Ultra-compact design  for portability n     Industry leading 120cm (48”) removable, fully  retractable antenna  n     Insulated antenna sleeve  for safe testing

24 Specifications  (At 23°C ± 5°C, 45% to 75% RH) Insulation Resistance @ 250V/500/1000V (Test Current ≥ 1mA) 0.00MΩ ~ 250MΩ @ 250V0.00MΩ ~ 500MΩ  @ 500V 0.00MΩ~1000MΩ @ 1000V(Buzzer threshold: 2MΩ) ±(5% rdg + 5 LSD) Continuity @ IN ≥ 200mA,  Uo=5Vdc (Nominal) 0.00Ω ~ 199Ω (Buzzer threshold: 20Ω) ±(2% rdg + 5 LSD) AC Voltage Measurement 0Vac ~ 400Vac ±(5% rdg + 2 LSD)  @ 45 to 65Hz Operating Voltage (Loop and RCD) 230Vac, 45Hz ~ 65 Hz +10% to -15% Line Impedance (L – N) @ 25A 0.01Ω ~ 1.99Ω / 2.0Ω ~  19.9Ω / 20Ω ~ 2000Ω ±(5% rdg + 5 LSD) Loop Impedance  (L – PE) @ 25A 0.01Ω ~ 1.99Ω / 2.0Ω ~  19.9Ω / 20Ω ~ 2000Ω ±(5% rdg + 5 LSD) Loop impedance without tripping @ 15mA 0.01Ω ~ 1.99Ω / 2.0Ω ~ 19.9Ω / 20Ω ~ 2000Ω ± (5% rdg + 12 LSD + Noise Margin (0.01 - 1.99Ω)) Prospective Short Circuit  Current (PSC) @ 25AProspective Earth Fault Current (PSC) @ 25A 0.00A ~ 1.99A / 2.0A  ~ 19.9A / 20A ~ 199A / 200A ~ 1.99kA / 2.0kA ~ 26kA PSC accuracy derived  from measured loop impedance specification and measuredvoltage specification RCD Test Current 10/30/100/300/500mA 0% to 10% @  1∆n and 5∆n≤-10% to 0% @ ½∆n RCD Trip Times @ X½ 0 ~ 2000ms (10/30/100/300/500mA) ±(1% rdg + 2 ms) RCD Trip Times @ X1 0 ~ 500ms (selective) (10 / 30 / 100 /  300 / 500mA) ±(1% rdg + 2 ms) RCD Trip Times @ X1 0 ~ 300ms (10 / 30 / 100 / 300mA) ±(1% rdg + 2 ms) RCD Trip Times @ X5 0 ~ 40ms (10 / 30 / 100mA) ±(1% rdg + 2 ms) RCD Auto Test X½ / X1 / X5 (10 / 30 / 100mA) Trip time: ±(1% rdg + 2 ms) Trip current: 0%  to 10% @ 1∆n and 5∆n -10% to 0% @ ½∆n RCD RAMP Test X½ / X1 / X5 (10 / 30 / 100 / 300 / 500mA) 50% ~ 110% Default nominal residualcurrents (I∆n). Increasing by 10%, total 7steps of residual current Fault Voltage Detection (N – PE conductor) 50Vac or more Operating Temperature 0°C to +40°C, ≤ 85% RH, no condensation Storage Temperature -20°C to +60°C, ≤ 90% RH, no condensation (without batteries) Power Supply 1.5V Alkaline Battery (AA Battery) × 8 pcs Dimensions (L x W x H) 189 x 168 x 85 mm (7.43 x 6.65 x 3.35 in) Product Weight Approx. 1.3 kg (2.87 lb) with batteries installed Regulation Compliance Designed to allow testing to BS7671 IEE 17th Edition regulationsBS EN 61010-1 CAT III 300VBS EN 61557-1 / -2 / -3 / -4 / -6 / -10BS EN 61326-1 (EMC) Included Accessories 3-Wires mains test cord set, test lead (red, black green), test probe (red, black, green),alligator clips (red, black, green), Test probe with Remote Test Button, users manual,strap and carrying case KTS1625 Specifications  (At 23°C ± 5°C, 45% to 75% RH) Operating Voltage 230Vac, 45Hz ~ 65 Hz +10% to -15% Earth Loop Impedance 20Ω 0.01Ω ~ 19.99Ω @ Nominal Test  Current 25A ±(3% rdg + 4 LSD) Earth Loop Impedance 200Ω 20.0Ω ~ 199.9Ω @ Nominal Test Current 2.3A ±(3% rdg + 4 LSD) Earth Loop Impedance 2000Ω 200Ω ~ 1999Ω  @ Nominal Test Current 15mA ±(3% rdg + 4 LSD) Non tripping Loop test 20Ω 0.01Ω ~ 19.99Ω ±(3% rdg + 6 LSD) Non tripping Loop test 200Ω 20.0Ω ~ 199.9Ω ±(3% rdg + 7 LSD) Prospective Short Circuit Current (PSC) 200A / 2000A / 20kA 0.0 ~ 199.9 / 1999 / 19.9kA PSC accuracy derived from measured loop  impedance specification and measured voltage specification RCD Test Current 10/30/100/300/500mA 0% to 10% @ 1∆n and 5∆n≤ -10% to 0% @ ½∆n RCD Trip Times @ X½ 0 ~ 2000ms  (10/30/100/300/500mA) ±(1% rdg + 2 ms) RCD Trip Times @ X1 0 ~ 1000ms (selective) (10/30/100/300/500mA) ±(1% rdg + 2 ms) RCD Trip Times @ X1 0 ~ 1000ms (10/30/100/300mA) ±(1% rdg + 2 ms) RCD Trip Times @ X5 0 ~ 40ms  (10/30/100mA) ±(1% rdg + 2 ms) RCD Auto Test X½ / X1 / X5 (10 / 30 / 100mA) Trip time: ±(1% rdg + 2 ms)Trip current: 0% to 10% @ 1∆n and 5∆n-10% to 0% @ ½∆n RCD RAMP Test X½ / X1 / X5 (10 / 30 / 100 / 300 / 500mA) 50% ~ 110% Default nominal residual currents (I∆n). Increasing by 10%, total 7 steps of  residual current Fault Voltage Detection (N – PE conductor) Selectable 25V or 50Vac Voltage Measurement 0Vac ~ 600Vac ± (2% rdg + 3 LSD) @ 45Hz ~ 65 Hz Operating Temperature 0°C to +40°C, ≤ 85% RH, no condensation Storage Temperature -20°C to +60°C, ≤ 90% RH, no condensation (without batteries) Power Supply 1.5V Alkaline Battery (AA Battery) × 8 pcs Dimensions (L x W x H) 189 x 168 x 85 mm (7.43 x 6.65 x 3.35 in) Product Weight Approx. 450g (0.99 lb) Regulation Compliance Designed to allow testing to BS7671 IEE 17th Edition regulationsBS EN 61010-1 CAT III 300V BS EN 61557-1 / -3 / -6 / -10BS EN 61326-1 (EMC) Included Accessories 3-wires mains test cord with UK plug, test leads (red, black green), test probes (red, black,green), alligator clips (red, black, green), users manual, strap and carrying case KMP7100 Multi-Function Installation Testers Technical Specification

Technical Specification 25 Specifications  (At 23°C ± 5°C, 45% to 75% RH) Earth Resistance Measurement 0.00Ω ~ 40.00Ω0.0Ω ~ 400.0Ω0Ω ~ 4000Ω ± (2% rdg + 20 LSD)± (2% rdg + 3 LSD)± (2% rdg + 3 LSD) Voltage Measurement 0Vac ~ 400Vac ± (1% rdg + 6 LSD)  @ 50 / 60 Hz Operating Temperature +5°C to +40°C, ≤80% RH, no condensation Storage Temperature -20°C to +60°C, ≤90% RH, no condensation (without batteries) Power Supply 1.5V Alkaline Battery (AA Battery) × 6 pcs Dimensions (L x W x H) 160 x 101 x 71 mm (6.3 x 3.98 x 2.79 in) Product Weight Approx. 500g (1.1 lb) with batteries installed Regulation Compliance Designed to allow testing to BS7671 IEE 17th Edition regulationsBS EN 61010-1 CAT III 400VBS EN 61557-1, BS EN 61557-5 BS EN 61326-1 (EMC) Included Accessories Three Test Leads (Green, Yellow and Red), Auxiliary ground rods, Two test leads withalligator clips, Batteries ( 6 x AA), Users Manual, Strap and Carrying case Specifications  (At 23°C ± 5°C, 45% to 75% RH) Insulation Resistance @ 250V/500/1000V (Test Current ≥1mA) 0.00MΩ ~ 4.99MΩ5.0MΩ ~ 49.9MΩ50MΩ ~ 999MΩ1.00GΩ ~ 1.99GΩ (Buzzer threshold: 4MΩ) ± (3% rdg + 5 LSD) for 0.00MΩ ~ 99.9MΩ± (5% rdg + 5 LSD) for 100MΩ ~ 1.99GΩ Continuity @ IN ≥200mA,  Uo=5Vdc (Nominal) 0.00MΩ ~ 9.99 MΩ  10.0MΩ ~ 99.9 MΩ ± (2% rdg + 5 LSD) AC Voltage Measurement 30Vac ~ 750Vac ± (2% rdg + 3 LSD)  @ 50 / 60Hz Operating Temperature 0°C to +35°C, ≤75% RH, no condensation Storage Temperature -20°C to +60°C, ≤80% RH, no condensation (without batteries) Power Supply 1.5V Alkaline Battery (AA Battery) × 6 pcs Dimensions (L x W x H) 160 x 101 x 71 mm (6.3 x 3.98 x 2.79 in) Product Weight Approx. 450g (0.99 lb) with batteries installed Regulation Compliance Designed to allow testing to BS7671 IEE 17th Edition regulationsBS EN 61010-1 CAT III 600VBS EN 61557-1 / -2 / -4 / -10BS EN 61326-1 (EMC) Included Accessories Test Leads (red, black), probes (red, black), alligator clips (red, black), Battery, InstructionManual, Carrying case, Strap KMP7010 KMP7036 Specifications  (At 23°C ± 5°C, 45% to 75% RH) Operating Voltage 230Vac, 45Hz ~ 65 Hz +10% to -15% Loop Impedance 20 / 200 / 2000Ω 0 ~ 19.99 / 199.9 / 1999 Ω ±(3% rdg + 4 LSD) AC Test Current 25A Nominal at 20Ω AC Test Period 10ms at 20Ω No Trip Loop Impedance  20 / 200Ω 0 ~ 19.99 / 199.9 Ω (L  – N impedance   20 Ω) ± (3% rdg + 6 LSD) PSC Measurement 200A / 2000A / 20kA 0.0 ~ 199.9 / 1999 / 19.9kA PSC accuracy derived from measured loopimpedance specification  and measuredvoltage specification Voltage Measurement 100Vac ~ 300Vac ± (2% rdg + 4 LSD) @ 50/60Hz Operating Temperature 0°C to +40°C, ≤ 85% RH, no condensation Storage Temperature -20°C to +60°C, ≤ 90% RH, no  condensation (without batteries) Power Supply 1.5V Alkaline Battery (AA Battery) × 8 pcs Dimensions (L x W x H) 189 x 168 x 85 mm (7.43 x 6.65 x 3.35 in) Product Weight Approx. 450g (0.99 lb) Regulation Compliance Designed to allow testing to BS7671  IEE 17th Edition regulationsBS EN 61010-1 CAT III 300V BS EN 61557-1, BS EN 61557-3 BS EN 61326-1 (EMC) Included Accessories Mains Test cord with Earth Probe,Batteries (8 x AA), User’s Manual, Strap and Carrying Case Specifications  (At 23°C ± 5°C, 45% to 75% RH) Operating Voltage 230Vac, 50 Hz +10% to -15% Trip current @ X½ 10/20/30/100/300/500mA(trip time 0 to 2000ms) Trip current tolerance: -10% to +10%Trip Time: ± (2%  rdg + 2 LSD) Trip current @ X1 10/20/30/100/300mA  (trip time 0 to 1000ms)500mA (trip time 0 to 300ms) Trip current tolerance:  0% to +10%Trip Time: ± (2% rdg + 2 LSD) Trip current @ X5 10/20/30mA (trip time 0 to 40ms) Trip current tolerance: 0% to +10% Trip Time: ± (2% rdg + 2 LSD) Fast Trip Current (KMP7020) 250mA (trip time 0 to 40ms) Trip current tolerance: 0% to +10% Trip Time: ± (2%  rdg + 2 LSD) Ramp Test (KMP7021) 10/20/30/100/300/500mA -10% to +10%Ramp increase by 10%Default nominal residual currents  from 20% to 110% Maximum measuring time 300ms x 10 times Operating Temperature 0°C to +40°C, ≤80% RH, no condensation Storage Temperature -20°C to +60°C, ≤90% RH, no condensation Power Supply AC mains 230V +10% -15%, 50 Hz Dimensions (L x W x H) 160 x 101 x 71 mm (6.3 x 3.98 x 2.79 in) Product Weight Approx. 450g (0.99 lb) Regulation Compliance Designed to allow testing to BS7671  IEE 17th Edition regulationsBS EN 61010-1 CAT III 300VBS EN 61557-1, BS EN 61557-6BS EN 61326-1 (EMC) Included Accessories 3-Wires Mains Test Cord, Test Lead Set, Users Manual, Strap and Carrying case KMP7020/KMP7021 KMP7030 Single-Function Installation Testers

Technical Specification 26 Clamp-on Meters Clamp Multimeter Comparison Guide ACD-14 Plus ACDC-400 ACD-20SW ACDC-100 ACD-50NAV Display LCD, 33/4-digit,   4000 digits LCD, 3¾ Digit, 3999 Count LCD, 3¾ Digit, 3999 Count LCD, 3¾ Digit,  4000 Count LCD, 3¾ Digit, 4000 Count Measurement  Ranges Current AC 0.01 - 600 A 0.01 A - 400 A 0.01 - 400 A 0.1 A - 800 A 0.01 - 600 A Tolerance ±(1.9% rdg. + 8 digits) ±(1.5% rdg. +3 Digits) ±(2% rdg +6 Digits) ±(1.5% rdg. +5 Digits) ±(1.5 % rdg. +5 Digits) Frequency Range 50/60 Hz 50/60 Hz 50-60 Hz 50 Hz - 400 Hz Current DC - 0.01 A - 400 A - 0.1 A - 1000 A - Tolerance - ±(1.5% rdg. +3 Digits) - ±(1.5% rdg. +4 Digits) - Voltage AC 0.001 - 600 V 0.1 mV - 600 V 1.0  mV-600,0 V 0.1 mV - 600 V 0.01 - 1000 V Tolerance ±(1.5% rdg. + 5 digits) ±(1% rdg. +3 Digits) ± (1.2% rdg +5 Digits) ±(1% rdg. +4 Digits) ±(1 % rdg. +5 Digits) Frequency Range 50 - 400 Hz 50 - 500 Hz 50 - 500 Hz 50 - 500 Hz 50 Hz - 500 Hz Voltage DC 0.1 - 600 V 0.1 mV - 600 V 0.1 mV - 600 V 0.1 mV - 600 V 0.01 - 1000 V Tolerance ±(0.5% rdg. + 3 digits) ±(0.8% rdg. +2 Digits) ±(0.5% rdg +2 Digits) ±(0.5% rdg. +3 Digits) ±(0.7 % rdg. +2 Digits) Continuity R 120 Ω R 40 Ω R 25 Ω R 120 Ω R 30 Ω Frequency 0.001 Hz - 100 kHz - - - 20,00 - 9,999 kHz Resistance 0.1 - 40.00 MΩ 0.1 Ω - 40 MΩ 0.1 Ω - 40 MΩ 0.1 Ω - 40.00 MΩ 0.1–99.99 kΩ Tolerance ±(0.8% rdg. + 6 digits) ±(1% rdg. +3 Digits) ±(1.0% rdg +4 Digits) ±(0.8% rdg. +6 Digits) - Capacity 0.1 nF - 3000 μF - - - - Active Power - - - - 0 - 600.0 kW Cos Phi - - - - -1.00–0.00 – +1.00 Harmonics - - - - display up to the 25th Features Jaw Opening Ø 26 mm Ø 30 mm Ø 30 mm Ø 50 mm Ø 37 mm Pollution Degree 2 2 2 2 2 Overvoltage Category CAT III/600 V CAT  III/600 V CAT  lll/600 V CAT  III/600 V CAT IV 600V, CAT III 1000V Safety EN 61010/IEC 61010 DIN VDE  0411, EN 61010, IEC 61010 DIN VDE  0411, EN 61010/IEC 61010 DIN VDE  0411, EN 61010, IEC 61010 DIN VDE  0411, EN 61010, IEC 61010 Power Supply 2 x 3 V battery,   IEC CR2032 2 x Battery 1.5 V,  IEC LR03 2 x Batterie 1.5 V, IEC LR03 2 x Battery 1.5 V, IEC LR03 1 x Battery 9 V,  IEC 6F22 Dimensions 190 x 63 x 32 mm 205 x 64 x 39 mm 240 × 70 × 41 mm 227 x 78 x 40 mm 260 x 80 x 40 mm Weight approx. 200 g approx. 280 g approx. 220 g approx. 290 g approx. 480 g Clamp Multimeter Comparison Guide ACDC-54NAV LH41 AC50A Display LCD, 3¾ Digit, 4000 Count LCD, 3¾ Digit,  4000 Count LCD, 3¾ Digit,  3999 Count Measurement  Ranges Current AC 0.01-1000 A 0.001 - 40 A 0.01 mA - 60 A Tolerance ±(1.5 % rdg. +5 Digits) ±(1.3 % rdg. +5 Digits) ±(1.5% rdg. +5 Digits) Frequency Range 50 Hz - 400 Hz 40 - 400 Hz 40 Hz - 1 kHz Current DC - 0,001 - 40 A - Tolerance - ±(1.3 % rdg. +5 Digits) - Voltage AC 0,01 - 1000 V - 0,1 - 400 V Tolerance ±(1 % rdg. +5 Digits) - ±(2% rdg. + 4 Digits) Frequency Range 50 - 500 Hz - 40 Hz - 1 kHz Voltage DC 0.01 - 1000 V - - Tolerance ±(0.7% rdg. +2 Digits) - - Continuity R 30 Ω - R 40 Ω Frequency 20.00 - 9.999 kHz - - Resistance 0.1–99.99 kΩ - 0.1 - 400 Ω Tolerance ±(1% rdg. +5 Digits) - ±(1% rdg. +2 Digits) Capacity - - - Active Power 0 - 999.9 kW - - Cos Phi -1.00–0.00 – +1.00 - - Harmonics display up to the 25th - - Temperature -50 °C-1000 °C - - Input Impedance - - 10 MΩ Features Jaw Opening Ø 37 mm Ø 19 mm Ø 30 mm Pollution Degree 2 2 2 Overvoltage Category CAT IV 600V,  CAT III 1000V CAT  III/600 V CAT  III/600 V Safety DIN VDE  0411,  EN 61010/IEC 61010 DIN VDE  0411,  EN 61010, IEC 61010 DIN VDE  0411 EN 61010, IEC 61010 Power Supply 1 x battery 9 V, IEC 6F22 1 x Battery 9 V,  IEC 6LR61 2 x Battery 1.5 V, IEC LR6 Dimensions 260 x 80 x 40 mm 184 x 71 x 31 mm 210 x 62 x 36 mm Weight approx. 480 g approx. 235 g approx. 200g

Technical Specification 27 Portable Appliance Testers Specifications GT-400-UK   Protective conductor resistance   0.10 ... 2.00 Ω ± (5% + 10 digits)   Insulation resistance   0.100 ... 9.999 MΩ, 10.00 ... 20.00 MΩ ± (5% + 2 Digits)   Substitute leakage current   0.100 ... 9.999 mA, 10.00 ... 20.00 mA ± (5% + 2 Digits)   Supplied with   Test leads, alligator clip, test probe, IEC lead, carrying     case, 6 AA batteries, users manual  Protective Conductor Resistance   Measuring range   0.10 ... 2.00 Ω   Display range   0.05 ... 2.00 Ω   Resolution   0.01 Ω   Tolerance   ± (5% + 10 digits)   Measuring current / voltage   Min. ± 200 mA DC /  4 V Insulation Resistance   Measuring range   0.1 ... 20 MΩ   Display range   0.1 ... 20 MΩ   Resolution   0.1 ... 9.999 MΩ 0.001 MΩ / 10.00 ... 20.00 MΩ 0.01 MΩ   Tolerance   ± (5% + 2 digits)   Measuring current / voltage   Min. 500 V DC /  1 mA Substitute Leakage Current   Measuring range   0.1 ... 20 mA   Display range   0.1 ... 20 mA   Resolution  0.1 ... 9.999 mA 0.001 mA / 10.0 ... 20.00 mA 0.01 mA   Tolerance   ± (5% + 2 digits)   Measuring current / voltage   Approximately 32 V AC General Specifications   Power supply   6 x 1.5 V Batteries (IEC LR6 (AA)  6 x 1.2 V NiMH rechargeable batteries   Degree of pollution   2   Overvoltage category  CAT II 300 V     Protection degree  IP40   Protection class  II   Electrical safety  EN61010-1/VDE0411   EMC emission  EN61000-6-3   EMC interference resistance  EN61326-1   Dimensions (L x W x H)  Approximately 265 x 110 x 50 mm   Weight  Approximately 700 g  GT-400-UK Digital Multimeters Series Selection Guide AM-500-EUR AM-510-EUR AM-520-EUR AM-530-EUR AM-540-EUR AM-550-EUR MULTIMETER TYPE Autoranging Com / Res HVAC Electrical Adv. HVAC Industrial Functions Safety Rating Safety CAT III 600V CAT III 600V CAT III 600V CAT II 1000 CAT III 600V CAT II 1000 CAT IV 600 CAT III 1000 CAT IV 600 CAT III 1000 Measure voltage in noisy environments True-rms n n Electrical panels, AC outlets AC Voltage (V) 600 600 750 750 1000 1000 DC systems, auto/marine batteries DC Voltage (V) 600 600 1000 1000 1000 1000 AC Current - electrical panels, appliances AC Current (A) 10 10 10 10 10 10 DC Current - electronics, DC motors DC Current (A) 10 10 10 10 10 10 Specified resistance and continuity Resistance (MOhms) 20 40 40 40 60 60 Flame sensors Microamps n n n n n n Diodes in AC to DC converters Diode Test n n n n n n Fuses, lightbulbs, wire connections Continuity n n n n n n Household batteries Battery test n n Motor startup or run capacitors Capacitance n n n n n Frequency verification Frequency n n n n n Non-contact voltage test Non-contact voltage n n n n n Electrical load-time on vs time off Duty cycle n n n Temp of air vents, fuses, transformers Temperature inputs 1 1 2 2 Features Automatically selects measurement range Autoranging n n n n n n Manually select measurement range Manual ranging n n n n n Voltage on variable frequency drives Low pass filter n n Detect stray voltages Low Z n Dimly lit areas Built-in flashlight n n n n n Display Meter resolution LCD Counts 2,000 4,000 4,000 4,000 6,000 6,000 Dimly lit areas Backlight n n n n n Monitoring fast changing signals Bar graph n n n n Two relative measurements on one screen Dual display n n Events Data memory Data hold n n n n n n Difference between two measurements Relative reading n n n n n Max/min peak measurement Max/min hold n n n n Specialised signal measurements Peak hold (crest) n n Subject to change

Robin-Amprobe ®   Test Tools UK  52 Hurricane Way,  Norwich,  Norfolk,  NR6 6JB,  United Kingdom  Web: www.robin-amprobe.co.uk  /  www.beha-amprobe.com  Email: [email protected]   Phone: +44 (0) 1603 25 6662  Fax: +44 (0) 1603 25 6664 12162-eng
