OSRAM - Product Catalogue - Light Management Systems

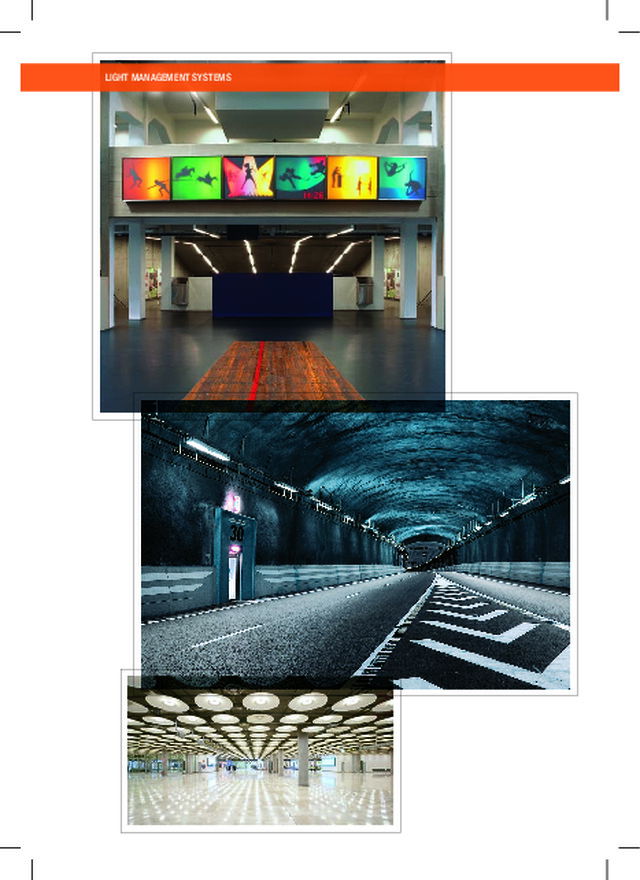

LIGHT MANAGEMENT SYSTEMS
Light Management SystemsContents. ENERGY SAVINGMains Switching Sensors SOLAR 270 Switch RC 270 HIGH BAY motion sensor 271 VISION motion sensor 271 DUO daylight and presence detector 272 Wall Switch 272 OUTDOOR 273 1-10V Sensors DIM PICO 274 DIM MICO 274 DIM MULTI 275 Touch DIM ® System Touch DIM ® WCU 277 Touch DIM ® RMC 277 Touch DIM ® RC 277 Touch DIM ® LS/PD LI 278 Touch DIM ® LS LI 278 MULTIeco and MULTI 3 LS/PD MULTI 3 280 LS/PD MULTI 3 FL 280 LS/PD MULTI 3 B 281 LS/PD MULTI 3 CI 281 DALI MULTIeco 281 DIM MULTIeco 282 MULTIeco 282 DALI MULTI 3 283 DIM MULTI 3 283 AMBIENCEEASY COLOR control EASY RMC 285 EASY Hybrid Remote 285 EASY Color Drive 286 EASY Touch Panel 286 EASY IR CI 287 EASY IR 287 EASY RC 287 EASY PB Coupler 288 EASY PC Kit 288 EASY SYS CP 288 OT EASY 60 II 289 DALI EASY III 289 EASY DMX 16x4 SO 289 EASY DMX 32x4 SO 290 EASY DMX 64x4 SO 290 OT EASY 32 290 OT DMX LED Dimmer OT DMX 291 SCENESDALI ® /1-10V Manual dimmers DALI MCU 293 DIM MCU 293 DALI ® BASIC System DALI WCU 5 BASIC 295 DALI LS/PD BASIC 295 DALI LS/PD BASIC LI 295 DALI RC BASIC SO 296 DALI ® PROFESSIONAL System DALI PRO Touch Panel 298 Glass touch 6 298 Glass touch 12 299 Glass touch 6 JW 299 E:BUS DALI Gateway 299 DALI PRO PB Coupler 300 DALI PRO Sensor Coupler 300 DALI PRO CONT-4 301 COMPONENTSInterfaces and amplifiers DALI REPEATER LI 303 DALI REPEATER SO 303 DALI CON 1...10 LI 304 DALI CON 1...10 SO 304 DIM SA 304 LMS DMX CON DALI SO 305 Accessories Y-CONNECTOR 306 Y-CONNECTOR SCREW 306 Mounting Adapter 306 SENSOR KIT 307 ECO CI KIT 307 LMS CI BOX 307
268 Light Management Systems OSRAM – the perfect partner for LMS Light management products from OSRAM provide the ideal basis for innovative tailor-made lighting concepts – froman individual luminaire to more complex systems. Due to OSRAM’s many years of experience and in-depth technicalknow-how, our wide-ranging product portfolio meets the requirements of an impressive array of applications: • Energy saving with daylight-dependent and presence-dependent lighting• Atmospheric and dynamic RGB lighting• Multifunctional management of lighting groups and lighting scenes This is possible through manual or remote control, with a high degree of flexibility. OSRAM lighting management systems can be easily tailored to the specific requirements of theapplication: Energy saving Ambience Scenes Components • Light management systems for daylight- dependent and presence-dependentlighting • Light management systems with maintenance-free EnOcean radiotechnology • Sensors for non-system-specific use • Light management systems for dynamic RGB lighting • Light management systems for daylight simulation • Light management systems for multifunctional management of lightinggroups and lighting scenes • Simple manual dimming solutions • Non-system-specific components for expanding, connecting or installing lightmanagement products 1) Lighting systems which are entitled to receive a System+ Guarantee and are controlled or operated by components of Light Management Systems (LMS components), are also entitled to an additional 5-year guarantee on LMS components from OSRAM. For more information go towww.osram.com/system-guarantee 1) 268-307 LMS:Layout 1 24/11/10 12:30 Page 268
269 All orders must be multiples of sales pack SWITCH RC SOLAR DIM MICO DIM PICO WALL SWITCH DIM MULTI DUO VISION OUT- DOOR QTi DIM QT FIT HT 1...10V HTM ® OT DIM OT Light sources Lamp control gear (ECG) Controller Control point Main Switching Sensors Switch HIGH BAY LIGHT MANAGEMENT SYSTEMS – ENERGY SAVING 268-307 LMS:Layout 1 24/11/10 12:30 Page 269
270 All orders must be multiples of sales pack Switch RC • Radio receiver for OSRAM control elements • Choice of 5 operating modes • Up to 8 sensors and 8 wall mounted/ hand held transmitters can be trained on one Switch RC • Up to 14 ECGs can be connected with adjustable switch off delay 1 to 20 mins Product EAN Product Description ID Code (Single Pack) SWITCHRCRECEIVER 4008321385642 Radio receiver 20 39 SOLAR • Daylight and presence sensor with transmitter combining EnOcean wireless technology • Solar powered, wireless, maintenance free • Energy saving potential up to 45% • Range up to 30m (up to 5 walls) or 100m (no walls) • Ideal for new installations or as a retrofit solution for existing lighting systems Product EAN Product Description ID Code (Single Pack) SOLARSENSOR 4008321385628 Daylight and presence sensor 20 39 LIGHT MANAGEMENT SYSTEMS – ENERGY SAVINGMains Switching Sensors 268-307 LMS:Layout 1 24/11/10 12:30 Page 270
271 All orders must be multiples of sales pack Light Management Systems Energy Saving – Mains Switching Sensors HIGH BAY motion sensor • Motion sensor for ceiling heights up to 13m • Energy saving potential up to 45% (in combination with daylight sensor) • Detection zone up to 18 metres • Ideal for ceiling heights between 3m and 10m to detect motion of people or between 3m and13m to detect vehicle movement Product EAN Product Description ID Code (Single Pack) HIGHBAYSENS 4008321410078 High Bay motion sensor 20 39 VISION motion sensor • Motion sensor for large areas • Adjustable switch-off delay 30sec to 20min Product EAN Product Description ID Code (Single Pack) VISIONSENSOR 4008321957047 VISION presence detector 20 39 NEW 268-307 LMS:Layout 1 24/11/10 12:30 Page 271
272 All orders must be multiples of sales pack DUO daylight and presence detector • Energy saving solution for non dimmable luminaires/systems • Daylight and presence detection • Ceiling mounting or direct luminaire integration • Energy saving potential up to 45% • Ideal for office, residential, hospitality, retail, shop and industrial applications Product EAN Product Description ID Code (Single Pack) DUOSENSOR 4008321496355 DUO daylight and presence detector 20 39 Wall Switch • Motion sensor for recess in wall • Contactless light switch for installation in pattress boxes • 180° horizontal or 70° vertical detection angle up to 8 metres • Energy saving potential up to 45% • Ideal for new installations or as a retrofit solution for existing lighting systems Product EAN Product Description ID Code (Single Pack) WALLSWITCH 4008321467386 Wall switch (81 x 81 x 24mm) 20 39 – – Wall box (71 x 71 x 33mm) 1 39 In preparation at time of print. For further information please contact OSRAM Light Management SystemsEnergy Saving – Mains Switching Sensors NEW 268-307 LMS:Layout 1 24/11/10 12:31 Page 272
273 All orders must be multiples of sales pack OUTDOOR • Daylight, presence and motion detectors for LMS applications • Ideal for outdoor LMS installations – IP55 rated Product EAN Product Description ID Code (Single Pack) OUTDOOR 4008321957061 OUTDOOR Daylight and Presence Detector 1 39 NEW Light Management Systems Energy Saving – Mains Switching Sensors 268-307 LMS:Layout 1 24/11/10 12:31 Page 273
274 All orders must be multiples of sales pack Lamp DIM PICO • Clip on sensor for T8 and T5 lamps • Energy savings up to 30% by compensating for 50% of the incoming daylight • 1-10V dimming output Product EAN Product Description ID Code (Single Pack) HFDIMPICO 4050300554457 DIM PICO clip on mini light sensor for T8 and T5 tubes 1 39 DIM MICO • Clip on sensor for T8 and T5 lamps • Energy savings up to 40% by compensating for 100% of the incoming daylight • 1-10V dimming output Product EAN Product Description ID Code (Single Pack) HFDIMMICO 4050300464411 DIM MICO mini light sensor for strip lighting 1 39 LIGHT MANAGEMENT SYSTEMS – ENERGY SAVING1-10V Sensors 268-307 LMS:Layout 1 24/11/10 12:31 Page 274
275 All orders must be multiples of sales pack DIM MULTI • Daylight dependent control with switch off delay from 5min to 20min • Energy savings up to 70% by compensating for 100% of the incoming daylight • Light and motion sensing • 1-10V dimming output Product EAN Product Description ID Code (Single Pack) HFDIMMULTI 4050300554471 DIM MULTI light sensor/presence detector 1 39 Light Management Systems Energy Saving – 1-10V Sensors 268-307 LMS:Layout 1 24/11/10 12:31 Page 275
276 All orders must be multiples of sales pack SWITCH RC TD LS/PD TD LS/PD LI TD RC TD RMC TD WCU Controller Control point Touch DIM ® (TD) System Switch QTi DALI ® QT FIT HT DALI ® HTM ® OTi DALI ® OT Light sources Lamp control gear (ECG) LIGHT MANAGEMENT SYSTEMS – ENERGY SAVING 268-307 LMS:Layout 1 24/11/10 12:31 Page 276
277 All orders must be multiples of sales pack LIGHT MANAGEMENT SYSTEMS – ENERGY SAVINGTouch DIM ® System Touch DIM ® WCU • 2 Channel radio wall transmitter • No battery required and can be used up to 30m from the receiver in a building Product EAN Product Description ID Code (Single Pack) TOUCHDIMWCU 4008321032737 Touch DIM WCU wall switch 25 39 Taste 2 Taste 4 Taste 3 Taste 1 Touch DIM ® RMC • 4 Channel radio hand held transmitter • No battery required and can be used up to 30m from the receiver in a building Product EAN Product Description ID Code (Single Pack) TOUCHDIMRMC 4008321183033 Touch DIM 4-Channel manual transmitter 20 39 Touch DIM ® RC • 2 Channel radio receiver module • Up to 15 QTi DALI ® ECGs or HTi ® transformers can be connected per output Product EAN Product Description ID Code (Single Pack) TOUCHDIMRC 4008321031938 Touch DIM RC receiver module 20 39 268-307 LMS:Layout 1 24/11/10 12:31 Page 277
278 All orders must be multiples of sales pack Touch DIM ® LS/PD LI • Light and presence detector for luminaire installation • Up to 4 QTi DALI ® ECGs or 4 HTi transformers or 4 OTi DALI ® LED dimmers can be connected • Can be used as a purely presence detector • Fully automatic operation possible Product EAN Product Description ID Code (Single Pack) TOUCHDIMLSPD 4008321023025 Touch DIM LS/PD LI light and motion sensor 25 39 Touch DIM ® LS LI • Light sensor for luminaire installation • Up to 4 QTi DALI ® ECGs or 4 HTi transformers or 4 OTi DALI ® LED dimmers can be connected • Daylight dependent control can be be set by double clicking Product EAN Product Description ID Code (Single Pack) TOUCHDIMLSLI 4008321023087 Touch DIM LS LI light sensor 25 39 Light Management SystemsEnergy Saving – Touch DIM ® System 268-307 LMS:Layout 1 24/11/10 12:31 Page 278
279 All orders must be multiples of sales pack LS/PD MULTI 3 LS/PD MULTI 3 CI LS/PD MULTI 3 B QTi DIM QTi DIM HT 1...10V HT 1... 10V OT DIM OT DIM QTi DALI ® QTi DALI ® HTi DALI ® HTi DALI ® OTi DALI ® OTi DALI ® 1...10V 1...10V Light sources Lamp control gear (ECG) Controller Control point MULTIeco and MULTI 3 Switch LS/PD MULTI 3 FL DALI ® MULTIeco DIM MULTIeco MULTIeco DALI ® MULTI 3 DIM MULTI 3 LIGHT MANAGEMENT SYSTEMS – ENERGY SAVING 268-307 LMS:Layout 1 24/11/10 12:31 Page 279
280 All orders must be multiples of sales pack LS/PD MULTI 3 FL • Light and presence detector • Low profile casing • For installation in luminaires Product EAN Product Description ID Code (Single Pack) LSPDMULTI3FL 4008321047342 LS/PD MULTI 3 FL light sensor/motion detector 25 39 LS/PD MULTI 3 • Light and presence detector • For installation in luminaires Product EAN Product Description ID Code (Single Pack) LSPDMULTI3 4050300802138 LS/PD MULTI 3 standard light sensor/ motion detector 25 39 LIGHT MANAGEMENT SYSTEMS – ENERGY SAVINGMULTIeco and MULTI 3 268-307 LMS:Layout 1 24/11/10 12:31 Page 280
281 All orders must be multiples of sales pack Light Management Systems Energy Saving – MULTIeco and MULTI 3 DALI ® MULTIeco • Suitable for daylight dependent control with presence function • Up to 2 sensors and up to 6 DALI ® ECGs can be connected • 14 different operating modes can be set via DIP switches • Up to 3 controllers can be synchronised for central presence function Product EAN Product Description ID Code (Single Pack) DALIMULTIECO 4008321371300 DALI MULTIeco 100-240V AC (50…60Hz) /DC 25 39 ø LS/PD MULTI 3 CI • Light and presence detector with moveable sensor • Surface mounting with Sensor kit Product EAN Product Description ID Code (Single Pack) LSPDMULTI3CI 4008321916648 LS/PD MULTI 3 CL recessed/surface mount ceiling sensor 10 39 LS/PD MULTI 3 B • Light and presence detector with moveable sensor • For installation in luminaires Product EAN Product Description ID Code (Single Pack) LSPDMULTI3B 4050300803081 LS/PD MULTI 3 B movable light sensor/ motion detector 25 39 268-307 LMS:Layout 1 24/11/10 12:31 Page 281
282 All orders must be multiples of sales pack DIM MULTIeco • Suitable for daylight dependent switching control with presence function • Up to 2 sensors and up to six 1…10V ECGs can be connected • 14 different operating modes can be set via DIP switches • Up to 3 controllers can be synchronised for central presence function Product EAN Product Description ID Code (Single Pack) DIMMULTIECO 4008321507273 DIM MULTIeco 100V AC (50…60Hz) /DC 25 39 MULTIeco • Suitable for daylight dependent switching control with presence function • Up to 2 sensors and up to 6 ECGs can be connected • 8 different operating modes can be set via DIP switches • Up to 3 controllers can be synchronised for central presence function Product EAN Product Description ID Code (Single Pack) MULTIECO 4008321405302 MULTIeco 100-240V AC (50…60Hz) /DC 25 39 Light Management SystemsEnergy Saving – MULTIeco and MULTI 3 268-307 LMS:Layout 1 24/11/10 12:31 Page 282
283 All orders must be multiples of sales pack Light Management Systems Energy Saving – MULTIeco and MULTI 3 DIM MULTI 3 • Suitable for daylight dependent control with presence function • Up to 4 sensors and up to 32 ECGs can be connected • Choice of 10 different operating modes from manual control to fully automatic Product EAN Product Description ID Code (Single Pack) DIMMULTI3 4050300802107 DIM MULTI 3 1…10V control unit 25 39 DALI ® MULTI 3 • Suitable for daylight dependent control with presence function • Up to 4 sensors and up to 32 ECGs can be connected • Choice of 10 different operating modes can be set Product EAN Product Description ID Code (Single Pack) DALIMULTI3 4050300802084 DALI MULTI 3 DALI control unit 25 39 268-307 LMS:Layout 1 24/11/10 12:31 Page 283
284 All orders must be multiples of sales pack OT DMX RGB DIM QTi DALI ® HTi DALI ® OTi DALI ® Light sources Lamp control gear (ECG) Controller Control point EASY Color Control EASY IR CI EASY IR EASY PB EASY PC KIT EASY SYS CP EASY RC EASY RMC EASY Touch Panel Switch Motionsensor PC EASYColorDrive EASY Hybrid Remote OT EASY 60 II DALI ® EASY III EASY DMX 16x4 SO EASY DMX 32x4 SO EASY DMX 64x4 SO EASY IR CI LIGHT MANAGEMENT SYSTEMS – AMBIENCE 268-307 LMS:Layout 1 24/11/10 12:31 Page 284
285 All orders must be multiples of sales pack Display Ch1 Channel switches: Ch2 Ch4Start / Time+Stop / Time – Ch3 Scene 2 Scene 1 Scene 3 On/OffDimming Scene 4 EASY RMC • Infra-red remote control • Control up to 4 lighting scenes, 4 lighting groups and 1 sequence Product EAN Product Description ID Code (Single Pack) DALIEASYRMC 4008321053152 DALI EASY RMC IR remote control 25 39 EASY Hybrid Remote • Hybrid technology for digital infra-red and radio remote control • Control up to 8 lighting scenes, 8 lighting groups and 4 sequences • LCD display with ability to customise the backlight colour Product EAN Product Description ID Code (Single Pack) HYBRIDREMOTE 4008321421739 LMS EASY Hybrid Remote 5 39 LIGHT MANAGEMENT SYSTEMS – AMBIENCEEASY Color Control 268-307 LMS:Layout 1 24/11/10 12:31 Page 285
286 All orders must be multiples of sales pack EASY Touch Panel • 5.7" display, 640 x 480 pixels • Control up to 64 lighting scenes, 16 lighting groups, 4 sequences and 4 switchable loads or 2louvre blinds • Up to 32 DALI ® ECGs can be directly connected Product EAN Product Description ID Code (Single Pack) – 4008321956989 LMS EASY Touch Panel 1 40 In preparation at time of print. For further information please contact OSRAM Light Management SystemsAmbience – EASY Color Control speed esc EASY Color Drive • Dual technology for connection via 4 wire signal line or wireless connection viaradio transmitter • Control up to 8 lighting scenes, 8 lighting groups and 4 sequences • LCD display with ability to customise the backlight colour Product EAN Product Description ID Code (Single Pack) COLORDRIVE 4008321421777 LMS EASY Color Drive 5 39 NEW 268-307 LMS:Layout 1 24/11/10 12:31 Page 286
287 All orders must be multiples of sales pack EASY IR CI • Infra-red receiver • Surface mounting with SENSOR KIT Product EAN Product Description ID Code (Single Pack) EASYIR 4008321915573 EASY IR sensor for ceiling installation 10 39 EASY IR • Infra-red receiver • For installation in luminaires Product EAN Product Description ID Code (Single Pack) DALIEASYIR 4008321053138 EASY IR sensor for luminaire installation 25 39 Light Management Systems Ambience – EASY Color Control EASY RC • Radio receiver for use with EASY Hybrid Remote and EASY Color Drive • For installation in luminaires Product EAN Product Description ID Code (Single Pack) EASYRC 4008321421753 EASY RC Radio Receiver 18 39 268-307 LMS:Layout 1 24/11/10 12:31 Page 287
288 All orders must be multiples of sales pack EASY SYS CP • Coupler for connecting EASY systems and expansion to 64 controllers possible Product EAN Product Description ID Code (Single Pack) EASYSYSCP 4008321320902 EASY SYSTEM Coupler for extension of up to 64 EASY control units 25 39 EASY PB Coupler • Push button coupler • 8 inputs for floating make contacts Product EAN Product Description ID Code (Single Pack) EASYPB 4008321915597 EASY PB COUPLER 1 39 EASY PC Kit • Simple creation of scenes and sequences on a PC • Load, save and duplicate system settings • Requires Windows PC with USB port Product EAN Product Description ID Code (Single Pack) EASYPC 4008321915559 PC Software EASY Color Control with USB Adapter 1 39 Light Management SystemsAmbience – EASY Color Control 268-307 LMS:Layout 1 24/11/10 12:31 Page 288
289 All orders must be multiples of sales pack OT EASY 60 II • 60W ECG and configurable LED control unit for static and dynamic lighting appliactions • Lighting scenes can be retrieved as sequences or static scenes • Configuration via software or remote control Product EAN Product Description ID Code (Single Pack) OTEASY60 4008321187796 OT EASY 60/220-240/24 RGB LED control Unit 10 38 DALI EASY III • Up to 32 DALI ® ECGs can be connected • 4 DALI ® outputs • Lighting scenes can be retrieved as sequences or static scenes • Configuration via software or remote control Product EAN Product Description ID Code (Single Pack) DALIEASY 4008321053046 DALI EASY control unit 25 39 Light Management Systems Ambience – EASY Color Control EASY DMX 16x4 SO • Suitable for control of luminaires via 2,3 or 4 DMX addresses • Individual control of 64 DMX channels • Up to 64 lighting scenes and 4 sequences can be programmed Product EAN Product Description ID Code (Single Pack) EASYDMX16 4008321441522 EASY DMX 16x4 SO 110 – 240 V; 0, 50 – 60 Hz 6 39 268-307 LMS:Layout 1 24/11/10 12:31 Page 289
290 All orders must be multiples of sales pack EASY DMX 32x4 SO • Suitable for control of luminaires via 2,3 or 4 DMX addresses • Individual control of 128 DMX channels • Up to 64 lighting scenes and 4 sequences can be programmed Product EAN Product Description ID Code (Single Pack) EASYDMX32 4008321441546 EASY DMX 32x4 SO 110 – 240 V; 0, 50 – 60 Hz 6 39 EASY DMX 64x4 SO • Suitable for control of luminaires via 2,3 or 4 DMX addresses • Individual control of 256 DMX channels • Up to 64 lighting scenes and 4 sequences can be programmed Product EAN Product Description ID Code (Single Pack) EASYDMX64 4008321441560 EASY DMX 64x4 SO 110 – 240 V; 0, 50 – 60 Hz 6 39 Light Management SystemsAmbience – EASY Color Control OT EASY 32 • EASY control unit for high flux LED requiring 350mA supply • 4 independent constant current LED output channels Product EAN Product Description ID Code (Single Pack) OTEASY 32 4008321547088 OT EASY 32 CC/120-240/350 4CH 20 39 NEW 268-307 LMS:Layout 1 24/11/10 12:31 Page 290
291 All orders must be multiples of sales pack LIGHT MANAGEMENT SYSTEMS – AMBIENCEOT DMX LED Dimmer OT DMX • 3 and 9 channel DMX dimmers for constant voltage LED modules • DMX output for fast chaining of multiple devices Product EAN Product Description ID Code (Single Pack) OT2DMX3 4008321533265 OT DMX 3x2.5A DIM 10 39 OT2DMX3PCB 4008321533289 OT DMX 3x2.5A PCB DIM 10 39 OT2DMX9 4008321533302 OT DMX 9x2A DIM SO 10 39 NEW NEW NEW 268-307 LMS:Layout 1 24/11/10 12:31 Page 291
292 All orders must be multiples of sales pack DALI ® MCU DIM MCU QTi DIM HT 1...10V OT DIM QTi DALI ® HTi DALI ® OTi DALI ® DALI ® or 1...10V 1...10V Light sources Lamp control gear (ECG) Controller Control point DALI ® /1-10V Manual Dimmers LIGHT MANAGEMENT SYSTEMS – SCENES 268-307 LMS:Layout 1 24/11/10 12:31 Page 292
293 All orders must be multiples of sales pack DIM MCU • Up to 100 ECGs can be directly connected Product EAN Product Description ID Code (Single Pack) HFDIMMCUP 4050300347424 DIM MCU P manual control unit with cover plate 1 39 DALI MCU • Up to 25 ECGs can be directly connected • 4 DALI ® MCUs can be connected in parallel – Up to 100 DALI ® ECG Product EAN Product Description ID Code (Single Pack) DALIMCU 4008321189721 DALI MCU Digital potentiometer 15 39 LIGHT MANAGEMENT SYSTEMS – SCENESDALI ® /1-10V Manual dimmers 268-307 LMS:Layout 1 24/11/10 12:31 Page 293
294 All orders must be multiples of sales pack DALI ® WCJ 5 BASIC W DALI ® LS/PDBASIC DALI ® LS/PD BASIC LI QTi DALI ® HTi DALI ® OTi DALI ® DALI ® RC BASIC SO Light sources Lamp control gear (ECG) Controller Control point DALI ® BASIC System LIGHT MANAGEMENT SYSTEMS – SCENES 268-307 LMS:Layout 1 24/11/10 12:31 Page 294
295 All orders must be multiples of sales pack LIGHT MANAGEMENT SYSTEMS – SCENESDALI ® BASIC System DALI ® WCU 5 BASIC • 5 Floating make contacts Product EAN Product Description ID Code (Single Pack) DALIWCU5 4050300771106 DALI WCU 5 BASIC W white 5 push button switch array 50 39 DALI ® LS/PD BASIC • Light and presence detector Product EAN Product Description ID Code (Single Pack) DALILSPD 4050300639949 DALI LS/PD BASIC light sensor/ presence detector for surface mounting 50 39 47 46 30 ∅ ∅ ∅ DALI ® LS/PD BASIC LI • Light and presence detector Product EAN Product Description ID Code (Single Pack) DALILSPDLI 4050300850184 DALI LS/PD LI BASIC light sensor/ presence detector for luminaire installation 20 39 268-307 LMS:Layout 1 24/11/10 12:31 Page 295
296 All orders must be multiples of sales pack DALI ® RC BASIC SO • Up to 64 ECGs can be directly connected • Control up to 4 lighting scenes, 4 assignable scenes and 3 inputs for 3 light or presencesensors Product EAN Product Description ID Code (Single Pack) DALIRC 4050300654973 DALI RC BASIC SO snap on room controller for DIN rail 18 39 Light Management SystemsSCENES – DALI ® BASIC System 268-307 LMS:Layout 1 24/11/10 12:31 Page 296
297 All orders must be multiples of sales pack LIGHT MANAGEMENT SYSTEMS – SCENES DALI ® PRO Touch Panel Glass Touch 6 Glass Touch 12 Glass Touch 6 JW Switch DALI ® PRO PBCoupler E:BUSDALI ® GATEWAY LS/PD MULTI 3 LS/PD MULTI 3FL LS/PD MULTI 3B LS/PD MULTI 3 CI QTi DALI ® HTi DALI ® OTi DALI ® DALI ® PRO CONT-4 DALI ® PRO Sensor Coupler Light sources Lamp control gear (ECG) Controller Control point DALI ® PROFESSIONAL System 268-307 LMS:Layout 1 24/11/10 12:31 Page 297
298 All orders must be multiples of sales pack DALI ® PRO Touch Panel • 5.7" high resolution LCD screen • All luminaires in system can be switched or dimmed • Backgrounds, logos, keys can be inserted Product EAN Product Description ID Code (Single Pack) – 4008321957092 DALI Pro Touch Panel 1 39 In preparation at time of print. For further information please contact OSRAM Glass touch 6 • DALI Pro user interface for lighting management • 6 Touch sensitive buttons on unit behind smooth glass Product EAN Product Description ID Code (Single Pack) GTOUCH6T 4008321957108 Glass Touch 6 4 39 NEW NEW LIGHT MANAGEMENT SYSTEMS – SCENESDALI ® PROFESSIONAL System 268-307 LMS:Layout 1 24/11/10 12:32 Page 298
299 All orders must be multiples of sales pack Glass touch 12 • DALI Pro user interface for lighting management • 12 Touch sensitive buttons on unit behind smooth glass Product EAN Product Description ID Code (Single Pack) GTOUCH12T 4008321957115 Glass Touch 12 4 39 NEW NEW Light Management Systems SCENES – DALI ® PROFESSIONAL System Glass touch 6 JW • DALI Pro user interface for lighting management • 6 Touch sensitive buttons and touch wheel unit behind smooth glass Product EAN Product Description ID Code (Single Pack) GTOUCH6TR 4008321957054 Glass Touch 6 JW 4 39 E:BUS DALI ® Gateway • DIN Rail gateway to communicate between DALI ® Pro CONT-4 and e:bus interfaces Product EAN Product Description ID Code (Single Pack) DALIGATEWAY 4008321957085 e:bus - DALI Gateway 8 39 DALIGATEWAY 4008321555311 PS30/100-240/24S0 power supply for e:bus - DALI Gateway 8 39 NEW 268-307 LMS:Layout 1 24/11/10 12:32 Page 299
300 All orders must be multiples of sales pack DALI ® PRO PB Coupler • Suitable for integrating push bottons for switching, dimming for scene setting • Switching and dimming of up to 256 DALI ® ECGS • Up to 4 existing push buttons can be integrated Product EAN Product Description ID Code (Single Pack) DALIPROFPUSHB 4008321496461 DALI PROFESSIONAL PBcoupler 4 39 DALI ® PRO Sensor Coupler • Suitable for lighting control with light and presence sensors • Light sensor and presence sensor from the MULTI 3 range can be used Product EAN Product Description ID Code (Single Pack) DALIPROFSENS 4008321379269 DALI PROFESSIONAL Sensorcoupler 25 39 Light Management SystemsSCENES – DALI ® PROFESSIONAL System 268-307 LMS:Layout 1 24/11/10 12:32 Page 300
301 All orders must be multiples of sales pack DALI ® PRO CONT-4 • Suitable for room control and daylight dependent control • Intelligent module for controlling up to 256 ECGs • 4 programmable switchover relays Product EAN Product Description ID Code (Single Pack) DALIPROCON4 4008321478948 DALI PROFESSIONAL CONTROLLER -4 4 39 – – DALI PROFESSIONAL RF coupler – 39 DALISWITCH 4008321533364 DALI Switch 8 39 In preparation at time of print. For further information please contact OSRAM Light Management Systems SCENES – DALI ® PROFESSIONAL System 268-307 LMS:Layout 1 24/11/10 12:32 Page 301
302 All orders must be multiples of sales pack DALI ® REPEATER LI DALI ® REPEATER SO DALI ® CON 1...10 LI DALI ® CON 1...10 SO DIM SA Y-CONNECTOR Y-CONNECTOR SCREW MOUNTING ADAPTER SENSOR KIT ECO CI KIT LMS CI BOX COMPONENTS SENSOR KIT LIGHT MANAGEMENT SYSTEMS – COMPONENTS 268-307 LMS:Layout 1 24/11/10 12:32 Page 302
303 All orders must be multiples of sales pack DALI ® REPEATER LI • Addressable signal amplifier for the extension of DALI ® and Touch DIM ® light control systems • To control up to 64 DALI ® ECG as one group • Allows expansion of DALI ® systems with more than 64 ECG per DALI ® Line Product EAN Product Description ID Code (Single Pack) DALIREPLI 4008321292599 DALI REPEATER LI Long 100-240V AC DC 25 39 DALI ® REPEATER SO • Addressable signal amplifier for the extension of DALI ® and Touch DIM ® light control systems • Integrated load contact for disconnecting the ECG supply in standby (Greenswitch) • Touch DIM ® control of 64 DALI ® ECGs Product EAN Product Description ID Code (Single Pack) DALIREPSO 4008321301093 DALI REPEATER SO Square 100-240V AC DC 25 39 LIGHT MANAGEMENT SYSTEMS – COMPONENTSInterfaces and amplifiers 268-307 LMS:Layout 1 24/11/10 12:32 Page 303
304 All orders must be multiples of sales pack DALI ® CON 1...10 LI • Touch DIM ® or DALI ® control of 1-10V ECGs • For luminaire installation Product EAN Product Description ID Code (Single Pack) DALICONLI 4050300638973 DALI CON 1…10V LI converter for luminaire installation 40 39 Light Management SystemsCOMPONENTS – Interfaces and amplifiers DALI ® CON 1...10 SO • Touch DIM ® or DALI ® control of 1-10V ECGs • For series installation Product EAN Product Description ID Code (Single Pack) DALICONSO 4050300639802 DALI CON 1…10V SO snap on converter 16 39 DIM SA • Amplifies 1-10V control signals to operate larger numbers of ECG (up to 100 per unit) Product EAN Product Description ID Code (Single Pack) HFDIMSA 4008321097095 DIM SA signal amplifier 1 39 268-307 LMS:Layout 1 24/11/10 12:32 Page 304
305 All orders must be multiples of sales pack Light Management Systems COMPONENTS – Interfaces and amplifiers LMS DMX CON DALI ® SO • Convert DMX signal into DALI ® • 6 DALI ® outputs with up to 16 DALI ® ballasts per output • Manual and auto DMX addressing modes • Automatic amplification of DMX out signal Product EAN Product Description ID Code (Single Pack) CONDMX 4008321532336 DMX CON/100-240 DALI SO 10 39 NEW 268-307 LMS:Layout 1 24/11/10 12:32 Page 305
306 All orders must be multiples of sales pack Y-CONNECTOR • Connections: 3 x modular 4p4c- socket • 2 connecting cables included, modular 4p4c- connector on both ends, 2m long Product EAN Product Description ID Code (Single Pack) YCONNECTMULTI3 4050300803135 Y-CONNECTOR MULTI 3 25 39 Y-CONNECTOR SCREW • Connections: 2 x four pin screw terminal and 2 x 4p4c- socket • 2 connecting cables included, modular 4p4c- connector on both ends, 2m long Product EAN Product Description ID Code (Single Pack) YCON 4008321916686 Y-CONNECTOR with screw terminals 25 39 1 3 3 1 3 4 5 8 5 2 Mounting Adapter • Adapter for surface mounting of sensor elements with a diameter 115.6mm Product EAN Product Description ID Code (Single Pack) MOUNTADAPTER 4008321480798 Mounting Adapter 20 39 LIGHT MANAGEMENT SYSTEMS – COMPONENTSAccessories 268-307 LMS:Layout 1 24/11/10 12:32 Page 306
307 All orders must be multiples of sales pack SENSOR KIT • Adapter for surface mounting of sensor elements with a diameter of 50 mm Product EAN Product Description ID Code (Single Pack) SENSORKIT 4008321916662 Adapter for surface mounting of LS/PD MULTI 3 10 39 ECO CI KIT • Can be used for separate mounting of all OSRAM controllers with dimensions of (l)118mm x(w)30mm x (h)21 mm Product EAN Product Description ID Code (Single Pack) ECOCITKIT 4008321392091 ECO CI KIT 1 39 LMS CI BOX • Can be used for separate mounting of all OSRAM controllers with dimensions of (l)189mm x(w)30mm x (h)21 mm Product EAN Product Description ID Code (Single Pack) LMSCIBOX 4008321083692 LMS CI BOX installation kit 40 39 Light Management Systems COMPONENTS – Accessories 268-307 LMS:Layout 1 24/11/10 12:32 Page 307
