OSRAM - Product Catalogue - High Intensity Discharge Lamps

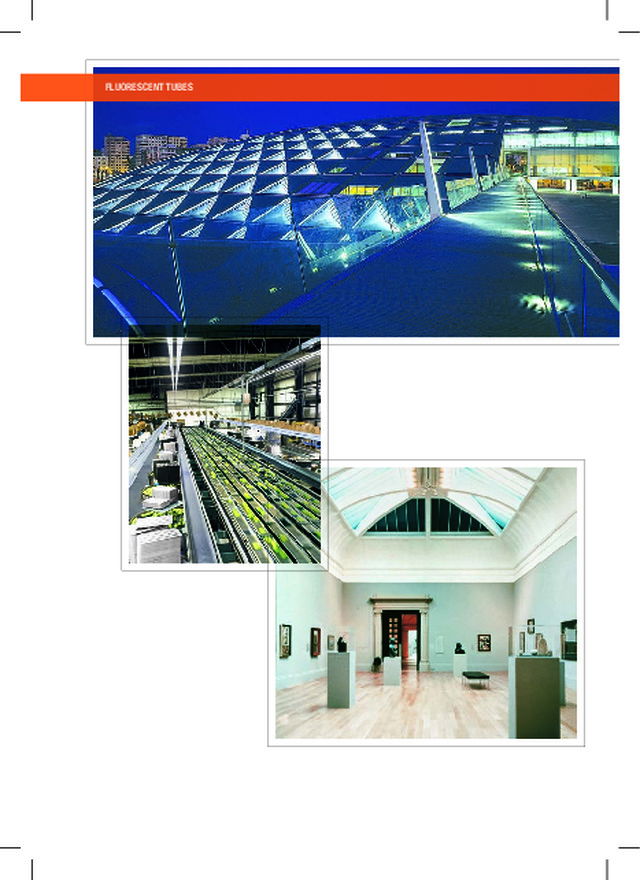

FLUORESCENT TUBES
Fluorescent TubesContents. LUMILUX ® T5 HE HIGH EFFICIENCY 86 LUMILUX ® T5 HO HIGH OUTPUT 90 LUMILUX ® T5 HO ES HIGH OUTPUT ENERGY SAVER 92 LUMILUX ® T5 HO XT 94 LUMILUX ® T5 HO CONSTANT 95 LUMILUX ® DE LUXE T5 HO HIGH OUTPUT 96 LUMILUX ® T5 DE LUXE 96 LUMILUX ® T5 SEAMLESS 97 LUMILUX ® T5 SHORT 98 BASIC T5 98 LUMILUX ® T5 OPTIMISED FOR EMERGENCY LIGHTING 99 T5 BASIC OPTIMISED FOR EMERGENCY LIGHTING 99 T5 HE HIGH EFFICIENCY COLOURED 100 T5 HO HIGH OUTPUT COLOURED 101 LUMILUX ® SPLIT control T5 102 LUMILUX ® CHIP control ® T5 102 LUMILUX ® T5 FC ® FLUORESCENT CIRCLINE 103 T5 NATURA ® 103 LUMILUX ® T8 104 LUMILUX ® T8 ENERGY SAVER 106 LUMILUX ® XT T8 107 LUMILUX ® XXT T8 108 LUMILUX ® DE LUXE T8 109 COLOR proof T8 110 BIOLUX ® T8 110 FLUORA ® T8 111 Coloured T8 111 NATURA ® T8 and NATURA ® SPLIT Control T8 112 LUMILUX ® SPLIT Control T8 113 LUMILUX ® COLOR Control T8 113 LUMILUX ® CHIP Control T8 114 U-SHAPED 114 LUMILUX ® CIRCULAR 115 T2 FM ® FLUORESCENT MINIATURE 116 T12 FOR EXPLOSION PROOF LUMINAIRES SA TYPE 117 T12 FOR EXPLOSION PROOF LUMINAIRES XL TYPE 117 FLUORESCENT STARTERS 118 DEOS ® FLUORESCENT STARTERS 118 Starter Application Guide 119
LUMILUX ® T5 HE HIGH EFFICIENCY without cardboard sleeve • Triphosphor fluorescent tube only 16mm ( 5 / 8 in) diameter • As much light as a T8 lamp but up to 20% lower wattage • 20,000 hours lifetime/16,000 hours service life with prestart ECG • Environmentally friendly fluorescent lamp with a low mercury content • Ideal for professional office lighting Product EAN Product Description ID Code (Single Pack) FH14827IVP 2) 4050300645933 LUMILUX T5 HE 14/827 14 827 G5 549mm 40 23 FH14830IVP 2) 4050300464824 LUMILUX T5 HE 14/830 14 830 G5 549mm 40 23 FH14835IVP 2) 4050300776514 LUMILUX T5 HE 14/835 14 835 G5 549mm 40 23 FH14840IVP 2) 4050300464688 LUMILUX T5 HE 14/840 14 840 G5 549mm 40 23 FH14865IVP 2) 4050300464848 LUMILUX T5 HE 14/865 14 865 G5 549mm 40 23 FH14880 2) 4008321225009 LUMILUX T5 HE 14/860 14 880 G5 549mm 40 23 FH21827IVP 2) 4050300645971 LUMILUX T5 HE 21/827 21 827 G5 849mm 40 23 FH21830IVP 2) 4050300464800 LUMILUX T5 HE 21/830 21 830 G5 849mm 40 23 FH21835IVP 2) 4050300776538 LUMILUX T5 HE 21/835 21 835 G5 849mm 40 23 FH21840IVP 2) 4050300464701 LUMILUX T5 HE 21/840 21 840 G5 849mm 40 23 FH21865IVP 2) 4050300464626 LUMILUX T5 HE 21/865 21 865 G5 849mm 40 23 FH21880 2) 4008321224989 LUMILUX T5 HE 21/880 21 880 G5 849mm 40 23 FH28827IVP 2) 4050300646015 LUMILUX T5 HE 28/827 28 827 G5 1149mm 40 23 FH28830IVP 2) 4050300464787 LUMILUX T5 HE 28/830 28 830 G5 1149mm 40 23 FH28835IVP 2) 4050300776552 LUMILUX T5 HE 28/835 28 835 G5 1149mm 40 23 FH28840IVP 2) 4050300464725 LUMILUX T5 HE 28/840 28 840 G5 1149mm 40 23 FH28865IVP 2) 4050300464640 LUMILUX T5 HE 28/865 28 865 G5 1149mm 40 23 FH28880 2) 4008321153517 LUMILUX T5 HE 28/880 28 880 G5 1149mm 40 23 FH35827IVP 2) 4050300646053 LUMILUX T5 HE 35/827 35 827 G5 1449mm 40 23 FH35830IVP 2) 4050300464763 LUMILUX T5 HE 35/830 35 830 G5 1449mm 40 23 FH35840IVP 2) 4050300464749 LUMILUX T5 HE 35/840 35 840 G5 1449mm 40 23 FH35865IVP 2) 4050300464664 LUMILUX T5 HE 35/865 35 865 G5 1449mm 40 23 FH35880 2) 4008321153531 LUMILUX T5 HE 38/880 35 880 G5 1449mm 40 23 Perfectly matched with QUICKTRONIC ® electronic control gear 1) For more information go to www.osram.com/system-guarantee2) Suitable for ECG operation only. The lamps are designed for internal luminaire temperatures of 30 to 40°C, the optimum luminaire flux is achieved at 35°C 86 All orders must be multiples of sales pack Fluorescent Tubes 1) 86-119 F tubes:Layout 1 24/11/10 12:40 Page 86
87 All orders must be multiples of sales pack Fluorescent Tubes LUMILUX ® T5 HE HIGH EFFICIENCY with cardboard sleeve • Triphosphor fluorescent tube only 16mm ( 5 / 8 in) diameter • As much light as a T8 lamp but up to 20% lower wattage • 20,000 hours life time / 16,000 hours service life with prestart ECG • Environmentally friendly fluorescent lamp with a low mercury content • Ideal for professional office lighting Product EAN Product Description ID Code (Single Pack) FH14827 2) 4050300645919 LUMILUX T5 HE 14/827 sleeved 14 827 G5 549mm 20 23 FH14830 2) 4050300591520 LUMILUX T5 HE 14/830 sleeved 14 830 G5 549mm 20 23 FH14835 2) 4050300771991 LUMILUX T5 HE 14/835 sleeved 14 835 G5 549mm 20 23 FH14840 2) 4050300591384 LUMILUX T5 HE 14/840 sleeved 14 840 G5 549mm 20 23 FH14865 2) 4050300591544 LUMILUX T5 HE 14/865 sleeved 14 865 G5 549mm 20 23 FH21827 2) 4050300645957 LUMILUX T5 HE 21/827 sleeved 21 827 G5 849mm 20 23 FH21830 2) 4050300591506 LUMILUX T5 HE 21/830 sleeved 21 830 G5 849mm 20 23 FH21835 2) 4050300776149 LUMILUX T5 HE 21/835 sleeved 21 835 G5 849mm 20 23 FH21840 2) 4050300591407 LUMILUX T5 HE 21/840 sleeved 21 840 G5 849mm 20 23 FH21865 2) 4050300591322 LUMILUX T5 HE 21/865 sleeved 21 865 G5 849mm 20 23 FH28827 2) 4050300645995 LUMILUX T5 HE 28/827 sleeved 28 827 G5 1149mm 20 23 FH28830 2) 4050300591483 LUMILUX T5 HE 28/830 sleeved 28 830 G5 1149mm 20 23 FH28835 2) 4050300776392 LUMILUX T5 HE 28/835 sleeved 28 835 G5 1149mm 20 23 FH28840 2) 4050300591421 LUMILUX T5 HE 28/840 sleeved 28 840 G5 1149mm 20 23 FH28865 2) 4050300591346 LUMILUX T5 HE 28/865 sleeved 28 865 G5 1149mm 20 23 FH35827 2) 4050300646039 LUMILUX T5 HE 35/827 sleeved 35 827 G5 1449mm 20 23 FH35830 2) 4050300591469 LUMILUX T5 HE 35/830 sleeved 35 830 G5 1449mm 20 23 FH35835 2) 4050300776415 LUMILUX T5 HE 35/835 sleeved 35 835 G5 1449mm 20 23 FH35840 2) 4050300591445 LUMILUX T5 HE 35/840 sleeved 35 840 G5 1449mm 20 23 FH35865 2) 4050300591360 LUMILUX T5 HE 35/865 sleeved 35 865 G5 1449mm 20 23 Perfectly matched with QUICKTRONIC ® electronic control gear 1) For more information go to www.osram.com/system-guarantee2) Suitable for ECG operation only. The lamps are designed for internal luminaire temperatures of 30 to 40°C, the optimum luminaire flux is achieved at 35°C 1) 86-119 F tubes:Layout 1 24/11/10 12:40 Page 87
88 All orders must be multiples of sales pack Fluorescent Tubes LUMILUX ® T5 HE ES HIGH EFFICIENCY ENERGY SAVER without cardboard sleeve • Triphosphor fluorescent tube only 16mm ( 5 / 8 in) diameter • Energy savings of up to 10% • Up to 20,000 hours average lifetime • Environmentally friendly fluorescent lamp with a low mercury content • Ideal for indoor lighting systems e.g. for offices and shopping centres and general illumination Product EAN Product Description ID Code (Single Pack) HE25827 1) 4008321516909 LUMILUX T5 HE ES 25/827 25 827 G5 1149mm 40 23 HE25830 1) 4008321516923 LUMILUX T5 HE ES 25/830 25 830 G5 1149mm 40 23 HE25840 1) 4008321516947 LUMILUX T5 HE ES 25/840 25 840 G5 1149mm 40 23 HE25865 1) 4008321516961 LUMILUX T5 HE ES 25/865 25 865 G5 1149mm 40 23 HE32827 1) 4008321517067 LUMILUX T5 HE ES 32/827 32 827 G5 1449mm 40 23 HE32830 1) 4008321517111 LUMILUX T5 HE ES 32/830 32 830 G5 1449mm 40 23 HE32840 1) 4008321517166 LUMILUX T5 HE ES 32/840 32 840 G5 1449mm 40 23 HE32865 1) 4008321517210 LUMILUX T5 HE ES 32/865 32 865 G5 1449mm 40 23 Perfectly matched with QUICKTRONIC ® electronic control gear 1) Suitable for ECG operation only. The lamps are designed for internal luminaire temperatures of 30 to 40°C, the optimum luminaire flux is achieved at 35°C In preparation at time of print. For further information please contact OSRAM NEW NEW NEW NEW NEW NEW NEW NEW 86-119 F tubes:Layout 1 24/11/10 12:40 Page 88
89 All orders must be multiples of sales pack Fluorescent Tubes LUMILUX ® T5 HE ES HIGH EFFICENCY ENERGY SAVER with cardboard sleeve • Triphosphor fluorescent tube only 16mm ( 5 / 8 in) diameter • 10% energy saving compared to standard T5 HE fluorescent tubes • 20,000 hours lifetime / 16,000 hours service life with prestart ECG • Ideal for energy saving office lighting Product EAN Product Description ID Code (Single Pack) HE25827 1) 4008321957887 LUMILUX HE 25W/827 ES sleeved 25 827 G5 1149mm 20 23 HE25830 1) 4008321957894 LUMILUX HE 25W/830 ES sleeved 25 830 G5 1149mm 20 23 HE25840 1) 4008321957900 LUMILUX HE 25W/840 ES sleeved 25 840 G5 1149mm 20 23 HE25865 1) 4008321957917 LUMILUX HE 25W/865 ES sleeved 25 865 G5 1149mm 20 23 HE32827 1) 4008321957924 LUMILUX HE 32W/827 ES sleeved 32 827 G5 1449mm 20 23 HE32830 1) 4008321957931 LUMILUX HE 32W/830 ES sleeved 32 830 G5 1449mm 20 23 HE32840 1) 4008321957948 LUMILUX HE 32W/840 ES sleeved 32 840 G5 1449mm 20 23 HE32865 1) 4008321957955 LUMILUX HE 32W/865 ES sleeved 32 865 G5 1449mm 20 23 Perfectly matched with QUICKTRONIC ® electronic control gear 1) Suitable for ECG operation only. The lamps are designed for internal luminaire temperatures of 30 to 40°C, the optimum luminaire flux is achieved at 35°C NEW NEW NEW NEW NEW NEW NEW NEW 86-119 F tubes:Layout 1 24/11/10 12:40 Page 89
90 All orders must be multiples of sales pack Fluorescent Tubes LUMILUX ® T5 HO HIGH OUTPUT without cardboard sleeve • Triphosphor fluorescent tube only 16mm ( 5 / 8 in) diameter • Up to 50% more light than a T8 lamp from the same length • 24,000 hours lifetime / 18,000 hours service life with prestart ECG • Environmentally friendly fluorescent lamp with a low mercury content • Ideal for applications where more light is required Product EAN Product Description ID Code (Single Pack) FQ24830IVP 2) 4050300453491 LUMILUX T5 HO 24/830 24 830 G5 549mm 40 23 FQ24835IVP 2) 4050300776590 LUMILUX T5 HO 24/835 24 835 G5 549mm 40 23 FQ24840IVP 2) 4050300453477 LUMILUX T5 HO 24/840 24 840 G5 549mm 40 23 FQ24865IVP 2) 4050300453453 LUMILUX T5 HO 24/865 24 865 G5 549mm 40 23 FQ39827IVP 2) 4050300646138 LUMILUX T5 HO 39/827 39 827 G5 849mm 40 23 FQ39830IVP 2) 4050300453552 LUMILUX T5 HO 39/830 39 830 G5 849mm 40 23 FQ39840IVP 2) 4050300453538 LUMILUX T5 HO 39/840 39 840 G5 849mm 40 23 FQ39865IVP 2) 4050300453514 LUMILUX T5 HO 39/865 39 865 G5 849mm 40 23 FQ49830IVP 2) 4050300657158 LUMILUX T5 HO 49/830 49 830 G5 1449mm 40 23 FQ49840IVP 2) 4050300657134 LUMILUX T5 HO 49/840 49 840 G5 1449mm 40 23 FQ49865IVP 2) 4008321110732 LUMILUX T5 HO 49/865 49 865 G5 1449mm 40 FQ49865 2) 4050300796628 LUMILUX T5 HO 49/865 49 865 G5 1449mm 40 23 FQ54827IVP 2) 4050300646176 LUMILUX T5 HO 54/827 54 827 G5 1149mm 40 23 FQ54830IVP 2) 4050300453415 LUMILUX T5 HO 54/830 54 830 G5 1449mm 40 23 FQ54835IVP 2) 4050300776637 LUMILUX T5 HO 54/835 54 835 G5 1149mm 40 23 FQ54840IVP 2) 4050300453392 LUMILUX T5 HO 54/840 54 840 G5 1149mm 40 23 FQ54865IVP 2) 4050300453378 LUMILUX T5 HO 54/865 54 865 G5 1149mm 40 23 FQ80827IVP 2) 4050300646213 LUMILUX T5 HO 80/827 80 827 G5 1449mm 40 23 FQ80830IVP 2) 4050300515137 LUMILUX T5 HO 80/830 80 830 G5 1449mm 40 23 FQ80840IVP 2) 4050300515151 LUMILUX T5 HO 80/840 80 840 G5 1449mm 40 23 FQ80865IVP 2) 4050300515113 LUMILUX T5 HO 80/865 80 865 G5 1449mm 40 23 Perfectly matched with QUICKTRONIC ® electronic control gear 1) For more information go to www.osram.com/system-guarantee2) Suitable for ECG operation only. The lamps are designed for internal luminaire temperatures of 30 to 40°C, the optimum luminaire flux is achieved at 35°C Colour 880 available on request 1) 86-119 F tubes:Layout 1 24/11/10 12:40 Page 90
91 All orders must be multiples of sales pack Fluorescent Tubes LUMILUX ® T5 HO HIGH OUTPUT with cardboard sleeve • Triphosphor fluorescent tube only 16mm ( 5 / 8 in) diameter • Up to 50% more light than a T8 lamp from the same length • 24,000 hours lifetime / 18,000 hours service life with prestart ECG • Environmentally friendly fluorescent lamp with a low mercury content • Ideal for applications where more light is required Product EAN Product Description ID Code (Single Pack) FQ24827 2) 4050300646077 LUMILUX T5 HO 24/827 sleeved 24 827 G5 549mm 20 23 FQ24830 2) 4050300591667 LUMILUX T5 HO 24/830 sleeved 24 830 G5 549mm 20 23 FQ24835 2) 4050300776439 LUMILUX T5 HO 24/835 sleeved 24 835 G5 549mm 20 23 FQ24840 2) 4050300591643 LUMILUX T5 HO 24/840 sleeved 24 840 G5 549mm 20 23 FQ24865 2) 4050300591629 LUMILUX T5 HO 24/865 sleeved 24 865 G5 549mm 20 23 FQ24880 2) 4008321081469 LUMILUX T5 HO 24/880 sleeved 24 880 G5 549mm 20 23 FQ39827 2) 4050300646114 LUMILUX T5 HO 39/827 sleeved 39 827 G5 849mm 20 23 FQ39830 2) 4050300591728 LUMILUX T5 HO 39/830 sleeved 39 830 G5 849mm 20 23 FQ39840 2) 4050300591704 LUMILUX T5 HO 39/840 sleeved 39 840 G5 849mm 20 23 FQ39865 2) 4050300591681 LUMILUX T5 HO 39/865 sleeved 39 865 G5 849mm 20 23 FQ39880 2) 4008321081445 LUMILUX T5 HO 39/880 sleeved 39 880 G5 849mm 20 23 FQ49827HO 2) 4008321110664 LUMILUX T5 HO 49/827 sleeved 49 827 G5 1449mm 40 23 FQ49830HO 2) 4008321110671 LUMILUX T5 HO 49/830 sleeved 49 830 G5 1449mm 40 23 FQ49835HO 2) 4008321110701 LUMILUX T5 HO 49/835 sleeved 49 835 G5 1449mm 40 23 FQ49840HO 2) 4008321110688 LUMILUX T5 HO 49/840 sleeved 49 840 G5 1449mm 40 23 FQ49865IVP 2) 4008321110732 LUMILUX T5 HO 49/865 sleeved 49 865 G5 1449mm 40 23 FQ49880HO 2) 4008321110725 LUMILUX T5 HO 49/880 sleeved 49 880 G5 1449mm 40 23 FQ54827 2) 4050300646152 LUMILUX T5 HO 54/827 sleeved 54 827 G5 1149mm 20 23 FQ54830 2) 4050300591605 LUMILUX T5 HO 54/830 sleeved 54 830 G5 1149mm 20 23 FQ54835 2) 4050300776477 LUMILUX T5 HO 54/835 sleeved 54 835 G5 1149mm 20 23 FQ54840 2) 4050300591582 LUMILUX T5 HO 54/840 sleeved 54 840 G5 1149mm 20 23 FQ54865 2) 4050300591568 LUMILUX T5 HO 54/865 sleeved 54 865 G5 1149mm 20 23 FQ54880 2) 4008321070425 LUMILUX T5 HO 54/880 sleeved 54 880 G5 1149mm 20 23 FQ80827 2) 4050300646190 LUMILUX T5 HO 80/827 sleeved 80 827 G5 1449mm 20 23 FQ80830 2) 4050300591827 LUMILUX T5 HO 80/830 sleeved 80 830 G5 1449mm 20 23 FQ80835 2) 4050300776491 LUMILUX T5 HO 80/835 sleeved 80 835 G5 1449mm 20 23 FQ80840 2) 4050300591841 LUMILUX T5 HO 80/840 sleeved 80 840 G5 1449mm 20 23 FQ80865 2) 4050300591803 LUMILUX T5 HO 80/865 sleeved 80 865 G5 1449mm 20 23 FQ80880 2) 4008321070449 LUMILUX T5 HO 80/880 sleeved 80 880 G5 1449mm 20 23 Perfectly matched with QUICKTRONIC ® electronic control gear 1) For more information go to www.osram.com/system-guarantee2) Suitable for ECG operation only. The lamps are designed for internal luminaire temperatures of 30 to 40°C, the optimum luminaire flux is achieved at 35°C 1) 86-119 F tubes:Layout 1 24/11/10 12:40 Page 91
92 All orders must be multiples of sales pack Fluorescent Tubes LUMILUX ® T5 HO ES HIGH OUTPUT ENERGY SAVER without cardboard sleeve • Triphosphor fluorescent tube only 16mm ( 5 / 8 in) diameter • Energy savings of up to 10% • Up to 24,000 hours average lifetime • Environmentally friendly fluorescent lamp with a low mercury content • Ideal for indoor lighting systems e.g. for factories, warehouses and high ceiling areas andoutdoor lighting systems Product EAN Product Description ID Code (Single Pack) HO45827 1) 4008321958129 LUMILUX T5 HO ES 45/827 45 827 G5 1149mm 40 HO45830 1) 4008321958136 LUMILUX T5 HO ES 45/830 45 830 G5 1149mm 40 HO45840 1) 4008321958143 LUMILUX T5 HO ES 45/840 45 840 G5 1149mm 40 HO45865 1) 4008321958150 LUMILUX T5 HO ES 45/865 45 865 G5 1149mm 40 HO50827 1) 4008321958167 LUMILUX T5 HO ES 50/827 50 827 G5 1149mm 40 HO50830 1) 4008321958174 LUMILUX T5 HO ES 50/830 50 830 G5 1149mm 40 HO50840 1) 4008321958181 LUMILUX T5 HO ES 50/840 50 840 G5 1149mm 40 HO50865 1) 4008321958198 LUMILUX T5 HO ES 50/865 50 865 G5 1149mm 40 HO73827 1) 4008321958204 LUMILUX T5 HO ES 73/827 73 827 G5 1449mm 40 HO73830 1) 4008321958211 LUMILUX T5 HO ES 73/830 73 830 G5 1449mm 40 HO73840 1) 4008321958228 LUMILUX T5 HO ES 73/840 73 840 G5 1449mm 40 HO73865 1) 4008321958235 LUMILUX T5 HO ES 73/865 73 865 G5 1449mm 40 Perfectly matched with QUICKTRONIC ® electronic control gear 1) Suitable for ECG operation only. The lamps are designed for internal luminaire temperatures of 30 to 40°C, the optimum luminaire flux is achieved at 35°C NEW NEW NEW NEW NEW NEW NEW NEW NEW NEW NEW NEW 86-119 F tubes:Layout 1 24/11/10 12:40 Page 92
93 All orders must be multiples of sales pack Fluorescent Tubes LUMILUX ® T5 HO ES HIGH OUTPUT ENERGY SAVER with cardboard sleeve • Triphosphor fluorescent tube only 16mm ( 5 / 8 in) diameter • 10% Energy saving compared to standard T5 HO fluorescent tubes • 20,000 hours lifetime / 16,000 hours service life with prestart ECG • Ideal for energy saving office lighting Product EAN Product Description ID Code (Single Pack) HO45827 1) 4008321515100 LUMILUX HO 45W/827 ES sleeved 45 827 G5 1449mm 20 23 HO45830 1) 4008321515124 LUMILUX HO 45W/830 ES sleeved 45 830 G5 1449mm 20 23 HO45840 1) 4008321515148 LUMILUX HO 45W/840 ES sleeved 45 840 G5 1449mm 20 23 HO45865 1) 4008321515162 LUMILUX HO 45W/865 ES sleeved 45 865 G5 1449mm 20 23 HO50827 1) 4008321515186 LUMILUX HO 50W/827 ES sleeved 50 827 G5 1149mm 20 23 HO50830 1) 4008321515209 LUMILUX HO 50W/830 ES sleeved 50 830 G5 1149mm 20 23 HO50840 1) 4008321515223 LUMILUX HO 50W/840 ES sleeved 50 840 G5 1149mm 20 23 HO50865 1) 4008321515247 LUMILUX HO 50W/865 ES sleeved 50 865 G5 1149mm 20 23 HO73827 1) 4008321515261 LUMILUX HO 73W/827 ES sleeved 73 827 G5 1449mm 20 23 HO73830 1) 4008321515285 LUMILUX HO 73W/830 ES sleeved 73 830 G5 1449mm 20 23 HO73840 1) 4008321515308 LUMILUX HO 73W/840 ES sleeved 73 840 G5 1449mm 20 23 HO73865 1) 4008321515322 LUMILUX HO 73W/865 ES sleeved 73 865 G5 1449mm 20 23 Perfectly matched with QUICKTRONIC ® electronic control gear 1) Suitable for ECG operation only. The lamps are designed for internal luminaire temperatures of 30 to 40°C, the optimum luminaire flux is achieved at 35°C NEW NEW NEW NEW NEW NEW NEW NEW NEW NEW NEW NEW 86-119 F tubes:Layout 1 24/11/10 12:40 Page 93
94 All orders must be multiples of sales pack Fluorescent Tubes LUMILUX ® T5 HO XT • Triphosphor fluorescent tube only 16mm ( 5 / 8 in) diameter • Extremely long lifetime of up to 45,000 hours • Longer maintenance intervals • Industry, tunnels, street lighting, high ceilings and difficult luminaire access Product EAN Product Description ID Code (Single Pack) HO49827XT 1) 4008321958488 LUMILUX HO 49W/827 XT 49 827 G5 1449mm 20 23 HO49830XT 1) 4008321958495 LUMILUX HO 49W/830 XT 49 830 G5 1449mm 20 23 HO49840XT 1) 4008321958501 LUMILUX HO 49W/840 XT 49 840 G5 1449mm 20 23 HO49865XT 1) 4008321958518 LUMILUX HO 49W/865 XT 49 865 G5 1449mm 20 23 HO54827XT 1) 4008321958525 LUMILUX HO 54W/827 XT 54 827 G5 1149mm 20 23 HO54830XT 1) 4008321958549 LUMILUX HO 54W/830 XT 54 830 G5 1149mm 20 23 HO54840XT 1) 4008321958556 LUMILUX HO 54W/840 XT 54 840 G5 1149mm 20 23 HO54865XT 1) 4008321958563 LUMILUX HO 54W/865 XT 54 865 G5 1149mm 20 23 HO80827XT 1) 4008321958570 LUMILUX HO 80W/827 XT 80 827 G5 1449mm 20 23 HO80830XT 1) 4008321958587 LUMILUX HO 80W/830 XT 80 830 G5 1449mm 20 23 HO80840XT 1) 4008321958594 LUMILUX HO 80W/840 XT 80 840 G5 1449mm 20 23 HO80865XT 1) 4008321958600 LUMILUX HO 80W/865 XT 80 865 G5 1449mm 20 23 Perfectly matched with QUICKTRONIC ® electronic control gear 1) Suitable for ECG operation only. The lamps are designed for internal luminaire temperatures of 30 to 40°C, the optimum luminaire flux is achieved at 35°C In preparation at time of print. For further information please contact OSRAM NEW NEW NEW NEW NEW NEW NEW NEW NEW NEW NEW NEW 86-119 F tubes:Layout 1 24/11/10 12:40 Page 94
LUMILUX ® T5 HO CONSTANT • Triphosphor fluorescent tube only 16mm ( 5 / 8 in) diameter • Perfect solution for very cold and very hot lighting installations • 90% luminous flux between +5ºC and +70ºC • Approved for dimming down to 1% with new OSRAM QTi dimming units • Ideal for outdoor lighting applications and “hot” company luminaries Product EAN Product Description ID Code (Single Pack) FQ24827CO 2) 4008321074898 LUMILUX T5 HO CONSTANT 24/827 24 827 G5 549mm 20 23 FQ24830CO 2) 4008321074911 LUMILUX T5 HO CONSTANT 24/830 24 830 G5 549mm 20 23 FQ24840CO 2) 4008321075451 LUMILUX T5 HO CONSTANT 24/840 24 840 G5 549mm 20 23 FQ24865CO 2) 4008321075475 LUMILUX T5 HO CONSTANT 24/865 24 865 G5 549mm 20 23 FQ39830CO 2) 4008321075512 LUMILUX T5 HO CONSTANT 39/830 39 830 G5 849mm 20 23 FQ39840CO 2) 4008321075550 LUMILUX T5 HO CONSTANT 39/840 39 840 G5 849mm 20 23 FQ39865CO 2) 4008321075574 LUMILUX T5 HO CONSTANT 39/865 39 865 G5 849mm 20 23 FQ49830CO 2) 4008321958761 LUMILUX T5 HO CONSTANT 49/830 49 830 G7 1449mm 20 23 FQ49840CO 2) 4008321958778 LUMILUX T5 HO CONSTANT 49/840 49 840 G8 1449mm 20 23 FQ49865CO 2) 4008321958785 LUMILUX T5 HO CONSTANT 49/865 49 865 G9 1449mm 20 23 FQ54830CO 2) 4008321075611 LUMILUX T5 HO CONSTANT 54/830 54 830 G5 1149mm 20 23 FQ54840CO 2) 4008321075659 LUMILUX T5 HO CONSTANT 54/840 54 840 G5 1149mm 20 23 FQ54865CO 2) 4008321075673 LUMILUX T5 HO CONSTANT 54/865 54 865 G5 1149mm 20 23 FQ80830CO 2) 4008321075819 LUMILUX T5 HO CONSTANT 80/830 80 830 G5 1449mm 20 23 FQ80840CO 2) 4008321080042 LUMILUX T5 HO CONSTANT 80/840 80 840 G5 1449mm 20 23 FQ80865CO 2) 4008321080066 LUMILUX T5 HO CONSTANT 80/865 80 865 G5 1449mm 20 23 Perfectly matched with QUICKTRONIC ® electronic control gear 1) For more information go to www.osram.com/system-guarantee2) Suitable for ECG operation only 95 All orders must be multiples of sales pack Fluorescent Tubes NEW NEW NEW 1) 86-119 F tubes:Layout 1 24/11/10 12:40 Page 95
LUMILUX ® DE LUXE T5 HO HIGH OUTPUT • Triphosphor fluorescent tube only 16mm ( 5 / 8 in) diameter • Superior colour rendering • Ideal where colour rendition is important Product EAN Product Description ID Code (Single Pack) FQ24940 1) 4008321233028 LUMILUX DE LUXE T5 HO 24/940 24 940 G5 549mm 10 23 F!24965 1) 4008321233042 LUMILUX DE LUXE T5 HO 24/965 24 965 G5 549mm 10 23 FQ49940 1) 4008321234025 LUMILUX DE LUXE T5 HO 49/940 49 940 G5 1449mm 10 23 FQ49965 1) 4008321233066 LUMILUX DE LUXE T5 HO 49/965 49 965 G5 1449mm 10 23 FQ54940 1) 4008321233929 LUMILUX DE LUXE T5 HO 54/940 54 940 G5 1149mm 10 23 FQ54965 1) 4008321233943 LUMILUX DE LUXE T5 HO 54/965 54 965 G5 1149mm 10 23 Perfectly matched with QUICKTRONIC ® electronic control gear 1) Suitable for ECG operation only LUMILUX ® T5 DE LUXE • Triphosphor fluorescent tube only 16mm ( 5 / 8 in) diameter • Deluxe triphosphor tube • Superior colour rendering • Ideal where colour rendition is important Product EAN Product Description ID Code (Single Pack) L6930 4050300015880 LUMILUX T5 DE LUXE 6/930 6 930 G5 212mm 25 23 L8930 4050300015897 LUMILUX T5 DE LUXE 8/930 8 930 G5 288mm 25 23 L8954 4050300018232 LUMILUX T5 DE LUXE 8/954 8 954 G5 288mm 25 23 L13930 4050300015903 LUMILUX T5 DE LUXE 13/930 13 930 G5 517mm 25 23 L13954 4050300327419 LUMILUX T5 DE LUXE 13/954 13 954 G5 517mm 25 23 Perfectly matched with QUICKTRONIC ® electronic control gear 96 All orders must be multiples of sales pack Fluorescent Tubes 86-119 F tubes:Layout 1 24/11/10 12:40 Page 96
97 All orders must be multiples of sales pack Fluorescent Tubes LUMILUX ® T5 SEAMLESS • Triphosphor fluorescent tube only 16mm ( 5 / 8 in) diameter • Innovative base that allows tubes to be side by side • Provides continuous light for optimal illumination • Lifetime of up to 12,000 hours • Ideal for cove lighting without dark spots Product EAN Product Description ID Code (Single Pack) HE Version HE14830 1) 4008321957719 LUMILUX HE 14W/830 SLS 14 830 481 2 25 23 HE14840 1) 4008321957733 LUMILUX HE 14W/840 SLS 14 840 481 2 25 23 HE14865 1) 4008321957757 LUMILUX HE 14W/865 SLS 14 865 481 2 25 23 HE21830 1) 4008321957771 LUMILUX HE 21W/830 SLS 21 830 781 2 25 23 HE21840 1) 4008321957795 LUMILUX HE 21W/840 SLS 21 840 781 2 25 23 HE21865 1) 4008321957818 LUMILUX HE 21W/865 SLS 21 865 781 2 25 23 HE28830 1) 4008321957832 LUMILUX HE 28W/830 SLS 28 830 1081 2 25 23 HE28840 1) 4008321957856 LUMILUX HE 28W/840 SLS 28 840 1081 2 25 23 HE28865 1) 4008321957870 LUMILUX HE 28W/865 SLS 28 865 1081 2 25 23 HO Version HO24830 1) 4008321409959 LUMILUX HO 24W/830 SLS 24 830 582mm 25 23 HO24840 1) 4008321357250 LUMILUX HO 24W/840 SLS 24 840 582mm 25 23 HO24865 1) 4008321410016 LUMILUX HO 24W/865 SLS 24 865 582mm 25 23 HO39830 1) 4008321409973 LUMILUX HO 39W/830 SLS 39 830 882mm 25 23 HO39840 1) 4008321357373 LUMILUX HO 39W/840 SLS 39 840 882mm 25 23 HO39865 1) 4008321410030 LUMILUX HO 39W/865 SLS 39 865 882mm 25 23 HO54830 1) 4008321409997 LUMILUX HO 54W/830 SLS 54 830 1182mm 25 23 HO54840 1) 4008321357434 LUMILUX HO 54W/840 SLS 54 840 1182mm 25 23 HO54865 1) 4008321410054 LUMILUX HO 54W/865 SLS 54 865 1182mm 25 23 Perfectly matched with QUICKTRONIC ® electronic control gear 1) Suitable for ECG operation only2) Min NEW NEW NEW NEW NEW NEW NEW NEW NEW NEW NEW NEW NEW NEW NEW NEW NEW NEW 86-119 F tubes:Layout 1 24/11/10 12:40 Page 97
98 All orders must be multiples of sales pack Fluorescent Tubes LUMILUX ® T5 SHORT • Triphosphor fluorescent tube only 16mm ( 5 / 8 in) diameter • Long life triphosphor tube • Environmentally friendly fluorescent lamp with a low mercury content • Only 8% loss of luminous flux throughout entire life • Ideal for professional office lighting Product EAN Product Description ID Code (Single Pack) L6830 4008321959874 LUMILUX T5 SHORT 6/830 6 830 G5 212mm 25 20 L8827 4050300008943 LUMILUX T5 SHORT 8/827 8 827 G5 288mm 25 20 L8830 4008321959881 LUMILUX T5 SHORT 8/830 8 830 G5 288mm 25 20 L8840 4050300241623 LUMILUX T5 SHORT 8/840 8 840 G5 288mm 25 20 L13827 4050300008967 LUMILUX T5 SHORT 13/827 13 827 G5 517mm 25 20 L13830 4008321959898 LUMILUX T5 SHORT 13/830 13 830 G5 517mm 25 20 L13840 4050300241647 LUMILUX T5 SHORT 13/840 13 840 G5 517mm 25 20 Perfectly matched with QUICKTRONIC ® electronic control gear BASIC T5 • Basic halophosphate tube only 16mm ( 5 / 8 in) diameter • Ideal for small luminaires Product EAN Product Description ID Code (Single Pack) L4640 4050300008875 BASIC T5 4/640 4 20/640 G5 136mm 25 22 L4535 4050300270722 BASIC T5 4/535 4 23/535 G5 136mm 25 22 L6640 4050300008899 BASIC T5 6/640 6 20/640 G5 288mm 25 22 L8640 4050300008912 BASIC T5 8/640 8 20/640 G5 288mm 25 22 L8535 4050300241807 BASIC T5 8/535 8 23/535 G5 288mm 25 22 L8765 4050300035475 BASIC T5 8/765 8 765 G5 288mm 25 22 L13640 4050300008974 BASIC T5 13/640 13 20/640 G5 517mm 25 22 Perfectly matched with QUICKTRONIC ® electronic control gear 86-119 F tubes:Layout 1 24/11/10 12:40 Page 98
99 All orders must be multiples of sales pack Fluorescent Tubes T5 BASIC OPTIMISED FOR EMERGENCY LIGHTING • Basic halophosphate tube only 16mm ( 5 / 8 in) diameter • EL version for emergency lighting • Ideal for small luminaires Product EAN Product Description ID Code (Single Pack) L6640EL 4008321152381 T5 BASIC EMERGENCY 6W 6 20/640 G5 212mm 25 22 L8640EL 4050300606644 T5 BASIC EMERGENCY 8W 8 20/640 G5 288mm 25 22 Perfectly matched with QUICKTRONIC ® electronic control gear T5 LUMILUX ® OPTIMISED FOR EMERGENCY LIGHTING • Triphosphor fluorescent tube only 16mm ( 5 / 8 in) diameter • EL version for emergency lighting • Ideal for small luminaires Product EAN Product Description ID Code (Single Pack) L6840EL 4008321325662 T5 LUMILUX EMERGENCY 6W 6 840 G5 212mm 25 L8840EL 4008321325846 T5 LUMILUX EMERGENCY 8W 8 840 G5 288mm 25 Perfectly matched with QUICKTRONIC ® electronic control gear 86-119 F tubes:Layout 1 24/11/10 12:41 Page 99
T5 HE HIGH EFFICIENCY COLOURED • Triphosphor fluorescent tube only 16mm ( 5 / 8 in) diameter • Available in red, green and blue colours • Ideal for special effects Product EAN Product Description ID Code (Single Pack) FH1460 2) 4008321170705 Coloured T5 HE 14/R 14 Red 60 G5 549mm 10 23 FH1466 2) 4008321170729 Coloured T5 HE 14/G 14 Green 66 G5 549mm 10 23 FH1467 2) 4008321170781 Coloured T5 HE 14/BL 14 Blue 67 G5 549mm 10 23 FH2160 2) 4008321170682 Coloured T5 HE 21/R 21 Red 60 G5 849mm 10 23 FH2166 2) 4008321170743 Coloured T5 HE 21/G 21 Green 66 G5 849mm 10 23 FH2167 2) 4008321170804 Coloured T5 HE 21/BL 21 Blue 67 G5 849mm 10 23 FH2860 2) 4008321161840 Coloured T5 HE 28/R 28 Red 60 G5 1149mm 10 23 FH2866 2) 4008321161864 Coloured T5 HE 28/G 28 Green 66 G5 1149mm 10 23 FH2867 2) 4008321161888 Coloured T5 HE 28/BL 28 Blue 67 G5 1149mm 10 23 FH3560 2) 4008321133458 Coloured T5 HE 35/R 35 Red 60 G5 1449mm 10 23 FH3566 2) 4008321161925 Coloured T5 HE 35/G 35 Green 66 G5 1449mm 10 23 FH3567 2) 4008321161949 Coloured T5 HE 35/BL 35 Blue 67 G5 1449mm 10 23 Perfectly matched with QUICKTRONIC ® electronic control gear 1) For more information go to www.osram.com/system-guarantee2) Suitable for ECG operation only. The lamps are designed for internal luminaire temperatures of 30 to 40°C, the optimum luminaire flux is achieved at 35°C 100 All orders must be multiples of sales pack Fluorescent Tubes 1) 86-119 F tubes:Layout 1 24/11/10 12:41 Page 100
T5 HO HIGH OUTPUT COLOURED • Triphosphor fluorescent tube only 16mm ( 5 / 8 in) diameter • Available in red, green and blue colours • Ideal for special effects Product EAN Product Description ID Code (Single Pack) FQ2460 2) 4008321171009 LUMILUX Coloured T5 HO 24/R 24 Red 60 G5 549mm 10 23 FQ2466 2) 4008321170941 LUMILUX Coloured T5 HO 24/G 24 Green 66 G5 549mm 10 23 FQ2467 2) 4008321170880 LUMILUX Coloured T5 HO 24/BL 24 Blue 67 G5 549mm 10 23 FQ3960 2) 4008321170989 LUMILUX Coloured T5 HO 39/R 39 Red 60 G5 849mm 10 23 FQ3966 2) 4008321170927 LUMILUX Coloured T5 HO 39/G 39 Green 66 G5 849mm 10 23 FQ3967 2) 4008321170866 LUMILUX Coloured T5 HO 39/BL 39 Blue 67 G5 849mm 10 23 FQ5460 2) 4008321170965 LUMILUX Coloured T5 HO 54/R 54 Red 60 G5 1149mm 10 23 FQ5466 2) 4008321170903 LUMILUX Coloured T5 HO 54/G 54 Green 66 G5 1149mm 10 23 FQ5467 2) 4008321170842 LUMILUX Coloured T5 HO 54/BL 54 Blue 67 G5 1149mm 10 23 FQ8060 2) 4008321161963 LUMILUX Coloured T5 HO 80/R 80 Red 60 G5 1449mm 10 23 FQ8066 2) 4008321161987 LUMILUX Coloured T5 HO 80/G 80 Green 66 G5 1449mm 10 23 FQ8067 2) 4008321162007 LUMILUX Coloured T5 HO 80/BL 80 Blue 67 G5 1449mm 10 23 Perfectly matched with QUICKTRONIC ® electronic control gear 1) For more information go to www.osram.com/system-guarantee2) Suitable for ECG operation only. The lamps are designed for internal luminaire temperatures of 30 to 40°C, the optimum luminaire flux is achieved at 35°C 101 All orders must be multiples of sales pack Fluorescent Tubes 1) 86-119 F tubes:Layout 1 24/11/10 12:41 Page 101
LUMILUX ® CHIP control T5 • T5 fluorescent tube with excellent filter function at 500 nm • Very good light performance during the life time (90% lumen maintenance throughout lifecycle) • Complies with the requirements of RoHS • Average life 20,000 hours (with preheat ECG) • Ideal for semiconductor fabrication plants and areas where UV radiation and light from theblue end of the spectrum must be reduced to the absolute minimum Product EAN Product Description ID Code (Single Pack) HE2862 2) 4008321233424 LUMILUX CHIP CONTROL T5 28/Y 28 Yellow G5 2040mm 10 23 HO5462 2) 4008321233400 LUMILUX CHIP CONTROL T5 54/Y 54 Yellow G5 3140mm 10 23 Perfectly matched with QUICKTRONIC ® electronic control gear 1) For more information go to www.osram.com/system-guarantee2) Suitable for ECG operation only. The lamps are designed for internal luminaire temperatures of 30 to 40°C, the optimum luminaire flux is achieved at 35°C 102 All orders must be multiples of sales pack Fluorescent Tubes 1) LUMILUX ® SPLIT control T5 • T5 fluorescent tube with a high temperature resistant sleeve • 16mm ( 5 / 8 in) diameter • Complies with all HACCP directives • Average life 20,000 hours (with preheat ECG) • Eco-friendly thanks to recyclable phoshor • Ideal for use in the food industry and in sensitive food production Product EAN Product Description ID Code (Single Pack) HE28840SPS 2) 4008321233387 LUMILUX SPLIT Control T5 28/840 28 840 G5 1149mm 10 23 HO54840SPS 2) 4008321233363 LUMILUX SPLIT Control T5 54/840 54 840 G5 1149mm 10 23 Perfectly matched with QUICKTRONIC ® electronic control gear 1) For more information go to www.osram.com/system-guarantee2) Suitable for ECG operation only. The lamps are designed for internal luminaire temperatures of 30 to 40°C, the optimum luminaire flux is achieved at 35°C 1) 86-119 F tubes:Layout 1 24/11/10 12:41 Page 102
103 All orders must be multiples of sales pack Fluorescent Tubes LUMILUX ® T5 FC ® FLUORESCENT CIRCLINE • Circular triphosphor fluorescent tube only 16mm (5/8 in) diameter • Very even light distribution • Ideal for professional office lighting Product EAN Product Description ID Code (Single Pack) FC22827 4050300646237 LUMILUX T5 FC Circular 22/827 22 827 2GX13 225mm 12 23 FC22830 4050300528489 LUMILUX T5 FC Circular 22/830 22 830 2GX13 225mm 12 23 FC22840 4050300528465 LUMILUX T5 FC Circular 22/840 22 840 2GX13 225mm 12 23 FC22865 4050300528441 LUMILUX T5 FC Circular 22/865 22 865 2GX13 225mm 12 23 FC40827 4050300646251 LUMILUX T5 FC Circular 40/827 40 827 2GX13 300mm 12 23 FC40830 4050300528540 LUMILUX T5 FC Circular 40/830 40 830 2GX13 300mm 12 23 FC40840 4050300528526 LUMILUX T5 FC Circular 40/840 40 840 2GX13 300mm 12 23 FC40865 4050300528502 LUMILUX T5 FC Circular 40/865 40 865 2GX13 300mm 12 23 FC55827 4050300646275 LUMILUX T5 FC Circular 55/827 55 827 2GX13 300mm 12 23 FC55830 4050300528601 LUMILUX T5 FC Circular 55/830 55 830 2GX13 300mm 12 23 FC55840 4050300528588 LUMILUX T5 FC Circular 55/840 55 840 2GX13 300mm 12 23 FC55865 4050300528564 LUMILUX T5 FC Circular 55/865 55 865 2GX13 300mm 12 23 Perfectly matched with QUICKTRONIC ® electronic control gear T5 NATURA ® • Triphosphor fluorescent tube only 16mm ( 5 / 8 in) diameter • Displays food in an appetizing light • Excellent colour rendering = 85 • Special colour rendering R9 = 90 • Average lifetime: 28W = 20,000 hours and 54W = 24000 hours Product EAN Product Description ID Code (Single Pack) HE2876 4008321581716 NATURA T5 HE 28/76 28 76 G5 2040mm 25 23 HO5476 4008321581693 NATURA T5 HO 54/76 54 76 G5 1149mm 25 23 Perfectly matched with QUICKTRONIC ® electronic control gear 1) For more information go to www.osram.com/system-guarantee 1) 86-119 F tubes:Layout 1 24/11/10 12:41 Page 103
104 All orders must be multiples of sales pack Fluorescent Tubes LUMILUX ® T8 • Triphosphor tube 26mm (1in) diameter • Fewer lamp replacements compared to BASIC tubes due to longer life • Higher lumen maintenance and colour rendering than BASIC tubes • Ideal for professional office lighting Product EAN Product Description ID Code (Single Pack) L10827 4050300446165 LUMILUX T8 10/827 10 827 G13 470mm 25 20 L15827 4050300446042 LUMILUX T8 15/827 15 827 G13 438mm 25 20 L15830 4050300446028 LUMILUX T8 15/830 15 830 G13 438mm 25 20 L15840 4050300446004 LUMILUX T8 15/840 15 840 G13 438mm 25 20 L15865 4050300446189 LUMILUX T8 15/865 15 865 G13 438mm 25 20 L16827 4050300446080 LUMILUX T8 16/827 16 827 G13 720mm 25 20 L16830 2) 4008321959065 LUMILUX T8 16/830 16 830 G13 720mm 25 3) 20 L16840 4050300446066 LUMILUX T8 16/840 16 840 G13 720mm 25 20 L18827 4050300517834 LUMILUX T8 18/827 18 827 G13 590mm 25 20 L18830 4050300517810 LUMILUX T8 18/830 18 830 G13 590mm 25 20 L18835 4050300447964 LUMILUX T8 18/835 18 835 G13 590mm 25 20 L18840 4050300517797 LUMILUX T8 18/840 18 840 G13 590mm 25 3) 20 L18865 4050300517773 LUMILUX T8 18/865 18 865 G13 590mm 25 20 L18880 4008321027962 LUMILUX T8 18/880 18 880 G13 590mm 25 20 L23830 4050300446264 LUMILUX T8 23/830 23 830 G13 970mm 25 20 L23840 4050300446240 LUMILUX T8 23/840 23 840 G13 970mm 25 20 L30827 4050300518077 LUMILUX T8 30/827 30 827 G13 895mm 25 20 L30830 4050300518053 LUMILUX T8 30/830 30 830 G13 895mm 25 20 L30840 4050300518039 LUMILUX T8 30/840 30 840 G13 895mm 25 20 L30865 4050300518015 LUMILUX T8 30/865 30 865 G13 895mm 25 20 L30880 4008321027986 LUMILUX T8 30/880 30 880 G13 895mm 25 20 L36827 4050300517919 LUMILUX T8 36/827 36 827 G13 1200mm 25 20 L368271 2) 4050300518114 LUMILUX T8 36/8271 36 827 G13 970mm 25 20 L368301 2) 4008321959058 LUMILUX T8 36/8301 36 830 G13 970mm 25 20 L36830 4050300517896 LUMILUX T8 36/830 36 830 G13 1200mm 25 3) 20 L36835 4050300447988 LUMILUX T8 36/835 36 835 G13 1200mm 25 20 L36840 4050300517872 LUMILUX T8 36/840 36 840 G13 1200mm 25 3) 20 L368401 2) 4050300518091 LUMILUX T8 36/8401 35 840 G13 970mm 25 20 L36865 4050300517858 LUMILUX T8 36/865 36 865 G13 1200mm 25 20 Continued Perfectly matched with QUICKTRONIC ® electronic control gear 1) For more information go to www.osram.com/system-guarantee2) These lamps are not intended for general illumination. They are suitable for applications such as lighting for means of public transport3) Also available in industrial packs for bulk packs. Contains 30 lamps NEW 1) NEW 86-119 F tubes:Layout 1 24/11/10 12:41 Page 104
105 All orders must be multiples of sales pack Fluorescent Tubes LUMILUX ® T8 (Continued) Product EAN Product Description ID Code (Single Pack) L36880 4008321002976 LUMILUX T8 36/880 36 880 G13 1200mm 25 20 L38830 4050300518152 LUMILUX T8 38/830 38 830 G13 1047mm 25 20 L38840 4050300518138 LUMILUX T8 38/840 38 840 G13 1047mm 25 20 L38880 4008321072245 LUMILUX T8 38/880 38 880 G13 1047mm 25 20 L58827 4050300603049 LUMILUX T8 58/827 58 827 G13 1500mm 25 20 L58830 4050300517971 LUMILUX T8 58/830 58 830 G13 1500mm 25 2) 20 L58835 4050300448008 LUMILUX T8 58/835 58 835 G13 1500mm 25 20 L58840 4050300517957 LUMILUX T8 58/840 58 840 G13 1500mm 25 2) 20 L58865 4050300517933 LUMILUX T8 58/865 58 865 G13 1500mm 25 20 L58880 4008321002990 LUMILUX T8 58/880 58 880 G13 1500mm 25 20 L70835 4008321003911 LUMILUX T8 70/835 70 835 G13 1800mm 25 20 L70840 4008321003959 LUMILUX T8 70/840 70 840 G13 1800mm 25 20 Perfectly matched with QUICKTRONIC ® electronic control gear 1) For more information go to www.osram.com/system-guarantee2) Also available in industrial packs for bulk packs. Contains 30 lamps 1) 86-119 F tubes:Layout 1 24/11/10 12:41 Page 105
106 All orders must be multiples of sales pack Fluorescent Tubes LUMILUX ® T8 ENERGY SAVER • Triphosphor tube 26mm (1in) diameter • To replace BASIC tubes operated only on CCG • 10% energy saving compared to BASIC tubes • Ideal for applications using CCG such as warehouses and corridors Product EAN Product Description ID Code (Single Pack) L16830ES 4008321955791 LUMILUX T8 ES 16/830 16 830 G13 590mm 25 20 L16840ES 4008321955777 LUMILUX T8 ES 16/840 16 840 G13 590mm 25 20 L32830ES 4008321339652 LUMILUX T8 ES 32/830 32 830 G13 1200mm 25 20 L32840ES 4008321339676 LUMILUX T8 ES 32/840 32 840 G13 1200mm 25 20 L51830ES 4008321339713 LUMILUX T8 ES 51/830 51 830 G13 1500mm 25 20 L51840ES 4008321339690 LUMILUX T8 ES 51/840 51 840 G13 1500mm 25 20 Perfectly matched with QUICKTRONIC ® electronic control gear NEW NEW NEW NEW NEW NEW 86-119 F tubes:Layout 1 24/11/10 12:41 Page 106
107 All orders must be multiples of sales pack Fluorescent Tubes LUMILUX ® XT T8 • Triphosphor tube 26mm (1in) diameter • 50,000 hours average life and 42,000 hours extended service life with ECG • Ideal for applications where relamping is expensive such as factories and warehouses Product EAN Product Description ID Code (Single Pack) XT18830 4008321209085 LUMILUX XT T8 18/830 18 830 G13 590mm 25 20 XT18840 4008321209108 LUMILUX XT T8 18/840 18 840 G13 590mm 25 20 L18865XT 4008321209122 LUMILUX XT T8 18/865 18 865 G13 590mm 25 20 XT36830 4008321209146 LUMILUX XT T8 36/830 36 830 G13 1200mm 25 20 XT36840 4008321209160 LUMILUX XT T8 36/840 36 840 G13 1200mm 25 20 L36865XT 4008321209221 LUMILUX XT T8 36/865 36 865 G13 1200mm 25 20 XT58830 4008321209344 LUMILUX XT T8 58/830 58 830 G13 1500mm 25 20 XT58840 4008321209320 LUMILUX XT T8 50/840 58 840 G13 1500mm 25 20 L58865XT 4008321923622 LUMILUX XT T8 58/865 58 865 G13 1500mm 25 20 Perfectly matched with QUICKTRONIC ® electronic control gear 1) For more information go to www.osram.com/system-guarantee 1) 86-119 F tubes:Layout 1 24/11/10 12:41 Page 107
LUMILUX ® XXT T8 • Triphosphor tube 26mm (1in) diameter • Extremely reliable and long service life • 90,000 hours average life (ECG hot restart) and 75,000 hours service life with ECG • Less maintenance and lower cost of ownership compared to LUMILUX ® T8 • Ideal for applications where relamping is expensive such as factories and warehouses Product EAN Product Description ID Code (Single Pack) L18830XXT 4008321923646 LUMILUX XXT T8 18/830 18 830 G13 590mm 25 20 L18840XXT 4008321923660 LUMILUX XXT T8 18/840 18 840 G13 590mm 25 20 L18865XXT 4008321923684 LUMILUX XXT T8 18/865 18 865 G13 590mm 25 20 L36830XXT 4008321923707 LUMILUX XXT T8 36/830 36 830 G13 1200mm 25 20 L36840XXT 4008321923721 LUMILUX XXT T8 36/840 36 840 G13 1200mm 25 20 L36865XXT 4008321923745 LUMILUX XXT T8 36/865 36 865 G13 1200mm 25 20 L58830XXT 4008321923769 LUMILUX XXT T8 58/830 58 830 G13 1500mm 25 20 L58840XXT 4008321923783 LUMILUX XXT T8 58/840 58 840 G13 1500mm 25 20 L58865XXT 4008321923806 LUMILUX XXT T8 58/865 58 865 G13 1500mm 25 20 Perfectly matched with QUICKTRONIC ® electronic control gear 1) For more information go to www.osram.com/system-guarantee Available upon request 108 All orders must be multiples of sales pack Fluorescent Tubes 1) 86-119 F tubes:Layout 1 24/11/10 12:41 Page 108
109 All orders must be multiples of sales pack Fluorescent Tubes LUMILUX ® DE LUXE T8 • Triphosphor tube 26mm (1in) diameter • Deluxe triphosphor tube • Superior colour rendering • Ideal where colour rendition is important Product EAN Product Description ID Code (Single Pack) L15930 4050300014395 LUMILUX DE LUXE T8 15/930 15 930 G13 438mm 25 20 L15954 4050300018249 LUMILUX DE LUXE T8 15/954 15 954 G13 438mm 25 20 L16930 4050300242361 LUMILUX DE LUXE T8 16/930 16 930 G13 720mm 25 20 L18930 4050300011264 LUMILUX DE LUXE T8 18/930 18 930 G13 590mm 25 20 L18940 4050300011257 LUMILUX DE LUXE T8 18/940 18 940 G13 590mm 25 20 L18954 4050300018256 LUMILUX DE LUXE T8 18/954 18 954 G13 590mm 25 20 L18965 4008321111371 LUMILUX DE LUXE T8 18/965 18 965 G13 590mm 25 20 L30930 4050300014432 LUMILUX DE LUXE T8 30/930 30 930 G13 895mm 25 20 L36930 4050300011318 LUMILUX DE LUXE T8 36/930 36 930 G13 1200mm 25 20 L36940 4050300011301 LUMILUX DE LUXE T8 36/940 36 940 G13 1200mm 25 20 L36954 4050300018263 LUMILUX DE LUXE T8 36/954 36 954 G13 1200mm 25 20 L369541 4050300024196 LUMILUX DE LUXE T8 36/954-1 36 954-1 G13 970mm 25 20 L36965 4008321111395 LUMILUX DE LUXE T8 36/965 36 965 G13 1200mm 25 20 L58930 4050300011363 LUMILUX DE LUXE T8 58/930 58 930 G13 1500mm 25 20 L58940 4050300011356 LUMILUX DE LUXE T8 58/940 58 940 G13 1500mm 25 20 L58954 4050300018270 LUMILUX DE LUXE T8 58/954 58 954 G13 1500mm 25 20 L58965 4008321090034 LUMILUX DE LUXE T8 58/965 58 965 G13 1500mm 25 20 Perfectly matched with QUICKTRONIC ® electronic control gear 86-119 F tubes:Layout 1 24/11/10 12:41 Page 109
COLOR proof T8 • Triphosphor tube 26mm (1in) diameter • Deluxe triphosphor tube • The best colour rendering • Ideal for colour matching in reprographic workshops, photographic laboratories and dentallaboratories Product EAN Product Description ID Code (Single Pack) L18950 4008321423023 COLOR proof T8 18W 18 950 G13 590mm 10 23 L36950 4008321423047 COLOR proof T8 36W 36 950 G13 1200mm 10 23 L58950 4008321423061 COLOR proof T8 58W 58 950 G13 1500mm 10 23 Perfectly matched with QUICKTRONIC ® electronic control gear BIOLUX ® T8 • Triphosphor tube 26mm (1in) diameter • Full spectrum tube with 6500K colour temperature • Excellent colour rendering • Ideal for work areas deficient of natural daylight where colour rendition is important Product EAN Product Description ID Code (Single Pack) L18965BIO 4050300270807 BIOLUX T8 18W 18 965 G13 600mm/2ft 10 23 L30965BIO 4050300302461 BIOLUX T8 30W 30 965 G13 900mm/3ft 10 23 L36965BIO 4050300270821 BIOLUX T8 36W 36 965 G13 1200mm/4ft 10 23 L58965BIO 4050300370613 BIOLUX T8 58W 58 965 G13 1500mm/5ft 10 23 Perfectly matched with QUICKTRONIC ® electronic control gear 110 All orders must be multiples of sales pack Fluorescent Tubes NEW NEW NEW 86-119 F tubes:Layout 1 24/11/10 12:41 Page 110
111 All orders must be multiples of sales pack Fluorescent Tubes FLUORA ® T8 • Triphosphor tube 26mm (1in) diameter • Ideal for stimulating healthy plant growth Product EAN Product Description ID Code (Single Pack) L1577 4050300003214 FLUORA T8 15W 15 77 G13 438mm 10 23 L1877 4050300004235 FLUORA T818W 18 77 G13 600mm/2ft 10 23 L3077 4050300003238 FLUORA T8 30W 30 77 G13 895mm 10 23 L3677 4050300003184 FLUORA T8 36W 36 77 G13 1200mm/4ft 10 23 L5877 4050300004259 FLUORA T8 58W 58 77 G13 1500mm/5ft 10 23 Perfectly matched with QUICKTRONIC ® electronic control gear Coloured T8 • Triphosphor tube 26mm (1in) diameter • Ideal for effect lighting Product EAN Product Description ID Code (Single Pack) L1860 4050300024219 Coloured T8 18/R 18 60 Red G13 600mm/2ft 10 23 L1862 4008321232700 Coloured T8 18/Y 18 62 Yellow G13 600mm/2ft 12 23 L1866 4050300024226 Coloured T8 18/G 18 66 Green G13 600mm/2ft 10 23 L1867 4050300024233 Coloured T8 18/BL 18 67 Blue G13 600mm/2ft 10 23 L3067 4050300366920 Coloured T8 30/BL 30 67 Blue G13 900mm/3ft 10 23 L3660 4050300024240 Coloured T8 36/R 36 60 Red G13 1200mm/4ft 10 23 L3662 4008321232724 Coloured T8 36/Y 36 62 Yellow G13 1200mm/4ft 12 23 L3666 4050300024257 Coloured T8 66/G 36 66 Green G13 1200mm/4ft 10 23 L3667 4050300024264 Coloured T8 36/BL 36 67 Blue G13 1200mm/4ft 10 23 L3862 4008321232984 Coloured T8 38/Y 38 62 Yellow G13 1047mm 12 23 L5860 4050300024271 Coloured T8 58/R 58 60 Red G13 1500mm/5ft 10 23 L5862 4008321232748 Coloured T8 62/Y 58 62 Yellow G13 1500mm/5ft 12 23 L5866 4050300024288 Coloured T8 66/G 58 66 Green G13 1500mm/5ft 10 23 L5867 4050300024295 Coloured T8 67/BL 58 67 Blue G13 1500mm/5ft 10 23 Perfectly matched with QUICKTRONIC ® electronic control gear 1) For more information go to www.osram.com/system-guarantee 1) 86-119 F tubes:Layout 1 24/11/10 12:41 Page 111
NATURA ® T8 • Triphosphor tube 26mm (1in) diameter • Ideal for meat and delicatessen displays Product EAN Product Description ID Code (Single Pack) L1576 4050300018287 NATURA T8 15/76 15 76 G13 438mm 10 23 L1876 4050300010519 NATURA T8 18/76 18 76 G13 600mm/2ft 10 23 L3076 4050300010540 NATURA T8 30/76 30 76 G13 900mm/3ft 10 23 L3676 4050300010526 NATURA T8 36/76 36 76 G13 1200mm/4ft 10 23 L36761 4050300010557 NATURA T8 36/76-1 36 76-1 G13 1600mm 10 23 L5876 4050300010533 NATURA T8 58/76 58 76 G13 1500mm/5ft 10 23 Perfectly matched with QUICKTRONIC ® electronic control gear 1) For more information go to www.osram.com/system-guarantee NATURA ® SPLIT Control T8 • Triphosphor tube 26mm (1in) diameter • Integral protective sleeve • Can be used in open luminaires within the food sector • Ideal for meat and delicatessen displays Product EAN Product Description ID Code (Single Pack) L1876SPS 4008321232762 NATURA SPLIT Control T8 18/76 18 76 G13 590mm 12 23 L3076SPS 4008321232786 NATURA SPLIT Control T8 30/76 30 76 G13 895mm 12 23 L5876SPS 4008321232847 NATURA SPLIT Control T8 58/76 58 76 G13 1500mm 12 23 Perfectly matched with QUICKTRONIC ® electronic control gear 1) For more information go to www.osram.com/system-guarantee 112 All orders must be multiples of sales pack Fluorescent Tubes 1) 1) 86-119 F tubes:Layout 1 24/11/10 12:41 Page 112
113 All orders must be multiples of sales pack Fluorescent Tubes LUMILUX ® SPLIT Control T8 • Triphosphor tube 26mm (1in) diameter • With plastic coating that retains splinters if the lamp is broken • Ideal for food preparation areas and production lines Product EAN Product Description ID Code (Single Pack) L18840SPS 4008321232885 LUMILUX SPLIT Control T8 18/840 18 840 G13 590mm 12 23 L36840SPS 4008321232823 LUMILUX SPLIT Control T8 36/840 36 840 G13 1200mm 12 23 L58840SPS 4008321232922 LUMILUX SPLIT Control T8 58/840 58 840 G13 1500mm 12 23 Perfectly matched with QUICKTRONIC ® electronic control gear 1) For more information go to www.osram.com/system-guarantee LUMILUX ® COLOR Control T8 • Triphosphor tube 26mm (1in) diameter • With neutral density UV filter • Ideal light source for museums, offices and exhibitions Product EAN Product Description ID Code (Single Pack) L18940UVS 4008321050014 LUMILUX COLOR Control T8 18/940 18 940 G13 590mm 12 23 L18954UVS 4008321120229 LUMILUX COLOR Control T8 18/954 18 954 G13 590mm 12 23 L36940UVS 4008321050038 LUMILUX COLOR Control T8 36/940 36 940 G13 1200mm 12 23 L36954UVS 4008321120243 LUMILUX COLOR Control T8 36/954 36 954 G13 1200mm 12 23 L58940UVS 4008321050090 LUMILUX COLOR Control T8 58/940 58 940 G13 1500mm 12 23 L58954UVS 4008321049957 LUMILUX COLOR Control T8 58/954 58 954 G13 1500mm 12 23 Perfectly matched with QUICKTRONIC ® electronic control gear 1) 86-119 F tubes:Layout 1 24/11/10 12:41 Page 113
LUMILUX ® CHIP Control T8 • Triphosphor tube 26mm (1in) diameter • Yellow tube with neutral density UV and blue light filter • With neutral density UV and blue light filter • Ideal light source for microchip production and printing press applications Product EAN Product Description ID Code (Single Pack) L1862 4008321232700 LUMILUX CHIP Control T8 18/Y 18 62 Yellow G13 590mm 12 23 L3662 4008321232724 LUMILUX CHIP Control T8 36/Y 36 62 Yellow G13 1200mm 12 23 L3862 4008321232984 LUMILUX CHIP Control T8 38/Y 38 62 Yellow G13 1047mm 12 23 L5862 4008321232748 LUMILUX CHIP Control T8 58/Y 58 62 Yellow G13 1500mm 12 23 Perfectly matched with QUICKTRONIC ® electronic control gear 1) For more information go to www.osram.com/system-guarantee 114 All orders must be multiples of sales pack Fluorescent Tubes 1) U-SHAPED • U-shaped tubes • Ideal light source for square luminaires in modular sizes Product EAN Product Description ID Code (Single Pack) L18830U 4008321959904 U-Shaped T8 tube 18/830 18 830 2G13 310mm 24 23 L18840U 4008321469168 U-Shaped T8 tube 18/840 18 840 2G13 310mm 24 23 L36830U 4008321959911 U-Shaped T8 tube 36/830 36 830 2G13 607mm 12 23 L36840U 4008321469182 U-Shaped T8 tube 36/840 36 840 2G13 607mm 12 23 L58830U 4008321959041 U-Shaped T8 tube 58/830 58 830 2G13 765mm 12 23 L58840U 4008321469205 U-Shaped T8 tube 58/840 58 840 2G13 765mm 12 23 Perfectly matched with QUICKTRONIC ® electronic control gear NEW NEW NEW NEW NEW NEW 86-119 F tubes:Layout 1 24/11/10 12:41 Page 114
115 All orders must be multiples of sales pack Fluorescent Tubes LUMILUX ® CIRCULAR • LUMILUX ® Circular tubes with G10Q base • Ideal for office lighting Product EAN Product Description ID Code (Single Pack) L22840C 4008321581082 Circular tube 22/840 22 840 G10Q 216mm dia. 12 21 L22865C 4008321581105 Circular tube 22/865 22 865 G10Q 216mm dia. 12 21 L22827C 4008321581068 Circular tube 22/827 22 827 G10Q 216mm dia. 12 21 L32865C 4008321581167 Circular tube 32/865 32 865 G10Q 305mm dia. 12 21 L32827C 4008321581129 Circular tube 32/827 32 827 G10Q 305mm dia. 12 21 L32840C 4008321581143 Circular tube 32/840 32 840 G10Q 305mm dia. 12 21 L40865C 4008321960139 Circular tube 40/865 40 865 G10Q 406mm dia. 12 21 L40840C 4050300014845 Circular tube 40/840 40 840 G10Q 406mm dia. 12 21 Perfectly matched with QUICKTRONIC ® electronic control gear 86-119 F tubes:Layout 1 24/11/10 12:41 Page 115
116 All orders must be multiples of sales pack Fluorescent Tubes T2 FM ® FLUORESCENT MINIATURE • 7mm diameter • Ideal for slim luminaires for display lighting Product EAN Product Description ID Code (Single Pack) FM6730 4008321157546 T2 FM FLUORESCENT MINIATURE 6/730 6 730 W4.3 218.3mm 20 23 FM6740 4008321157577 T2 FM FLUORESCENT MINIATURE 6/740 6 740 W4.3 218.3mm 20 23 FM6760 4008321157607 T2 FM FLUORESCENT MINIATURE 6/760 6 760 W4.3 218.3mm 20 23 FM8730 4008321157638 T2 FM FLUORESCENT MINIATURE 8/730 8 730 W4.3 319.9mm 20 23 FM8740 4008321157669 T2 FM FLUORESCENT MINIATURE 8/740 8 740 W4.3 319.9mm 20 23 FM8760 4008321157690 T2 FM FLUORESCENT MINIATURE 8/760 8 760 W4.3 319.9mm 20 23 FM11730 4008321157720 T2 FM FLUORESCENT MINIATURE 11/730 11 730 W4.3 421.5mm 20 23 FM11740 4008321157751 T2 FM FLUORESCENT MINIATURE 11/740 11 740 W4.3 421.5mm 20 23 FM11760 4008321157782 T2 FM FLUORESCENT MINIATURE 11/760 11 760 W4.3 421.5mm 20 23 FM13730 4008321157836 T2 FM FLUORESCENT MINIATURE 13/730 13 730 W4.3 523.1mm 20 23 FM13740 4008321157867 T2 FM FLUORESCENT MINIATURE 13/740 13 740 W4.3 523.1mm 20 23 FM13760 4008321157898 T2 FM FLUORESCENT MINIATURE 13/760 13 760 W4.3 523.1mm 20 23 Perfectly matched with QUICKTRONIC ® electronic control gear 86-119 F tubes:Layout 1 24/11/10 12:41 Page 116
117 All orders must be multiples of sales pack Fluorescent Tubes T12 FOR EXPLOSION PROOF LUMINAIRES XL TYPE • 38mm (1 1 / 2 in) diameter • Single pin tube • Ideal for volatile lighting applications especially oil rigs Product EAN Product Description ID Code (Single Pack) L20640X 4050300014630 T12 Explosion proof 20/640/XL 20 20/640 Fa6 574mm 25 38 L40640X 4050300014654 T12 Explosion proof 40/640/XL 40 20/640 Fa6 1184mm 25 38 L65640X 4050300014616 T12 Explosion proof 65/640/XL 65 20/640 Fa6 1484mm 25 38 T12 FOR EXPLOSION PROOF LUMINAIRES SA TYPE • 38mm (1 1 / 2 in) diameter • Ideal for normal and low ambient tempertures Product EAN Product Description ID Code (Single Pack) L20640SA 4050300018195 T12 Explosion proof 20/640/SA 20 20/640 G13 590mm 25 L40640SA 4050300018331 T12 Explosion proof 40/640/SA 40 20/640 G13 1200mm 25 L65640SA 4050300018201 T12 Explosion proof 65/640/SA 65 20/640 G13 1500mm 25 86-119 F tubes:Layout 1 24/11/10 12:41 Page 117
118 All orders must be multiples of sales pack Fluorescent Tubes FLUORESCENT STARTERS • For the reliable operation of fluorescent tubes Product EAN Product Description ID Code (Single Pack) ST111 4050300854045 4W-80W single-tube 240V operation 1 25/400 28 ST111SCH 4050300270166 4W-80W single-tube 240V operation bulk pack 1 1200 28 ST111HT 4050300854021 4W-80W single-tube 240V operation 1 400 28 ST151 4050300854083 4W-22W series pair at 240V or single-tube operation 110V 2 400 28 ST151SCH 4050300012803 4W-22W series pair at 240V or single-tube operation 110V, bulk pack 2 1200 28 Twin blister ST111BLI2 4050300064000 4W-80W single-tube 240V operation – 20 28 ST151BLI2 4050300092638 4W-20W series pair at 240V or single-tube operation 110V – 20 28 DEOS ® FLUORESCENT STARTERS • Semi-electronic safety starters• Superior advantages over conventional starters Product EAN Product Description ID Code (Single Pack) ST171 4050300854106 ST171 DEOS 30-65W 1 25/200 28 ST171SCH 4050300422855 ST171SCH 38-80W 1 1200 28 ST173 4050300854120 ST173 DEOS 15-32W 3 25/200 28 ST172 4050300854069 ST172 DEOS 18-22W 2 25/200 28 1 2 1 2 3 86-119 F tubes:Layout 1 24/11/10 12:41 Page 118
119 Starter Application Guide Suitable for Suitable for fluorescent tubes OSRAM DULUX ® L&F 4W 10W 15W 18W 30W 38W 36W 58W 75W 70W 18W 24W 36W 6W 13W 16W 20W 32W 40W 65W 85W 100W 8W 80W 100W 125W For single operation at 240V 1) ST 111 X X X X X X X X X X X ST 171 2 X X X X ST173 X X X X X For series pair operation at 240V or single operation at 110V 1) ST 151 X X X X X ST 171 2 X X X X 1) NOT suitable for OSRAM DULUX® S/E, D/E and T/E2) Except 65W U-tube and 5ft 80W T12 All orders must be multiples of sales pack Fluorescent Tubes 86-119 F tubes:Layout 1 24/11/10 12:41 Page 119
