OSRAM - Product Catalogue - Electronic Control Gear

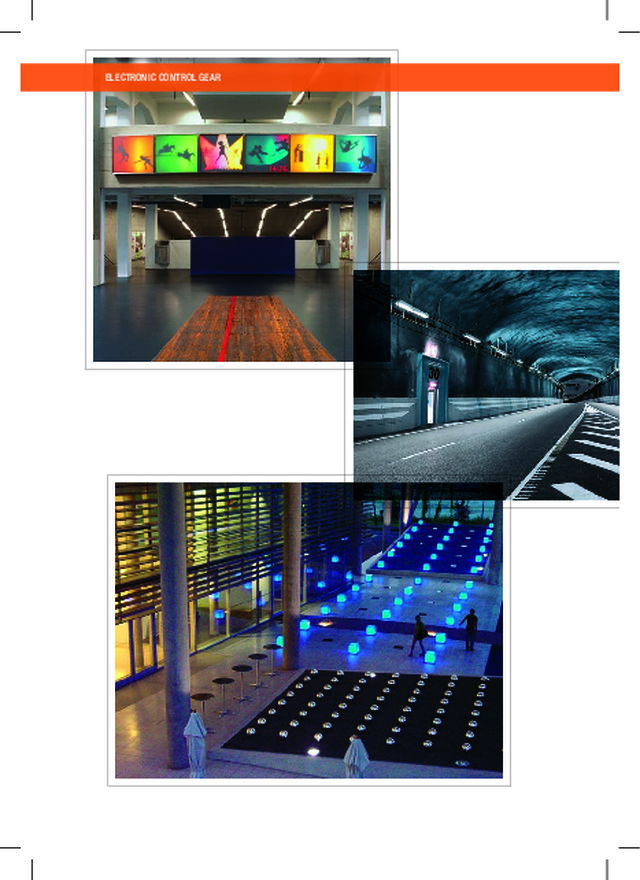

ELECTRONIC CONTROL GEAR
Electronic Control GearContents. ECG FOR FLUORESCENT AND/OR COMPACT FLUORESCENT LAMPS QUICKTRONIC ® INTELLIGENT QTi DALI ® DIM for T5 fluorescent tubes 237 QUICKTRONIC ® INTELLIGENT QTi DALI ® DIM for T8 fluorescent tubes 238 QUICKTRONIC ® INTELLIGENT QTi DALI ® DIM for CFL OSRAM DULUX ® D/E,T/E 238 QUICKTRONIC ® QT DALI ® DIM for CFL OSRAM DULUX ® T/E HE 239 QUICKTRONIC ® INTELLIGENT QTi DIM (1-10V) for T5 fluorescent tubes 239 QUICKTRONIIC ® DE LUXE HF DIM (1-10V) for T8 fluorescent tubes 240 QUICKTRONIC ® INTELLIGENT QTi DIM (1-10V) for T8 fluorescent tubes 240 QUICKTRONIC ® INTELLIGENT QTi DIM (1-10V) for CFL OSRAM DULUX ® D/E, T/E 241 QUICKTRONIC ® INTELLIGENT QTi for T5 fluorescent tubes 241 QUICKTRONIC ® PROFESSIONAL QTP5 for T5 HE fluorescent tubes 242 QUICKTRONIC ® PROFESSIONAL for T5 HO fluorescent tubes 242 QUICKTRONIC ® QT for T5 circular fluorescent tubes 243 QUICKTRONIC ® PROFESSIONAL for T5 FC and DL lamps 243 QUICKTRONIC ® PROFESSIONAL QTP8 for T8 fluorescent tubes 244 QUICKTRONIC ® FIT QT-FIT8 for T8 fluorescent tubes 245 QUICKTRONIC ® INSTANT START ECONOMIC QTIS E for T8 fluorescent tubes 246 QUICKTRONIC ® ECO QT-ECO for CFL OSRAM DULUX ® D/E, T/E, FM lamps 247 QUICKTRONIC ® PROFESSIONAL QTP-DL for CFL OSRAM DULUX L ® and F lamps 248 QUICKTRONIC ® PROFESSIONAL for compact fluorescent lamps 249 QUICKTRONIC ® QT-TE for CFL OSRAM DULUX ® T/E HE 249 DULUXTRONIC ® 250 QUICKTRONIC ® QT-FM for T2 fluorescent tubes 251 QUICKTRONIC ® ECONOMIC QT-ECO for T2 fluorescent tubes 251 QUICKTRONIC ® for OSRAM ENDURA ® 252 ECG accessories – Protective Casing OUTKIT ® 252 ECG accessories – QT Cable Clamp 252 ECG FOR HID LAMPS POWERTRONIC® OUTDOOR PTo for HID lamps 253 POWERTRONIC ® INTELLIGENT PTi S for HID lamp (without cable clamp) 254 POWERTRONIC ® INTELLIGENT PTi for HID lamps (with cable clamp) 255 POWERTRONIC ® INTELLIGENT SNAP for HID lamps (with cable clamp) 256 POWERTRONIC ® FIT PT-FIT for HID lamps 256 POWERTRONIC ® GREENHOUSE 257 EBN-OS Inrush current limiter for POWERTRONIC ® 257 ECG FOR LOW VOLTAGE HALOGEN LAMPS HALOTRONIC ® DALI ® for Low Voltage Halogen lamps 258 HALOTRONIC ® LONG (HTL) for Low Voltage Halogen lamps 258 HALOTRONIC ® HTM MOUSE ® for Low Voltage Halogen lamps 259 HALOTRONIC ® NANO for Low Voltage Halogen lamps 259 ET-PARROT ® 260 Dimming modules for HALOTRONIC ® 260
CONTENTS ECG FOR LED MODULES 10V OPTOTRONIC ® units for LED modules 261 24V OPTOTRONIC ® units for LED modules 261 350mA OPTOTRONIC ® units for LED modules 262 700mA OPTOTRONIC ® units for LED modules 262 OPTOTRONIC ® Dimmers 263 OPTOTRONIC ® Units with DALI interfaces 263 OPTOTRONIC ® for PrevaLED™ 264
Systematic quality – from a single source The multi-level system guarantee from OSRAM OSRAM introduced the System + Guarantee for lamp and ECG from a single source more than 6 years ago. The System + Guarantee is popular with system operators as it provides additional security for using modern energy-efficient systems, especially dimming systems. More than 10 million ECGs throughout the world have already been registered, ranging from industrial facilities and shopping centers to the smallest lighting systems. The System + Guarantee is in high demand among users particularly for dimming systems and high- intensity discharge lamps. OSRAM is the only ECG supplier to replace any ECG that fails as a result of a material or manufacturing defect. Guarantee Level 3 OSRAM System + Guarantee If OSRAM ECGs and light sources are used together (selected series or types), OSRAM offers a guarantee on LED modules, LUMILUX ® fluorescent lamps, HCI ® / HQI ® high-intensity dis- charge lamps and ECO low-voltage halogen lamps and a full 5-year guarantee on the electronic control gear.For the System + Guarantee the lighting system must be registered with OSRAM at www.osram.com/system-guarantee. Here you will also find further information and conditions relating to Guarantee Level 3. Guarantee Level 2 OSRAM System Guarantee If ECGs and lamps from OSRAM are used together, OSRAM offers a full 5-year guarantee on selected electronic control gear. For the System Guaranteethe lighting system must beregistered with OSRAM at www.osram.com/system-guarantee. Here you will also find further information and conditions relating to Guarantee Level 2. Guarantee Level 1 OSRAM Guarantee OSRAM offers a full 3-year guarantee on all electronic control gear.The guarantee starts when the relevant luminaire with the appropriate OSRAM ECG is first put into operation. There is no need to register. For more information on Guarantee Level 1 go to www.osram.com/system-guarantee Guarantee Level 4 OSRAM Premium Guarantee If OSRAM ECGs and light sources are used together (selected series or types), OSRAM offers a guarantee on LED modules, LUMILUX ® fluorescent lamps, HCI ® /HQI ® high-intensity dis charge lamps and ECO low-voltage halogen lamps and a full 5-year guarantee on the electronic control and operating devices. For the System + Premium Guarantee, the lighting system must be registered with OSRAM on the internet at www.osram.com/system-guarantee. Here you will also find further information and conditions relating to Guarantee Level 4. To meet market requirements and demands due to the increasing use of lighting control components OSRAM now offers in addition to a guarantee on lamps and ECGs a System + Guarantee in connection with OSRAM lighting control components. For more information go towww.osram.com/system-guarantee
238 All orders must be multiples of sales pack QUICKTRONIC ® INTELLIGENT QTi DALI ® DIM for T5 fluorescent tubes • Digital dimmable ECG for T5 HE & HO fluorescent lamps, OSRAM DULUX ® L CONSTANT, OSRAM DULUX ® T/E IN PLUS • Intelligent lamp detection and superior dimming from 1 to 100% Product EAN Product Description ID Code (Single Pack) Single QTIDALI114-24DIM 4050300870380 QTi DALI 1x14/24/220-240 DIM 20 39 QTIDALI121-39DIM 4050300870366 QTi DALI 1x21/39/220-240 DIM 20 39 QTIDALI128-54DIM 4050300870809 QTi DALI 1x28/54/220-240 DIM 20 39 QTIDALI135-80DIM 4050300870342 QTi DALI 1x35/49/80/220-240 DIM 20 39 Twin QTIDALI214-24DIM 4050300870861 QTi DALI 2x14/24/220-240 DIM 20 39 QTIDALI221-39DIM 4050300870489 QTi DALI 2x21/39220-240 DIM 20 39 QTIDALI228-54DIM 4050300870502 QTi DALI 2x28/54/220-240 DIM 20 39 QTIDALI235-49DIM 4050300870465 QTi DALI 2x35/49/220-240 DIM 20 39 QTIDALI280DIM 4050300870441 QTi DALI 2x80/220-240 DIM 20 39 Three & four lamps QTIDALI314-24DIM 4008321069955 QTi DALI 3x14/24/220-240 DIM 20 39 QTIDALI414-24DIM 4008321070036 QTi DALI 4x14/24/220-240 DIM 20 39 1) For more information go to www.osram.com/system-guarantee ELECTRONIC CONTROL GEAR ECG FOR FLUORESCENT AND/OR COMPACT FLUORESCENT LAMPS cut off 1) 238-265 ECG:Layout 1 25/11/10 09:10 Page 238
239 All orders must be multiples of sales pack Electronic Control Gear – ECG for Fluorescent and/or Compact Fluorescent Lamps cut off cut off QUICKTRONIC ® INTELLIGENT QTi DALI ® DIM for T8 fluorescent tubes • Digital dimmable ECG for T8 fluorescent lamps • Intelligent lamp detection and superior dimming from 1 to 100% Product EAN Product Description ID Code (Single Pack) Single QTIDALI118DIM 4050300870403 QTi DALI 1x18/220-240 DIM 20 39 QTIDALI136DIM 4050300870427 QTi DALI 1x36/220-240 DIM 20 39 QTIDALI158DIM 4050300870823 QTi DALI 1x58/220-240 DIM 20 39 Twin QTIDALI218DIM 4050300870526 QTi DALI 2x18/220-240 DIM 20 39 QTIDALI236DIM 4050300870885 QTi DALI 2x36/220-240 DIM 20 39 QTIDALI258DIM 4050300870847 QTi DALI 2x58/220-240 DIM 20 39 Three & four lamps QTIDALI318DIM 4008321069979 QTi DALI 3x18/220-240 DIM 20 39 QTIDALI418DIM 4008321070050 QTi DALI 4x18/220-240 DIM 20 39 1) For more information go to www.osram.com/system-guarantee QUICKTRONIC ® INTELLIGENT QTi DALI ® DIM for CFL OSRAM DULUX ® D/E,T/E • Intelligent digital dimmable ECG for OSRAM DULUX ® D/E and T/E compact fluorescent lamps • With DALI or 1-10V dimming interface Product EAN Product Description ID Code (Single Pack) Single QTIDALITE118-57DIM 4008321060808 QTi DALI-T/E 1x18-57 DIM 20 39 Twin QTIDALITE218-42DIM 4008321060822 QTi DALI-T/E 2x18-42 DIM 20 39 1) For more information go to www.osram.com/system-guarantee 1) 1) 238-265 ECG:Layout 1 25/11/10 09:10 Page 239
240 All orders must be multiples of sales pack Electronic Control Gear – ECG for Fluorescent and/or Compact Fluorescent Lamps QUICKTRONIC ® INTELLIGENT QTi DIM (1-10V) for T5 fluorescent tubes • 1…10V intelligent dimmable ECG for T5 HO and HE fluorescent lamps • Dimming range 1 to 100% Product EAN Product Description ID Code (Single Pack) Single QTI114-24DIM 4050300870922 QTi 1x14/24/220-240 DIM 20 39 QTI121-39DIM 4050300870564 QTi 1x21/39/220-240 DIM 20 39 QTI128-54DIM 4050300870588 QTi 1x28/54/220-240 DIM 20 39 QTI135-80DIM 4050300870540 QTi 1x35/49/80/220-240 DIM 20 39 Twin QTI214-24DIM 4050300870946 QTi 2x14/24/220-240 DIM 20 39 QTI221-39DIM 4050300870694 QTi 2x21/39/220-240 DIM 20 39 QTI228-54DIM 4050300870717 QTi 2x28/54/220-240 DIM 20 39 QTI235-49DIM 4050300870670 QTi 2x35/49/220-240 DIM 20 39 QTI235DIM 4050300870984 QTi 2x80/220-240 DIM 20 39 Three & four lamps QTI314-24DIM 4008321069719 QTi 3x14/24/220-240 DIM 20 39 QTI414-24DIM 4008321069993 QTi 4x14/24/220-240 DIM 20 39 1) For more information go to www.osram.com/system-guarantee U N (–)(+) QUICKTRONIC ® QT DALI ® DIM for CFL OSRAM DULUX ® T/E HE • New QT (DALI) T/E 14-17 HE for operating OSRAM DULUX ® T/E HE Lamps Product EAN Product Description ID Code (Single Pack) QTDALITE114-17DIM 4008321327383 QT DALI T/E 1x14-17 HE DIM 12 39 QTDALITE214-17DIM 4008321327406 QTP DALI T/E 2x14-17 HE DIM 12 39 cut off NEW 1) 238-265 ECG:Layout 1 25/11/10 09:10 Page 240
241 All orders must be multiples of sales pack Electronic Control Gear – ECG for Fluorescent and/or Compact Fluorescent Lamps QUICKTRONIIC ® DE LUXE HF DIM (1-10V) for T8 fluorescent tubes • 1…10V dimming ECG for T8 fluorescent lamps • Dimming range 1 to 100% (three & four lamp 3 to 100%) Product EAN Product Description ID Code (Single Pack) Single HF118DIM 4050300319254 HF 1x18/230-240 DIM 20 39 HF136DIM 4050300297705 HF 1x36/230-240 DIM 20 39 HF158DIM 4050300297729 HF 1x58/230-240 DIM 20 39 Twin HF218DIM 4050300350950 HF 2x18/230-240 DIM 20 39 HF236DIM 4050300350974 HF 2x36/230-240 DIM 20 39 HF258DIM 4050300350998 HF 2x58/230-240 DIM 20 39 1) For more information go to www.osram.com/system-guarantee QUICKTRONIC ® INTELLIGENT QTi DIM (1-10V) for T8 fluorescent tubes • 1…10V intelligent dimmable ECG for T8 fluorescent lamps • Dimming range 1 to 100% Product EAN Product Description ID Code (Single Pack) Single QTI118DIM 4050300870601 QTi 1x18/220-240 DIM 20 39 QTI136DIM 4050300870625 QTi 1x36/220-240 DIM 20 39 QTI158DIM 4050300870908 QTi 1x58/220-240 DIM 20 39 Twin QTI218DIM 4050300870960 QTi 2x18/220-240 DIM 20 39 QTI236DIM 4050300870755 QTi 2x36/220-240 DIM 20 39 QTI258DIM 4050300870731 QTi 2x58/220-240 DIM 20 39 Three & four lamps QTI318DIM 4008321069931 QTi 3x18/220-240 DIM 20 39 QTI418DIM 4008321070012 QTi 4x18/220-240 DIM 20 39 1) For more information go to www.osram.com/system-guarantee cut off 1) 1) 238-265 ECG:Layout 1 25/11/10 09:10 Page 241
242 All orders must be multiples of sales pack Electronic Control Gear – ECG for Fluorescent and/or Compact Fluorescent Lamps QUICKTRONIC ® INTELLIGENT QTi for T5 fluorescent tubes • Intelligent ECG for T5 HO and HE fluorescent lamps • Higher efficiency, shorter cases Product EAN Product Description ID Code (Single Pack) Single QTI114 4050300796871 QTi 1x14/24/21/39 20 39 QTI114GII 4008321383334 QTi 1x14/24/21/39 GII 20 39 QTI128 4050300796857 QTi 1x28/54 20 39 QTI128GII 4008321383358 QTi 1x28/54/35/49 GII 20 39 QTI135 4050300796833 QTi 1x35/49/80 20 39 QTI135GII 4008321383372 QTi 1x35/49/80 GII 20 39 Twin QTI214 4050300797090 QTi 2x14/24/21/39 20 39 QTI214GII 4008321383396 QTi 2x14/24/21/39 GII 20 39 QTI228 4050300797076 QTi 2x28/54 20 39 QTI228GII 4008321383419 QTi 2x28/54/35/49 GII 20 39 QTI235 4050300796895 QTi 2x35/49 20 39 QTI235-80 4008321174291 QTi 2x35/49/80 20 39 1) For more information go to www.osram.com/system-guarantee QUICKTRONIC ® INTELLIGENT QTi DIM (1-10V) for CFL OSRAM DULUX ® D/E, T/E • 1…10V intelligent dimmable ECG for OSRAM DULUX ® D/E and T/E compact fluorescent lamps Product EAN Product Description ID Code (Single Pack) QTITE118-57DIM 4008321060860 QTi-T/E 1x18-57/ 220-240 DIM 20 39 Twin QTITE218-42DIM 4008321060846 QTi-T/E 2x18-42 / 220-240 DIM 20 39 1) For more information go to www.osram.com/system-guarantee cut off cut off NEW NEW NEW NEW NEW 1) 1) 1) 1) 238-265 ECG:Layout 1 25/11/10 09:10 Page 242
243 All orders must be multiples of sales pack Electronic Control Gear – ECG for Fluorescent and/or Compact Fluorescent Lamps QUICKTRONIC ® PROFESSIONAL QTP5 for T5 HE fluorescent tubes • ECG for T5 HE fluorescent lamps including NEW Longlife XT HO T5 tube and DULUX ® L 28W HE lamps • New 2nd generation family offer product life of up to 100,000 hours, suitable for protectionclass I & II luminaires and are shorter in dimension Product EAN Product Description ID Code (Single Pack) Single QTP511435 4008321329035 QTP5 1x14-35 2nd generation 20 39 Twin QTP521435 4008321329073 QTP5 2x14-35 2nd generation 20 39 Triple QTP5314 4008321484598 QTP5 3x14, 4x14 20 39 1) For more information go to www.osram.com/system-guarantee QUICKTRONIC ® PROFESSIONAL for T5 HO fluorescent tubes • ECG for T5 HO fluorescent tubes and DULUX ® L 55W-80W • New 2nd generation family offer product life of up to 100,000 hours, suitable for protectionclass I & II luminaires and are shorter in dimension Product EAN Product Description ID Code (Single Pack) Single QTP512439 4008321329110 QTP5 1x24-39 2nd generation 20 39 QTP5149 4008321329370 QTP5 1x49 2nd generation 20 39 QTP5154 4008321329394 QTP5 1x54 2nd generation 20 39 QTP5180 4008321329059 QTP5 1x80 2nd generation 20 39 Twin QTP522439 4008321329417 QTP5 2 X24-39 2nd generation 20 39 QTP5249 4008321329431 QTP5 2x49 2nd generation 20 39 QTP5254 4008321329097 QTP5 2x54 2nd generation 20 39 QTFQ280CW 4050300825564 QTP5 2x80 2nd generation 20 39 1) For more information go to www.osram.com/system-guarantee cut off cut off NEW NEW NEW 1) 1) 238-265 ECG:Layout 1 25/11/10 09:10 Page 243
244 All orders must be multiples of sales pack Electronic Control Gear – ECG for Fluorescent and/or Compact Fluorescent Lamps QUICKTRONIC ® QT for T5 circular fluorescent tubes • ECG for T5 circular fluorescent lamps Product EAN Product Description ID Code (Single Pack) Single QTM126-42SE 4050300817699 QT-M 1x26-42/220-240 SE OUTDOOR USE MULTIWATT 1 20 39 QTFC155 4050300526096 QT-FC 1x55/230-240 2 20 39 Twin QTM226-32 4050300624969 QT-M 2x26-32/230-240 MULTIWATT 3 20 39 QTM226-42 4008321110022 QT-M 2x26-42/220-240 MULTIWATT 3 20 39 1) For more information go to www.osram.com/system-guarantee cut off 1 2 3 QUICKTRONIC ® PROFESSIONAL for T5 FC and DL lamps • Suitable for 1xFC 55 and 1xDL 55W lamps • K2 case (103 x 67 x 31 mm) • Suitable for optional K2 cable clamp for independent installation • 50,000 hours lifetime Product EAN Product Description ID Code (Single Pack) QTPFC155 4008321537041 QTP-FC - 1x FC 55 and 1x DL 55 20 39 1) For more information go to www.osram.com/system-guarantee In preparation at time of print. For further information please contact OSRAM cut off 1 2 3 1) 1) NEW 238-265 ECG:Layout 1 25/11/10 09:10 Page 244
245 All orders must be multiples of sales pack Electronic Control Gear – ECG for Fluorescent and/or Compact Fluorescent Lamps QUICKTRONIC ® PROFESSIONAL QTP8 for T8 fluorescent tubes • ECG for T8 fluorescent lamps including the new OSRAM LUMILUX ® XXT tube Product EAN Product Description ID Code (Single Pack) Single QTP8118 4008321131584 QTP8 1x18/230-240 20 39 QTP8136 4008321131621 QTP8 1x36/230-240 20 39 QTP8158 4008321131669 QTP8 1x58/230-240 20 39 Twin QTP8218 4008321131607 QTP8 2x18/230-240 20 39 QTP8236 4008321131645 QTP8 2x36/230-240 20 39 QTP8258 4008321131683 QTP8 2x58/230-240 20 39 Three & four lamps QTP8318 4008321131706 QTP8 3x18, 4x18/230-240 20 39 1) For more information go to www.osram.com/system-guarantee 1) 238-265 ECG:Layout 1 25/11/10 09:10 Page 245
246 All orders must be multiples of sales pack Electronic Control Gear – ECG for Fluorescent and/or Compact Fluorescent Lamps QUICKTRONIC ® FIT QT-FIT8 for T8 fluorescent tubes • T8 standard pre-heat ECG for T8 fluorescent tubes • Up to 25% energy saving and 80% higher lamp life compared to magnetic ballast • Automatic shutdown at lamp failure and automatic restart after lamp replacement • High energy efficiency (EEI=A2) • Long ECG lifetime (50,000 hours) suitable for use with motion sensors Product EAN Product Description ID Code (Single Pack) Single QTFIT8118 4008321294180 QT-FIT8 1X18 20 39 QTFIT8136 4008321294203 QT-FIT8 1X36 20 39 QTFIT8158 4008321294227 QT-FIT8 1X58-70 20 39 Twin QTFIT8218 4008321294241 QT-FIT8 2X18 20 39 QTFIT8236 4008321294265 QT-FIT8 2X36 20 39 QTFIT8258 4008321294289 QT-FIT8 2X58-70 20 39 Three & four lamps QTFIT8318 4008321294302 QT-FIT8 3X, 4X18 20 39 QTFIT8336 4008321512055 QT-FIT8 3X36 20 39 1) For more information go to www.osram.com/system-guarantee NEW cut off 1) 238-265 ECG:Layout 1 25/11/10 09:10 Page 246
247 All orders must be multiples of sales pack Electronic Control Gear – ECG for Fluorescent and/or Compact Fluorescent Lamps QUICKTRONIC ® INSTANT START ECONOMIC QTIS E for T8 fluorescent tubes • Economical ECG for T8 fluorescent lamps Product EAN Product Description ID Code (Single Pack) Single QTISE118 4050300775388 QTIS e 1x18/220-240 20 39 QTISE136 4050300940649 QTIS e 1x36/220-240 20 39 QTISE158 4050300940625 QTIS e 1x58/220-240 20 39 Twin QTISE218 4050300775401 QTIS e 2x18/220-240 20 39 QTISE236 4050300940663 QTIS e 2x36/220-240 20 39 QTISE258 4050300940618 QTIS e 2x58/220-240 20 39 Three & four lamps QTISE418 4050300940670 QTIS e 3x18, 4x18/220-240 20 39 QTISE336CW 4008321104687 QTIS e 3x36/220-240 20 39 Will be replaced by QT-FIT8. Please refer to page 246 for further information1) For more information go to www.osram.com/system-guarantee 1) 238-265 ECG:Layout 1 25/11/10 09:10 Page 247
248 All orders must be multiples of sales pack Electronic Control Gear – ECG for Fluorescent and/or Compact Fluorescent Lamps QUICKTRONIC ® ECO QT-ECO for CFL OSRAM DULUX ® D/E, T/E, FM lamps • ECG with typical dimensions of CCG • Suitable for compact fluorescent lamps Product EAN Product Description ID Code (Single Pack) Single QTECO14-16 4050300638584 QT-ECO 1x4-16/220-240 S square 20 39 QTECO14-16L 4050300660370 QT-ECO 1x4-16/220-240 L long 20 39 QTECO118-21 4050300794907 QT-ECO 1x18-21/220-240 S square 20 39 QTECO118-24 4050300638560 QT-ECO 1x18-24/220-240 S square 20 39 QTECO118-24L 4050300660417 QT-ECO 1x18-24/220-240 L long 20 39 QTECO126 4008321065971 QT-ECO 1x26/220-240 S square 20 39 Twin QTECO25-11 4050300821504 QT-ECO 2x5-11/220-240 S square 20 39 QTECOTE218 4050300803982 QT-ECO/T/E 2x18/220-240 S square 20 39 QTECOTE226 4050300804002 QT-ECO T/E 2x26/220-240 S square 20 39 1) For more information go to www.osram.com/system-guarantee 1) 238-265 ECG:Layout 1 25/11/10 09:10 Page 248
249 All orders must be multiples of sales pack Electronic Control Gear – ECG for Fluorescent and/or Compact Fluorescent Lamps QUICKTRONIC ® PROFESSIONAL QTP-DL for CFL OSRAM DULUX ® L and F lamps • ECG for OSRAM DULUX ® L and F compact fluorescent lamps • 2nd generation version with shorter cases Product EAN Product Description ID Code (Single Pack) Single QTPDL11824 4008321117861 QTP-DL 1x18-24/220-240 1 20 39 QTPDL13640 4008321117908 QTP-DL 1x36-40/220-240 1 20 39 QTPDL155 4008321117946 QTP-DL 1x55/220-240 1 20 39 QTPDL155GII 4008321390158 QTP-DL 1x55/220-240 GII (2nd Generation) 1 20 39 Twin QTPDL21824 4008321117885 QTP-DL 2x18-24/220-240 2 20 39 QTPDL23640 4008321117922 QTP-DL 2x36-40/220-240 2 20 39 QTPDL255 4008321117960 QTP-DL 2x55/220-240 2 20 39 QTPDL255GII 4008321390172 QTP-DL 2x55/220-240 GII (2nd Generation) 2 20 39 1) For more information go to www.osram.com/system-guarantee 1 2 3 4 5 6 QTP-DL 1x... 7 21 22 23 24 25 26 27 ~ 220... 240 V L 1 2 3 4 5 6 QTP-DL 2x... 7 21 22 23 24 25 26 27 L ~ 220... 240 V L 8 9 10 28 29 30 1 2 NEW NEW 1) 238-265 ECG:Layout 1 25/11/10 09:10 Page 249
250 All orders must be multiples of sales pack Electronic Control Gear – ECG for Fluorescent and/or Compact Fluorescent Lamps QUICKTRONIC ® PROFESSIONAL for Compact Fluorescent lamps • ECG for 4-pin compact fluorescent lamps • Suitable for OSRAM DULUX ® D/E and T/E lamps • New QTP Multiwatt version suitable for OSRAM DULUX ® D/E, T/E, DL, DF and LUMILUX ® FC, HO & T8 lamps Product EAN Product Description ID Code (Single Pack) Single QTPDE110 4008321181572 QTP-D/E 1x10-13/220-240 20 39 QTPTE118 4008321181701 QTP-T/E 1x18-13/220-240 20 39 QTM126-42SE 4050300817699 QT-M 1x26-42/220-240 SE OUTDOOR USE MULTIWATT 20 39 QTPM126-42 4008321329134 QTP-M 1x 26-42/220-240 20 39 Twin QTPDE21013 4008321181596 QTP-D/E 2x10-13/220-240 20 39 QTPTE218 4008321181619 QTP-T/E 2x18/220-240 20 39 QTM226-32 4050300624969 QT-M 2x26-32/230-240 MULTIWATT 20 39 QTM226-42 4008321110022 QT-M 2x26-42/220-240 MULTIWATT 20 39 QTPM226-32 4008321329158 QTP-M 2x 26-32/220-240 20 39 1) For more information go to www.osram.com/system-guarantee cut off QUICKTRONIC ® QT-TE and QT-T/E HE for CFL OSRAM DULUX ® T/E and T/E HE QTTE114-17 4008321327345 QT-T/E 1x14-17 HE 12 39 QTTE214-17 4008321327369 QT-T/E 2x14-17 HE 12 39 QTPTE1218 4008321537065 QTP-T/E 1x18, 2x18 20 39 QTPTE1226 4008321537089 QTP-T/E 1x26-42, 2x26 20 39 NEW NEW NEW NEW 1) 238-265 ECG:Layout 1 25/11/10 09:10 Page 250
251 All orders must be multiples of sales pack Electronic Control Gear – ECG for Fluorescent and/or Compact Fluorescent Lamps DULUXTRONIC ® • ECG with integral lampholder for pin base compact fluorescent • Suitable for OSRAM DULUX ® S/E, D/E and T/E Product EAN Product Description ID Code (Single Pack) S version DTSE511S 4008321181459 DT-S/E 5-11/230-240 S 1 20 39 C version DTDE1013C 4008321181510 2 20 39 DTTE18C 4050300421384 DT-T/E 18/230-240 C 2 20 39 P version DTDE1013P 4008321181534 DT-D/E 10-13/230-240 P 3 20 39 DTTE18P 4050300421421 DT-T/E 18/230-240 P 3 20 39 L version DTSE511L 4008321181473 DT-S/E 5-11/230-240 L 4 20 39 DTDE1013L 4008321181497 DT-D/E 10-13/230-240 L 5 20 39 DTTE18L 4050300406404 DT-T/E 18/230-240 L 5 20 39 1 2 3 4 5 238-265 ECG:Layout 1 25/11/10 09:10 Page 251
252 All orders must be multiples of sales pack Electronic Control Gear – ECG for Fluorescent and/or Compact Fluorescent Lamps QUICKTRONIC ® QT-FM for T2 fluorescent tubes • ECG for FM T2 miniature fluorescent lamps Product EAN Product Description ID Code (Single Pack) With housing QTFM16 4050300511139 QT-FM 1x6/230-240 L 1 20 39 QTFM18 4050300511153 QT-FM 1x8/230-240 L 1 20 39 QTFM111 4050300511177 QT-FM 1x11/230-240 L 1 20 39 QTFM113 4050300511191 QT-FM 1x13/230-240 L 1 20 39 Without housing QTFM18LB 4050300363523 QT-FM 1x8/230-240 LB 2 20 39 QTFM111LB 4050300363547 QT-FM 1x11/230-240 LB 2 20 39 QTFM113LB 4050300363561 QT-FM 1x13/230-240 LB 2 20 39 1) For more information go to www.osram.com/system-guarantee 1 2 QUICKTRONIC ® ECONOMIC QT-ECO for T2 fluorescent tubes • ECG for FM T2 miniature fluorescent lamps Product EAN Product Description ID Code (Single Pack) QTECOFM16-8 4050300797502 QT-ECO FM 1x6-8/220-240 50 39 QTECOFM111-13 4050300799780 QT-ECO FM 1x11-13/220-240 20 39 1) For more information go to www.osram.com/system-guarantee 1) 1) 238-265 ECG:Layout 1 25/11/10 09:10 Page 252
253 All orders must be multiples of sales pack Electronic Control Gear – ECG for Fluorescent and/or Compact Fluorescent Lamps QUICKTRONIC ® for OSRAM ENDURA ® • Electronic control gear for OSRAM ENDURA ® lamp Product EAN Product Description ID Code (Single Pack) QTENDURA70 4050300804668 QT ENDURA 70-100/120-240 S 1 39 QTENDURA100SUK 4050300662589 QT ENDURA 100-150/120-240 S 1 39 1) For more information go to www.osram.com/system-guarantee 1) ECG accessories – Protective Casing OUTKIT ® • IP67 rated ECG housing Product EAN Product Description ID Code (Single Pack) OUTKIT30S 4008321159533 Short – for ECG dimensions 360 x 30 x 30mm 20 39 OUTKIT21S 4008321159571 Short – for ECG dimensions 360 x 30 x 21mm 20 39 OUTKIT30L 4008321159557 Long – for ECG dimensions 423 x 30 x 30mm 20 39 OUTKIT21L 4008321159595 Long – for ECG dimensions 423 x 30 x 21mm 20 39 ECG accessories – QT Cable Clamp Product EAN Product Description ID Code (Single Pack) – 4008321907727 QT CABLE CLAMP K2 10 39 QTCABLECLAMPK3 4008321190741 QT CABLE CLAMP K3 10 39 In preparation at time of print. For further information please contact OSRAM NEW 238-265 ECG:Layout 1 25/11/10 09:10 Page 253
254 All orders must be multiples of sales pack POWERTRONIC ® OUTDOOR PTo for HID lamps • ECG for metal halide lamps • New PTo DALI intelligent version for street and outdoor lighting • PTo 3DIM has 3 dim options1) DALI control – continual dimming range between 60% and 100% lamp output 2) Step DIM – Two step switching 3) Astro DIM – Two step dimming with an integrated timer control • Complies with new EMI Standards acc to EN 55015 Product EAN Product Description ID Code (Single Pack) PTO35 4008321956323 PTo 35/220-240 20 39 PTO50DIM3 4008321956347 PTo 50/220-240 3 DIM 20 39 PTO70DIM3 4008321959355 PTo 70/220-240 3 DIM 20 39 – 4008321956361 PTo 100/220-240 3 DIM 20 39 – 4008321956385 PTo 150/220-240 3 DIM 20 39 1) For more information go to www.osram.com/system-guarantee In preparation at time of print. For further information please contact OSRAM NEW NEW NEW NEW NEW 1) ELECTRONIC CONTROL GEAR ECG FOR HID LAMPS 238-265 ECG:Layout 1 25/11/10 09:10 Page 254
255 All orders must be multiples of sales pack POWERTRONIC ® INTELLIGENT PTi S for HID lamp (without cable clamp) • New intelligent versions (PTi) available for single and twin lamps • PCB version for 20W HID high systems • Compact dimensions and light designed for small luminaire designs • Excellent thermal behaviour for very high limit tempertures • Without cable clamp Product EAN Product Description ID Code (Single Pack) Single PTI205 4008321353290 PTi 20/220-240 S without cable clamp 1 20 39 PTI20B 4008321391490 PTi 20/220-240 B (PCB) – 20 39 PTI35SMINI 4008321955906 PTi 35/220-240 S Mini – 20 39 PTI35BMINI 4008321955913 PTi 35/220-240 B Mini – 20 39 PTI35S 4008321073112 PTi 35/220-240 S without cable clamp 2 20 39 PTI2355 4008321372642 PTi 2x35/220-240 S without cable clamp 2 20 39 PTI70S 4008321049629 PTi 70/220-240 S without cable clamp 2 20 39 PTI100S 4008321926630 PTi 100/220-240 S without cable clamp 2 20 39 PTI150S 4008321188090 PTi 150/220-240 S without cable clamp 2 20 39 Twin PTI270S 4008321910028 PTi 2x70/220-240 S without cable clamp 2 20 39 1) For more information go to www.osram.com/system-guarantee 1 2 NEW NEW NEW NEW 1) Electronic Control Gear – ECG for HID Lamps 238-265 ECG:Layout 1 25/11/10 09:10 Page 255
256 All orders must be multiples of sales pack Electronic Control Gear – ECG for HID Lamps POWERTRONIC ® INTELLIGENT PTi for HID lamps (with cable clamp) • New intelligent versions (PTi) available for single and twin lamps • Extended terminal section enables mains looping • Screw down cable clamps for reliable strain relief • Screwless plug in terminals for rapid and accurate cabling Product EAN Product Description ID Code (Single Pack) Single PTI20I 4008321404763 PTi 20/220-240 I 1 20 39 PTI35I 4008321099488 PTi 35/220-240 I with cable clamp 2 20 39 PTI70I 4008321099501 PTi 70/220-240 I with cable clamp 2 20 39 PTI100I 4008321926654 PTi 100/220-240 I with cable clamp 2 20 39 PTI150I 4008321915535 PTi 150/220-240 I with cable clamp 2 20 39 Twin PTI270I 4008321910042 PTi 2x70/220-240 I with cable clamp 2 20 39 PTI35IP 4008321290458 PTi 35/220-240 I ST 18 cap with cable clamp and prewired cable 2 20 39 PTI70IP 4008321290472 PTi 70/220-240 I ST 18 cap with cable clamp and prewired cable 2 20 39 PTODALI70DIM 4008321940612 PTo DALI 70 20/220-240 DIM 2 20 39 PTI150IP 4008321318152 PTi 150/220-240 I ST 18 cap with cable clamp and prewired cable 2 20 39 PTI35IP 4008321543462 PTi 35/220-240 I GST 18 cap with cable clamp and prewired cable 2 20 39 PTI70IP 4008321543943 PTi 70/220-240 I GST 18 cap with cable clamp and prewired cable 2 20 39 Twin lamp PTI235S 4008321122247 PTi 2x35/220-240 I with cable clamp 2 20 39 1) For more information go to www.osram.com/system-guarantee 1 2 NEW NEW NEW NEW 1) 238-265 ECG:Layout 1 25/11/10 09:10 Page 256
257 All orders must be multiples of sales pack Electronic Control Gear – ECG for HID Lamps POWERTRONIC ® INTELLIGENT SNAP for HID lamps (with cable clamp) • ECG with integrated socket for easy installation • For all 35W and 70W HID lamps (HQI ® and HCI ® ) • Luminaire side equipped with ST 18 universal female plug • Mains side equipped with GST 18 plug • 40,000 hours ECG lifetime Product EAN Product Description ID Code (Single Pack) PTI35SNAP 4008321955920 PTi 35/220 - 240 SNAP 20 39 PTI70SNAP 4008321955937 PTi 70/220 - 240 SNAP 20 39 1) For more information go to www.osram.com/system-guarantee POWERTRONIC ® FIT PT-FIT for HID lamps • ECG suitable for standard track and spot lightning fixtures Product EAN Product Description ID Code (Single Pack) Without Cable Clamp PTFIT35S 4008321386625 PT-FIT 35/220-240 S 1 20 39 PTFIT35 4008321498731 PT-FIT 35/220-240 B 1 20 39 PTFIT70S 4008321386649 PT-FIT 70/ 220-240 S 1 20 39 PTFIT70 4008321498717 PT-FIT 70/ 220-240 B 1 20 39 With Cable Clamp PTFIT35I 4008321377661 PT-FIT 35/220-240 I 2 20 39 PTFIT70I 4008321377685 PT-FIT 70/ 220-240 I 2 20 39 1) For more information go to www.osram.com/system-guarantee NEW NEW NEW NEW NEW NEW NEW NEW 1 2 1) 1) 238-265 ECG:Layout 1 25/11/10 09:10 Page 257
258 All orders must be multiples of sales pack Electronic Control Gear – ECG for HID Lamps EBN-OS Inrush current limiter for POWERTRONIC ® • Inrush limiter for PTi and QTi installations • Enables refurbishment of CCG installations without changing electrical infrastructure • Ideal for all POWERTRONIC ® ECG Product EAN Product Description ID Code (Single Pack) EBNOS 4006584548019 EBN-OS 100 39 POWERTRONIC ® GREENHOUSE • PTg – ECG for greenhouse lighting • Ideal in systems with PLANTASTAR® Product EAN Product Description ID Code (Single Pack) PTG1000 4008321956408 PTg 100/400 1 39 NEW 238-265 ECG:Layout 1 25/11/10 09:10 Page 258
259 All orders must be multiples of sales pack HALOTRONIC ® LONG (HTL) for Low Voltage Halogen lamps • Low voltage electronic transformers • Long casing L 140mm x H 34mm x D 44mm • Fully dimmable with trailing and leading edge phase dimmer • Suitable for 12V halogen lamps Product EAN Product Description ID Code (Single Pack) HTL105 4008321927019 HTL 105/230-240 10 39 HTL225 4008321927026 HTL 225/230-240 10 39 1) For more information go to www.osram.com/system-guarantee HALOTRONIC ® DALI ® for Low Voltage Halogen lamps • Low voltage electronic transformers • Long casing L 140mm x H 34mm x D 44mm • Fully controllable with DALI ® or Touch DIM/ Touch DIM Sensor • Suitable for 12V halogen lamps Product EAN Product Description ID Code (Single Pack) HTI105DALI 4008321420633 HTi DALI 105/220-240 DIM 10 39 Dimmer module for controlling HALOTRONIC ® DALI HTIDALI150DIM 4050300807782 HTi DALI 150/220-240 DIM 10 39 HTIDALI315DIM 4008321957344 HTi DALI 315 DIM dimming module for controlling HTIDALI 10 39 1) For more information go to www.osram.com/system-guarantee NEW NEW NEW 1) 1) ELECTRONIC CONTROL GEAR ECG FOR LOW VOLTAGE HALOGEN LAMPS 238-265 ECG:Layout 1 25/11/10 09:10 Page 259
260 All orders must be multiples of sales pack Electronic Control Gear – ECG for Low Voltage Halogen Lamps HALOTRONIC ® HTM MOUSE ® for Low Voltage Halogen lamps • Low voltage compact electronic transformers • Fully dimmable with trailing and leading edge phase dimmer • Suitable for 12V halogen lamps Product EAN Product Description ID Code (Single Pack) With housing HTM70 4050300442310 HTM 70/230-240 1 20 39 HTM105 4050300442334 HTM 105/230-240 1 20 39 HTM150 4050300581415 HTM 150/230-240 2 10 39 1) For more information go to www.osram.com/system-guarantee 1 2 HALOTRONIC ® NANO for Low Voltage Halogen lamps • Low voltage electronic transformers • Extremely compact • Fully dimmable (trailing edge) • Ideal partner for MINISTAR ® low voltage lamps Product EAN Product Description ID Code (Single Pack) HTN75I 4008321073037 HTN 75/230-240 I 20 39 HTN75S 4008321909329 HTN 75/230-240 S 20 39 1) For more information go to www.osram.com/system-guarantee 1) 1) 238-265 ECG:Layout 1 25/11/10 09:10 Page 260
261 All orders must be multiples of sales pack Electronic Control Gear – ECG for Low Voltage Halogen Lamps Dimming modules for HALOTRONIC ® • For controlling HALOTRONIC® LVTH transformers Product EAN Product Description ID Code (Single Pack) HT110DIM 4050300451350 HT 1-10 DIM for controlling HALOTRONIC in 1…10V dimming systems 10 39 L N 1V ...10V DC N ~ HT 1-10 DIM ET-PARROT ® • Low voltage compact electronic transformers • Fully dimmable with trailing and leading edge phase dimmer • Suitable for 12V halogen lamps Product EAN Product Description ID Code (Single Pack) ET70 4008321111593 ET-PARROT 70/220-240 I 50 39 ET105 4008321111579 ET-PARROT 105/220-240 I 50 39 238-265 ECG:Layout 1 25/11/10 09:10 Page 261
262 All orders must be multiples of sales pack ELECTRONIC CONTROL GEAR ECG FOR LED MODULES 10V OPTOTRONIC ® units for LED modules • Electronic control gear for 10V LED modules • Ideal for obtaining the optimum performance from LED modules Product EAN Product Description ID Code (Single Pack) OT6/240CE 4008321113306 OT 6/200-240/10V CE 1 20 38 OT12LE 4008321174253 OT 12/200-240/10V LE 2 20 38 OT15 4008321391544 OT 15/220-240/10 3 20 38 OT50 4050300817491 OT 50/220-240/10V 4 10 38 OT50E 4008321362452 OT 50/220-240/10V E 5 10 38 1) For more information go to www.osram.com/system-guarantee 24V OPTOTRONIC ® units for LED modules • Electronic control gear for 24V LED modules • Ideal for obtaining the optimum performance from LED modules Product EAN Product Description ID Code (Single Pack) OT6/240/24CE 4008321113269 OT 6/200-240/24V CE 1 20 38 OT6/120/24CE 4008321129130 OT 6/100-120/24V CE – 20 38 OT08 4008321040169 OT 8/200-240/24V 5 50 38 OT20S 4050300662626 OT 20/120-240/24V S 2 10 38 OT20 4050300618111 OT 20/230-240/24V 4 30 38 OTEASY60 4008321187796 OT EASY 60/220-240/24 RGB – 10 38 OT75 4050300817477 OT 75/220-240/24V 3 10 38 OT7SE 4008321362476 OT 75/220-240/24V E 6 10 38 1) For more information go to www.osram.com/system-guarantee l 1 1 2 3 4 5 l 1 1 2 4 3 5 6 NEW 1) 1) 238-265 ECG:Layout 1 25/11/10 09:10 Page 262
263 All orders must be multiples of sales pack 350mA OPTOTRONIC ® units for LED modules • Electronic control gear for 350mA LED modules • Ideal for obtaining the optimum performance from LED modules Product EAN Product Description ID Code (Single Pack) OT091024350DIM 4050300888897 OT 9/10-24/350mA DIM 1 50 38 OT9/120 4050300888835 OT 9/100-120/350mA E 1 50 38 OT9/350 4050300888262 OT 9/200-240/350mA 1 50 38 OT09350DIM 4008321187321 OT 9/200-240/350mA DIM 2 20 38 OT42 4008321421678 OT 42/220-240/350 E 3 20 38 1) For more information go to www.osram.com/system-guarantee 1 2 3 700mA OPTOTRONIC ® units for LED modules • Electronic control gear for 700mA LED modules • Ideal for obtaining the optimum performance from LED modules Product EAN Product Description ID Code (Single Pack) OT18DIM 4008321139320 OT 18/200-240/700mA DIM 1 20 38 OT35 4008321169365 OT 35/200-240/700mA 2 24 38 1) For more information go to www.osram.com/system-guarantee 1 2 NEW 1) 1) Electronic Control Gear – ECG for LED Modules 238-265 ECG:Layout 1 25/11/10 09:10 Page 263
264 All orders must be multiples of sales pack Electronic Control Gear – ECG for LED Modules OPTOTRONIC ® Dimmers • Connect to secondary side of power supplies for dimming • Dynamic control of LED • Opens up new applications for LEDs Product EAN Product Description ID Code (Single Pack) OTDIM 4050300943459 OT DIM 1…10V (10V & 24V modules) 1 20 38 OTRGBDIM 4050300793108 OT RGB 3-Channel DIM (10V & 24V modules) 1 20 38 OTRGB 4050300792460 OT RGB Sequencer (10V & 24V modules) 1 20 38 OTDMXRGB1024DIM 4008321160829 OT RGB DMX DIM 1 20 38 OTDMX3X1RGMDIM 4008321279835 OT RGB DMX DIM 3 X 1 2 10 38 1) For more information go to www.osram.com/system-guarantee 2 1 OPTOTRONIC ® Units with DALI interfaces • DALI control via DALI Interface • Integrated Touch DIM function for QTi DALI 75 and QTi DALI DIM • 3 DIM version ideal for STREETlight Advance and STREETlight Protect modules Product EAN Product Description ID Code (Single Pack) OTDALI75 4008321371560 OTi DALI 75/220-240/24V 1-4 – 10 38 OTIDALIDIM 4008321061195 OTi DALI DIM (10V & 24V modules) 1 20 38 OT65243DIM 4008321964403 OT 65 220-240/24 3 DIM E – 20 38 OTDALI25 4050300829463 OT DALI 25/220-240/24 RGB (24V modules) 2 20 38 1) For more information go to www.osram.com/system-guarantee 1 2 NEW NEW 1) 1) 238-265 ECG:Layout 1 25/11/10 09:11 Page 264
265 All orders must be multiples of sales pack Electronic Control Gear – ECG for LED Modules NEW NEW NEW NEW NEW NEW NEW NEW OPTOTRONIC ® for PrevaLED™ • Electronic control gear for PrevaLED™ LED modules and accessories Product EAN Product Description ID Code (Single Pack) OTP45HD 4008321966117 OTp 45/220-240/700 HD 1 38 OTP35HD 4008321963413 OTp DALI 35/220-240/700 HD 1 38 OTP35HD 4008321963420 OTp 35/220-240/700 HD 1 38 OTP35 4008321962218 OTp 35/220-240/700 1 38 OTP15HD 4008321962225 OTp 15/220-240/700 HD 1 38 OTPCABLE 4008321966131 Cable, 40 cm 1 38 OTPCABLE80 4008321590565 Cable, 80 cm 1 38 OTPCABLECLAMP 4008321966155 Cable clamp for OTp 45, OTp DALI, OTp 35 1 38 1) For more information go to www.osram.com/system-guarantee 1) 238-265 ECG:Layout 1 25/11/10 09:11 Page 265
