OSRAM - Installation instructions for linear LED modules

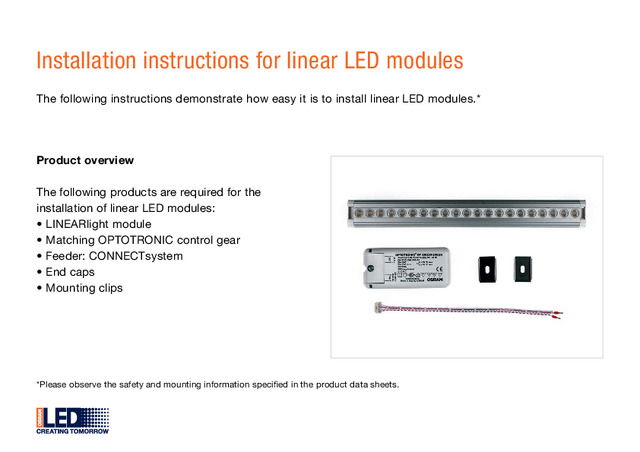

Installation instructions for linear LED modules Product overview The following products are required for the installation of linear LED modules: • LINEARlight module • Matching OPTOTRONIC control gear• Feeder: CONNECTsystem• End caps• Mounting clips The following instructions demonstrate how easy it is to install linear LED modules. Please observe the safety and mounting information specified in the product data sheets.
Installation instructions for linear LED modules Product overview The following products are required for the installation of linear LED modules: • LINEARlight module • Matching OPTOTRONIC control gear• Feeder: CONNECTsystem• End caps• Mounting clips The following instructions demonstrate how easy it is to install linear LED modules. Please observe the safety and mounting information specified in the product data sheets.
Installation instructions for linear LED modules Instructions 1. Connect the feeder with the module. Attention: The cable on the connector at the end of the feeder has to point upward.
Installation instructions for linear LED modules Instructions 1. Connect the feeder with the module. Attention: The cable on the connector at the end of the feeder has to point upward.
Installation instructions for linear LED modules Instructions 2. Attach the optional end cap (accessory) to get the strain relief function.
Installation instructions for linear LED modules Instructions 2. Attach the optional end cap (accessory) to get the strain relief function.
Installation instructions for linear LED modules Instructions 3. Open the cap of the control gear.
Installation instructions for linear LED modules Instructions 3. Open the cap of the control gear.
Installation instructions for linear LED modules Instructions 4. Connect the power supply cables (observe correct polarity) and close the cap.
Installation instructions for linear LED modules Instructions 4. Connect the power supply cables (observe correct polarity) and close the cap.
Installation instructions for linear LED modules Instructions 5. Completed system with mounting clips for easy installation on walls or ceilings.
Installation instructions for linear LED modules Instructions 5. Completed system with mounting clips for easy installation on walls or ceilings.
