MT Supertube LS0H Conduit
Marshall Tufflex

MT Supertube LS0H Conduit

MT Supertube is a strong, robust, lightweight, LS0H, three layer heavy gauge conduit which is pliable by hand.

MT Supertube is a unique, LS0H, 3-layer heavy gauge conduit comprising polyethylene internal and external layers over a continuous aluminium tube that provides additional mechanical strength. MT Supertube has excellent EMI screening performance and is a practical and cost-saving alternative to standard galvanised conduits.

  • Ø20mm and Ø25mm
  • LS0H conduit
  • Excellent screening performance
  • Suitable for rail, marine and tunnel applications
  • ZERO WASTE: available in coils of up to 100 metres, meaning fewer fittings per installation
  • Longer lengths also prevent ingress of water
  • Extra security from data interference
  • Suitable for in-screed applications
  • Withstands temperatures from –45ºC to +120ºC
  • Nail penetration: MT Supertube complies with requirements
    of the current version of BS 7671, BS EN 61386-1:2008

Marshall Tufflex

MT Supertube LS0H Conduit

Published: 13 July 2023 · Category: Product Catalogues & Brochures

MT Supertube is a strong, robust, lightweight, LS0H, three layer heavy gauge conduit which is pliable by hand.

MT Supertube is a unique, LS0H, 3-layer heavy gauge conduit comprising polyethylene internal and external layers over a continuous aluminium tube that provides additional mechanical strength. MT Supertube has excellent EMI screening performance and is a practical and cost-saving alternative to standard galvanised conduits.

  • Ø20mm and Ø25mm
  • LS0H conduit
  • Excellent screening performance
  • Suitable for rail, marine and tunnel applications
  • ZERO WASTE: available in coils of up to 100 metres, meaning fewer fittings per installation
  • Longer lengths also prevent ingress of water
  • Extra security from data interference
  • Suitable for in-screed applications
  • Withstands temperatures from –45ºC to +120ºC
  • Nail penetration: MT Supertube complies with requirements
    of the current version of BS 7671, BS EN 61386-1:2008

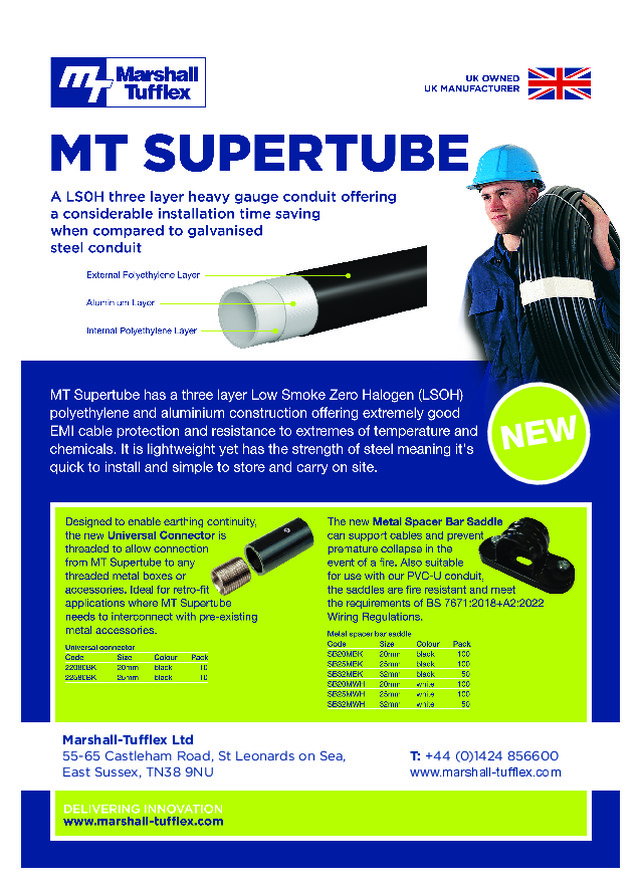

From this document

NEW Marshall-Tufflex Ltd 55-65 Castleham Road, St Leonards on Sea, East Sussex, TN38 9NU T: +44 (0)1424 856600 www.marshall-tufflex.com MT Supertube • Ø20mm and Ø25mm • Excellent screening performance • Suitable for rail, marine and tunnel applications • ZERO WASTE: available in coils of up to 100 metres, meaning fewer fittings per installation • Longer lengths also prevent ingress of water • Extra security from data interference • Suitable for in-screed applications • Withstands temperatures from –45ºC to +120ºC • Nail penetration: MT Supertube complies with requirements of the current version of BS 7671, BS EN 61386-1:2008 Contractor cost & labour saving example (based on contractor purchase price) Costs calculated on using 100m of 20mm conduit with 8 off 90° bends and estimated manpower costs of £45 per hour. Galvanised steel Material cost @ £7.26 per metre + fittings = £738.40 Labour @ 30 mins per metre = 2 metres per hour 50 hours @ £45.00 = £2250.00 Galvanised steel overall costs = £2988.40 MT Supertube Material cost @ £4.97 per metre + fittings = £526.76 Labour @ 10 mins per metre = 6 metres per hour 16.67 hours @ £45.00 = £750.15 MT Supertube overall costs = £1276.91 The savings on this job amount to £1711.49 MT Supertube is 57.27% cheaper than galvanised steel It is also possible to reduce overall project costs by using MT Supertube as it can be bent into position by hand therefore reducing the need for as many fittings. Marshall-Tufflex Ltd 55-65 Castleham Road,...

Open the PDF
