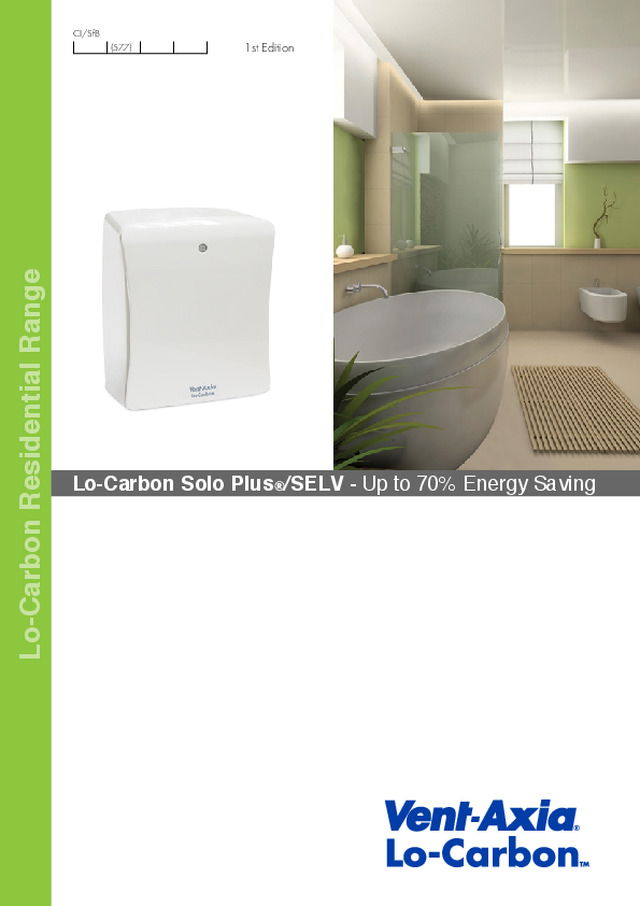

Lo-Carbon Solo Plus Brochure

2    T:    0844 856 0590 Features & Benefits •  Up to 70% energy saving•  Filter less as standard - innovative impeller  design means no need for a filter •  Integral Lo-Carbon power supply•  Meets current Building Regulations Approved  Documents F & L •  IPX4 rated - IPX7 rated (SELV)•  Flush or surface mountable•  Adjustable rear or side exit spigot•  Lo-Carbon Solo Plus SELV is suitable for  installation over or within reach of a shower or bath  •  Extremely low sound levels•  5 Year Motor Guarantee •  Suitable for wall, ceiling and panel mounting•  SELV Models - Supplied with a remote  transformer Long Life Ventilation The Lo-Carbon Solo Plus range from Vent-Axia has been specially designed for through the wall and ducted applications, suitable for internal bathrooms, toilets and other small rooms. Finished in white, the Lo-Carbon Solo Plus can be flush or surface mounted, with a 2 position 100mm circular spigot for rear entry or connecting to a vertical ducting system. The powerful centrifugal impeller allows installations using 100mm ducting in straight runs up to 50m, whilst still achieving 15l/s as required by Building Regulations Approved Document F.  Continuous running products, such as the Solo Plus, installed in all wet areas of a dwelling are classed as a wholehouse ventilation system and therefore only need to move the amount of air as laid down in table 5.1a and 5.1b of Building Regulations Approved  Document F. The Lo-Carbon Solo Plus has an adjustable boost speed which is set at installation variable between a wall or duct setting for boost/override operation to meet Building Regulations thus ensuring minimum  energy usage and low sound levels. All models have an optional speed for constant trickle ventilation (12l/s), selectable at installation. Depending on the model, the fan will switch from trickle (if selected) to boost via the pullcord/light switch/humidity sensor/PIR. All models can be wall, panel or ceiling mounted and can be connected to either circular, rectangular or Vent-Axia’s flat ducting. Enclosure of the electrical components is manufactured from flame retardant grade material.  Safety Extra Low Voltage Fan (SELV) Designed for areas where a fan has to be fitted over or within Zone 1 in a room containing a fixed bath or shower according to IEE wiring regulations (BS 7671), the Lo-Carbon Solo Plus SELV fan can be safely installed within the spray area. The fan is rated IPX7. Control is by mains safety isolating transformer unit with 24V DC SELV output, which is sited away from any source of spray and out of reach of a person using a fixed bath or shower. Controller Supply voltage 220-240V/1/50Hz. Output to fan SELV 24V DC. Models Lo-Carbon Solo Plus/SELV P   DOM   (Pullcord) Flush or surface mountable. Control by Pullcord. 2 Speed. Constant trickle option. Adjustable boost.    In-built Lo-Carbon controller.Model  Stock Ref   P  427481   SELV P  427485    Lo-Carbon Solo Plus/SELV T   DOM   (Timer) Flush or surface mountable. Control by room light or switch. 2 Speed. Constant trickle option. Adjustable boost. Adjustable timer overrun. Delay on timer.    In-built Lo-Carbon controller.Model  Stock Ref   T  427482   SELV T   427486    Lo-Carbon Solo Plus/SELV HT   DOM (Humidistat-Timer) Flush or surface mountable. Humidity controlled fan with override pullcord. Constant trickle option. Adjustable boost. Adjustable timer overrun. Delay on timer. Adjustable humidity sensor. In-built    Lo-Carbon controller. Hour Run Meter as standard on all Lo-Carbon humidity controlled Solo Plus fans.  Model  Stock Ref   HT  427483    SELV HT   427487    Lo-Carbon Solo Plus/SELV TM   DOM   (Timer/PIR) Flush or surface mountable. Control by integral PIR detector. 2 Speed. Constant trickle option. Adjustable boost. In-built Lo-Carbon controller.Model  Stock Ref   TM  427484  SELV TM   427488    Lo-Carbon Solo Plus Bezel   DOM Used when flush mounting - reduces the need to make good.Stock Ref    404106      Wall Kit   DOM Stock Ref   254102 (White) 254100 (Brown)  Filter pack (1 per pack)The design of the Solo Plus means that is does not need a filter. However, if you are going to install the product in a heavily  greasy environment, you may want to protect the product by fitting a filter.Stock Ref 449265 Lo-Carbon Solo Plus ® /SELV

Lo-Carbon Residential W:    www.vent-axia.com 3 Dimensions (mm)  A B C D EØ 263 224 106 55 98  F G H I J 62 65 98 21 34 SELV Transformer: (W x H x D) 147 x 88 x 50mm. Weight 2.2kg, SELV Weight 2.7kg. Lo-Carbon SELV controller demotions: (W x H x D) 87x87x33mm. B D F H I J C A E G B D F H I J C A E G Performance Curve (Duct Mode) Extract Performance l/s (m 3 /h) Power consumption - watts dB(A) @ 3m SFP (W/l/s)   Model Boost High trickle Low Trickle Boost High trickle Low Trickle Boost High trickle Low Trickle @ 0Pa Lo-Carbon Solo Plus/SELV P/T/HT/TM Wall mode 18 (64.8) 12 (43.2) 8 (28.8) 6 2.9 2.3 33.5 27 23.5 0.33 Duct mode 21 (75.6) 17 (61.2) 11 (39.6) 8.4 5.3 3.2 35.5 33 26 0.40 Tested at 240VAC @ 50Hz Performance Guide 1 2 3 0 20 40 60 80 100 120 0 5 10 15 20 25 Pr es su er  P a Volume Flow l/s Boost Low Trickle High Trickle 1 2 3

VENT-AXIA CONTACT NUMBERS Free technical, installation  and  sales advice is available Sales Centre: Domestic & Commercial   Sales Tel:   0844 856 0590   Sales Fax:   01293 565169   Tech Support Tel:   0844 856 0594   Tech Support Fax:   01293 539209 Supply & Service All sales made by Vent-Axia Limited are made only upon the terms of  the Company’s Conditions of Sale, a copy of which may be obtained  on request. As part of the policy of continuous product improvement  Vent-Axia reserves the right to alter specifications without notice. By Appointment to H.M. The Queen Suppliers of Unit Ventilation Equipment Vent-Axia, Crawley, West Sussex 402273/0313 Vent-Axia Group Ltd Products you can trust A British company supporting British manufacturing
