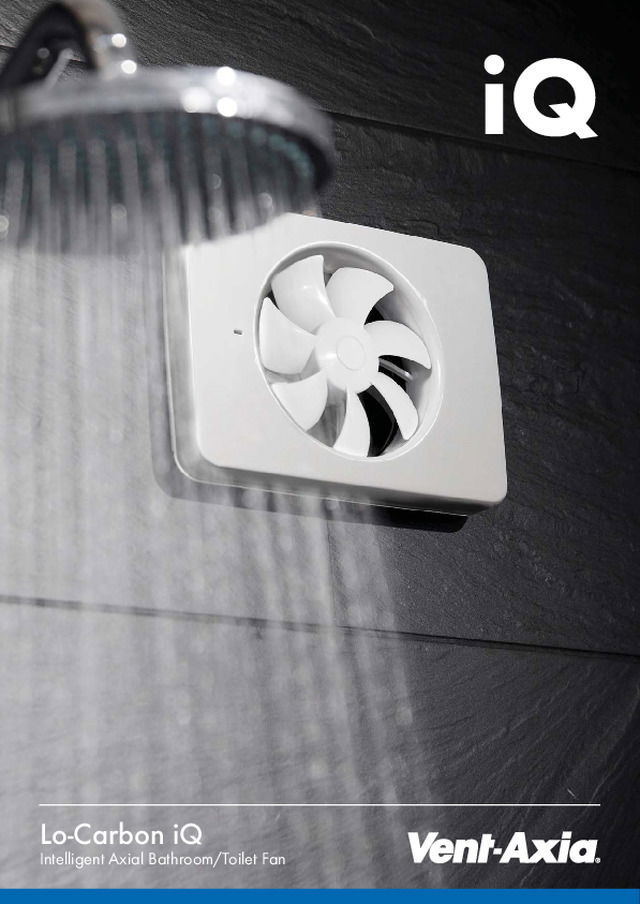

Lo-Carbon iQ Brochure

Introducing the new Lo-Carbon iQ Intelligent Axial Bathroom/Toilet Fan  iQ The Lo-Carbon iQ is designed to help make life at home more relaxing and comfortable.  With people’s busy schedules and noisy lives, the Lo-Carbon iQ is an ideal fan for creating a stress free, quiet bathroom. With the launch of the Lo-Carbon iQ fan, we not only spent time perfecting the operation and user’s experience of the fan but also worked hard on the design. The result is a stylish fan with a surface depth that appeals to the eye and that matches modern fittings found in today’s bathrooms. The visible blades give a retro-feel and helps to give the fan a very quiet noise level. By Appointment to H.M. The Queen Suppliers of Unit Ventilation Equipment Vent-Axia, Crawley, West Sussex

The householder’s choice •  With a minimal retro design to match bathroom décor and low noise  levels due to an accurately balanced impeller, the Lo-Carbon iQ is one of the most unobtrusive axial bathroom fans available.  •  The control panel is easy to read and understand, clearly showing the  basic fan functions.  •  A simple visual indicator uses 3 different colours to show which mode  is currently active, making it easy to see exactly what the fan is doing. •  The innovative airing function means when the fan has been inactive  for 26 hours, it runs an airing programme for 60 minutes to exchange the air in the bathroom. No more worries about stuffy, musty odours in the bathroom when you return from holiday.

The installers choice •   Easy to install, the Lo-Carbon iQ design enables the fan to    be mounted onto a wall without any spigot so that it can be truly surface mounted. •  There are four different cables entries, making it easier for fitting and  wiring the fan.  •  The simple controls and LED feedback make the commissioning and  any readjustment, quick and easy to complete. •  The Lo-Carbon iQ is supplied with 2 easily removeable spigots at  125mm or 100mm diameter. •  With our extensive distribution network and a highly experienced  nationwide sales team, we are able to provide industry leading product support.

Lo-Carbon   iQ Make the intelligent choice For the first time, the Lo-Carbon iQ introduces an intelligent, fully automatic humidity sensor for moisture control. 21   dB   Extremely   quiet   Energy saving   product   Automatic  moisture   detection system   5 year  guarantee

Features & Benefits •  Minimal retro design to match bathroom décor•   Extremely quiet – only 21 dB(A)•   Truly surface mountable with removable spigots•   Intelligent controls and control panel for easy and flexible set up and  commissioning  •   Low power consumption – only 5 W•   Impellor can be unclipped and moved out of the duct path for easy  cleaning and maintenance •   5 year Lo-carbon motor guarantee •  Silent Operation The open impellor and the unique method of operating the motor enables a greater array of operating options including silent continuous ventilation along with adaptable speed control and flexible timer functions. Humidity Control For the first time, the lo-Carbon iQ introduces an intelligent, fully automatic humidity sensor for moisture control. This means the fan learns to run only when it can make a difference to the indoor air quality. The fan continually monitors and records the moisture content to allow it to map the humidity profile throughout the year. This process enables the fan to ensure that it runs only when the fan can lower the moisture content in the air. This reduces nuisance running. The fan also has two modes for moisture control, silent or boost mode which can be selected via the touch pad control. Control Panel Our aim is for the end user to be able to control and understand the basic fan functions, without the need of reading the manual. When the fan is first connected to the power supply, it performs a self-test where all the status lamps on the control panel are tested, as well as the function of the motor. Ideal for those installing to ensure that everything works. The simple controls, along with the LED feedback make the commissioning and any readjustment, quick and easy to complete. LED Feedback With many fans it is difficult to understand the exact mode that they are running on. We have simplified this to provide a visual indicator to see what the fan is doing and which mode is currently active. The fan uses three different colours on the visible status lamp to communicate exactly what it is doing. A blue light signifies that the fan is working to evacuate moisture via the humidity sensor. A yellow light signifies that the timer is running. And a purple light signifies that the fully automatic airing function is active.

Full Surface Mounted Installation The lo-Carbon iQ is supplied with a choice of 2 spigots that are completely removable. This design enables the fan to be mounted onto a wall without any spigot so that it can be truly surface mounted. This is an ideal function if you have a duct with a smaller dimension than 100mm or a duct that bends directly off of the back of the fan not providing any depth in the wall for the spigot. Cleaning and Maintenance For a fan to ventilate effectively, it is vital that it is kept clean and that the ductwork and grilles are free from dust that can reduce the air flowing through them. This is the first fan to be introduced with the ability to simply remove the impellor and open the centre of the fan to gain free access to the duct. Using the ‘swing-out’ function you can easily clean and clear the fan e.g. a clogged grille on the outside of the façade. Click the button to remove the impellor, then press the snap-in catch and swing out the motor - that’s it! Automatic Airing Function The airing function means when the fan has been inactive for 26 hours, it runs an airing programme for 60 minutes to exchange the air in the bathroom. No more worries about stuffy, musty odours in the bathroom when you return from holiday. You Choose How The Fan Works The intelligent overrun timer can be operated in several different ways; either via the light switch, integral pullcord or a separate switch either as a standard On/Off or as a momentary switch stopping automatically after the overrun on time. You use the control panel to easily set the required post-running time at 5, 15 or  30 minutes, depending on your choice. Lo-Carbon 5 Year Guarantee As there is an integrated power adapter in the fan we have been able to use a low voltage motor that has a life span of approximately 60,000 hours. This is 3-5 times longer than a standard fan. The motor features extremely quiet bearings. By using a low voltage motor we can significantly limit power consumption. The fan only consumes 5 Watts, about a third of a conventional AC bathroom fan. Lo-Carbon   iQ Make the intelligent choice

Fitted with a removable  impellor to make it easier  to clean and maintain

Cold Surge Protection Backdraft ShuttersDesigned to reduce any incoming drafts when the fan is off Stock Ref     406605    Wall Mounting Back PlateDesigned to cover up marks where a previous fan had an different foot print.    242mm x 190mm    Stock Ref    406762   Models Accessories Lo-Carbon iQ    Fan in white including integral intelligent controls and 2 spigots Stock Ref    405155 Lo-Carbon   iQ Make the intelligent choice

Performance Adapter Dimensions (mm) Fan Dimensions (mm) 33 33 98Ø 118Ø  202 152 31   Extract Performance - FID Sound dB(A)  Duct Ø Trickle/Boost m 3 /h l/s @  3m 100mm Max 108 30 28 100mm Silent 72 20 21 100mm Trickle 43.2 12 12 125mm Max 133.2 37 29 125mm Silent 86.4 24 21 125mm Trickle 54 15 13

VENT-AXIA CONTACT NUMBERS Free technical, installation  and  sales advice is available Sales Centre:Domestic & Commercial Sales Tel:   0844 856 0590 Sales Fax:   01293 565169 Tech Support Tel:  0844 856 0594 Tech Support Fax: 01293 532814 Supply & Service All sales made by Vent-Axia Limited are made only upon the terms  of the Company’s Conditions of Sale, a copy of which may be  obtained on request. As part of the policy of continuous product  improvement Vent-Axia reserves the right to alter specifications  without notice. Lo-Carbon iQ Make the intelligent choice 402295/0214
