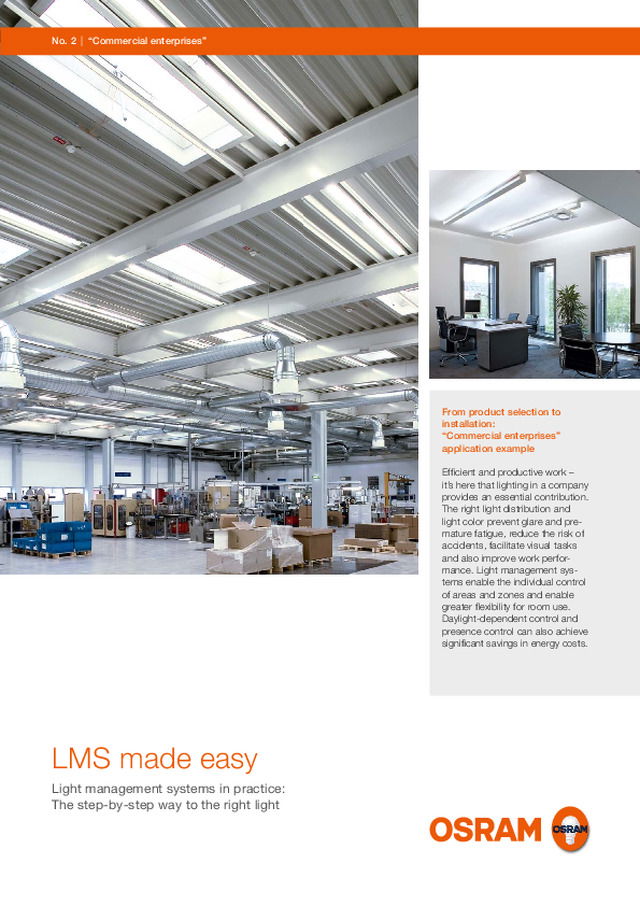

LMS made easy - Commercial enterprises application example

No. 2  |  “Commercial enterprises” LMS made easy Light management systems in practice: The step-by-step way to the right light From product selection to installation: “Commercial enterprises” application example  Effi cient and productive work –it’s here that lighting in a company provides an essential contribution. The right light distribution andlight color prevent glare and pre-mature fatigue, reduce the risk of accidents, facilitate visual tasks and also improve work perfor-mance. Light management sys-tems enable the individual control of areas and zones and enable greater fl exibility for room use.Daylight-dependent control and presence control can also achievesignifi cant savings in energy costs.

NO. 2 | “COMMERCIAL ENTERPRISES“ What do company owners need? — A system for several rooms that can be fl exibly expanded — Light exactly where it’s needed — Maximum energy savings What helps employees? — Simple lighting control — Flexible light for various work processes MORE EFFICIENCY AND LESS COSTS – SAVE MONEY WITH DALI PROFESSIONAL 01  DALI PRO CONT-4 RTC  ( control unit ) Production hall with storage room and diverse utility rooms 03  DALI PRO Sensor Coupler 04  DALI PRO PB  Coupler  ( pushbutton switch ) 05  Highbay Sensor 02  LS/PD MULTI 3 CI ( ceiling installation sensor ) 06 DALI Highbay Adapter The ideal solution: the OSRAM DALI PROFESSIONAL light management system Advantages: — Central control unit for the complete hall — High level of fl exibility for lighting  — Operation via a standard switch — Convenient settings via Windows ®  PC software  ( free ) — Daylight-dependent and event-controlled regulationwith presence function — Central light control of several rooms possible ( up to 256 luminaires ) — Flexibly expandable system thanks to DALI standard Solution/products: 01  DALI PRO CONT-4 RTC ( control unit ) 02   LS/PD MULTI 3 CI ( ceiling installation sensor ) 03   DALI PRO Sensor Coupler 04  DALI PRO PB Coupler ( pushbutton switch ) 05  Highbay Sensor 06  DALI Highbay Adapter Legend  Combined Highbay light sensor and motionsensor incl. DALI Highbay Adapter  Combined light sensor and presence sensorLS/PD MULTI 3 CI incl. DALI PRO Sensor Coupler Luminaire Downlight Daylight opening  4-fold pushbutton switch DALI PRO PB Coupler  DALI PRO touch panel  DALI PRO CONT-4 RTC control unit

LMS  |  LIGHT MANAGEMENT SYSTEMS IN PRACTICE A  |  Pushbutton switch  installation B  |  DALI sensor coupler +  sensor installation C  |  Installation of DALI  highbay adapter STEP BY STEP:  INSTALLATION INSTRUCTIONS 01  Connect DALI and switch in the fl ush-mounted box 01  Connect DALI line and insert sensor cable; install cover/cable strain relief 01  Connect mains to the DALI  Highbay Adapter 04  Rear view: Spring clips in  behind the aperture 02  Install the switch over the switch coupler 03  Install the cover plate of the switch 02  Pass the sensor coupler through the ceiling aperture 02  Connect the highbay sensor to  the DALI Highbay Adapter 03  Attach the Highbay Sensor +  housing cover 03  Tighten the spring on the  ceiling installation sensor and insert D  |  Installation + commis- sioning of controller E  |  Expansions 01  Mount the controller on the DIN  rail and wire In addition to the products shown, there is also a series of input devices for other areas, for example high-quality glass touch surfaces or touch panels for executive offi ces and conference rooms. Further information available at: www.osram.com/dalipro 02  Commission the controller via USB connection to the PC 03  Individual confi guration is with DALI PROFESSIONAL software

Product and order information Product information and technical data sheets for the products shown are available on the Internet at: www.osram.com/lmswww.osram.com/daliwww.osram.com/dalipro An application brochure with further examples is available at: www.osram.com/lms Tip: Take a look at our YouTube channel where you can always fi nd new installation videos:  www.youtube.com/osram 7 KZW0 0 3  EN   07 /1 3  Fi  OS RAM  S -G I MK EM  S ubject to chan g e without notice. Errors and omission excepted . OSRAM GmbH Head Offi ce Marcel-Breuer-Strasse 6 80807 Munich Germany Phone +49 ( 0 ) 89-6213-0 Fax +49 ( 0 ) 89-6213-20 20 www.osram.com System components Productdesignation Productnumber  ( EAN ) a T a Control unit  DALI PRO CONT-4 RTC 4008321710871 DALI 4 IP20 0…+40 50–60 100–240  90 160 62 Productdesignation Productnumber  ( EAN ) a T a Coupler  DALI PRO PB Coupler 4008321496461 DALI IP20 0…+50  42 42 20 DALI PRO Sensor Coupler 4008321379269 DALI IP20 0…+50 118 30 21 Productdesignation Productnumber  ( EAN ) a T a Sensors LS/PD MULTI 3 CI 4008321916648 ––– 6 m IP20 0…+50 ––– –––   4 m   50 25 Highbay Sensor 4008321410078 0.6 18 m IP20 –10…+70 50–60 120–277 13 m 116 39 Productdesignation Productnumber  ( EAN ) a T a Adapter DALI Highbay Adapter 4008321774132 DALI 1 IP20 0…+50 20 139 118 37
