OPTOTRONIC® Compact LED drivers Compact indoor drivers with a multitude

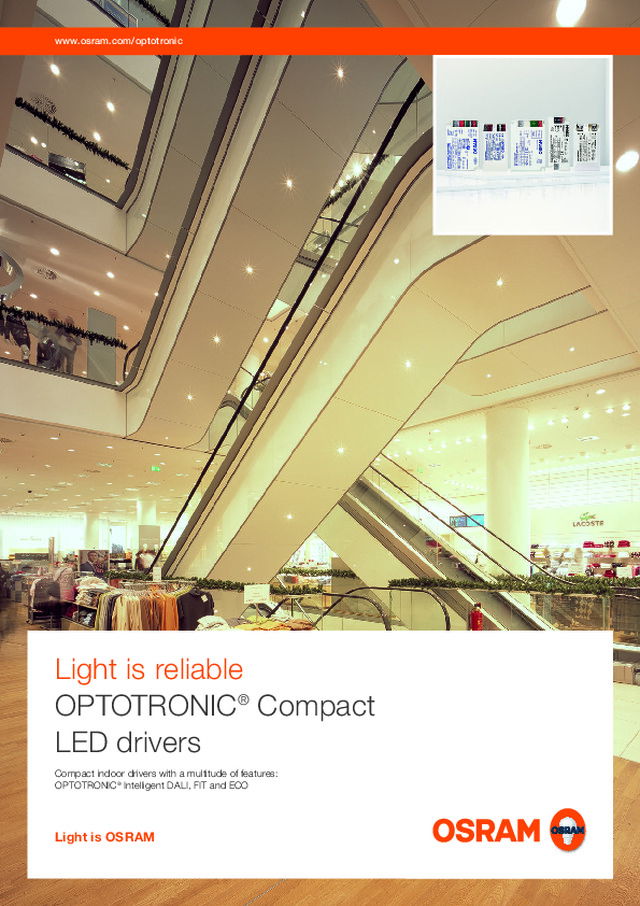

Light is reliable OPTOTRONIC ® Compact LED drivers Compact indoor drivers with a multitude of features:OPTOTRONIC ® Intelligent DALI, FIT and ECO Light is OSRAM www.osram.com/optotronic

OPTOTRONIC ® Compact | Introduction 2 Excellent reasons to choose OPTOTRONIC ® drivers With our OPTOTRONIC ® drivers, users benefit from high-performance products that are characterized by high reliability, efficiency, flexibility and quality: 1. Maximum reliability thanks to long experience: Re-use of know-how from well-proven OSRAM ECGs (electronic control gears) such as HALOTRONIC ® , POWERTRONIC ® and QUICKTRONIC ® . 2. Premium lighting quality: Applications such as hospitality, museums or offices require the latest technology for the best quality of light (analog dimming and low ripple). The latest generation of OPTOTRONIC ® Compact can be used when “mobile-camera-friendly”, “slow motion recording” and “smooth dimming” are key for success. 3. High energy efficiency: Up to 91 % (full load) and further energy saving with proprietary OSRAM light management systems (LMS). 4. Freedom of design: Same driver for built-in and in- dependent mounting through optional kits, small form factors and similar to ECGs for traditional lamps. 5. Flexibility of application: Suitable for PrevaLED ® modules, CoB (chip-on-board) LEDs and other modules available in the market. 6. Wide product portfolio: Various product families, window drivers, dimmable products and different wattages. Future-proof solutionsUsing OPTOTRONIC ® drivers not only means using durable, high-performance products but also staying flexible in terms of future application: OPTOTRONIC ® drivers can be perfectly adjusted for their respective tasks and, if required, also be optimized later on by means of top-quality accessories (e.g. cable clamps) from OSRAM.

OPTOTRONIC ® Compact | Introduction 3 Application areas — Offices, e.g. reception areas and boardrooms — Restaurants — Public buildings, e.g. airports, cinemas, theaters, exhibition halls, schools and gyms — High-end shops — Retail outlets, e.g. supermarkets, bakeries, butcher shops and shops for leather goods Where can OPTOTRONIC ® Compact drivers be used? Pendant luminaires (round) Spotlights Wall and ceiling luminaires (round) Downlights Home and decorative lighting OPTOTRONIC ® Compact LED drivers OPTOTRONIC ® Compact drivers are the perfect solution for a wide variety of luminaire types and applications. Developed for spotlight and downlight applications as well as LED panels, the OPTOTRONIC ® Compact drivers offer you maximum flexibility in the design of all your LED-based luminaires. Designed for the needs of your customer! OPTOTRONIC ® is a global brand with products suitable for the Americas. Please consult your sales contact for more information. Main benefits at a glance — Extensive portfolio: The right driver for each application — Compact size for more creative freedom in luminaire design — Housing adapted from well-known and proven traditional ECGs for easy installation into existing luminaires — High level of efficiency and reliability — Fully programmable and digital platform – see OPTOTRONIC ® Intelligent DALI on pages 8 to 11

OPTOTRONIC ® Compact | Introduction 4 OPTOTRONIC ® Intelligent DALI Highest efficiency, full flexibility and maximum reliability OPTOTRONIC ® FIT High efficiency and maximum reliability OPTOTRONIC ® ECO Cost-efficient and compact Our OPTOTRONIC ® Compact portfolio OSRAM is proud to present: Three product families that meet all your requirements OT FIT OTi DALI OTe

OTe 35/220-240/700 CS OTe 25/220-240/700 CS OT cable clamp B-Style TL OPTOTRONIC ® Compact | Introduction 5 OPTOTRONIC ® Compact driver portfolio Dimmable (DALI): OPTOTRONIC ® Intelligent DALI Fixed output:OPTOTRONIC ® FIT 3 currents settable Fixed output: OPTOTRONIC ® ECO Dimmable (PC): OPTOTRONIC ® ECO Phase Cut Dimming Comfort dimming AM+PWM/FULL AMLowest dimming level 1 % 10 % Type of dimming DALI DT6 Trailing- or leading- edge phase control Touch DIM ® Corridor function DC operation Emergency lighting 1) Fixed DC levelAdjustable DC level (by software) Output current Adjustable (by software and/or resistor) (CS) (CS) Current tolerances [%] 5 10 5 10 Ripple at 100 Hz [%] 2 5 20... 30 25... 35 Functions and performances Overtemperature protectionHot plug-inCLOStand-by losses [W] 0.5 Input voltage range [V] 220-240 220-240 220-240 220-240 Lifetime [h] 100 000 2) 100 000 2) 50 000 3) 50 000 2) T a range [°C] -20…+50 -25…+50 -20…+50 -20…+50 Suitable for luminaire class I + II I + II I + II I + II Ceiling installation with cable clampsOPTOTRONIC ® Compact indoor drivers from OSRAM can easily be retrofitted with suitable cable clamps, if required. This way, in case an independent installation is required, the same driver can be used with the additional cable clamp. For through-wiring, the TL version is available for on/off and DALI versions. 1) According to IEC 61347-2-132) Operation at max. T c -10 K, maximum failure rate of 10 % 3) Operation at max. T c -5 K, maximum failure rate of 10 % AM = Amplitude Modulation PWM = Pulse Width Modulation DT6 = DALI Device Type 6 CS = Current Setting CLO = Constant Lumen Output OTi DALI OTe OTe OT FIT

OPTOTRONIC ® Compact | Introduction 6

OPTOTRONIC ® Compact | Introduction 7 Nomenclature and marking (example) OTe 35 220-240 700 CS S Additional featuresS: For built-in installation only FAN: 12 V auxiliary output for active cooling (fan) Control (current)CS: Current settingPC: Phase cutLT2: LEDset 2nd Generation Output current (max.)350: 350 mA420: 420 mA500: 500 mA700: 700 mA1A0: 1000 mA1A4: 1400 mA Supply voltage220-240: 220-240 V Power (out) 3) 10: 10 W13: 13 W15: 15 W18: 18 W25: 25 W35: 35 W50: 50 W Product family and dimmingOTi DALI: OPTOTRONIC ® Intelligent DALI OT FIT: OPTOTRONIC ® FIT OTe: OPTOTRONIC ® ECO GuaranteeOSRAM is committed to the high quality of its products. Any product that has failed because of a material or manu-facturing defect will be refunded or given a credit note. The following guarantee periods apply to the OPTOTRONIC ® Compact drivers: OPTOTRONIC ® Intelligent DALI 5 years 1) OPTOTRONIC ® FIT 5 years 1) OPTOTRONIC ® ECO CS/CS S 5 years 1) OPTOTRONIC ® ECO PC 5 years 2) All details on relevant guarantees and the general requirements can be found at: www.osram.com/guarantee Project-specific guarantees on request. Guarantee and product identification Applicable guarantee periods and OSRAM nomenclature/marking 5 Year OSRAMGuarantee 1) Operating time of no more than 5 000 hours per year, not exceeding max. allowed T c temperature 2) Operating time of no more than 5 000 hours per year, operation at max. T c -10 K 3) For detailed power values, please see product data sheet (www.osram.com)

EL DALI DALI DALI DALI Soft switch off ON OFF CORRIDOR FUNCTION TOUCH DIM SENSOR 5 Year OSRAMGuarantee SMART GRID Through wiring Mains OPTOTRONIC ® Compact | OTi DALI 8 Product features — Window driver with adjustable output current via DALIor LEDset2 interface (resistor) — Suitable for class I and class II luminaires — Lifetime of up to 100 000 hours 1) and high ambient temperature of up to +50 °C — Improved protection of LED modules thanks to hot plug-in function with automatic switch-on of light — Stepless and color-consistent dimming with DALI (from 100 % to 1 %, hybrid (comfort) dimming/full amplitude dimming) — Amplitude dimming (OTi DALI 15) — Programmable features: CLO (constant lumen output), cor-ridor function, Touch DIM ® (Sensor), emergency lighting — Suitable for emergency lighting systems with central battery according to IEC 61347-2-13 — Soft switch-off; enabling best experience of light (recom-mended for cinemas, theaters, decorative lighting etc.) OPTOTRONIC ® Intelligent DALI Highest effi ciency, full fl exibility and maximum reliability OPTOTRONIC ® Intelligent (OTi) DALI driver OTi DALI For details on our guarantee requirements, go to www.osram.com/ guarantee1) Operation at max. T c -10 K, maximum failure rate of 10 % 2) At max. T c temperature, maximum failure rate of 10 % Technical data Product reference I out (mA) U out (V) P out (W) Eff. max. (%) T a (°C) T c (°C) Lifetime (h) I out accur. (%) Isolation Ripple at 100 Hz (%) OTi DALI 15/220-240/1A0 LT2 150-1050 7.5-54 3-18 88 -20…50 70/60 50 k 2) /100 k 1) 5 SELV 1 OTi DALI 25/220-240/700 LT2 180-700 12-54 12…54 86 -20…50 75/65 50 k 2) /100 k 1) 5 SELV 2 OTi DALI 35/220-240/1A0 LT2 350-1050 15-54 15…54 86 -20…50 75/65 50 k 2) /100 k 1) 5 SELV 2 OTi DALI 50/220-240/1A4 LT2 FAN 600-1400 15-54 15…54 91 -20…50 75/65 50 k 2) /100 k 1) 5 SELV 2 Product reference Product number LxWxH (mm) Cable clamp Product number Cable clamp Packaging (pcs) PrevaLED ® match OTi DALI 15/220-240/1A0 LT2 4052899 324879 95x53x30 OT CABLE CLAMP F-STYLE 4052899 325555 20 OTi DALI 25/220-240/700 LT2 4052899 919457 103x67x29.5 OT CABLE CLAMP B-STYLE 4052899 077881 20 OT CABLE CLAMP B-STYLE TL 4052899 268227 20 OTi DALI 35/220-240/1A0 LT2 4052899 919440 103x67x29.5 OT CABLE CLAMP B-STYLE 4052899 077881 20 OT CABLE CLAMP B-STYLE TL 4052899 268227 20 OTi DALI 50/220-240/1A4 LT2 FAN 4052899 919433 110x75x25 OT CABLE CLAMP A-STYLE 4052899 089570 20 OT CABLE CLAMP A-STYLE TL 4052899 325982 20 Thanks to additional cable clamps, each OTi DALI driver can be used for built-in as well as independent installation. The cable clamp with through-wiring (A-Style TL and B-Style TL) allows for the easy and cost-effi cient installation of multiple luminaires. OT cable clamps NEW A-Style B-Style B-Style TL F-Style A-Style TL

OPTOTRONIC ® Compact | OTi DALI 9 Individual DALI programmingOTi DALI Compact drivers offer wide operating windows and thus ensure a high degree of flexibility. Therefore, LED gene-ration upgrades can be easily managed, allowing for future-proof solutions, and the number of different product versions in the warehouse can be reduced. Adjustment of the current is possible in three different ways: — Programming by OSRAM software (T4T Proggy Probe 48 V) — Use of a simple resistor (LEDset2) — Automatic recognition via the LEDset2 interface when connected to certain PrevaLED ® or other LED modules with LEDset wire Various operating windows are optimized for different general lighting applications and target lumen packages. Please find out more about the programming feature on page 10. Example: OTi DALI 50/220-240/1A4 LT2 FAN: Voltage: 15–54 V Current: 600–1400 mA For detailed data, please see product data sheet (www.osram.com) OPTOTRONIC ® Intelligent DALI operating range Current [mA] Voltage [V] OTi DALI 15/220-240/1A0 LT2 OTi DALI 25/220-240/700 LT2 OTi DALI 35/220-240/1A0 LT2 OTi DALI 50/220-240/1A4 LT2 FAN 700 1050 1400 350 0 10 40 54 25

EL CLO CORRIDOR FUNCTION TOUCH DIM SENSOR SMART GRID OPTOTRONIC ® Compact | OTi DALI 10 New flexibility thanks to programmable DALI LED driversThe DALI LED drivers of the second generation (OSRAM DALI) allow for full digital programming via the DALI magic hardware and a specific free OEM software: — Tuner4TRONIC ® (T4T) — No need for an external resistor to set the current in case of digital programming — Settings can be locked to prevent unauthorized changes OEMs can download T4T at: www.osram.com/T4T SMART GRIDThe OSRAM DALI LED drivers can monitor the power con-sumption, the lamp operating hours (resettable) and the ope-rating temperature of the driver. Advantage: SMART GRID can also analyze the lighting, thus allowing for an even more efficient operation of the system. Touch DIM ® function 1) The Touch DIM ® function offers a simple and cost-effective way of manual dimming and switching of up to 20 OTi DALI LED drivers via standard pushbuttons. Moreover, the lighting level can be automatically controlled with special, directly connectable Touch DIM ® light and presence sensors, leading to energy savings of more than 50 %. In addition to this plug & play functionality, the Touch DIM ® function also allows an individual parameterization via DALI magic and Tuner4TRONIC ® . Corridor function 1) The corridor function provides direct connection to commer-cially available motion sensors. A pre-installed program runs “out of the box” in the device. It can be individually adjusted via DALI magic and Tuner4TRONIC ® . Three dimming levels and the associated overrun times can be adjusted individually as required. Advantage: Simple and energy-efficient lighting in application areas such as stairwells, corridors and parking blocks. Emergency light (according to IEC 61347-2-13)OTi DALI and OT FIT drivers have an EL quality label and are designed for emergency lighting according to IEC 61347-2-13. In addition to the functions used in accordance with the DALI standard, e.g. system failure level (fractionation of the control line), DALI LED drivers offer an optional automatic detection of the DC supply, which sets a pre-programmed luminous flux between 0 and 100 % (factory setting: 15 %). This variably adjustable luminous flux value is protected from inadvertent overwriting by a locking bit. The setting can be carried out via the bus system or DALI magic and Tuner4TRONIC ® . CLO (constant lumen output)The CLO functionality is an essential part of OSRAM DALI LED drivers. Activating this function provides stable lighting conditions over the entire lifetime of LED modules. Year by year, the lumen output of LED modules decreases due to the loss of phosphoric components. In order to balance this out, the CLO function increases the output current smoothly over the entire lifetime of the modules – it typically starts with 85 % of the LED power. This not only ensures stable lighting but also saves energy and increases the lifetime of the LEDs. OPTOTRONIC ® Intelligent DALI Special OTi features go way beyond the normal DALI standard OTi DALI 1) Useful information for the installation of the Touch DIM ® and corridor function can be found in the technical application guide QUICKTRONIC ® Intelligent DALI DIM (www.osram.com/oem-download)

OPTOTRONIC ® Compact | OTi DALI 11 LEDset 2nd Generation standardizationWith the experience gained from the LEDset technology and as a reaction to the growing demand of OEMs to introduce a standardized multi-vendor electrical interface for SSL systems, OSRAM now presents an enhanced version of LEDset with plenty of new features: LEDset 2nd Generation. A smart electrical interface between the LED driver and the LED modules is the missing link essential to the maturity of the SSL components business. With the LEDset 2nd Gene-ration standardized electrical interface for SSL systems, OSRAM offers a technology that closes this link and fully matches the requirements: — Cost-efficient — Reliable — Easy and ready to use LEDset 2nd Generation is an analog 3-wire interface, including LED supply, allowing basic communication between an LED driver and one or more LED modules. The interface supports the following main functions: — Output current setting of constant-current drivers to single LED modules as well as to series/parallel-connected LED modules — Best matching of driver and modules working point (e.g. lm/W) — Self-configuration according to system structure, auto-matic tracking of technology development (future-proof) — Easy mode of operation (plug & play) — Additional monitoring and protection features (e.g. thermal protection of the LED modules) — Added value for OEMs: reliable TCO proposition, reduced structural costs Several OSRAM LED modules, e.g. PrevaLED ® Cube and PrevaLED ® Core, support the LEDset 2nd Generation and therefore offer huge advantages in system combinations. Hybrid (comfort) dimming technologyOPTOTRONIC ® Intelligent DALI LED drivers dim from 100 % to 1 %. In order to achieve optimum dimming, e.g. by ensur-ing that it is not visible and by avoiding stroboscopic effects, OSRAM combines two dimming methods: amplitude modu-lation and pulse width modulation (PWM). From 100 % to around 30 %, the drivers are dimmed by amplitude modulation. This is done by the adjustment of the current amplitude: the amplitude is decreased to dim the lighting down. The dimming levels between 1 % and around 30 % are con trolled by pulse width modulation (PWM). This combination offers the best way to ensure a smooth, non- flicker dimming behavior. Amplitude dimming 100 1 Luminous flux [%] Amplitude modulation Output current [%] 0 50 Hybrid dimming ~ 30 100 PWM 1 Dimming level [%] Output current [%] 0 50 Integral current value (PWM with ~ 500 Hz) Amplitude modulation High-quality, smooth and mobile-camera-friendly dimming is realized by amplitude dimming. OTi DALI 15 is the first product enabling high-quality dimming down to 1 % in the entire operating window.

5 Year OSRAMGuarantee EL Through wiring Mains OPTOTRONIC ® Compact | OT FIT 12 OPTOTRONIC ® FIT High efficiency and maximum reliability Product features — Three selectable output currents (CS = current setting) — Suitable for class I and class II luminaires — Lifetime of up to 100 000 hours 1) and high ambient temperature of up to +50 °C — Improved protection of LED modules thanks to hot plug-in function — Low ripple for a higher quality of light — Suitable for emergency lighting systems with central battery according to IEC 61347-2-13 Thanks to additional cable clamps, each OT FIT driver can be used for built-in as well as independent installation. The cable clamp with through-wiring (B-Style TL) allows for the easy and cost-efficient installation of multiple luminaires. OPTOTRONIC ® FIT (OT FIT) driver OT FIT For details on our guarantee requirements, go to www.osram.com/guarantee1) Operation at max. T c -10 K, maximum failure rate of 10 % 2) At max. T c temperature, maximum failure rate of 10 % Technical data Product reference I out (mA) U out (V) P out (W) Eff. max. (%) T a (°C) T c (°C) Lifetime (h) I out accur. (%) Isolation Ripple at 100 Hz (%) OT FIT 15/220-240/350 CS 250/300/350 27-54 7-19 ≥ 83 -25…50 75/65 50 k 2) /100 k 1) 10 SELV 5 OT FIT 25/220-240/500 CS 400/450/500 27-54 11-27 ≥ 85 -25…50 75/65 50 k 2) /100 k 1) 10 SELV 5 OT FIT 35/220-240/700 CS 550/600/700 27-54 15-37.5 ≥ 87 -25…50 75/65 50 k 2) /100 k 1) 10 SELV 5 OT FIT 50/220-240/1A0 CS 800/900/1050 27-54 56 ≥ 89 -25…50 75/65 50 k 2) /100 k 1) 10 SELV 6 Product reference Product number LxWxH (mm) Cable clamp Product number Cable clamp Packaging (pcs) PrevaLED ® match OT FIT 15/220-240/350 CS 4052899 919426 103x67x29.5 OT CABLE CLAMP B-STYLE, ... TL see page 8 20 OT FIT 25/220-240/500 CS 4052899 919419 103x67x29.5 OT CABLE CLAMP B-STYLE, ... TL see page 8 20 OT FIT 35/220-240/700 CS 4052899 919402 103x67x29.5 OT CABLE CLAMP B-STYLE, ... TL see page 8 20 OT FIT 50/220-240/1A0 CS 4052899 166318 103x67x29.5 OT CABLE CLAMP B-STYLE, ... TL see page 8 20 OT cable clamps B-Style B-Style TL

OPTOTRONIC ® Compact | OT FIT 13 Multiple current settingEach OPTOTRONIC ® FIT driver offers three selectable currents. Multiple current setting has two main advantages: It reduces the number of different product versions in the warehouse and steps between currents are kept small (starting from 50 mA), avoiding any need for LED drivers with intermediate currents. Features of the current setting — CS (current setting) of OT FIT offers the easiest way to choose the output current and to avoid typical mistakes when using DIP switches — Each product offers at least one or two typical currents used in the market and, by default, the highest standard current is provided OPTOTRONIC ® FIT operating range Current [mA] Voltage [V] OT FIT 15/220-240/350 CS OT FIT 25/220-240/500 CS OT FIT 35/220-240/700 CS OT FIT 50/220-240/1A0 CS Example: OT FIT 50/220-240/1A0 CS: Voltage: 27–54 V Current: 800/900/1050 mA For detailed data, please see product data sheet (www.osram.com) 700 1050 1400 350 0 10 40 54 25

5 Year OSRAMGuarantee Through wiring Mains OPTOTRONIC ® Compact | OTe 14 OPTOTRONIC ® ECO Cost-efficient and compact OPTOTRONIC ® ECO driver (OTe 50/220-240/1A0 CS) Housing (B) OPTOTRONIC ® ECO driver (OTe 25/220-240/420 CS) Housing (C) OPTOTRONIC ® ECO driver (OTe 35/220-240/700 CS S) Housing (A) OTe For details on our guarantee requirements, go to www.osram.com/guarantee1) Operation at max. T c -5 K, maximum failure rate of 10 % 2) At max. T c temperature, maximum failure rate of 10 % 3) Two cable clamps D-Style needed per OTe Product features — Three selectable output currents (CS = current setting) — Suitable for class I and class II luminaires — Lifetime of up to 50 000 hours 1) and high ambient temperature of up to +50/55 °C — Several housing designs for different applications (track lighting, downlights and spotlights) with form factor derived from conventional ECGs — More than 10 different selectable currents for overdriving/underdriving of LEDs Technical data Product reference I out (mA) U out (V) P out (W) Eff. max. (%) T a (°C) T c (°C) Lifetime (h) I out accur. (%) Isolation Ripple at 100 Hz (%) OTe 25/220-240/420 CS 290/350/420 27-54 8-23 ≥ 85 -20…50 75/65 35 k 2) /50 k 1) 5 SELV 20 OTe 25/220-240/700 CS 500/600/700 18-36 9-25 ≥ 85 -20…50 80/70 35 k 2) /50 k 1) 5 SELV 25 OTe 35/220-240/700 CS 500/600/700 27-54 13-37 ≥ 87 -20…50 75/65 35 k 2) /50 k 1) 5 SELV 25 OTe 35/220-240/700 CS S 500/600/700 27-54 13-37 ≥ 87 -20…50 80/70 35 k 2) /50 k 1) 5 SELV 25 OTe 35/220-240/1A0 CS 800/925/1050 17-34 14-36 ≥ 87 -20…50 80/70 35 k 2) /50 k 1) 5 SELV 30 OTe 35/220-240/1A0 CS S 800/925/1050 17-34 14-36 ≥ 87 -20…50 80/70 35 k 2) /50 k 1) 5 SELV 25 OTe 50/220-240/1A0 CS 800/925/1050 27-54 22-56 ≥ 87 -20…50 85/75 35 k 2) /50 k 1) 5 SELV 20 OTe 50/220-240/1A4 CS 1150/1250/1400 18-36 21-50 ≥ 87 -20…50 80/70 35 k 2) /50 k 1) 5 SELV 25 OTe 50/220-240/1A0 CS FAN 700/900/1050 27-54 22-56 ≥ 88 -20…50 95/85 35 k 2) /50 k 1) 5 SELV 30 Product reference Product number LxWxH (mm) Cable clamp Product number Cable clamp Packaging (pcs) PrevaLED ® match OTe 25/220-240/420 CS 4052899 917538 97x43x29.5 (C) OT CABLE CLAMP D-STYLE 4052899 077904 40 3) OTe 25/220-240/700 CS 4052899 917545 97x43x29.5 (C) OT CABLE CLAMP D-STYLE 4052899 077904 40 3) OTe 35/220-240/700 CS 4052899 917569 103x67x29.5 (B) OT CABLE CLAMP B-STYLE, ... TL see page 8 20 OTe 35/220-240/700 CS S 4052899 917552 110x43x29.5 (A) built-in installation only – – OTe 35/220-240/1A0 CS 4052899 917668 103x67x29.5 (B) OT CABLE CLAMP B-STYLE, ... TL see page 8 20 OTe 35/220-240/1A0 CS S 4052899 917651 110x43x29.5 (A) built-in installation only – – OTe 50/220-240/1A0 CS 4052899 917576 103x67x29.5 (B) OT CABLE CLAMP B-STYLE, ... TL see page 8 20 OTe 50/220-240/1A4 CS 4052899 917583 103x67x29.5 (B) OT CABLE CLAMP B-STYLE, ... TL see page 8 20 OTe 50/220-240/1A0 CS FAN 4052899 919396 103x67x29.5 (B) OT CABLE CLAMP B-STYLE, ... TL see page 8 20 Thanks to addi tional cable clamps, most of the OTe drivers can be used for built-in as well as independent installation. The cable clamp with through- wiring (B-Style TL) allows for the easy and cost-efficient installation of multiple luminaires. OT cable clamps D-Style B-Style B-Style TL

15 OPTOTRONIC ® Compact | OTe Example: OTe 50/220-240/1A0 CS FAN: Voltage: 27–54 V Current: 700/900/1050 mA Multiple current settingEach non-dimmable OPTOTRONIC ® ECO driver offers three selectable currents. Multiple current setting has two main advantages: It reduces the number of different product versions in the warehouse and steps between currents are kept small (starting from 60 mA), avoiding any need for LED drivers with intermediate currents. Features of the current setting — CS (current setting) of OTe offers the easiest way to choose the output current without the need for acces-sories (resistor, wire etc.) and to avoid typical mistakes when using DIP switches — Current setting is provided at the output side, isolated from the mains and at a low safety voltage below 60 V Freedom of LED current setting — Each product offers at least one or two typical currents used in the market — More than 10 different currents are available up to 1.4 A — Two voltage ranges with partial overlapping (18–36 V/27–54 V or 17–34 V/27–54 V) provide high flexibility, ensuring that the right driver is used for existing and coming CoB tech-nologies as well as single LED chains For detailed data, please see product data sheet (www.osram.com) OPTOTRONIC ® ECO operating range – OTe 50 Current [mA] Voltage [V] OTe 50/220-240/1A0 CS OTe 50/220-240/1A0 CS FAN OTe 50/220-240/1A4 CS For detailed data, please see product data sheet (www.osram.com) OPTOTRONIC ® ECO operating range – OTe 25 Current [mA] Voltage [V] For detailed data, please see product data sheet (www.osram.com) OPTOTRONIC ® ECO operating range – OTe 35 Current [mA] Voltage [V] 700 1050 1400 350 0 10 40 25 OTe 25/220-240/420 CS OTe 25/220-240/700 CS 700 1050 1400 350 0 10 40 25 OTe 35/220-240/700 CS S OTe 35/220-240/1A0 CS S OTe 35/220-240/700 CS OTe 35/220-240/1A0 CS 700 1050 1400 350 0 10 40 25

OPTOTRONIC ® Compact | OTe Example: OTe 35/220-240/700 PC Voltage: 27–50 V Current: 700 mA For detailed data, please see product data sheet (www.osram.com) OPTOTRONIC ® ECO operating range – OTe 10 (dimmable) Current [mA] Voltage [V] OTe 10/220-240/700 PC For detailed data, please see product data sheet (www.osram.com) Current [mA] OPTOTRONIC ® ECO operating range – OTe 13 (dimmable) Voltage [V] OTe 13/220-240/350 PC For detailed data, please see product data sheet (www.osram.com) Current [mA] OPTOTRONIC ® ECO operating range – OTe 25 (dimmable) Voltage [V] OTe 25/220-240/700 PC For detailed data, please see product data sheet (www.osram.com) OPTOTRONIC ® ECO operating range – OTe 18 (dimmable) Current [mA] Voltage [V] OTe 18/220-240/350 PC OTe 18/220-240/500 PC For detailed data, please see product data sheet (www.osram.com) Current [mA] OPTOTRONIC ® ECO operating range – OTe 35 (dimmable) Voltage [V] OTe 35/220-240/700 PC 700 800 900 600 0 10 40 25 350 450 550 250 0 10 40 25 900 700 800 600 0 10 40 25 350 450 550 250 0 10 40 25 700 800 900 600 0 10 40 25

5 Year OSRAMGuarantee E-Style OT cable clamp Product features — Dimmable via trailing- or leading-edge phase control (10–100 %, depending on dimmer) — Overtemperature, overload and short-circuit protection — Compact housing for installation in tight spaces — Lifetime of up to 50 000 hours 1) and high ambient tem perature — Suitable for class I and class II luminaires (OTe 35 only for class II) — Compatible with common trailing- or leading-edge phase dimmers 2) OPTOTRONIC ® ECO New versions now available: Dimmable via trailing- or leading-edge phase control For details on our guarantee requirements, go to www.osram.com/guarantee 1) Operation at max. T c -10 K, maximum failure rate of 10 % 2) A list of tested dimmers can be found at www.osram.com/oem-download (see “Control gears OPTOTRONIC”) 3) At max. T c temperature, maximum failure rate of 10 % OPTOTRONIC ® Compact | OTe OPTOTRONIC ® ECO driver (OTe 25/220-240/700 PC) Housing (A) Thanks to the additional cable clamp, most of the OTe drivers can be used for built-in as well as independent installation. OPTOTRONIC ® ECO driver (OTe 25/220-240/700 PC) Housing (B) OPTOTRONIC ® ECO driver (OTe 35/220-240/700 PC) Housing (C) Technical data Product reference I out (mA) U out (V) P out (W) Eff. max. (%) T a (°C) T c (°C) Lifetime (h) I out accur. (%) Isolation Ripple at 100 Hz (%) OTe 10/220-240/700 PC 700 7-14 5-10 ≥ 79 -20…55 80/70 35 k 3) /50 k 1) 10 SELV 35 OTe 13/220-240/350 PC 350 18-38 6.5-13.5 ≥ 82 -20…55 85/75 35 k 3) /50 k 1) 10 SELV 25 OTe 18/220-240/350 PC 350 27-54 9.5-19 ≥ 84 -20…55 75/65 35 k 3) /50 k 1) 10 SELV 30 OTe 18/220-240/500 PC 500 18-36 9-18 ≥ 84 -20…55 75/65 35 k 3) /50 k 1) 10 SELV 30 OTe 25/220-240/700 PC 700 18-36 12.5-25 ≥ 85 -20…50 75/65 35 k 3) /50 k 1) 10 SELV 30 OTe 35/220-240/700 PC 700 27-50 19-35 ≥ 85 -20…45 80/70 35 k 3) /50 k 1) 5 SELV 25 Product reference Product number LxWxH (mm) Cable clamp Product number Cable clamp Packaging (pcs) PrevaLED ® match OTe 10/220-240/700 PC 4052899 105300 95x53x25 (A/B) OT CABLE CLAMP E-STYLE 4052899 167896 20 OTe 13/220-240/350 PC 4052899 105324 95x53x25 (A/B) OT CABLE CLAMP E-STYLE 4052899 167896 20 OTe 18/220-240/350 PC 4052899 105348 95x53x30 (A/B) OT CABLE CLAMP E-STYLE 4052899 167896 20 OTe 18/220-240/500 PC 4052899 105362 95x53x30 (A/B) OT CABLE CLAMP E-STYLE 4052899 167896 20 OTe 25/220-240/700 PC 4052899 105386 95x53x30 (A/B) OT CABLE CLAMP E-STYLE 4052899 167896 20 OTe 35/220-240/700 PC 4008321 825520 153x54x36 (C) 20

16 OPTOTRONIC ® Compact | System solutions System solutions with OSRAM OPTOTRONIC ® drivers and LED modules OSRAM always offers you the perfect match of light source and driver Optimum lighting does not only depend on the performance of the single components but also on the clever combination of these components to create a unique system solution. By combining OPTOTRONIC ® Compact drivers with PrevaLED ® or other modules (CC) from OSRAM, you can rest assured that you have found the perfect match for your lighting solution. OSRAM OPTOTRONIC ® drivers in combination with OSRAM LED modules offer you unique added value: — Perfect system match, tested by OSRAM — Just one provider for your lighting system — LEDset2 functionality with PrevaLED ® Core and PrevaLED ® Cube (see page 11) For further details regarding driver and module compatibility, please contact your local OSRAM sales representative. PrevaLED ® Coin PrevaLED ® Core PrevaLED ® Cube PrevaLED ® Bar Value DRAGONpuck ®

OPTOTRONIC ® Compact | System solutions 17 Matchmaker Combine and test LED modules and drivers For general lighting applications, OSRAM offers a quick and convenient way to select the optimum system solution for a specific project and thus simplifies your daily work. For OSRAM LED systems, the independent selection tool Matchmaker is available online and can be downloaded for offline use with individual requirements. Matchmaker is based on Microsoft Excel. With the convenient tool, a specific LED module can be combined with a suitable driver. Furthermore, all corresponding parameters (e.g. system efficacy, operating current, luminous flux as well as temperature values) can also be tested in advance and adjusted to match each other. All data in the tool are based on real measurements and have been checked by the OSRAM Quality Department. Matchmaker is regularly updated. The latest version can be found in the OSRAM Download Center at www.osram.com/oem-download (“Control gears OPTOTRONIC” or “LED light engines Spot- and Downlights”).

OPTOTRONIC ® Compact | System solutions 18 System solutions with OSRAM OPTOTRONIC ® drivers and light management systems (LMS) For higher levels of efficiency, flexibility and customization Combining OSRAM OPTOTRONIC ® LED drivers and light management systems (LMS) allows you to create unique lighting solutions that offer plenty of benefits to your customers. Your flexibility during projects is increased tremendously as the LMS provide a simple way to address OTi DALI LED drivers for easy dimming and setting of the desired lighting level. And the best thing about it: You also save huge amounts of energy. With LMS from OSRAM, you will always find the ideal solution – for various applications, luminaires and customer demands. OPTOTRONIC ® and Touch DIM ® The Touch DIM ® functionality, integrated in all OTi DALI LED drivers, is as easy as it gets. Via standard pushbuttons, up to 20 OTi DALI LED drivers can be manually dimmed and switched in a convenient way and a scene can be stored – all without the need for a controller. Moreover, with special Touch DIM ® light and presence sensors, which can be connected directly to the OTi DALI LED drivers, energy savings of more than 50 % can be achieved. Touch DIM ® LS LI and LS/PD LI sensor

OPTOTRONIC ® Compact | System solutions 19 OPTOTRONIC ® and DALIeco ® Control – configuration by mouse click With the DALIeco ® Control unit for up to 32 OTi DALI LED drivers, you can increase comfort and energy efficiency of your lighting in no time at all. No matter if used for a single luminaire or luminaire group, in individual or open-plan offices, corridors or production and storage areas – with the multi-functional DALIeco ® Control, individual function profiles can be set up by a few mouse clicks and transmitted via remote control at the push of a button. Purely manual control or a time sequence control can be realized just as easy as the convenient automation by presence and light sensors. OPTOTRONIC ® and DALI PROFESSIONAL The combination of OPTOTRONIC ® LED drivers and DALI PROFESSIONAL is the perfect choice for anyone looking for maximum flexibility in the control of a larger number of lumi-naires, groups or scenes. With just one controller, up to 256 OTi DALI LED drivers can be controlled in 4 x 16 groups via 4 DALI lines. In addition, up to 50 sensors or pushbutton couplers can be connected to the DALI line. Via DALI SWITCH SO switch actuators, non-dimmable OT FIT LED drivers can also be integrated. DALI PROFESSIONAL offers a flexible configuration: Changes can be made quickly and conveniently at all times via a free PC soft-ware – without the need for rewiring. Thanks to the wide choice of user interfaces and sen-sors as well as an integrated real-time clock, DALI PROFESSIONAL is suitable for industrial buildings and warehouses and also for office spaces with single and open-plan offices. DALIeco ® Control unit and PC configuration software DALI PRO CONT-4 RTC controller DALI PRO Touch Panel DALI LS/PD LI sensor DALI HIGHBAY ADAPTER

400W050GB 01/16 Subject to change without notice. Err ors and omissions excepted. www.osram.com/optotronic For more information, please go to: — OPTOTRONIC ® : www.osram.com/optotronic — Light management systems: www.osram.com/lms — PrevaLED ® : www.osram.com/prevaled — Tuner4TRONIC ® : www.osram.com/t4t — LEDset: www.osram.com/ledset — News: www.osram.com/oem OSRAM GmbH Head office: Marcel-Breuer-Strasse 680807 Munich, Germany Phone +49 89 6213-0Fax +49 89 6213-2020 www.osram.com
