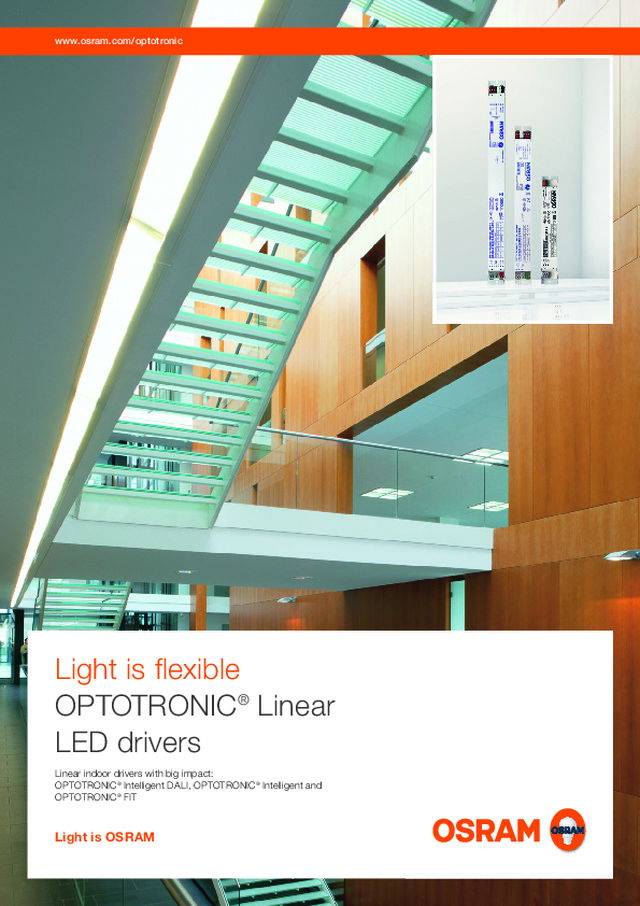

www.osram.com/optotronic Light is ﬂ exible OPTOTRONIC ® Linear LED drivers Linear indoor drivers with big impact:OPTOTRONIC ® Intelligent DALI, OPTOTRONIC ® Intelligent and OPTOTRONIC ® FIT Light is OSRAM

2 OPTOTRONIC ® Linear | Introduction OPTOTRONIC ® Intelligent DALI Highest efﬁ ciency, full ﬂ exibility and maximum reliability OPTOTRONIC ® Intelligent Highest efﬁ ciency, ﬂ exibility and maximum reliability OPTOTRONIC ® FIT High efﬁ ciency and maximum reliability OTi DALI OTi OT FIT 1. Maximum reliability thanks to long experience: Re-use of know-how from well-proven OSRAM ECGs (electronic control gears) such as HALOTRONIC ® , POWERTRONIC ® and QUICKTRONIC ® . 2. High energy efﬁ ciency: Up to 92 % (full load) and further energy saving with proprietary OSRAM light management systems (LMS). 3. Freedom of design: Small form factors similar to ECGs for traditional lamps, SELV and non-isolated drivers for maximum ﬂ exibility in luminaire design. 4. Flexibility of application: Suitable for PrevaLED ® modules and other modules available in the market. 5. Wide product portfolio: Various product families, win- dow drivers, dimmable products and different wattages. Future-proof solutionsUsing OPTOTRONIC ® drivers not only means using durable, high-performance products but also staying ﬂ exible in terms of future application: OPTOTRONIC ® drivers can be perfectly adjusted for their respective tasks and, if required, also be optimized by means of top-quality additional components such as OSRAM LMS. Excellent reasons to chooseOPTOTRONIC ® drivers With our OPTOTRONIC ® drivers, users beneﬁ t from high-performance products that are characterized by high reliability, efﬁ ciency, ﬂ exibility and quality: Our OPTOTRONIC ® Linear portfolio

OPTOTRONIC ® Linear | Introduction 3 Where can OPTOTRONIC ® Linear drivers be used? Floor-standing uplights (free-standing) Recessed luminaires Suspended luminaires Wall and ceiling luminaires (linear) Trunking systems and batten luminaires Damp- and water-proof luminaires Surface-mounted luminaires Application areas — Ofﬁ ces, e.g. small or open-plan ofﬁ ces, meeting rooms, reception areas — Public buildings, e.g. hospitals, universities, schools and gyms — Industry, e.g. production or logistics areas — Retail, e.g. big retail outlets, food and non-food areas

OPTOTRONIC ® Linear LED drivers OPTOTRONIC ® Linear drivers are the solution for a wide variety of luminaire types and applications. Developed for linear light applications such as ofﬁ ce or industry lighting, the OPTOTRONIC ® Linear drivers offer you maximum ﬂ exibility in the design of your LED-based luminaires – no matter if you need SELV or non-isolated drivers. Designed for the needs of your customer! OPTOTRONIC ® is a global brand with products suitable for the Americas. Please consult your sales contact for more information. Main beneﬁ ts at a glance — Extensive portfolio of easy-to-use solutions: two product families with wide dimming range or on/off with adjust-able output current — SELV and non-isolated versions: many possible combinations with any LED module — Easy integration into new LED luminaires thanks to the 30 x 21 mm housing of all devices — High level of efﬁ ciency and reliability — Fully programmable and digital platform – see OPTOTRONIC ® Intelligent DALI OPTOTRONIC ® Linear | Introduction 4 OPTOTRONIC ® Linear driver portfolio Dimmable (DALI): OPTOTRONIC ® Intelligent Window driver (SELV) Dimmable (DALI): OPTOTRONIC ® Intelligent Window driver (non-isolated) Non-dimmable: OPTOTRONIC ® Intelligent Window driver (non-isolated) Non-dimmable: OPTOTRONIC ® FIT 3 currents to be set (SELV) Non-dimmable: OPTOTRONIC ® FIT Fixed output (non-isolated) Dimming Comfort dimming AM+PWM Lowest dimming level 1 % 1 % DALI DT6 Touch DIM ® /Touch DIM ® Sensor Corridor function DC operation Emergency lighting Fixed DC level (on/off by current modulation) Adjustable DC level (by software) (by software) Output current Adjustable (by software and/or resistor) (by software and/ or resistor) (by resistor) (CS) Current tolerances [%] ≤ 5 ≤ 5 ≤ 5 ≤ 20 ≤ 10 Ripple at 100 Hz [%] 1 10 10 7 10 Functions and performances Overtemperature protection Energy efficiency up to 91 % up to 92 % up to 92 % up to 87 % up to 90 % CLO Stand-by losses [W] 0.5 0.3 Input voltage range [V] 220-240 220-240 220-240 220-240 220–240 Lifetime [h] 100000 100000 100000 100000 100000 T a range [°C] -25…+50 -25…+50 -25…+50 -25…+50 -25…+50 Suitable for luminaire class I I I I I According to IEC 61347-2-13 Version with 2 % available soon Operation at max. T c -10 K, maximum failure rate of 10 % Special permission for class II luminaires possible on request AM = Amplitude Modulation PWM = Pulse Width Modulation DT6 = DALI Device Type 6 CS = Current Setting CLO = Constant Lumen Output OTi DALI OTi DALI OTi OT FIT OT FIT

OPTOTRONIC ® Linear | Introduction 5 Product family and dimmingOTi DALI: OPTOTRONIC ® Intelligent DALI OTi: OPTOTRONIC ® Intelligent OT FIT: OPTOTRONIC ® FIT Nomenclature and marking (example) Form factorL: Linear Control (current)CS: Current settingLT2: LEDset2 Output current (max.)125: 125 mA250: 250 mA350: 350 mA550: 550 mA700: 700 mA1A0: 1000 mA1A4: 1400 mA1A6: 1600 mA2A1: 2100 mA Supply voltage220-240: 220-240 V Power (out) 30: 30 W35: 35 W50: 50 W60: 60 W80: 80 W90: 90 W GuaranteeOSRAM is committed to the high quality of its products. Any product that has failed because of a material or manufacturing defect will be refunded or given a credit note. The following guarantee periods apply to the OPTOTRONIC ® Linear drivers: OPTOTRONIC ® Intelligent DALI 5 years OPTOTRONIC ® Intelligent 5 years OPTOTRONIC ® FIT 5 years All details on relevant guarantees and the general requirements can be found at: www.osram.com/guarantee Project-speciﬁ c guarantees on request. Guarantee and product identiﬁ cation Applicable guarantee periods and OSRAM nomenclature/marking 5 Year OSRAMGuarantee Operating time of no more than 5 000 hours per year, not exceeding max. allowed T c temperature For detailed power values, please see product data sheet (www.osram.com) Non-isolatedD: Direct current (non-isolated) OTi DALI 60/ 220-240 / 550 D LT2 L

OPTOTRONIC ® Linear | OTi DALI 6 Product features — Window driver with adjustable output current via DALI or LEDset2 interface (resistor) — Suitable for class I luminaires — Lifetime of up to 100 000 hours and high ambient temperature of up to +50/60 °C — Overtemperature, overload and short-circuit protection as well as open-circuit-proof — Stepless and color-consistent dimming with DALI (from 100 % to 1 %, hybrid (comfort) dimming) — Programmable features: CLO (constant lumen output), corridor function, Touch DIM ® (Sensor), emergency lighting — Suitable for emergency lighting systems with central battery according to IEC 61347-2-13 OPTOTRONIC ® Intelligent DALI Highest efﬁ ciency, full ﬂ exibility and maximum reliability OPTOTRONIC ® Intelligent (OTi) DALI driver OTi DALI Technical data Product reference Product number LxWxH (mm) I out (mA) U out (V) P out (W) Eff. max. (%) T a / T c (°C) Lifetime (h) I out accur. (%) Isolation Ripple at 100 Hz (%) OTi DALI 35/220- 240/700 LT2 L 4052899245389 360x30x21 200-700 20- 54 4-37 89 -25…60/ 75/65 50k/100k 2 SELV 1 OTi DALI 50/220- 240/1A4 LT2 L 4052899028098 360x30x21 600-1400 20- 54 12-54 89 -25…50/ 75/65 50k/100k 2 SELV 1 OTi DALI 80/220- 240/1A6 LT2 L 4052899028074 360x30x21 600-1600 20- 54 12-80 90 -25…50/ 80/70 50k/100k 2 SELV 1 OTi DALI 80/220- 240/2A1 LT2 L 4052899028050 360x30x21 1000-2100 20- 54 32-80 91 -25…50/ 80/70 50k/100k 2 SELV 1 OTi DALI 60/220- 240/550 D LT2 L 4052899188662 280x30x21 120-550 54-240 1.5-60 92 -25…60/ 75/65 50k/100k 5 non- isolated 10 OTi DALI 90/220- 240/1A0 LT2 L 4008321867568 280x30x21 250-1000 54-240 13.5-90 ≥ 92 -25…50/ 75/65 50k/100k 5 non- isolated 10 5 Year OSRAMGuarantee For details on our guarantee requirements, go to www.osram.com/guarantee Operation at max. T c -10 K, maximum failure rate of 10 % At corresponding T c temperature, maximum failure rate of 10 % Smart power management allows the operation of LED modules with a forward voltage above 54 V at a very low ambient temperature EL CORRIDOR FUNCTION TOUCH DIM SENSOR SMART GRID

OPTOTRONIC ® Linear | OTi DALI 7 EL CLO CORRIDOR FUNCTION TOUCH DIM SENSOR SMART GRID New ﬂ exibility thanks to programmableDALI LED driversThe DALI LED drivers of the second generation (OSRAM DALI) allow for full digital programming via the DALI magic hardware and a speciﬁ c free OEM software: — Tuner4TRONIC ® (T4T) — No need for an external resistor to set the current in case of digital programming — Settings can be locked to prevent unauthorized changes OEMs can download T4T at: www.osram.com/T4T SMART GRIDThe OSRAM DALI LED drivers can monitor the power con-sumption, the lamp operating hours (resettable) and the oper-ating temperature of the driver. Advantage: SMART GRID can also analyze the lighting, thus allowing for an even more efﬁ -cient operation of the system. Touch DIM ® function The Touch DIM ® function offers a simple and cost-effective way of manual dimming and switching of up to 20 OTi DALI LED drivers via standard pushbuttons. Moreover, the lighting level can be automatically controlled with special, directly connectable Touch DIM ® light and presence sensors, leading to energy savings of more than 50 %. In addition to this plug & play functionality, the Touch DIM ® function also allows an individual parameterization via DALI magic and Tuner4TRONIC ® . Corridor function The corridor function provides direct connection to commer-cially available motion sensors. A pre-installed program runs “out of the box” in the device. It can be individually adjusted via DALI magic and Tuner4TRONIC ® . Three dimming levels and the associated overrun times can be adjusted individually as required. Advantage: Simple and energy-efﬁ cient lighting in application areas such as stairwells, corridors and parking blocks. Emergency light (according to IEC 61347-2-13)OTi DALI, OTi and OT FIT drivers have an EL quality label and are designed for emergency lighting according to IEC 61347-2-13. In addition to the functions used in accordance with the DALI standard, e.g. system failure level (fractionation of the control line), DALI LED drivers offer an optional auto-matic detection of the DC supply, which sets a pre-pro-grammed luminous ﬂ ux between 0 and 100 % (factory setting: 15 %). This variably adjustable luminous ﬂ ux value is protect-ed from inadvertent overwriting by a locking bit. The setting can be carried out via the bus system or DALI magic and Tuner4TRONIC ® . CLO (constant lumen output)The CLO functionality is an essential part of OSRAM DALI LED drivers. Activating this function provides stable lighting conditions over the entire lifetime of LED modules. Year by year, the lumen output of LED modules decreases due to the loss of phosphoric components. In order to balance this out, the CLO function increases the output current smoothly over the entire lifetime of the modules – it typically starts with 85 % of the LED power. This not only ensures stable lighting but also saves energy and increases the lifetime of the LEDs. OPTOTRONIC ® Intelligent DALI Special OTi features go way beyond the normal DALI standard OTi DALI Useful information for the installation of the Touch DIM ® and corridor function can be found in the technical application guide QUICKTRONIC ® Intelligent DALI DIM (www.osram.com/oem-download)

OPTOTRONIC ® Linear | OTi DALI LEDset 2nd Generation standardizationWith the experience gained from the LEDset technology and as a reaction to the growing demand of OEMs to intro-duce a standardized multi-vendor electrical interface for SSL systems, OSRAM now presents an enhanced version of LEDset with plenty of new features: LEDset 2nd Generation. A smart electrical interface between the LED driver and the LED modules is the missing link essential to the maturity of the SSL components business. With the LEDset 2nd Gen-eration standardized electrical interface for SSL systems, OSRAM offers a technology that closes this link and fully matches the requirements: — Cost-efﬁ cient — Reliable — Easy and ready to use LEDset 2nd Generation is an analog 3-wire interface, including LED supply, allowing basic communication between an LED driver and one or more LED modules. The interface supports the following main functions: — Output current setting of constant-current drivers to single LED modules as well as to series/parallel-connected LED modules — Best matching of driver and modules working point(e.g. lm/W) — Self-conﬁ guration according to system structure, auto-matic tracking of technology development (future-proof) — Easy mode of operation (plug & play) — Additional monitoring and protection features(e.g. thermal protection of the LED modules) — Added value for OEMs: reliable TCO proposition,reduced structural costs Hybrid (comfort) dimming technologyOPTOTRONIC ® Intelligent DALI LED drivers dim from 100 % to 1 %. In order to achieve optimum dimming, e.g. by ensur ing that it is not visible and by avoiding stroboscopic effects, OSRAM combines two dimming methods: amplitude modu-lation and pulse width modulation (PWM). From 100 % to around 30 %, the drivers are dimmed by amplitude modulation. This is done by the adjustment of the current amplitude: the amplitude is decreased to dim the lighting down. The dimming levels between 1 % and around 30 % are con trolled by pulse width modulation (PWM). This combination offers the best way to ensure a smooth, non- ﬂ icker dimming behavior. Hybrid dimming ~ 30 100 PWM 1 Dimming level [%] Amplitude modulation Output current [%] 0 50 Integral current value (PWM with ~ 500 Hz)

OPTOTRONIC ® Linear | OTi DALI Individual DALI programmingOTi DALI Linear drivers offer wide operating windows and thus ensure a high degree of ﬂ exibility. Therefore, LED gene-ration upgrades can be easily managed, allowing for future-proof solutions, and the number of different product versions in the warehouse can be reduced. Adjustment of the current is possible in three different ways: — Programming by OSRAM software — Use of a simple resistor (LEDset2) — Automatic recognition via the LEDset2 interface when connected to certain PrevaLED ® or other LED modules with LEDset wire Various operating windows are optimized for different general lighting applications and target lumen packages. Please ﬁ nd out more about the programming feature on page 7. Current [mA] OTi DALI operating range (non-isolated) Voltage [V] Example: OTi DALI 80/220-240/2A1 LT2 L: Voltage: 20–54 VCurrent: 1000 –2100 mA Example: OTi DALI 90/220-240/1A0 LT2 L: Voltage: 54–240 VCurrent: 250–1000 mA For detailed data, please see product data sheet (www.osram.com) For detailed data, please see product data sheet (www.osram.com) 400 600 800 1000 200 0 50 100 150 200 250 Current [mA] Voltage [V] OTi DALI operating range (SELV) OTi DALI 35/220-240/700 LT2 L OTi DALI 50/220-240/1A4 LT2 L OTi DALI 80/220-240/1A6 LT2 L OTi DALI 80/220-240/2A1 LT2 L 1000 1500 2000 500 0 20 30 40 50 OTi DALI 60/220-240/550 D LT2 L OTi DALI 90/220-240/1A0 LT2 L

OPTOTRONIC ® Linear | OTi 8 For details on our guarantee requirements, go to www.osram.com/guarantee Operation at max. T c -10 K, maximum failure rate of 10 % At corresponding T c temperature, maximum failure rate of 10 % OPTOTRONIC ® Intelligent Highest efﬁ ciency, ﬂ exibility and maximum reliability Technical data Product reference Product number LxWxH (mm) I out (mA) U out (V) P out (W) Eff. max. (%) T a / T c (°C) Lifetime (h) I out accur. (%) Isolation Ripple at 100 Hz (%) OTi 60/220- 240/550 D LT2 L 4052899188419 280x30x21 125-550 54- 240 6.5-60 92 -25…50/ 75/65 50k/ 100k 5 non- isolated 10 OTi 90/220- 240/1A0 LT2 L 4052899188556 280x30x21 250-1000 54- 240 13.5- 90 92 -25…50/ 75/65 50k/ 100k 5 non- isolated 10 Product features — Window driver with adjustable output current via LEDset2 interface (resistor) — Suitable for class I luminaires — Lifetime of up to 100 000 hours and high ambient temperature of up to +50 °C — Overtemperature, overload and short-circuit protection as well as open-circuit-proof — Suitable for emergency lighting systems with central battery according to IEC 61347-2-13 OPTOTRONIC ® Intelligent (OTi) driver OTi 5 Year OSRAMGuarantee Current [mA] OTi operating range (non-isolated) Voltage [V] Example: OTi 90/220-240/1A0 LT2 L: Voltage: 54–240 VCurrent: 250–1000 mA For detailed data, please see product data sheet (www.osram.com) EL 400 600 800 1000 200 0 50 100 150 200 250 OTi 60/220-240/550 D LT2 L OTi 90/220-240/1A0 LT2 L

9 OPTOTRONIC ® Linear | OTi

OPTOTRONIC ® Linear | OT FIT 10 OPTOTRONIC ® FIT High efﬁ ciency and maximum reliability Technical data Product reference Product number LxWxH (mm) I out (mA) U out (V) P out (W) Eff. max. (%) T a / T c (°C) Lifetime (h) I out accur. (%) Isolation Ripple at 100 Hz (%) OT FIT 35/220- 240/700 CS L 4052899032828 280x30x21 500/600/ 700 27-54 13-35 ≥ 86 -25…50/ 75/65 50k/100k 10 SELV 7 OT FIT 50/220- 240/1A0 CS L 4052899032804 280x30x21 800/925/ 1050 27-54 23-55 ≥ 86 -25…50/ 75/65 50k/100k 10 SELV 7 OT FIT 80/220- 240/1A6 CS L 4052899032781 360x30x21 1200/1400/ 1550 27-54 32-83 ≥ 87 -25…50/ 75/65 50k/100k 10 SELV 7 OT FIT 30/220- 240/125 D L 4052899222557 210x30x21 125 54- 216 6.8-27 ≥ 90 -15...50/ 75/65 50k/100k 10 non- isolated 10 OT FIT 50/220- 240/250 D L 4052899222571 210x30x21 250 54- 216 13.5- 54 ≥ 90 -15...50/ 75/65 50k/100k 10 non- isolated 10 OT FIT 50/220- 240/350 D L 4052899222595 210x30x21 350 54- 150 18.9- 52.5 ≥ 90 -15...50/ 75/65 50k/100k 10 non- isolated 10 Product features — Two product families: — 3 output currents to be set (OT FIT CS L – current setting) — Fixed output current (OT FIT D L – direct current) — Suitable for class I luminaires — Lifetime of up to 100 000 hours and high ambient temperature of up to +50 °C — Overtemperature, overload and short-circuit protection as well as open-circuit-proof — Low ripple of output current ( 10 at 100 Hz (%)) for a higher quality of light (e.g. no ﬂ ickering on video recording) — Suitable for emergency lighting systems with central battery according to IEC 61347-2-13 OPTOTRONIC ® FIT (OT FIT) driver OT FIT EL For details on our guarantee requirements, go to www.osram.com/guarantee Operation at max. T c -10 K, maximum failure rate of 10 % At corresponding T c temperature, maximum failure rate of 10 % 5 Year OSRAMGuarantee

11 OPTOTRONIC ® Linear | OT FIT Current [mA] OT FIT CS L operating range (SELV) Voltage [V] OT FIT 35/220-240/700 CS L OT FIT 50/220-240/1A0 CS L OT FIT 80/220-240/1A6 CS L Example: OT FIT 50/220-240/1A0 CS L: Voltage: 27–54 VCurrent: 800/925/1050 mA For detailed data, please see product data sheet (www.osram.com) Current [mA] OT FIT D L operating range (non-isolated) Voltage [V] OT FIT 30/220-240/125 D L OT FIT 50/220-240/250 D L OT FIT 50/220-240/350 D L Example: OT FIT 50/220-240/350 D L: Voltage: 54–150 VCurrent: 350 mA For detailed data, please see product data sheet (www.osram.com) Multiple current settingEach OT FIT CS L driver offers three selectable currents. The main advantage of multiple current setting is the reduction of the number of different product versions in the warehouse. Furthermore, steps between currents are kept small, avoiding any need for LED drivers with intermediate currents. Features of the current setting — CS (current setting) of OT FIT offers the easiest way to choose the output currents without the need for resistors and to avoid typical mistakes when using DIP switches — Each product offers at least one typical current used in the market and will give you the possibility to reduce the current when LEDs will become even more efﬁ cient 1000 1500 2000 500 0 10 40 25 200 300 400 100 0 50 150 100

The following applies to all OSRAM LED modules: — Parallel connection to SELV drivers — Series connection to non-isolated drivers Regarding the clearances and creepage distances, OSRAM SELV modules ( 54 V) are accordingly designed for series connection ( 250 V). Xs Yp Typical wiring example:XsYp " X series Y parallel " Input from one side OPTOTRONIC ® Linear | System solutions System solutions with OSRAM OPTOTRONIC ® drivers and LED modules OSRAM always offers you the perfect match of light source and driver Optimum lighting does not only depend on the performance of the single components but also on the clever combination of these components to create a unique system solution. By combining OPTOTRONIC ® Linear drivers with PrevaLED ® modules from OSRAM, you can rest assured that you have found the perfect match for your lighting solution. OSRAM OPTOTRONIC ® drivers in combination with OSRAM LED modules offer you unique added value: — Perfect system match, tested by OSRAM — Just one provider for your lighting system PrevaLED ® Linear Slim 2 PrevaLED ® Linear Value 2 PrevaLED ® Linear Value 1 PrevaLED ® Area Value PrevaLED ® Bar Value

OPTOTRONIC ® Linear | System solutions 13 System combinations OPTOTRONIC ® – PrevaLED ® SELV Pr evaLED ® Linear Slim 2 PLSZ2-LIN-650-8x0-280-DC PLSZ2-LIN-1100-8x0-280-DC PLSZ2-LIN-2000-8x0-280-DC PLSZ2-LIN-2200-8x0-560-DC PLSZ2-LIN-4000-8x0-560-DC Pr evaLED ® Linear V alue 2 PL VZ2-LIN-650-8xx-280-DC PL VZ2-LIN-1100-8xx-280-DC PL VZ2-LIN-1300-8xx-560-DC PL VZ2-LIN-2200-8xx-560-DC Pr evaLED ® Linear V alue 1 PL VZ1-LIN-650-8xx-280-DC PL VZ1-LIN-1100-8xx-280-DC PL VZ1-LIN-1300-8xx-560-DC PL VZ1-LIN-2200-8xx-560-DC Pr evaLED ® Ar ea V alue PL VG1-Ar -1100-8xx-270x270-DC PL VG1-Ar -4500-8xx-530x530-DC Pr evaLED ® Bar V alue PL VG1-Bar -1100-8xx-280x48-DC PL VG1-Bar -2200-8xx-560x48-DC OTi DALI 35/220-240/700 LT2 L OTi DALI 50/220-240/1A4 LT2 L OTi DALI 80/220-240/1A6 LT2 L OTi DALI 80/220-240/2A1 LT2 L OT FIT 35/220-240/700 CS L OT FIT 50/220-240/1A0 CS L OT FIT 80/220-240/1A6 CS L Non-isolated OTi DALI 60/220-240/550 D LT2 L OTi DALI 90/220-240/1A0 LT2 L OTi 60/220-240/550 D LT2 L OTi 90/220-240/1A0 LT2 L OT FIT 35/220-240/125 D L OT FIT 50/220-240/250 D L OT FIT 50/220-240/350 D L + Detailed information on speciﬁ c combinations (series/parallel) and resulting lumen packages, power levels and system efﬁ cacies can be found in the “Matchmaker” at www.osram.com/oem-download. The corresponding wiring options and wiring diagrams are speciﬁ ed in the respective product data sheets.

OPTOTRONIC ® Linear | System solutions 14 System solutions with OSRAM OPTOTRONIC ® drivers and light management systems (LMS) For higher levels of efﬁ ciency, ﬂ exibility and customization Combining OSRAM OPTOTRONIC ® LED drivers and light management systems (LMS) allows you to create unique lighting solutions that offer plenty of beneﬁ ts to your custom-ers. Your ﬂ exibility during projects is increased tremendously as the LMS provide a simple way to address OTi DALI LED drivers for easy dimming and setting of the desired lighting level. And the best thing about it: You also save huge amounts of energy. With LMS from OSRAM, you will always ﬁ nd the ideal solution – for various applications, luminaires and customer demands. OPTOTRONIC ® and Touch DIM ® The Touch DIM ® functionality, integrated in all OTi DALI LED drivers, is as easy as it gets. Via standard pushbuttons, up to 20 OTi DALI LED drivers can be manually dimmed and switched in a convenient way and a scene can be stored – all without the need for a controller. Moreover, with special Touch DIM ® light and presence sensors, which can be connected directly to the OTi DALI LED drivers, energy savings of more than 50 % can be achieved. Touch DIM ® LS LI and LS/PD LI sensor

OPTOTRONIC ® Linear | System solutions 15 OPTOTRONIC ® and DALIeco ® Control – conﬁ guration by mouse click With the DALIeco ® Control unit for up to 32 OTi DALI LED drivers, you can increase comfort and energy efﬁ ciency of your lighting in no time at all. No matter if used for a single luminaire or luminaire group, in individual or open-plan ofﬁ ces, corridors or production and storage areas – with the multi-functional DALIeco ® Control, individual function proﬁ les can be set up by a few mouse clicks and transmitted via remote control at the push of a button. Purely manual control or a time sequence control can be realized just as easy as the convenient automation by presence and light sensors. OPTOTRONIC ® and DALI PROFESSIONAL The combination of OPTOTRONIC ® LED drivers and DALI PROFESSIONAL is the perfect choice for anyone looking for maximum ﬂ exibility in the control of a larger number of lumi-naires, groups or scenes. With just one controller, up to 256 OTi DALI LED drivers can be controlled in 4 x 16 groups via 4 DALI lines. In addition, up to 50 sensors or pushbutton couplers can be connected to the DALI line. Via DALI SWITCH SO switch actuators, non-dimmable OT FIT LED drivers can also be integrated. DALI PROFESSIONAL offers a ﬂ exible conﬁ guration: Changes can be made quickly and conveniently at all times via a free PC soft-ware – without the need for rewiring. Thanks to the wide choice of user interfaces and sen-sors as well as an integrated real-time clock, DALI PROFESSIONAL is suitable for industrial buildings and warehouses and also for ofﬁ ce spaces with single and open-plan ofﬁ ces. DALIeco ® Control unit and PC conﬁ guration software DALI PRO CONT-4 RTC controller DALI PRO Touch Panel DALI LS/PD LI sensor DALI HIGHBAY ADAPTER
