KT64DL - The UK's smallest MFT with EV testing
Kewtech

KT64DL - The UK's smallest MFT with EV testing

Check out the product data sheet for the UK's smallest MFT

Kewtech

KT64DL - The UK's smallest MFT with EV testing

Published: 21 February 2025 · Category: Product Catalogues & Brochures

Check out the product data sheet for the UK's smallest MFT

From this document

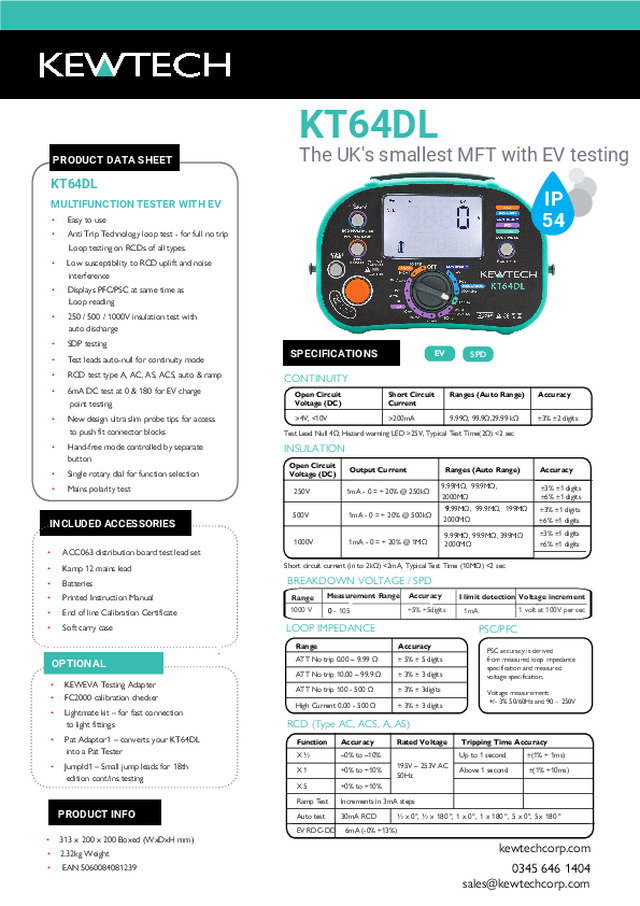

KT64DL PRODUCT DATA SHEET The UK's smallest MFT with EV testing KT64DL IP 54 MULTIFUNCTION TESTER WITH EV • Easy to use • Anti Trip Technology loop test - for full no trip • Low susceptibility to RCD uplift and noise interference • Displays PFC/PSC at same time as Loop reading • 250 / 500 / 1000V insulation test with auto discharge • SDP testing • Test leads auto-null for continuity mode • RCD test type A, AC, AS, ACS, auto & ramp • 6mA DC test at 0 & 180 for EV charge point testing • New design ultra slim probe tips for access to push fit connector blocks • Hand-free mode controlled by separate button • Single rotary dial for function selection Open Circuit Voltage (DC) Output Current Ranges (Auto Range) Accuracy • Mains polarity test 250V 1mA - 0 = + 20% @ 250kΩ 9.99MΩ, 99.9MΩ, 2000MΩ ±3% ±1 digits ±6% ±1 digits 500V = 1mA - 0 + 20% @ 500kΩ 99.99MΩ, 99.9MΩ, 199MΩ 2000MΩ ±3% ±1 digits ±6% ±1 digits 1000V 1mA = - 0 + 20% @ 1MΩ 9.99MΩ, 99.9MΩ, 399MΩ 2000MΩ ±3% ±1 digits Loop testing on RCDs of all types. INCLUDED ACCESSORIES SPECIFICATIONS EV SPD CONTINUITY Open Circuit Voltage (DC) Short Circuit Current Ranges (Auto Range) Accuracy >4V, 200mA 9.99Ω, 99.9Ω,29.99 kΩ ±3% ±2 ±3% ±2digits digits Test Lead Null 4Ω, Hazard warning LED >25V, Typical Test...

Open the PDF
