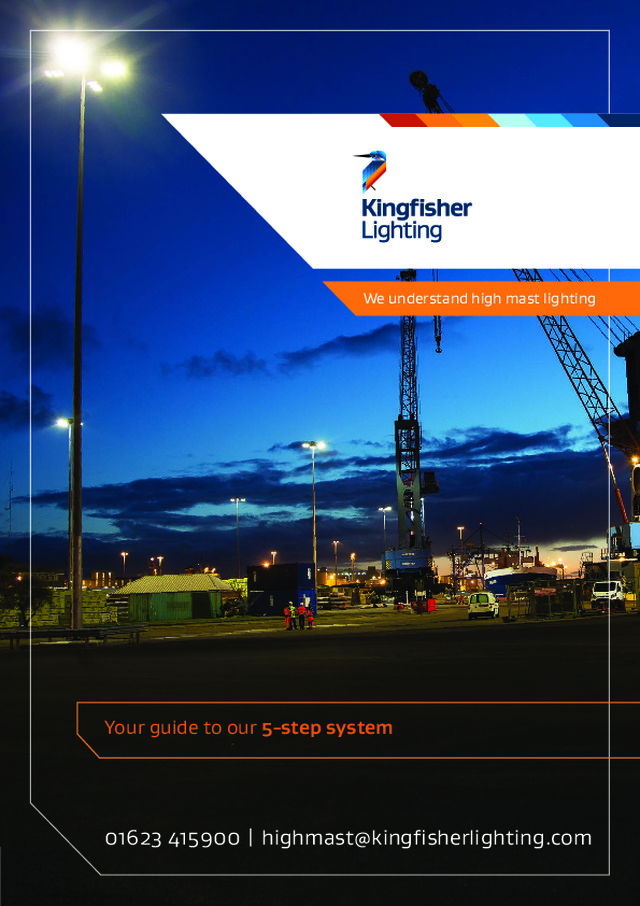

We understand high mast lighting 01623 415900 | [email protected] Your guide to our  5-step system

Every high mast scheme is different and  requires a custom design. We will visit your   site to carry out a detailed audit in order to fully  understand the requirements of your project. Once the audit has been completed we can give you   the best structural and lighting project design possible -  offering the perfect combination of mast system,   lighting and controls. Our project design team are all LIA trained and design  with the latest 2D & 3D software. The team will create  the most efficient scheme for your project along with  calculations on energy consumption and light output so  you can easily see the benefits of your high mast scheme. We can help simplify the technical nature of  high mast lighting.  At Kingfisher we specify  the right system to suit the purpose and  budget of your project. Selecting the right mast is important and depending  on the desired end use, maintenance requirements and  available space, there are a number of mast options we  can offer.  We will guide you through mast selection as well as our  range of extras such as obstruction or warning lights,  custom paint finishes and control systems. Step 1 - Audit & Design Step 2 - The Mast 01623 415900 | [email protected]

The lowering head frame mast is a comprehensive system  that makes light work of accessing the fittings.   1.   An aluminium spun canopy  provides protection for the pulley  assembly at the mast head 2.   A junction splitter box provides  wiring within flexible conduits to  luminaire spigots 3.   The head frame and carriage  are fabricated from mid-steel  and galvanised for strength and  durability 4.   Fully sealed maintenance free  aluminium pulleys, needing no  lubrication, allow the cable to run  smoothly 5.   Stainless steel hoist ropes are  robust enough for any high mast  system  6.   Mechanical winch systems are  used to safely raise and lower  the high mast head frame. Single  or double winches are available  depending on the headframe load.  7.   A dedicated power tool and  accessory pack come as part of the  package for easy winding of the  pulley system. Mast Options Lowering Head Frame Systems Explained www.kingfisherlighting.com Lowering Head Frames  This mast allows the fitting to be  fixed to a movable frame which can  be secured in position or lowered  down the length of the mast using  a powered winch and pulley system.  This mechanism simplifies the  process for regular maintenance. The Benefits •    Maintenance is carried out safely  at ground level •   No need for expensive high level  platform equipment  •   Great for areas with space  restrictions as no ground  clearance is required Fixed Masts Fixed masts are exactly that – fixed.  Teamed with efficient lighting they  offer a great way to light large  areas. Don’t forget maintenance  must be carried out on specialist  equipment at height. The Benefits •   Easily maintained mast - no  moving parts •  Standard installation process Mid-Hinged Masts & Base-Hinged Masts Hinged masts are popular on sports  facilities. They hinge in the middle,  or at the base allowing the lighting  to be accessed at ground level.  Remember that ground clearance is  needed in the lowered position. The Benefits •   Installation and maintenance is  carried out safely at ground level •   No need for expensive high level  platform equipment Head frame assembly  Head frame with canopy Complete head frame & fittings

Obstruction/ Warning lights Bright, long-life and low  maintenance LED lighting available  in either a single or double lamp. Custom Paint Customise your mast to company  or industry colours with our made  to order options. VEmesh Control Systems Our DALI based controls system, VEmesh, can offer  even more energy efficiency and can be retrofitted with  easy integration in to luminaires with a DALI compatible  driver. The integral Wi-Fi enabled bridge nodes alleviate  the need for an external antenna. VEmesh provides all the features you need to manage  a smart lighting system. It offers pre-set dimming and  constant light output. The visual dashboard reporting  tool is easy to use and can be accessed via the VEhub on  any smart device or PC. Step 3 - Lighting & Controls Flood Lighting Controls & Accessories  01623 415900 | [email protected] Scorpius  This high-output performance HID  floodlight is ideal for sports and  high mast applications. It comes with tool-free access  for easy maintenance, a range  of photometric distribution  options as well as a range of hood  accessory options. Retrofit Options We have the capability and  technical knowledge to upgrade  your existing high mast system to  new energy saving LED technology. Galileo  Galileo is a transformational  LED flood light with a low glare  reflector-based optic. Its high  performance and modular  technology make it ideal for  projects requiring high lighting  levels. LED Italo Flood A performance LED street light  body with a flood light optic,  available in three sizes with  four optics. Low-glare reflector  technology ensures a comfortably  lit environment. LED Our energy saving LED lighting provides instant white light ideal for security and task lighting.  Our floodlights are designed to minimise light pollution and glare making them the perfect choice  for your site, your neighbours and wildlife. IP 54 IP 55 IP 65 IP 67 IP 68 IK 07 IK 08 IK 09 IK 10 IP 66 LED DIM RGB Class 1 Class 2 Class 3

Our experienced high mast  installation team work on all types of  projects and sites. We can give you peace of mind with our  HERS registration, full insurance (including  airside cover), ISO 9001, 14001 and 18001  certifications. We can also fully commission your lighting  scheme and provide lux level reports to  ensure the reality matches the design. Taking care of your current high mast lighting,  or planning a maintenance programme for  your new system is vital to ensure both the  performance and health & safety of your  lighting and to remain compliant with site  insurance requirements. It’s your responsibility.  Our fully trained and certified team can maintain and  repair all kinds of high mast lighting, both our own and  non-Kingfisher systems. Our maintenance packages, which are compliant with ILP  PLG07, have been designed to make sure you have the  right level of cover for your system. Why not consider an  LED upgrade during your planned maintenance visit? Activity  Level 1 Level 2 Level 3 Check the winch and fixings P P P Lower the carriage ring to check rope suspension points and suspension  belts P P P Repair of lanterns and control gear P P P Check base mounted electrics P P P Raise the carriage unit and leave the mast fully lit P P P Use of cherry picker to visually check the head and pulleys, the wire  ropes over the full length and the mast structure itself - P P Visual check of foundations, foundation nuts and protective material - P P Structural assessment - - P Ultrasonic testing - - P Torque pull out tests - - P NDT if required - - P Step 4 - Installation & Commissioning Step 5 - Maintenance www.kingfisherlighting.com

•     Experience  -  We have been designing and  installing high mast systems across the  UK for over 25 years working on ports,  airports, rail, highways, sports, retail and  industrial sites. We are experts and sit on a  variety of industry technical committees. We  understand high mast design and installation  and we can guide you with expertise through  your project. •  Technical support -  We work with our  clients to create the optimum design and  then translate this into a real installation.  Our structural and project design experts  will design to suit the custom requirements  of your project. Every one of our high mast  projects is managed by an experienced  project manager. •  End-to-end solutions -  We wrap around  supply with a full end-to-end solution, from  the initial audit through to new designs,  product supply, installation and eventually  the maintenance programme. Effective, safe  implementation now and for years to come. High mast at a glance Step 1: Audit & Design Step 2: The Mast Step 3: Lighting & Controls Step 4: Installation & Commissioning Step 5: Maintenance Why Kingfisher? •  Airports •  Retail parks  •  Sports stadiums   •  Container terminals •  Military bases •  Ports, harbours and docklands  •  Railways and marshalling yards  •  Water and energy facilities   •  Manufacturing and storage facilities   •  Motorway networks and intersections Examples of high mast use 01623 415900 | [email protected]
