Gewiss UK - Product Catalogue - Street [O3], Urban [O3], Street Maxi [O3] LED Street Lighting

The GEWISS lighting range includes architectural floodlights, residential/urban decorative devices, aluminium floodlights, street lighting and flushmounting elements (also modular) for the wall and ground.

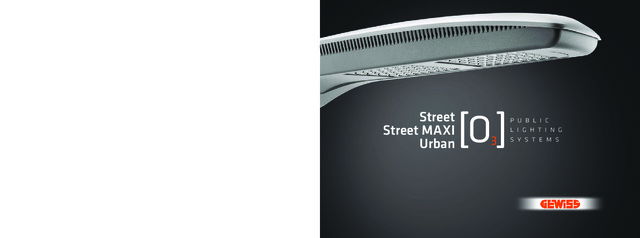

] [ O Street Street MAXI Urban p u b l i cl i g h t i n gs y s t e m s 3 GEWISS S.p.A. Registered Office: Via A. Volta, 1 - 24069 CENATE SOTTO (Bergamo) - Italy Tel. +39 035 946 111 - Fax +39 035 945 222 - [email protected] - www.gewiss.com Sole Shareholder company - Bergamo Register of Companies/ VAT / Tax code (IT) 00385040167 - REA 107496 Share Capital 60,000,000.00 EUR fully paid up PB 22280 EN - 03. 14 LIGHT UP THE FUTURE.

Cover.indd 3 10/02/12 09.30

GEWISS was founded forty years ago and since its first day of operation, research into quality and development of exceptional solutions have been the values that have guided every action and every decision. Over the years, this philosophy and mission toward innovation have shaped a company model based above all on continual investment in Research & Development. Consistent experimentation into new materials and new technologies, the global vision of lighting technology concepts and formalisation of design related to the unmistakable principles of Italian design represent the most intimate and deepest dimension of the GEWISS lighting solutions. This perfect chemistry has allowed GEWISS to become a global partner in creating lighting systems designed for every room, every space and every location: In fact GEWISS products are perfect for indoor and outdoor installations, in industrial contexts, for buildings used for commercial purposes (retail outlets, public buildings) and for sports facilities, as well as for street and emergency lighting. The GEWISS lighting range includes architectural floodlights, residential/urban decorative devices, aluminium floodlights, street lighting and flush-mounting elements (also modular) for the wall and ground. 01

Index 1. Concept and design pag. 5 2. Light technologies pag. 19 3. Street [O3] , Street [O3] Maxi, Urban [O3] pag. 37 03

RESEARCH CO N CE P T DE SIGN P ROD UC TI ON DESIGN SERVICES RELIABILITY NEW PRODUCT Gewiss believes that design represents the strategic arm for the future. However, the design concept is expanded by surpassing the mere aesthetic dimension: for GEWISS, design defines the identity of the product and must be viewed as a process to combine the needs of the market and the characteristics that the product must have to best meet these needs. The success of the company lies in its ability to transform brilliant design ideas into products denoted by superior functional and aesthetic qualities. The originality and innovation of the ideas are supported by a strategic vision and careful resource management. The design process of the devices is done wholly within the company.A team of qualified engineers, the cooperation with Ferrara Palladino e Associati and use of specialised tools and equipment have allowed Gewiss to follow product development in every stage of the process. Concept and Design 1. Design process Concept 05

THE CONCEPT IS THE SUPREME MOMENT IN WHICH THE DESIGN COMES TO LIGHT. IT IS THE INSTANCE WHEN AN IDEA BECOMES A POSSIBILITY AND POSSIBILITY TURNS INTO A SHAPE OR GEOMETRY. THE DESIGN IS THE LONG JOURNEY FROM THE CONCEPT TO THE DESIGN, FROM DEVELOPMENT TO PRODUCTION CONCEPT AND DESIGN

CONCEPT AND DESIGN ARE TWO ESSENTIAL INSTANCES THAT TRANSLATE THE IDEA IN THE SPACE AND TIME OF REALITY. STREET [0 3 ] RANGE

INTERCHANGEABILITY LED MOTOR/COSMOPOLIS MODULARITY TOP CLOSURE MEMBRANE

HEAT DISSIPATION HANDLE FOR OPENING/CLOSING THE BODY A UNIQUE COUPLING FOR ALL INSTALLATIONS

10 NEIGHBOURHOOD STREET URBAN STREET STREET [0 3 ]

SUBURBAN STREET ROUNDABOUT STREET [0 3 ] MAXI

BEAUTY IS THE BALANCE THAT ARISES FROM THE PROPORTION, THE PSYCHOLOGICAL OUTLINE OF A SHAPE THAT SPEAKS TO THE SPACE WHERE IT LIVES THE DESIGN AIMS TO ACHIEVE HARMONY IN THE SHAPES THAT HOLD COMPLEX TECHNICAL SOLUTIONS CONCEPT AND DESIGN

THE DESIGN OF AN OBJECT IS THE ESSENCE OF ALL THE CHARACTERISTICS THAT DEFINE IT: AESTHETICS IS ONLY ONE OF THE DIMENSIONS. ERGONOMICS, USABILITY, MATERIALS, ENVIRONMENTAL IMPACT, PERFORMANCE: THESE ARE THE VARIABLES THAT COME TOGETHER TO DETERMINE THE IDENTITY OF A PRODUCT URBAN [0 3 ] RANGE

INTERCHANGEABILITY LED MOTOR/COSMOPOLIS MODULARITY HEAT DISSIPATION GEWISS BRAND BRACKETS RANGE

EASY INSTALLATION AND MAINTENANCE UNIVERSAL COUPLING

HISTORIC LANE RESIDENTIAL AREA RESIDENTIAL CENTRE URBAN [0 3 ]

MODERN ENVIRONMENT MONUMENTAL ENVIRONMENT COLONNADE PEDESTRIAN AREA URBAN [0 3 ]

The technology is a “discussion on the technique” namely, a solid understanding of the “expertise”. The technique involves working on and in reality, the conversion of natural resources into simple and complicated instruments. Technology is the bridge between knowing and doing, between discovery and innovation, between innovation and market. GEWISS interprets technology as the process that ranges from the discovery to the innovation and then goes from the innovation to the market. To translate a discovery into an innovation, you need to translate knowledge into action and viceversa: the experience and know-how accrued by GEWISS in its more than twenty years of history take shape in products and solutions that adopt the most advanced lighting technologies to offer lighting solutions most adapted to the most heterogeneous contexts. Light technologies 2. 19

20 White light for the urban landscape 20

White light sources: LED Research into LED is developing steadily: they will be the light sources of the future. The advantages of solid state lighting (SSL):• energy savings and environmental sustainability: these light sources allow energy savings with a resulting lower production of carbon dioxide (CO2). Furthermore, LED lights do not contain mercury and their components are easy to dispose of.• heat developed: the heat produced by LED is lower than the heat from discharge lamps and it is transmitted via conduction; this means that the light emitted does not contain infrared radiation and the heat is transferred through the base of the device.• photometric emission: emission only on one side; this is why all the luminous flux emitted is directed toward the surface involved increasing the efficiency of the optic system.• power supply voltage: unlike traditional lamps, LEDs operate at very low voltage; this is why their electrical systems are safer• lifespan and depreciation: inserted into well-designed systems, LED can work hundreds of thousands of hours before the luminous flux emitted decreases to below an established threshold (usually 70% of the original flux L70). LEDs also offer a very low malfunction rate: this is why the costs of maintenance can be considered very economical sources.• mechanical resistance: LEDs are not subject to mechanical shocks such as blows or vibrations.As a result, they are especially ideal for applications subject to continuous or occasional mechanical stress.• dimensions and weight: the small dimensions make it possible to design compact devices.Considering that these lights sources feature a small light emission area, they work well as pilot lens, creating excellent optical yield and factors of use since the light is allocated very precisely.• turning on, regulating, managing: LED turn on when hot and reach the nominal flow in a very short time without being affected by low temperatures. The light can be regulated simply by reducing the pilot current. 22

PROTECTION 5 kA / 10 kV Voltage surge protection DALI 20 YEAR LIFESPAN Lifespan of 80 000 hours DOUBLE REINFORCED INSULATION Dual direction communication protocol Mercury content per light source Mg mercury Mercury vapour lamp High pressure sodium lamp CosmoPolis 80 60 40 20 0 Lm/W Mercury vapour lamp High pressure sodium lamp CosmoPolis 120 100 80 60 40 Performance of the light sources Lifespan CosmoPolis 90W w 140W Lumen in % Operating hours 100 4000 8000 12000 16000 0 80 6040 0 20 White light sources: CosmoPolis Cosmopolis Cosmopolis represents the latest evolution in ceramic metal halides lamps, characterised by a new burner design and extremely precise fixing thanks to the PGZ12 lamp-holder. The advantages of Cosmopolis light sources• dimensions: they are 50% smaller than existing sodium vapour lamps. This makes it possible to design high bays featuring compact overall dimensions which can be inserted into very small sized custom devices.• energy efficiency; the recent technological advancements make it possible to obtain high energy performance reaching 120 lm/W. • lifespan and depreciation: a lifespan of 4 years and the fault rate which stands at about 10% make it one of the best sources on the market. • environmental sustainability: the use of Cosmopolis combined with electronic regulation solutions provide significant savings in terms of energy costs. This source also features a very low mercury content. 23

24 [O 3 ] Technology

At the heart of the GEWISS product range:an efficient and high performing optical system, an essential tool to manage the potential offered by LED sources Optimised Optical Output Technology byGewiss ] [ O 3 what it is objective advantages A single module made up of 8 nano-optics, of two different types.The optics are displayed in an “Array Standing Alone” which make it possible to achieve a complete photometric solid. Faithful to its philosophy, GEWISS has conceived a solution with highly developed yet easy to use content that cuts through the confusion that the new technologies have created in the world of lighting.With its single lens configuration, [O 3 ] Technology can solve distribution problems of the luminous flux for street lighting fixtures. "Software free” optical system guarantees the correct lighting for every type of street. [O 3 ] Technology 25

DISSIPATOR extruded aluminium CABLE GLAND moulded in pvc FACE PLATEmoulded in pvc LENS moulded in plexiglass PRINTED CIRCUIT BOARD (PCB) GASKET moulded in silicone coated rubber LED motor Design of the LED motor Gewiss has developed photometric motors that can take full advantage of the potential of LED light sources by seeking efficiency and flexibility to fit any application in street and urban lighting.These motors represent the heart of our new lighting products. They were designed and manufactured considering a modular system that can evolve with time.Every component, from the lens to the PCB, has been designed entirely in order to conceive a lighting system that can last in time with high performance in heat dissipation and lumen/watt efficiency. 26

LED motor [O3] Street Combinations of modules [O3] Street Maxi Combinations of modules [O3] Urban Combinations of modules Modularity Gewiss devices are built using a modular system of light bars that can be added or removed to obtain the desired luminous flux. 27

100 70 460 810 200 14 0 310 46 0 20 10 420 700 60 40 330 500 90 60 250 360 100 70 150 210 30 20 20 30 32 0 22 0 100 14 0 10 0 70 460 81 0 200 14 0 31 0 460 20 10 420 700 60 40 330 500 90 60 250 360 100 70 150 210 30 20 20 30 320 220 100 140 Lens design The optic system is used to control the light emitted by the LED. Gewiss has decided to use a refraction optic coupled with the light source to obtain the best performance and optimal distribution of the luminous flux.Gewiss optics were designed using 3D modelling with a view to defining the geometries with utmost precision. In PMMA, the optics will not yellow or lose transparency and maintain their performance unchanged in time. Phase 1 - Analysis: this is the phase in which the project is defined, the objectives and regulatory needs are analysed, the project parameters and variables are defined.Phase 2 - CAD Modelling: in this phase, the use of 3D CAD software creates a computerised model of the parts of the design and changes can be made.Phase 3 - Simulation: the intrinsic properties of the materials and surfaces are applied to the model. The geometric definition of the sources allows a simulation of the real behaviour of the system. LED motor 28

J3 TP18 LD9 LD11 S17 S7 LD7 LD6 LD16 LD8 TP20 TP7 TP6 S13 S10 TP15 LD12 TP19 S19 LD5 LD14 LD4 LD13 LD3 S6 S22 LD2 TP5 FIX1 TP14 TP13 S18 LD1 S9 TP8 S23 TP16 TP12 TP4 TP1 J4 FIX2 TP3 LD15 S15 S4 TP11 TP2 J2 TP9 FID3 J1 S2 S12 S20 S8 FID1 LD10 S5 R1 TP17 S1 S3 S11 S21 S24 TP10 S14 S16 S25 S26 S27 S28 motore led-rev0 - + 20.00mm 8.00mm 3.00mm 20.95 mm 36.00m m 23.00mm 25.00mm 23.00mm 4.56mm 25.00mm 25.00mm 25.00mm 25.00mm 25.00mm 11.50mm 8.00mm motore led-rev0 J3 TP18 a k LD9 a k LD11 S17 S7 a k LD7 a k LD6 a k LD16 a k LD8 TP20 TP7 TP6 S13 S10 TP15 a k LD12 TP19 S19 a k LD5 a k LD14 a k LD4 a k LD13 a k LD3 S6 S22 a k LD2 TP5 FIX1 TP14 TP13 S18 a k LD1 S9 TP8 S23 TP16 TP12 TP4 TP1 J4 FIX2 TP3 a k LD15 S15 S4 TP11 TP2 J2 TP9 FID3 J1 S2 S12 S20 S8 FID1 a k LD10 S5 R1 TP17 S1 S3 S11 S21 S24 TP10 S14 S16 S25 S26 S27 S28 - + LED motor PCB Design The PCB is the key to device performance; proper functioning of the LEDs is significantly influenced by the proper design of the PCB and its quality. Specifically, the ability for the individual LED to be correctly dissipated and the behaviour of the entire motor in the event of problems on one of the diodes depend on the characteristics of the circuit and correct assembly.Gewiss has come up with a metal core (aluminium) support that, mounted by interlayering a heat conductive sheet on the dissipator, ensures the best conditions for eliminating the heat and the resulting maintenance in time of the optimal operating requirements. If unexpected external events should cause the LED to overheat, the temperature sensor located on the PCB activates, causing the ballast to dim the power supply current until the originally required operating conditions are restored.Gewiss has selected LEDs that statistically fault in a short circuit in the unlikely event of a crash, thereby not compromising the power continuity of the other diodes connected in series. In any event, to ensure a longer service life, Gewiss has also mounted a counterdiode every 4 LEDs as a standard feature; this limits the possible loss of flow of the individual motor, in the event one of the diodes crashes, to a group of no more than 4 LEDs. For more restrictive applications, Gewiss has already designed the PCB so that the counterdiode can be mounted on every two or on each individual LED, thereby reducing even more dramatically the effects of unexpected faults. Dissipator Design If not dissipated properly, the heat produced during operation of the LED chip can lead to an alteration of the quantitative and qualitative performance, including luminous efficiency, average lifespan, and the spectral emission. Gewiss has decided to create a dissipator in aluminium that is sized in a way to guarantee correct operation of the diodes for different pilot currents. Careful preliminary studies, carried out using dedicated software and validated by sample testing, ensure optimal conditions of operation. 29

Cosmopolis motor Cosmopolis motor design Cosmopolis lamps, along with LED sources, represent the state of the art and the future of lighting. Gewiss has developed an innovative system of extremely small and high performing products around these lights.The motor for the Cosmopolis lamp, designed by Gewiss, characterised by a high degree of protection (IP66), represents a truly sustainable solution. The use of white light, intelligent control of energy use along with valorisation of the lighting, represent concrete actions finalised at finding the most ideal solutions for specific applications.The Cosmopolis lamp Version are thinked and so suitable only for Street [O3] Normal/Standard version. GASKET in silicone coated rubber GASKET moulded in silicone coated rubber LAMP COUPLING moulded in pvc CPO LAMP LAMP HOLDER CUP moulded in pvc REFLECTOR in aluminium CLOSURE GLASS+ LIP GASKET moulded in silicone coated rubber CABLE GLAND moulded in pvc 30

Cosmopolis motor Reflector design The first step is the design of the optic function; it is key to begin with the result to obtain in terms of footprint of the luminous flux distribution.The objective of Gewiss is the reduce wasted light while guaranteeing the levels of light required by prevailing regulations: this translates into the design of an extremely precise optic that can limit dispersion of the light.Processing the data for the tracking of the profile of the high bay is followed by the construction phase, by 3D modelling, with the related verification of the correct distribution of the flux made originally by simulations via software and subsequently through laboratory tests on prototypes. 31

Lamp power Light level 100% 17:00 hr 1. Switch-on timer 2. Switch-off timer ENERGY-SAVING Regulation interval 20:00 hr 0:00 hr 6:00 hr 10 hr 8 hr 6 hr 7:00 hr 100% Peak hours 50% 60% Nighttime methods Resistence Dim level Control CC o R 30k/Ohms 50%/6 ore 2+4 100-200 k/Ohms 66%/6 ore 0+6 Open circuit 50%/8 ore 2+6 Control systems Lumistep and DALI With a view to maximising energy savings, Gewiss has designed the products of the Street [O3] and Urban [O3] families to be supplied with systems to reduce the luminous flux (-40% of power at 50% of the flux), for the versions with Cosmopolis technologies as well as LEDs. Where the application requirements make it possible, this innovation brings an additional reduction of consumption and a resulting decrease in operating costs.Reduced consumption takes place through the process "learning" as it operates according to when it is turned on and off in the past three days, determines the hypothetical virtual midnight versus which the decrease will be applied according to the profile for which the device was configured. For the Cosmopolis products with the Lumistep protocol, Gewiss supplies a standard 8-hour version (non-modifiable), acting two hours before and six hours after the virtual midnight. LED Lumistep devices can also be configured through a set of resistances (included) to mount between the two signal cables, according to the following outline: The DALI option, provided by Gewiss only on products with Cosmopolis technology, provides utmost flexibility of configuration, with up to 5 levels of dimming that can be set on the device and/or controlled by a communications protocol. 32

GPRS Email for the Technical and Servicing Office Central terminal operator server Board supply Point-to-point remote control system sms for Maintenance service SMS Control systems Remote control and management POWER LINE COMMUNICATION SYSTEM OF THE LIGHTING SYSTEMSThe application of power line communication eliminates the need for additional wiring and provides the flexibility to dynamically activate commands, in different areas and at different times (modifiable at any time as needed), for the partialisation of systems (selective shut-off of individual lighting devices) and/or luminous flux reduction.REMOTE DIAGNOSTICS AND REMOTE MANAGEMENT DOWN TO AN INDIVIDUAL LIGHTING DEVICEThe operating control of the individual lamp represents an innovative function, especially because a simple connection of the electronic device in a series to the power supply line makes it possible to control the lamp, while detecting the operating conditions.The electronic device is compatible with any lamp (type, power, and brand) available on the market and can be installed in the access chamber, in the pole slot or in the luminaire shell. 33

The new public lighting systems by GEWISS combine technology with the originality of Italian design to come up with a solution to new needs for urban and street applications. GEWISS has conceived the Street [O3] lighting to house, in a single body, the high performance LEDs or the innovative Cosmopolis discharge lamps. In this way, it is possible to obtain improved design qualities of the night-time urban landscape, greater safety in night-time living of the cities, more energy efficiency and an intelligent regulation of the luminous flux.Moreover,the street range is been extended with the innovative street lighting device called Street [O3]Maxi, and it is now possible to meet the lighting requirements of main roads suburban /extraurban street and generally speaking, for the enlightenment of all the open spaces/large areas that needs a very high illuminance.Contemporary urban lighting is characterised by a fragmentation of the lighting solutions: the proposals differ by type of light source, design of the luminaire shell and type of lighting. Urban [O3] is the GEWISS concept for urban lighting: a system which includes a vast range of fixing accessories and luminous sources which can respond to the multiple needs of lighting in public areas and ensure energy savings and respect for the environment. The new device is also available in the versions with new generation of CosmoPolis or LED lamps, in the stand-alone configurations with two-speed device and self-learning and remote management. Street [O3] - Street [O3] Maxi - Urban [O3] 3. 35

36 GEWISS solutions Street S T R E E T L I G H T I N G ] [ O 3 Street Maxi S T R E E T L I G H T I N G ] [ O 3 36

37 GEWISS solutions Urban U R B A N L I G H T I N G ] [ O 3 37

GEWISS solutions Street [O3] The innovative street lighting designed to house, in a single body, both the high performance LEDs or the innovative CosmoPolis discharge lamps.- Protection degree IP 66- Insulation class II- LED versions in component modules with from 1 (16 LED) to 5 (80 LED) or, alternatively, versions with innovative CosmoPolis discharge lamps- Opening with a tripping handle- Auto-learning bi-power versions or DALI versions Street [O 3 ] LED Street [O 3 ] COSMO 38

GEWISS solutions Ventilation Heat dispersion in the lighting device is guaranteed by the correct design of the heat dissipator located directly in contact with the printed circuit board and by inserting lateral nets that allow an optimal exchange of heat between the device and the environment.[O3] Street, designed according to integrated heat criteria, uses even the smallest change in the air speed to increase convection exchange. Interchangeability The applied experience teaches that there is no one single ideal configuration for all applications and the needs can be very different, from a technical or economic perspective. At the same time, the evolution of lighting products from electromechanical to electronic technologies can make the rigidity of the decisions made today potentially costly for tomorrow.In this perspective, Gewiss has developed a series of products that start with the best technologies today and follow their evolution, while maintaining the ability to move on to the one that appears to be the best over time. This freedom of choice keeps the design of the product unchanged and does not dramatically affect replacement operations. Overvoltages protection Thanks to the complete separation of electricaland electronic parts of the body, the streetlighting Street [O3] Maxi is protected fromcommon over voltages up to 6kV, according tothe European Standards. (Certified by third part) 39

Die-cast aluminium cover Supply unit Removable power supply plate Opening/closing handle Pole joint LED motor Opening and locking mechanism Decorative closure shield Mesh for ventilation Die-cast aluminium base Street [O 3 ] LED version 40

Die-cast aluminium cover Supply unit Decorative closure frame Extractable wiring plate Opening/closing handle Cosmopolis motor Opening and locking mechanism Frame/motor gasket Mesh for ventilation Die-cast aluminium base Pole joint Street [O 3 ] CosmoPolis version 41

Street [O3] Maxi LED lighting system in die-cast aluminium for main roads, extraurban street and large area lighting in general. - Protection degree IP 66 - Insulation class II- LED Versions with from 6 to 10 modules.- Opening with a snap-on handle.- Stand-alone or Bi-power self-learning versions. GEWISS solutions Street [O 3 ] Maxi LED 42

H I GH P R OT E CT I ON H IG H PROT E C TIO N More power for largest street The new street [O3] Maxi is able to reach a Lumen Output package up to 24000 lumen(10 modules) and to meet the lighting requirements of main roads, suburban, extra urban street and, generally speaking, for the enlightenment of all the open spaces/large areas. Overvoltages protection Thanks to the complete separation of electrical and electronic parts of the body, the street lighting Street [O3] Maxi is protected from common over voltages up to 6kV, according to the European Standards. (Certified by third part). 5 years warranty All the LED lighting products of the Gewiss range offer the possibility of an additional warranty for a further 3 years after the standard 2-year warranty period, by registering on www.gewiss.com. High temperature resistance Street [O3] Maxi is particularly suitable for use in hot environments with very high temperatures. Street [O 3 ] Maxi 43

LED version Street [O 3 ] Maxi Die-cast aluminium cover Opening/closing handle Supply unit Pole joint Removable power supply plate LED motors Decorative closure shield Mesh for ventilation Die-cast aluminium base Goniometer 44

Street [O 3 ] Maxi 45

Device configuration Reference standard Dimensions of the outdoor area Lighting tower height Number of devices Average lighting Uniformity Min/av GW S7 805 STREET O3 MAXI 10x16LED 4000K EN 12464-2 50 x 50 m 30 m 7 20 Lux 0.40 Urban street Large outdoor area ME3c street optic Device configuration Standard reference Class lighting Number of carriageways Number of lanes Road width Pole height Centre distance GEWISS GW 87 514 STREET O3 5x16LED 4000K EN 13201 ME3c 1 2 8 m 8 m 30 m Project type Below, you can see some simple lighting projects that shows the photometric performances of Street [O3] - Street [O3] Maxi. 46

Project type Roundabout Motorway Device configuration Reference standard Lighting class Number of carriageways Number of lanes Road width Pole height Centre distance GEWISS GW S7 804 STREET O3 MAXI 9x16LED 4000K EN 13201 ME1 2 3 9.5 m 10 m 30m Device configuration Reference standard Lighting class Road width Pole height Number of devices External roundabout Ø Internal roundabout Ø GEWISS GW S7 804 STREET O3 MAXI 9x16LED 4000K EN 13201 CE2 8m 15m 4 46 m 30m 47

Street [O 3 ] Poles The Street [O3] range products can be installed on all pole systems, with or without a side bracket, with a diameter from 42 to 76 mm.At the same time, Gewiss can supply its own range of poles and side brackets that blend with the design of the Street [O3] to enhance its design and to characterise the final result of the installation. Pole with one side bracket Pole for mixed applications Pole with two side brackets 48

Street [O 3 ] An analysis of the contexts of application and the desire to create elegant settings has led GEWISS to conceive a series of street lighting products and the relevant brackets, connoted by a high design content. 49

GEWISS solutions The new system of street lighting which includes a vast range of fixing accessories and light sources which can respond to the multiple needs of lighting in public areas. The solution is designed to guarantee significant energy savings and utmost respect for the environment.- Protection degree IP66- Insulation class II- Moveable ball joint for fixing to the pole- LED versions in component modules (2-4) or, alternatively, versions with innovative CosmoPolis discharge lamps- Auto-learning bi-power versions or DALI versions Urban [O3] 50

Systems for commercial side brackets - Urban [O 3 ] Urban [O 3 ] Cosmo side coupling Urban [O 3 ] LED side coupling Urban [O 3 ] Cosmo top coupling Urban [O 3 ] LED top coupling Urban [O 3 ] Cosmo suspension Urban [O 3 ] LED suspension 51

Urban [O 3 ] Interchangeability of motors Applied experience teaches that there is no one single ideal configuration for all applications and needs can be very different, from both a technical and economic perspective. At the same time, the evolution of lighting products from electromechanical to electronic technologies can make the rigidity of the decisions made today potentially costly for tomorrow. In this perspective, Gewiss has developed a series of products that start with the current best technologies and follow their evolution, while maintaining the ability to move on to the one that appears to be the best over time. This freedom of choice keeps the design of the product unchanged and does not dramatically affect replacement operations. Ventilation Heat dispersion in the lighting device is achieved by the correct design of the heat dissipator located directly in contact with the printed circuit board and by inserting a side mesh that allows an optimal exchange of heat between the inside of the device and the outside environment.[O3] Urban, designed according to integrated thermal criteria, uses even the smallest movement of the air to dissipate the heat. 52

Urban [O 3 ] Ease of installation One of the key features of [O3] Urban is its easy installation. In the design stages, Gewiss has taken account of the difficulties that installers typically encounter when installing or maintaining at height. Phase 1 Phase 3 Phase 2 Phase 4 53

Die-cast aluminium pole mounting frame Safety knife for installation and special maintenance LED motor Removable power supply plate Die-cast aluminium base Urban [O 3 ] Die-cast aluminium cover Mesh for ventilation Decorative closure shield Safety knife for internal maintenance LED version 54

Urban [O 3 ] Die-cast aluminium cover Mesh for ventilation Decorative closure frame Die-cast aluminium pole mounting frame Cosmopolis motor Removable power supply plate Die-cast aluminium base Safety knife for installation and special maintenance Safety knife for internal maintenance CosmoPolis version 55

Urban [O 3 ] - GEWISS side bracket systems Urban [O 3 ] pole-head Urban [O 3 ] Modern Urban [O 3 ] Pastoral 56

Urban [O 3 ] Urban [O 3 ] pole-head Urban [O 3 ] Modern Urban [O 3 ] Pastoral 57

Street [O 3 ] - product codes Street lighting in die-cast aluminium - IP66 LED modules powered at 530 mA with PMMA lenses Code Number of modules Temperature of colour System power Output (lm) Colour Voltage: 220/240 V - 50/60 Hz - Stand-alone and/or possibility of dimmer 1-10 V GW 87 501 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Grap/Alum GW 87 502 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Grap/Alum GW 87 503 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Grap/Alum GW 87 504 5 (5x16 LED) 3500 K (Ra85) 129 W 7850 Grap/Alum GW 87 510 1 (1x16 LED) 4000 K (Ra65) 31 W 2320 Grap/Alum GW 87 511 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Grap/Alum GW 87 512 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Grap/Alum GW 87 513 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Grap/Alum GW 87 514 5 (5x16 LED) 4000 K (Ra65) 129 W 10620 Grap/Alum Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning GW 87 521 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Grap/Alum GW 87 522 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Grap/Alum GW 87 523 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Grap/Alum GW 87 524 5 (5x16 LED) 3500 K (Ra85) 129 W 7850 Grap/Alum GW 87 530 1 (1x16 LED) 4000 K (Ra65) 31 W 2320 Grap/Alum GW 87 531 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Grap/Alum GW 87 532 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Grap/Alum GW 87 533 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Grap/Alum GW 87 534 5 (5x16 LED) 4000 K (Ra65) 129 W 10620 Grap/Alum NOTES: the versions from GW87521 to GW87534 can be configured in 3 flow-reduction modes: two of 6 hours (0-6h or 2-4h) and one of 8 hours (2-6h). The data refer to 530mA. LED pilot current can be set at 530/410/350 mA via a jumper or resistor. Remote management versions available. Street lighting in die-cast aluminium - IP66 LED modules powered at 700 mA with PMMA lenses Code Number of modules Temperature of colour System power Output (lm) Colour Voltage: 220/240 V - 50/60 Hz - Stand alone GW 87 410 1 (1x16 LED) 4000 K (Ra65) 39 W 3030 Grap/Alum GW 87 411 2 (2x16 LED) 4000 K (Ra65) 71 W 5570 Grap/Alum GW 87 412 3 (3x16 LED) 4000 K (Ra65) 102 W 8080 Grap/Alum NOTES: The data refer to 700mA. Street lighting in die-cast aluminium - IP66 LED modules powered at 530 mA with PMMA lenses Code Number of modules Temperature of colour System power Output (lm) Colour Voltage: 24V dc - stand alone GW 87 571 2 (2x16 LED) 4000 K (Ra65) 52 W 4510 Grap/Alum NOTES: The data refer to 530mA. Street lighting in die-cast aluminium - IP66 LED modules powered at 530 mA with PMMA lenses Code Number of modules Temperature of colour System power Output (lm) Colour Voltage: 220/240 V - 50/60 Hz - Stand-alone and/or possibility of dimmer 1-10 V GW S7 001 2 (2x16 LED) 3500 K (Ra85) 54 W 3120 Grap/Alum GW S7 002 3 (3x16 LED) 3500 K (Ra85) 80 W 4560 Grap/Alum GW S7 003 4 (4x16 LED) 3500 K (Ra85) 104 W 5970 Grap/Alum GW S7 004 5 (5x16 LED) 3500 K (Ra85) 129 W 7360 Grap/Alum GW S7 010 1 (1x16 LED) 4000 K (Ra65) 31 W 2170 Grap/Alum GW S7 011 2 (2x16 LED) 4000 K (Ra65) 54 W 4230 Grap/Alum GW S7 012 3 (3x16 LED) 4000 K (Ra65) 80 W 6170 Grap/Alum GW S7 013 4 (4x16 LED) 4000 K (Ra65) 104 W 8080 Grap/Alum GW S7 014 5 (5x16 LED) 4000 K (Ra65) 129 W 9960 Grap/Alum Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning GW S7 021 2 (2x16 LED) 3500 K (Ra85) 54 W 3120 Grap/Alum GW S7 022 3 (3x16 LED) 3500 K (Ra85) 80 W 4560 Grap/Alum GW S7 023 4 (4x16 LED) 3500 K (Ra85) 104 W 5970 Grap/Alum GW S7 024 5 (5x16 LED) 3500 K (Ra85) 129 W 7360 Grap/Alum GW S7 030 1 (1x16 LED) 4000 K (Ra65) 31 W 2170 Grap/Alum GW S7 031 2 (2x16 LED) 4000 K (Ra65) 54 W 4230 Grap/Alum GW S7 032 3 (3x16 LED) 4000 K (Ra65) 80 W 6170 Grap/Alum GW S7 033 4 (4x16 LED) 4000 K (Ra65) 104 W 8080 Grap/Alum GW S7 034 5 (5x16 LED) 4000 K (Ra65) 129 W 9960 Grap/Alum NOTES: the versions from GWS7021 to GWS7034 can be configured in 3 flow-reduction modes: two of 6 hours (0-6h or 2-4h) and one of 8 hours (2-6h). The data refer to 530mA. LED driving current can be set at 530/410/350 mA via a jumper or resistor. Remote management versions available. STREET [O3] LED - Street optic - 700 mA STREET [O3] LED - Street optic STREET [O3] LED - street optic - for photovoltaic systems STREET [O3] LED - Cycle and pedestrian optic 58

Street [O 3 ] - product codes Street lighting in die-cast aluminium - IP66 LED modules powered at 700 mA with PMMA lenses Code Number of modules Temperature of colour System power Output (lm) Colour Voltage: 220/240 V - 50/60 Hz - Stand alone GW S7 110 1 (1x16 LED) 4000 K (Ra65) 39 W 2750 Grap/Alum GW S7 111 2 (2x16 LED) 4000 K (Ra65) 71 W 5060 Grap/Alum GW S7 112 3 (3x16 LED) 4000 K (Ra65) 102 W 7330 Grap/Alum NOTES: The data refer to 700mA. Street lighting in die-cast aluminium - IP66 LED modules powered at 530 mA with PMMA lenses Code Number of modules Temperature of colour System power Output (lm) Colour Voltage: 24V dc - stand alone GW S7 071 2 (2x16 LED) 4000 K (Ra65) 52 W 4230 Grap/Alum NOTES: The data refer to 530mA. STREET [O3] MAXI LED - Street optic STREET [O3] COSMOPOLIS LED - Street optic STREET [O3] LED - Cycle and pedestrian optic - 700 mA STREET [O3] LED - cycle and pedestrian optic - for photovoltaic systems Street lighting in die-cast aluminium - Flat glass - IP66 Code Lamp power Lamp Lamp holder Lamp current Colour Voltage: 220/240 V - 50/60 Hz GW 87 541 45 W MT PGZ-12 0.5 A Grap/Alum GW 87 542 60 W MT PGZ-12 0.65 A Grap/Alum GW 87 543 90 W MT PGZ-12 0.97 A Grap/Alum GW 87 544 140 W MT PGZ-12 1.49 A Grap/Alum Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning (8 h) GW 87 552 60 W MT PGZ-12 0.65 A Grap/Alum GW 87 553 90 W MT PGZ-12 0.97 A Grap/Alum GW 87 554 140 W MT PGZ-12 1.49 A Grap/Alum Voltage: 220/240 V - 50/60 Hz - DALI GW 87 561 45 W MT PGZ-12 0.5 A Grap/Alum GW 87 562 60 W MT PGZ-12 0.65 A Grap/Alum GW 87 563 90 W MT PGZ-12 0.97 A Grap/Alum GW 87 564 140 W MT PGZ-12 1.49 A Grap/Alum Street lighting in die-cast aluminium - IP66 LED modules powered at 530 mA with PMMA lenses Code Number of modules Temperature of colour System power Output (lm) Colour Voltage: 220/240 V - 50/60 Hz - Stand-alone and/or possibility of dimmer 1-10 V GW S7 801 6 (6x16 LED) 4000 K (Ra65) 160 W 14580 Grap/Alum GW S7 802 7 (7x16 LED) 4000 K (Ra65) 185 W 17010 Grap/Alum GW S7 803 8 (8x16 LED) 4000 K (Ra65) 209 W 19430 Grap/Alum GW S7 804 9 (9x16 LED) 4000 K (Ra65) 233 W 21860 Grap/Alum GW S7 805 10 (10x16 LED) 4000 K (Ra65) 258 W 24290 Grap/Alum Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning GW S7 821 6 (6x16 LED) 4000 K (Ra65) 160 W 14580 Grap/Alum GW S7 822 7 (7x16 LED) 4000 K (Ra65) 185 W 17010 Grap/Alum GW S7 823 8 (8x16 LED) 4000 K (Ra65) 209 W 19430 Grap/Alum GW S7 824 9 (9x16 LED) 4000 K (Ra65) 233 W 21860 Grap/Alum GW S7 825 10 (10x16 LED) 4000 K (Ra65) 258 W 24290 Grap/Alum NOTES: the Bi-power versions with self-learning can be configured in 3 flow reduction mode: two of 6 hours (0-6h or 2-4h) and one of 8 hours (2-6h). The data refer to 530mA. The driving current can be set at 530 / 410 / 350 mA via a jumper or resistor. 59

401 185 726 449 20 0 1027 Colours Bi-colour (G/A) Dimensions Street [O 3 ] - product codes Gewiss poles and side brackets Poles Fixing accessories Painted tapered poles GW8409 6 GW875 91 GW875 92 Code Total length (m) Planting (m) Base diameter (mm) Top diameter (mm) Colour GW 84 096 5.5 0.5 115 60 Grap grey GW 87 591 6.8 0.8 128 60 Grap grey GW 84 097 7.8 0.8 138 60 Grap grey GW 87 592 8.8 0.8 148 60 Grap grey GW 87 593 9.8 0.8 158 60 Grap grey NOTE: painted poles in hot galvanised steel complete with a junction terminal block. Pole head brackets - Ø 60 mm GW8758 1 GW87582 Code Description Length Colour GW 87 581 Single pole head bracket 1 m Grap grey GW 87 582 Double pole head bracket 1 + 1 m Grap grey Brackets for fixing at variable heights GW87586 GW87587 Code Description Length Colour GW 87 586 Long bracket 1 m Grap grey GW 87 587 Short bracket 0,5 m Grap grey NOTE: for poles with a diameter from 60 to 75 mm. Bracket for wall-mounting GW86 167 Code Description Outer dim. LxHxD (mm) Colour GW 86 167 Bracket for wall-mounting 150x160x290 Grap grey APPLICATIONS: allows the installation of the device on the wall and on 90° edges. CHARACTERISTICS: hot galvanised steel, painted. 60

Urban [O3] - Possible compositions for commercial side brackets The installation kit includes the fixing component and the cover. + Single intermediate side bracket OR Single pole-head OR Double pole-head Notes Possibility of completing the system with Gewiss pole (Ø 60 mm) GW 87 901 / GW 87 968 GW 87 986 or GW 87 996 GW 87 984 or GW 87 994 GW 87 985 or GW 87 995 + Pastoral pole for conical pole OR Pastoral pole for Place pole Notes Possibility to assemble dual side bracket solutions.(GW code x 2) GW 87 901 / GW 87 968 GW 87 981 or GW 87 991 GW 87 982 or GW 87 992 + Surface-mounting pastoral pole GW 87 901 / GW 87 968 GW 87 983 or GW 87 993 + Suspended pole head Notes Gewiss pole configuration Commercial pole configuration GW 87 901 / GW 87 968 GW 87 987 or GW 87 997 Possible compositions for systems for commercial side brackets Possible compositions for GEWISS side bracket systems SIDE COUPLING + Commercial side brackets - min. Ø 55 mm- max. Ø 65 mm Notes Complete system for coupling on commercial poles UPPER COUPLING + Commercial side brackets - min. Ø 48 mm- max. Ø 60 mm Notes Complete system for coupling on poles with Ø 48 mm or Ø 60 mm. Fixing of poles to the bush with three holes Ø 7.5 mm at 120° SUSPENSION + Metal ropes - min. Ø 55 mm- max. Ø 65 mm Notes Complete system for installation on metal ropes Ø 7.5 120°x3 +15° 61

Urban [O 3 ] - Systems for commercial side brackets - product codes Device in die-cast aluminium for urban lighting - flat glass - IP66 LED modules powered at 530 mA with PMMA lenses Code Number of modules Temperature of colour System power Output (lm) Colour Voltage: 220/240 V - 50/60 Hz - Stand-alone and/or possibility of dimmer 1-10 V GW 87 601 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Grap grey GW 87 602 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Grap grey GW 87 603 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Grap grey GW 87 606 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Grap grey GW 87 607 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Grap grey GW 87 608 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Grap grey GW 87 611 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Aluminium GW 87 612 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Aluminium GW 87 613 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Aluminium GW 87 616 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Aluminium GW 87 617 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Aluminium GW 87 618 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Aluminium Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning GW 87 621 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Grap grey GW 87 622 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Grap grey GW 87 623 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Grap grey GW 87 626 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Grap grey GW 87 627 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Grap grey GW 87 628 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Grap grey GW 87 631 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Aluminium GW 87 632 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Aluminium GW 87 633 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Aluminium GW 87 636 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Aluminium GW 87 637 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Aluminium GW 87 638 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Aluminium NOTES: the versions from GW87621 to GW87638 can be configured in 3 flow-reduction modes: two of 6 hours (0-6h or 2-4h) and one of 8 hours (2-6h). Remote management versions available Side coupling systemsfor commercial side brackets LED - Street optic Side coupling systemsfor commercial side brackets Led - Cycle and pedestrian optic Device in die-cast aluminium for urban lighting - flat glass - IP66 LED modules powered at 530 mA with PMMA lenses Code Number of modules Temperature of colour System power Output (lm) Colour Voltage: 220/240 V - 50/60 Hz - Stand-alone and/or possibility of dimmer 1-10 V GW S7 201 2 (2x16 LED) 3500 K (Ra85) 54 W 3120 Grap grey GW S7 202 3 (3x16 LED) 3500 K (Ra85) 80 W 4560 Grap grey GW S7 203 4 (4x16 LED) 3500 K (Ra85) 104 W 5970 Grap grey GW S7 206 2 (2x16 LED) 4000 K (Ra65) 54 W 4230 Grap grey GW S7 207 3 (3x16 LED) 4000 K (Ra65) 80 W 6170 Grap grey GW S7 208 4 (4x16 LED) 4000 K (Ra65) 104 W 8080 Grap grey GW S7 211 2 (2x16 LED) 3500 K (Ra85) 54 W 3120 Aluminium GW S7 212 3 (3x16 LED) 3500 K (Ra85) 80 W 4560 Aluminium GW S7 213 4 (4x16 LED) 3500 K (Ra85) 104 W 5970 Aluminium GW S7 216 2 (2x16 LED) 4000 K (Ra65) 54 W 4230 Aluminium GW S7 217 3 (3x16 LED) 4000 K (Ra65) 80 W 6170 Aluminium GW S7 218 4 (4x16 LED) 4000 K (Ra65) 104 W 8080 Aluminium Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning GW S7 221 2 (2x16 LED) 3500 K (Ra85) 54 W 3120 Grap grey GW S7 222 3 (3x16 LED) 3500 K (Ra85) 80 W 4560 Grap grey GW S7 223 4 (4x16 LED) 3500 K (Ra85) 104 W 5970 Grap grey GW S7 226 2 (2x16 LED) 4000 K (Ra65) 54 W 4230 Grap grey GW S7 227 3 (3x16 LED) 4000 K (Ra65) 80 W 6170 Grap grey GW S7 228 4 (4x16 LED) 4000 K (Ra65) 104 W 8080 Grap grey GW S7 231 2 (2x16 LED) 3500 K (Ra85) 54 W 3120 Aluminium GW S7 232 3 (3x16 LED) 3500 K (Ra85) 80 W 4560 Aluminium GW S7 233 4 (4x16 LED) 3500 K (Ra85) 104 W 5970 Aluminium GW S7 236 2 (2x16 LED) 4000 K (Ra65) 54 W 4230 Aluminium GW S7 237 3 (3x16 LED) 4000 K (Ra65) 80 W 6170 Aluminium GW S7 238 4 (4x16 LED) 4000 K (Ra65) 104 W 8080 Aluminium NOTE: the versions from GWS7221 to GWS7238 can be configured in 3 flow-reduction modes: two of 6 hours (0-6h or 2-4h) and one of 8 hours (2-6h). Remote management versions available 62

Urban [O 3 ] - Systems for commercial side brackets - product codes Device in die-cast aluminium for urban lighting - flat glass - IP66 LED modules powered at 530 mA with PMMA lenses Code Number of modules Temperature of colour System power Output (lm) Colour Voltage: 220/240 V - 50/60 Hz - Stand-alone and/or possibility of dimmer 1-10 V GW S7 251 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Grap grey GW S7 252 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Grap grey GW S7 253 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Grap grey GW S7 256 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Grap grey GW S7 257 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Grap grey GW S7 258 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Grap grey GW S7 261 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Aluminium GW S7 262 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Aluminium GW S7 263 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Aluminium GW S7 266 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Aluminium GW S7 267 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Aluminium GW S7 268 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Aluminium Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning GW S7 271 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Grap grey GW S7 272 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Grap grey GW S7 273 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Grap grey GW S7 276 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Grap grey GW S7 277 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Grap grey GW S7 278 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Grap grey GW S7 281 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Aluminium GW S7 282 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Aluminium GW S7 283 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Aluminium GW S7 286 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Aluminium GW S7 287 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Aluminium GW S7 288 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Aluminium NOTE: the versions from GWS7271 to GWS7288 can be configured in 3 flow-reduction modes: two of 6 hours (0-6h or 2-4h) and one of 8 hours (2-6h). Remote management versions available Side coupling systemsfor commercial side brackets Led - Elliptical optic Device in die-cast aluminium for urban lighting - flat glass - IP66 Code Lamp power Lamp Lamp holder Lamp current Colour Voltage: 220/240 V - 50/60 Hz GW 87 641 45 W MT PGZ-12 0.5 A Grap grey GW 87 642 60 W MT PGZ-12 0.65 A Grap grey GW 87 643 90 W MT PGZ-12 0.97 A Grap grey GW 87 646 45 W MT PGZ-12 0.5 A Aluminium GW 87 647 60 W MT PGZ-12 0.65 A Aluminium GW 87 648 90 W MT PGZ-12 0.97 A Aluminium Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning (8 h) GW 87 652 60 W MT PGZ-12 0.65 A Grap grey GW 87 653 90 W MT PGZ-12 0.97 A Grap grey GW 87 657 60 W MT PGZ-12 0.65 A Aluminium GW 87 658 90 W MT PGZ-12 0.97 A Aluminium Voltage: 220/240 V - 50/60 Hz - DALI GW 87 661 45 W MT PGZ-12 0.5 A Grap grey GW 87 662 60 W MT PGZ-12 0.65 A Grap grey GW 87 663 90 W MT PGZ-12 0.97 A Grap grey GW 87 666 45 W MT PGZ-12 0.5 A Aluminium GW 87 667 60 W MT PGZ-12 0.65 A Aluminium GW 87 668 90 W MT PGZ-12 0.97 A Aluminium Side coupling systems for commercial side brackets Cosmopolis - Street optics 63

Device in die-cast aluminium for urban lighting - flat glass - IP66 LED modules powered at 530 mA with PMMA lenses Code Number of modules Temperature of colour System power Output (lm) Colour Voltage: 220/240 V - 50/60 Hz - Stand-alone and/or possibility of dimmer 1-10 V GW 87 701 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Grap grey GW 87 702 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Grap grey GW 87 703 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Grap grey GW 87 706 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Grap grey GW 87 707 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Grap grey GW 87 708 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Grap grey GW 87 711 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Aluminium GW 87 712 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Aluminium GW 87 713 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Aluminium GW 87 716 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Aluminium GW 87 717 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Aluminium GW 87 718 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Aluminium Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning GW 87 721 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Grap grey GW 87 722 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Grap grey GW 87 723 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Grap grey GW 87 726 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Grap grey GW 87 727 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Grap grey GW 87 728 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Grap grey GW 87 731 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Aluminium GW 87 732 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Aluminium GW 87 733 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Aluminium GW 87 736 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Aluminium GW 87 737 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Aluminium GW 87 738 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Aluminium NOTES: the versions from GW87721 to GW87738 can be configured in 3 flow-reduction modes: two of 6 hours (0-6h or 2-4h) and one of 8 hours (2-6h). Remote management versions available Systems for commercial side brackets with top connection LED - Street optics Urban [O 3 ] - Systems for commercial side brackets - product codes Fixing accessories Accessories for pole fixing Accessories for surface-mounting Kit for fixing round bracket pole-head GW87 88 1 GW87 882 Code Description Length Colour GW 87 881 Single 400 mm Grap grey GW 87 882 Double 800 mm Grap grey GW 87 891 Single 400 mm Aluminium GW 87 892 Double 800 mm Aluminium Kit for surface-mounting GW87 885 Code Description Length Colour GW 87 885 Wall-fixing bracket 450 mm Grap grey GW 87 895 Wall-fixing bracket 450 mm Aluminium Fixing kit with variable-height round side bracket GW87 88 1 GW87 882 Code Description Length Colour GW 87 883 Single intermediate 400 mm Grap grey GW 87 884 PLACE pole single intermediate 400 mm Grap grey GW 87 893 Single intermediate 400 mm Aluminium GW 87 894 PLACE pole single intermediate 400 mm Aluminium 64

Systems for commercial side brackets with top connection Led - Cycle and pedestrian optic Device in die-cast aluminium for urban lighting - flat glass - IP66 LED modules powered at 530 mA with PMMA lenses Code Number of modules Temperature of colour System power Output (lm) Colour Voltage: 220/240 V - 50/60 Hz - Stand-alone and/or possibility of dimmer 1-10 V GW S7 301 2 (2x16 LED) 3500 K (Ra85) 54 W 3120 Grap grey GW S7 302 3 (3x16 LED) 3500 K (Ra85) 80 W 4560 Grap grey GW S7 303 4 (4x16 LED) 3500 K (Ra85) 104 W 5970 Grap grey GW S7 306 2 (2x16 LED) 4000 K (Ra65) 54 W 4230 Grap grey GW S7 307 3 (3x16 LED) 4000 K (Ra65) 80 W 6170 Grap grey GW S7 308 4 (4x16 LED) 4000 K (Ra65) 104 W 8080 Grap grey GW S7 311 2 (2x16 LED) 3500 K (Ra85) 54 W 3120 Aluminium GW S7 312 3 (3x16 LED) 3500 K (Ra85) 80 W 4560 Aluminium GW S7 313 4 (4x16 LED) 3500 K (Ra85) 104 W 5970 Aluminium GW S7 316 2 (2x16 LED) 4000 K (Ra65) 54 W 4230 Aluminium GW S7 317 3 (3x16 LED) 4000 K (Ra65) 80 W 6170 Aluminium GW S7 318 4 (4x16 LED) 4000 K (Ra65) 104 W 8080 Aluminium Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning GW S7 321 2 (2x16 LED) 3500 K (Ra85) 54 W 3120 Grap grey GW S7 322 3 (3x16 LED) 3500 K (Ra85) 80 W 4560 Grap grey GW S7 323 4 (4x16 LED) 3500 K (Ra85) 104 W 5970 Grap grey GW S7 326 2 (2x16 LED) 4000 K (Ra65) 54 W 4230 Grap grey GW S7 327 3 (3x16 LED) 4000 K (Ra65) 80 W 6170 Grap grey GW S7 328 4 (4x16 LED) 4000 K (Ra65) 104 W 8080 Grap grey GW S7 331 2 (2x16 LED) 3500 K (Ra85) 54 W 3120 Aluminium GW S7 332 3 (3x16 LED) 3500 K (Ra85) 80 W 4560 Aluminium GW S7 333 4 (4x16 LED) 3500 K (Ra85) 104 W 5970 Aluminium GW S7 336 2 (2x16 LED) 4000 K (Ra65) 54 W 4230 Aluminium GW S7 337 3 (3x16 LED) 4000 K (Ra65) 80 W 6170 Aluminium GW S7 338 4 (4x16 LED) 4000 K (Ra65) 104 W 8080 Aluminium NOTE: the versions from GWS7321 to GWS7338 can be configured in 3 flow-reduction modes: two of 6 hours (0-6h or 2-4h) and one of 8 hours (2-6h). Remote management versions available Urban [O 3 ] - Systems for steel cable - product codes Systems for commercial side brackets with top connection Led - Elliptical optic Device in die-cast aluminium for urban lighting - flat glass - IP66 LED modules powered at 530 mA with PMMA lenses Code Number of modules Temperature of colour System power Output (lm) Colour Voltage: 220/240 V - 50/60 Hz - Stand-alone and/or possibility of dimmer 1-10 V GW S7 351 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Grap grey GW S7 352 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Grap grey GW S7 353 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Grap grey GW S7 356 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Grap grey GW S7 357 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Grap grey GW S7 358 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Grap grey GW S7 361 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Aluminium GW S7 362 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Aluminium GW S7 363 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Aluminium GW S7 366 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Aluminium GW S7 367 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Aluminium GW S7 368 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Aluminium Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning GW S7 371 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Grap grey GW S7 372 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Grap grey GW S7 373 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Grap grey GW S7 376 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Grap grey GW S7 377 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Grap grey GW S7 378 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Grap grey GW S7 381 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Aluminium GW S7 382 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Aluminium GW S7 383 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Aluminium GW S7 386 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Aluminium GW S7 387 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Aluminium GW S7 388 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Aluminium NOTE: the versions from GWS7371 to GWS7388 can be configured in 3 flow-reduction modes: two of 6 hours (0-6h or 2-4h) and one of 8 hours (2-6h). Remote management versions available 65

Urban [O 3 ] - Systems for commercial side brackets - product codes Systems for commercial side brackets with top connection Cosmopolis - Street optics Device in die-cast aluminium for urban lighting - flat glass - IP66 Code Lamp power Lamp Lamp holder Lamp current Colour Voltage: 220/240 V - 50/60 Hz GW 87 741 45 W MT PGZ-12 0.5 A Grap grey GW 87 742 60 W MT PGZ-12 0.65 A Grap grey GW 87 743 90 W MT PGZ-12 0.97 A Grap grey GW 87 746 45 W MT PGZ-12 0.5 A Aluminium GW 87 747 60 W MT PGZ-12 0.65 A Aluminium GW 87 748 90 W MT PGZ-12 0.97 A Aluminium Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning (8 h) GW 87 752 60 W MT PGZ-12 0.65 A Grap grey GW 87 753 90 W MT PGZ-12 0.97 A Grap grey GW 87 757 60 W MT PGZ-12 0.65 A Aluminium GW 87 758 90 W MT PGZ-12 0.97 A Aluminium Voltage: 220/240 V - 50/60 Hz - DALI GW 87 761 45 W MT PGZ-12 0.5 A Grap grey GW 87 762 60 W MT PGZ-12 0.65 A Grap grey GW 87 763 90 W MT PGZ-12 0.97 A Grap grey GW 87 766 45 W MT PGZ-12 0.5 A Aluminium GW 87 767 60 W MT PGZ-12 0.65 A Aluminium GW 87 768 90 W MT PGZ-12 0.97 A Aluminium Device in die-cast aluminium for urban lighting - flat glass - IP66 LED modules powered at 530 mA with PMMA lenses Code Number of modules Temperature of colour System power Output (lm) Colour Voltage: 220/240 V - 50/60 Hz - Stand-alone and/or possibility of dimmer 1-10 V GW 87 801 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Grap grey GW 87 802 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Grap grey GW 87 803 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Grap grey GW 87 806 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Grap grey GW 87 807 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Grap grey GW 87 808 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Grap grey GW 87 811 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Aluminium GW 87 812 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Aluminium GW 87 813 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Aluminium GW 87 816 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Aluminium GW 87 817 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Aluminium GW 87 818 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Aluminium Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning GW 87 821 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Grap grey GW 87 822 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Grap grey GW 87 823 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Grap grey GW 87 826 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Grap grey GW 87 827 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Grap grey GW 87 828 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Grap grey GW 87 831 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Aluminium GW 87 832 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Aluminium GW 87 833 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Aluminium GW 87 836 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Aluminium GW 87 837 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Aluminium GW 87 838 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Aluminium NOTES: the versions from GW87821 to GW87838 can be configured in 3 flow-reduction modes: two of 6 hours (0-6h or 2-4h) and one of 8 hours (2-6h). Remote management versions available Systems for steel cable LED - Street optics 66

Urban [O 3 ] - Systems for steel cable - product codes Device in die-cast aluminium for urban lighting - flat glass - IP66 LED modules powered at 530 mA with PMMA lenses Code Number of modules Temperature of colour System power Output (lm) Colour Voltage: 220/240 V - 50/60 Hz - Stand-alone and/or possibility of dimmer 1-10 V GW S7 401 2 (2x16 LED) 3500 K (Ra85) 54 W 3120 Grap grey GW S7 402 3 (3x16 LED) 3500 K (Ra85) 80 W 4560 Grap grey GW S7 403 4 (4x16 LED) 3500 K (Ra85) 104 W 5970 Grap grey GW S7 406 2 (2x16 LED) 4000 K (Ra65) 54 W 4230 Grap grey GW S7 407 3 (3x16 LED) 4000 K (Ra65) 80 W 6170 Grap grey GW S7 408 4 (4x16 LED) 4000 K (Ra65) 104 W 8080 Grap grey GW S7 411 2 (2x16 LED) 3500 K (Ra85) 54 W 3120 Aluminium GW S7 412 3 (3x16 LED) 3500 K (Ra85) 80 W 4560 Aluminium GW S7 413 4 (4x16 LED) 3500 K (Ra85) 104 W 5970 Aluminium GW S7 416 2 (2x16 LED) 4000 K (Ra65) 54 W 4230 Aluminium GW S7 417 3 (3x16 LED) 4000 K (Ra65) 80 W 6170 Aluminium GW S7 418 4 (4x16 LED) 4000 K (Ra65) 104 W 8080 Aluminium Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning GW S7 421 2 (2x16 LED) 3500 K (Ra85) 54 W 3120 Grap grey GW S7 422 3 (3x16 LED) 3500 K (Ra85) 80 W 4560 Grap grey GW S7 423 4 (4x16 LED) 3500 K (Ra85) 104 W 5970 Grap grey GW S7 426 2 (2x16 LED) 4000 K (Ra65) 54 W 4230 Grap grey GW S7 427 3 (3x16 LED) 4000 K (Ra65) 80 W 6170 Grap grey GW S7 428 4 (4x16 LED) 4000 K (Ra65) 104 W 8080 Grap grey GW S7 431 2 (2x16 LED) 3500 K (Ra85) 54 W 3120 Aluminium GW S7 432 3 (3x16 LED) 3500 K (Ra85) 80 W 4560 Aluminium GW S7 433 4 (4x16 LED) 3500 K (Ra85) 104 W 5970 Aluminium GW S7 436 2 (2x16 LED) 4000 K (Ra65) 54 W 4230 Aluminium GW S7 437 3 (3x16 LED) 4000 K (Ra65) 80 W 6170 Aluminium GW S7 438 4 (4x16 LED) 4000 K (Ra65) 104 W 8080 Aluminium NOTE: the versions from GWS7421 to GWS7438 can be configured in 3 flow-reduction modes: two of 6 hours (0-6h or 2-4h) and one of 8 hours (2-6h). Remote management versions available Systems for steel cable Led - Cycle and pedestrian optic Systems for steel cable Led - Elliptical optics Device in die-cast aluminium for urban lighting - flat glass - IP66 LED modules powered at 530 mA with PMMA lenses Code Number of modules Temperature of colour System power Output (lm) Colour Voltage: 220/240 V - 50/60 Hz - Stand-alone and/or possibility of dimmer 1-10 V GW S7 451 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Grap grey GW S7 452 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Grap grey GW S7 453 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Grap grey GW S7 456 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Grap grey GW S7 457 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Grap grey GW S7 458 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Grap grey GW S7 461 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Aluminium GW S7 462 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Aluminium GW S7 463 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Aluminium GW S7 466 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Aluminium GW S7 467 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Aluminium GW S7 468 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Aluminium Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning GW S7 471 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Grap grey GW S7 472 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Grap grey GW S7 473 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Grap grey GW S7 476 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Grap grey GW S7 477 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Grap grey GW S7 478 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Grap grey GW S7 481 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Aluminium GW S7 482 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Aluminium GW S7 483 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Aluminium GW S7 486 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Aluminium GW S7 487 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Aluminium GW S7 488 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Aluminium NOTE: the versions from GWS7471 to GWS7488 can be configured in 3 flow-reduction modes: two of 6 hours (0-6h or 2-4h) and one of 8 hours (2-6h). Remote management versions available 67

Urban [O 3 ] - Systems for steel cable - product codes LED-operated device in die-cast aluminium for urban lighting - flat glass - IP66 LED modules powered at 530 mA with PMMA lenses Code Number of modules Temperature of colour System power Output (lm) Colour Voltage: 220/240 V - 50/60 Hz - Stand-alone and/or possibility of dimmer 1-10 V GW 87 901 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Grap grey GW 87 902 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Grap grey GW 87 903 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Grap grey GW 87 906 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Grap grey GW 87 907 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Grap grey GW 87 908 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Grap grey GW 87 911 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Aluminium GW 87 912 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Aluminium GW 87 913 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Aluminium GW 87 916 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Aluminium GW 87 917 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Aluminium GW 87 918 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Aluminium Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning GW 87 921 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Grap grey GW 87 922 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Grap grey GW 87 923 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Grap grey GW 87 926 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Grap grey GW 87 927 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Grap grey GW 87 928 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Grap grey GW 87 931 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Aluminium GW 87 932 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Aluminium GW 87 933 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Aluminium GW 87 936 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Aluminium GW 87 937 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Aluminium GW 87 938 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Aluminium NB: to be completed with the accessories of the "Gewiss poles and side brackets" section. NOTES: the versions from GW87921 to GW87938 can be configured in 3 flow-reduction modes: two of 6 hours (0-6h or 2-4h) and one of 8 hours (2-6h). Remote management versions available. Systems for Gewiss side brackets LED - Street optics Systems for steel cable Cosmopolis - Street optics Device in die-cast aluminium for urban lighting - flat glass - IP66 Code Lamp power Lamp Lamp holder Lamp current Colour Voltage: 220/240 V - 50/60 Hz GW 87 841 45 W MT PGZ-12 0.5 A Grap grey GW 87 842 60 W MT PGZ-12 0.65 A Grap grey GW 87 843 90 W MT PGZ-12 0.97 A Grap grey GW 87 846 45 W MT PGZ-12 0.5 A Aluminium GW 87 847 60 W MT PGZ-12 0.65 A Aluminium GW 87 848 90 W MT PGZ-12 0.97 A Aluminium Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning (8 h) GW 87 852 60 W MT PGZ-12 0.65 A Grap grey GW 87 853 90 W MT PGZ-12 0.97 A Grap grey GW 87 857 60 W MT PGZ-12 0.65 A Aluminium GW 87 858 90 W MT PGZ-12 0.97 A Aluminium Voltage: 220/240 V - 50/60 Hz - DALI GW 87 861 45 W MT PGZ-12 0.5 A Grap grey GW 87 862 60 W MT PGZ-12 0.65 A Grap grey GW 87 863 90 W MT PGZ-12 0.97 A Grap grey GW 87 866 45 W MT PGZ-12 0.5 A Aluminium GW 87 867 60 W MT PGZ-12 0.65 A Aluminium GW 87 868 90 W MT PGZ-12 0.97 A Aluminium 68

Urban [O 3 ] - Systems for Gewiss side brackets - product codes LED-operated device in die-cast aluminium for urban lighting - flat glass - IP66 LED modules powered at 530 mA with PMMA lenses Code Number of modules Temperature of colour System power Output (lm) Colour Voltage: 220/240 V - 50/60 Hz - Stand-alone and/or possibility of dimmer 1-10 V GW S7 501 2 (2x16 LED) 3500 K (Ra85) 54 W 3120 Grap grey GW S7 502 3 (3x16 LED) 3500 K (Ra85) 80 W 4560 Grap grey GW S7 503 4 (4x16 LED) 3500 K (Ra85) 104 W 5970 Grap grey GW S7 506 2 (2x16 LED) 4000 K (Ra65) 54 W 4230 Grap grey GW S7 507 3 (3x16 LED) 4000 K (Ra65) 80 W 6170 Grap grey GW S7 508 4 (4x16 LED) 4000 K (Ra65) 104 W 8080 Grap grey GW S7 511 2 (2x16 LED) 3500 K (Ra85) 54 W 3120 Aluminium GW S7 512 3 (3x16 LED) 3500 K (Ra85) 80 W 4560 Aluminium GW S7 513 4 (4x16 LED) 3500 K (Ra85) 104 W 5970 Aluminium GW S7 516 2 (2x16 LED) 4000 K (Ra65) 54 W 4230 Aluminium GW S7 517 3 (3x16 LED) 4000 K (Ra65) 80 W 6170 Aluminium GW S7 518 4 (4x16 LED) 4000 K (Ra65) 104 W 8080 Aluminium Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning GW S7 521 2 (2x16 LED) 3500 K (Ra85) 54 W 3120 Grap grey GW S7 522 3 (3x16 LED) 3500 K (Ra85) 80 W 4560 Grap grey GW S7 523 4 (4x16 LED) 3500 K (Ra85) 104 W 5970 Grap grey GW S7 526 2 (2x16 LED) 4000 K (Ra65) 54 W 4230 Grap grey GW S7 527 3 (3x16 LED) 4000 K (Ra65) 80 W 6170 Grap grey GW S7 528 4 (4x16 LED) 4000 K (Ra65) 104 W 8080 Grap grey GW S7 531 2 (2x16 LED) 3500 K (Ra85) 54 W 3120 Aluminium GW S7 532 3 (3x16 LED) 3500 K (Ra85) 80 W 4560 Aluminium GW S7 533 4 (4x16 LED) 3500 K (Ra85) 104 W 5970 Aluminium GW S7 536 2 (2x16 LED) 4000 K (Ra65) 54 W 4230 Aluminium GW S7 537 3 (3x16 LED) 4000 K (Ra65) 80 W 6170 Aluminium GW S7 538 4 (4x16 LED) 4000 K (Ra65) 104 W 8080 Aluminium NB: to be completed with the accessories of the "Gewiss poles and side brackets" section. NOTES: the versions from GWS7521 to GWS7538 can be configured in 3 flow-reduction modes: two of 6 hours (0-6h or 2-4h) and one of 8 hours (2-6h). Remote management versions available. Systems for Gewiss side brackets Led - Cycle and pedestrian optic LED-operated device in die-cast aluminium for urban lighting - flat glass - IP66 LED modules powered at 530 mA with PMMA lenses Code Number of modules Temperature of colour System power Output (lm) Colour Voltage: 220/240 V - 50/60 Hz - Stand-alone and/or possibility of dimmer 1-10 V GW S7 551 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Grap grey GW S7 552 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Grap grey GW S7 553 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Grap grey GW S7 556 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Grap grey GW S7 557 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Grap grey GW S7 558 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Grap grey GW S7 561 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Aluminium GW S7 562 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Aluminium GW S7 563 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Aluminium GW S7 566 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Aluminium GW S7 567 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Aluminium GW S7 568 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Aluminium Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning GW S7 571 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Grap grey GW S7 572 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Grap grey GW S7 573 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Grap grey GW S7 576 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Grap grey GW S7 577 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Grap grey GW S7 578 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Grap grey GW S7 581 2 (2x16 LED) 3500 K (Ra85) 54 W 4510 Aluminium GW S7 582 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Aluminium GW S7 583 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Aluminium GW S7 586 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Aluminium GW S7 587 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Aluminium GW S7 588 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Aluminium NB: to be completed with the accessories of the "Gewiss poles and side brackets" section. NOTES: the versions from GWS7571 to GWS7588 can be configured in 3 flow-reduction modes: two of 6 hours (0-6h or 2-4h) and one of 8 hours (2-6h). Remote management versions available. Systems for Gewiss side brackets Led - Elliptical optic 69

Urban [O 3 ] - Systems for Gewiss side brackets - product codes Gewiss poles and side brackets Fixing accessories Kit for pastoral pole GW87 98 1 GW87 982 Code Description Colour GW 87 981 Conical pole fixing Grap grey GW 87 982 PLACE pole fixing Grap grey GW 87 991 Conical pole fixing Aluminium GW 87 992 PLACE pole fixing Aluminium Pole-head kit with flat side bracket for conical poles GW87 984 GW87 985 GW87 986 Code Description Length Colour GW 87 984 Single 1000 mm Grap grey GW 87 985 Double 2000 mm Grap grey GW 87 986 Single intermediate 1000 mm Grap grey GW 87 994 Single 1000 mm Aluminium GW 87 995 Double 2000 mm Aluminium GW 87 996 Single intermediate 1000 mm Aluminium Pastoral pole kit for surface-mounting GW87 98 3 Code Description Colour GW 87 983 Wall fixing Grap grey GW 87 993 Wall fixing Aluminium Suspended pole-head kit for cylindrical poles GW87 987 Code Description Colour GW 87 987 Single Grap grey GW 87 997 Single Aluminium Systems for Gewiss side brackets Cosmopolis - Street optics Device in die-cast aluminium for urban lighting - flat glass - IP66Code Lamp power Lamp Lamp holder Lamp current Colour Voltage: 220/240 V - 50/60 Hz GW 87 941 45 W MT PGZ-12 0.5 A Grap grey GW 87 942 60 W MT PGZ-12 0.65 A Grap grey GW 87 943 90 W MT PGZ-12 0.97 A Grap grey GW 87 946 45 W MT PGZ-12 0.5 A Aluminium GW 87 947 60 W MT PGZ-12 0.65 A Aluminium GW 87 948 90 W MT PGZ-12 0.97 A Aluminium Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning (8 h) GW 87 952 60 W MT PGZ-12 0.65 A Grap grey GW 87 953 90 W MT PGZ-12 0.97 A Grap grey GW 87 957 60 W MT PGZ-12 0.65 A Aluminium GW 87 958 90 W MT PGZ-12 0.97 A Aluminium Voltage: 220/240 V - 50/60 Hz - DALI GW 87 961 45 W MT PGZ-12 0.5 A Grap grey GW 87 962 60 W MT PGZ-12 0.65 A Grap grey GW 87 963 90 W MT PGZ-12 0.97 A Grap grey GW 87 966 45 W MT PGZ-12 0.5 A Aluminium GW 87 967 60 W MT PGZ-12 0.65 A Aluminium GW 87 968 90 W MT PGZ-12 0.97 A Aluminium NB: to be completed with the accessories of the "Gewiss poles and side brackets" section. 70

Colours Aluminium (A) Dimensions Graphite grey (G) Ø5 70 145 145 102 145 70 12 12 124 Urban [O 3 ] - product codes Poles Painted cylindrical poles GW87 691 Code Total length (m) Planting (m) Base diameter (mm) Top diameter (mm) Colour GW 87 691 4 0.5 102 60 Grap grey GW 87 692 4.5 0.5 102 60 Grap grey GW 87 696 4 0.5 102 60 Aluminium GW 87 697 4.5 0.5 102 60 Aluminium NOTE: painted poles in hot galvanised steel complete with a junction terminal block Painted tapered poles GW875 91 GW875 92 Code Total length (m) Planting (m) Base diameter (mm) Top diameter (mm) Colour GW 87 591 6.8 0.8 128 60 Grap grey GW 87 592 8.8 0.8 148 60 Grap grey GW 87 593 9.8 0.8 158 60 Grap grey GW 87 596 6.8 0.8 128 60 Aluminium GW 87 597 8.8 0.8 148 60 Aluminium GW 87 598 9.8 0.8 158 60 Aluminium NOTE: painted poles in hot galvanised steel complete with a junction terminal block. 71

INNOVATIVE SOLUTIONS FOR GLOBAL LIGHTING TRADITIONAL TECHNOLOGY LED TECHNOLOGY EMERGENCY 72

Index 1. Concept and design pag. 5 2. Light technologies pag. 19 3. Street [O3] , Street [O3] Maxi, Urban [O3] pag. 37 03

CONCEPT AND DESIGN ARE TWO ESSENTIAL INSTANCES THAT TRANSLATE THE IDEA IN THE SPACE AND TIME OF REALITY. STREET [0 3 ] RANGE

INTERCHANGEABILITY LED MOTOR/COSMOPOLIS MODULARITY TOP CLOSURE MEMBRANE

HEAT DISSIPATION HANDLE FOR OPENING/CLOSING THE BODY A UNIQUE COUPLING FOR ALL INSTALLATIONS

10 NEIGHBOURHOOD STREET URBAN STREET STREET [0 3 ]

SUBURBAN STREET ROUNDABOUT STREET [0 3 ] MAXI

INTERCHANGEABILITY LED MOTOR/COSMOPOLIS MODULARITY HEAT DISSIPATION GEWISS BRAND BRACKETS RANGE

EASY INSTALLATION AND MAINTENANCE UNIVERSAL COUPLING

HISTORIC LANE RESIDENTIAL AREA RESIDENTIAL CENTRE URBAN [0 3 ]

MODERN ENVIRONMENT MONUMENTAL ENVIRONMENT COLONNADE PEDESTRIAN AREA URBAN [0 3 ]

20 White light for the urban landscape 20

24 [O 3 ] Technology

36 GEWISS solutions Street S T R E E T L I G H T I N G ] [ O 3 Street Maxi S T R E E T L I G H T I N G ] [ O 3 36

37 GEWISS solutions Urban U R B A N L I G H T I N G ] [ O 3 37

Street [O 3 ] Maxi 45

Urban [O 3 ] - GEWISS side bracket systems Urban [O 3 ] pole-head Urban [O 3 ] Modern Urban [O 3 ] Pastoral 56

Urban [O 3 ] Urban [O 3 ] pole-head Urban [O 3 ] Modern Urban [O 3 ] Pastoral 57

Urban [O 3 ] - Systems for commercial side brackets - product codes Device in die-cast aluminium for urban lighting - flat glass - IP66 LED modules powered at 530 mA with PMMA lenses Code Number of modules Temperature of colour System power Output (lm) Colour Voltage: 220/240 V - 50/60 Hz - Stand-alone and/or possibility of dimmer 1-10 V GW S7 251 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Grap grey GW S7 252 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Grap grey GW S7 253 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Grap grey GW S7 256 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Grap grey GW S7 257 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Grap grey GW S7 258 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Grap grey GW S7 261 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Aluminium GW S7 262 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Aluminium GW S7 263 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Aluminium GW S7 266 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Aluminium GW S7 267 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Aluminium GW S7 268 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Aluminium Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning GW S7 271 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Grap grey GW S7 272 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Grap grey GW S7 273 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Grap grey GW S7 276 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Grap grey GW S7 277 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Grap grey GW S7 278 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Grap grey GW S7 281 2 (2x16 LED) 3500 K (Ra85) 54 W 3330 Aluminium GW S7 282 3 (3x16 LED) 3500 K (Ra85) 80 W 4860 Aluminium GW S7 283 4 (4x16 LED) 3500 K (Ra85) 104 W 6360 Aluminium GW S7 286 2 (2x16 LED) 4000 K (Ra65) 54 W 4510 Aluminium GW S7 287 3 (3x16 LED) 4000 K (Ra65) 80 W 6580 Aluminium GW S7 288 4 (4x16 LED) 4000 K (Ra65) 104 W 8610 Aluminium NOTE: the versions from GWS7271 to GWS7288 can be configured in 3 flow-reduction modes: two of 6 hours (0-6h or 2-4h) and one of 8 hours (2-6h). Remote management versions available Side coupling systemsfor commercial side brackets Led - Elliptical optic Device in die-cast aluminium for urban lighting - flat glass - IP66 Code Lamp power Lamp Lamp holder Lamp current Colour Voltage: 220/240 V - 50/60 Hz GW 87 641 45 W MT PGZ-12 0.5 A Grap grey GW 87 642 60 W MT PGZ-12 0.65 A Grap grey GW 87 643 90 W MT PGZ-12 0.97 A Grap grey GW 87 646 45 W MT PGZ-12 0.5 A Aluminium GW 87 647 60 W MT PGZ-12 0.65 A Aluminium GW 87 648 90 W MT PGZ-12 0.97 A Aluminium Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning (8 h) GW 87 652 60 W MT PGZ-12 0.65 A Grap grey GW 87 653 90 W MT PGZ-12 0.97 A Grap grey GW 87 657 60 W MT PGZ-12 0.65 A Aluminium GW 87 658 90 W MT PGZ-12 0.97 A Aluminium Voltage: 220/240 V - 50/60 Hz - DALI GW 87 661 45 W MT PGZ-12 0.5 A Grap grey GW 87 662 60 W MT PGZ-12 0.65 A Grap grey GW 87 663 90 W MT PGZ-12 0.97 A Grap grey GW 87 666 45 W MT PGZ-12 0.5 A Aluminium GW 87 667 60 W MT PGZ-12 0.65 A Aluminium GW 87 668 90 W MT PGZ-12 0.97 A Aluminium Side coupling systems for commercial side brackets Cosmopolis - Street optics 63

INNOVATIVE SOLUTIONS FOR GLOBAL LIGHTING TRADITIONAL TECHNOLOGY LED TECHNOLOGY EMERGENCY 72
