Gewiss UK - Product Catalogue - Building Short Form brochure 2015
Gewiss

Gewiss UK - Product Catalogue - Building Short Form brochure 2015

Junction boxes and special containers, a complete and coordinated line of distribution boards, cutting-edge industrial connections and an integrated system of boards for special systems create the GEWISS distribution systems.

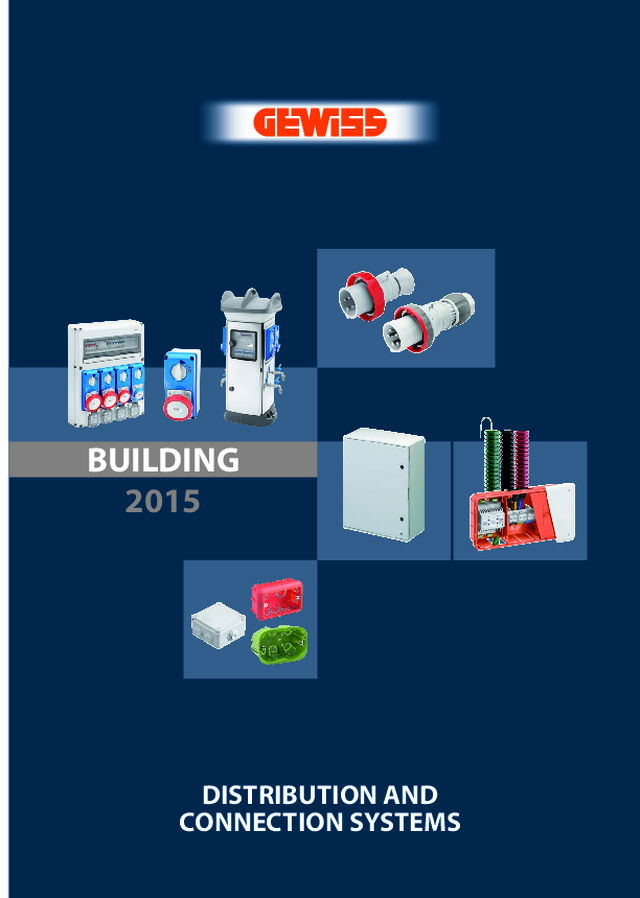

DISTRIBUTION AND   CONNECTION SYSTEMS BUILDING 2015

2 GEWISS is an international leader in the production of systems and components  for low voltage electrical installations. The fact that development is seen as  a constant management feature has permitted GEWISS to assert itself as a  reference interlocutor for the electrotechnical market in the creation of solutions  for domotics, energy and the lighting industry. It is now present in Italy, France,  Germany, the United Kingdom, Spain, Portugal, China, Russia, Turkey, Romania,  Chile, the United Arab Emirates, and in a further 80 countries around the world. Domotics Power Lighting Junction boxes and special containers, a complete and coordinated line of distribution boards, cutting-edge industrial connections and an integrated system of boards for special systems create the GEWISS distribution systems. Building GEWISS GROUP Discover the complete range at www.gewiss.com The technologically advanced range of modular and moulded-case devices joins the vast range of distribution boards and cabinets, enclosures and combined boards to create the Gewiss Protection System. The domotic systems offer cutting-edge solutions for smart home and building management and control, guaranteeing safety, comfort and energy savings along with Italian design. Lighting systems designed for every room, area and location. Solutions that embrace LED technology to meet the requirements of industrial and commercial sector contexts, sport facilities and emergency lighting.

IEC 309 range  6 48 range 52 IB range 15 GREEN WALL   range 54 68 Q-DIN range 20 44 range 58 68 ACS range 21 52 FS range 59 68 Q-MC range 26 74 PS range 60 70 RT range 31 RK range 62 GW Connect   range 33 50/52 range 64 46 range 38 FK range 68 DOMO CENTER  range 42 DF range 70 40 CD range  and 40 CDi range 44 PZ and FU   range 71 42 RV range 48 BFR range 72 44 CE range 49 BRN range 73 3 Contents

Gewiss offers a complete industrial power distribution and supply system to meet every need. Construction sites distribution systems (68 Q-BOX/Q-DIN range), energy and service distribution terminal system (68 Q-MC range) and distribution boards (68 Q-DIN range) combined with plugs and socket-outlets (IEC 309 range) or interlocked socket-outlet systems (IB range). The IEC 309 range has been totally renewed with the innovative IEC 309 HP (HIGH PERFORMANCE) socket-outlets and plugs, straight and 10° flush-mounting socket-outlets and plugs, from 16 to 125A. GEWISS distribution and connection systems Connection  systems 67 IB range Multiple  range 66 IB range 68 ACS range 68 Q-DIN range COMBIBLOC range 68 Q-MC Range IEC309 systems of   socket-outlets and plugs Systems of interlocked   socket-outlets Rotary   switch   systems Systems of boards   for surface-mounting   and floor-mounting Multipolar  connector  systems IEC 309 HP range 70 RT range GW Connect range 4

GEWISS, market leader in the junction boxes and enclosures sectors, provides also a complete, co-ordinated range of surface and flush-mounting distribution enclosures and boards. GEWISS conduits, accessories and cable trays are able to connect all the elements of the Integrated Electrical System. Distribution  systems 44 CE range 46 QP range 40 CDK range FK range Green Wall range DOMO CENTER  range Surface-mounting   distribution   systems  Flush-mounting   distribution  systems  Canalization systems 42 RV range 40 CDi range 48 PT DIN   and 24 SC ranges BFR and BRN range RK and 50/52 ranges 5

IEC 309 HP:   a byword for perfection Total protection GEWISS is the world's first manufacturer to offer “total” protection against the infiltration of solid bodies and/or liquids. Apart from the IP66/IP67 degrees of protection in fact, the IEC 309 HP straight plugs and sockets also have two extra degrees of protection - IP68 and IP69. Practical, functional   and ergonomic Its ergonomics and technical details make the new range unique: the technical solutions are designed to facilitate and speed up the installation phase whilst still ensuring GEWISS' renowned attention to quality and safety. Safe and robust The materials and considerable thickness guarantee excellent resistance to mechanical stress (IK09), even at low temperatures (down to -25°C). The range offers performance levels that are decidedly superior to both the regulation standards and market standards. EN 50267-2-2 I MPACT   RESISTANCE IK 09 10 JOULE IP68/ IP69     UNIQUE  IN  THE WORLD IEC 309 HP - HIGH PERFORMANCE is a complete range of mobile plugs and mobile and flush-mounting socket-outlets for currents from 16A to 125A with an IP44/IP54 degree of protection (and up to IP66/IP67/IP68/IP69). The product is at the top of its segment in terms of reliability, practicality, performance  and technical characteristics when it comes  to industrial connections. All the products of the range are distinguished by their coordinated, modern, practical design that makes them instantly recognisable and adds extra value to the entire GEWISS system of industrial connections. Total protection, mechanical robustness, ergonomics: the IEC 309 HP range is a byword for perfection. 6 IEC 309 range Plugs and socket-outlets to IEC 309 Standards

IEC 309 HP 16-32A IEC 309 HP 63-125A The innovative aspects of the new IEC 309 HP range Fast, safe closure in every situation SAFE-LOCK is the new body-grip closure system based on ¼ turn coupling and anti-slackening friction. The ¼ turn safety screw shows clearly whether the system is open or closed, and it can be used time and time again. Connection speed, simplicity and safety The technical and functional aspects of the fast-wiring versions reduce the connection times (compared with traditional versions) by half. This solution uses levers that are easy to open and close, and they're coloured to ensure the polarities can be immediately identified. In the screw wiring versions, all the screws face in the same direction and are completely loosened. CLICK! 1 2 3 Screw wiring SAFE-LOCK system Fast wiring Maximum impact resistance The structural design uses inserts in overprinted rubber to protect the parts particularly subject to impact, and employs top quality technopolymers. The body-grip closure system has stainless steel screws and brass inserts embedded in the body. This guarantees greater impact resistance, even when the product is used in heavy-duty conditions. Easy, accurate wire tightening The cable fastener gland, with radial precision tightening, offers the widest selection of diameters available on the market. Thanks to the sizing of the cable relief, the shape, and the overprinted rubber parts of the ring nut, it's extremely easy to tighten the wire, even by hand. The back part of the ring nut also has a large, firm area for carrying out opening and closing operations with tools. Safe connection The connection of the wire using screw terminals with indirect tightening ensures the highest possible level of safety, guaranteeing the best contact surface and pressure even with non-terminated wires. The nickel-coating on the plug pins and holes, and the "HIGH QUALITY CONTACT" hole-plug pin connection, offer the maximum reliability of the electrical connection. Rubber protection Enlarged cable clamp Mantle wiring 4 7

16A AND 32A LOW-VOLTAGE INDUSTRIAL PLUGS AND SOCKET-OUTLETS TO IEC 309/IEC 309 HP STANDARDS Rated   current (In) Rated   voltage (Un) Frequency Poles Reference h Straight mobile plugs   IP44/IP54 Straight mobile plugs   IP66/IP67/IP68/IP69 Fast wiring Screw wiring Fast wiring Screw wiring 16A 100 ÷ 130V 50/60 Hz 2P+E 4 GW 60 001 FH GW 60 001 H GW 60 023 FH GW 60 023 H 3P+E 4 GW 60 002 FH GW 60 002 H GW 60 024 FH GW 60 024 H 3P+N+E 4 GW 60 003 FH GW 60 003 H GW 60 025 FH GW 60 025 H 200 ÷ 250V 50/60 Hz 2P+E 6 GW 60 004 FH GW 60 004 H GW 60 026 FH GW 60 026 H 3P+E 9 GW 60 005 FH GW 60 005 H GW 60 027 FH GW 60 027 H 3P+N+E 9 GW 60 006 FH GW 60 006 H GW 60 028 FH GW 60 028 H 380 ÷ 415V 50/60 Hz 2P+E 9 GW 60 007 FH GW 60 007 H GW 60 029 FH GW 60 029 H 3P+E 6 GW 60 008 FH GW 60 008 H GW 60 030 FH GW 60 030 H 3P+N+E 6 GW 60 009 FH GW 60 009 H GW 60 031 FH GW 60 031 H 480 ÷ 500V 50/60 Hz 2P+E 7 GW 60 701 H GW 60 735 H 3P+E 7 GW 60 010 H GW 60 032 H 3P+N+E 7 GW 60 011 H GW 60 033 H 600 ÷ 690V 50/60 Hz 3P+E 5 GW 60 702 H GW 60 736 H 3P+N+E 5 GW 60 703 H GW 60 737 H 50V 100 ÷ 300 Hz 2P+E 10 GW 60 704 H GW 60 738 H 3P+E 10 GW 60 705 H GW 60 739 H 3P+N+E 10 GW 60 706 H GW 60 740 H 50V 300 ÷ 500 Hz 2P+E 2 GW 60 707 H GW 60 741 H 3P+E 2 GW 60 708 H GW 60 742 H 3P+N+E 2 GW 60 709 H GW 60 743 H 440 ÷ 460V 60 Hz 3P+E 11 GW 60 710 H GW 60 744 H 3P+N+E 11 GW 60 711 H GW 60 745 H 380V / 440V 50 Hz / 60 Hz 3P+E 3 GW 60 712 H GW 60 746 H 3P+N+E 3 GW 60 713 H GW 60 747 H transf. 50/60 Hz 2P+E 12 GW 60 714 H GW 60 748 H 3P+E 12 GW 60 715 H GW 60 749 H 50 ÷ 250V D.C. 2P+E 3 GW 60 716 H GW 60 750 H 250V D.C. 2P+E 8 GW 60 717 H GW 60 751 H 32A 100 ÷ 130V 50/60 Hz 2P+E 4 GW 60 012 FH GW 60 012 H GW 60 034 FH GW 60 034 H 3P+E 4 GW 60 013 FH GW 60 013 H GW 60 035 FH GW 60 035 H 3P+N+E 4 GW 60 014 FH GW 60 014 H GW 60 036 FH GW 60 036 H 200 ÷ 250V 50/60 Hz 2P+E 6 GW 60 015 FH GW 60 015 H GW 60 037 FH GW 60 037 H 3P+E 9 GW 60 016 FH GW 60 016 H GW 60 038 FH GW 60 038 H 3P+N+E 9 GW 60 017 FH GW 60 017 H GW 60 039 FH GW 60 039 H 380 ÷ 415V 50/60 Hz 2P+E 9 GW 60 018 FH GW 60 018 H GW 60 040 FH GW 60 040 H 3P+E 6 GW 60 019 FH GW 60 019 H GW 60 041 FH GW 60 041 H 3P+N+E 6 GW 60 020 FH GW 60 020 H GW 60 042 FH GW 60 042 H 480 ÷ 500V 50/60 Hz 2P+E 7 GW 60 718 H GW 60 752 H 3P+E 7 GW 60 021 H GW 60 043 H 3P+N+E 7 GW 60 022 H GW 60 044 H 600 ÷ 690V 50/60 Hz 3P+E 5 GW 60 719 H GW 60 753 H 3P+N+E 5 GW 60 720 H GW 60 754 H 50V 100 ÷ 300 Hz 2P+E 10 GW 60 721 H GW 60 755 H 3P+E 10 GW 60 722 H GW 60 756 H 3P+N+E 10 GW 60 723 H GW 60 757 H 50V 300 ÷ 500 Hz 2P+E 2 GW 60 724 H GW 60 758 H 3P+E 2 GW 60 725 H GW 60 759 H 3P+N+E 2 GW 60 726 H GW 60 760 H 440 ÷ 460V 60 Hz 3P+E 11 GW 60 727 H GW 60 761 H 3P+N+E 11 GW 60 728 H GW 60 762 H 380V / 440V 50 Hz / 60 Hz 3P+E 3 GW 60 729 H GW 60 145 H 3P+N+E 3 GW 60 730 H GW 60 763 H transf. 50/60 Hz 2P+E 12 GW 60 731 H GW 60 764 H 3P+E 12 GW 60 732 H GW 60 765 H 50 ÷ 250V D.C. 2P+E 3 GW 60 733 H GW 60 766 H 250V D.C. 2P+E 8 GW 60 734 H GW 60 767 H 8 IEC 309 range Plugs and socket-outlets to IEC 309 Standards

16A AND 32A LOW-VOLTAGE INDUSTRIAL PLUGS AND SOCKET-OUTLETS TO IEC 309/IEC 309 HP STANDARDS Straight mobile socket-outlets   IP44/IP54 Straight mobile socket-outlets   IP66/IP67/IP68/IP69 10° fixed flush-mounting socket-outlets   IP44/IP54 10° fixed flush-mounting socket-outlets   IP66/IP67 APPLICATIONS Fast wiring Screw wiring Fast wiring Screw wiring Fast wiring Screw wiring Fast wiring Screw wiring GW 62 001 FH GW 62 001 H GW 62 023 FH GW 62 023 H GW 62 201 FH GW 62 201 H GW 62 224 FH GW 62 224 H Standard  use GW 62 002 FH GW 62 002 H GW 62 024 FH GW 62 024 H GW 62 202 FH GW 62 202 H GW 62 225 FH GW 62 225 H GW 62 003 FH GW 62 003 H GW 62 025 FH GW 62 025 H GW 62 203 FH GW 62 203 H GW 62 226 FH GW 62 226 H GW 62 004 FH GW 62 004 H GW 62 026 FH GW 62 026 H GW 62 205 FH GW 62 205 H ( ) GW 62 227 FH GW 62 227 H GW 62 005 FH GW 62 005 H GW 62 027 FH GW 62 027 H GW 62 206 FH GW 62 206 H GW 62 228 FH GW 62 228 H GW 62 006 FH GW 62 006 H GW 62 028 FH GW 62 028 H GW 62 207 FH GW 62 207 H GW 62 229 FH GW 62 229 H GW 62 007 FH GW 62 007 H GW 62 029 FH GW 62 029 H GW 62 208 FH GW 62 208 H GW 62 230 FH GW 62 230 H GW 62 008 FH GW 62 008 H GW 62 030 FH GW 62 030 H GW 62 209 FH GW 62 209 H GW 62 231 FH GW 62 231 H GW 62 009 FH GW 62 009 H GW 62 031 FH GW 62 031 H GW 62 210 FH GW 62 210 H GW 62 232 FH GW 62 232 H GW 62 701 H GW 62 735 H GW 62 801 H GW 62 835 H Use with  particular voltage GW 62 010 H GW 62 032 H GW 62 211 H GW 62 233 H GW 62 011 H GW 62 033 H GW 62 212 H GW 62 234 H GW 62 702 H GW 62 736 H GW 62 802 H GW 62 836 H GW 62 703 H GW 62 737 H GW 62 803 H GW 62 837 H GW 62 704 H GW 62 738 H GW 62 804 H GW 62 838 H Use with  high frequencies GW 62 705 H GW 62 739 H GW 62 805 H GW 62 839 H GW 62 706 H GW 62 740 H GW 62 806 H GW 62 840 H GW 62 707 H GW 62 741 H GW 62 807 H GW 62 841 H GW 62 708 H GW 62 742 H GW 62 808 H GW 62 842 H GW 62 709 H GW 62 743 H GW 62 809 H GW 62 843 H GW 62 710 H GW 62 744 H GW 62 810 H GW 62 844 H Marine, port and   naval installations GW 62 711 H GW 62 745 H GW 62 811 H GW 62 845 H GW 62 712 H GW 62 746 H GW 62 812 H GW 62 846 H Refrigerated containers GW 62 713 H GW 62 747 H GW 62 813 H GW 62 847 H GW 62 714 H GW 62 748 H GW 62 814 H GW 62 848 H Isolation  transformers GW 62 715 H GW 62 749 H GW 62 815 H GW 62 849 H GW 62 716 H GW 62 750 H GW 62 816 H GW 62 850 H Use in   direct current GW 62 717 H GW 62 751 H GW 62 817 H GW 62 851 H GW 62 012 FH GW 62 012 H GW 62 034 FH GW 62 034 H GW 62 213 FH GW 62 213 H GW 62 235 FH GW 62 235 H Standard  use GW 62 013 FH GW 62 013 H GW 62 035 FH GW 62 035 H GW 62 214 FH GW 62 214 H GW 62 236 FH GW 62 236 H GW 62 014 FH GW 62 014 H GW 62 036 FH GW 62 036 H GW 62 215 FH GW 62 215 H GW 62 237 FH GW 62 237 H GW 62 015 FH GW 62 015 H GW 62 037 FH GW 62 037 H GW 62 216 FH GW 62 216 H GW 62 238 FH GW 62 238 H GW 62 016 FH GW 62 016 H GW 62 038 FH GW 62 038 H GW 62 217 FH GW 62 217 H GW 62 239 FH GW 62 239 H GW 62 017 FH GW 62 017 H GW 62 039 FH GW 62 039 H GW 62 218 FH GW 62 218 H GW 62 240 FH GW 62 240 H GW 62 018 FH GW 62 018 H GW 62 040 FH GW 62 040 H GW 62 219 FH GW 62 219 H GW 62 241 FH GW 62 241 H GW 62 019 FH GW 62 019 H GW 62 041 FH GW 62 041 H GW 62 220 FH GW 62 220 H GW 62 242 FH GW 62 242 H GW 62 020 FH GW 62 020 H GW 62 042 FH GW 62 042 H GW 62 221 FH GW 62 221 H GW 62 243 FH GW 62 243 H GW 62 718 H GW 62 752 H GW 62 818 H GW 62 852 H Use with  particular voltage GW 62 021 H GW 62 043 H GW 62 222 H GW 62 244 H GW 62 022 H GW 62 044 H GW 62 223 H GW 62 245 H GW 62 719 H GW 62 753 H GW 62 819 H GW 62 853 H GW 62 720 H GW 62 754 H GW 62 820 H GW 62 854 H GW 62 721 H GW 62 755 H GW 62 821 H GW 62 855 H Use with  high frequencies GW 62 722 H GW 62 756 H GW 62 822 H GW 62 856 H GW 62 723 H GW 62 757 H GW 62 823 H GW 62 857 H GW 62 724 H GW 62 758 H GW 62 824 H GW 62 858 H GW 62 725 H GW 62 759 H GW 62 825 H GW 62 859 H GW 62 726 H GW 62 760 H GW 62 826 H GW 62 860 H GW 62 727 H GW 62 761 H GW 62 827 H GW 62 861 H Marine, port and   naval installations GW 62 728 H GW 62 762 H GW 62 828 H GW 62 862 H GW 62 729 H GW 62 128 H GW 62 829 H GW 62 283 H Refrigerated containers GW 62 730 H GW 62 763 H GW 62 830 H GW 62 863 H GW 62 731 H GW 62 764 H GW 62 831 H GW 62 864 H Isolation  transformers GW 62 732 H GW 62 765 H GW 62 832 H GW 62 865 H GW 62 733 H GW 62 766 H GW 62 833 H GW 62 866 H Use in   direct current GW 62 734 H GW 62 767 H GW 62 834 H GW 62 867 H ( ) There is a smaller cap (62x62mm) - code GW 62 204 - for use in limited spaces. 9

63A AND 125A LOW-VOLTAGE INDUSTRIAL PLUGS AND SOCKET-OUTLETS TO IEC 309/IEC 309 HP STANDARDS Rated current (In) Rated voltage (Un) Frequency Poles Ref.  h Mobile plugs   IP44/IP54 63A 100 ÷ 130V 50/60 Hz 2P+E 4 GW 61 013 H 3P+E 4 GW 61 014 H 3P+N+E 4 GW 61 015 H 200 ÷ 250V 50/60 Hz 2P+E 6 GW 61 016 H 3P+E 9 GW 61 017 H 3P+N+E 9 GW 61 018 H 380 ÷ 415V 50/60 Hz 2P+E 9 GW 61 019 H 3P+E 6 GW 61 020 H 3P+N+E 6 GW 61 021 H 480 ÷ 500V 50/60 Hz 2P+E 7 3P+E 7 3P+N+E 7 600 ÷ 690V 50/60 Hz 3P+E 5 3P+N+E 5 50V 100 ÷ 300 Hz 2P+E 10 3P+E 10 3P+N+E 10 50V 300 ÷ 500 Hz 2P+E 2 3P+E 2 3P+N+E 2 440 ÷ 460V 60 Hz 3P+E 11 3P+N+E 11 50 ÷ 250V D.C. 2P+E 3 250V D.C. 2P+E 8 125A 100 ÷ 130V 50/60 Hz 2P+E 4 3P+E 4 3P+N+E 4 200 ÷ 250V 50/60 Hz 2P+E 6 3P+E 9 3P+N+E 9 380 ÷ 415V 50/60 Hz 2P+E 9 3P+E 6 3P+N+E 6 480 ÷ 500V 50/60 Hz 2P+E 7 3P+E 7 3P+N+E 7 600 ÷ 690V 50/60 Hz 3P+E 5 3P+N+E 5 50V 100 ÷ 300 Hz 2P+E 10 3P+E 10 3P+N+E 10 50V 300 ÷ 500 Hz 2P+E 2 3P+E 2 3P+N+E 2 440 ÷ 460V 60 Hz 3P+E 11 3P+N+E 11 Note: plugs fitted with drive contact ( ) socket-outlets with drive contact and direct screw wiring ( ) socket-outlets with clean contact IP67 10 IEC 309 range Plugs and socket-outlets to IEC 309 Standards

63A AND 125A LOW-VOLTAGE INDUSTRIAL PLUGS AND SOCKET-OUTLETS TO IEC 309/IEC 309 HP STANDARDS Mobile plugs   IP66/IP67/IP68/IP69 Mobile socket-outlets   IP44/IP54 Mobile socket-outlets   IP66/IP67/IP68/IP69 10° fixed flush-mounting  socket-outlets   IP44/IP54 10° fixed flush-mounting  socket-outlets   IP66/IP67 APPLICATIONS GW 61 045 H GW 63 013 H GW 63 045 H GW 63 213 H GW 63 246 H Standard  use GW 61 046 H GW 63 014 H GW 63 046 H GW 63 214 H GW 63 247 H GW 61 047 H GW 63 015 H GW 63 047 H GW 63 215 H GW 63 248 H GW 61 048 H GW 63 016 H GW 63 048 H GW 63 216 H GW 63 249 H GW 63 048 PH GW 63 249 PH GW 61 049 H GW 63 017 H GW 63 049 H GW 63 217 H GW 63 250 H GW 61 050 H GW 63 018 H GW 63 050 H GW 63 218 H GW 63 251 H GW 61 051 H GW 63 019 H GW 63 051 H GW 63 219 H GW 63 252 H GW 61 052 H GW 63 020 H GW 63 052 H GW 63 220 H GW 63 253 H GW 63 052 PH GW 63 253 PH GW 61 053 H GW 63 021 H GW 63 053 H GW 63 221 H GW 63 254 H GW 63 053 PH GW 63 254 PH GW 61 056 H GW 63 056 H GW 63 257 H Use with  particular voltage GW 61 054 H GW 63 054 H GW 63 255 H GW 61 055 H GW 63 055 H GW 63 256 H GW 61 057 H GW 63 057 H GW 63 258 H GW 61 058 H GW 63 058 H GW 63 259 H GW 61 059 H GW 63 059 H GW 63 260 H Use with  high frequencies GW 61 060 H GW 63 060 H GW 63 261 H GW 61 061 H GW 63 061 H GW 63 262 H GW 61 062 H GW 63 062 H GW 63 263 H GW 61 063 H GW 63 063 H GW 63 264 H GW 61 064 H GW 63 064 H GW 63 265 H GW 61 065 H GW 63 065 H GW 63 266 H Marine, port and   naval installations GW 61 066 H GW 63 066 H GW 63 267 H GW 61 067 H GW 63 067 H GW 63 268 H Use in   direct current GW 61 068 H GW 63 068 H GW 63 269 H GW 60 664 H GW 62 664 H GW 62 965 H Standard  use GW 60 056 H GW 62 056 H GW 62 257 H GW 60 057 H GW 62 057 H GW 62 258 H GW 60 665 H GW 62 665 H GW 62 966 H GW 60 058 H GW 62 058 H GW 62 259 H GW 60 059 H GW 62 059 H GW 62 260 H GW 60 666 H GW 62 666 H GW 62 967 H GW 60 060 H GW 62 060 H GW 62 261 H GW 62 261 PH GW 62 060 PH GW 68 785 GW 60 061 H GW 62 061 H GW 62 262 H GW 62 262 PH GW 62 061 PH GW 68 786 GW 60 667 H GW 62 667 H GW 62 968 H Use with  particular voltage GW 60 062 H GW 62 062 H GW 62 263 H GW 60 063 H GW 62 063 H GW 62 264 H GW 60 668 H GW 62 668 H GW 62 969 H GW 60 669 H GW 62 669 H GW 62 970 H GW 60 670 H GW 62 670 H GW 62 971 H Use with  high frequencies GW 60 671 H GW 62 671 H GW 62 972 H GW 60 672 H GW 62 672 H GW 62 973 H GW 60 673 H GW 62 673 H GW 62 974 H GW 60 674 H GW 62 674 H GW 62 975 H GW 60 675 H GW 62 675 H GW 62 976 H GW 60 676 H GW 62 676 H GW 62 977 H Marine, port and   naval installations GW 60 677 H GW 62 677 H GW 62 978 H 11

16A AND 32A LOW VOLTAGE INDUSTRIAL PLUGS AND SOCKET-OUTLETS TO IEC 309 STANDARDS Rated  current  (In) Rated   voltage  (Un) Frequency Poles Reference  h 90°  plugs  IP44 90°  plugs  IP67 Straight  flush-mounting  inlets IP44 Straight  flush-mounting  inlets IP67 90°  surface-mounting  inlets IP44 90°  surface-mounting  inlets IP44 Screw wiring Screw wiring Screw wiring Screw wiring Screw wiring Screw wiring 16A 100 - 130V 50/60 Hz 2P+E 4 GW 60 082 GW 60 105 GW 60 201 GW 60 223 GW 60 401 GW 60 423 3P+E 4 GW 60 083 GW 60 106 GW 60 202 GW 60 224 GW 60 402 GW 60 424 3P+N+E 4 GW 60 084 GW 60 107 GW 60 203 GW 60 225 GW 60 403 GW 60 425 200 - 250V 50/60 Hz 2P+E 6 GW 60 085 GW 60 108 GW 60 204 GW 60 226 GW 60 404 GW 60 426 3P+E 9 GW 60 086 GW 60 109 GW 60 205 GW 60 227 GW 60 405 GW 60 427 3P+N+E 9 GW 60 087 GW 60 110 GW 60 206 GW 60 228 GW 60 406 GW 60 428 380 - 415V 50/60 Hz 2P+E 9 GW 60 088 GW 60 111 GW 60 207 GW 60 229 GW 60 407 GW 60 429 3P+E 6 GW 60 089 GW 60 112 GW 60 208 GW 60 230 GW 60 408 GW 60 430 3P+N+E 6 GW 60 090 GW 60 113 GW 60 209 GW 60 231 GW 60 409 GW 60 431 480 - 500V 50/60 Hz 3P+E 7 GW 60 091 GW 60 114 GW 60 210 GW 60 232 GW 60 410 GW 60 432 3P+N+E 7 GW 60 092 GW 60 115 GW 60 211 GW 60 233 GW 60 411 GW 60 433 32A 100 - 130V 50/60 Hz 2P+E 4 GW 60 093 GW 60 116 GW 60 212 GW 60 234 GW 60 412 GW 60 434 3P+E 4 GW 60 094 GW 60 117 GW 60 213 GW 60 235 GW 60 413 GW 60 435 3P+N+E 4 GW 60 095 GW 60 118 GW 60 214 GW 60 236 GW 60 414 GW 60 436 200 - 250V 50/60 Hz 2P+E 6 GW 60 096 GW 60 119 GW 60 215 GW 60 237 GW 60 415 GW 60 437 3P+E 9 GW 60 097 GW 60 120 GW 60 216 GW 60 238 GW 60 416 GW 60 438 3P+N+E 9 GW 60 098 GW 60 121 GW 60 217 GW 60 239 GW 60 417 GW 60 439 380 - 415V 50/60 Hz 2P+E 9 GW 60 099 GW 60 122 GW 60 218 GW 60 240 GW 60 418 GW 60 440 3P+E 6 GW 60 101 GW 60 123 GW 60 219 GW 60 241 GW 60 419 GW 60 441 3P+N+E 6 GW 60 102 GW 60 124 GW 60 220 GW 60 242 GW 60 420 GW 60 442 480 - 500V 50/60 Hz 3P+E 7 GW 60 103 GW 60 125 GW 60 221 GW 60 243 GW 60 421 GW 60 443 3P+N+E 7 GW 60 104 GW 60 126 GW 60 222 GW 60 244 GW 60 422 GW 60 444 380V / 440V 50 Hz / 60 Hz 3P+E 3 GW 60 146 GW 60 268 GW 60 482 63A AND 125A LOW VOLTAGE INDUSTRIAL PLUGS AND SOCKET-OUTLETS TO IEC 309 STANDARDS Rated current  (In) Rated voltage  (Un) Frequency Poles Reference  h 90°   surface-mounting  inlets IP67 10° surface-  mounting  socket-outlets  IP67 90° surface-  mounting  socket-outlets  IP67 APPLICATIONS Screw wiring Screw wiring Screw wiring 63A 100 - 130V 50/60 Hz 2P+E 4 GW 61 445 GW 63 445 GW 63 519 Standard  use 3P+E 4 GW 61 446 GW 63 446 GW 63 520 3P+N+E 4 GW 61 447 GW 63 447 GW 63 521 200 - 250V 50/60 Hz 2P+E 6 GW 61 448 GW 63 448 GW 63 522 3P+E 9 GW 61 449 GW 63 449 GW 63 523 3P+N+E 9 GW 61 450 GW 63 450 GW 63 524 380 - 415V 50/60 Hz 2P+E 9 GW 61 451 GW 63 451 GW 63 525 3P+E 6 GW 61 452 GW 63 452 GW 63 526 3P+N+E 6 GW 61 453 GW 63 453 GW 63 527 480 - 500V 50/60 Hz 3P+E 7 GW 61 454 GW 63 454 GW 63 528 Use with  particular voltage 3P+N+E 7 GW 61 455 GW 63 455 GW 63 529 125A 100 - 130V 50/60 Hz 3P+E 4 GW 60 456 GW 62 530 Standard  use 3P+N+E 4 GW 60 457 GW 62 531 200 - 250V 50/60 Hz 3P+E 9 GW 60 458 GW 62 532 3P+N+E 9 GW 60 459 GW 62 533 380 - 415V 50/60 Hz 3P+E 6 GW 60 460 GW 62 534 3P+N+E 6 GW 60 461 GW 62 535 480 - 500V 50/60 Hz 3P+E 7 GW 60 462 GW 62 536 Use with  particular voltage 3P+N+E 7 GW 60 463 GW 62 537 12 IEC 309 range Plugs and socket-outlets to IEC 309 Standards

16A AND 32A EXTRA LOW VOLTAGE INDUSTRIAL PLUGS AND SOCKET-OUTLETS TO IEC 309 STANDARDS Rated  current  (In) Rated  Voltage  (Un) Frequency Poles Reference  h Stright plugs  IP44 90°  plugs  IP44 Straight  flush- mounting  inlets IP44 90° surface  mounting  inlets  IP44 Straight  connectors  IP44 10° flush-  mounting  socket-  outlets IP44 10° flush-  mounting  socket-  outlets IP67 10° surface-  mounting  socket-  outlets IP44 90° surface-  mounting  socket-  outlets IP44 Screw wiring Screw wiring Screw wiring Screw wiring Screw wiring Screw wiring Screw wiring Screw wiring Screw wiring 16A 20-25V 50/60 Hz 2P w.r. GW 60 064 GW 60 127 GW 60 245 GW 60 464 GW 62 064 GW 62 265 GW 62 365 GW 62 456 GW 62 538 50/60 Hz 3P w.r. GW 60 065 GW 60 128 GW 60 246 GW 60 465 GW 62 065 GW 62 266 GW 62 366 GW 62 457 GW 62 539 40-50V 50/60 Hz 2P 12 GW 60 066 GW 60 129 GW 60 247 GW 60 466 GW 62 066 GW 62 267 GW 62 458 GW 62 540 50/60 Hz 3P 12 GW 60 067 GW 60 130 GW 60 248 GW 60 467 GW 62 067 GW 62 268 GW 62 459 GW 62 541 20-25V  and  40-50V 100-200 Hz 2P 4 GW 60 068 GW 60 131 GW 60 249 GW 60 468 GW 62 068 GW 62 269 GW 62 460 GW 62 542 100-200 Hz 3P 4 GW 60 069 GW 60 132 GW 60 250 GW 60 469 GW 62 069 GW 62 270 GW 62 461 GW 62 543 401-500 Hz 2P 11 GW 60 070 GW 60 133 GW 60 251 GW 60 470 GW 62 070 GW 62 271 GW 62 462 GW 62 544 401-500 Hz 3P 11 GW 60 071 GW 60 134 GW 60 252 GW 60 471 GW 62 071 GW 62 272 GW 62 463 GW 62 545 20-25V and 40-50V D.C. 2P 10 GW 60 072 GW 60 135 GW 60 253 GW 60 472 GW 62 072 GW 62 273 GW 62 464 GW 62 546 32A 20-25V 50/60 Hz 2P w.r. GW 60 073 GW 60 136 GW 60 254 GW 60 473 GW 62 073 GW 62 274 GW 62 465 GW 62 547 50/60 Hz 3P w.r. GW 60 074 GW 60 137 GW 60 255 GW 60 474 GW 62 074 GW 62 275 GW 62 466 GW 62 548 40-50V 50/60 Hz 2P 12 GW 60 075 GW 60 138 GW 60 256 GW 60 475 GW 62 075 GW 62 276 GW 62 467 GW 62 549 50/60 Hz 3P 12 GW 60 076 GW 60 139 GW 60 257 GW 60 476 GW 62 076 GW 62 277 GW 62 468 GW 62 550 20-25V  and  40-50V 100-200 Hz 2P 4 GW 60 077 GW 60 140 GW 60 258 GW 60 477 GW 62 077 GW 62 278 GW 62 469 GW 62 551 100-200 Hz 3P 4 GW 60 078 GW 60 141 GW 60 259 GW 60 478 GW 62 078 GW 62 279 GW 62 470 GW 62 552 401-500 Hz 2P 11 GW 60 079 GW 60 142 GW 60 260 GW 60 479 GW 62 079 GW 62 280 GW 62 471 GW 62 553 401-500 Hz 3P 11 GW 60 080 GW 60 143 GW 60 261 GW 60 480 GW 62 080 GW 62 281 GW 62 472 GW 62 554 20-25V and 40-50V D.C. 2P 10 GW 60 081 GW 60 144 GW 60 262 GW 60 481 GW 62 081 GW 62 282 GW 62 473 GW 62 555 16A AND 32A LOW VOLTAGE INDUSTRIAL PLUGS AND SOCKET-OUTLETS TO IEC 309 STANDARDS 90°  connectors  IP44 90°  connectors  IP67 10° surface-mounting  socket-outlets  IP44 10° surface-mounting  socket-outlets  IP67 90° surface-mounting  socket-outlets  IP44 90° surface-mounting  socket-outlets  IP67 APPLICATIONS Screw wiring Screw wiring Screw wiring Screw wiring Screw wiring Screw wiring GW 62 082 GW 62 105 GW 62 401 GW 62 423 GW 62 474 GW 62 496 Standard  use GW 62 083 GW 62 106 GW 62 402 GW 62 424 GW 62 475 GW 62 497 GW 62 084 GW 62 107 GW 62 403 GW 62 425 GW 62 476 GW 62 498 GW 62 085 GW 62 108 GW 62 404 GW 62 426 GW 62 477 GW 62 499 GW 62 086 GW 62 109 GW 62 405 GW 62 427 GW 62 478 GW 62 501 GW 62 087 GW 62 110 GW 62 406 GW 62 428 GW 62 479 GW 62 502 GW 62 088 GW 62 111 GW 62 407 GW 62 429 GW 62 480 GW 62 503 GW 62 089 GW 62 112 GW 62 408 GW 62 430 GW 62 481 GW 62 504 GW 62 090 GW 62 113 GW 62 409 GW 62 431 GW 62 482 GW 62 505 GW 62 091 GW 62 114 GW 62 410 GW 62 432 GW 62 483 GW 62 506 Use with  particular voltage GW 62 092 GW 62 115 GW 62 411 GW 62 433 GW 62 484 GW 62 507 GW 62 093 GW 62 116 GW 62 412 GW 62 434 GW 62 485 GW 62 508 Standard  use GW 62 094 GW 62 117 GW 62 413 GW 62 435 GW 62 486 GW 62 509 GW 62 095 GW 62 118 GW 62 414 GW 62 436 GW 62 487 GW 62 510 GW 62 096 GW 62 119 GW 62 415 GW 62 437 GW 62 488 GW 62 511 GW 62 097 GW 62 120 GW 62 416 GW 62 438 GW 62 489 GW 62 512 GW 62 098 GW 62 121 GW 62 417 GW 62 439 GW 62 490 GW 62 513 GW 62 099 GW 62 122 GW 62 418 GW 62 440 GW 62 491 GW 62 514 GW 62 101 GW 62 123 GW 62 419 GW 62 441 GW 62 492 GW 62 515 GW 62 102 GW 62 124 GW 62 420 GW 62 442 GW 62 493 GW 62 516 GW 62 103 GW 62 125 GW 62 421 GW 62 443 GW 62 494 GW 62 517 Use with  particular voltage GW 62 104 GW 62 126 GW 62 422 GW 62 444 GW 62 495 GW 62 518 GW 62 127 GW 62 556 GW 62 557 Refrigerated containers 13

MULTIPLE-SOCKET COUPLERS INPUT COUPLER OUTPUTS Rated   current (In) Rated  voltage (Un) No. of poles Reference  h No. 2 socket-outlets  16A No. 3 socket-outlets  16A No. 3 socket-outlets  32A Without  cable 16A 100 ÷ 130V 2P+E 4 GW 64 008 GW 64 022 3P+E 4 GW 64 023 200 ÷ 250V 2P+E 6 GW 64 010 GW 64 024 3P+E 9 GW 64 011 GW 64 025 3P+N+E 9 GW 64 012 GW 64 026 380 ÷ 415V 3P+E 9 GW 64 013 GW 64 027 3P+N+E 6 GW 64 014 GW 64 028 32A 380 ÷ 415V 3P+E 6 GW 64 068 With  cable 16A 100 ÷ 130V 2P+E 4 GW 64 050 200 ÷ 250V 2P+E 6 GW 64 052 380 ÷ 415V 3P+E 6 GW 64 055 3P+N+E 6 GW 64 056 MULTIPLE-SOCKET ADAPTERS INPUT OUTLETS Rated   current (In) Rated   voltage (Un) No. of poles Ref.  h 3 socket-outlets Code 2P+E 230V~ 3P+E 400V~ 3P+N+E 400V~   16A 380 ÷ 415V 3P+N+E 6 2x16A 1x16A GW 64 059 1x16A 1x16A 1x16A GW 64 060 32A 200 ÷ 250V 2P+E 6 3x16A GW 64 062 380 ÷ 415V 3P+N+E 6 1x16A 1x16A 1x16A GW 64 063 2x16A 1x32A GW 64 064 1x32A 1x32A 1x32A GW 64 061 63A 380 ÷ 415V 3P+N+E 6 2x32A 1x63A GW 64 065 Important: the range of multipliers, adapters and shunts should be considered an integral part of the system, as they are only suitable for mobile and temporary installations and connections (not for permanent  applications). Furthermore, the range cannot be used in areas with an increased fire hazard. SYSTEM ADAPTERS INPUT DOMESTIC SOCKET-OUTLET INDUSTRIAL  SOCKET- OUTLET Rated  current (In) Rated  voltage (Un) No. of  poles Ref.  h 2 outputs 1 output 1 output 1 output 1 output 2P+E 16A dual  amp. (P17/P11) 2P+E 16A dual  amp. (P30/P17) 2P+E 10/16A   German Std. 2P+E 16A   French Std. 2P+E 13A   British Std. 2P+E 16A 230V 6h IEC 309  industrial  plug 16A 200 ÷ 250V 2P+E 6 GW 64 211 GW 64 212 GW 64 210 GW 64 203 GW 64 204 GW 64 206 fitted for other combinations 380 ÷ 415V 3P+N+E 6 GW 64 216 GW 64 217 GW 64 207 fitted for other combinations Domestic  sockets 2P+E 16A 250V S17 GW 64 208 2P+E 16A 250V German/French Std. GW 64 209 DOMESTIC SOCKET-OUTLETS - IP54 Description Rated current (In) Rated voltage (Un) Poles Flange dimensions ( mm) Code Domestic socket German std. - IP54 16 A 230 V 2P + E 85x75 GW62392 Domestic socket German std. - IP54 16 A 230 V 2P + E 50x50 GW62393 Domestic socket French std. - IP54 16 A 230 V 2P + E 50x50 GW62394 14 IEC 309 range Plugs and socket-outlets to IEC 309 Standards

Innovative protection for interlocked   switched socket-outlets Top quality materials Made of high-performance blue thermoplastic materials guaranteeing good long-term resistance to impact, UV rays and chemical agents. Fuses protection The system has a front fuse-holder base, allowing all the fuses to be disconnected and removed. It also simplifies access and checking or maintenance operations.  Integrated protection MCB integrated on the front of the interlocked switched socket-outlet, C characteristic 6kA, and signalling LEDs showing the operating status for each phase. This innovation, patented by GEWISS and introduced on Automatika via the MCB protection on the front, revolutionises the protection system for interlocked switched socket-outlets from 16 to 32A. The MCB inside the socket-outlet reduces the space needed on the distribution boards and can be reset via the external knob while the signalling LEDs show its status.The 67IB range of interlocked switched socket-outlets also includes versions with protection (via fuses) and with a rotary switch (without fuses). The entire range is made from high-performance materials with an IP67 degree of protection to guarantee energy distribution in commercial and industrial contexts (16, 32 and 63A). The IB range also has an interlocked COMBIBLOC version with more compact dimensions, a horizontal 44IB version, and a 66IB version for heavy-duty use. 15 IB range Interlocked socket-outlet IEC 309 standards

The codes with the suffix “N” refer to the products of the new range of IP67 vertical interlocked switched socket-outlets, and correspond to the product codes of the previous range without the letter “N” (apart  from the Automatika version); they can therefore be installed on the Q-DIN boards of the old SBF versions, allowing any replacement or modification even on boards already installed. Using the GW 66 715 N adapters for 16-32A versions, and GW 66 716 N for 63A versions, they can also be installed on the Q-DIN boards or modular bases of the old CBF IP55 versions. VERTICAL SOCKET-OUTLETS - 67 IB VERTICAL SOCKET-OUTLETS  FOR HEAVY DUTY USE - 66 IB Rated  current  (In) Rated  Voltage  (Un) No. of  poles Reference  h Vertical   socket-outlets   with MCB,   without bottom   (AUTOMATIKA) Vertical  socket-outlets   with MCB,   with bottom   (AUTOMATIKA) Vertical   socket-outlets  with rotary switch,  without bottom  (SBF) Vertical   socket-outlets  with rotary switch,  with bottom   (SBF) Vertical   socket-outlets  with fuse-holder  base, without  bottom (CBF) Vertical   socket-outlets  with fuse-holder  base, with bottom   (CBF) Vertical   socket-outlets  with rotary   switch, without  bottom Vertical   socket-outlets  with rotary   switch, with  bottom Vertical socket- outlets   with   fuse-holder base,  without bottom IP67 IP67 IP67 IP67 IP67 IP67 IP66 IP66 IP66 16A 20 ÷ 25V 2P w.r. GW 66 359 N GW 66 259 N GW 66 886 100 ÷ 130V 2P+E 4 GW 66 151 N GW 66 051 N GW 66 301 N GW 66 201 N GW 66 323 N GW 66 223 N GW 66 535 GW 66 501 GW 66 801 3P+E 4 GW 66 152 N GW 66 052 N GW 66 302 N GW 66 202 N GW 66 324 N GW 66 224 N GW 66 536 GW 66 502 GW 66 802 3P+N+E 4 GW 66 153 N GW 66 053 N GW 66 303 N GW 66 203 N GW 66 325 N GW 66 225 N GW 66 537 GW 66 503 GW 66 803 200 ÷ 250V 2P+E 6 GW 66 154 N GW 66 054 N GW 66 304 N GW 66 204 N GW 66 326 N GW 66 226 N GW 66 538 GW 66 504 GW 66 804 3P+E 9 GW 66 155 N GW 66 055 N GW 66 305 N GW 66 205 N GW 66 327 N GW 66 227 N GW 66 539 GW 66 505 GW 66 805 3P+N+E 9 GW 66 156 N GW 66 056 N GW 66 306 N GW 66 206 N GW 66 328 N GW 66 228 N GW 66 540 GW 66 506 GW 66 806 380 ÷ 415V 2P+E 9 GW 66 157 N GW 66 057 N GW 66 307 N GW 66 207 N GW 66 329 N GW 66 229 N GW 66 541 GW 66 507 GW 66 807 3P+E 6 GW 66 158 N GW 66 058 N GW 66 308 N GW 66 208 N GW 66 330 N GW 66 230 N GW 66 542 GW 66 508 GW 66 808 3P+N+E 6 GW 66 159 N GW 66 059 N GW 66 309 N GW 66 209 N GW 66 331 N GW 66 231 N GW 66 543 GW 66 509 GW 66 809 480 ÷ 500V 3P+E 7 GW 66 310 N GW 66 210 N GW 66 332 N GW 66 232 N GW 66 544 GW 66 510 GW 66 810 3P+N+E 7 GW 66 311 N GW 66 211 N GW 66 333 N GW 66 233 N GW 66 545 GW 66 511 GW 66 811 32A 100 ÷ 130V 2P+E 4 GW 66 162 N GW 66 062 N GW 66 312 N GW 66 212 N GW 66 334 N GW 66 234 N GW 66 546 GW 66 512 GW 66 812 3P+E 4 GW 66 163 N GW 66 063 N GW 66 313 N GW 66 213 N GW 66 335 N GW 66 235 N GW 66 547 GW 66 513 GW 66 813 3P+N+E 4 GW 66 164 N GW 66 064 N GW 66 314 N GW 66 214 N GW 66 336 N GW 66 236 N GW 66 548 GW 66 514 GW 66 814 200 ÷ 250V 2P+E 6 GW 66 165 N GW 66 065 N GW 66 315 N GW 66 215 N GW 66 337 N GW 66 237 N GW 66 549 GW 66 515 GW 66 815 3P+E 9 GW 66 166 N GW 66 066 N GW 66 316 N GW 66 216 N GW 66 338 N GW 66 238 N GW 66 550 GW 66 516 GW 66 816 3P+N+E 9 GW 66 167 N GW 66 067 N GW 66 317 N GW 66 217 N GW 66 339 N GW 66 239 N GW 66 551 GW 66 517 GW 66 817 380 ÷ 415V 2P+E 9 GW 66 168 N GW 66 068 N GW 66 318 N GW 66 218 N GW 66 340 N GW 66 240 N GW 66 552 GW 66 518 GW 66 818 3P+E 6 GW 66 169 N GW 66 069 N GW 66 319 N GW 66 219 N GW 66 341 N GW 66 241 N GW 66 553 GW 66 519 GW 66 819 3P+N+E 6 GW 66 170 N GW 66 070 N GW 66 320 N GW 66 220 N GW 66 342 N GW 66 242 N GW 66 554 GW 66 520 GW 66 820 480 ÷ 500V 3P+E 7 GW 66 321 N GW 66 221 N GW 66 343 N GW 66 243 N GW 66 555 GW 66 521 GW 66 821 3P+N+E 7 GW 66 322 N GW 66 222 N GW 66 344 N GW 66 244 N GW 66 556 GW 66 522 GW 66 822 380/440V 3P+E 3 GW 66 357 N GW 66 257 N GW 66 358 N GW 66 258 N GW 66 557 GW 66 523 GW 66 823 63A 100 ÷ 130V 2P+E 4 GW 67 356 N GW 67 256 N GW 66 345 N GW 67 245 N GW 66 524 3P+E 4 GW 67 357 N GW 67 257 N GW 66 346 N GW 67 246 N GW 66 525 3P+N+E 4 GW 67 358 N GW 67 258 N GW 66 347 N GW 67 247 N GW 66 526 200 ÷ 250V 2P+E 6 GW 67 359 N GW 67 259 N GW 66 348 N GW 67 248 N GW 66 527 3P+E 9 GW 67 360 N GW 67 260 N GW 66 349 N GW 67 249 N GW 66 528 3P+N+E 9 GW 67 361 N GW 67 261 N GW 66 350 N GW 67 250 N GW 66 529 380 ÷ 415V 2P+E 9 GW 67 362 N GW 67 262 N GW 66 351 N GW 67 251 N GW 66 530 3P+E 6 GW 67 363 N GW 67 263 N GW 66 352 N GW 67 252 N GW 66 531 3P+N+E 6 GW 67 364 N GW 67 264 N GW 66 353 N GW 67 253 N GW 66 532 480 ÷ 500V 3P+E 7 GW 67 365 N GW 67 265 N GW 66 354 N GW 67 254 N GW 66 533 3P+N+E 7 GW 67 366 N GW 67 266 N GW 66 355 N GW 67 255 N GW 66 534 Vertical surface-mounting  socket-outlets with electric  interlock, with circuit breaker  protection 125A 100 ÷ 130V 3P+E 4 GW 66 581 3P+N+E 4 GW 66 582 200 ÷ 250V 3P+E 9 GW 66 583 3P+N+E 9 GW 66 584 380 ÷ 415V 3P+E 6 GW 66 585 3P+N+E 6 GW 66 586 480 ÷ 500V 3P+E 7 GW 66 587 3P+N+E 7 GW 66 588 16 Interlocked socket-outlet IEC 309 standards IB range

VERTICAL SOCKET-OUTLETS  FOR HEAVY DUTY USE - 66 IB Vertical   socket-outlets  with fuse-holder  base,   with bottom Vertical   socket-outlets  for modular  devices,  without bottom Vertical   socket-outlets  for modular  devices,  with bottom IP66 IP66 IP66 GW 66 998GW 66 951 GW 66 824 GW 66 974 GW 66 952 GW 66 825 GW 66 975 GW 66 953 GW 66 826 GW 66 976 GW 66 954 GW 66 827 GW 66 977 GW 66 955 GW 66 828 GW 66 978 GW 66 956 GW 66 829 GW 66 979 GW 66 957 GW 66 830 GW 66 980 GW 66 958 GW 66 831 GW 66 981 GW 66 959 GW 66 832 GW 66 982 GW 66 960 GW 66 833 GW 66 983 GW 66 961 GW 66 834 GW 66 984 GW 66 962 GW 66 835 GW 66 985 GW 66 963 GW 66 836 GW 66 986 GW 66 964 GW 66 837 GW 66 987 GW 66 965 GW 66 838 GW 66 988 GW 66 966 GW 66 839 GW 66 989 GW 66 967 GW 66 840 GW 66 990 GW 66 968 GW 66 841 GW 66 991 GW 66 969 GW 66 842 GW 66 992 GW 66 970 GW 66 843 GW 66 993 GW 66 971 GW 66 844 GW 66 994 GW 66 972 GW 66 845 GW 66 995 GW 66 973 GW 66 846 GW 66 996 GW 66 847 GW 66 866 GW 66 848 GW 66 867 GW 66 849 GW 66 868 GW 66 850 GW 66 869 GW 66 851 GW 66 870 GW 66 852 GW 66 871 GW 66 853 GW 66 872 GW 66 854 GW 66 873 GW 66 855 GW 66 874 GW 66 856 GW 66 875 GW 66 857 GW 66 876 Vertical surface-mounting  socket-outlets with electric  interlock, with residual current  circuit breaker protection GW 66 591GW 66 592GW 66 593GW 66 594GW 66 595GW 66 596GW 66 597GW 66 598 COMBIBLOC COMPACT SOCKET-OUTLETS HORIZONTAL SOCKET-OUTLETS - 44 IB Compact socket- outlets with rotary  switch, without  bottom Compact   socket-outlets   with rotary switch,  with bottom Compact   socket-outlets  with rotary switch,  without bottom Compact   socket-outlets  with rotary switch,   with bottom Horizontal   socket-outlets  with rotary switch,  without bottom Horizontal   socket-outlets  with rotary switch,  with bottom Horizontal  socket-outlets with  fuse-holder base,  without bottom Horizontal  socket-outlets with  fuse-holder base,  with bottom IP44 IP44 IP55 IP55 IP44 IP44 IP44 IP44 GW 66 423 GW 66 401 GW 66 467 GW 66 445 GW 66 101 GW 66 001 GW 66 123 GW 66 023 GW 66 424 GW 66 402 GW 66 468 GW 66 446 GW 66 102 GW 66 002 GW 66 124 GW 66 024 GW 66 425 GW 66 403 GW 66 469 GW 66 447 GW 66 103 GW 66 003 GW 66 125 GW 66 025 GW 66 426 GW 66 404 GW 66 470 GW 66 448 GW 66 104 GW 66 004 GW 66 126 GW 66 026 GW 66 427 GW 66 405 GW 66 471 GW 66 449 GW 66 105 GW 66 005 GW 66 127 GW 66 027 GW 66 428 GW 66 406 GW 66 472 GW 66 450 GW 66 106 GW 66 006 GW 66 128 GW 66 028 GW 66 429 GW 66 407 GW 66 473 GW 66 451 GW 66 107 GW 66 007 GW 66 129 GW 66 029 GW 66 430 GW 66 408 GW 66 474 GW 66 452 GW 66 108 GW 66 008 GW 66 130 GW 66 030 GW 66 431 GW 66 409 GW 66 475 GW 66 453 GW 66 109 GW 66 009 GW 66 131 GW 66 031 GW 66 110 GW 66 010 GW 66 132 GW 66 032 GW 66 111 GW 66 011 GW 66 133 GW 66 033 GW 66 434 GW 66 412 GW 66 478 GW 66 456 GW 66 112 GW 66 012 GW 66 134 GW 66 034 GW 66 435 GW 66 413 GW 66 479 GW 66 457 GW 66 113 GW 66 013 GW 66 135 GW 66 035 GW 66 436 GW 66 414 GW 66 480 GW 66 458 GW 66 114 GW 66 014 GW 66 136 GW 66 036 GW 66 437 GW 66 415 GW 66 481 GW 66 459 GW 66 115 GW 66 015 GW 66 137 GW 66 037 GW 66 438 GW 66 416 GW 66 482 GW 66 460 GW 66 116 GW 66 016 GW 66 138 GW 66 038 GW 66 439 GW 66 417 GW 66 483 GW 66 461 GW 66 117 GW 66 017 GW 66 139 GW 66 039 GW 66 440 GW 66 418 GW 66 484 GW 66 462 GW 66 118 GW 66 018 GW 66 140 GW 66 040 GW 66 441 GW 66 419 GW 66 485 GW 66 463 GW 66 119 GW 66 019 GW 66 141 GW 66 041 GW 66 442 GW 66 420 GW 66 486 GW 66 464 GW 66 120 GW 66 020 GW 66 142 GW 66 042 GW 66 121 GW 66 021 GW 66 143 GW 66 043 GW 66 122 GW 66 022 GW 66 144 GW 66 044 17

COMPLEMENTARY ITEMS MODULAR BASES DISTRIBUTION BOARDS 1 socket-outlet 2 socket-outlets 3 socket-outlets 1 socket-outlet 2 socket-outlets 3 socket-outlets 4 socket-outlets 67 IB  VERTIC AL  R ANGE IP67 vertical socket-outlets   with rotary switch (SBF),   fuse-holder base (CBF),   AUTOMATIKA 16/32A   and SELV 24V GW 66 690 GW 66 691 GW 66 694 GW 68 025 N (10 modules) GW 68 010 N (14 modules) GW 68 022 N  (20 modules)  1 socket-outlet  63A  2 socket-outlets  16/32A GW 68 015 N (20 modules) IP67 vertical socket-outlets   with rotary switch (SBF)   or fuse-holder   base (CBF) 63A GW 66 693 66 IB R ANGE   FOR HEA VY -DUT Y USE IP66 vertical socket-outlets   for heavy-duty use 16/32A GW 66 696 GW 66 697 GW 66 698 IP66 vertical socket-outlets   for heavy-duty use 63A GW 66 700 COMBIBL OC   RANGE IP44/55 compact protected  watertight socket-outlets  - 16/32A GW 66 491 GW 66 492 GW 66 493 44 I B HORIZ ONT AL R ANGE IP44 horizontal socket-outlets   without fuse-holder base   (SBF) - 16/32A GW 68 006 N (14 modules) GW 68 009 N (14 modules) GW 68 019 N (10 modules) IP44 horizontal socket-outlets   with fuse-holder base   (CBF) - 16/32A GW 68 014 N (20 modules) 18 Interlocked socket-outlet IEC 309 standards IB range

COMPLEMENTARY ITEMS MODULAR BASES WITH WINDOW PANEL LID/BOXES 1 socket-outlet 2 socket-outlets 3 socket-outlets Flanged lid Flush-mounting boxes   (brick and plasterboard walls) Surface-mounting box GW 66 709 N GW 66 683 N (for brick walls) GW 66 678 N GW 66 683 PM (for plasterboard walls) GW 66 686 (for SBF) GW 66 680 N (for CBF) GW 66 781 (6 modules) GW 66 782 (12 modules) GW 66 783 (18 modules) GW 66 707 GW 66 685 GW 66 784 (6 modules) GW 66 498 GW 66 496 GW 66 681 (for brick walls) GW 66 676 GW 66 681 PM (for plasterboard walls) GW 66 682 (for brick walls) GW 66 677 GW 66 682 PM (for plasterboard walls) GW 27 403 GW 27 401 IEC 309 HP range IEC 309 range 74 PS range Cannot be used for SELV 24V 19

The 68 Q-DIN range is used in commercial and industrial contexts, and on construction sites. They are the most compact models available on the market and come in both wired and unwired versions, in compliance with the IEC 61439 Standard.Versions with 5, 10, 14 and 20 DIN modules (EN 50022), with an extra 14 or 20 modules available (up to a total of 40) to create more DIN space. IP65 protection degree guaranteed also by the innovative handle closure of the door.For flush-mounting and interlocked socket-outlets from 16 to 63A, IP44 and IP67, SYSTEM range domestic socket-outlets.Available also versions to fix domestic sockets (German or French standard) dimensions 50x50 mm.A wide range of accessories such as pole couplings, wall brackets, transportation handles and mobile supports complete the range and satisfy any requirement. The industrial boards system  for energy distribution More DIN space The internal space of the boards means they can house up to 20 DIN modules. With the additional module, you can even have up to 40 modules. Emergency push-button On versions with 10, 14 and 20 modules, an emergency push-button can be fitted on the top, where it is clearly recognisable and accessible. Up to 63A The 20-module versions support the IEC 309 socket-outlets with or without interlock, up to 63A, without requiring boards of different sizes. 20 68 Q-DIN range Distribution boards

A system of wired or unwired distribution boards, certified in accordance with IEC EN 61439-4, with different combinations of socket-outlets and circuit breakers for energy distribution on small and large construction sites.The 68 Q-BOX has an high impact and UV rays resistance, additional panels to increase the functions, with supplementary interlocked switched socket-outlets (up to 12 per board) and modular protection circuit breakers (up to 160A), circuit protection by modular and moulded-case switches up to 60 DIN modules - EN 50022.The construction site system also includes the 46QP distribution boards and the 68 Q-DIN and 68 QMC mobile terminals (customised and wired versions), certified by Customer Service with GWEnergy software. EN  61439-4 EU RO PEAN STAND AR D ACS A complete and flexible system   for each construction site EN 62208 Up to 12 socket-outlets The use of the special panels extends the number of possible configurations, offering up to 12 compact interlocked switched socket-outlets in a single board. Up to 60 modules Thanks to the panel with a 12-module DIN rail, up to 60 DIN modules can be installed, along with circuit breakers of up to 160A. A complete system GEWISS offers a wide range of wired versions that are ready for use, and unwired versions that can be personalised to suit the specific construction site requirements. 21 68 ACS range Distribution boards system for ACS construction sites

UNWIRED VERSIONS Type No. of EN 50022 modules Code Layout Pre-arrangement 5 GW 68 017 N 1 IEC 309 socket-outlet 16A IP44/67  or GW 27 401 or GW 27 403 watertight cap GW 68 018 N 2 IEC 309 socket-outlets 16A IP44/67  or GW 27401 or GW 27403 watertight cap GW 68 001 N 3 IEC 309 socket-outlets 16A IP44/67  or GW 27401 or GW 27403 watertight cap GW 68 031 N 3 IEC 309 socket-outlets 16A IP44/67  or GW 27 401 watertight cap and shockproof case GW 68 020 N 2 IEC 309 socket-outlets 16-32A IP44/67  or GW 27401 or GW 27403 watertight cap GW 68 026 N 4 domestic socket-outlets 50x50mm IP54 GW 68 032 N 4 domestic socket-outlets 50x50mm IP54 10 GW 68 002 N Blank GW 68 003 N 2 IEC 309 socket-outlets 16A max 3P+E   IP44/67 or GW 27 401 watertight cap   2 IEC 309 socket-outlets 16-32A   IP44/67 or GW 27401 - GW 27403 watertight cap GW 68 019 N 2 horizontal interlocked switched socket-outlets 44 IB range   16-32A IP44 with rotary switch (SBF) GW 68 025 N 2 vertical interlocked switched socket-outlets 67 IB range   16-32A IP67 GW 68 027 N 3 domestic socket-outlets 50x50mm IP54   2 IEC 309 socket-outlets 16-32A IP44/67 14 GW 68 004 N Blank GW 68 005 N 3 IEC 309 socket-outlets 16-32A IP44/67  or GW 27 401 watertight cap GW 68 006 N 2 horizontal interlocked switched socket-outlets 44 IB range   16-32A IP44 with rotary switch (SBF) GW 68 007 N Blank GW 68 008 N 6 IEC 309 socket-outlets 16-32A IP44/67  or GW 27401 or GW 27403 watertight cap GW 68 009 N 4 horizontal interlocked switched socket-outlets 44 IB range   16-32A IP44 with rotary switch (SBF) GW 68 010 N 3 vertical interlocked switched socket-outlets 67 IB range   16-32A IP67 20 GW 68 012 N Blank GW 68 013 N 8 IEC 309 socket-outlets 16-32A IP44/67  or GW 27401 or GW 27403 watertight cap GW 68 021 N 4 IEC 309 socket-outlets 16-32A IP44/67  or GW 27401 or GW 27403 watertight cap  2 IEC 309 socket-outlets 63A GW 68 014 N 4 horizontal interlocked switched socket-outlets 44 IB range   16-32A IP44 with fuse-holder base (CBF) GW 68 015 N 4 vertical interlocked switched socket-outlets 67 IB range 16-32A IP67   4 IEC 309 2P+E socket-outlets 16A IP44/67   or GW 27401 - GW 27403 watertight cap GW 68 022 N 2 vertical interlocked switched socket-outlets 67 IB range 16-32A IP67   1 vertical interlocked switched socket-outlet 67 IB range 63A IP67 14 GW 68 023 N 14 gang additional module 20 GW 68 024 N 20 gang additional module 22 68 Q-DIN range Distribution boards

WIRED VERSIONS Type No. of   EN 50022 modules Code Layout Equipment Code Layout Equipment 5 GW 68 212 N 1 domestic socket-outlet 13A UK GW 68 227 N 1 IEC 309 socket-outlet 2P+E 16A IP44 230V GW 68 225 N 1 IEC 309 socket-outlet 2P+E 16A IP44 230V   1 Schuko domestic socket-outlet 10/16A GW 68 226 N 1 IEC 309 socket-outlet 2P+E 16A IP44 230V  1 IEC 309 socket-outlet 3P+E 16A IP44 400V GW 68 224 N 1 IEC 309 socket-outlet 2P+E 16A IP44 230V   1 IEC 309 socket-outlet 3P+E 16A IP44 400V   1 Schuko domestic socket-outlet 10/16A GW 68 217 N 3 IEC 309 socket-outlets 2P+E 16A IP67 230V  with H07 RN-F 5m cable  and plug 2P+E 16A IP67 230V GW 68 223 N 3 IEC 309 socket-outlets 2P+E 16A IP67 230V   with H07 RN-F 5m cable,   plug 2P+E 16A IP67 230V   and shockproof case 10 GW 68 202 N 2 IEC 309 socket-outlets 2P+E 16A IP44 230V   1 IEC 309 socket-outlet 3P+E 16A IP44 400V   1 Schuko domestic socket-outlet 10/16A GW 68 228 N 1 IEC 309 socket-outlet 2P+E 16A IP44 230V   1 IEC 309 socket-outlet 3P+E 16A IP44 400V   1 IEC 309 socket-outlet 3P+N+E 16A IP44 400V  1 Schuko domestic socket-outlet 10/16A GW 68 203 N 2 German Std. domestic socket-outlets 16A   2 IEC 309 socket-outlets 2P+E 16A IP44 230V   with H07 RN-F 5m cable   and plug 2P+E, 16A IP44 230V GW 68 204 N 2 IEC 309 socket-outlets 2P+E 16A IP67 230V  2 IEC 309 socket-outlets 3P+E 16A IP67 400V  with H07 RN-F 5m cable  and plug 3P+N+E 16A IP67 400V GW 68 216 N 4 IEC 309 socket-outlets 2P+E 16A IP67 400V  with H07 RN-F 5m cable  and plug 2P+E 16A IP67 400V GW 68 401 N 1 German Std. domestic socket-outlet 16A   2 IEC 309 socket-outlets 2P+E 16A IP44 230V   1 IEC 309 socket-outlet 3P+E 16A IP44 400V   with H07 RN-F 15m cable and  plug 3P+N+E 16A IP44 400V  metal support 14 GW 68 205 N 2 IEC 309 socket-outlets 2P+E 16A IP67 230V  1 IEC 309 socket-outlet 3P+E 16A IP67 400V GW 68 229 N 2 IEC 309 socket-outlets 2P+E 16A IP44 230V   1 IEC 309 socket-outlet 3P+E 16A IP44 400V   1 IEC 309 socket-outlet 3P+N+E 16A IP44 400V   1 IEC 309 socket-outlet 3P+E 32A IP44 400V   1 Schuko domestic socket-outlet 10/16A GW 68 411 N 2 German Std. domestic socket-outlets 16A   2 IEC 309 socket-outlets 2P+E 16A IP44 230V   2 IEC 309 socket-outlets 3P+E 16A IP44 400V   with H07 RN-F 25m cable and  plug 3P+N+E 16A IP44 400V,   with metal support carriage  and cable winder drum GW 68 206 N 2 horizontal interlocked switched socket-outlets  2P+E 16A IP44 230V   1 horizontal interlocked switched socket-outlet  3P+E 16A IP44 400V   1 horizontal interlocked switched socket-outlet  3P+E 32A IP44 400V   with rotary switch GW 68 207 N 2 vertical interlocked switched socket-outlets 2P+E  16A IP67 230V   1 vertical interlocked switched socket-outlet 3P+E  16A IP67 400V   with rotary switch GW 68 230 N 2 AUTOMATIKA vertical interlocked switched  socket-outlets 2P+E  16A IP67 230V  1 AUTOMATIKA vertical interlocked switched  socket-outlet 3P+N+E  16A IP67 400V  GW 68 231 N 1 AUTOMATIKA vertical interlocked switched  socket-outlet 2P+E 16A IP67 230V  2 AUTOMATIKA vertical interlocked switched  socket-outlets 3P+N+E 16A IP67 400V  20 GW 68 208 N 2 vertical interlocked switched socket-outlets 2P+E  16A IP67 230V   1 vertical interlocked switched socket-outlet 3P+E  16A IP67 400V   1 vertical interlocked switched socket-outlet 3P+E  32A IP67 400V   with rotary switch GW 68 421 N 2 IEC 309 socket-outlets 2P+E 16A IP44 230V   2 IEC 309 socket-outlets 3P+E 16A IP44 400V   2 IEC 309 socket-outlets 3P+E 32A IP44 400V   2 German Std. domestic socket-outlets 16A  with H07 RN-F 35m cable,  plug 3P+N+E 32A IP44 400V   and metal support carriage   with cable winder drum GW 68 424 N 2 vertical interlocked switched socket-outlets 2P+E  16A IP67 230V   1 vertical interlocked switched socket-outlet 3P+E  16A IP67 400V   1 vertical interlocked switched socket-outlet 3P+E  32A IP67 400V   with rotary switch,   with H07 RN-F 25m cable   and plug 3P+N+E 32A IP67 400V   and metal support carriage  with cable winder drum ASC ASD ASD ASD ASD ASD ASC ASC ASD ASC ASD ASD ASD ASD ASD ASC ASC ASC ASC ASC ASD ASD ASD 23

Q-BOX 6 No. of IEC 309/INTERLOCKED SOCKET-OUTLETS No. of  DOMESTIC  SOCKET- OUTLETS MAIN SWITCH BOARD  SUPPLY Code 16A 32A 63A 16A Miniature circuit breaker / RCB Switch disconnector / RCB 2P+E 3P+E 3P+N+E 3P+E 3P+N+E 3P+N+E German  Standard No. of poles In (A) No. of poles In (A) GW 68 471 3 2 1 4 63 Appliance plug GW 68 472 2 3 1 4 63 GW 68 473 3 3 4 40 GW 68 474 2 2 2 4 63 GW 68 491 2 2 2 4 80 Terminal block GW 68 492 2 1 1 1 1 4 80 GW 68 493 3 2 1 4 80 GW 68 494 2 2 2 4 80 GW 68 495 2 1 3 4 100 GW 68 496 3 2 1 4 100 GW 68 497 2 2 2 4 100 GW 68 543 3 2 1 1 4 4 100 GW 68 544 6 3 1 2 4 80 QP SWITCHES Code CIRCUIT BREAKER RESIDUAL CURRENT DEVICE GW 68 521 MTHP 125A 4P C-CHARACTERISTIC 16kA ADD-ON RCD 125A 4P, A-TYPE, ADJUSTABLE GW 68 526 MTX 160c 160A 4P TYPE B 16kA ADD-ON RCD 160A 4P, L-SHAPED, ADJUSTABLE GW 68 531 MTX 250 250A 4P TYPE N 36kA ADD-ON RCD 250A 4P, L-SHAPED, ADJUSTABLE Q-BOX 4 No. of IEC 309/INTERLOCKED SOCKET-OUTLETS No. of  DOMESTIC  SOCKET- OUTLETS MAIN SWITCH BOARD  SUPPLY Code 16A 32A 16A Miniature circuit breaker / RCB Switch disconnector / RCB 2P+E 3P+E 3P+N+E 2P+E 3P+E 3P+N+E German  Standard No. of poles In (A) No. of poles In (A) GW 68 481 3 1 4 40 Appliance plug GW 68 482 2 2 4 40 GW 68 483 2 2 1 4 63 GW 68 484 2 1 1 1 4 63 GW 68 511 3 1 2 63 Terminal block GW 68 512 2 3 4 63 GW 68 513 2 2 1 4 80 GW 68 514 2 1 1 1 4 80 GW 68 541 2 2 1 4 GW 68 542 4 3 1 24 ACS distribution board system for construction sites 68 ACS range

Q-DIN No. of IEC 309/INTERLOCKED SOCKET-OUTLETS No. of DOMESTIC  SOCKET-OUTLETS MAIN  PROTECTION BOARD  TYPE Code 16A 32A 16A RCBO/RCD 2P+E 3P+E 3P+E German Std. No. of poles In (A) GW 68 203 N 2 2 2P 16 Portable GW 68 204 N 2 2 4P 16 GW 68 216 N 4 2P 16 GW 68 217 N 3 2P 16 GW 68 223 N 3 2P 16 With shockproof housing GW 68 401 N 2 1 1 4P 16 With metal support GW 68 411 N 2 2 2 4P 25 With metal wheel support,  revolving drum GW 68 421 N 2 2 2 2 4P 40 GW 68 424 N 2 1 1 4P 40 COMBIBLOC No. of COMBIBLOC   SOCKET-OUTLETS MAIN  PROTECTION POWER   SUPPLY PLUG IP DEGREE BOARD  TYPE Code 16A 32A 2P+E 3P+N+E 3P+N+E No. of poles In (A) GW 66 388 2 1 4 40 3P+N+E 32A 55 With metal support GW 66 389 1 1 1 4 40 3P+N+E 32A Q-MC No. of IEC 309 SOCKET-OUTLETS MAIN  PROTECTION EMERGENCY   PUSH- BUTTON POWER   SUPPLY PLUG IP  DEGREE BOARD  TYPE Code 16A 32A Miniature circuit breaker / RCB 2P+E 3P+E 3P+N+E 3P+N+E No. of poles In (A) GW 68 881 A 7 4 40A Yes 3P+N+E 32A 56 Portable GW 68 883 A 4 1 1 1 4 50A 3P+N+E 63A GW 68 884 A 2 1 2 1 4 50A 3P+N+E 63A 25

Design and safety   for all needs References Harbours - Montecarlo Harbours - Pasaia, Spain Urban Areas - Piazza Duomo, Milan The elegant style, materials and colours ensure 100% integration with the surroundings.The attention to the highest quality and safety standards - with the relative certifications - means reliability and safety.The 68 Q-MC pedestals are the right solution for the distribution of electricity, water, services in harbours, campsites, urban areas, and industrial contexts.Three product families (stainless steel terminals or compact, high-capacity thermoplastic models) in 6 different sizes, with socket-outlets complying with Standard IEC309 (16-125A), or with terminal block output or industrial socket-outlets up to 400A. The terminals can also be equipped with an electronic system for controlling and recording consumption levels. To complete the range, there are even fire-prevention versions. 26 Energy and service distribution pedestals 68 Q-MC range

WIRED PEDESTALS Q-MC 63 X IN AISI 316 L STAINLESS STEEL No. of IEC 309/INTERLOCKED SOCKET-OUTLETS MAIN PROTECTION INDIVIDUAL PROTECTION IP  DEGREE CODE 16A 32A 63A TYPE No. of  poles In (A) TYPE No. In (A) No. In (A) 2P+E 3P+N+E 3P+N+E 3P+N+E GW 68 901 4 ISOLATOR 4 32 RCCB WITH  OVERCURRENT  PROTECTION 4 2P 16A 56 GW 68 902 2 2 ISOLATOR 4 63 RCCB WITH  OVERCURRENT  PROTECTION 2 2P 16A 2 4P 16A 56 GW 68 903 2 2 ISOLATOR 4 80 RCCB WITH  OVERCURRENT  PROTECTION 2 2P 16A 2 4P 32A 56 GW 68 904 2 / / / RCCB WITH  OVERCURRENT  PROTECTION 2 4P 63A 56 GW 68 905 6 ISOLATOR 4 32 RCCB WITH  OVERCURRENT  PROTECTION 6 2P 16A 56 FIRE-FIGHTING PEDESTALS Q-MC 63 X IN AISI 316 L STAINLESS STEEL CODE CONFIGURATION GW 68 921 FITTED FOR 6KG FIRE EXTINGUISHER GW 68 923 FITTED FOR VALVE, LANCE, SUPPORT AND HOSE GW 68 779 KIT WITH LANCE, 15M HOSE, SUPPORT AND ACCESSORIES EMPTY DISTRIBUTION PEDESTAL Q-MC 63 X IN AISI 316 L STAINLESS STEEL CODE CONFIGURATION SIDE A SIDE B GW 68 931 DOUBLE-SIDED Empty compartment that can  be equipped with 1 panel Empty compartment that can  be equipped with 1 panel COMPONENTS FOR Q-MC 63 X IN AISI 316 L STAINLESS STEEL TYPES OF PANELS FOR SBF INTERLOCKED  SWITCHED SOCKET-OUTLETS ASSEMBLY FOR NON-INTERLOCKED SOCKET-OUTLETS ASSEMBLY  CODE TYPE No. TYPE No. GW 68 745 W 67 IB vertical range IP67   16/32A 2 GW 68 746 W 44 IB horizontal range IP44   16/32A 2 GW 68 747 W Combibloc range   IP44/55 16/32A 2 IEC 309 range, flush-mounting 16A  or 85x75mm flanged lids 1 GW 68 748 W IEC 309 range, flush-mounting 16/32A  or 85x75mm flanged lids 4 GW 68 749 W 67 IB vertical range IP67   63A 1 GW 68 750 W BLANK 27

WIRED DISTRIBUTION PEDESTALS EXAMPLES OF APPLICATION MAIN SWITCH Har bours Campsit es Ur ban ar eas Gar dens , par ks Blo cks of fla ts Road sho w s Industrial ar eas TYPE BLUE  VERSION WHITE  VERSION IP DEGREE SWITCH DISCONNECTOR 2P 3P 4P • • Q-MC 16 B  PEDESTAL GW 68 841 A GW 68 841 W 56 GW 68 842 A GW 68 842 W 55 • Q-MC 16 T  PEDESTAL GW 68 846 A GW 68 846 W 55 GW 68 847 A GW 68 847 W 55 • • • • Q-MC 63 B  PEDESTAL GW 68 851 A GW 68 851 W 56 1 x 32A GW 68 852 A GW 68 852 W 56 1 x 32A • • • • • Q-MC 63 E  ELECTRONICS  PEDESTAL GW 68 876 A GW 68 876 W 56 1 x 32A GW 68 877 A GW 68 877 W 56 1 x 32A GW 68 878 A GW 68 878 W 56 1 x 63A • • GW 68 874 A GW 68 874 W 56 GW 68 875 A GW 68 875 W 56 • Q-MC 63 C  PEDESTAL GW 68 856 A GW 68 856 W 55 1 x 32A GW 68 857 A GW 68 857 W 56 1 x 40A GW 68 858 A GW 68 858 W 55 1 x 32A • • • • Q-MC 125 B  PEDESTAL GW 68 801 A GW 68 801 W 44 1 x 32A GW 68 802 A GW 68 802 W 44 1 x 63A GW 68 803 A GW 68 803 W 56 1 x 63A • • • Q-MC 200 B  PEDESTAL GW 68 831 A GW 68 831 W 44 1 x 32A GW 68 832 A GW 68 832 W 44 1 x 32A GW 68 833 A GW 68 833 W 44 1 x 32A • • Q-MC 200 E  ELECTRONICS  PEDESTAL GW 68 867 A GW 68 867 W 55 GW 68 868 A GW 68 868 W 55 GW 68 869 A GW 68 869 W 55 28 Energy and service distribution pedestals 68 Q-MC range

NO. OF MODULAR PROTECTION AND MONITORING DEVICES RESIDUAL CURRENT  DEVICE 30mA AC MINIATURE  CIRCUIT BREAKERS  C-CHARACTERISTIC 6kA RESIDUAL CURRENT   CIRCUIT BREAKER 30mA AC 2P 4P 2P 3P 2P 4P 1 x 16A 1 x 16A 1 x 40A 4 x 16A 1 x 40A 3 x 16A 1 x 16A 4 x 16A 2 x 16A 2 x 32A 4 x 16A 3 x 16A 1 x 16A 4 x 32A 2 x 63A Earth leakage  relay with  external toroid MTHP 4P C125 16kA 4 x 6A 8 x 6A 4 x 6A 4 x 16A 2 x 16A 2 x 16A 1 x 16A 2 x 25A 4 x 10A 6 x 10A 8 x 10A Earth leakage  relay with  external toroid MTX 4P 250A Type N 36kA MTX 4P 250A Type N 36kA MTX 4P 400A Type N 36 kA TYPE AND No. OF SOCKET-OUTLETS INSTALLED NON-INTERLOCKED IEC 309  INTERLOCKED SPECIAL  SOCKET- OUTLETS IT/GER STD.  DOMESTIC  SOCKET- OUTLETS 2P+E 2P+E 3P+E 3P+N+E RJ45+  TV/SAT 2P+E  10/16A 2 x 16A 1 x 16A   2 6 x 16A   2 2 x 16A 1 x 16A   2 4 x 16A 2 x 16A 2 x 32A 4 x 16A 3 x 16A 1 x 16A 4 x 32A 2 x 63A 1 x 125A 4 x 16A 8 x 16A 4 x 16A 4+4 4 x 16A 2 x 16A 2 x 16A 1 x 16A 2 x 32A 4 x 16A 6 x 16A 8 x 16A Direct coupling without socket-outlet 1 electronically interlocked switched socket-outlet 250A 1 electronically interlocked switched socket-outlet 400A 29

FIRE-FIGHTING PEDESTALS BLUE  VERSION WHITE  VERSION CONFIGURATION GW 68 721 A GW 68 721 W FITTED FOR 6KG FIRE EXTINGUISHER GW 68 723 A GW 68 723 W FITTED FOR 9KG FIRE EXTINGUISHER GW 68 722 A GW 68 722 W FITTED FOR LANCE, HOSE AND SUPPORT GW 68 729 A GW 68 729 W FITTED FOR LANCE, HOSE, SUPPORT AND 6KG FIRE EXTINGUISHER GW 68 779 KIT WITH LANCE, 15M HOSE AND SUPPORT BLUE  VERSION WHITE  VERSION TYPE CONFIGURATION GW 68 726 A GW 68 726 W standard FITTED FOR LANCE, SUPPORT AND HOSE  GW 68 728 A GW 68 728 W high-capacity GW 68 780 KIT WITH LANCE, 20M HOSE AND SUPPORT EMPTY DISTRIBUTION PEDESTALS TYPE BLUE  VERSION WHITE  VERSION EN 50022  MODULES TYPE OF  ENERGY   TAKE-OFF SIDE A SIDE B Q-MC 16 B  PEDESTAL GW 68 701 A GW 68 701 W 18 (9x2) Single-sided Empty compartment that can  be equipped with 1 panel Empty compartment that can  be equipped with 1 water kit GW 68 711 A GW 68 711 W 18 (9x2) Double-sided Empty compartment that can  be equipped with 1 panel Empty compartment that can  be equipped with 1 panel Q-MC 16 T  PEDESTAL GW 68 712 A GW 68 712 W 18 (9x2) Double-sided Empty compartment that can  be equipped with 1 panel Empty compartment that can  be equipped with 1 panel Q-MC 63 B  PEDESTAL GW 68 713 A GW 68 713 W 18 (9x2) Double-sided Empty compartment that can  be equipped with 1 panel Empty compartment that can  be equipped with 1 panel Q-MC 63 C  PEDESTAL GW 68 714 A GW 68 714 W 18 (9x2) Double-sided Empty compartment that can  be equipped with 1 panel Empty compartment that can  be equipped with 1 panel Q-MC 63 C  PEDESTAL GW 68 716 A GW 68 716 W 36 (9x4) Double-sided Empty compartment that can  be equipped with 2 panels Empty compartment that can  be equipped with 2 panels Q-MC 125 B  PEDESTAL GW 68 715 A GW 68 715 W 14 Single-sided Empty compartment with blank  retractable door that can be  equipped with 1 panel Empty compartment with blank  retractable door that can be  equipped with 1 panel Q-MC 200 B  PEDESTAL GW 68 717 A GW 68 717 W 28 (14x2) Double-sided Empty compartment with blank  retractable door that can be  equipped with 2 panels Empty compartment with blank  retractable door that can be  equipped with 2 panels 30 68 Q-MC range Energy and service distribution pedestals

TECHNICAL DATA AND COMPLIANCE WITH STANDARDS 16A 32A 40A 63A 80A 100A 125A 160A Reference Standard EN 60947-3 Current thermal rating I th  in air  A  16  32  40  63  80  100  125  160 Current thermal rating I the  in case   A  16  32  40  63  80  95  120  160 Nominal operating voltage U e    V  400  400  400  500  400  400  500  500 Nominal insulating voltage U i  V  690  690  690  690  800  800  800  800 Nominal operating current Ie AC-21 A  A  16  32  40  63  80  95  120  160 Nominal operating power Usage category AC-3 A  Caged motors: starting, stopping motor during rotation  3 x 400V kW  5  10  12  19  25  29  20  50 Usage category AC-23 A  Control of motors or other highly inductive loads  3 x 400V kW  7  14  18  28  36  42  28  72  Nominal breaking capacity AC-23A cos Φ = 0.45  3 x 400V A    160    320  400    630    800    950    1200    1600 Protection against short-circuiting Nominal short-circuit current conditioned by fuse  kA eff  10  10  6  10  50  15  50  50 Maximum fuse current (gG)  A  16  32  40  63  80  100  125  160 Nominal brief current I cw  (1-s-current)  A eff  500  750  750  1200  1500  1500  2500  4000 Rotary switches for control   and emergency applications Rotary switches for command (with black knob) and emergency (with red knob), in two different application types - surface-mounting and for board. The surface-mounting box versions have an insulating case (from 16A to 63A) or a metal case (from 16A to 160A), with 8 different amperages and poles. The board versions are subdivided into those with emergency door release, and those for DIN rail assembly, from 16A to 63A. Main features:  Both the command and emergency versions can be  locked.    Extension bracket to adjust the depth of the switch according  to the type of board.    Combined coupling via watertight connectors. ATEX solutions in a metal box, for both command and  emergency. 31 70 RT range Rotary switches

COMPLEMENTARY ITEMS Code Description Adjustment field Pack / carton GW 70 009 Adjustable extension brackets in  galvanized steel for rear fixing, complete  with self-tapping screws -   set of 4 brackets 117 - 305mm (16/32A) 144 - 337mm (63A) 1/10 GW 70 409 Lockable red knob with yellow flange   for emergency 16-32-40A 1/20 GW 70 410 Lockable red knob with yellow flange   for emergency 63-80-100A 1/18 SURFACE-MOUNTING ROTARY SWITCHES IN INSULATING OR METAL BOX, FOR COMMAND AND EMERGENCY - IP65 Rated   current Poles Box in insulating material External  dimensions  (mm) Box in metal External  dimensions (mm) Command Emergency Command Emergency 16A 2 GW 70 401 GW 70 431 114x114x71.5 GW 70 531 GW 70 561 140.6x165.6x97 3 GW 70 402 GW 70 432 114x114x71.5 GW 70 532 GW 70 562 140.6x165.6x97 4 GW 70 403 GW 70 433 114x114x71.5 GW 70 533 GW 70 563 140.6x165.6x97 32A 2 GW 70 404 GW 70 434 114x114x71.5 GW 70 534 GW 70 564 140.6x165.6x97 3 GW 70 405 GW 70 435 114x114x71.5 GW 70 535 GW 70 565 140.6x165.6x97 4 GW 70 406 GW 70 436 114x114x71.5 GW 70 536 GW 70 566 140.6x165.6x97 40A 2 GW 70 413 GW 70 441 114x114x71.5 GW 70 537 GW 70 567 140.6x165.6x97 3 GW 70 414 GW 70 442 114x114x71.5 GW 70 538 GW 70 568 140.6x165.6x97 4 GW 70 415 GW 70 443 114x114x71.5 GW 70 539 GW 70 569 140.6x165.6x97 63A 3 GW 70 407 GW 70 437 170x170x96 GW 70 540 GW 70 570 214.8x251.8x126.7 4 GW 70 408 GW 70 438 170x170x96 GW 70 541 GW 70 571 214.8x251.8x126.7 80A 3 - - - GW 70 542 GW 70 572 214.8x251.8x126.7 4 - - - GW 70 543 GW 70 573 214.8x251.8x126.7 100A 3 - - - GW 70 544 GW 70 574 214.8x251.8x126.7 4 - - - GW 70 545 GW 70 575 214.8x251.8x126.7 125A 3 - - - GW 70 546 GW 70 576 307.2x257.2x171.6 4 - - - GW 70 547 GW 70 577 307.2x257.2x171.6 160A 3 - - - GW 70 548 GW 70 578 307.2x257.2x171.6 4 - - - GW 70 549 GW 70 579 307.2x257.2x171.6 ROTARY SWITCHES FOR DISTRIBUTION BOARDS Rated   current Poles No. of  DIN EN 50022  modules Adjustment  field (mm) Version for boards Pack /   carton Version for fixing   on DIN rail Pack / carton 16A 2 87 - 145 GW 70 001 1/10 GW 70 201 1/30 3 3 GW 70 002 GW 70 202 4 GW 70 003 GW 70 203 32A 2 GW 70 004 GW 70 204 1/24 3 4 GW 70 005 GW 70 205 4 GW 70 006 GW 70 206 63A 3 5 114 - 177 GW 70 007 1/5 GW 70 207 1/12 4 GW 70 008 GW 70 208 ATEX SWITCH DISCONNECTORS ( ) In (A) POLES COMMAND  VERSION EMERGENCY  VERSION 16A 2P GW 70 451 GW 70 471 3P GW 70 452 GW 70 472 4P GW 70 453 GW 70 473 32A 2P GW 70 454 GW 70 474 3P GW 70 455 GW 70 475 4P GW 70 456 GW 70 476 63A 3P GW 70 457 GW 70 477 4P GW 70 458 GW 70 478 100A 3P GW 70 459 GW 70 479 4P GW 70 460 GW 70 480 ( ) NOTE: the ATEX products are only available in the following countries: Austria, France, Germany, Italy, Liechtenstein, Luxemburg, the Principality of Monaco, the United Kingdom and Spain. For all other countries,  contact GEWISS Technical service assistance.  32 Rotary switches 70 RT range

33 Multipolar connectors GW Connect range The GWConnect range includes seven different sizes of junction box and connections made of die-cast aluminium alloy. Suitable for any application but ideal in the industrial sector and on-board machinery, especially in hostile working conditions. ATEX versions are available. Metal junction box range for surface mounting Almost 2000 codes for multipolar connection system from 3 to 216 poles. Four different types of connection: screw, crimp, screw terminal block and spring, in 11 different sizes. 12 ranges of inserts: GW-A compact rangeGW-D/DD high density contactsGW-E/EE/ES industrial connectorsGW-EAV terminal block connectorsGW-EHV/ESHV high voltageGW-HSB high currentGW-K mixed contactsGW-Q low voltage The ergonomic housing and hood have an excellent connection capacity in the metal and plastic versions (for sizes 21x21 and 32x13). The range also contains versions for standard high voltage applications 830V, heavy-duty applications, and situations requiring electromagnetic compatibility.The closing system is available with a single lever, double lever or central locking lever. Industrial connections   for power, control   and signalling circuits JUNCTION BOXES IN DIE-CAST ALUMINIUM DIMENSIONS   L x H x D (mm) PAINTED NON-PAINTED ATEX ( ) BACK-MOUNTING PLATES 91 x 91 x 54 GW 76 261 GW 76 281 GW 76 291 128 x 103 x 57 GW 76 262 GW 76 282 GW 76 292 GW 76 272 155 x 130 x 58 GW 76 263 GW 76 283 GW 76 293 GW 76 273 178 x 156 x 75 GW 76 264 GW 76 284 GW 76 294 GW 76 274 239 x 202 x 85 GW 76 265 GW 76 285 GW 76 295 GW 76 275 294 x 244 x 114 GW 76 266 GW 76 286 GW 76 296 GW 76 276 392 x 298 x 149 GW 76 267 GW 76 287 GW 76 297 GW 76 277 ( ) NOTE: the ATEX products are only available in the following countries: Austria, France, Germany, Italy, Liechtenstein, Luxemburg, the Principality of Monaco, the United Kingdom and Spain. For all other countries,  contact GEWISS Technical service assistance.

Also with central lever MULTIPOLAR CONNECTORS, INSERTS AND ENCLOSURES Insert range Number of   poles + E Rated  voltage Maximum   rated current Wire connection Screw Crimp Terminal block Spring GW-A 3-4 230 / 400 10A X 10 250V 10A X X 16, 32 250V 10A X X GW-D 7 250V 10A X 8 50V 10A X 15 250V 10A X   25, 50 250V 10A X 40, 80 250V 10A X 64, 128 250V 10A X GW-DD 24 250V 10A X 42 250V 10A X 72, 144 250V 10A X 108, 216 250V 10A X GW-E 6 500V 16A X X 10 500V 16A X X 16, 32 500V 16A X X 24, 48 500V 16A X X GW-EE 10 500V 16A X 18 500V 16A X 32, 64 500V 16A X 46, 92 500V 16A X GW-ES 6 500V 16A X 10 500V 16A X 16, 32 500V 16A X 24, 48 500V 16A X GW-EAV 6 500V 16A X 10 500V 16A X 16 500V 16A X 24 500V 16A X GW-EHV 3+2 830V 16A X X 6+2, 12+4 830V 16A X X 10+2, 20+4 830V 16A X X 16+2, 32+4 830V 16A X GW-ESHV 3+2 830V 16A X 6+2, 12+4 830V 16A X 10+2, 20+4 830V 16A X GW-HSB 6 830V 35A X 12 830V 35A X GW-K 4 830V 80A X 4x80A + 2x16A 830V-400V 80A-16A X 4+8 500V 80-16A X GW-Q 5 5 230/400V 16A X GW-QD 12 12 230/400V 10A X GW-QD 8/0 8 500V 16A X GW-QD 17 17 250V 10A X GW-QD 4/2 4x40A + 2x10A 400/690V-250V 40A-10A X 34 Multipolar connectors GW Connect range

MULTIPOLAR CONNECTORS, INSERTS AND ENCLOSURES Dimensions Enclosures Lever closure Cable gland size Standard 830V Heavy-duty EMC 21 x 21 X X X Single PG11 M20 49 x 16 X X X Single PG13.5-21 M20-25 66 x 16; 66 x 40 X X X Single PG13.5-21 M20-25; PG21-29 M25-40 21 x 21 X X X Single PG11 M20 21 x 21 X X X Single PG11 M20 49 x 16 X X X Single PG13.5-21 M20-25 66 x 16; 66 x 40 X X X Single PG13.5-21 M20-25; PG21-29 M25-40 77 x 27; 77 x 62 X X X Single or double PG21-29 M25-40; PG29-42 M32-50 104 x 27; 104 x 62 X X X Single PG21-36 M25-40; PG29-42 M32-50 44 x 27 X X X Single PG13.5-29 M20-32 57 x 27 X X X Single or double PG13.5-29 M20-40 77 x 27; 77 x 62 X X X Single or double PG21-29 M25-40; PG29-42 M32-50 104 x 27; 104 x 62 X X X Single PG21-36 M25-40; PG29-42 M32-50 44 x 27 X X X Single PG13.5-29 M20-32 57 x 27 X X X Single or double PG13.5-29 M20-40 77 x 27; 77 x 62 X X X Single or double PG21-29 M25-40; PG29-42 M32-50 104 x 27; 104 x 62 X X X Single PG21-36 M25-40; PG29-42 M32-50 44 x 27 X X X Single PG13.5-29 M20-32 57 x 27 X X X Single or double PG13.5-29 M20-40 77 x 27; 77 x 62 X X X Single or double PG21-29 M25-40; PG29-42 M32-50 104 x 27; 104 x 62 X X X Single PG21-36 M25-40; PG29-42 M32-50 44 x 27 X X X Single PG13.5-29 M20-32 57 x 27 X X X Single or double PG13.5-29 M20-40 77 x 27; 77 x 62 X X X Single or double PG21-29 M25-40; PG29-42 M32-50 104 x 27; 104 x 62 X X X Single PG21-36 M25-40; PG29-42 M32-50 44 x 27 X X X Single PG13.5-29 M20-32 57 x 27 X X X Single or double PG13.5-29 M20-40 77 x 27 X X X Single or double PG21-29 M25-40 104 x 27 X X X Single PG21-36 M25-40 57 x 27 X X X X Single or double PG13.5-29 M20-40 77 x 27;77 x 62 X X X X Single or double PG21-29 M25-40; PG29-42 M32-50 104 x 27; 104 x 62 X X X X Single PG21-36 M25-40; PG29-42 M32-50 104 x 27; 104 x 62 X X X X Single PG21-36 M25-40; PG29-42 M32-50 57 x 27 X X X X Single or double PG13.5-29 M20-40 77 x 27;77 x 62 X X X X Single or double PG21-29 M25-40; PG29-42 M32-50 104 x 27; 104 x 62 X X X X Single PG21-36 M25-40; PG29-42 M32-50 77 x 27 X X X X Single or double PG21-29 M25-40 77 x 62 X X X Single or double PG29-42 M32-50 77 x 27 X X X X Single or double PG21-29 M25-40 77 x 27 X X X X Single or double PG21-29 M25-40 104 x 27 X X X Single PG21-29 M25-40 21 x 21 X X X Single PG11 M20 21 x 21 X X X Single PG11 M20 32 x 13 X X X Single PG16 M25 32 x 13 X X X Single PG16 M25 32 x 13 X X X Single PG16 M25 35

COMPLETE MULTIPOLAR CONNECTORS COMPLETE 3- AND 4-POLE CONNECTORS, 10A - 250V SINGLE CLOSING POLARITY HOOD HOUSING MATERIAL CODE Output Straight Angled 3P+E PG11 • INSULATING GW 76 741 3P+E PG11 • INSULATING GW 76 742 4P+E PG11 • INSULATING GW 76 743 4P+E PG11 • INSULATING GW 76 744 3P+E PG11 • METAL GW 76 745 3P+E PG11 • METAL GW 76 746 4P+E PG11 • METAL GW 76 747 4P+E PG11 • METAL GW 76 748 COMPLETE 6-POLE CONNECTORS, 16A - 500V SINGLE CLOSING HOOD OUTLET HOUSING CODE Horizontal Vertical Flush-mounting Surface-mounting PG16 • GW 76 749 PG16 • GW 76 754 PG16 PG16 GW 76 759 PG16 PG16 GW 76 764 COMPLETE 10-POLE CONNECTORS, 16A - 500V DOUBLE CLOSING HOOD OUTLET HOUSING CODE Horizontal Vertical Flush-mounting Surface-mounting PG16 • GW 76 750 PG16 • GW 76 755 PG16 PG16 GW 76 760 PG16 PG16 GW 76 765 COMPLETE 16-POLE CONNECTORS, 16A - 500V DOUBLE CLOSING HOOD OUTLET HOUSING CODE Horizontal Vertical Flush-mounting Surface-mounting PG21 • GW 76 751 PG21 • GW 76 756 PG21 PG21 GW 76 761 PG21 PG21 GW 76 766 COMPLETE 24-POLE CONNECTORS, 16A - 500V DOUBLE CLOSING HOOD OUTLET HOUSING CODE Horizontal Vertical Flush-mounting Surface-mounting PG21 • GW 76 752 PG21 • GW 76 757 PG21 PG21 GW 76 762 PG21 PG21 GW 76 767 COMPLETE 32-POLE CONNECTORS, 16A - 500V DOUBLE CLOSING HOOD OUTLET HOUSING CODE Horizontal Vertical Flush-mounting Surface-mounting PG36 • GW 76 753 PG36 • GW 76 758 PG36 PG36 GW 76 763 PG36 PG36 GW 76 768 36 GW Connect range Multipolar connectors

CRIMPING ACCESSORIES CONTACTS PLIERS 10A 16A 40A FEMALE MALE FEMALE MALE FEMALE MALE Contact   section  (mm 2 ) Silver-plated Gold-plated Silver-plated Gold-plated Silver-plated Gold-plated Silver-plated Gold-plated Silver-plated Anticipated Anticipated 0.14-0.37 GW 77 201 GW 77 213 GW 77 207 GW 77 219 GW 77 231 GW 77 243 GW 77 234 GW 77 251 GW 76 261 0.5 GW 77 202 GW 77 214 GW 77 208 GW 77 220 GW 76 241 GW 77 244 GW 76 246 GW 77 238 GW 77 252 0.75 GW 77 203 GW 77 215 GW 77 209 GW 77 221 GW 77 232 GW 77 245 GW 77 235 GW 77 253 1 GW 77 204 GW 77 216 GW 77 210 GW 77 222 GW 76 242 GW 77 246 GW 76 247 GW 77 240 GW 77 254 1.5 GW 77 205 GW 77 217 GW 77 211 GW 77 223 GW 76 243 GW 77 247 GW 76 248 GW 77 241 GW 77 255 2.5 GW 77 206 GW 77 218 GW 77 212 GW 77 224 GW 76 244 GW 77 248 GW 76 249 GW 77 242 GW 77 256 GW 77 272 GW 77 276 3 GW 77 233 GW 77 249 GW 77 237 GW 77 257 4 GW 76 245 GW 77 250 GW 76 250 GW 77 258 GW 77 273 GW 77 277 6 GW 77 274 GW 77 278 OTHER ACCESSORIES DIN RAIL  SUPPORT        CRIMPING  TOOL        CODING PINS      CODING PIN      IDENTIFICATION PLATE        COUPLING SCREWS      SIMPLE FEMALE MALE  10A 16A FEMALE MALE GW 76 836 GW 76 879 GW 76 874 GW 76 876  GW 76 875 GW 76 882 GW 76 883 GW 76 880 GW 76 877 GW 76 878 CABLE GLANDS OTHER ACCESSORIES THREADING PLASTIC   IP65 PLASTIC   IP68 METAL   IP65 METAL   IP68 REVOLVING  FITTINGS IP54 EXPANDERS  IP65 REDUCERS   IP65 CLOSING   CAPS IP65 THREADED COU- PLING DEVICES FIXING   NUTS PG11 GW 76 837 GW 52 073 GW 76 841 GW 76 825 DX 54 412 GW 76 865 GW 76 980 GW 76 957 PG13.5 GW 52 074 GW 76 842 GW 76 826 DX 54 416 GW 76 866 GW 78 811 GW 76 981 GW 76 958 PG16 GW 52 075 GW 76 843 GW 76 827 DX 54 417 GW 76 867 GW 78 812 GW 76 982 GW 78 831 GW 76 959 PG21 GW 52 076 GW 76 844 GW 76 828 DX 54 420 GW 76 868 GW 78 813 GW 76 983 GW 78 832 GW 76 960 PG29 GW 52 077 GW 76 845 GW 76 829 DX 54 425 GW 76 869 GW 78 814 GW 76 984 GW 78 833 GW 76 961 PG36 GW 52 078 GW 76 846 GW 76 830 DX 54 432 GW 78 815 GW 76 985 GW 78 834 GW 76 962 PG42 GW 52 079 GW 76 847 GW 76 897 GW 78 816 GW 76 986 GW 78 835 GW 76 963 PG48 GW 52 080 GW 78 817 M16 GW 52 043 GW 76 896 GW 76 951 M20 GW 76 839 GW 52 044 GW 76 848 GW 76 831 DX 54 016 GW 76 870 GW 76 975 GW 78 836 GW 76 952 M25 GW 52 045 GW 76 849 GW 76 832 DX 54 020 GW 76 871 GW 78 818 GW 76 976 GW 78 837 GW 76 953 M32 GW 52 046 GW 76 850 GW 76 833 DX 54 025 GW 76 872 GW 78 819 GW 76 977 GW 78 838 GW 76 954 M40 GW 52 047 GW 76 851 GW 76 834 DX 54 032 GW 76 873 GW 78 820 GW 76 978 GW 78 839 GW 76 955 M50 GW 52 048 GW 76 852 GW 76 835 DX 54 040 GW 78 821 GW 76 979 GW 78 840 GW 76 956 37

Versions with  halogen-free material 1000V Ui 750V Ui 46 QP - ideal for  photovoltaic  applications  Up to 40% reduction  on installation time The best of practicality.Four ranges fitted with watertight surface-mounting boards, for automation and distribution, offered in the following typologies of materials: thermoplastic (44 CEP), glassfiber thermosetting (46 QP), painted metal (46 QM) and stainless steel (46 QX). All products of the range are characterised by a high structural resistance and by a great simplicity of rapidity of installation thanks to the Fast & Easy accessories common to the whole 46 QP, 46 QM and 46 QX Range.These boards are available with blank or transparent door to offer the maximum flexibility and universality of the uses. Quicker to wire   than to describe Adjustable DIN rails and  extractable metal frame The DIN rails, adjustable and with quick locking, are supplied preassembled and ready for the automatic insertion into the bracket. The extractable frame is made with completely metallic locking elements. The support brackets for DIN rails and panels are snap fitted on the uprights. Front panels with ¼ turn  screws The front panels are fitted with unlosable, plumbable, ¼ turn plastic closing screws. The panels with window are already complete with DIN rail. Moreover the panels of the F&E system can be fitted directly on the internal side walls of the 46 QP boards (apart from size 7 QP boards). Accessories for increasingly  versatile boards The 46QP boards have a wide application field, thanks to the considerable range of accessories such as insulating and metal back-mounting plates, kits for moulded-case switches up to 250 A, pole-fixing kits, double DIN rails, reversible polyester and metal inner doors. EN 62208 38 Watertight surface-mounting distribution and automation boards 46 range

MOULDED-CASE SWITCH SWITCH DISCONNECTOR DIMENSIONS MATE- RIAL CODE MTX 160c  MTX 160  MTX 250 MTX 160c - MTX 160 - MTX  250 COMBINED WITH THEIR  RESPECTIVE “L” SHAPED  RESIDUAL CURRENT DEVICES MSS 160 MSS 250 BLANK   door Door with   WINDOW 44 CEP  GWPLAST 120  IP55 200x254x135 GWPLAST  120 GW 44 808 GW 44 818 - - - - 236x316x135 GWPLAST  120 GW 44 809 GW 44 819 - - - - 316x396x160 GWPLAST  120 GW 44 810 GW 44 820 GW 44 853   for MTX 160c   and MTX 160 only GW 44 853   for MTX 160c   and MTX 160 only - - 396x474x160 GWPLAST  120 GW 44 811 GW 44 821 GW 44 855   for MTX 160c   and MTX 160 only GW 44 855   for MTX 160c   and MTX 160 only - - 46 QP  POLYESTER BOARD   IP65 250x300x160 Polyester GW 46 001 GW 46 201 - - - - Metal GW 46 031 - 310x425x160 Polyester GW 46 002 GW 46 202 - - - - Metal GW 46 032 GW 46 232 Stainless  steel GW 46 052 - 405x500x200 Polyester GW 46 003 GW 46 203 GW 46 570 F GW 46 570 F GW 46 570 F - 46 QM  METAL BOARD   IP55 Metal GW 46 033 GW 46 233 405x650x200 Polyester GW 46 004 GW 46 204 GW 46 570 F GW 46 570 F GW 46 570 F - Metal GW 46 034 GW 46 234 Stainless  steel GW 46 054 - 515x650x250 Polyester GW 46 005 GW 46 205 GW 46 571 F GW 46 571 F GW 46 571 F GW 46 577 F Metal GW 46 035 GW 46 235 46 QX STAINLESS  STEEL BOARD   IP55 585x800x300 Polyester GW 46 006 GW 46 206 GW 46 572 F GW 46 572 F GW 46 572 F GW 46 578 F Metal GW 46 036 GW 46 236 Stainless  steel GW 46 056 - 800x1060x350 Polyester GW 46 007 GW 46 207 GW 46 573 F GW 46 573 F GW 46 573 F GW 46 579 F Metal GW 46 037 GW 46 237 NOTE:  the configurations given in the table are ONLY valid if the peak current of the indicated switch (corresponding to the assumed short-circuit current in the installation point) is NOT higher than 17kA,  or if the assumed short-circuit current in the delivery point, in line with the main board switch, is NOT greater than 10kA.   Check the thermal power according to the method indicated in the Technical Catalogue.   The kits are fastened by means of uprights. The kit panels are 2-module high.   The MTX 160c and MTX 160 (both 3P and 4P) should be fastened to the DIN rail by means of the specific brackets contained in the GW D8 261 kit. The MTX 250 (both 3P and 4P), on the other hand, require  the GW D8 262 kit.   The coupling of the MTX moulded-case devices on the DIN rail, using the relative residual current device, requires the use of the special brackets that can be found in the relative section of the DIN catalogue.   In the case of cable entry from below, you are advised to insert a blank panel above the moulded-case/switch disconnector kit, so the wires can be pulled more easily.   The MSS switch disconnectors cannot be installed on the same DIN rail with the MTX moulded-case devices because of their different depths. 39

BOARD COMPLEMENTARY ITEMS FRONT CONFIGURATION SINGLE PANELS PANELS Dimensions   (LxHxD) mm Material Code No. of EN 50022  modules with window with window blank BLANK   door Door with trans- parent WINDOW with DIN rail with DIN rail 44 CEP   GW PLAST 120   IP55 200x254x135 GWPLAST 120 GW 44 808 GW 44 818 236x316x135 GWPLAST 120 GW 44 809 GW 44 819 8 GW 44 852   8 modules 316x396x160 GWPLAST 120 GW 44 810 GW 44 820 24 (12x2) GW 44 853   14 modules GW 44 854   24 modules (12x2) 396x474x160 GWPLAST 120 GW 44 811 GW 44 821 32 (16x2) GW 44 855   32 modules (16x2) 46 QP  POLYESTER BOARD   IP65 250x300x160 Polyester GW 46 001 GW 46 201 Metal GW 46 031 310x425x160 Polyester GW 46 002 GW 46 202 36 (12x3) 3 single panels -   width 12 modules Metal GW 46 032 GW 46 232 GW 46 420 F GW 46 425 F Stainless steel GW 46 052 405x500x200 Polyester GW 46 003 GW 46 203 54 (18x3) 3 single panels -   width 18 modules Metal GW 46 033 GW 46 233 GW 46 421 F GW 46 426 F 46 QM   METAL BOARD   IP55 405x650x200 Polyester GW 46 004 GW 46 204 72 (18x4) 4 single panels -   width 18 modules Metal GW 46 034 GW 46 234 GW 46 421 F GW 46 426 F Stainless steel GW 46 054 515x650x250 Polyester GW 46 005 GW 46 205 96 (24x4) 4 single panels -   width 24 modules Metal GW 46 035 GW 46 235 GW 46 422 F GW 46 427 F 46 QX   STAINLESS STEEL  BOARD IP55 585x800x300 Polyester GW 46 006 GW 46 206 140 (28x5) 5 single panels -   width 28 modules Metal GW 46 036 GW 46 236 GW 46 423 F GW 46 428 F Stainless steel GW 46 056 800x1060x350 Polyester GW 46 007 GW 46 207 180 (36x5) 5 single panels -  width 36 modules Metal GW 46 037 GW 46 237 GW 46 424 F GW 46 429 F 40 Watertight surface-mounting distribution and automation boards 46 range

COMPLEMENTARY ITEMS FRONT CONFIGURATION INTERNAL CONFIGURATION SERVICE ACCESSORIES DOUBLE PANELS INNER DOORS UPRIGHTS DIN RAILS BACK-MOUNTING  PLATES PLATES POLE SUPPORT MISCELLANEOUS Blank Material: Pair Material: H 1 module: H 2 modules: insulating/ simple/ metal/ perforated/ perforated/ metal double steel (perforated)/ full full insulating GW 44 636 GW 44 646 GW 44 637 Resin bracket  GW 44 621 Safety lock   with handle  GW 46 445 GW 44 647 GW 44 638 GW 44 648 GW 44 639 4 stainless steel  brackets  GW 46 451 Set of 4  galvanised brackets  GW 46 446 GW 44 649 GW 46 401 GW 46 551 GW 46 461 Clip nut  GW 46 450 4 stainless steel  brackets   GW 46 451 GW 46 408 1 double   panel GW 46 414 GW 46 435 F GW 46 430 F GW 46 402 3 single   plates 1 double   plate GW 46 552   GW 46 462 GW 46 475 F GW 46 564 GW 46 530 F GW 46 440 GW 46 480 GW 46 409 GW 46 540 GW 46 580 1 double   panel GW 46 415 GW 46 436 F GW 46 431 F GW 46 403 3 single   plates 1 double   plate GW 46 553 Set of 4  galvanised brackets  GW 46 446 Gasket for   board coupling   GW 46 449 GW 46 463 GW 46 476 F GW 46 565 GW 46 531 F GW 46 441 GW 46 481 GW 46 410 GW 46 541 GW 46 581 2 double   panels GW 46 416 GW 46 437 F GW 46 431 F GW 46 404 4 single   plates 2 double   plates GW 46 553 Set of 4 squares   for fixing the   back-mounting plate  GW 46 521 F Safety lock   with handle  GW 46 445 GW 46 464 GW 46 476 F GW 46 566 GW 46 531 F GW 46 441 GW 46 481 GW 46 411 GW 46 541 GW 46 581 2 double   panels GW 46 417 GW 46 437 F GW 46 432 F GW 46 405 4 single   plates 2 double   plates GW 46 554 GW 46 465 GW 46 477 F GW 46 567 GW 46 532 F GW 46 442 GW 46 482 Document   holder wallet   GW 46 447 Ventilation   kit IP44   GW 46 448 and   GW 46 471 GW 46 412 GW 46 542 GW 46 582 2 double   panels GW 46 418 GW 46 438 F GW 46 433 F GW 46 406 5 single   plates 2 double   plates GW 46 555 GW 46 466 GW 46 478 F GW 46 568 GW 46 533 F GW 46 443 GW 46 483 Kit for wiring   trunking   GW 46 557 F GW 46 413 GW 46 543 GW 46 583 2 double   panels GW 46 419 GW 46 439 F GW 46 434 F GW 46 407 5 single   plates 2 double   plates GW 46 479 F GW 46 569 GW 46 534 F GW 46 467 GW 46 444 GW 46 484 Pair of handles for  transport   GW 46 591 Kit of inserts   GW 46 592 F GW 46 544 GW 46 584 41

DOMO CENTER is the system column designed by Gewiss for residential and commercial use. This solution transforms the domestic system into a furnishing accessory, with its modern design that adapts to suit the context. It centralises and rationalises the existing services, from the most traditional to the most advanced, in one single device.The Domo Center range is divided into 2 parts:   Front configuration kit • already configured with all the  necessary items for setting up the system column (with the exception of the back-mounting box)   Components • the single elements needed to create any  type of KIT A solution in harmony   with the surroundings Applications Luxury residential Shops HOW TO REQUEST THE MOST SUITABLE CONFIGURATION (KIT) Contact Customer Service ([email protected]) or the sales organisation for cost estimates and support for configuring your system. The request procedure is facilitated by the Gweb DOMO CENTER software, available free of charge at gewiss.com. Medical practices    Flush-mounting back-mounting box, 2700 or  2400mm high   External dimensions 2400 and 2100mm   Protrusion of only 25mm from the wall, with  suspended effect   Modular capacity of up to 320 modules    Versions already configured (kits) in different types  Program for the cost   estimate of flush-mounting   system columns   for distribution,   domotics and data DISCOVER THE   SPECIAL SOFTWARE 42 Flush-mounting system columns for distribution, domotics and data DOMO CENTER range

White RAL 9003 Mirror Maple Cherry Moon Lava Sand Brushed White Brushed Grey e.g. version 2700 with door  e.g. version 2400 without door  DOMO CENTER can be configured in numerous solutions, with or without doors. In fact, personalised configurations can be created by simply combining the system column with the Domo Center components. The version with door is available in three different materials: smoked transparent glass, full mirror or metal. Available finishes  New 43

A wide range of highly specialised surface-mounting distribution boards and enclosures. The 40CD range consists of 4 product lines to satisfy every need in the residential, commercial and industrial sectors: watertight boards with an IP65 (40 CDK, 4-72 modules) and IP55 degree of protection, decorative boards with an IP40 degree of protection, and protected versions without a door, with an IP40 degree of protection. The latter are also available with terminal blocks. 40 CD  IP55 40 CD  Decorative enclosures - IP40 40 CD   without door - IP40 40 CDi - Decorative enclosures The widest selection of flush-mounting distribution boards and enclosures currently available on the market. Six product lines - including decorative enclosures - to offer the best solutions for systems in residential and advanced commercial contexts. A range of containers with 2-72 modules (40 CDKi), suitable for a wide variety of applications thanks to the degrees of protection from IP40 to IP55 (48 PTC), and specific versions for plasterboard walls. The range is completed with the innovative Home Networking Enclosure for network cabling. Functionality and  practicality in a frame A wide, exhaustive range:   a product for any need Versions with  halogen-free material 1000V Ui 750V Ui Product lines for   photovoltaic applications   (40 CDK IP65 and 40 CD IP55) Versions with  halogen-free material 40 CDKi  Enclosures 40 CDi  Enclosures for plasterboard walls 48 PTC  IP55 for special applications Home Networking  enclosure 40 CDK IP65 44 Flush-mounting and surface-mounting enclosures and distribution boards 40 CD range and 40 CDi range

SURFACE-MOUNTING ENCLOSURES 40 CDK  SURFACE-MOUNTING  MODULAR WATERTIGHT  ENCLOSURES AND BOARDS IP65 40 CD   SURFACE-MOUNTING  WATERTIGHT ENCLOSURES   IP55 40 CD   PROTECTED SURFACE-MOUNTING  DECORATIVE ENCLOSURES   IP40 40 CD   PROTECTED SURFACE-MOUNTING  ENCLOSURES   IP40 Colour: Grey RAL 7035 Door: smoked  transparent Walls: smooth Colour: Grey RAL 7035 Door: smoked  transparent Walls: with   perforated   holes Colour: White RAL 9016 Door: smoked  transparent Walls: smooth Colour: Grey RAL 7035 Door: no Walls: with  perforated holes M odules 2 - - - GW 40 022 4 GW 40 101 GW 40 001 - GW 40 023 6 - - - GW 40 024 8 GW 40 102 GW 40 003 GW 40 043 GW 40 026 12 GW 40 103 GW 40 005 GW 40 045 GW 40 028 with terminal block - GW 40 004 GW 40 044 GW 40 027 18 GW 40 106 - - - 24 (12x2) GW 40 104 GW 40 007 GW 40 047 GW 40 030 with terminal block - GW 40 006 GW 40 046 GW 40 029 36 (12x3) GW 40 105 - - GW 40 032 with terminal block - - - GW 40 031 36 (18x2) GW 40 107 GW 40 009 GW 40 049 - with terminal block - GW 40 008 GW 40 048 - 54 (18x3) GW 40 108 - GW 40 051 - 72 (18x4) GW 40 109 - GW 40 053 - COMPLEMENT AR Y ITEMS INST ALL ATION Surface-  mounting   fixing   brackets for   enclosures and boards 4 x GW 44 621 4 x GW 44 621 4 x GW 44 621 4 x GW 44 621 Stylish coupling   covers for   conduit   and   trunking entry Modules Code - - - 12-24-36(12x3) GW 40 473 18-36(18x2)-54-72 GW 40 474 WIRING Terminal blocks  with   insulated  neutral and  earth bars ( ) Modules Code Modules Code Modules Code Modules Code 8 GW 40 401 8-24 GW 40 401 8-24 GW 40 401 8-24 GW 40 401 12-24-36(12x3) GW 40 402 12-36 GW 40 402 12-36-54-72 GW 40 402 12-36 GW 40 402 18-36(18x2)-54-72 GW 40 404 Internal  horizontal  dividers Modules Code - - - 24-36(12x3) GW 40 487 36(18x2)-54-72 GW 40 488 1-module  high blank  cover  panels Modules Code - - - 24-36(12x3) GW 40 492 36(18x2)-54-72 GW 40 493 MISCELL ANEOUS Cylindrical   safety   lock Modules Code Modules Code 4-8-12-24-36(18x2) 1 x GW 40 422 8-12-18-24-36-54 1 x GW 40 422 36(12x3)-54-72 2 x GW 40 422 72 2 x GW 40 422 Triangular   key - 1 x GW 40 421 - - ( ) For the number of terminal blocks that can be installed in each enclosure, refer to the relative pages of the catalogue. 45

( ) Without door. FLUSH-MOUNTING ENCLOSURES 40 CDi RANGE   PROTECTED DECORATIVE ENCLOSURES   IP40 40 CDi RANGE  CHORUS ENCLOSURES  IP40 40 CDKi RANGE - MODULAR  PROTECTED ENCLOSURES  AND DISTRIBUTION BOARDS  IP40 Door: smoked transparent Door: smoked transparent  with automatic opening Colour: White RAL 9016   Door: smoked transparent and blank FRAME FRAME DOOR Milk White Toner Black Varnished Titanium Varnished Slate Milk White Titanium Slate Smoked transparent Blank MODULES 2 enclosure complete   with back-mounting box - - - - - - - GW 40 601 ( ) - 4 enclosure complete   with back-mounting box GW 40 237 TB GW 40 237 TN GW 40 237 VT GW 40 237 VA - - - GW 40 602 GW 40 882 enclosure front GW 41 237 TB GW 41 237 TN GW 41 237 VT GW 41 237 VA - - - - - 6 enclosure complete   with back-mounting box - - - - - - - GW 40 603 GW 40 883 8 enclosure complete   with back-mounting box GW 40 225 TB GW 40 225 TN GW 40 225 VT GW 40 225 VA - - - GW 40 604 GW 40 884 enclosure front GW 41 225 TB GW 41 225 TN GW 41 225 VT GW 41 225 VA - - - - - 12 enclosure complete   with back-mounting box GW 40 229 TB GW 40 229 TN GW 40 229 VT GW 40 229 VA GW 40 981 TB GW 40 981 VT GW 40 981 VA GW 40 605 GW 40 885 enclosure complete with back- mounting box and terminal block GW 40 227 TB GW 40 227 TN GW 40 227 VT GW 40 227 VA - - - - - enclosure front GW 41 229 TB GW 41 229 TN GW 41 229 VT GW 41 229 VA - - - - - 18 enclosure complete   with back-mounting box - - - - - - - GW 40 608 GW 40 888 24 (12x2) enclosure complete   with back-mounting box GW 40 233 TB GW 40 233 TN GW 40 233 VT GW 40 233 VA GW 40 991 TB GW 40 991 VT GW 40 991 VA GW 40 606 GW 40 886 enclosure complete with back- mounting box and terminal block GW 40 231 TB GW 40 231 TN GW 40 231 VT GW 40 231 VA - - - - - enclosure front GW 41 233 TB GW 41 233 TN GW 41 233 VT GW 41 233 VA - - - - - 36 (12x3) enclosure complete   with back-mounting box GW 40 239 TB GW 40 239 TN GW 40 239 VT GW 40 239 VA - - - - - enclosure complete with back- mounting box and terminal block GW 40 241 TB GW 40 241 TN GW 40 241 VT GW 40 241 VA - - - - - enclosure front GW 41 239 TB GW 41 239 TN GW 41 239 VT GW 41 239 VA 36 (18x2) enclosure complete   with back-mounting box - - - - - - - GW 40 609 GW 40 889 enclosure complete with back- mounting box and terminal block - - - - - - - - - 48 (12x4) enclosure complete with back- mounting box and terminal block - - - - - - - - - 54 (18x3) enclosure complete   with back-mounting box - - - - - - - GW 40 610 GW 40 890 72 (18x4) enclosure complete   with back-mounting box - - - - - - - GW 40 611 GW 40 891 COMPLEMENT AR Y ITEMS Anti-deformation brackets   for walling back-mounting boxes - - GW 40 479 from 36M Combined coupling component 2 x GW 40 425 for 8M and 12M - 2 x GW 40 425 from 12M Kit of 4 long screws with spacers GW 48 645 from 8M GW 48 645 GW 48 645 from 6M Terminal blocks with insulated  neutral and earth bars ( ) Modules Code GW 40 402 (1x12M and 2x24M) Modules Code 8-24 GW 40 401 8 GW 40 401 12-36 GW 40 402 12-24 GW 40 402 18-36-54-72 GW 40 404 Internal dividers (horizontal and vertical) - - hor izon tal Modules Code 24 GW 40 487 36-54-72 GW 40 488 1-module high blank cover panels - - Modules Code 24 GW 40 495 36-54-72 GW 40 496 Security lock Modules Code - Modules Code 24 1 x GW 40 422 4-6-8-12-18-24-36 1 x GW 40 422 36 2 x GW 40 422 54-72 2 x GW 40 422 Back-mounting boxes Modules Code - - 4 GW 40 671 8 GW 40 673 12 GW 40 674 24 GW 40 677 36 GW 40 679 Blanking module profile from 6.5M from 4.5M from 4.5M White RAL 9016 GW 40 467 GW 40 467 TB (Milk White) GW 40 467 TN (Toner Black) GW 40 467 VT (Titanium) GW 40 467 VA (Slate) Grey RAL 7035 GW 40 423 White RAL 9016   GW 40 467 Toner Black GW 40 468 Signal socket-outlet expansion kit from 12 to 18 ( ) For the number of terminal blocks that can be installed in each enclosure, refer to the relative pages of the catalogue. 46 40 CDi range Flush-mounting distribution boards and enclosures

FLUSH-MOUNTING ENCLOSURES 40 CDi RANGE   PROTECTED ENCLOSURES   IP40 48 PTC RANGE   MODULAR WATERTIGHT   ENCLOSURES AND BOARD - IP55 40 CDKi RANGE GREEN WALL   ENCLOSURES AND BOARDS   FOR LIGHTWEIGHT AND   PLASTERBOARD WALLS - IP40 40 CDI RANGE   PROTECTED ENCLOSURES FOR   PLASTERBOARD WALLS - IP40 HOME NETWORKING   ENCLOSURE FOR   NETWORK CABLING - IP40 Colour: White RAL 9016 Door: blank Colour: Grey RAL 7035 Door: smoked transparent Colour: White RAL 9016 Door: smoked transparent Colour: White RAL 9003 Door: blank metal Frame: metal Colour: White RAL 9016 Door: blank - - - - GW 40 390 (external dimensions LxHxD   465x680x95mm) - GW 48 686 (can house 2 IEC309 socket-outlets) - - - - - - - GW 48 681 - - GW 40 655 - - - - - - - GW 40 657 GW 48 682 GW 40 605 PM - GW 40 656 - - GW 40 161 - - - - - - - - GW 40 659 - GW 40 606 PM - GW 40 658 - - GW 40 162 - - - - - - - - - - - GW 40 163 - - - - GW 40 661 - GW 40 609 PM - GW 40 660 - - - - - - GW 40 164 - - GW 40 610 PM - - - GW 40 611 PM - - - - - - - GW 48 026   (more than one, if necessary) 2 x GW 40 425 PM from 12 M - 2 x GW 40 425 GW 48 645 GW 48 645 GW 48 645 from 12 M - - Modules Code - Modules Code Modules Code - 8-24 GW 40 401 12-24 GW 40 402 12 GW 40 451 12-36 GW 40 402 24 GW 40 452 36-54-72 GW 40 404 36-48 GW 40 453 - - Modules Code Modules Code - 24 GW 40 487 (horizontal) 12 hor izon tal GW 40 460 ver tical GW 40 456 24 GW 40 460 GW 40 457 36-54-72 GW 40 488 (horizontal) 36 GW 40 460 GW 40 458 48 GW 40 460 GW 40 459 - - Modules Code - - 24 GW 40 495 36-54-72 GW 40 496 1 x GW 40 421 (triangle)   from 12M 1 x GW 48 644 (watertight metal cylinder) Modules Code 1 x GW 40 463 (metal cylinder) 1 x GW 40 422 12-24-36 1 x GW 40 422 54-72 2 x GW 40 422 - - - - GW 40 790 from 4.5M from 4.5M from 4.5M from 4.5M - White RAL 9016 - GW 40 467 Grey RAL 7035 - GW 40 423 White RAL 9016 - GW 40 467 White RAL 9016 - GW 40 467 - GW 38 095 47

Equipped  with  illuminated  push-button Push button  Pre-arranged  with Ø 22mm  hole With DIN rail Equipped  with back- mounting  plate Flush-mounting  enclosure with DIN rail Code GW 42 201 GW 42 204 GW 42 206 (4 modules) GW 42 202 (8 modules) GW 42 207 (4 modules) GW 42 208 (8 modules) GW 42 203 GW 42 231 (4 modules) GW 42 232 (4 modules) Colour Red   RAL 3000 Red   RAL 3000 Red   RAL 3000 Red   RAL 3000 Grey RAL 7035 Grey RAL 7035 Red   RAL 3000 Red   RAL 3000 Grey RAL 7035 Glass breaker GW 42 216 Spare glass GW 42 211 GW 42 213 GW 42 213 GW 42 212 GW 42 213 GW 42 212 GW 42 212 GW 42 214 GW 42 214 Watertight cylindrical  security lock - GW 48 644 Contacts NO GW 74 201 - - - - - - - - NC GW 74 202 Miniature lamp  for GW 42 201 Code GW 30 951 GW 30 952 GW 30 943 GW 30 945 GW 30 958 GW 30 959 GW 30 960 Voltage (V AC/DC) 12 24 230 110 12-24 110-230 48 Power (W) 0.4 0.8 0.4 0.8 - - - Light emitted White White Red White Green Green Green Versions with  halogen-free material Maximum protection, safety   and combination possibilities The five emergency enclosure versions allow users to select the most appropriate product for any installation need thanks to the special pre-arrangements: for Ø22mm devices, for modular devices and devices with a back-mounting plate. Red or grey flush-mounting versions are also available.All enclosures boast a high IP55 degree of protection and, thanks to the emergency hammer (available as an accessory) and the watertight security lock or sealable mask, are ideal for use in areas open to the public. The GW 42 201 enclosure comes ready fitted with a short and long push-button for deliberate and precautionary op-eration or real safety operation. It also has a back-panel flange for extending the number of installable contacts to 4, thereby enhancing the possible configurations with the same product. Increases the number of   applications in the same space 48 Surface-mounting and flush-mounting watertight emergency enclosures 42 RV range

Versions with  halogen-free material Versions with   RINA certification  Versions with   GWT 960°C material GWT 960° 1000V Ui 750V Ui 1000V Ui 750V Ui Versions for   photovoltaic applications A complete system of watertight surface-mounting junction boxes made from groundbreaking materials to provide innovative solutions.This range consists of three lines:   boxes in GWPLAST 75 - GWT 650°C for ordinary junctions boxes in GWPLAST 75 - GWT 960°C for special uses (RINA  certified)   boxes in GWPLAST 120 - GWT 650°C for industrial uses The main advantages are:  three different types of self-extinguishing material, two of  them halogen-free and the other UL94: V0   three degrees of protection - IP44, IP55 and IP56  11 sizes available in two versions - with smooth walls or with  the new quick-entry cable gland   6 types of cover: clip/screw, ¼ turn screw, blank/transparent,  plain/deep   watertight junction boxes with a high-capacity bottom, with  smooth walls (without ribs) for assembling conduits with diameters up to 50mm Renewed,   to stand out Boxes fitted   with the new cable gland The new quick-entry cable gland offers high mechanical performance levels and innovative geometry for use with rigid cables and conduits, improving the practicality and reliability of the IP degree of protection. Unlosable cover and inner  edge with innovative profile The cover of 1/4 turn screws junction boxes can be easily handled in any type of installation and makes quick maintenance operations possible.The 1/4 turn screws are also unlosable. The innovative inner edge guarantees retention of the IP degree over time. “Spherical head” screws   and box back grooves The screws for closing the 190x140mm cover in insulating material allow the easy application of tamper-proof seals, and also double up as hinges (patented technology). The grooves on the back of the box facilitate the assembly of devices, terminal blocks and back-mounting plates 49 Technopolymer surface-mounting watertight junction boxes 44 CE range

44 CE RANGE - SURFACE-MOUNTING JUNCTION BOXES Material Technopolymer GW PLAST 75 Heat resistance Thermo-pressure with ball: 85°C Fire resistance Glow Wire Test: 650°C - UL94: HB Applications For ordinary junctions Degree of protection IP44 IP55 IP56 Walls with quick-entry  cable glands with quick-entry cable glands smooth smooth Depth of   back-mounting box standard standard standard standard high-capacity Cover blank plain 1/4 turn screws  blank plain blank plain 1/4 turn screws  blank plain blank plain blank deep blank plain transparent  plain INTERNAL DIMENSIONS OF BO X B ASE LxH (mm) Dimensions (mm) Ø65 GW 44 001 Ø80 GW 44 002 80 x 80 GW 44 003 100 x 100 GW 44 024 GW 44 004 GW 44 234 GW 44 204 GW 44 214 GW 44 114 120 x 80 GW 44 005 GW 44 205 GW 44 215 150 x 110 GW 44 026 GW 44 006 GW 44 236 GW 44 206 GW 44 216 190 x 140 GW 44 007 GW 44 207 GW 44 217 GW 44 117 GW 44 137 240 x 190 GW 44 008 GW 44 208 GW 44 218 GW 44 118 GW 44 138 300 x 220 GW 44 009 GW 44 209 GW 44 219 GW 44 119 GW 44 139 380 x 300 GW 44 010 GW 44 210 GW 44 220 GW 44 120 GW 44 140 460 x 380 GW 44 011 GW 44 211 GW 44 221 ( ) versions with red back mounting box and grey lid In bold: versions with halogen-free material In red: insulating voltage Ui=750V in accordance with EN 60670-1 and EN 60670-22. For photovoltaic applications, use the wall fixing brackets - code GW 44 621. In green: insulating voltage Ui=1000V in accordance with EN 60670-1 and EN 60670-22. For photovoltaic applications, use the wall fixing brackets - code GW 44 621. 50 Technopolymer surface-mounting watertight junction boxes 44 CE range

44 CE RANGE - SURFACE-MOUNTING JUNCTION BOXES Technopolymer GW PLAST 75 Technopolymer GW PLAST 120 Thermo-pressure with ball: 85°C Thermo-pressure with ball: 110°C Glow Wire Test: 960°C - UL94: V0 Glow Wire Test: 650°C - UL94: HB For special uses (e.g. raised floors, suspended ceilings, etc.) For industrial uses IP44 IP55 IP56 IP56 with quick-entry  cable glands with quick-entry cable glands smooth smooth standard standard standard standard blank plain 1/4 turn screws  blank plain blank plain blank plain blank deep blank plain blank deep transparent  plain transparent  deep GW 44 051 GW 44 051 R ( ) GW 44 052 GW 44 053 GW 44 053 R ( ) GW 44 054 GW 44 274 GW 44 254 GW 44 404 GW 44 414 GW 44 054 R ( ) GW 44 055 GW 44 275 GW 44 255 GW 44 405 GW 44 415 GW 44 056 GW 44 276 GW 44 256 GW 44 406 GW 44 416 GW 44 426 GW 44 436 GW 44 056 R ( ) GW 44 057 GW 44 277 GW 44 257 GW 44 407 GW 44 417 GW 44 427 GW 44 437 GW 44 058 GW 44 278 GW 44 258 GW 44 408 GW 44 418 GW 44 428 GW 44 438 GW 44 059 GW 44 279 GW 44 259 GW 44 409 GW 44 419 GW 44 429 GW 44 439 GW 44 060 GW 44 280 GW 44 260 GW 44 410 GW 44 420 GW 44 430 GW 44 440 GW 44 061 GW 44 281 GW 44 261 GW 44 411 GW 44 421 GW 44 431 GW 44 441 51

Versions with  halogen-free material 24 SC BIG BOX - HIGH-CAPACITY  RECTANGULAR BOXES  FOR BRICK WALLS 24 SC - BIG BOX  TECHNICAL COMPONENTS Code Description Code Description For BIG BOX   code GW 24 403 3-gang GW 24 403 P Shield for  protection against  mortar and paint GW 24 403 GW 24 404 4-gang GW 24 404 P GW 24 404 GW 24 406 6-gang GW 24 406 P GW 24 406 GW 24 206 6-gang (3+3) GW 24 321 Functional  divider GW 24 403 GW 24 404 GW 24 406 GW 24 237 8-gang (4+4) GW 24 238 12-gang (6+6) GW 24 330 Connection  element GW 24 239 18-gang (6+6+6)  The 15-piece space-saving pack lets you store a greater number of 3-gang boxes GW24403 in less space. BIG BOX More space for conduits, wiring   and now also for domotics 48 PTC  for special applications 48 CM  for studs 48 PT/PT DIN  for ordinary applications and domotics A system of flush-mounting connection and junction boxes and now also suitable for the domotics devices developed to respond to the specific installation needs of the domestic and tertiary sectors. This system consists of three different product lines:    48 PT / PT DIN range: boxes for junction, connection and  domotics with a mortar guard element (integrated DIN rail on the back-mounting box, starting from size no. 6) - IP40   48 CM range: high-capacity boxes with a protective shield  - IP40  48 PTC range: boxes for modular junction, command and  distribution, with a protective mortar guard shield - IP40/IP55 52 Flush-mounting junction and modular range boxes 48 range

48 PT / PT DIN and 48 PTC:  cardboard mortar guard element supplied 48 CM: protective technopolymer shield supplied ACCESSORIES APPLICATION TABLE SPARE LIDS Dimensions (mm) Protective  shield No. of internal  dividers Coupling   element Plain Deep RANGE CODE 48 PT / PT DIN GW 48 001 92x92x45 - - - IP40 GW 48 013 - GW 48 002 118x96x50 - - - IP40 GW 48 014 - GW 48 003 118x96x70 - - 2 x GW 48 051 IP40 GW 48 014 - GW 48 004 152x98x70 - - 2 x GW 48 051 IP40 GW 48 015 IP40 GW 48 084 GW 48 005 160x130x70 - - 2 x GW 48 051 IP40 GW 48 016 IP40 GW 48 085 GW 48 006 (DIN rail on the bottom)  196x152x70 1 x GW 48 006 P 1 x GW 48 012 2 x GW 48 051 IP40 GW 48 017 IP40 GW 48 086 GW 48 007 294x152x70 1 x GW 48 007 P 2 x GW 48 012 2 x GW 48 051 IP40 GW 48 018 IP40 GW 48 087 GW 48 008 392x152x70 1 x GW 48 008 P 3 x GW 48 012 2 x GW 48 051 IP40 GW 48 019 IP40 GW 48 088 GW 48 009 480x160x70 1 x GW 48 009 P 2 x GW 48 012 2 x GW 48 051 IP40 GW 48 020 - GW 48 010 516x202x80 1 x GW 48 010 P 2 x GW 48 012 2 x GW 48 051 IP40 GW 48 021 - GW 48 011 516x294x80 1 x GW 48 011 P 5 supplied 2 x GW 48 051 IP40 GW 48 022 - 48 CM GW 48 207 260x260x121 - 2 supplied 2 supplied IP44 GW 48 247 IP44 GW 48 267 GW 48 211 520x260x121 - 5 supplied 2 supplied IP44 GW 48 251 IP44 GW 48 271 GW 48 227 260x260x121 - 2 supplied 2 supplied IP44 GW 48 247 IP44 GW 48 267 GW 48 231 520x260x121 - 5 supplied 2 supplied IP44 GW 48 251 IP44 GW 48 271 48 PT C - IP 40 GW 48 661 138x169x70 - - In-line   coupling  connector   GW 48 026 GW 48 611 - GW 48 662 308x169x70 - 1 x GW 48 024 GW 48 612 - GW 48v 663 398x169x70 - 2 x GW 48 024 GW 48 613 - 48 PT C - IP55 GW 48 671 GW 48 691 138x169x70 - - GW 48 621 GW 48 651 - GW 48 672 308x169x70 - 1 x GW 48 024 GW 48 622 - GW 48 673 398x169x70 - 2 x GW 48 024 GW 48 623 - 53

The GREEN WALL range is a new series of GEWISS products for plasterboard walls. It's the most extensive and complete flush-mounting system on the market for this specific type of installation. The principal characteristics of the GREEN WALL range are:    special green technopolymer with GWT 850°C (as required  by product regulations) and halogen-free (in accordance with EN 50267-2-2)  quick, easy installation thanks to the innovative fixing  solutions    mechanical robustness and reliability  The range consists of 22 new codes, sub-divided into four product lines:    enclosures and distribution boards   standard and high-capacity junction boxes  boxes for modular domestic ranges and KNX/digital  vision devices   boxes for vertical and horizontal interlocked switched  socket-outlets  The most complete flush-mounting   system for plasterboard 48 PT DIN and 48 CM   GREEN WALL GREEN WALL boxes  for 67 IB and 44 IB 40 CDKi   GREEN WALL 24 SC   GREEN WALL 54 Flush-mounting system for lightweight and plasterboard walls GREEN WALL range

Robust, practical boxes with firm fixing Distinguished by their robustness and easy installation, the boxes for domestic ranges are equipped with unlosable metal clamps with tear-proof fixing, so they can be quickly and firmly attached to either single-sheet or double-sheet walls.The boxes, with 3, 4 or 6 gangs, have knockouts for conduits ø 20mm or ø 25mm, and opening profiles for conduits ø 16mm or ø 32mm. Their special geometry makes it easy to insert the conduit, which is firmly held in its seat; the “L” profile of the knockouts allows the conduit to rotate in its seat, facilitating the positioning of the box in the wall cavity. The flexible, reliable fixing system The GREEN WALL range introduces the concept of tabs for fixing enclosures, boards, boxes for interlocked switched socket-outlets, and junction boxes. The tab system is a flexible one, suitable for all assembly situations; user-friendly tabs speed up the positioning and fixing of the containers. The outer edges of all the containers have cusps: specific reference points that make it easier to mark the sheet in preparation for the cut. Depending on the specific needs, the tabs can be fixed in three different ways: a.  on a metal frame: a frame is inserted between the two vertical uprights, or an additional horizontal  frame is used. The structure is created with the aid of special screws for use with plasterboard, then the back-mounting box is fixed to the frame by means of the tabs.  b.  on sheet: the back-mounting box is fixed to the back of the sheet with the aid of the tabs, then  anchored from the front of the sheet with special screws for use with plasterboard.  c.  on a masonry wall: the back-mounting boxes have specific references so they can be fixed to  masonry walls with the aid of wall plugs, after which the plasterboard sheets are positioned on top (this method is often used during renovations).  CLICK ! ARTICLES ON METAL FRAME ON SHEET ON MASONRY  WALL Enclosures and distribution boards Junction boxesBoxes for interlocked switched socket-outlets 67IB and 44IB (with tabs ) Boxes for domestic ranges - 3/4/6 gangsBoxes for round domestic ranges - 2 and 2+2 gangs (with clamps) Box for domestic ranges - 8 gangs (4+4) (with tabs ) Box for Master and Vision Master (with tabs )   Tabs on the sides of the horizontal walls. Boxes (24, 36, 54, 72 modules) and box for interlocked switched socket-outlets (67 IB) equipped with fixing tabs on the sides of the vertical walls.    Can also be used for the installation of command panels and video entryphones.  Fixing clamps Step 1 - Inserting the conduit Step 2 - Fixing and rotating the conduit 55

40 CDKI GREEN WALL - MODULAR AND PROTECTED ENCLOSURES AND DISTRIBUTION BOARDS - IP40 40 CDKI GREEN WALL -   MODULAR AND PROTECTED ENCLOSURES  AND DISTRIBUTION BOARDS - IP40 COMPLEMENTARY ITEMS Cover   profiles Kit of long self- threading screws Element  for combined  coupling Terminal blocks  with insulated  neutral and  earth bars Horizontal   dividers Blank  covering panels Cylindrical   safety   lock Colour: White RAL 9016 Door: smoked transparent Code Modules Code Code Code Code Code Code Code GW 40 605 PM 12 GW 40 467 GW 48 645 2 x GW 40 425 GW 40 402 - - 1 x GW 40 422 GW 40 606 PM 24 (12X2) GW 40 487 GW 40 495 GW 40 609 PM 36 (18X2) GW 40 404 GW 40 488 GW 40 496 GW 40 610 PM 54 (18X3) 2 x GW 40 422 GW 40 611 PM 72 (18X4) 48 CM GREEN WALL - HIGH-CAPACITY JUNCTION AND CONNECTION BOXES - IP40 48 CM GREEN WALL -  HIGH-CAPACITY JUNCTION  AND CONNECTION BOXES - IP40 COMPLEMENTARY ITEMS No. of internal  dividers Joining   element Spare  lids plain  IP44 Spare  lids deep  IP44 Code Dimensions Lid Code Code Code Code GW 48 207 PM 260x260x121 White RAL 9016 1 supplied 2 supplied GW 48 247 GW 48 267 GW 48 211 PM 520x260x121 White RAL 9016 4 supplied 2 supplied GW 48 251 GW 48 271 48 PT DIN GREEN WALL - BOXES FOR JUNCTION, CONNECTION AND DOMOTICS - IP40 48 PT DIN GREEN WALL -  BOXES FOR JUNCTION,   CONNECTION AND DOMOTICS - IP40 COMPLEMENTARY ITEMS Protective shield No. of   internal dividers Joining   element Spare  lids plain  IP40 Spare  lids deep  IP40 (with DIN rail on the bottom) Code Dimensions Lid Code Code Code Code Code GW 48 006 PM 196x152x75 White RAL 9016 GW 48 006 P 1 x GW 48 012 2 x GW 48 051 GW 48 017 GW 48 086 GW 48 126 PM 196x152x75 Transparent GW 48 007 PM 294x152x75 White RAL 9016 GW 48 007 P 2 x GW 48 012 GW 48 018 GW 48 087 GW 48 008 PM 392x152x75 White RAL 9016 GW 48 008 P 3 x GW 48 012 GW 48 019 GW 48 088 GW 48 009 PM 480x160x75 White RAL 9016 GW 48 009 P 2 x GW 48 012 GW 48 020 - 56 Flush-mounting system for lightweight and plasterboard walls Green Wall range

24 SC GREEN WALL - FLUSH-MOUNTING BOXES FOR MODULAR RANGE 24 SC RANGE GREEN WALL No. of gangs CHORUS RANGE SYSTEM RANGE COMPLEMENTARY ITEMS Boxes Code Supports Plates Supports Plates Divider Cover REC TANGUL AR GW 24 403 PM 1 Top System - Virna  (1,2,3,4,6,8 GANGS) GW 24 321 - GW 16 802 ONE - GEO GW 24 201 2 GW 16 803 ONE - GEO - LUX FLAT - ART GW 24 262 3 GW 16 803 ONE - GEO - LUX - FLAT - ART ICE - ICE TOUCH - ICE TOUCH KNX GW 24 201 GW 24 404 PM 4 GW 24 321 - GW 16 804 GW 16 824 ONE - GEO - LUX - FLAT ART - ICE GW 24 202 GW 24 406 PM 6 GW 24 321 - GW 16 806 GW 16 825 ONE - GEO - LUX GW 24 230 GW 24 237 PM (4+4) - - GW 16 808 ONE GW 24 240 ROUND GW 24 234 PM 1 - - - GW 24 218 ONE - GEO 2 GW 16 802 - - ONE - GEO - LUX FLAT - ART - - GW 16 822 ONE International GEO International LUX International GW 24 282 PM 2+2 (vert.  57mm) - - - GW 24 218 2 x GW16 822 ONE International LUX International  To couple the two GW 16 822 supports vertically, break the removable tab on each of them. GREEN WALL BOXES FOR INTERLOCKED SWITCHED SOCKET-OUTLETS Back-mounting box for 67 IB   interlocked switched socket-outlets Code Houseable sockets GW 66 683 PM 16/32A SBF-CBF-AUTOMATIKA versions Back-mounting boxes for 44 IB   horizontal socket-outlets Code Houseable sockets GW 66 681 PM 16/32A SBF version GW 66 682 PM 16/32A CBF version GREEN WALL BOXES FOR KNX AND DIGITAL VISION DEVICES Code Houseable devices GW 24 101 PM Master ICE - 10” GW 24 102 PM Master ICE - 15” GW 24 237 PM Video entryphone with speaker-phone,   for flush-mounting 57

Connection capacity 44 MS - TRAILING AND MODULAR TERMINAL BLOCKS Trailing terminal blocks with modular bars   Transparent - IP20 12-pole modular terminal blocks  with brass terminals - Black SCREW TYPE: SLOTTED  2.5mm 2 GW 44 661 GW 44 601  4mm 2 GW 44 665 GW 44 602  6mm 2 GW 44 662  10mm 2 GW 44 663 GW 44 603  16mm 2 GW 44 664 GW 44 604 SCREW TYPE: HEXAGONAL  25mm 2 GW 44 666 GW 44 605  35mm 2 GW 44 667 COMPATIBILITY BETWEEN TERMINAL BLOCKS AND JUNCTION BOXES 44 MM range - Multi-pole terminal blocks 44 ME range - Single-pole equipotential terminal blocks Press-on  fixing Screw-on fixing with  feedthrough terminals With indirect  plate-tightening With indirect  screw-tightening Type Range Dimensions  (mm) GW 44 606 3x4mm 2 GW 44 607 4x4mm 2 GW 44 608 5x4mm 2 GW 44 609 3x6mm 2 GW 44 610 5x6mm 2 GW 44 611 3x16mm 2 GW 44 612 5x16mm 2 GW 44 613 3x35mm 2 GW 44 614 5x35mm 2 GW 44 704 4-way  x 6mm 2 GW 44 706 6-way  x 6mm 2 GW 44 708 8-way  x 6mm 2 GW 44 671 3-way  x 6mm 2 GW 44 672 5-way  x 6mm 2 GW 44 673 4-way  x 16mm 2 GW 44 674 (2x16)+(3x6)  mm 2 GW 44 675 (2x16)+(9x6)  mm 2 GW 44 676 (2x35)+(4x16)  mm 2 44 CE R ANGE:  SURF ACE-MOUNTING JUNC TION BO XES IP44 Ø65 • • • Ø80 • • • • • • 80 x 80 • • • • • • IP55 - IP56 100 x 100 • • • • • • • • 120 x 80 • • • • • • • • 150 x 110 • • • • • • • • • • 190 x 140 • • • • • • • • • • 240 x 190 • • • • • • • • • • 300 x 220 • • • • • • • • • • 380 x 300 • • • • • • • • • • 460 x 380 • • • • • • • • • • 48 PT/PT DIN  92 x 92 • • • • • •   118 x 96 • • • • • • • 152 x 98 • • • • • • • 160 x 130 • • • • • • • • • 196 x 152 • • • • • • • • (with GW 44 682 adapter) 294 x 152 • • • • • • • • 392 x 152 • • • • • • • • 480 x 160 • • • • • • • • 516 x 202 • • • • • • • • • 516 x 294 • • • • • • • • • 48 CM (with GW 44 682 adapter) 260 x 260 • • • • • • • 520 x 260 • • • • • • • PTC (with adapter) 138 x 169 • • • • • • • • • • • 308 x 169 • • • • • • • • 398 x 169 • • • • • • • • 48 PTC 138 x 169 • • • • • • 308 x 169 • • • • • • (with GW 44 683 rail) 398 x 169 • • • • • • •  = Suitable Note:  the 44 ME range terminal blocks with indirect screw-tightening are mounted on plates, or on the bottom of the boxes, using the suitable GW 44 682 adapter. For 48 PTC range boxes on the other hand,  use code GW 44 683. The 44 ME range terminal blocks with indirect plate-tightening are mounted on the DIN rail of the 48 PT DIN boxes, using the suitable GW 44 720 support. In yellow: same compatibility also for PT DIN GREEN WALL and CM GREEN WALL versions.  Practicality, simplicity and safety 58 Junction and connection terminal blocks 44 range

CABLE TIES OUTDOOR TIES  Dimensions LxH  (mm) Tightening  capacity   Ø (mm) STANDARD   TYPE FOR HEAVY- DUTY USE RE-OPENABLE WITH   EYELET WITH   PLATE Dimensions   LxH (mm) Tightening  capacity   Ø (mm) TIES L.T.R. 2.4 x 75 1.5 - 18 GW 52 231 GW 52 251 - - - 6 x 115 5 - 25 GW 52 201 2.5 x 96 1.5 - 23 GW 52 232 GW 52 252 - - - 6 x 180 9 - 45 GW 52 202 2.5 x 100 1.5 - 25 - - - GW 52 281 - 6 x 290 20 - 78 GW 52 203 2.5 x 100 5 - 25 - - - - GW 52 291 9 x 180 10 - 40 GW 52 204 2.5 x 110 1.5 - 25 - - - - GW 52 292 9 x 265 26 - 60 GW 52 205 2.5 x 140 1.5 - 35 GW 52 233 GW 52 253 - - - 9 x 360 26 - 93 GW 52 206 2.5 x 200 10 - 50 - - - - GW 52 293 9 x 510 70 - 140 GW 52 207 2.5 x 203 1.5 - 55 GW 52 234 GW 52 254 - - - 9 x 760 70 - 220 GW 52 208 3.6 x 150 2.5 - 39 GW 52 235 GW 52 255 - - - 3.6 x 203 2.5 - 55 GW 52 236 GW 52 256 - - - 3.6 x 292 2.5 - 85 GW 52 237 GW 52 257 - - - 4.2 x 205 2.5 - 60 - - - GW 52 282 - 4.6 x 200 10 - 50 - - - - GW 52 294 4.8 x 190 3 - 52 GW 52 238 GW 52 258 - - - 4.8 x 280 3 - 81 GW 52 239 GW 52 259 - - - 4.8 x 368 3 - 182 GW 52 240 GW 52 260 - - - 7.6 x 100 4 - 35 - - GW 52 271 - - 7.6 x 200 4 - 50 - - GW 52 272 - - 7.6 x 300 4 - 80 - - GW 52 273 - - 7.6 x 380 4 - 110 GW 52 241 GW 52 261 - - - 9.0 x 610 5 - 185 GW 52 242 GW 52 262 - - - 9.0 x 914 5 - 270 GW 52 243 GW 52 263 - - - Versions with  halogen-free material A complete, professional range of ties. These products are used in boards, enclosures and junction boxes as well as more general applications.Though simple, ties are key elements for the safe operation of electrical systems. The range consists of 6 different product lines, in versions for wiring (PA 66) and the L.T.R. family (PA 12) with double head for outdoor applications, guaranteeing the seal even under extremely heavy-duty conditions. The high performance ties in PA12 - a highly prized material characterised by low hygroscopic capacity - are particularly suited to outdoor use, even at low temperatures. These ties, with dimensions of 9x265mm and more, have a double head.The range is completed with special fixing accessories. Small details can have   a great impact on safety 59 Ties 52 FS range

Quick choice The special feature of the 74 PS range is the ease of product configuration: the indicator lights are already fitted with a nut so they can be fixed to the panel. They have a contact-holder flange so, by adding the NO and NC contacts, you can create the specific command logic for each system. LED technology The products of the new 74 PS range that can be illuminated should be combined with LED lamps with BA9S coupling to guarantee top performance, 100% reliability and a longer lifespan, all of which means less maintenance too. Quick installation Thanks to the practical clip coupling mechanism of the contacts, panel assembly times are drastically reduced. Double contacts are also available, to increase the installation flexibility and to be able to install up to four contacts plus a space for a lamp coupling on the 3-gang flanges of the indicator lights. The 74 PS range: a system of push-buttons, selectors and indicators (diameter 22mm) with an IP66 degree of protection, for creating a real interface between the man and the machine, whilst at the same time controlling the operating status of the drives and equipment to ensure the best safety standards. Push-buttons, selectors  and indicators ø 22mm 60 Push-buttons, selectors and indicators ø 22mm 74 PS range

61 Colour ROUND, TEMPORARY PUSH-BUTTONS With shield Without shield With illuminated shield Green GW 74 301 GW 74 313 GW 74 341 Black GW 74 302 GW 74 312 - White GW 74 303 GW 74 314 GW 74 342 Red GW 74 304 GW 74 311 GW 74 343 Blue GW 74 305 GW 74 315 GW 74 344 Yellow GW 74 306 GW 74 316 GW 74 345 Colour INDICATOR LIGHTS Directly powered Green GW 74 451 Red GW 74 452 Yellow GW 74 453 Light blue GW 74 454 White GW 74 455 COMPLEMENTARY ITEMS Type Contact Single contact 1 NO GW 74 501 1 NC GW 74 502 Double contact 2 NO GW 74 503 2 NC GW 74 505 1 NO + 1 NC GW 74 504 Lamp-holder (BA9S coupling) GW 74 511 Colour ROUND MUSHROOM-HEAD PUSH-BUTTONS - Ø 40MM With hold mechanism Without hold mechanism Red GW 74 364 GW 74 363 GW 74 367 GW 74 366 In bold: illuminated versions Positions ROUND SELECTORS Lever-operated, with fixed positions With removable key, with fixed positions Lever selectors with return mechanism 0 - 1 GW 74 401 GW 74 411 GW 74 421 1 - 0 - 2 GW 74 402 GW 74 412 GW 74 422 Colour ROUND MUSHROOM-HEAD EMERGENCY PUSH-BUTTONS - Ø 40MM With hold mechanism With hold mechanism and key Red GW 74 361 GW 74 362 GW 74 365 COMPLETE CONTAINERS Indicator lights Ø 22 With shield No. of gangs Contacts Dimensions (LxHxD) mm General (black) GW 27 201 1 1 NO 66x82x65 Emergency (red) GW 27 202 1 1 NO 1 NC 66x82x65 Running (green) GW 27 203 2 1 NO 1 NC 132x82x65 Stop (red) Running (green) GW 27 204 3 1 NO 1 NC 66x171x65 Stop (red) Indication (white) EMPTY CONTAINERS No. of gangs Code Side entry Upper/lower entry Dimensions (LxHxD) mm 1 GW 27 101 2 x Ø 23 2 x Ø 23 66x82x65 1 GW 27 111 ( ) 2 x Ø 23 2 x Ø 23 66x82x65 2 GW 27 102 6 x Ø 23 2 x Ø 23 132x82x65 3 GW 27 103 4 x Ø 23 2 x Ø 23 66x171x65 6 GW 27 104 4 x Ø 23 6 x Ø 23 132x171x65 12 GW 27 105 4 x Ø 23 6 x Ø 23 264x171x65 ( ) GW 27 111: yellow cover and grey back-mounting box, specifically for emergency push-buttons. For all the illuminated versions, the LED lamp must be purchased separately: GW 74 515 (12V); GW 74 516 (24V); GW 74 517 (110V); GW 74 518 (230V). In bold: illuminated versions

The GEWISS rigid conduits and accessories allow you to create articulated systems in optimum safety conditions, in any type of environment and for any type of installation.The range consists of 4 types of conduits, all of which comply with standards EN 61386-1 and EN 61386-21:RK15: 3321 classification (standard applications)IRL/B: 3321 classification (sleeved, for standard applications)RKB: 4321 classification (heavy-duty applications)RKHF:  4422 classification (heavy-duty applications that require halogen-free versions for maximum safety) Range   rigid conduits Halogen-free version The RKHF conduits and couplings create totally halogen-free systems - the ideal solution for installations in public and crowded environments, thanks to their lower toxic emissions in the event of fire. TRIX and QUADRIX boxes The snap-fit assembly of boxes with specific accessories always ensures perfect watertight conditions thanks to the O-ring seal. The box cover can be assembled by simply pressing it, thus ensuring faster implementation and system inspection simplicity. Accessories Wide range of couplings, joints and routing components for implementing complex and articulated exposed systems. Possibility of obtaining two degrees of protection: IP40 and IP67. EN 50267-2-2 62 Rigid protective conduit systems RK range

Description BOXES IP54 COUPLINGS FOR TRIX AND QUADRIX BOXES Cap Box-box pipe-fitting Conduit Ø 16mm 3-inlet TRIX BOX DX 45 003 DX 47 000 DX 47 001 DX 47 616 4-inlet QUADRIX BOX DX 45 004 DX 47 000 DX 47 001 DX 47 616 7-inlet QUADRIX BOX DX 45 007 DX 47 000 DX 47 001 DX 47 616 10-inlet QUADRIX BOX DX 45 010 DX 47 000 DX 47 001 DX 47 616 Conduit Ø (mm) RIGID CONDUITS RK RANGE ROUTING COMPONENTS IP40 RK 15   range RKB   range RKHF   range Coupling   IP40 Narrow bend   curve   IP40 Inspectionable   T-joint   IP40 Inspectionable   bend   IP40 2M 3M 3M 2M 3M 16 DX 25 216 DX 25 316 DX 25 716 DX 26 216 DX 26 316 DX 40 016 DX 40 116 DX 40 216 DX 40 316 20 DX 25 220 DX 25 320 DX 25 720 DX 26 220 DX 26 320 DX 40 020 DX 40 120 DX 40 220 DX 40 320 25 DX 25 225 DX 25 325 DX 25 725 DX 26 225 DX 26 325 DX 40 025 DX 40 125 DX 40 225 DX 40 325 32 DX 25 232 DX 25 332 DX 25 732 DX 26 232 DX 26 332 DX 40 032 DX 40 132 DX 40 232 DX 40 332 40 DX 25 340 DX 25 740 DX 26 240 DX 40 040 DX 40 140 50 DX 25 350 DX 25 750 DX 26 250 DX 40 050 DX 40 150 63 DX 25 363 DX 25 763 DX 26 263 DX 40 063 DX 40 163 IP54 COUPLINGS FOR TRIX AND QUADRIX BOXES Smooth conduit pipe-fitting Spiralled sheath pipe-fitting Cable gland pipe-fitting Conduit Ø 20mm Conduit Ø 25mm Sheath Ø 12mm Sheath Ø 16mm Sheath Ø 20mm Cables Ø 3-6mm Cables Ø 6-9mm Cables Ø 9-12 DX 47 620 DX 47 625 DX 47 212 DX 47 216 DX 47 220 DX 47 503 DX 47 506 DX 47 509 DX 47 620 DX 47 625 DX 47 212 DX 47 216 DX 47 220 DX 47 503 DX 47 506 DX 47 509 DX 47 620 DX 47 625 DX 47 212 DX 47 216 DX 47 220 DX 47 503 DX 47 506 DX 47 509 DX 47 620 DX 47 625 DX 47 212 DX 47 216 DX 47 220 DX 47 503 DX 47 506 DX 47 509 MORBIDX RANGE WATERTIGHT ROUTING COMPONENTS Release   coupling   IP67 Narrow bend   curve   IP67 Conduit-box   pipe-fitting  IP67 Conduit-sheath   pipe-fitting  IP65 Conduit-sheath pipe-fitting  (equal diameter)   IP65 Conduit-conduit  pipe-fitting -   IP65 Metric pitch Sheath Ø Sheath Ø DX 43 016 DX 43 116 M16x1.5 DX 43 216 12 DX 43 316 16 DX 43 416 DX 43 516 DX 43 020 DX 43 120 M20x1.5 DX 43 220 16 DX 43 320 20 DX 43 420 DX 43 520 DX 43 025 DX 43 125 M25x1.5 DX 43 225 20 DX 43 325 25 DX 43 425 DX 43 525 DX 43 032 DX 43 132 M32x1.5 DX 43 232 25 DX 43 332 28 DX 43 432 DX 43 532 DX 43 040 DX 43 140 M40x1.5 DX 43 240 32 DX 43 340 40 DX 43 440 DX 43 540 DX 43 050 DX 43 150 M50x1.5 DX 43 250 40 DX 43 350 DX 43 550 In bold: versions with halogen-free material 63

A complete range of cable glands and couplings for conduits and boxes. Cable glands with metric and PG pitch (IP68) and PG pitch thread (IP66). Special accessories are also available, such as cable glands with rigid conduit housing, conduit-box couplings with IP66 and IP44 degrees of protection, and multi-diameter cable glands. There is also a full selection of metal cable glands (version IP65 and IP68, complete with an o-ring gasket on the box side), closure caps and extensions IP65, and fixing nuts. All the items are made of nickel-plated brass, and are fully compatible with the connectors and metal boxes of the GW Connect range. The GEWISS system of plastic and metal fixing devices is now extended with a series of products conceived to meet every possible installation requirement and provide the ideal solution in every type of system. Designed to simplify and speed up the conduit and cable laying phases, the Gewiss range responds to the increasingly specific and specialist needs of modern systems.Quick, safe installation is an increasingly important factor when it comes to choosing system components. To meet the need for faster installation while still maintaining high levels of reliability and safety, GEWISS also offers a range of plastic and metal supports with incorporated wall plug for conduits and cables. Fixing accessories for conduits and cables  Cable glands   and couplings 64 50/52 range Accessories for electrical installations

PLASTIC CABLE GLANDS METAL CABLE GLANDS IP68 IP66 IP66 with housing IP54 IP68 IP65 Thread Code For cables  Ø (mm) Code For cables  Ø (mm) Code For  conduits  Ø (mm) For cables  Ø (mm) Code For cables  Ø (mm) Code For cables  Ø (mm) ATEX  code ( ) For cables  Ø (mm) Code For cables  Ø (mm) PG7 GW 52 071 3 ÷ 6.5 GW 52 001 3 ÷ 6 GW 52 081 4 ÷ 6 GW 76 901 3 ÷ 6.5 PG9 GW 52 072 4 ÷ 8 GW 52 002 5 ÷ 8 GW 52 082 4.5 ÷ 7 GW 76 902 4 ÷ 8 PG11 GW 52 073 5 ÷ 10 GW 52 003 7 ÷ 10.5 GW 52 083 6 ÷ 9 GW 76 825 4 ÷ 9 GW 76 903 5 ÷ 10 GW 76 841 7.5/10/12.5 PG13.5 GW 52 074 6 ÷ 12 GW 52 004 9 ÷ 12.5 GW 52 024 16 9 ÷ 12.5 GW 52 084 9 ÷ 12 GW 76 826 7 ÷ 11 GW 76 904 6.5 ÷ 12 GW 76 842 7.5/10/12.5 PG16 GW 52 075 10 ÷ 14 GW 52 005 13 ÷ 16 GW 52 025 20 13 ÷ 16 GW 52 085 11 ÷ 14 GW 76 827 10 ÷ 13 GW 76 905 7 ÷ 12 GW 76 843 7.5/10/12.5 PG21 GW 52 076 13 ÷ 18 GW 52 006 9 ÷ 10 17 ÷ 20 GW 52 026 25 9 ÷ 10 17 ÷ 20 GW 52 086 14 ÷ 18 GW 76 828 12 ÷ 17 GW 76 906 13 ÷ 18 GW 76 844 10/13/16/19 PG29 GW 52 077 18 ÷ 25 GW 52 007 13.5 ÷ 15 21 ÷ 26 GW 52 027 32 13.5 ÷ 15 21 ÷ 26 GW 52 087 18 ÷ 25 GW 76 829 17 ÷ 24 GW 76 907 18 ÷ 25 GW 76 845 18/21/24/27 PG36 GW 52 078 22 ÷ 32 GW 52 008 17 ÷ 20 30 ÷ 34 GW 52 028 40 17 ÷ 20 30 ÷ 34 GW 52 088 26 ÷ 32 GW 76 830 20 ÷ 26 27 ÷ 24 GW 76 908 22 ÷ 32 GW 76 846 24/27/30/33 PG42 GW 52 079 30 ÷ 38 GW 52 009 36 ÷ 39 40 ÷ 43 GW 52 029 50 36 ÷ 39 40 ÷ 43 GW 76 897 32 ÷ 36 GW 76 909 32 ÷ 38 GW 76 847 30/33/36/39 PG48 GW 52 080 34 ÷ 44 GW 52 010 38 ÷ 40 46 ÷ 50 GW 76 910 37 ÷ 44 M12 GW 52 042 3 ÷ 6.5 GW 76 894 3 ÷ 6.5 GW 76 921 3 ÷ 6.5 M16 GW 52 043 5 ÷ 10 GW 76 896 4 ÷ 9 GW 76 922 6 ÷ 10 M20 GW 52 044 10 ÷ 14 GW 76 831 10 ÷ 13 GW 76 923 10 ÷ 14 GW 76 848 4/7/10/13 M25 GW 52 045 13 ÷ 18 GW 76 832 12 ÷ 17 GW 76 924 14 ÷ 18 GW 76 849 8.5/11.5/14.5/17.5 M32 GW 52 046 18 ÷ 25 GW 76 833 14 ÷ 21 GW 76 925 20 ÷ 25 GW 76 850 16/19/22/25 M40 GW 52 047 22 ÷ 32 GW 76 834 19 ÷ 27 GW 76 926 22 ÷ 32 GW 76 851 23/26/29/32 M50 GW 52 048 30 ÷ 38 GW 76 835 25 ÷ 34 GW 76 927 32 ÷ 38 GW 76 852 30/33/36/39 M63 GW 52 049 35 ÷ 44 GW 76 895 34 ÷ 48 GW 76 928 37 ÷ 44 PLASTIC ACCESSORIES METAL ACCESSORIES GASKETS Caps Nuts Caps Nuts Extensions O-ring for caps Thread Code Code Spanner   (mm) Code Standard   code ATEX  code ( ) Spanner  (mm) Code Male thread Female  thread Code PG7 GW 52 361 GW 52 341 19 GW 76 941 GW 52 441 PG9 GW 52 362 GW 52 342 22 GW 76 942 GW 52 442 PG11 GW 52 363 GW 52 343 24 GW 76 980 GW 76 957 GW 76 957 21 GW 76 865 PG11 PG13.5 GW 52 443 PG13.5 GW 52 364 GW 52 344 27 GW 76 981 GW 76 958 GW 76 958 23 GW 76 866 PG13.5 PG16 GW 52 444 PG16 GW 52 365 GW 52 345 30 GW 76 982 GW 76 959 GW 76 959 26 GW 76 867 PG16 PG21 GW 52 445 PG21 GW 52 366 GW 52 346 36 GW 76 983 GW 76 960 GW 76 960 32 GW 76 868 PG21 PG29 GW 52 446 PG29 GW 52 367 GW 52 347 46 GW 76 984 GW 76 961 GW 76 961 41 GW 76 869 PG29 PG36 GW 52 447 PG36 GW 52 368 GW 52 348 60 GW 76 985 GW 76 962 GW 76 962 51 GW 52 448 PG42 GW 52 369 GW 52 349 65 GW 76 986 GW 76 963 GW 76 963 60 GW 52 449 PG48 GW 52 370 GW 52 350 70 GW 76 943 GW 52 450 M12 GW 52 372 GW 52 352 18 GW 76 972 GW 76 966 GW 76 949 15 GW 52 452 M16 GW 52 373 GW 52 353 22 GW 76 973 GW 76 951 GW 76 951 19 GW 52 453 M20 GW 52 374 GW 52 354 26 GW 76 975 GW 76 952 GW 76 952 23 GW 76 870 M20 M25 GW 52 454 M25 GW 52 375 GW 52 355 32 GW 76 976 GW 76 953 GW 76 953 29 GW 76 871 M25 M32 GW 52 455 M32 GW 52 376 GW 52 356 41 GW 76 977 GW 76 954 GW 76 954 36 GW 76 872 M32 M40 GW 52 456 M40 GW 52 377 GW 52 357 50 GW 76 978 GW 76 955 GW 76 955 45 GW 76 873 M40 M50 GW 52 457 M50 GW 52 378 GW 52 358 60 GW 76 979 GW 76 956 GW 76 956 55 GW 52 458 M63 GW 52 379 GW 52 359 75 GW 76 974 GW 76 967 GW 76 950 70 GW 52 459 ( ) NOTE: the ATEX products are only available in the following countries: Austria, France, Germany, Italy, Liechtenstein, Luxemburg, the Principality of Monaco, the United Kingdom and Spain. For all  other countries, contact GEWISS Technical service assistance.  65

PLASTIC FIXING DEVICES WITH INCORPORATED WALL PLUG Conduit Ø (mm) Clip-on support   with incorporated wall plug Collar support   with incorporated wall plug  (high performance) Double collar support   with incorporated wall plug  (high performance) Single staple   with incorporated wall plug Double staple   with incorporated wall plug Code Wall plug Ø (mm) Code Wall plug Ø (mm) Code Wall plug Ø (mm) Code Wall plug Ø (mm) Code Wall plug Ø (mm) 16 GW 50 706 6 GW 50 716 6 GW 50 726 8 GW 50 776 8 GW 50 786 8 20 GW 50 707 6 GW 50 717 8 GW 50 727 10 GW 50 777 8 GW 50 787 8 25 GW 50 708 6 GW 50 718 10 GW 50 728 10 GW 50 778 8 GW 50 788 8 32 GW 50 709 8 COUPLINGS FOR CONDUITS AND CABLES For conduits/cables (mm) Conduit-box couplings Conduit-box couplings  in flexible polymer IP44 Cable glands in flexible polymer IP55 Code Assembly hole (mm) IP with rigid  conduits IP with corrugated  conduits Code Assembly hole  (mm) Code Assembly hole (mm) 16 GW 50 415 20 IP66 IP54 GW 50 421 23 GW 50 428 19 20 GW 50 416 23 IP66 IP54 GW 50 422 23 GW 50 429 23 GW 50 423 29 25 GW 50 417 29 IP66 IP54 GW 50 424 29 GW 50 430 29 32 GW 50 418 37 IP66 IP54 GW 50 425 37 GW 50 431 37 40 GW 50 419 48 IP66 IP44 GW 50 426 37 GW 50 432 48 50 GW 50 420 54 IP66 IP44 GW 50 427 42     PLASTIC FIXING DEVICES Conduit Ø (mm) Clip-on supports Collar supports Rail for clip-on and   collar supports Collar supports   with automatic clip fixing Rail for collar supports   with automatic clip fixing Supports with   multi-diameter clamp 16 GW 50 601 GW 50 605 GW 50 609 GW 50 641 GW 50 645 GW 50 651 20 GW 50 602 GW 50 606 GW 50 609 GW 50 642 GW 50 645 GW 50 651 25 GW 50 603 GW 50 607 GW 50 609 GW 50 642 GW 50 645 GW 50 652 GW 50 643 32 GW 50 604 GW 50 608 GW 50 609 GW 50 643 GW 50 645 GW 50 652 40 GW 50 628 GW 50 630 GW 50 609 GW 50 644 GW 50 645 GW 50 653 50 GW 50 629 GW 50 631 GW 50 609 GW 50 653 PLASTIC FIXING DEVICES Conduit Ø (mm) Re-openable fixing collars Non re-openable fixing collars Wall plugs Single staple   without nail Double staple   without nail Wall plug Ø   6mm Wall plug Ø   8mm 16 DX 51 120 DX 51 232 DX 51 306 DX 51 308 GW 50 671 GW 50 681 20 DX 51 120 DX 51 232 DX 51 306 DX 51 308 GW 50 672 GW 50 682 25 DX 51 232 DX 51 263 DX 51 306 DX 51 308 GW 50 673 GW 50 683 32 DX 51 232 DX 51 263 DX 51 306 DX 51 308 40 DX 51 263 DX 51 306 DX 51 308 60 DX 51 263 DX 51 306 DX 51 308 63 DX 51 263 DX 51 306 DX 51 308 66 50/52 range Accessories for electrical installation

FIXING SUPPORTS AND ACCESSORIES FOR CABLES Cable Ø (mm) Staples with nail width of   flat cables   (mm) Staples with nail for flat cables Single fixing   clamp for cables Double fixing   clamp for cables 3-4 GW 50 610 GW 50 691   for the installation  of 8 lines (3x1.5) GW 50 692   for the installation  of 2x8 lines (3x1.5) 5-6 GW 50 611 5-6 GW 50 623 GW 50 621 7-8 GW 50 612 7-8 GW 50 624 GW 50 622 9-10 GW 50 613 10-11 GW 50 625 11-12 GW 50 614 13-14 GW 50 615 15-16 GW 50 616 19-20 GW 50 617 21-22 GW 50 618 25-26 GW 50 619 31-32 GW 50 620 Colour: white FIXING SUPPORTS AND ACCESSORIES FOR CONDUITS/CABLES Cable/conduit Ø (mm) Tie support with incorporated  wall plug Tie support with incorporated  wall plug Code Wall plug Ø (mm) Code Wall plug Ø (mm) 3÷13 GW 50 666 6 8÷26 GW 50 667 6 FIXING STRAPS Galvanized steel   fixing strap - 10m Fabric fixing   strap - 10m Firing pin for   manual nailing Steel nail,   18mm long GW 50 791 GW 50 792 GW 50 798 GW 50 799 METAL FIXING DEVICES Cable/conduit Ø (mm) Galvanised steel collars   with 2 screws Galvanized steel collars with 2   screws and incorporated wall plug Galvanised steel staples   with a single hole Galvanised steel staples   with a double hole Code Wall plug Ø (mm) 10-11 GW 50 801 GW 50 811 GW 50 821 12-13 GW 50 802 GW 50 812 GW 50 822 14-15 GW 50 803 GW 50 813 GW 50 823 16-17 GW 50 804 GW 50 841 6 GW 50 814 GW 50 824 19-20 GW 50 805 GW 50 842 6 GW 50 815 GW 50 825 21-22 GW 50 806 GW 50 816 GW 50 826 25-26 GW 50 807 GW 50 843 8 GW 50 817 GW 50 827 31-32 GW 50 808 GW 50 844 8 GW 50 818 GW 50 828 38-40 GW 50 809 GW 50 845 8 GW 50 819 GW 50 829 48-50 GW 50 810 GW 50 846 8 GW 50 820 GW 50 830 67

FK15 range: a range of medium corrugated conduits with 3321 classification, diameter from 16 to 63 mm, in six different colours - available in versions with or without a cable puller-feeder - for identification of the various lines in the electrical system.  The medium conduits with ICTA 3422 classification and the light conduits with FKHF 2322 classification (halogen-free in accordance with EN 50267-2-2) are ideal for installation in public environments: thanks to their halogen-free material, the smoke created in the event of a fire has lower opacity and toxic emissions. The FK 15, ICTA and FKHF conduits comply with Standards EN 61386-1 and EN 61386-22. FK15, ICTA and FKHF range   pliable conduits Line identification The wide choice of colours in the FK15 Arcobaleno range ensures a valid solution for modern electrical systems with their increasingly complex and subdivided structure, where the identification of the different lines is essential. Higher performance The ICTA conduit is recommended for use under the floor and in reinforced concrete. In fact, the ICTA conduit does not require any type of mechanical protection during casting. As there are no microholes, it is ideal with highly liquid concretes. Flexibility The profile of the FK15 conduits is characterised by a special geometry of the ribs to offer greater flexibility, higher load resistance and reduced thermal memory - characteristics that simplify and speed up the laying procedure inside the raceway. Versions with  halogen-free material 68 Pliable protective conduit systems FK range

CONDUIT Ø FK 15 RANGE PLIABLE CONDUITS - CLASS 3321 White Black Green Blue Brown Lilac with cable  puller with cable  puller with cable  puller with cable  puller with cable  puller with cable  puller 16 DX 16 216 DX 16 316 DX 15 016 DX 15 116 DX 15 216 DX 15 316 DX 15 416 DX 15 516 DX 15 616 DX 15 716 DX 15 816 DX 15 916 20 DX 16 220 DX 16 320 DX 15 020 DX 15 120 DX 15 220 DX 15 320 DX 15 420 DX 15 520 DX 15 620 DX 15 720 DX 15 820 DX 15 920 25 DX 16 225 DX 16 325 DX 15 025 DX 15 125 DX 15 225 DX 15 325 DX 15 425 DX 15 525 DX 15 625 DX 15 725 DX 15 825 DX 15 925 32 DX 16 232 DX 16 332 DX 15 032 DX 15 132 DX 15 232 DX 15 332 DX 15 432 DX 15 532 DX 15 632 DX 15 732 DX 15 832 DX 15 932 40 DX 16 240 DX 16 340 DX 15 040 DX 15 140 DX 15 240 DX 15 440 DX 15 640 DX 15 840 50 DX 16 250 DX 16 350 DX 15 050 DX 15 150 DX 15 250 DX 15 450 DX 15 650 DX 15 850 63 DX 16 263 DX 16 363 DX 15 063 DX 15 163 CONDUIT Ø ICTA RANGE OF HALOGEN-FREE SELF-RECOVERING  PLIABLE CONDUITS - CLASS 3422 FKHF RANGE HALOGEN-FREE  SELF-RECOVERING PLIABLE   CONDUITS - CLASS 2322 Grey Dark grey Green Blue Grey with cable  puller with cable  puller with cable  puller with cable  puller with cable puller 16 DX 20 016 DX 20 116 DX 20 416 DX 20 516 DX 22 016 DX 22 116 DX 23 016 DX 23 116 DX 23 216 DX 23 316 20 DX 20 020 DX 20 120 DX 20 420 DX 20 520 DX 22 020 DX 22 120 DX 23 020 DX 23 120 DX 23 220 DX 23 320 25 DX 20 025 DX 20 125 DX 20 425 DX 20 525 DX 22 025 DX 22 125 DX 23 025 DX 23 125 DX 23 225 DX 23 325 32 DX 20 032 DX 20 132 DX 20 432 DX 20 532 DX 22 032 DX 22 132 DX 23 032 DX 23 132 DX 23 232 DX 23 332 40 DX 20 040 DX 20 140 DX 20 440 DX 20 540 DX 22 040 DX 22 140 DX 23 040 DX 23 140 DX 23 240 DX 23 340 50 DX 20 050 DX 20 150 DX 20 450 DX 20 550 DX 22 050 DX 22 150 DX 23 050 DX 23 150 DX 23 250 DX 23 350 63 DX 20 063 DX 20 163 DX 20 463 DX 20 563 DX 22 063 DX 22 163 DX 23 063 DX 23 163 DX 23 263 DX 23 363 CABLE PULLER Cable puller Ø 3mm Cable puller Ø 4mm Length (m) ST STS Flexible head Tail ring 5 DX 52 205 DX 52 305 DX 52 299 DX 52 399 10 DX 52 210 DX 52 310 DX 52 299 DX 52 399 15 DX 52 215 DX 52 315 DX 52 299 DX 52 399 20 DX 52 220 DX 52 320 DX 52 299 DX 52 399 25 DX 52 225 DX 52 325 DX 52 299 DX 52 399 ACCESSORIES FOR CONDUITS CONDUIT Ø GF coupling TF cap Conduit-box coupling  16 DX 52 016 DX 52 116 GW 50 415 20 DX 52 020 DX 52 120 GW 50 416 25 DX 52 025 DX 52 125 GW 50 417 32 DX 52 032 DX 52 132 GW 50 418 40 DX 52 040 DX 52 140 GW 50 419 50 DX 52 050 DX 52 150 GW 50 420 63 DX 52 063 DX 52 163 In bold: versions with halogen-free material 69

SHEATH  Ø (mm) SPIRAL SHEATHS ROTATING STRAIGHT PIPE FITTINGS - IP54 RANGE DIFLEX range - Class 2311 LIGHT range -  Class 1311 RDM RDG RDPG Grey Black Blue Grey Grey Black Grey Black Grey Black ISO pitch GAS pitch PG pitch 8 DX 30 008 DX 30 108 M12x1 DX 54 008 DX 54 108 1/4” DX 54 208 DX 54 308 7 DX 54 408 DX 54 508 10 DX 30 010 DX 30 110 M16x1.5 DX 54 010 DX 54 110 1/4” DX 54 210 DX 54 310 7 DX 54 410 DX 54 510 9 DX 54 411 DX 54 511 12 DX 30 012 DX 30 112 DX 30 212 DX 30 812 M16x1.5 DX 54 012 DX 54 112 3/8” DX 54 212 DX 54 312 11 DX 54 412 DX 54 512 13.5 DX 54 413 DX 54 513 14 DX 30 014 DX 30 114 1/2” DX 54 214 DX 54 314 13.5 DX 54 414 DX 54 514 16 DX 30 016 DX 30 116 DX 30 216 DX 30 816 M20x1.5 DX 54 016 DX 54 116 1/2” DX 54 216 DX 54 316 13.5 DX 54 416 DX 54 516 16 DX 54 417 DX 54 517 20 DX 30 020 DX 30 120 DX 30 220 DX 30 820 M25x1.5 DX 54 020 DX 54 120 3/4” DX 54 220 DX 54 320 21 DX 54 420 DX 54 520 22 DX 30 022 DX 30 122 DX 30 222 M25x1.5 DX 54 022 DX 54 122 3/4” DX 54 222 DX 54 322 21 DX 54 422 DX 54 522 25 DX 30 025 DX 30 125 DX 30 225 DX 30 825 M32x1.5 DX 54 025 DX 54 125 1” DX 54 225 DX 54 325 29 DX 54 425 DX 54 525 28 DX 30 028 DX 30 128 M32x1.5 DX 54 028 DX 54 128 1” DX 54 228 DX 54 328 29 DX 54 428 DX 54 528 32 DX 30 032 DX 30 132 DX 30 232 M40x1.5 DX 54 032 DX 54 132 1 1/4” DX 54 232 DX 54 332 36 DX 54 432 DX 54 532 35 DX 30 035 DX 30 135 1 1/4” DX 54 235 DX 54 335 36 DX 54 435 DX 54 535 40 DX 30 040 DX 30 140 DX 30 240 M50x1.5 DX 54 040 DX 54 140 1 1/2” DX 54 240 DX 54 340 50 DX 30 050 DX 30 150 M63x1.5 DX 54 050 DX 54 150 2” DX 54 250 DX 54 350 60 DX 30 060 DX 30 160 DF range: system of spiralled sheaths with 2311 classification in 14 different diameters - from 8 to 60mm - in grey, black and blue. 12-mm, 16-mm, 20-mm and 25-mm diameters are also available in the Light version with 1311 classification for non-heavy-duty applications.Sheaths and couplings with an IP54 degree of protection, in grey and black are available, with metric, PG and GAS thread for connecting boards, boxes and rigid conduits: a system suitable for exposed systems for all uses in the industrial and commercial sectors. Thanks to its high flexibility and resistance, the DF range is the winning solution for connecting and powering moving mechanical components. The DF sheaths comply with Standards EN 61386-1 and EN 61386-23. Range of   spiralled sheaths 70 Systems of flexible protective conduits DF range

CORRUGATED CABLE DUCTS DOUBLE SURFACE Diameter (mm) 40 50 63 75 90 110 125 160 200 Corrugated cable ducts DX 35 000 DX 35 001 DX 35 002 DX 35 003 DX 35 004 DX 35 005 DX 35 006 DX 35 008 DX 35 009 Couplings DX 58 200 DX 58 201 DX 58 202 DX 58 203 DX 58 204 DX 58 205 DX 58 206 DX 58 208 DX 58 209 THERMOPLASTIC ACCESS CHAMBERS Type Dimensions  (mm) Complete   access  chambers Access  chambers  without  covers Covers Separator  plate Sealing  gaskets Kit of   4 screws Central bolt  for lifting kit Closed Gridded Grey Green Blue Grey Green Blue Square-base  access chambers 200x200x200 DX 59 401 DX 59 402 DX 59 410 DX 59 430 DX 59 411 DX 59 431 DX 59 440 DX 59 451 DX 59 450 300x300x300 DX 59 701 DX 59 702 DX 59 710 DX 59 730 DX 59 711 DX 59 731 DX 59 740 DX 59 751 DX 59 450 400x400x400 DX 59 801 DX 59 802 DX 59 810 DX 59 830 DX 59 811 DX 59 831 DX 59 840 DX 59 851 DX 59 452 DX 59 453 550x550x520 DX 59 901 DX 59 902 DX 59 910 DX 59 930 DX 59 911 DX 59 931 DX 59 940 DX 59 951 DX 59 452 DX 59 453 Kit of 8 square base  complete access chambers 200x200x200 DX 59 460 DX 59 410 DX 59 430 DX 59 411 DX 59 431 DX 59 451 DX 59 450 300x300x300 DX 59 760 DX 59 710 DX 59 730 DX 59 711 DX 59 731 DX 59 751 DX 59 450 Rectangular-base  access chambers 360x260x326 DX 59 501 DX 59 502 DX 59 511 DX 59 230 DX 59 220 DX 59 520 DX 59 231 DX 59 221 Transversal   DX 59 240 Longitudinal   DX 59 241 Diagonal   DX 59 242 DX 59 551 DX 59 650 Available in 4 sizes - from 200 to 550mm - with high resistance and gridded covers, they are ideal for junctions, as wall chasers for electrical systems, or for telecommunication applications. Particularly suitable for public lighting systems or earth systems. Thanks to its thermoplastic materials, pre-cut base and the possibility of overlapping, the PZ range is a valid alternative to typical concrete electrical boxes, ensuring optimum resistance and unaltered long-term performance. The special dual-wall form of the FU cable ducts, made from PEHD and available in 10 diameters (40-200mm) with built-in cable puller, allows very narrow curvature radiuses (8 times the outer conduit diameter) and can even be laid in excavations that are not perfectly aligned. Range of access chamber systems:  versatility and convenience Range of cable ducts: flexibility of use 71 Cable duct and access chamber systems PZ and FU range

BFR steel wire mesh cable trays:A more practical, simple and economic alternative to the traditional metal channels. Available in heights of 30, 60 and 110mm, widths from 50 to 600mm, and 5 finishes (including the HP - High Protection - finish), ideal for outdoor use.The snap-on supports, automatic joints and lack of routing components make installation quicker and easier, with fewer elements to be managed. MAIN CHARACTERISTICS:   Quick installation thanks to the automatic joints and quick  connection brackets.   Rounded edge with double side wire = enhanced safety and  mechanical resistance.   "Speedy Curva" machine for cutting and bending, available  on free loan.   Greater cable ventilation and cleanliness. BFR range of cable trays Applications e.g. photovoltaic system 72 Systems for metal cable trays and supports BFR range

BRN perforated sheet cable trays:available in 4 heights (35-80mm), 12 widths (95-605mm) and 3 finishes to meet the requisites of every type of installation, from small systems to heavy industry. The BRN cable tray has ribs on the base for greater load resistance, and rounded upper edges to guarantee the safety of cables and operators. MAIN CHARACTERISTICS:   Ribs on the base for greater load resistance.  Rounded upper edge for total safety.  Quick assembly thanks to the automatic joint.  Cover with snap-on fixing. BRN range cable trays Applications e.g. industrial system 73 Systems for metal cable trays and supports BRN range

CABLE TRAY FINISHING ACCESSORIES COUPLING SYSTEMS  Cable tray  dimensions  LxH (mm) Straight elements Cover Divider Quick, compact, automatic connection Z 100 EZ GAC HP Stainless steel Z 275 GAC Stainless steel Z 275 GAC Stainless steel Z 275 GAC HP Stainless steel 50x30  MV 50 520 MV 50 420 MV 50 220 MV 50 720 MV 50 620 MV 50 150 MV 50 250 MV 50 650 MV 65 110 MV 65 210 MV 65 610 MV 51 113 MV 51 213 MV 51 713 MV 51 813 100x30 MV 50 521 MV 50 421 MV 50 221 MV50721 MV 50 621 MV 50 151 MV 50 251 MV 50 651 MV 65 110 MV 65 210 MV 65 610 MV 51 113 MV 51 213 MV 51 713 MV 51 813 150x30 MV 50 522 MV 50 422 MV 50 222 MV 50 722 MV 50 622 MV 50 152 MV 50 252 MV 50 652 MV 65 110 MV 65 210 MV 65 610 MV 51 113 MV 51 213 MV 51 713 MV 51 813 200x30 MV 50 523 MV 50 423 MV 50 223 MV 50 723 MV 50 623 MV 50 153 MV 50 253 MV 50 653 MV 65 110 MV 65 210 MV 65 610 MV 51 113 MV 51 213 MV 51 713 MV 51 813 300x30 MV 50 525 MV 50 425 MV 50 225 MV 50 725 MV 50 625 MV 50 155 MV 50 255 MV 50 655 MV 65 110 MV 65 210 MV 65 610 MV 51 114 MV 51 214 MV 51 714 MV 51 814 50x60 MV 50 530 MV 50 430 MV 50 230 MV 50 730 MV 50 630 MV 50 150 MV 50 250 MV 50 650 MV 65 111 MV 65 211 MV 65 611 MV 51 113 MV 51 213 MV 51 713 MV 51 813 100x60 MV 50 531 MV 50 431 MV 50 231 MV 50 731 MV 50 631 MV 50 151 MV 50 251 MV 50 651 MV 65 111 MV 65 211 MV 65 611 MV 51 113 MV 51 213 MV 51 713 MV 51 813 150x60 MV 50 532 MV 50 432 MV 50 232 MV 50 732 MV 50 632 MV 50 152 MV 50 252 MV 50 652 MV 65 111 MV 65 211 MV 65 611 MV 51 113 MV 51 213 MV 51 713 MV 51 813 200x60  MV 50 533 MV 50 433 MV 50 233 MV 50 733 MV 50 633 MV 50 153 MV 50 253 MV 50 653 MV 65 111 MV 65 211 MV 65 611 MV 51 113 MV 51 213 MV 51 713 MV 51 813 250x60 MV 50 534 MV 50 434 MV 50 234 MV 50 734 MV 50 154 MV 50 254 MV 65 111 MV 65 211 MV 65 611 MV 51 114 MV 51 214 MV 51 714 MV 51 814 300x60 MV 50 535 MV 50 435 MV 50 235 MV 50 735 MV 50 635 MV 50 155 MV 50 255 MV 50 655 MV 65 111 MV 65 211 MV 65 611 MV 51 114 MV 51 214 MV 51 714 MV 51 814 400x60 MV 50 536 MV 50 436 MV 50 236 MV 50 736 MV 50 636 MV 50 156 MV 50 256 MV 50 656 MV 65 111 MV 65 211 MV 65 611 MV 51 115 MV 51 215 MV 51 715 MV 51 815 500x60 MV 50 537 MV 50 437 MV 50 237 MV 50 737 MV 50 637 MV 50 157 MV 50 257 MV 50 657 MV 65 111 MV 65 211 MV 65 611 MV 51 115 MV 51 215 MV 51 715 MV 51 815 600x60 MV 50 538 MV 50 438 MV 50 238 MV 50 738 MV 50 638 MV 50 158 MV 50 258 MV 50 658 MV 65 111 MV 65 211 MV 65 611 MV 51 115 MV 51 215 MV 51 715 MV 51 815 150 x 110 MV 50 542 MV 50 442 MV 50 242 MV 50 742 MV 50 642 MV 50 152 MV 50 252 MV 50 652 MV 65 113 MV 65 213 MV 65 613 MV 51 114 MV 51 214  MV 51 714  MV 51 814  200x110 MV 50 543 MV 50 443 MV 50 243 MV 50 743 MV 50 643 MV 50 153 MV 50 253 MV 50 653 MV 65 113 MV 65 213 MV 65 613 MV 51 114 MV 51 214 MV 51 714 MV 51 814 300x110 MV 50 545 MV 50 445 MV 50 245 MV 50 745 MV 50 645 MV 50 155 MV 50 255 MV 50 655 MV 65 113 MV 65 213 MV 65 613 MV 51 115 MV 51 215 MV 51 715 MV 51 815 400x110 MV 50 546 MV 50 446 MV 50 246 MV 50 746 MV 50 646 MV 50 156 MV 50 256 MV 50 656 MV 65 113 MV 65 213 MV 65 613 MV 51 115 MV 51 215 MV 51 715 MV 51 815 500x110 MV 50 547 MV 50 447 MV 50 247 MV 50 747 MV 50 647 MV 50 157 MV 50 257 MV 50 657 MV 65 113 MV 65 213 MV 65 613 MV 51 115 MV 51 215 MV 51 715 MV 51 815 600x110 MV 50 548 MV 50 448 MV 50 248 MV 50 748 MV 50 648 MV 50 158 MV 50 258 MV 50 658 MV 65 113 MV 65 213 MV 65 613 MV 51 115 MV 51 215 MV 51 715 MV 51 815 COUPLING SYSTEMS Cable tray   dimensions  LxH  (mm) Universal speed-lock coupler Straight coupler with bolts Coupler with bolts Bolt with  nut Clamping  washer Counter  clamping   washer Bolt   with nut Clamping  washer Counter  clamping   washer Bolt   with nut Clamping  washer Counter  clamping   washer Z 275 GAC HP Z 275 GAC Stainless  steel BICHRO DACRO Stainless steel 50x30  MV 51 110 MV 51 210 MV 51 710 MV 66 403 MV 51 420 MV 51 421 MV 66 203 MV 51 220 MV 51 221 MV 66 820 MV 51 820 MV 51 821 100x30 MV 51 110 MV 51 210 MV 51 710 MV 66 403 MV 51 420 MV 51 421 MV 66 203 MV 51 220 MV 51 221 MV 66 820 MV 51 820 MV 51 821 150x30 MV 51 110 MV 51 210 MV 51 710 MV 66 403 MV 51 420 MV 51 421 MV 66 203 MV 51 220 MV 51 221 MV 66 820 MV 51 820 MV 51 821 200x30 MV 51 110 MV 51 210 MV 51 710 MV 66 403 MV 51 420 MV 51 421 MV 66 203 MV 51 220 MV 51 221 MV 66 820 MV 51 820 MV 51 821 300x30 MV 51 110 MV 51 210 MV 51 710 MV 66 403 MV 51 420 MV 51 421 MV 66 203 MV 51 220 MV 51 221 MV 66 820 MV 51 820 MV 51 821 50x60 MV 51 110 MV 51 210 MV 51 710 MV 51 123 MV 51 223 MV 51 823 MV 66 403 MV 51 420 MV 51 421 MV 66 203 MV 51 220 MV 51 221 MV 66 820 MV 51 820 MV 51 821 MV 51 422 MV 51 222 MV 51 822 100x60 MV 51 110 MV 51 210 MV 51 710 MV 51 123 MV 51 223 MV 51 823 MV 66 403 MV 51 420 MV 51 421 MV 66 203 MV 51 220 MV 51 221 MV 66 820 MV 51 820 MV 51 821 MV 51 422 MV 51 222 MV 51 822 150x60 MV 51 110 MV 51 210 MV 51 710 MV 51 123 MV 51 223 MV 51 823 MV 66 403 MV 51 420 MV 51 421 MV 66 203 MV 51 220 MV 51 221 MV 66 820 MV 51 820 MV 51 821 MV 51 422 MV 51 222 MV 51 822 200x60 MV 51 110 MV 51 210 MV 51 710 MV 51 123 MV 51 223 MV 51 823 MV 66 403 MV 51 420 MV 51 421 MV 66 203 MV 51 220 MV 51 221 MV 66 820 MV 51 820 MV 51 821 MV 51 422 MV 51 222 MV 51 822 250x60 MV 51 110 MV 51 210 MV 51 710 MV 51 123 MV 51 223 MV 51 823 MV 66 403 MV 51 420 MV 51 421 MV 66 203 MV 51 220 MV 51 221 MV 66 820 MV 51 820 MV 51 821 MV 51 422 MV 51 222 MV 51 822 300x60 MV 51 110 MV 51 210 MV 51 710 MV 51 123 MV 51 223 MV 51 823 MV 66 403 MV 51 420 MV 51 421 MV 66 203 MV 51 220 MV 51 221 MV 66 820 MV 51 820 MV 51 821 MV 51 422 MV 51 222 MV 51 822 400x60 MV 51 110 MV 51 210 MV 51 710 MV 51 123 MV 51 223 MV 51 823 MV 66 403 MV 51 420 MV 51 421 MV 66 203 MV 51 220 MV 51 221 MV 66 820 MV 51 820 MV 51 821 MV 51 422 MV 51 222 MV 51 822 500x60 MV 51 110 MV 51 210 MV 51 710 MV 51 123 MV 51 223 MV 51 823 MV 66 403 MV 51 420 MV 51 421 MV 66 203 MV 51 220 MV 51 221 MV 66 820 MV 51 820 MV 51 821 MV 51 422 MV 51 222 MV 51 822 600x60 MV 51 110 MV 51 210 MV 51 710 MV 51 123 MV 51 223 MV 51 823 MV 66 403 MV 51 420 MV 51 421 MV 66 203 MV 51 220 MV 51 221 MV 66 820 MV 51 820 MV 51 821 MV 51 422 MV 51 222 MV 51 822 150 x 110 MV 51 110 MV 51 210 MV 51 710 MV 51 123 MV 51 223 MV 51 823 MV 66 403 MV 51 420 MV 51 421 MV 66 203 MV 51 220 MV 51 221 MV 66 820 MV 51 820 MV 51 821 MV 51 422 MV 51 222 MV 51 822 200x110 MV 51 110 MV 51 210 MV 51 710 MV 51 123 MV 51 223 MV 51 823 MV 66 403 MV 51 420 MV 51 421 MV 66 203 MV 51 220 MV 51 221 MV 66 820 MV 51 820 MV 51 821 MV 51 422 MV 51 222 MV 51 822 300x110 MV 51 110 MV 51 210 MV 51 710 MV 51 123 MV 51 223 MV 51 823 MV 66 403 MV 51 420 MV 51 421 MV 66 203 MV 51 220 MV 51 221 MV 66 820 MV 51 820 MV 51 821 MV 51 422 MV 51 222 MV 51 822 400x110 MV 51 110 MV 51 210 MV 51 710 MV 51 123 MV 51 223 MV 51 823 MV 66 403 MV 51 420 MV 51 421 MV 66 203 MV 51 220 MV 51 221 MV 66 820 MV 51 820 MV 51 821 MV 51 422 MV 51 222 MV 51 822 500x110 MV 51 110 MV 51 210 MV 51 710 MV 51 123 MV 51 223 MV 51 823 MV 66 403 MV 51 420 MV 51 421 MV 66 203 MV 51 220 MV 51 221 MV 66 820 MV 51 820 MV 51 821 MV 51 422 MV 51 222 MV 51 822 600x110 MV 51 110 MV 51 210 MV 51 710 MV 51 123 MV 51 223 MV 51 823 MV 66 403 MV 51 420 MV 51 421 MV 66 203 MV 51 220 MV 51 221 MV 66 820 MV 51 820 MV 51 821 MV 51 422 MV 51 222 MV 51 822 NOTE: for the articles also available with 316L stainless steel finish, check the pages of the catalogue. 74 Steel wire cable trays BFR range

CUT TING AND BENDING  EQUIP MENT FOR BFR  WIRE   CABLE TR AY Shears with asymmetric blades AC CESSORIES Earth terminal MV 51 904 MV 51 946 Automatic Speedycurve Identification plate MV 51 943 MV 51 947 FIXING AND SUSPENSION ACCESSORIES Cable tray   dimensions  LxH  (mm) External support for rigid  conduits/junction boxes Wall-mounting bracket/ junction box support Universal supports AISI 304 stainless  steel support  Suspension hanger Lamp support and suspension Z 275 GAC Stainless  steel Z 275 GAC Z 275 GAC Stainless  steel Stainless   steel Z 275 GAC Stainless  steel Z 275 GAC Stainless  steel 50x30 MV 51 101 MV 51 201 MV 51 601 MV 51 130 MV 51 230 MV 51 630 MV 64 670 MV 51 105 MV 51 205 MV 51 605 MV 51 107 MV 51 207 MV 51 607 100x30 MV 51 101 MV 51 201 MV 51 601 MV 51 130 MV 51 230 MV 51 630 MV 64 670 MV 51 105 MV 51 205 MV 51 605 MV 51 108 MV 51 208 MV 51 608 150x30 MV 51 101 MV 51 201 MV 51 601 MV 51 131 MV 51 231 MV 51 631 MV 64 671 MV 51 105 MV 51 205 MV 51 605 MV 51 108 MV 51 208 MV 51 608 200x30 MV 51 101 MV 51 201 MV 51 601 MV 51 132 MV 51 232 MV 51 632 MV 64 671 MV 51 105 MV 51 205 MV 51 605 MV 51 108 MV 51 208 MV 51 608 300x30 MV 51 101 MV 51 201 MV 51 601 MV 51 133 MV 51 233 MV 51 633 MV 64 672 MV 51 105 MV 51 205 MV 51 605 MV 51 108 MV 51 208 MV 51 608 50x60 MV51 101 MV 51 201 MV 51 601 MV 51 103 MV 51 203 MV 51 130 MV 51 230 MV 51 630 MV 64 670 MV 51 105 MV 51 205 MV 51 605 MV 51 107 MV 51 207 MV 51 607 100x60 MV 51 101 MV 51 201 MV 51 601 MV 51 103 MV 51 203 MV 51 130 MV 51 230 MV 51 630 MV 64 670 MV 51 105 MV 51 205 MV 51 605 MV 51 108 MV 51 208 MV 51 608 150x60 MV 51 101 MV 51 201 MV 51 601 MV 51 103 MV 51 203 MV 51 131 MV 51 231 MV 51 631 MV 64 671 MV 51 105 MV 51 205 MV 51 605 MV 51 108 MV 51 208 MV 51 608 200x60 MV 51 101 MV 51 201 MV 51 601 MV 51 103 MV 51 203 MV 51 132 MV 51 232 MV 51 632 MV 64 671 MV 51 105 MV 51 205 MV 51 605 MV 51 108 MV 51 208 MV 51 608 250x60 MV 51 101 MV 51 201 MV 51 601 MV 51 103 MV 51 203 MV 51 133 MV 51 233 MV 51 633 MV 64 672 MV 51 105 MV 51 205 MV 51 605 MV 51 108 MV 51 208 MV 51 608 300x60 MV 51 101 MV 51 201 MV 51 601 MV 51 103 MV 51 203 MV 51 133 MV 51 233 MV 51 633 MV 64 672 MV 51 105 MV 51 205 MV 51 605 MV 51 108 MV 51 208 MV 51 608 400x60 MV 51 101 MV 51 201 MV 51 601 MV 51 103 MV 51 203 MV 51 134 MV 51 234 MV 51 634 MV 64 673 MV 51 105 MV 51 205 MV 51 605 MV 51 108 MV 51 208 MV 51 608 500x60 MV 51 101 MV 51 201 MV 51 601 MV 51 103 MV 51 203 MV 51 135 MV 51 235 MV 51 635 MV 64 674 MV 51 105 MV 51 205 MV 51 605 MV 51 108 MV 51 208 MV 51 608 600x60 MV 51 101 MV 51 201 MV 51 601 MV 51 103 MV 51 203 MV 51 136 MV 51 236 MV 51 639 MV 51 105 MV 51 205 MV 51 605 MV 51 108 MV 51 208 MV 51 608 150 x 110 MV 51 101 MV 51 201 MV 51 601 MV 51 103 MV 51 203 MV 51 131 MV 51 231 MV 51 631 MV 64 671 MV 51 105 MV 51 205 MV 51 605 MV 51 108 MV 51 208 MV 51 608 200x110 MV 51 101 MV 51 201 MV 51 601 MV 51 103 MV 51 203 MV 51 132 MV 51 232 MV 51 632 MV 64 671 MV 51 105 MV 51 205 MV 51 605 MV 51 108 MV 51 208 MV 51 608 300x110 MV 51 101 MV 51 201 MV 51 601 MV 51 103 MV 51 203 MV 51 133 MV 51 233 MV 51 633 MV 64 672 MV 51 105 MV 51 205 MV 51 605 MV 51 108 MV 51 208 MV 51 608 400x110 MV 51 101 MV 51 201 MV 51 601 MV 51 103 MV 51 203 MV 51 134 MV 51 234 MV 51 634 MV 64 673 MV 51 105 MV 51 205 MV 51 605 MV 51 108 MV 51 208 MV 51 608 500x110 MV 51 101 MV 51 201 MV 51 601 MV 51 103 MV 51 203 MV 51 135 MV 51 235 MV 51 635 MV 64 674 MV 51 105 MV 51 205 MV 51 605 MV 51 108 MV 51 208 MV 51 608 600x110 MV 51 101 MV 51 201 MV 51 601 MV 51 103 MV 51 203 MV 51 136 MV 51 236 MV 51 639 MV 51 105 MV 51 205 MV 51 605 MV 51 108 MV 51 208 MV 51 608 NOTE: for the articles also available with 316L stainless steel finish, check the pages of the catalogue. 75

CABLE TRAYS JOINTS FOR   BRN BASES DIVIDER JOINTING PIECES Cable tray  dimensions  LxH (mm) Straight elements Cover Clip for cover Automatic speed-lock Z 275 GAC Z 275 GAC Stainless steel Z 275 GAC Z 275 GAC Z 275 GAC 65x35 MV 40 100 MV 40 200 MV 40 180 MV 40 280 MV 41 601 MV 65 110 MV 65 210 MV 41 110 MV 41 212 95x35 MV 40 101 MV 40 201 MV 40 181 MV 40 281 MV 41 601     MV 65 110 MV 65 210 MV 41 110 MV 41 212 155x35 MV 40 103 MV 40 203 MV 40 183 MV 40 283 MV 41 601     MV 65 110 MV 65 210 MV 41 110 MV 41 212 215x35 MV 40 105 MV 40 205 MV 40 185 MV 40 285 MV 41 601     MV 65 110 MV 65 210 MV 41 110 MV 41 212 305x35 MV 40 108 MV 40 208 MV 40 188 MV 40 288 MV 41 601 MV 65 110 MV 65 210 MV 41 110 MV 41 212 395x35 MV 40 111 MV 40 211 MV 40 191 MV 40 291 MV 41 601 MV 48 151 MV 48 251 MV 65 110 MV 65 210 MV 41 110 MV 41 212 65x50 MV 40 120 MV 40 220 MV 40 180 MV 40 280 MV 41 602     MV 65 111 MV 65 211 MV 41 111 MV 41 213 95x50 MV 40 121 MV 40 221 MV 40 181 MV 40 281 MV 41 602     MV 65 111 MV 65 211 MV 41 111 MV 41 213 155x50 MV 40 123 MV 40 223 MV 40 183 MV 40 283 MV 41 602     MV 65 111 MV 65 211 MV 41 111 MV 41 213 215x50 MV 40 125 MV 40 225 MV 40 185 MV 40 285 MV 41 602     MV 65 111 MV 65 211 MV 41 111 MV 41 213 305x50 MV 40 128 MV 40 228 MV 40 188 MV 40 288 MV 41 602 MV 65 111 MV 65 211 MV 41 111 MV 41 213 395x50 MV 40 131 MV 40 231 MV 40 191 MV 40 291 MV 41 602 MV 48 151 MV 48 251 MV 65 111 MV 65 211 MV 41 111 MV 41 213 515x50 MV 40 135 MV 40 235 MV 40 195 MV 40 295 MV 41 602 MV 48 155 MV 48 255 MV 65 111 MV 65 211 MV 41 111 MV 41 213 95x65 MV 40 141 MV 40 241 MV 40 181 MV 40 281 MV 41 603     MV 65 112 MV 65 212     215x65 MV 40 145 MV 40 245 MV 40 185 MV 40 285 MV 41 603     MV 65 112 MV 65 212     305x65 MV 40 148 MV 40 248 MV 40 188 MV 40 288 MV 41 603 MV 65 112 MV 65 212     395x65 MV 40 151 MV 40 251 MV 40 191 MV 40 291 MV 41 603 MV 48 151 MV 48 251 MV 65 112 MV 65 212     515x65 MV 40 155 MV 40 255 MV 40 195 MV 40 295 MV 41 603 MV 48 155 MV 48 255 MV 65 112 MV 65 212     605x65 MV 40 157 MV 40 257 MV 40 197 MV 40 297 MV 41 603 MV 48 157 MV 48 257 MV 65 112 MV 65 212     125x80 MV 40 162 MV 40 262 MV 40 182 MV 40 282 MV 41 602     MV 65 113 MV 65 213     215x80 MV 40 165 MV 40 265 MV 40 185 MV 40 285 MV 41 602     MV 65 113 MV 65 213     305x80 MV 40 168 MV 40 268 MV 40 188 MV 40 288 MV 41 602 MV 65 113 MV 65 213     395x80 MV 40 171 MV 40 271 MV 40 191 MV 40 291 MV 41 602 MV 48 151 MV 48 251 MV 65 113 MV 65 213     515x80 MV 40 175 MV 40 275 MV 40 195 MV 40 295 MV 41 602 MV 48 155 MV 48 255 MV 65 113 MV 65 213     605x80 MV 40 177 MV 40 277 MV 40 197 MV 40 297 MV 41 602 MV 48 157 MV 48 257 MV 65 113 MV 65 213     ACCESSORIES (BOLTS) Bolt  M6x10 + nut Bolt  M6x14 + nut Bolt  M6x20 + nut Bichro Dachro Bichro Dachro Bichro Dachro MV 66 100 MV 66 200 MV 66 101 MV 66 201 MV 66 403 MV 66 203 Use with MV 66 100 bolts. 76 Galvanised steel perforated cable trays BRN range

Use with MV 66 100 bolts. JOINTING PIECES ROUTING COMPONENTS Horizontal Straight with bolts Pliable with  bolts Rigid with bolts 90° bend Cover for 90° bend 45° bend Cover for 45° bend Z 275 GAC Z 275 Z 275 GAC Z 275 GAC Z 275 GAC Z 275 GAC Z 275 GAC MV 41 120 MV 41 222 MV 41 130 MV 41 120 MV 41 222 MV 42 100 MV 42 200 MV 42 180 MV 42 280 MV 43 100 MV 43 200 MV 43 180 MV 43 280 MV 41 120 MV 41 222 MV 41 130 MV 41 120 MV 41 222 MV 42 101 MV 42 201 MV 42 181 MV 42 281 MV 43 101 MV 43 201 MV 43 181 MV 43 281 MV 41 120 MV 41 222 MV 41 130 MV 41 120 MV 41 222 MV 42 103 MV 42 203 MV 42 183 MV 42 283 MV 43 103 MV 43 203 MV 43 183 MV 43 283 MV 41 120 MV 41 222 MV 41 130 MV 41 120 MV 41 222 MV 42 105 MV 42 205 MV 42 185 MV 42 285 MV 43 105 MV 43 205 MV 43 185 MV 43 285 MV 41 120 MV 41 222 MV 41 130 MV 41 120 MV 41 222 MV 42 108 MV 42 208 MV 42 188 MV 42 288 MV 43 108 MV 43 208 MV 43 188 MV 43 288 MV 41 120 MV 41 222 MV 41 130 MV 41 120 MV 41 222 MV 42 111 MV 42 211 MV 42 191 MV 42 291 MV 43 111 MV 43 211 MV 43 191 MV 43 291 MV 41 120 MV 41 222 MV 41 130 MV 41 120 MV 41 222 MV 42 120 MV 42 220 MV 42 180 MV 42 280 MV 43 120 MV 43 220 MV 43 180 MV 43 280 MV 41 120 MV 41 222 MV 41 130 MV 41 120 MV 41 222 MV 42 121 MV 42 221 MV 42 181 MV 42 281 MV 43 121 MV 43 221 MV 43 181 MV 43 281 MV 41 120 MV 41 222 MV 41 130 MV 41 120 MV 41 222 MV 42 123 MV 42 223 MV 42 183 MV 42 283 MV 43 123 MV 43 223 MV 43 183 MV 43 283 MV 41 120 MV 41 222 MV 41 130 MV 41 120 MV 41 222 MV 42 125 MV 42 225 MV 42 185 MV 42 285 MV 43 125 MV 43 225 MV 43 185 MV 43 285 MV 41 120 MV 41 222 MV 41 130 MV 41 120 MV 41 222 MV 42 128 MV 42 228 MV 42 188 MV 42 288 MV 43 128 MV 43 228 MV 43 188 MV 43 288 MV 41 120 MV 41 222 MV 41 130 MV 41 120 MV 41 222 MV 42 131 MV 42 231 MV 42 191 MV 42 291 MV 43 131 MV 43 231 MV 43 191 MV 43 291 MV 41 120 MV 41 222 MV 41 130 MV 41 120 MV 41 222 MV 42 135 MV 42 235 MV 42 195 MV 42 295 MV 43 135 MV 43 235 MV 43 195 MV 43 295 MV 41 121 MV 41 223 MV 41 131 MV 41 140 MV 41 240 MV 42 141 MV 42 241 MV 42 181 MV 42 281 MV 43 141 MV 43 241 MV 43 181 MV 43 281 MV 41 121 MV 41 223 MV 41 131 MV 41 140 MV 41 240 MV 42 145 MV 42 245 MV 42 185 MV 42 285 MV 43 145 MV 43 245 MV 43 185 MV 43 285 MV 41 121 MV 41 223 MV 41 131 MV 41 140 MV 41 240 MV 42 148 MV 42 248 MV 42 188 MV 42 288 MV 43 148 MV 43 248 MV 43 188 MV 43 288 MV 41 121 MV 41 223 MV 41 131 MV 41 140 MV 41 240 MV 42 151 MV 42 251 MV 42 191 MV 42 291 MV 43 151 MV 43 251 MV 43 191 MV 43 291 MV 41 121 MV 41 223 MV 41 131 MV 41 140 MV 41 240 MV 42 155 MV 42 255 MV 42 195 MV 42 295 MV 43 155 MV 43 255 MV 43 195 MV 43 295 MV 41 121 MV 41 223 MV 41 131 MV 41 140 MV 41 240 MV 42 157 MV 42 257 MV 42 197 MV 42 297 MV 43 157 MV 43 257 MV 43 197 MV 43 297 MV 41 121 MV 41 223 MV 41 131 MV 41 140 MV 41 240 MV 42 162 MV 42 262 MV 42 182 MV 42 282 MV 43 162 MV 43 262 MV 43 182 MV 43 282 MV 41 121 MV 41 223 MV 41 131 MV 41 140 MV 41 240 MV 42 165 MV 42 265 MV 42 185 MV 42 285 MV 43 165 MV 43 265 MV 43 185 MV 43 285 MV 41 121 MV 41 223 MV 41 131 MV 41 140 MV 41 240 MV 42 168 MV 42 268 MV 42 188 MV 42 288 MV 43 168 MV 43 268 MV 43 188 MV 43 288 MV 41 121 MV 41 223 MV 41 131 MV 41 140 MV 41 240 MV 42 171 MV 42 271 MV 42 191 MV 42 291 MV 43 171 MV 43 271 MV 43 191 MV 43 291 MV 41 121 MV 41 223 MV 41 131 MV 41 140 MV 41 240 MV 42 175 MV 42 275 MV 42 195 MV 42 295 MV 43 175 MV 43 275 MV 43 195 MV 43 295 MV 41 121 MV 41 223 MV 41 131 MV 41 140 MV 41 240 MV 42 177 MV 42 277 MV 42 197 MV 42 297 MV 43 177 MV 43 277 MV 43 197 MV 43 297 77 Galvanised steel perforated cable trays

SINGLE ELEMENT ( COUPLING + UPRIGHT + BR ACKE T) “C” OMEGA-TYPE RANGE Description Height (mm) Length (mm) Z 275 GAC Stainless steel 115 95 MV 62 110 MV 62 210 MV 62 610 195 MV 62 111 MV 62 211 MV 62 611 265 MV 62 112 MV 62 212 MV 62 612 215 95 MV 62 113 MV 62 213 MV 62 613 195 MV 62 114 MV 62 214 MV 62 614 “C” OMEGA- TYPE RANGE 265 MV 62 115 MV 62 215 MV 62 615 265 95 MV 62 116 MV 62 216 MV 62 616 195 MV 62 117 MV 62 217 MV 62 617 265 MV 62 118 MV 62 218 MV 62 618 SYSTEM FOR LIGHT LOADS OMEGA RANGE Length (mm) Z 275 GAC Stainless steel UPRIGHT WITH    CEILING C OUPLING OMEGA-type  support 410 MV 62 100 MV 62 200 MV 62 600 510 MV 62 101 MV 62 201 MV 62 601 610 MV 62 102 MV 62 202 MV 62 602 BR ACKE TS OMEGA-type   surface- mounting  bracket 110 MV 60 100 MV 60 200 MV 60 600 210 MV 60 101 MV 60 201 MV 60 601 310 MV 60 102 MV 60 202 MV 60 602 410 MV 60 113 MV 60 213 MV 60 613 510 MV 60 114 MV 60 214 MV 60 614 610 MV 60 115 MV 60 215 MV 60 615 AC CESSORIES BFR   “FILMATIC”  quick fixing  system Z275 finishing: MV 51 100 HP finishing: MV 51 700 Stainless steel finishing: MV 51 800 OMEGA  support/ bracket   fixing   plate BICHRO MV 64 401 Spacer for  assembling  OMEGA brack- ets on Mavistrut  profiles MV 64 105 TRCC bolts  for OMEGA  support M10 X 30 BICHR O MV 66 122 GEOME T MV 66 222 Stainless st eel MV 66 622 M10 X 60 MV 66 123 MV 66 223 MV 66 623 (1) For Mavistrut brackets measuring more than 345mm, use the 41x41 profiles. SYSTEM FOR MEDIUM LOADS CSU RANGE Univ ersal supp or ts Description Length (mm) Z 275 Surface- mounting  support  with incor- porated   wall plug 100 MV 60 170 150 MV 60 171 200 MV 60 172 300 MV 60 174 400 MV 60 175 500 MV 60 176 600 MV 60 177 Description Length (mm) Z 275 GAC 304L   Stainless steel Surface- mounting  support 100 MV 60 180 MV 60 280 MV 60 680 150 MV 60 181 MV 60 281 MV 60 681 200 MV 60 182 MV 60 282 MV 60 682 300 MV 60 184 MV 60 284 MV 60 684 400 MV 60 185 MV 60 285 MV 60 685 500 MV 60 186 MV 60 286 MV 60 686 600 MV 60 187 MV 60 287 MV 60 687 Description Length (mm) Height  (mm) Z 275 GAC 304L   Stainless steel "C" shaped  surface- mounting/ ceiling- mounting  support 100 150 MV 62 150 MV 62 250 MV 62 650 150 150 MV 62 151 MV 62 251 MV 62 651 200 150 MV 62 152 MV 62 252 MV 62 652 300 150 MV 62 154 MV 62 254 MV 62 654 400 150 MV 62 155 MV 62 255 MV 62 655 100 200 MV 62 156 MV 62 256 MV 62 656 150 200 MV 62 157 MV 62 257 MV 62 657 200 200 MV 62 158 MV 62 258 MV 62 658 300 200 MV 62 160 MV 62 260 MV 62 660 400 200 MV 62 161 MV 62 261 MV 62 661 AC CESSORIES Description EZ Z 275 GAC GEOMET Bolts Bolt + nut + 2   washers (HM10X20) MV 66  113 MV 66 213 Bolt + nut +  2 washers  (HM10X80) MV 66  409 MV 66 209 Washer LL 10 MV 66  474 MV 66 274 Fixing block MV 64 153 MV 64 253 78 Fixing supports for cable trays SP range

SYSTEM FOR HEAVY LOADS MAVISTRUT-TYPE RANGE Description Length (mm) EZ GAC CEILING C OUPLING MAVISTRUT support  with welded plate 41 x 29 single 400 MV 81 403 MV 81 203 double 400 MV 81 453 MV 81 253 single 640 MV 81 406 MV 81 206 double 640 MV 81 456 MV 81 256 MAVISTRUT support  with welded plate 41 x 41 single 560 MV 81 415 MV 81 215 double 560 MV 81 465 MV 81 265 single 800 MV 81 418 MV 81 218 double 800 MV 81 468 MV 81 268 single 1040 MV 81 421 MV 81 221 double 1040 MV 81 471 MV 81 271 single 1520 MV 81 427 MV 81 227 double 1520 MV 81 477 MV 81 277 MAVISTRUT flange   for ceiling-mounting single   41x41 - 41x29 MV 64 273 double   41x41 - 41x29 MV 64 274 Description Length (mm) Z 275 GAC UPRIGHT S MAVISTRUT   toothed profile 41 x 29 x 240 MV 65 180 MV 65 280 41 x 29 x 1030 MV 65 171 MV 65 271 41 x 29 x 1990 MV 65 172 MV 65 272 41 x 29 x 3030 MV 65 173 MV 65 273 41 x 41 x 1030 MV 65 174 MV 65 274 41 x 41 x 1990 MV 65 175 MV 65 275 41 x 41 x 3030 MV 65 176 MV 65 276 BR ACKE TS MAVISTRUT quick   plug-in bracket (1) 145 MV 61 100 MV 61 200 245 MV 61 101 MV 61 201 345 MV 61 102 MV 61 202 445 MV 61 103 MV 61 203 545 MV 61 104 MV 61 204 595 MV 61 105 MV 61 205 645 MV 61 106 MV 61 206 Wall brackets 100 MV 61 290 200 MV 61 292 300 MV 61 294 400 MV 61 295 500 MV 61 296 600 MV 61 297 Bracket with flat tang 41x21 150 MV 61 235 200 MV 61 236 300 MV 61 237 400 MV 61 238 Bracket with flat tang 41x41 160 MV 61 247 240 320 MV 61 249 400 MV 61 250 560 MV 61 251 640 MV 61 252 SYSTEM FOR MEDIUM LOADS C40 PLURIEL RANGE Description Length (mm) CODE CEILING C OUPLINGS AND A CCESSORIES MV 64 180 Semi-flange   for ceiling mounting MV 64 181 Connection flange  for double profile MV 64 682 Connection hook  for double profile MV 64 783 PVC protection  terminal UPRIGHT S C40 Pluriel quick  plug-in profiles 200 MV 65 190 500 MV 65 191 1000 MV 65 192 2000 MV 65 193 BR ACKE TS C40 Pluriel quick  plug-in brackets 100 MV 60 190 150 MV 60 191 200 MV 60 192 300 MV 60 194 400 MV 60 195 Z275 finish, except for   MV64682 (304L stainless steel) and MV64783 (PVC) 79

GEWISS S.p.A. Registered office: Via A. Volta, 1 - 24069 CENATE SOTTO (Bergamo) - Italy  Tel. +39 035 946 111 - Fax +39 035 945 222 - [email protected] - www.gewiss.com  Sole Shareholder company - Bergamo Register of Companies / VAT/Tax code (IT) 00385040167 - REA 107496 - Share capital 60,000,000.00 EUR fully paid up. PB 33211 EN - 02.15
