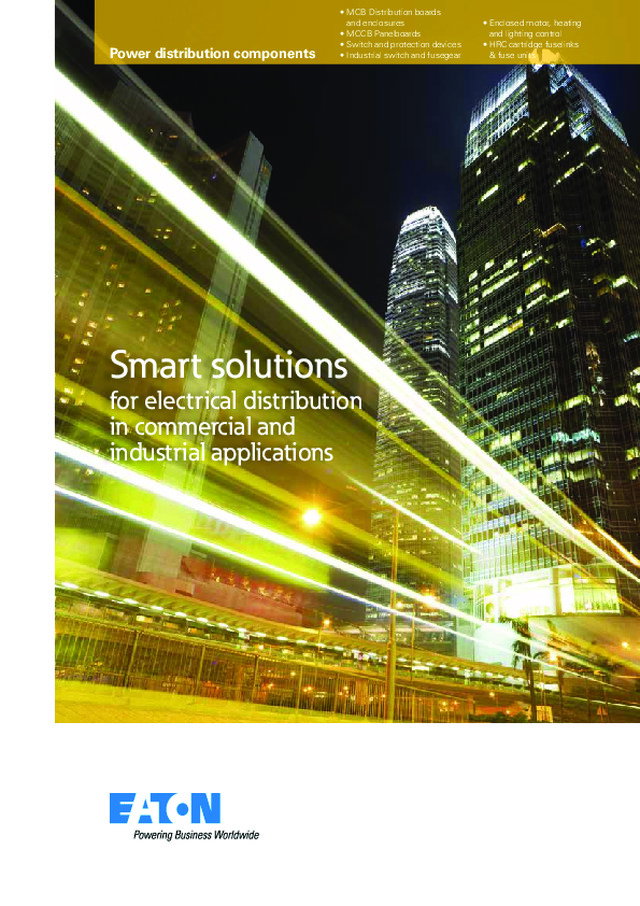

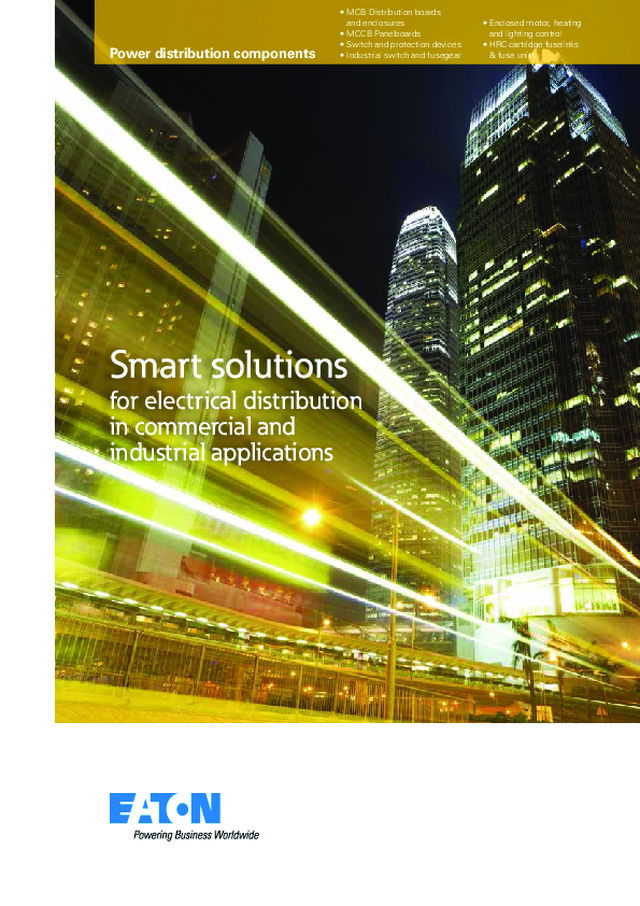

Power distribution components

Eaton

Power distribution components

Published: 30 November 2023 · Category: Product Catalogues & Brochures

From this document

Power distribution components • MCB Distribution boards and enclosures • MCCB Panelboards • Switch and protection devices • Industrial switch and fusegear Smart solutions for electrical distribution in commercial and industrial applications • Enclosed motor, heating and lighting control • HRC cartridge fuselinks & fuse units We make what matters work.* * At Eaton, we believe that power is a fundamental part of just about everything people do. That’s why we’re dedicated to helping our customers find new ways to manage electrical, hydraulic and mechanical power more efficiently, safely and sustainably. To improve people’s lives, the communities where we live and work, and the planet our future generations depend upon. Because this is what really matters. And we’re here to make sure it works. To learn more go to: Eaton.com/whatmatters We make what matters work. 2 POWER DISTRIBUTION COMPONENTS CA014013EN – November 2023 Power distribution components Contents 1 Product overview 4 2 Memshield 3 MCB distribution boards and enclosures 25 3 Distribution board switch and protection devices 40 4 Modular control and switching devices 47 5 Memshield 3 MCCB panelboards 58 6 Memshield 4 MCCB panelboards 88 7 Industrial switch & fusegear 96 8 HRC cartridge fuselinks & fuse units 108 9 Enclosed motor, heating and lighting control 118 9 Technical data 115 Indices 162 POWER DISTRIBUTION COMPONENTS CA014013EN – November 2023 3 1 Product overview Eaton’s comprehensive range of power...
