AFDD Enhanced fire protection, reduces the risk of electrically ignited fires and protects people, property, and assets

Eaton

AFDD Boards and devices

Published: 12 January 2024 · Category: White Papers and technical guides

AFDD Enhanced fire protection, reduces the risk of electrically ignited fires and protects people, property, and assets

From this document

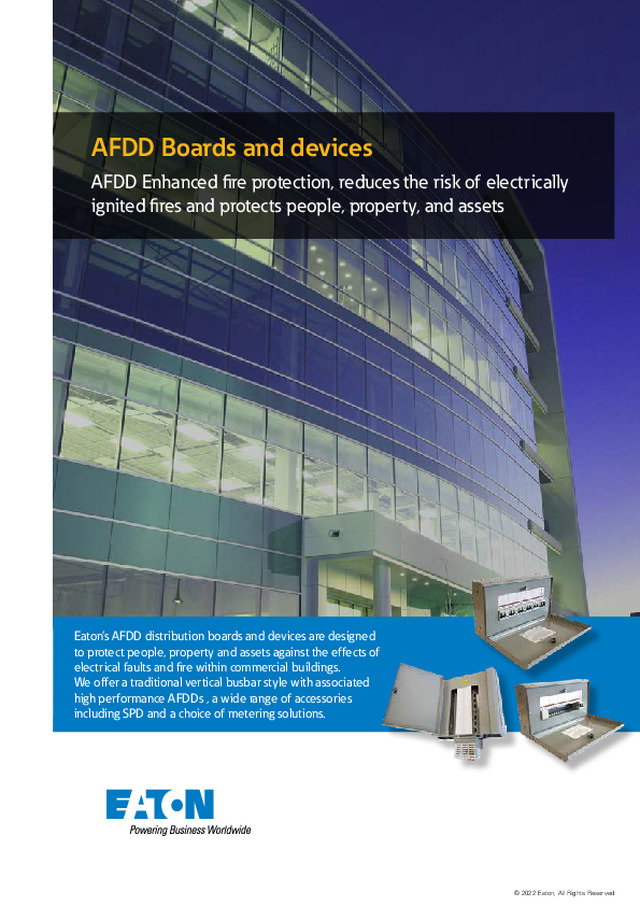

AFDD Boards and devices AFDD Enhanced fire protection, reduces the risk of electrically ignited fires and protects people, property, and assets Eaton’s AFDD distribution boards and devices are designed to protect people, property and assets against the effects of electrical faults and fire within commercial buildings. We offer a traditional vertical busbar style with associated high performance AFDDs , a wide range of accessories including SPD and a choice of metering solutions. © 2022 Eaton, All Rights Reserved SPN Type A board The optimised design for 125A SPN applications provides a choice of dedicated AFDD boards and hybrid AFDD and MCB boards which are all 440mm wide. This allows them to be fitted together and also to be fitted on top of the EBM type B distribution board range. • • • • • Additional boards can be stacked on top of each other using the connection kit EAMCK to achieve the required number of AFDD - MCB ways. Optional metering of a single load - 125A max. Optional metering of a split load - 100A max per channel.125A max. total load. Verified by test to BS EN 61439-3. A wide range of accessories including full profile blanking modules for unused AFDD ways and door locking options. RATING (A) NO AFDD OUTGOING WAYS MCB/RCBO EATON LIST NUMBER ARTICLE NUMBER AFDD Type A SPN Dist board 125 5 0 EAMAFDD5 501200 Hybrid AFDD & MCB Type A SPN Dist Board 125 2 9 EAMAFDD29 501201 Meter Hybrid AFDD & MCB Type A SPN Dist Board 125 2 6 EAMAFDD26M 501202 Split meter Hybrid...
