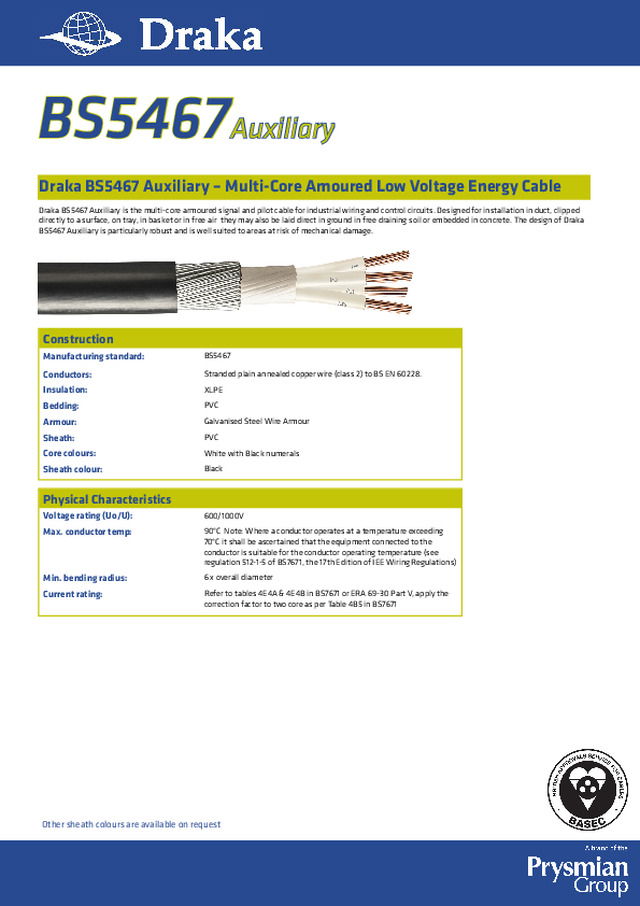

Draka BS5467 Auxiliary – Multi-Core Amoured Low Voltage Energy Cable  Draka BS5467 Auxiliary is the multi-core armoured signal and pilot cable for industrial wiring and control circuits. Designed for installation in duct, clipped  directly to a surface, on tray, in basket or in free air  they may also be laid direct in ground in free draining soil or embedded in concrete. The design of Draka  BS5467 Auxiliary is particularly robust and is well suited to areas at risk of mechanical damage. Construction Manufacturing standard: BS5467 Conductors: Stranded plain annealed copper wire (class 2) to BS EN 60228. Insulation: XLPE Bedding: PVC Armour: Galvanised Steel Wire Armour Sheath: PVC Core colours: White with Black numerals Sheath colour: Black   Physical Characteristics Voltage rating (Uo/U): 600/1000V Max. conductor temp: 90°C  Note: Where a conductor operates at a temperature exceeding  70°C it shall be ascertained that the equipment connected to the  conductor is suitable for the conductor operating temperature (see  regulation 512-1-5 of BS7671, the 17th Edition of IEE Wiring Regulations) Min. bending radius: 6 x overall diameter Current rating: Refer to tables 4E4A & 4E4B in BS7671 or ERA 69-30 Part V, apply the  correction factor to two core as per Table 4B5 in BS7671 BS5467 Auxiliary Other sheath colours are available on request

Nominal  area of  conductor mm² Armour  wire  diameter mm Approx.  diameter  under  armour mm Approx.  overall  diameter mm Approx.  cable  weight kg/km Maximum  conductor  resistance  @ 20°C Ω /km Nominal  area of  armour mm² Maximum  armour  resistance  at 20°C Ω /km 1.5 0.9 10.6 15.1 470 12.1 20 7.5 2.5 0.9 12.5 17.0 600 7.41 24 6.3 4 1.25 13.9 19.3 855 4.61 39 4.0 1.5 1.25 13.8 19.2 760 12.1 39 4.0 2.5 1.25 16.3 22.0 990 7.41 45 3.5 4 1.6 18.7 25.0 1400 4.61 68 2.3 1.5 1.25 16.1 21.7 980 12.1 45 3.5 2.5 1.6 19.6 26.1 1480 7.41 70 2.3 4 1.6 22.0 28.5 1835 4.61 80 2.0 1.5 1.6 19.7 26.2 1425 12.1 70 2.3 2.5 1.6 23.6 30.2 1890 7.41 84 1.9 4 1.6 26.5 33.4 2395 4.61 96 1.7 1.5 1.6 22.1 28.6 1700 12.1 78 2.0 2.5 1.6 36.4 33.1 2290 7.41 94 1.7 Five core 6945XL Seven core 6947XL Twelve core 69412XL Nineteen core 69419XL Twenty-seven core 69427XL Thirty-seven core 69437XL BS5467 Auxiliary Prysmian Group, Chickenhall Lane, Eastleigh, SO50 6YU Sales Telephone 01332 345431 www.drakauk.com Dr ak aBS5467A UX3010 2013 1.5 0.9 9.7 14.2 410 12.1 19 8.2 2.5 0.9 11.3 15.9 510 7.41 22 6.8 4 0.9 12.6 17.4 630 4.61 25 6.2
