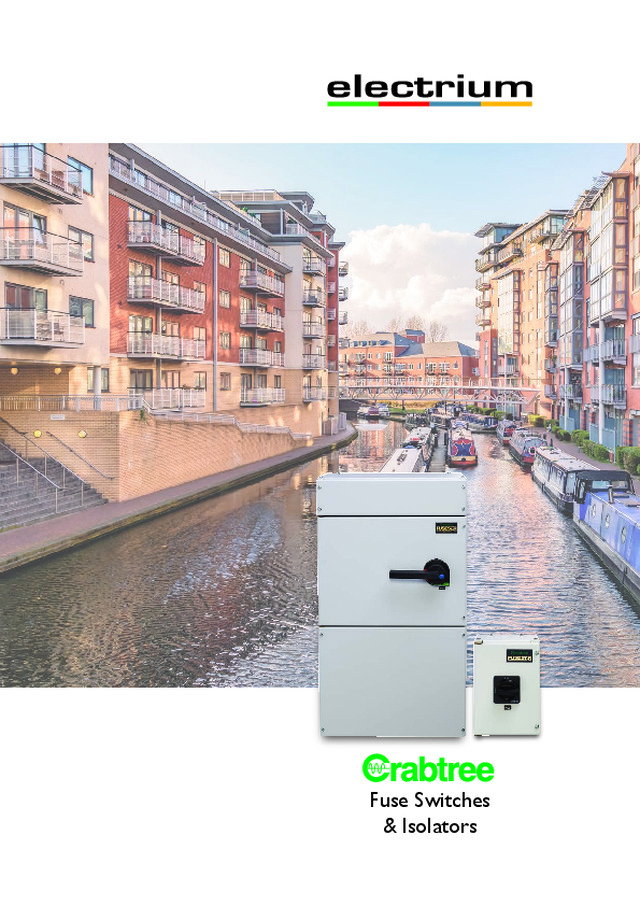

Fuse Switches & Isolators

Crabtree

Fuse Switches & Isolators

Published: 13 October 2022 · Category: Product Catalogues & Brochures

From this document

Fuse Switches & Isolators Electrium Sales Ltd. is a Siemens company, Crabtree is part of Electrium Sales Ltd. CONTENTS Certificate Number 18828 ISO 9001, ISO 14001, ISO 45001 FUSESTAR Switch Disconnectors & Fuse Switches 2 Technical Data & Dimensions 7 2013-RTL-L4-75 2013-RTL-L4-36 Testing Laboratory No. 1460 Testing Laboratory No. 2003 As a leading manufacturer of electrical installation equipment, Crabtree is committed to the continual improvement of all quality assurance procedures and performance. FUSESTAR SWITCH DISCONNECTORS & FUSE SWITCHES Fused Switch Units • BS EN 60947-3 • SP&N units from 20A to 200A • TP&N units from 20A to 800A • Four pole units from 20A to 800A • Fused Short Circuit 80kA RMS • Five frame sizes • Ratings to 125A supplied with fuses • Other ratings fuses not supplied • Cable spreader extension boxes available • Hinged door (180 degree) • Lockable operating switch handle Enclosed Switch Disconnectors • Ratings from 20A to 125A • Choice of TP&N and Four Pole configuration • Large enclosures for ratings from 63 to 125A • Hinged door • Lockable Operating switch handle 2 FUSESTAR HOUSED FUSE COMBINATION UNITS 20A - 100A FUSE COMBINATION UNIT 20A–32A 20A 32A Accessories SP&N supplied TP&N with 4P** 20A fuses SP&N supplied TP&N with 4P** 32A fuses Cable Spreader Box Copper Isolator Link Each Modular width Terminals 20A–32A 16mm2 Max Spreading room up to 10mm2 4 Core * FUSE COMBINATION UNIT 63A–100A 190201NF 190203NF 190204F 190321NF 190323NF* 190324F...
