CUDIS TP&N boards and devices catalogue

Published: 7 November 2025 · Category: Other

From this document

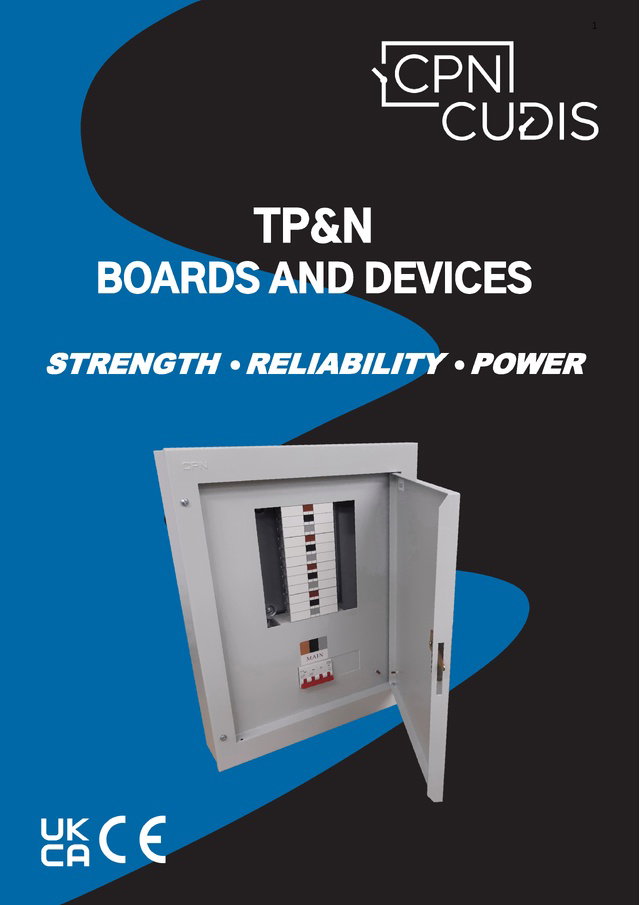

1 TP&N BOARDS AND DEVICES STRENGTH RELIABILITY POWER 2 HOME OF THE ABOUT CPN CUDIS Cudis have been at the forefront of the electrical industry, supporting the trade for over 20 years. Over the years we have created a diverse product portfolio that covers many of the areas required on a general TP&N installation. Cudis understands that being a good supplier means more than just having a good quality product so we offer: • Excellent customer service and technical support • A simplified product offering • Competitive pricing • Marketing and wholesaler event support Description Pages DISTRIBUTION BOARDS 2-5 SPDs 6 RCBOs 7 RCDs 8-10 ISOLATORS 11 LOCKING KITS 11 MCBs 12-14 ROTARY ISOLATORS 15 CONTACTORS 16 ACCESSORIES 17-18 DIMENSIONAL DRAWINGS 19-20 1 INFORMATION SUBJECT TO CHANGE WITHOUT NOTICE, SEE CUDIS TERMS AND CONDITIONS, FOR ADDITIONAL INFORMATION REFER TO THE APPLICABLE STANDARDS [email protected] 0161 989 5636 3 TP&N DESIGN FEATURES Isolator switch (can be changed to a 4 pole RCD, see page 8) • Space for 4 module SPD on DIN Rail • Steel construction • Powder coated • IP30 • Marked drill points • Lockable door and key • Raised DIN rail • Earth and neutral terminal bars • Accessory pack • Single phasing kits offers up to 54 single phase ways (see page 17) • 5 year warranty • UKCA and CE certified • 18th Edition compliant • Conforms to BS EN 61439-3 • 0161 989 5636 2 www.cudis.co.uk 4 HOME OF THE TP&N DISTRIBUTION BOARDS Width = 450mm • Depth = 103mm • IS4125, 125A Main...
