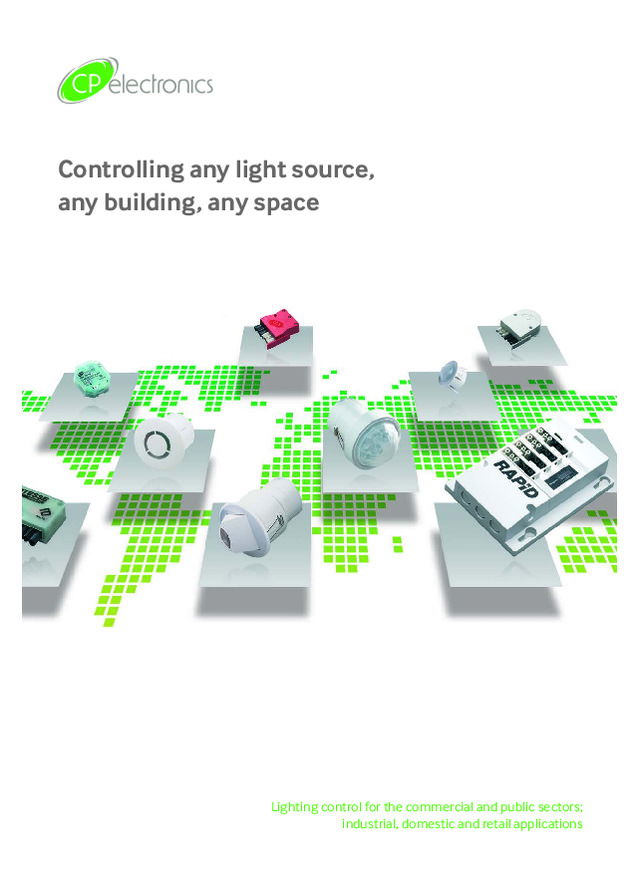

Controlling any light source, any building, any space Lighting control for the commercial and public sectors;   industrial, domestic and retail applications 14256-CP-International-Brochure-16pp.indd   1 07/03/2016   17:59

Energy is a limited resource Around 20% of the world’s electricity is used for lighting. Much of it is wasted. Unoccupied offices, factories and public spaces often remain brightly lit, squandering money and energy. It’s bad for the bottom line – and the environment.  Yet there is a solution. Innovation and quality – bar none At CP Electronics, we’re making an international reputation for delivering energy saving controls.  With our commitment to innovation, we hold a number of patents. We have a relentless focus  on quality and reliability. Any light source, any building, any space From a sports stadium to a CEO’s boardroom – we work with both private companies and public sector organisations. Our UK-based production team works to high quality standards, using advanced production techniques. We’re so confident of our quality and testing regime that we offer a five year warranty across the range. Our products are backed by dedicated sales, aftersales and technical support teams: on site,  on the phone and online. The 2015 Paris Agreement focused the eyes of world leaders on climate change. But the reality is that wasting energy costs us all. CP Electronics –  A Leading Force in Lighting Controls 14256-CP-International-Brochure-16pp.indd   2 07/03/2016   17:59

Technical Services CP Electronics Technical Services division delivers unrivalled levels of support to customers during specification, installation, commissioning and maintenance. This ensures the best use of lighting control for the end user. Technical Services provides a comprehensive commissioning service which can include on-site presence and a dedicated handover experience. Maintenance protects the customer’s investment and gives peace of mind, and a scheme that fits their needs exactly. If required, CP Electronics provides a tailor-made contract which offers further flexibility. CP Electronics Technical Services shares structured information through training modules on all its technology by updating customers continuously  on product development and legislation. Our Brands  CP Electronics builds upon a reputation as an established leader in energy saving lighting controls. Vitesse Modular™ is a modular pluggable lighting connection  solution that is available in switching and dimming variants. Our flagship range of programmable energy saving controls,  systems and connection products for lighting, heating   or ventilation. Our off-the-shelf range of easy to fit energy saving controls   and connection products for lighting, heating or ventilation. Vitesse Plus is a seven-channel stand-alone lighting control  system – it incorporates an inbuilt preset menu that makes  configuration and maintenance quick and easy. D-Mate ®  provides a cost effective four scene setting system   with all the benefits of energy saving control. A robust range of wireless devices for a wide range of  applications. An-10 ®  has full scene functionality and is  programmable from a intuitive infrared handset. The fully addressable and networkable lighting control solution.  RAPID works with multiple protocols such as DALI and DSI for  seamless communication between switching devices. 14256-CP-International-Brochure-16pp.indd   3 07/03/2016   17:59

4 Visit  www.cpelectronics.co.uk for further product information. Pembroke College, Oxford University, UK Brief:  Provide easy and accurate  light level adjustment for multi-purpose lecture theatre.  Product solution:   Implement RAPID fully addressable control with EBDSPIR-PRM compact  PIR detectors. Speedo headquarters, Nottingham, UK Brief:  To implement energy efficiency throughout the offices and key circulation areas. Product solution:  Installation of Vitesse Plus and Vitesse Modular systems with presence detection and daylight linking. We also incorporated an SELV module plug-in dimming control or DSI or DALI ballasts in selected rooms. Application Focus – Global Projects & Sector Coverage Amazon distribution warehouse, Staffordshire, UK Brief:  To install two large warehouse sites with manual control and wireless switches over 700,000 sq.ft. of mixed use space. Product solution:  Implementation of RAPID,  837 wireless PIRs and  EBDSPIR-AT-DD-HB for  the main warehouse space. Winyu House, new government offices, Canberra, Australia Brief:  Provide a product designed  to allow the installer maximum flexibility and reduced installation time. Product solution:  Incorporation of 400 EBDSPIR-KNX compact ceiling mounted PIR detectors. Courtesy:  mysmartcti.com.au Winyu House Speedo Amazon Pembroke College D A L I 14256-CP-International-Brochure-16pp.indd   4 07/03/2016   17:59

5 Visit  www.cpelectronicscorporate.com for company information. AVRO/TROS, Netherlands Brief:  Design a lighting system that is fully automatic and operational at all times. Product solution: Implement RAPID with DALI control system for switching and dimming. Infrared handsets combined with scene panels offered flexibility, with a central touchscreen for lighting, blinds and door position indication. Courtesy:  Eleqtron Projects, Netherlands eleqtron.nl ‘The Cheesegrater’ Leadenhall Street, London, UK Brief:  DALI dimming, occupancy control, absence detection, individual room control, daylight linking and scene setting throughout one floor. Product solution:  An-10 wireless lighting control used throughout project. Rolex UK headquarters, Kent, UK Brief:  To install DALI control with full head end and miniature PIRs. Product solution:  Implement RAPID fully addressable control with EBMHS miniature PIR detectors. Farmers distribution centre, New Zealand Brief: To incorporate energy efficient controls to bring the old building up to new energy efficiency standards. Product solution:  Stand-alone EBDHS high bay PIR detectors with 20 metre range and DALI dimming. Courtesy:  intelligentenvironments.co.nz Cheesegrater Rolex AVRO/TROS Farmers distribution centre D A L I D A L I D A L I D A L I 14256-CP-International-Brochure-16pp.indd   5 07/03/2016   17:59

6 Visit  www.green-i.co.uk for further product information. green-i Off-the-Shelf Easy-to-Fit Presence Detectors Flush mounted PIR presence detector – GEFL   Movement sensor   auto on/auto off   Works with any type   of lamp   Switches any type   of load   Lux level sensing   Adjustable timer 2.8m 6m high   sensitivity   low Flush mounted PIR push button presence detector – GEFL-PB   Movement sensor   auto on/auto off   Works with any type   of lamp   Switches any type   of load   Lux level sensing   IP40 rating   Adjustable timer   Push button 2.8m 6m high   sensitivity   low Surface mounted PIR presence detector – GESM   Movement sensor   auto on/auto off   Switches any type   of load   Lux level sensing   IP54 rating   (with gasket)   Adjustable timer   Push button high   sensitivity   low 2.8m 7m Batten mount PIR presence detector – GIMB   Movement sensor   auto on/auto off   Works with any type   of lamp   Switches any type   of load   IP65 rating   Batten mounted high   sensitivity   low 2.8m 7m PIR Presence Detectors 14256-CP-International-Brochure-16pp.indd   6 07/03/2016   18:00

7 Visit  www.cpelectronics.co.uk for further product information. Programmable Presence Detectors On selected models. Please call for details. Programming handsets A range of handsets that are designed to allow the user to intuitively program a single device or system. Ranging from the UHS5 that allows for simple programming, to UNLCDHS that offers programming of all available parameters. UHS5 UNLCDHS ●   Switching, DALI Dim & Analogue Dim versions ●   Presence detection ●   Switching with lux  level sensing ●   Dimming functionality ●   Scene setting and recall ●   Maintained illuminance ●   Control up to 20  dimming ballasts Compact ceiling mounted PIR presence detectors – EBDSPIR 2.8m 7m high   sensitivity   low High Bay PIR presence detectors – EBDHS ●   Suitable for high bay applications ●   Switching, DALI Dim & Analogue Dim versions ●   Presence/absence detection ●   Switching with lux  level sensing ●   Dimming functionality ●   Scene setting and recall ●   Maintained illuminance ●   Control up to 20  dimming ballasts 15m 40m high   sensitivity   low Miniature PIR presence detectors – EBMHS ●   Miniature detector ●   Switching, DALI Dim & Analogue Dim versions ●   Suitable for luminaire integration ●   IR programmable ●   Power supply options 2.8m 9m high   sensitivity   low Batten mount PIR presence detectors – EBMPIR-MB ●   Batten mount retrofit solution ●   Integrated power supply ●   IP65 rated ●   Suitable for a wide range  of luminaires ●   Supplied with comprehensive fitting kit ●   1,000mm lead length 2.8m 7m high   sensitivity   low PIR Presence Detectors 14256-CP-International-Brochure-16pp.indd   7 07/03/2016   18:00

8 Visit  www.cpelectronics.co.uk for further product information. Programmable Presence Detectors ●   Switching, DALI Dim & Analogue Dim versions ●   Adjustable detection sensitivity ●   Programmable via  IR handset ●   IP40 ●   Various regional frequencies ●   Control up to 20  dimming ballasts Low profile microwave presence detector – MWS3A 2.8m 12–16m high   sensitivity   low ●   Presence detection ●   Easily setup using the UHS5 infrared handset ●   IP66 rated enclosure ●   Detection range of up  to 30 metres ●   Suitable for heating and ventilation applications   Moisture-proof wall mounted microwave presence detector – MWS1A-IP 2.8m 10m high   sensitivity   low ●   Switching, DALI Dim & Analogue Dim versions ●   Miniature microwave detector ●   Surface, flush and  panel mounting ●   Programmable via  IR handset ●   IP40 ●   Various power supply options ●   Control up to 20  dimming ballasts Compact microwave presence detector – MWS5 2.4m 8m high   sensitivity   low Adjustable head microwave presence detector – MWS3A ●   Switching, DALI Dim &  Analogue Dim versions ●   Adjustable detection head ●   Absence detection switching ●   Adjustable detection sensitivity ●   Programmable via IR handset ●   Integral relay to reduce parasitic power ●   Maintained illuminance 2.6m 6m 30m high   sensitivity   low Microwave Presence Detectors On selected models. Please call for details. Programming handsets A range of handsets that are designed to allow the user to intuitively program a single device or system. Ranging from the UHS5 that allows for simple programming, to UNLCDHS that offers programming of all available parameters. UHS5 UNLCDHS 14256-CP-International-Brochure-16pp.indd   8 07/03/2016   18:00

9 Visit  www.cpelectronicscorporate.com for company information.   Presence Detectors CP Electronics brings its extensive functionality to KNX, the worldwide standard for unifying all communication between intelligent devices that light, heat and ventilate homes and buildings. Key features: ●   Presence detector, either PIR or microwave ●   Absence detection ●   Walk test LED ●   Light level sensor ●   Two ELV switch inputs ●   Infrared remote control sensor to facilitate control of lighting ●   User-configurable logic functions and timers Configuration of devices on the KNX bus takes place via the standard ETS software application, allowing all aspects of the presence detector’s behaviour to be configured and controlled. Low Temperature Presence Detectors EBDHS-KNX MWS3A-KNX EBDSPIR-KNX MWS6-KNX KNX Presence Detectors | Minus30 Presence Detectors EBDHS-MB-LT30 EBMPIR-MB-LT30 EBDSPIR-LT30 EBDHS-LT30 The CP Electronics Minus30 range of cold storage lighting controls is specifically designed for the cold storage and refrigeration sector, following rigorous testing in climatic chambers and on-site. 14256-CP-International-Brochure-16pp.indd   9 07/03/2016   18:00

10 Visit  www.cpelectronics.co.uk for further product information. Economical Scene  Setting and Energy  Control D-Mate ®  provides a cost effective scene setting system with   all the benefits of energy saving control. It is fully modular and integrates perfectly with CP Electronics presence detectors and other switching devices such as scene plates – all designed by CP.  Users also benefit from intuitive infrared control handsets which strengthens the overall value offering of D-Mate. Lighting Connection  System Vitesse Modular ™  is a simple, pluggable solution that can  be used in a variety of applications. Its modular design can be easily adapted for layout changes, future connectivity and control requirements. It is available in either switching or dimming variants. Vitesse Modular ™  Lighting Connection System D-Mate ®  Lighting Control System 2.   Presentation:    Luminaires off, downlights dimmed and lights near screen off. 4.  Informal event:   Luminaires off and downlights on. 1.   Meeting:    All luminaires and downlights on. 3.  Hot desk working:  Luminaires on, with left and right downlights dimmed. Switching Dimming Ease of fixing Channel nut mounting Marco clip mounting Slab mounting Drop rod mounting Four possible scene settings Connection module Starter module Extender module Extender module 4 pole 6 pole 14256-CP-International-Brochure-16pp.indd   10 07/03/2016   18:00

11 Visit  www.cpelectronicscorporate.com for company information.  Vitesse Plus   Lighting Control System Fixed Layout Lighting Control System Simple presets allow you to configure and reconfigure spaces quickly and easily.  Vitesse Plus is a seven channel lighting control system with a difference – it incorporates  an inbuilt preset menu that makes configuration and maintenance even easier than before.  It offers the ideal stand-alone solution for a wide variety of applications. Key features: ●   Twelve outputs ●   Seven channels ●   Graduated dimming ●   Four RJ45 inputs ●   Scene setting ●   SELV switch inputs Education Graduated dimming and scene setting make Vitesse Plus perfect for education spaces. Commercial Perfect stand-alone solution for small to medium sized spaces. Retail Vitesse Plus is an adaptable and intuitive system ideal for the changeable retail model. Detector lead Supply leads to luminaire Permanent supply (230V) 14256-CP-International-Brochure-16pp.indd   11 07/03/2016   18:00

12 Visit  www.cpelectronics.co.uk for further product information. RAPID Lighting Control System Switching /dimming devices Switched, DSI/DALI broadcast or analogue DALI addressable Area controller modules User interfaces Presence detectors Reporting and monitoring options An-10 Volt-free  contact for fan coils, etc Volt-free  contact for fan coils, etc Mini PIR Mini PIR PIR  PIR Microwave Switch interface User handset Scene plate Area controller Area controller RS232 Area Controller An-10 wireless  gateway module Switched and DALI pluggable module   Switched, DALI/DSI  broadcast or analogue  pluggable 8 channel module  with 2–4 output module   Switched, DALI/DSI  broadcast or analogue  5 channel  DIN rail module   Switched  single channel  DIN rail module   Switched or DALI/DSI broadcast compact  in-line module   Switched and DALI DIN rail module LCM, LMS     Compact in-line  addressable module   Remote monitoring (off-site support /maintenance) Open  systems  gateway   BACNET   Energy measurement & emergency  monitoring   Energy measurement & emergency  monitoring   Front  end  reporting   Up to 30 addresses in total Up to 64 addresses in total Up to 64 addresses in total Volt-free  contact for fan coils, etc Broadcast DALI/DSI,  switching 3 channel  pluggable module   Volt-free  contact for fan coils, etc Network to other floors Fully Addressable Lighting  Control System 14256-CP-International-Brochure-16pp.indd   12 07/03/2016   18:00

13 Visit  www.cpelectronicscorporate.com for company information. RAPID Lighting Control System Switching /dimming devices Switched, DSI/DALI broadcast or analogue DALI addressable Area controller modules User interfaces Presence detectors Reporting and monitoring options An-10 Volt-free  contact for fan coils, etc Volt-free  contact for fan coils, etc Mini PIR Mini PIR PIR  PIR Microwave Switch interface User handset Scene plate Area controller Area controller RS232 Area Controller An-10 wireless  gateway module Switched and DALI pluggable module   Switched, DALI/DSI  broadcast or analogue  pluggable 8 channel module  with 2–4 output module   Switched, DALI/DSI  broadcast or analogue  5 channel  DIN rail module   Switched  single channel  DIN rail module   Switched or DALI/DSI broadcast compact  in-line module   Switched and DALI DIN rail module LCM, LMS     Compact in-line  addressable module   Remote monitoring (off-site support /maintenance) Open  systems  gateway   BACNET   Energy measurement & emergency  monitoring   Energy measurement & emergency  monitoring   Front  end  reporting   Up to 30 addresses in total Up to 64 addresses in total Up to 64 addresses in total Volt-free  contact for fan coils, etc Broadcast DALI/DSI,  switching 3 channel  pluggable module   Volt-free  contact for fan coils, etc Network to other floors Our most advanced system just became better. RAPID is fully addressable and networkable, combining state-of-the-art technology and modular mechanics, with an easy to use graphical interface. It meets the most demanding lighting control and energy management applications, without the cost and complexity of other systems. Together with our new patented Energy Measurement Technology, RAPID is the complete lighting control solution. With the help of  our system partners, we can provide a full turnkey design and commissioning service. 14256-CP-International-Brochure-16pp.indd   13 07/03/2016   18:00

14 Visit  www.cpelectronics.co.uk for further product information. An-10 ®  Wireless Lighting Control System Switch input unit ●   Up to 7 volt-free inputs for use with standard or custom-made  switch/button plates. ●   Simple configuration presets for typical scene selection and raise/lower operation. Advanced set up features for master override selection, etc. ●   Powered by internal long life battery or optional external 12V supply. ●   Easy programming; record, save and recall settings  using macros. Professional commissioning handset (UNLCDHS) Slim-line ballast controllers ●   Switched or dimmable control of  DALI/DSI or 1–10V ballasts. ●   Available as a stand-alone unit or  built-in unit for integration into  third party luminaires. Wireless Lighting Control An-10 ®  allows you to install a fully featured lighting control   system easily and with minimal disruption. 14256-CP-International-Brochure-16pp.indd   14 07/03/2016   18:00

15 Visit  www.cpelectronicscorporate.com for company information. An-10 ®  Wireless Lighting Control System Vitesse Modular™  switching modules ●   Allows An-10 to work with  the Vitesse Modular lighting connection system. ●   Simple plug-in design, available in both switched and dimming versions.  ●   System can be easily adapted for layout changes and expansion. RAPID – An-10 gateway ●   Allows integration between An-10 and RAPID fully addressable  control system. ●   The occupancy sensor and the lux level sensor in an An-10 detector can also be used to control multiple outputs in other detectors, An-10 slim-line ballast controllers and Vitesse Modular modules via the wireless system. PIR and microwave presence detectors 14256-CP-International-Brochure-16pp.indd   15 07/03/2016   18:00

PM -IN TE RN AT IO N A L-B RO C H U RE     1 42 56 Bro ch ur e by Mic ro G ra ph ix CP Electronics Ltd.Brent CrescentLondonNW10 7XRUnited Kingdom t.  +44 (0)333 900 0671 f.  +44 (0)333 900 0674 [email protected] connect with us   Visit www. cpelectronics.co.uk for further product information,    or www. cpelectronicscorporate.com for company information. 14256-CP-International-Brochure-16pp.indd   16 07/03/2016   18:00
