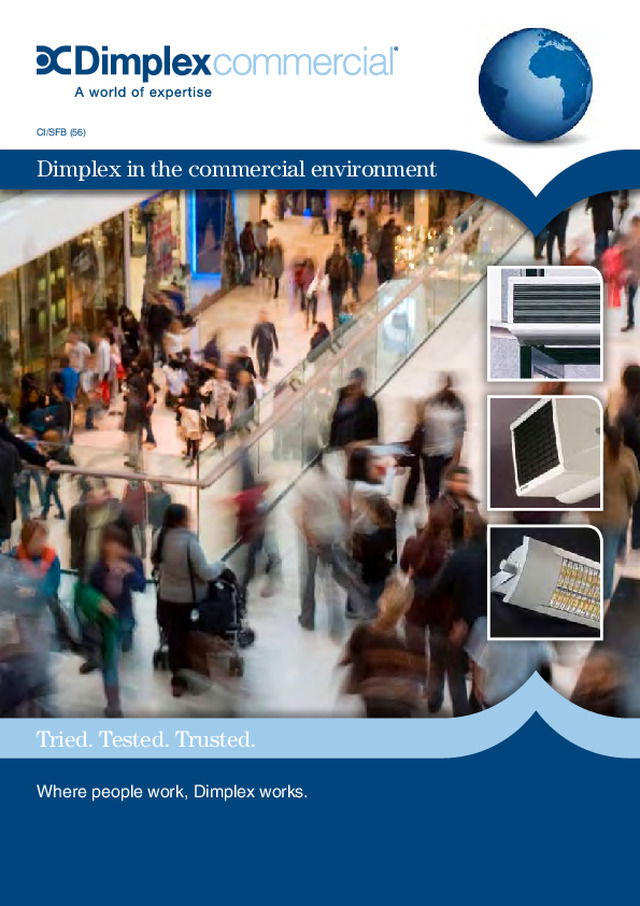

Tried. Tested. Trusted. Dimplex in the commercial environment Where people work, Dimplex works. CI/SFB (56)

Dimplex Commercial Range Tried. Tested. Trusted. With over 60 years of innovation and experience, Dimplex is established  as a world leader in energy efficient heating solutions. For over 60 years, Dimplex has built  its portfolio to the point where it is now  the brand leader in electric heating, offering a selection of over 700 products within the electric space heating  sector alone – the widest in the world. Its growth can be attributed to a public who found affordable heating solutions that proved to be efficient, reliable and durable, as well as attractively designed. •   Tried and trusted by installers,  specifiers and end users alike •   The world’s largest electric heating  appliance manufacturer •   A proud reputation for continued  investment in quality and innovation •   Backed by an award winning   customer services team •   Trade association membership:   ECA, EDA, BEAMA and HEVAC •   Over 60 years of continued innovation •   Over 45 million heaters sold via the  trade in the UK alone  •   Part of the multinational Glen   Dimplex Group With Dimplex, trust is built-in. Support At Dimplex, our aim is to support all our customers in their purchasing journey from pre-purchase through to after sales if required. As a result we can offer: Pre-sales Technical Guidance Our team can advise on product specification for commercial  projects large and small, with product data available  either directly or via our website. Dedicated sales team Our sales team are divided into project and distribution focused teams so that they understand the needs of customers in different markets. Reassuringly   a member of all  relevant industry  associations dimplex.co.uk/commercial 2

Dimplex Commercial Range After sales service Should you have a problem with one of  our products, our award winning customer services team is on hand to give you  advice over the telephone. Website As well as the very latest product details,  our website is packed full of information  to help you find the right product solution.  Key features include:  •   Help Me Choose Selector If you don’t know which heater to choose, answer a few simple questions and get  a list of our most suitable products •   On-line Calculator Ideal if you need to know how much heat you need for a room or even a whole building •   Installation and Operating Instructions Designed to help you get the best from  your Dimplex heaters www.dimplex.co.uk/commercial Contents Wherever people work, rest or play 4 – 5 Tried and tested solutions 6 – 7 Air curtains How they work 8  Key features 9 The AC surface mounted range 10 The AC recessed range 11 The CAB surface mounted range 12 The CAB recessed range 13 The ARC architectural range 14 – 15 The DAB surface mounted range 16 The DAB recessed range 17 The IAB industrial range 18 Renewable heating Overview of the Dimplex   Renewable Solution 19 Commercial fan heating How they work 20 Key features 21 The PFH compact range 22 The CFP and CFS ranges 23 The CFH high power range 24 The CFCH control system 25 Radiant heating How they work 26 Range options and sizing 27 The QXD radiant range 28 The CXD ceramic range 29 The OPH outdoor range 30 Other heaters The WF fan convector range 31 The HAW air warmer range 32 The Electricaire warm air system 33 Dimensions and loadings Dimensions and loadings 34 – 38 Commercial heating selection guide 39 Great    website dimplex.co.uk/commercial 3

Dimplex Commercial Range DIMPlEX WORKS Wherever people work, rest or play A Greener Future With the need to reduce carbon  emissions hitting the headlines almost  on a daily basis, it’s good to know that  at Dimplex finding solutions to this problem is at the heart of our products, present and the future. legislation in the form of the European Performance of Buildings Directive  (EPBD) which seeks to reduce carbon emissions from buildings, combined with the knowledge that over 40% of the carbon emissions in the EU come from the building stock, means it’s important to ensure  both buildings and the services within,  the heating, air conditioning and ventilation systems are designed and installed to  give energy efficient performance. Products and solutions for today  and tomorrow At Dimplex, we are acutely aware of the need to create products that are not only good to look at, easy to operate and economic to run, but also help minimise energy wastage. For example, our range of air curtains combine powerful fan performance to create a barrier between internal and external areas thereby lowering heat losses, whilst sophisticated controls reflect door usage patterns through the doors – intelligently regulating output accordingly. However, the onus for improving the efficiency of products extends beyond the working environment into the way  we live. The Energy-related products Directive (ErP) further encourages good product design, the use of recyclable materials in production and the need  to eradicate product features that needlessly consume energy – like the stand-by switch on TVs and other electrical equipment.  Importance of control  Our designs always consider appropriate levels of control which preserve simplicity of operation, yet maintain close control to reflect usage patterns and guard against wasted energy use.  Our commercial and industrial fan heater ranges cover a wide range of potential applications from small workshops to  large warehouses where simplified  local controls placed close to the user  for frequent adjustment over output is required, through to large installations where a central control system can be  dimplex.co.uk/commercial Where people w ork,  Dimple x works 4

Dimplex Commercial Range Building Regulations  In the UK building regulations set  out the minimum standards and in particular, when it comes to heating  in the commercial sector, it’s Part l2, which covers new build and refurbishment. Part l sets challenging targets for the fabric of the building and the equipment used and importantly, requires a holistic approach with the whole building looked at as part of the compliance process, rather than just the building services once the structure is in existence. It’s this change of approach, coupled with a number of proposed updates which shows the emphasis is squarely on a process that leads to a zero carbon goal in 2019 for all commercial buildings. However, these regulations are not the only factor affecting businesses today. Other government initiatives include the Energy Performance Certificate which is issued to buildings when sold, leased or rented and highlights the structure’s carbon performance, and, for public buildings, there is a requirement for  a Display Energy Certificate that must be prominently positioned for all  to see. In addition many commercial organisations are now pressing ahead by requesting BREAAM excellent ratings that show best practice as  a method of gaining an advantage  in the commercial sector too. The government’s Carbon  Reduction Commitment Energy Efficiency Scheme (CRC EES) seeks to emphasise the need to reduce carbon output through taxation,  whilst the Renewable Heat Incentive (RHI), Feed-in Tariffs (Fits) and Green  Deal initiative all encourage the take-up of new technologies in the commercial sector. timed and placed under lock and key  and the heating needs can be predicted, thereby keeping a better check on  energy use. The importance of the correct  heating method The Dimplex range doesn’t just reflect  the need to heat the air within a building space, there are many applications where this method is inappropriate due to the building structure or the activities carried out within. It’s in these environments that radiant heaters which transmit energy  as short-wave infra-red are ideal and are highlighted as appropriate heaters within the building regulations too. Dimplex radiant heaters create a smaller zone  of heat within a larger building space.  Here, the heaters heat the subject without energy wasted to the surrounding air  and can be further enhanced by fitting  a PIR activity sensor to give a very effective yet efficient solution. Renewable solutions An increasingly important component  of realising the goal of reduced CO 2    is the need to continue to develop  and implement new technologies. With the government's strategy to meet 15% of UK heat requirements from renewable sources by 2020, there has never been a better time to consider new technologies, made all the more attractive with grants like the Renewable Heat Incentive scheme (RHI) or Feed-in Tariffs (Fits) for localised electricity generation. Dimplex has a comprehensive range of renewable products designed for space heating, water heating and for electricity generation. There are ground, air or water source heat pumps, solar thermal hot water heating systems in addition  to a comprehensive range of solar photovoltaic (PV) systems, all designed to provide the best possible performance in a variety of commercial settings.  dimplex.co.uk/commercial Where people w ork,  Dimple x works 5

Dimplex Commercial Range With over 60 years’ experience,  Dimplex has provided heating,  air movement and hot water  solutions for commercial installations, large and small, across the country.  And as you would expect from the market leader we are experienced in working with architects, developers, contractors and builders to provide solutions to suit each installation. Here is a brief overview of a few installations we have completed. Tried and tested solutions Extra MSA Services Ltd Extra MSA Services ltd uses the  CAB air curtain range at a number of  its service areas to keep out the noise, pollution, dust and cold draughts of  the motorway.  The automatic doorways at these sites are open for much of the day, but the services benefit from the flexibility of the modular air curtains, using both 1m and 1.5m long units fitted in pairs, to cover doorways ranging in size up to 3m wide. Giraffe Restaurant Giraffe is a funky restaurant chain  offering everything from breakfast to late-night cocktails, so the atmosphere requires high levels of hygiene as well  as needing to continually feel fresh.  In the Milton Keynes restaurant,  Giraffe selected a CAB15E air curtain  to keep out draughts and pollutants,  and to match the fun interior design,  the unit was bespoke powder coated  to a fawn colour. Kingsway Hall Hotel There’s a warm reception for visitors to the prestigious Kingsway Hall Hotel in london’s Covent Garden, with the installation of  a Dimplex ARC architectural air curtain  that helps prevent draughts from frequently opening doors. The two metre high doors open into the main reception and adjacent busy bar area, so draughts, particularly on cold days,  were recognised as a particular problem requiring a specialist solution. A stainless steel Dimplex ARC architectural air curtain was selected and installed over the doorway to meet the exacting specifications. The Outlet Jaeger, Pilot, Julian Graves and Regatta are among the well known brand names  at Belfast’s The Outlet designer shopping centre that have chosen Dimplex CAB  and DAB air curtains to provide an invisible barrier of air to keep either warm or cold  air in when doors are frequently opened.  The shopping centre attracts high footfall from a wide catchment and many of the stores needed assistance to improve indoor air quality, minimise draughts  and dust and maintain a warm welcome within the store.  Giraffe interior A small selection    of happy clients  - more on the  website dimplex.co.uk/commercial Tried and tested solutions 6

Dimplex Commercial Range Travelodge Hotel A new 53 bedroom Travelodge in Devizes, Wiltshire was fitted with Dimplex air source heat pumps to help meet Building Regulations and Merton Rule criteria.  The new £2.6million Travelodge had three Dimplex lA 28 AS air source heat pumps installed to pre-heat domestic hot water for the hotel. The freestanding units have a flow temperature up to 55 degrees Celsius and are designed for outdoor installation with a powder-coated metal casing to withstand the British climate, making them ideal for specification  where internal space is limited. Dune Shoe Shop For a trendy Dune shoe shop in South Molton Street, london, time and flexibility in fitting a new air curtain were of the essence, as the installation was during the busy Christmas shopping season,  so it had to be installed overnight to  allow for normal trading the next day. Dimplex was specified for the air curtains as no other manufacturer’s product offers the dual flexibility option of recessed or surface mounting from one single model. The retail designer had specified the doorway width and a Dimplex CAB  unit was selected to give the best coverage of the entrance. Healthy Living Centre Heralded locally as a flagship demonstration of how green technologies can be used to the benefit of a whole community, the new £8m Healthy living Centre in Staveley, Derbyshire has installed Dimplex ARC architectural air curtains as part of an extensive list of energy saving measures. These bespoke air curtains were the ideal choice for this project as they provide a rare combination of designer looks and energy saving performance that complements the renewable technologies employed whilst being colour matched to the building too. Fawley Power Station Electric heating from Dimplex has been selected to help keep a major south coast power station running, with a selection of industrial fan heaters, panel convectors and radiant heaters making sure workers are comfortable year-round. Electric heating is a good choice for an industrial installation like Fawley, as it brings no fuel storage worries. In addition, maintenance requirements are very  much lower and less complicated than appliances running on other fuels. Oxford University When an Oxford University college needed to improve comfort levels in  a hard-to-heat dining hall, Dimplex’s commercial heating experts came  up with an efficient solution to keep students warm year-round. By combining a fast warm-up from powerful fan heaters with an air curtain  to minimise heat loss from the doorways, the Dimplex solution quickly raises room temperatures to comfortable levels and easily retains the warmth for the  duration of the hall’s use. House of Bruar Retail Park Fresh air is providing one of Scotland’s most prestigious retailers with up to £10,000 in energy savings thanks to four high powered Dimplex air source heat pumps linked to a master controller. The heat pumps provide active heating and passive cooling. They are linked to  a master controller which is capable of year-round control of up to 14 heat  pumps and 30 different performance measurements and to date the fuel savings compared with using oil are estimated to be 60%. Couple of   renewable technology  case studies -   many more on the  website dimplex.co.uk/commercial Tried and tested solutions 7

Dimplex Commercial Range scan for more info dimplex.co.uk/ache What’s the benefit? Doors can remain open By creating an ‘invisible door’ using the fast moving airstream people can pass easily from area to area without doors hindering progress. Prevents heated or cooled air escaping An effective air curtain separates two zones allowing different temperatures to be maintained without doors hindering access. Reduces draughts and discomfort Comfort levels for staff, customers and visitors close to the doorway are increased by air curtains reducing draughts through frequently opening doorways. Energy saving Costs of running heating and air conditioning systems can be reduced by up to a third with air curtains as they help to seal the building from the environment, making the building more energy efficient. Auto ‘door sensing’ controls give further savings over running costs. Reduced ingress of insects  and pollutants Insects, pollens and other airborne pollutants can be minimised with air curtains as they block much of these from entering the building. AIR CURTAInS How they work How do they work? 1 Air curtains work   by separating two different temperature zones with  an invisible curtain of air. They provide a fast moving airstream to block air movement through the door whilst allowing the door to remain open. 2 Placing an air curtain  above or to the side of the entrance covering the full door width maximises performance by stopping heated air escaping in winter, or cooled air escaping in summertime. This barrier effect can help reduce energy costs by up to a third . 3 Positioning the air  curtain too far from the entrance compromises performance with air leaking around the airstream. 4 Where extractor  units are used within  the building, ventilation should also be provided to equalise pressure differences for maximum air curtain effectiveness. 5 By retaining the  cooled air within a cold storage room, an air curtain dramatically reduces waste energy and gives unhindered access from area to area. With no doors or curtains to reduce visibility, user safety is improved for those moving around the building. Small commercial Over door AC range 2.3m 2.3m Provides multi-directional powerful heating above the entrance to shops and small doorways. These units operate up to 2.3m from the floor. Medium commercial 3m CAB range 3m 3m Offers a curtain of air across entrances up to 3m from  the floor. Recess mounted  versions available. Designer 3m 3m ARC range 3m 3m Designed for prestigious entrances where style and finish are paramount. Horizontal and vertical models are available in a range of appealing finishes. Designer 4m 4m ARC range 4m Designed for prestigious entrances where style and finish are paramount. Horizontal and vertical models are available in a range of appealing finishes. large commercial 4m DAB range 4m 4m Engineered for high output performance over doors up to 4m. These air curtains can also be supplied for recess installations. Industrial 6m IAB range 6m Powerful industrial  air curtains for large doors up to 6m high. The air curtain range HB13-D0080 1 HB13-D0075 Airstream Air curtain Airinside Airoutside Insects Bad smell Pollution Heat or Cold 2 HB13-D0081 3 HB13-D0076 Wind Externalpressure Internalpressure WARM AIR COLD AIR 4 HB13-D0076 Cold Storage  Room/Chiller 5  Dependant on installation. dimplex.co.uk/commercial Air cur tains – Ho w the y work 8

Dimplex Commercial Range AIR CURTAInS Key features Eco installation mode Where appropriate Dimplex air curtains can be set to permanently consume up to 50% less energy for reduced running costs. Passive infra-red  sensor mode Control the air curtain using a PIR sensor and save energy whenever the air curtain is not needed. Another inexpensive solution from Dimplex. Dual door control On double doors where one door remains closed the Dimplex 2m unit can switch off half the air curtain airstream over the closed door for further energy savings. Every product gives you energy savings as standard Energy savings – test proves it. Many traditional air curtains in use today were installed when energy conservation was not a priority and  do not have any ‘eco’ functionality.  There is an increasing responsibility  on the building owner/tenant to ensure the product used maximises carbon efficiency and minimises running costs. Dimplex air curtains are designed  to meet this criteria and the results  of a test held in association with  Clinton Cards shown below prove this.  Saving energy By careful installation of the air curtain to fit the open entrance width and height together with using the product’s thermostatic regulation to control its eco mode, this test proves how much energy can be saved in operation compared with a typical installation found on the retail high street. Cutting costs As equipment running costs fall, so do the carbon emissions from the building as a whole. This test shows what is possible by selecting and fitting the correct air curtains. If you would like more details on this test, please contact [email protected] Carbon emissions (kg CO 2 ) Old air   curtain 489kg new   Dimplex   air curtain 68kg Running cost £ Old air   curtain £96 new   Dimplex   air curtain £13 By controlling the operation of the air curtain automatically according to the surrounding temperatures, the ‘eco’ air curtain makes a significant running cost saving over just a short ten day test period. In time, these savings would make an important contribution to the carbon savings from the building. Thermostat regulation mode no need for PWM systems that cost the earth. Thermostatic regulation fitted as standard  is   the most cost effective  way to save energy.  Switching heat in and out as conditions dictate without limiting performance. Interlocked  installation mode Connect to a compatible HVAC system and save up to 50% running costs as the air curtain modulates according to the HVAC system. Interlocked and eco mode Run the air curtain in eco mode and link to the HVAC system to save up to 97% of running costs. Auto door sensor mode Fitting a door contact to  the air curtain electronics will bring auto operation and savings whenever  the doors are closed. BMS Connect to a full function BMS system and control according to overall building energy management  settings for greater savings.  Model  specific. dimplex.co.uk/commercial Air cur tains – K ey f eatures 9

Dimplex Commercial Range Please see pages 34 – 38 for dimensional details scan for more info dimplex.co.uk/ac Remote control Features•   Provides a ‘Warm Welcome’ above  single and double doorways •   Integral control over full heat, half  heat and fan only settings •   Adjustable airflow direction •   Can be used as a high level   fan heater •   Infra-red remote control model  available (AC3Rn) •   Model AC3n, AC3Rn and AC45n  designed for single doorways •   Model AC6n designed for   double doorways •   Colour white Dimplex AC over door heaters provide multi-directional, powerful and effective heating above the entrance to shops, offices and almost any small doorway.  When fitted above an open door, the warm airflow encourages trade by allowing doors and entrances to remain ‘open for business’ in many commercial applications. The AC over door heaters are also ideal for any situation where a high-level fan heater is required, and offer increased convenience with the remote control AC3Rn version. The AC surface mounted range OVER DOOR HEATERS Adjustable Recommended height 2.3m Technical specification Model AC3N AC3RN AC45N AC6N Max recommended mounting height 2.3m 2.3m 2.3m 2.3m Heat output 1.5/3.0kW 1.5/3.0kW 2.25/4.5kW 3.0/6.0kW Voltage 230V~ 1Pn 230V~ 1Pn 230V~ 1Pn 230V~ 1Pn Current (A) 13A 13A 19A 26A noise dB (A) 50.5 50.5 52.0 57.0 Air volume m 3 /h 212 212 248 446 Max air speed m/s 5.0 5.0 5.0 5.5 Approvals BEAB Measured 3m from the product, outside the airstream.    Effective airflow with cover fitted. Model AC6n Model AC3n dimplex.co.uk/commercial The A C surface mounted rang e 10

NEW MODEL Dimplex Commercial Range Please see pages 34 – 38 for dimensional details scan for more info dimplex.co.uk/ac Features•   Full heat, half heat and fan   only modes •  new linear vane grille with hinged  access •   Wall mounted control included as  standard (BS double gang) •   Suitable for 300 x 600mm and   600 x 600mm ceiling installations •   Suitable for plasterboard   or suspended ceilings •   Drop-rod or metal wire mountings The Dimplex AC3Cn is designed to provide subtle heating where wall space is limited and fast response is needed.  This model can be fitted as a ceiling heater or close to a door as a ‘warm welcome’  and is now fitted with a new white linear vane grille with hinged access for easy installation and connection. Supplied complete with recess grille and wall controller. The AC recessed range RECESSED CEIlInG HEATER Wall controller Recommended height 2.3m Technical specification Model AC3CN Max recommended mounting height 2.3m Heat output 1.5/3.0kW Voltage 230V~ 1Pn Current (A) 13A noise db (A) 52.0 Air volume m 3 /h 175 Max air speed m/s 3.2 Approvals BEAB Measured at 3m from the product, outside airstream.    Effective airflow with cover and grille fitted. Model AC3Cn in situ Model AC3Cn dimplex.co.uk/commercial The A C recessed 11

Dimplex Commercial Range Please see pages 34 – 38 for dimensional details scan for more info dimplex.co.uk/cab Technical specification Electrically heated Water heated   (at 82/71°C – lPHW) Ambient and cold store Model C A B 10 E C A B 15 E CA B 20 E # C A B 10 W C A B 15 W CA B 20 W # C A B 10 A C A B 15 A CA B 20 A # Max mounting  height 3.0m 3.0m 3.0m 3.0m 3.0m 3.0m 3.0m 3.0m 3.0m Door width 1m 1.5m 2m 1m 1.5m 2m 1m 1.5m 2m Heat output 4.5/  9.0kW 6.75/  13.5kW 9.0/  18.0kW 9.0kW 13.5kW 18.0kW n/a n/a n/a Voltage 400V~ 3Pn 230V~ 1Pn 230V~ 1Pn Supply rating (A) 13.5 20.0 27.0 0.3 0.5 0.6 0.3 0.5 0.6 noise dB (A)   (high/low airflow) 54/50 55/51 56/52 53/49 54/50 55/51 54/50 55/51 56/52 Air volume m 3 /h 1200 1800 2400 1100 1700 2200 1200 1800 2400 Max airflow m/s 9 9 9 8 8 8 9 9 9 Approvals BEAB  Amps per phase.    Measured 3m from product, outside airstream.  #  Supplied as 2 x 1m units. A comprehensive range of electronically controlled air curtains for surface mounted installation up to a maximum of 3m from the floor.  With electric, water and ambient models available, the range can be linked together as one system over door widths of up to 10m and controlled via one wall mounted controller. Range features•   High output airstream for   entrances up to 3m high •   Modular design for simple product  linking over any door width •   Fully integrated links to   BMS/BEMS systems for  centralised energy control •   Electronic control system with   full heat, half heat and fan  only settings † •   Electronic fan overrun control when  used with compatible door sensors •   Auto output control reduces   energy use when doors closed •   ‘Easy-fix’ wall bracket provided   for a quick alternative to  standard drop-rods •   Tamper-proof thermostatic  operation for further control  over running costs † •   Wide 40° airflow direction adjustment •   Wall mounted controls included   as standard •   Electric models can be modified   for single phase connection at reduced output †  Dependent on model. The CAB surface mounted range COMMERCIAl AIR CURTAInS Colour customisation Ambient and  cold store Water  heated Electrically  heated Maximum  entrance height 3m 3m Model CAB15E Model CAB20E dimplex.co.uk/commercial The CAB surface mounted rang e 12

Dimplex Commercial Range Please see pages 34 – 38 for dimensional details scan for more info dimplex.co.uk/cab Range features•   High output airstream for entrances  up to 3m high •   Modular recess design suited   to almost any door width •   Fully integrated links to   BMS/BEMS systems for centralised energy control •   Electronic control system with   full heat, half heat and fan  only settings † •   Electronic fan overrun control when  used with compatible door sensors •   Auto output control reduces energy  use when doors closed •    ‘Easy connect’ control system   for fast installation •   Tamper-proof thermostatic  operation for further control  over running costs † •   Separate wall controls able to  control up to ten units as a system •   Wall mounted controls included   as standard •   Electric models can be modified   for single phase connection  at reduced output †  Dependent on model. With the same comprehensive specification as their surface mounted cousins,  the CAB recessed models are perfect for suspended or plasterboard ceiling installations with controls included as standard.  With the popular 1m, 1.5m and 2m wide doors catered for, there’s a recess mounted CAB suited to fit almost all door widths. The CAB recessed range COMMERCIAl AIR CURTAInS Colour customisation Ambient and  cold store Water  heated Electrically  heated Maximum  entrance height 3m Technical specification Electrically heated Water heated   (at 82/71°C – lPHW) Ambient and cold store Model C A B 10 E R C A B 15 E R CA B 20 E R # C A B 10 W R C A B 15 W R CA B 20 W R # C AB 10 AR C AB 15 AR C AB 20 AR # Max mounting  height 3.0m 3.0m 3.0m 3.0m 3.0m 3.0m 3.0m 3.0m 3.0m Door width 1m 1.5m 2m 1m 1.5m 2m 1m 1.5m 2m Heat output 4.5/  9.0kW 6.75/  13.5kW 9.0/  18.0kW 9.0kW 13.5kW 18.0kW n/a n/a n/a Voltage 400V~ 3Pn 230V~ 1Pn 230V~ 1Pn Supply rating (A) 13.5 20.0 27.0 0.3 0.5 0.6 0.3 0.5 0.6 noise dB (A)   (high/low airflow) 54/50 55/51 56/52 53/49 54/50 55/51 54/50 55/51 56/52 Air volume m 3 /h 1200 1800 2400 1100 1700 2200 1200 1800 2400 Max airflow m/s 9 9 9 8 8 8 9 9 9 Approvals BEAB  Amps per phase.    Measured 3m from product, outside airstream.  #  Supplied as 2 x 1m units. Model CAB15WR Model CAB10ER Electric Recessed dimplex.co.uk/commercial The CAB recessed rang e 13

Dimplex Commercial Range Please see pages 34 – 38 for dimensional details scan for more info dimplex.co.uk/arc Water heat high/low temperature Radiant effect Electrically  heated Colour customisation Vertical 3m Maximum  entrance height 3m 3m Range features•   Horizontal installation up to 3m •   Optional vertical installation   up to 3m •   Choice of brushed or polished  stainless steel or painted finish •   Electronic control system   with full fan and heat control •   Electronic overrun control with  compatible door sensor •   Wall controls as standard •   Water heated models can be  supplied for connection to low temperature heat sources Designed to be at home in the most prestigious corporate entrances and reception areas, the new Dimplex ARC range of architectural air curtains suits the most exacting requirements of modern design.  Offered for installation above the door or either side as vertical units, they can be supplied to bespoke requirements and all can be finished to a high standard in either brushed stainless steel, mirror polished stainless steel or coloured to customer preference. As with all Dimplex air curtains, multiple units can also be linked together as a system and operated from the controller supplied as standard. The ARC architectural range ARCHITECTURAl  AIR CURTAInS Designed to complement Designed to fit in Designed as a feature Various finishes dimplex.co.uk/commercial The ARC rang e 14

Dimplex Commercial Range Please see pages 34 – 38 for dimensional details scan for more info dimplex.co.uk/arc Radiant effect Electrically  heated Colour customisation Maximum  entrance height 4m Water heat high/low temperature For entrances up to 4m in height, these high power architectural air curtains offer  the same designer looks but greater performance.  They are specifically designed for larger entrances and atriums where extended performance and designer looks go hand in hand.  A full function control system brings all of the same flexibility enjoyed in all the Dimplex  air curtain ranges giving the best mix of performance, design and economy in use. Range features•   Horizontal installation up to 4m •   Choice of brushed or polished  stainless steel or painted finish •   Electronic control system   with full fan and heat control •   Electronic overrun control with  compatible door sensor •   Wall controls as standard •   Water heated models can be  supplied for connection to low temperature heat sources The ARC architectural range HIGH POWER ARCHITECTURAl  AIR CURTAInS larger entrances Prestigious entrances Designed to perform dimplex.co.uk/commercial The ARC rang e 15

Dimplex Commercial Range Please see pages 34 – 38 for dimensional details scan for more info dimplex.co.uk/dab Range features•   High output airstream for   entrances up to 4m high •   Modular design for simple   product linking over any door width •   Fully integrated links to   BMS/BEMS systems for  centralised energy control •   Electronic control system with   full heat, half heat and fan  only settings † •   Electronic fan overrun control when  used with compatible door sensors •   Auto output control reduces   energy use when doors closed •   ‘Easy-fix’ wall bracket provided   for a quick alternative to standard drop-rods •   Tamper-proof thermostatic  operation for further control  over running costs † •   Wide 40° airflow direction adjustment •   Separate wall controls able to  control multiple units as a system •   Electric models can be modified   for single phase connection at reduced output † †   Dependent on model. A high power range of air curtains designed specifically for mounting up to 4m from the floor using the same electronic controls and exterior design as the smaller CAB series.  With wide airflow adjustment and easy bracket mounting, the installation of either electric, water or ambient models has never been easier. The DAB surface mounted range HIGH POWER COMMERCIAl  AIR CURTAInS Colour customisation Ambient and  cold store Water  heated Electrically  heated Maximum  entrance height 4m Technical specification Electrically heated Water heated   (at 82/71°C – lPHW) Ambient and cold store Model D A B 10 E D A B 15 E DA B 20 E # D A B 10 W D A B 15 W DA B 20 W # D A B 10 A D A B 15 A DA B 20 A # Max mounting  height 4.0m 4.0m 4.0m 4.0m 4.0m 4.0m 4.0m 4.0m 4.0m Door width 1m 1.5m 2m 1m 1.5m 2m 1m 1.5m 2m Heat output 6.0/  12.0kW 9.0/  18.0kW 12.0/  24.0kW 12.0kW 18.0kW 24.0kW n/a n/a n/a Voltage 400V~ 3Pn 230V~ 1Pn 230V~ 1Pn Supply rating (A) 18.9 27.5 37.8 1.5 2.3 3.0 1.5 2.3 3.0 noise dB (A)   (high/low airflow) 58/52 59/53 60/54 57/51 58/53 59/55 58/52 59/53 60/54 Air volume m 3 /h 3000 4000 6000 2500 3500 5000 3000 4000 6000 Max airflow m/s 13.5 13.5 13.5 13.0 13.0 13.0 13.5 13.5 13.5 Approvals BEAB  Amps per phase.    Measured 3m from product, outside airstream.  #  Supplied as 2 x 1m units. 2 x model DAB15E Model DAB10E dimplex.co.uk/commercial The D AB surface mounted rang e 16

NEW MODEL Dimplex Commercial Range Please see pages 34 – 38 for dimensional details scan for more info dimplex.co.uk/dab Range features•   High output airstream for   entrances up to 4m high •   Modular recess design suited   to almost any door width •   Fully integrated links to   BMS/BEMS systems for  centralised energy control •   Electronic control system with   full heat, half heat and fan  only settings † •   Electronic fan overrun control when  used with compatible door sensors •   Auto output control reduces energy  use when doors closed •   ‘Easy connect’ control system for  fast installation •   Tamper-proof thermostatic  operation for further control  over running costs † •   Separate wall controls able to  control multiple units as a system •   Electric models can be modified   for single phase connection at reduced output † †  Dependent on model. Based on the DAB air curtains, these models allow recess mounting within plaster or suspended ceilings and can be linked together as a system when desired.  Whether it’s the full 4m mounting height that’s required, or use over entrances with high external wind pressure, these models are sure to be up to the job. The DAB recessed range HIGH POWER COMMERCIAl   AIR CURTAInS Colour customisation Ambient and  cold store Water  heated Electrically  heated Maximum  entrance height 4m Technical specification Electrically heated Water heated   (at 82/71°C – lPHW) Ambient and cold store Model D A B 10 E R D A B 15 E R DA B 20 E R # D A B 10 W R D A B 15 W R DA B 20 W R # D AB 10 AR D AB 15 AR D AB 20 AR # Max mounting  height 4.0m 4.0m 4.0m 4.0m 4.0m 4.0m 4.0m 4.0m 4.0m Door width 1m 1.5m 2m 1m 1.5m 2m 1m 1.5m 2m Heat output 6.0/  12.0kW 9.0/  18.0kW 12.0/  24.0kW 12.0kW 18.0kW 24.0kW n/a n/a n/a Voltage 400V~ 3Pn 230V~ 1Pn 230V~ 1Pn Supply rating (A) 18.9 27.5 37.8 1.5 2.3 3.0 1.5 2.3 3.0 noise dB (A)   (high/low airflow) 58/52 59/53 60/54 57/51 58/53 59/55 58/52 59/53 60/54 Air volume m 3 /h 3000 4000 6000 2500 3500 5000 3000 4000 6000 Max airflow m/s 13.5 13.5 13.5 13.0 13.0 13.0 13.5 13.5 13.5 Approvals BEAB  Amps per phase.    Measured 3m from product, outside airstream.  #  Supplied as 2 x 1m units. Model DAB10ER Model DAB15WR dimplex.co.uk/commercial The D AB recessed rang e 17

Dimplex Commercial Range Please see pages 34 – 38 for dimensional details scan for more info dimplex.co.uk/iab Features•   Super high output airstream   for doors up to 6m high •   Auto output control reduces   energy use when doors closed •   Adjustable air outlet vanes •   Electronic control system with   full heat and fan speed control † •   Electronic overrun control when  used with a compatible door sensor •   Fully integrated links to   BMS/BEMS systems for  centralised energy control •   ‘Easy connect’ control system   gives single point control over multiple units •   High power centrifugal blowers   for large air movement •   Wall controls included as standard †  Dependent on model. A range of air curtains designed for industrial applications and areas where the highest performance is required up to 6m from the floor to protect the open door.  With highly durable components offering long life and maintenance free operation, these units can be specified with confidence and trouble-free long service in mind. Often found in large warehouses, factories and distribution centres, these super high power air curtains can cut running costs of a busy facility considerably, whilst improving the working environment too. Both 1m and 1.5m units are available in either lPHW, electric or ambient versions, and can be linked together as a complete air curtain system. The IAB industrial range InDUSTRIAl  AIR CURTAInS Ambient and  cold store Water  heated Electrically  heated Maximum  entrance height 6m Technical specification Electrically heated Water heated   (at 82/71°C – lPHW) Ambient and cold store Model IAB10E IAB15E IAB10W IAB15W IAB10A IAB15A Max door width 1.0m 1.5m 1.0m 1.5m 1.0m 1.5m Max mounting height 6m Weight 80kg 120kg 80kg 120kg 80kg 120kg Heat output 12/24kW 18/36kW 27kW 41kW n/a n/a Voltage 400V~ 3Pn 400V~ 3Pn 230V~ 1Pn 230V~ 1Pn 230V~ 1Pn 230V~ 1Pn Supply rating (A) 41.0 61.0 6.0 9.0 6.0 9.0 noise dB (A)   (high/low airflow) 70/62 73/63 70/62 73/63 70/62 73/63 Air volume m 3 /h 4500 6900 4500 6900 4500 6900 Max airflow m/s 18 Amps per phase.   Measured 3m from product, outside airstream. 2 x Model IAB15W Model IAB10W dimplex.co.uk/commercial The IAB rang e 18

Dimplex Commercial Range Overview of the Dimplex Renewable Solution REnEWABlE HEATInG   AnD HOT WATER Dimplex has the largest range of heat pumps in the UK, together with an extensive range of hot water cylinders and heat emitters which are designed to look after a complete system solution. These are supported by a wide range of solar thermal and solar PV products. An overview is below but full details are available at  www.dimplex.co.uk/renewables.  dimplex.co.uk/commercial Over view of the Dimple x Rene wab le Solution 19 Enables airtight building construction while providing controlled ventilation for the health and well-being of building occupants, balancing the competing demands of airtightness and adequate air exchange. Whole building   systems ventilation 7 Allows renewable energy from multiple sources to be stored for use when it is needed, delivering high performance hot water. 4 Unvented hot   water storage Allows the electrical consumption  of appliances, heat pumps,  SmartRad radiators and  mechanical ventilation systems  to be offset by production from renewable energy.  6 Solar PV systems An ideal complement to heat pumps, solar thermal systems provide free  hot water during the warmer months  of the year. 3 Solar thermal   hot water heating Ground Source Heat Pump (1)  Air Source Heat Pump (2). Heat pumps are increasingly  becoming the solution of choice to provide low carbon heating and hot water. In the commercial sector solutions are also available for cooling and waste heat recovery. Heat   pumps 1+2 low temperature SmartRad radiators are the ideal complement  for heat pumps to deliver low  energy heating.  Space heating 5 7 6 3 5 1 4 2 5

Fan-motor Heating elements Airinletgrille Directionaloutlet grille Dimplex Commercial Range scan for more info dimplex.co.uk/fhe COMMERCIAl FAn HEATInG How do they work? Fan heaters work by forcing air across an element or heater battery to heat the ambient air in a given space. The more air that passes across the heating element the more quickly the temperatures will rise in that area. Performance chart What’s the benefit?Economical building heating One of the most simple to install methods of heating a building,  airflow can be directed wherever needed whenever needed. Fast response heat Where other systems require pre-heating, fan heaters provide  heat to quickly address a short fall  or boost the temperatures. Flexible heating Commercial fan heaters are as  adept at providing a temporary  heat source as they are when permanently installed. How they work The velocity and distance the air is moved also affects the heaters ability  to heat. The faster the airflow moves, the less time it has to be warmed by the elements giving rise to greater areas  being heated to lower temperatures. As heat rises, so heated  air naturally heads for  the ceilings giving  a stratification of warmer  air at the ceiling down to cooler air at ground level. For this reason, it is always recommended to install de-stratification fans to help keep warmer, heated air at ground levels where it will be experienced most. Where de-stratification fans are not available,  the positioning of fan heaters at a higher mounting level blowing down can help to offset the effects of rising warm air by pushing this air  back towards ground level. Blow Air  stratification 4.5m 8m 10m 900m 3 /h 750m 3 /h 400m 3 /h 400m 3 /h 200m 3 /h Compact commercial fan heaters Portable commercial fan heater Wall mounted commercial fan heater (CFS30) Wall mounted commercial fan heaters High power wall mounted commercial fan heaters The inclination allows recovery of the accumulated heat at the top. The direction of the fan heaters when more than one are used also affects efficiency. By directing airflows so they do not clash, as shown, a more even temperature will be achieved across the whole building area. Incorrect positioning Correct positioning Incorrect positioning Correct positioning Incorrect positioning Correct positioning Positioning dimplex.co.uk/commercial Commer cial fan heating 20

Dimplex Commercial Range COMMERCIAl FAn HEATInG Key features Features•   Suitable for small rooms to larger  industrial environments •   Wide range of models with outputs  from 3kW – 12kW •   Fan heating systems with up to  120kW available •   Choice of portable or wall   mounted models •   Single heater controls or electronic  system control options •   Multi-directional wall brackets and  rugged handles included •   Heavy duty construction for reliable  long service •   long life, durable components   used throughout  Dependent on model. There are four types of fan heater in the our commercial range, providing a heating solution for most applications. Compact commercial fan heaters Providing cost effective localised heating, this range is perfect where an occasional heating boost is needed. Models with and without wall controls are available. Portable commercial fan heater Designed for commercial environments where high visibility and rugged construction is a must. High power wall mounted  commercial fan heaters Offering electronic system control,  these heaters are operated from one additional controller with programmable digital thermostat and timer functions across the range. Wall mounted commercial   fan heaters With rugged construction and high quality components, these heaters come as standard with wall mounted controls giving a cost effective heating solution. dimplex.co.uk/commercial The fan heater rang e 21

Dimplex Commercial Range Please see pages 34 – 38 for dimensional details scan for more info dimplex.co.uk/pfh Adjustable Features•   Stylish heater design   with low noise performance •   Thermostatic control fitted to all  models giving the optimum balance between heat requirements and  low running cost •   Fan only mode provides air  circulation for summer use •   Multi-directional wall bracket   giving 40° vertical and 120° horizontal adjustment •   Single screw angle adjustment •   Remote control supplied as standard  with PFH30R model offering thermostat and full heater control •   Grey finish Perfect for use in garages, workshops, offices, store rooms or almost any small commercial situation.  These heaters are designed to provide unobtrusive heating with automatic  thermostatic control and multi-adjustable mounting bracket all included as standard.  With performance tuned for maximum heating effect, these heaters are sure to  provide an effective and economical heating solution. The PFH30 model provides 3kW heating output with built-in thermostatic control  in a stylish housing that will blend in with its surroundings, whilst the remote control PFH30R adds a wall controller over all heater functions and room temperature levels  as standard. The PFH compact range COMPACT COMMERCIAl  FAn HEATERS Thermostatic control Wall controller Technical specification Model PFH30 PFH30R Heat output 3.0kW 3.0kW Voltage 230V~ 1Pn 230V~ 1Pn Airflow m 3 /h 200 200 noise dB (A) 24 24 Max air temp 58°C 58°C Thermostat 5°C – 35°C 5°C – 35°C Approvals BEAB Measured at 1m.   Measured at 0.5m. Models PFH30 (left) and PFH30R (right) Model PFH30 dimplex.co.uk/commercial The PFH rang e 22

Dimplex Commercial Range Please see pages 34 – 38 for dimensional details scan for more info dimplex.co.uk/cf Adjustable Thermostatic control CFP range features•   Rugged styling with ‘chunky’   go anywhere appearance •   Integral controls with thermostatic  control for optimum comfort levels with low running costs † •   Fan only, half heat, full heat settings •   Durable floor stand and handle •   Yellow and black finish CFS range features•   Heavy duty corrosion resistant case •   Multi-directional wall bracket •   Wall controller with fan only,   half and full heat selection  (double gang size) included •   White case with black grilles †  Dependent on model Airflow performance 750m 3 /h 400m 3 /h 5m 0m 10m CFS30 CFS60 With higher fan speeds the CF range conditions air over a greater distance. A range of robust portable wall mounted fan heaters suited for general purpose commercial and light industrial use. These models provide fast, flexible heating wherever and whenever it is needed.  The CFP30 portable model is perfect for occasional heating needs with sturdy construction, 3kW output and thermostatic control. The CFS models are designed to offer economic heating for small to medium sized commercial environments. Sold complete with wall controller, they offer an all-in-one solution for many commercial and light industrial premises. The CFP and CFS ranges COMMERCIAl   FAn HEATERS Wall controller Technical specification Model CFP30 CFS30 # CFS60 # Heat output 3.0kW 3.0kW 6.0kW Voltage 230V~ 1Pn 230V~ 1Pn 230V~ 1Pn 400V~ 3Pn Airflow (m 3 /h) 400 400 750 noise dB (A) 37 37 50 Throw (m) 4.5 4.5 8 Air off temp ºC 35 35 45  Measured 1m from unit outside airstream.    Calculated at 21°C return air temperature.  #  Controller  included. Model CFP30 Model CFS30 dimplex.co.uk/commercial The CFP and CFS rang es 23

Dimplex Commercial Range Please see pages 34 – 38 for dimensional details scan for more info dimplex.co.uk/cfh Features•   High power range for larger  installations •   Digital central control system gives  close time and temperature control for optimised energy use •   Powerful airflow for maximum   air circulation •   Simple low voltage connection  system using standard  PC network cable •   Multi-directional wall   mounting brackets •   Electronic control with 7 day timer  and multiple programming features † •   Independent fan and heat   level control •   Full electronic room thermostat   for accurate control † •   Full function system control over   up to 10 heaters † •   Electronic ‘power on’ self check †  Requires CFCH controller. Airflow performance 900m 3 /h 900m 3 /h 900m 3 /h 5m 0m 10m 12kW 9kW 6kW With higher fan speeds the CFH models condition more air over  greater distances. High power electronic fan heaters that offer a full heating system to larger industrial environments. These heaters use centrifugal blowers for faster airflow and heavy  duty elements for effective heating, in the most challenging environments.  An additional controller allows control of up to 10 heaters with accurate digital programming control built-in, and is connected via a simple PC network cable. The CFH high power range InDUSTRIAl FAn HEATERS Technical specification Model CFH60 CFH90 CFH120 Heat output 6.0kW 9.0kW 12.0kW Voltage 400V~ 3Pn 230V~ 1Pn 400V~ 3Pn 230V~ 1Pn 400V~ 3Pn 230V~ 1Pn noise dB (A) 60 60 60 Airflow m 3 /h 900 900 900 Throw 10m 10m 10m Air off temp °C 40 55 65 Measured 3m from product, outside airstream.  Calculated at 21ºC return air temperature. Model CFH90 Model CFH120 dimplex.co.uk/commercial The CFH rang e 24

Dimplex Commercial Range CEnTRAl COnTROl The CFCH control system CFCH features•  Multiple heater control Using standard PC network  cable allows control over  10 heaters at once. •  Fan and heat selection Independent control with  graphical display. •  Electronic room thermostat Ambient and target temperature display with 1°C adjustment steps. •  7 day programming Up to 32 individual time  programmes available. •  Run back timer Up to 5 hour delay can be set. •  low voltage control Control signals operate at low voltage over (CAT5) PC network cable. Centrally controlled building heating Focused heating with single point control HB13-D0091 Multiple heater control Designed for exclusive use with the Dimplex CFH range of industrial fan heaters.  The CFCH control system   provides central control over multiple fan heaters   connected via the simple electronic control bus system fitted to all CFH range heaters. With building heating requirements up to 120kW, this control system has a number  of key features for convenient automatic operation in larger buildings. PC network Cable (CAT5) Electrical supply  Required for all CFH heating systems. By installing  heaters throughout the room/building  a centrally controlled system is provided with auto control functions for the  full system. By installing heaters  together a large heat  demand in a smaller  area can be provided. dimplex.co.uk/commercial The CFCH contr ol system 25

Dimplex Commercial Range scan for more info dimplex.co.uk/rhe What’s the benefit?Heats like the sun Radiant heat passes through the  air and heats solid objects making it highly efficient wherever it’s installed. Instant heat no need for expensive pre-heating, these heaters give heat instantly, cutting the cost of heating intermittently used buildings. low running costs Because only the intended occupants are heated, not the air around them, you only pay for the heat you really need, rather than a whole building  or area. Silent running With no moving parts, the Dimplex heaters are silent when operating, making them perfect where noise would otherwise be a problem. low capital cost  By only heating chosen areas,  capital costs can be reduced  with fewer heaters when compared with other systems sized to heat whole buildings. How does radiant heating work?  In contrast to fan based heating, radiant heaters use the oldest form of heating known to man. Just as the sun’s rays heat the earth, so our radiant heaters use this same method of heating objects (the earth, people, buildings etc) rather than the air between them for effective performance. These radiant heaters transmit infra-red energy which  is converted into heat when it is absorbed by objects  which in turn then begins to warm the surrounding  areas as surface temperatures rise. Because the energy is only turned into heat as it comes into contact with solid objects, this heating technology  can be used either indoors where building insulation would normally be a problem, or outdoors where  localised people heating is desired. In this instance  the heat provided is highly efficient as very little is lost  into the atmosphere, unlike other methods of heating. Performance tips•   Heaters should be mounted either side of the heated area for optimum comfort   and coverage (see positioning guide above) •   Heaters mounted outside must be rated at least to IPX4 rating RADIAnT HEATInG How they work Positioning Heaters installed from both sides ensure even heating as illustrated below. QXD1500 QXD1500 QXD1500 QXD1500 QXD3000 QXD3000 QXD3000 QXD3000 3m 2m Unheated zone 4m 3m 8m 6m 6m 8m 4m 4m D Mounting Angle  A Height  B Throw  C Lamp  Angle Average beam width (spread) D Lamp Ang le Ave Ave rag rag e b e b eam eam wi wi dth dth (sp (sp rea rea d) d) 3m 3m 3m Heater coverage QXD1500 QXD1500 QXD1500 QXD1500 QXD3000 QXD3000 QXD3000 QXD3000 3m 2m Unheated zone 4m 3m 8m 6m 6m 8m 4m 4m D Mounting Angle  A Height  B Throw  C Lamp  Angle Average beam width (spread) D Lamp Ang le Ave Ave rag rag e b e b eam eam wi wi dth dth (sp (sp rea rea d) d) 3m 3m 3m Mounting angle is the angle between the wall and the rear panel of the heater. Incorrect positioning Correct positioning dimplex.co.uk/commercial Radiant heating 26

Dimplex Commercial Range Range options and sizing RADIAnT HEATInG QXD spread and throw charts Model QXD1500 QXD3000 QXD4500 Height  B Throw  C Spread  D Throw  C Spread  D Throw  C Spread  D 2.1m 2.5m 2.5m 2.5m 3.4m 3.7m 4.2m 4.0m 3.0m 4.5m 5.2m 5.0m 4.5m 5.0m 5.0m 3.5m 5.7m 5.7m 6.0m 6.1m 4.0m 6.4m 6.2m 7.1m 6.9m 4.5m 8.2m 7.8m A  All figures are for 45º mounting angle (for 30º mounting angle increase throw by 1.75 x). Sizing Charts CXD spread and throw charts Model CXD2000H CXD2000V Height  B Throw  C Spread  D Throw  C Spread  D 1.8m 1.8m 1.3m 1.6m 1.1m 2.0m 2.0m 1.4m 1.8m 1.3m 2.3m 2.2m 1.6m 1.9m 1.4m 2.5m 2.4m 1.8m 2.1m 1.6m 2.7m 2.5m 1.9m 2.3m 1.7m A  All figures are for 45° mounting angles. CXD Heat Intensity  High intensity (80 W/m 2 ) Medium intensity (65 W/m 2 ) low intensity (50 W/m 2 ) QXD Heat Intensity  High intensity (120 W/m 2 ) Medium intensity (95 W/m 2 ) low intensity (70 W/m 2 ) Application key Inactive  (churches/dressing rooms) light work  (workshops/desk working/despatch areas) Heavy work  (factories/loading bays/open air construction) There are four types of radiant heaters in the commercial range, providing a heating solution for most applications. Ruby sleeved halogen element Designed to offer a warm red glow,  these short wave length elements operate at 2,200°C to provide a directional zone of heat. Gold finish halogen element These gold coated elements work at similar temperatures to the ruby sleeved elements but also boast a gold finish that improves energy transmission by up to 15%. Ceramic These ceramic encased aluminium elements operate over a longer wavelength at up to 700°C to provide a softer heat without the glow experienced with the ruby and gold element types. Infra-red element These medium wave length infra-red elements operate at 1,000ºC and provide an ideal combination of fast heat output and effective performance. Auto Controls•   Brings enhanced energy savings  when used with heaters •   Automatically controls on/off  operation according to time  or people movement •   PIR (Passive Infra-red) sensors  operate according to people movement, touch switches according to pre-set time elapsed after user operates the switch •   Easy to fit close to the heater(s) •   Many models commercially  available to suit  dimplex.co.uk/commercial The radiant heater rang e 27

Dimplex Commercial Range Please see pages 34 – 38 for dimensional details scan for more info  Dimplex_QR_Code_ dimplex.co.uk/qxd Silent Adjustable Instant heat The QXD range features the ruby red halogen lamp, giving a warm glow, and can be selected in 1.5kW, 3kW and 4.5kW outputs. Using short wave infra-red, these heaters allow people to be heated cost effectively in larger, hard to heat buildings. A universal mounting bracket gives a wide range of adjustment and the heaters can be used with an additional PIR switch for automatic operation. Features•   Ruby sleeved lamp provides   a warm red glow •   Universal mounting bracket •   Instant heat – avoiding the need   for expensive pre-heating of intermittently used buildings •   Silent operation •   Matt black finish •  Additional PIR switch saves   energy by switching heat off  when not needed •   Optional guards available The QXD radiant range RADIAnT  QUARTzRAY ®  HEATERS Technical specification Model QXD1500 QXD3000 QXD4500 Recommended height 2.5m 3.5m 4.0m Minimum   installed height 2.1m 2.5m 3.0m loading 1.5kW 3.0kW 4.5kW Voltage 230V~ 1Pn Heat type Infra-red shortwave radiant lamps Halogen filled quartz  linear (ruby) x 1  Halogen filled quartz  linear (ruby) x 2  Halogen filled quartz  linear (ruby) x 3  Construction Steel case with aluminium reflector Electrical connection Type c MCB with 5-10 x tripping coefficient Accessories –   lamp guards QX9310 QX9311 QX9312 Accessories –   product guards QXD1500-AIA QXD3000-AIA QXD4500-AIA  Calculated at medium intensity (95W/m 2 ) .     Available from Aiano on (Tel) 020 7987 1184  email: [email protected]  website: www.aianos.co.uk Model QXD3000 QXD range Radiant effect dimplex.co.uk/commercial The QXD rang e 28

Dimplex Commercial Range Please see pages 34 – 38 for dimensional details scan for more info dimplex.co.uk/cxd Silent Adjustable Instant heat Radiant effect Features•   Robust ceramic elements for  efficient radiant heating •   Can be mounted inside or outside. •   no visible light output •   Fitted guard included •   Adjustable mounting bracket •   Silent operation •   Matt black finish with white elements •  Additional PIR switch saves   energy by switching heat off  when not needed Ceramic radiant heaters provide all the benefits of radiant heating without the light output associated with other types of infra-red heaters.  Using long wave infra-red technology, they provide heat to a zone or localised area, saving energy compared with equivalent air heaters. They can be installed inside or outside for the ultimate in flexibility and come with fitted guards as standard. All the Dimplex ceramic radiant heaters can also be operated via an additional PIR switch for automatic operation. There is a choice of two models, the CXD2000V with stacked elements for focused heat, or the CXD2000H with elements side by side for a wider dispersion of heat. The CXD ceramic range RADIAnT   CERAMIC HEATERS Technical specification Model CXD2000V/CXD2000H Recommended height 2.0m Minimum installed height 1.8m loading 2.0kW Voltage 230V~ 1Pn Heat type long wave length infra-red lamps Ceramic encased aluminium x 2 Construction Steel case with aluminium reflector Model CXD2000H M odel  CXd2000V M odel  CXd2000H dimplex.co.uk/commercial The CXD rang e 29

Dimplex Commercial Range Please see pages 34 – 38 for dimensional details scan for more info dimplex.co.uk/oph Range features•   High quality aluminium case  finished in two-tone silver •   1.3kW Quartz infra-red model •   2.0kW Quartz halogen model with  ‘gold’ lamp for extended performance •   Designed and rated for permanent  external installations •   Instant heat – avoiding the need   for expensive pre-heating •   Costs as little as 19p per hour †  to run •   ‘In-situ’ lamp replacement for  minimum downtime (OPH13) •   Fitted guard included •   Optional mounting kit for hanging   or pole/mast mounting (OPHMK1) •   Additional PIR switch saves   energy by switching heat off  when not needed †  Dependent on tariff and based on spring 2013 prices. Silent Adjustable Instant heat Radiant effect With a high quality aluminium case and a choice of outputs, these modern patio heaters provide long lasting performance with an attractive design, perfect for outdoor dining areas or heating for smokers! With running costs as low as 19p kWh †  and an optional mounting kit for fixed hanging  installation or pole/mast mounting, they are truly flexible and give substantially reduced emissions compared to gas heaters. The OPH outdoor range OUTDOOR PATIO HEATERS Technical specification Model OPH13 OPH20 Heat output 1.3kW 2.0kW Supply 230V~ 1Pn 230V~ 1Pn Construction Aluminium Aluminium Element Infra-red Halogen Colour Silver Silver Approvals CE, IP24 CE, IP24 Minimum mounting height  1.8m 1.8m Recommended mounting height 2.0 – 2.3m 2.0 – 2.3m Heat throw at 2m mounting height 1.7m 2.0m Heat spread at 2m mounting height 3.0m 3.5m  Heater mounting angle 45° giving 160W/m 2  output. Model OPH20 Model OPH13 dimplex.co.uk/commercial The OPH rang e 30

Dimplex Commercial Range Please see pages 34 – 38 for dimensional details scan for more info dimplex.co.uk/wf Range features•   WFC – Accurate thermostatic control •   WFE – Automatic heat selection  reduces energy use whilst maintaining optimum performance, comfort and economy •   Powerful 3kW maximum output •   Choice of 1kW, 2kW or 3kW output  settings (WFC only) •   Automatic heat selection (WFE only) •   Frost protection setting •   Fine mesh filter for incoming air   to reduce dust particles in the indoor environment •   Programmable dual mode  electronic timer (WFE only) Programmable control Thermostatic control With up to 3kW of heating available, these WF fan convectors provide a low noise, rapid response heating solution for commercial installations such as shops, offices, waiting rooms and restaurants. Their built-in thermostatic temperature control keeps energy use in check too. By drawing in room temperature air on the front panel and releasing heated air from below the heater, these heaters operate to warm the space rapidly. The WF fan convector range FAn COnVECTOR HEATERS Technical specification Model WFC3NB WFC3NS WFC3TNB WFE3TNS Heat output (kW) 3.0/2.0/1.0 3.0/2.0/1.0 3.0/2.0/1.0 3.0/2.0/1.0 Voltage 230V~ 1Pn 230V~ 1Pn 230V~ 1Pn 230V~ 1Pn Airflow (m 3 /h) 79.2 79.2 79.2 79.2 Colour Black with wooden  end panels  Silver with black  end panels Black with wooden  end panels  Silver with black  end panels Auto heat selection 4 4 Manual heat selection 4 4 Variable thermostat 4 4 4 4 Programmable   dual mode timer 4  5 + 2 day 4  5 + 2 day M odel  WFC3NB Model WFE3TnS Air inlet Control Air outlet dimplex.co.uk/commercial The WF  rang e 31

Dimplex Commercial Range Please see pages 34 – 38 for dimensional details Please see pages 34 – 38 for dimensional details scan for more info dimplex.co.uk/haw Features•   Heavy duty cast iron case in black  stove enamelled finish •   Floor or wall mountable •   large number of fins give large  heating surface •   Metal sheathed element for   reliable performance •   Separate wire guard supplied  Air warmers are extremely robust heaters designed for a wide variety of  industrial applications. Built to last in arduous surroundings, the Dimplex air warmer will often be found in industrial locations requiring a long lasting, heavy duty heater that can be operated  via separate controls. Perfectly suited for frost protection in plant and machine rooms or other commercial settings where critical equipment is protected from breakdown due to frost or inadequate heat levels. The HAW air warmer range AIR WARMERS Technical specification Model HAW1000N Heat output 1.0kW Voltage 230V~ 1Pn Electrical connection 20mm cable entry Guard dimensions (W x D x H)mm 663 x 364 x 188 Guard fixing dimensions (W x D)mm 674 x 229 Weight 14kg Model HAW1000n Model HAW1000n dimplex.co.uk/commercial The HA W rang e 32

Dimplex Commercial Range Please see pages 34 – 38 for dimensional details scan for more info dimplex.co.uk/aire Features•   Due to its unique shape,  Electricaire holds up to 85% of its retained heat into a second day, making it highly economical •   Cost effective heating when you  want it •   Boost heating feature for additional  heat when needed •   Two speed fan for rapid heat-up •   Can be used with external  thermostats and time clocks for further control •   Can be used standalone or with  suitable ducting •   Pre-wired to accommodate single  or three phase connection •   Flexible installation requirements  for minimal room intrusion Using trusted technology Electricaire combines low cost electricity (often less than half the standard tariff) with an unrivalled ability to retain heat energy over a full 48 hour period for a highly efficient low cost heating system.  It’s these two major benefits that make Electricaire ideal in commercial environments from industrial units to libraries and schools, where low cost heating in a world of escalating energy costs is paramount. The flexibility of this heating system also takes some believing. Capable of replacing eight conventional wet radiators to free up valuable wall space, a single unit can easily supply heat on demand to a number of areas within a building. So whatever building size or shape, Electricaire has it covered. The Electricaire warm air system WARM AIR HEATInG Technical specification Model R7 R8 R10 R12 R15 Rating 4x1.643kW 5x1.643kW 6x1.643kW 7x1.643kW 9x1.643kW Active storage capacity 47kWh 55kWh 73kWh 84kWh 104kWh Case emission 700W 700W 750W 850W 950W Core weight 385kg 385kg 385kg 457kg 611kg Assembled weight 482kg 482kg 482kg 600kg 754kg Day boost facility   element rating 2x1.643kW 3x1.643kW 4x1.643kW 5x1.643kW 7x1.643kW  Supplied as Model R10. R7 and R8 achieved by downrating on site.  We recommend this unit is professionally installed by one of our Electricaire installers.  Please see our website for more information. dimplex.co.uk/commercial The Electricaire rang e 33

Dimplex Commercial Range Dimensions and loadings Pages 12 & 16 Commercial air curtains The CAB and DAB surface mounted ranges Model C A B 10 E C A B 15 E CA B 20 E C A B 10 W C A B 15 W CA B 20 W C A B 10 A C A B 15 A CA B 20 A D A B 10 E D A B 15 E DA B 20 E D A B 10 W D A B 15 W DA B 20 W D A B 10 A D A B 15 A DA B 20 A loading kW 4.5/9.0 6.75/13.5 9.0/18.0 9.0 13.5 18.0 n/a n/a n/a 6.0/12.0 9.0/18.0 12.0/24.0 12 18 24 n/a n/a n/a Width  A mm 1065  1569 2130 1065 1569 2130 1065 1569 2130 1057 1557 2114 1057 1557 2114 1057 1557 2114 Height  B mm 262 262 262 262 262 262 262 262 262 361 361 361 361 361 361 361 361 361 Depth  C mm 321 321 321 321 321 321 321 321 321 391 391 391 391 391 391 391 391 391 Weight kg 20.5 29 41 18 24.5 36 15.5 21.5 31 26.5 35 53 25 32 50 21.5 27.5 43 C B 100mm min A Wall Fixing Ceiling Mounted A B 150 500 610 610 C B A C 150 min B 50 45 155 Wall fixing Ceiling fixing AC3RCN only cable/ conduit  entry B 200 min 70 max 40 min C The AC surface and recess mounted ranges Model AC3N AC3RN AC45N AC6N AC3CN  loading kW 1.5/3.0 1.5/3.0 2.25/4.5 3.0/6.0 1.5/3.0 Width  A mm 605 605 605 905 595 Height  B mm 200 200 200 200 209 Depth  C mm 135 135 135 135 295 Weight kg 5.1 5.3 5.2 7.2 8.7 Pages 10 & 11 Over door heaters 579 271 209 639 330 579 271 209 639 330 dimplex.co.uk/commercial Dimensions and loadings 34

Dimplex Commercial Range Pages 13 & 17 Commercial air curtains Pages 14 & 15 Architectural air curtains The ARC range Model ARC10 ARC15 ARC20 length mm 1100 1600 2100 Height mm 450 450 450 Depth mm 360 360 360 Weight kg 55 – 65 82.5 – 95 110 – 130    Dependent on final specification.   SAMPLE DIMENSIONS ONLY:   As these products are bespoke, please ring us  on 0844 879 3587 and we can arrange for your local Dimplex commercial sales manager to contact you. E A BC D 306 160 386 2 L 40 F G 639580 K 405 23 L 204 E A BC D 306 160 386 2 L 40 F G 639580 K 405 23 L 204 The CAB and DAB recess mounted ranges Model  Loading   kW Grille   size (mm)   (A) Ceiling  aperture (mm)   (B) Side drop   rod fixing (mm)   (C) Water coil  centres (mm)   (D) Top drop   rod fixing (mm)   (E) Unit height  (mm)   (K) Weight   (kg) CAB10ER 4.5/9.0 1224 1160 1065 920 840 267 26 CAB15ER 6.75/13.5 1724 1660 1570 1420 1260 267 35 CAB20ER 9/18 2448 2384 1065x2 920x2 840x2 267 54 CAB10WR 9.0 1224 1160 1065 920 840 267 23 CAB15WR 13.5 1724 1660 1570 1420 1260 267 32.5 CAB20WR 18 2448 2384 1065x2 920x2 840x2 267 54 CAB10AR n/a 1224 1160 1065 920 840 267 20.5 CAB15AR n/a 1724 1660 1570 1420 1260 267 29.5 CAB20AR n/a 2448 2384 1065x2 920x2 840x2 267 54 DAB10ER 6.0/12.0 1224 1160 1058 920 800 338 31.5 DAB15ER 9.0/18.0 1724 1660 1558 1420 1300 338 43 DAB20ER 12/24 2448 2384 1065x2 920x2 800x2 338 63 DAB10WR 12 1224 1160 1058 920 800 338 30 DAB15WR 18 1724 1660 1558 1420 1300 338 40 DAB20WR 24 2448 2384 1065x2 920x2 800x2 338 63 DAB10AR n/a 1224 1160 1058 920 800 338 26.5 DAB15AR n/a 1724 1660 1558 1420 1300 338 35.5 DAB20AR n/a 2448 2384 1065x2 920x2 800x2 338 63 dimplex.co.uk/commercial Dimensions and loadings 35

Dimplex Commercial Range Dimensions and loadings D C A B The CFS and CFH ranges Model CFS30 CFS/CFH60 CFH90 CFH120 CFCH Control loading kW 3.0 6.0 9.0 12.0 - Width  A mm 306 386 386 386 217 Height  B mm 262 360 360 360 113 Depth  C mm 495 565 565 565 49 Max depth  D mm 530 630 630 630 - Weight kg 7.6 13.5 14.5 14.5 - Pages 23 & 24 Commercial and industrial fan heaters Page 23 Portable commercial fan heater C A B The CFP range Model CFP30 loading kW 3.0 Width  A mm 372  Height  B mm 448 Depth  C mm 347 Weight kg 7.6 A C 334 B 40° The PFH range Model PFH30 PFH30R loading kW 3.0 3.0 Width  A mm 230 230 Height  B mm 378 378 Depth  C mm 226 226 Weight kg 1.3 1.6 Page 22 Compact commercial fan heaters Page 18 Industrial air curtains The IAB range Model IAB10E IAB15E IAB10W IAB15W IAB10A IAB15A loading kW 12/24 18/36 27 41 n/a n/a length  A mm 1100 1600 1100 1600 1100 1600 Height  B mm 700 700 700 700 700 700 Depth  C mm 600 600 600 600 600 600 Weight kg 80 120 80 120 80 120 A C B dimplex.co.uk/commercial Dimensions and loadings 36

Dimplex Commercial Range The QXD range Model QXD1500 QXD3000 QXD4500 loading 1.5 3.0 4.5 Width  A mm 440 440 440 Height  B mm 256 380 506 Depth mm   excl. bracket 70 70 70 Weight 3.7kg 4.3kg 5.8kg Page 28 Radiant Quartzray ®  heaters A B 70 240 140 Universal Bracket Page 30 Outdoor patio heaters The OPH range Model OPH13 OPH20 loading kW 1.3 2.0 Width mm 594 594 Height mm 159 159 Depth mm 144 144 Weight kg 3.7 3.7 594 542 594 542 123 123 159.5 45° OPH13 with two Quartz elements OPH20 with one halogen element The CXD range Model CXD2000V CXD2000H loading kW  2.0 2.0 Width  A mm 422 735 Height  B mm 380 255 Depth mm  excl. bracket 121 122 Weight kg 5.35k 5.1 Page 29 Radiant ceramic heaters B B A A 121 122 248 dimplex.co.uk/commercial Dimensions and loadings 37

Dimplex Commercial Range Dimensions and loadings The HAW range Model HAW1000N loading kW 1.0 Width  A mm 470 Height  B mm 207 Depth  C mm 115 Weight kg 14 Page 32 Air warmers A C B Terminal Cover Casting Removed 5.5mm diameter holes 20mm cable entry 188 674 364 Page 31 Wall mounted fan convector heaters The WF range Model WFC3NB/S WFE3TNB/S loading kW 3.0 3.0 Width  A mm 575 575 Height  B mm 350 350 Depth  C mm 120 120 Weight kg 6.6 6.6 A C B 350 min Page 33 Electricaire Model R7 R8 R10 R12 R15 Rating 4x1.643kW 5x1.643kW 6x1.643kW 7x1.643kW 9x1.643kW Active storage capacity 47kWh 55kWh 73kWh 84kWh 104kWh Case emission 700W 700W 750W 850W 950W Core weight 385kg 385kg 385kg 457kg 611kg Assembled weight 482kg 482kg 482kg 600kg 754kg Dimensions (including/excluding plenum chamber) Height 1603mm/  1300mm 1603mm/  1300mm 1603mm/  1300mm 1753mm/  1450mm 2053mm/  1750mm Width 615mm 615mm 615mm 615mm 615mm Depth 635mm 635mm 635mm 635mm 635mm Fan performance (m 3 /h) normal 625 625 625 710 872 Boost 777 777 777 896 1090 Back pressure (M Bar) 0.15 0.15 0.15 0.15 0.25 Day boost facility   element rating 2x1.643kW 3x1.643kW 4x1.643kW 5x1.643kW 7x1.643kW Supplied as Model R10. R7 and R8 achieved by downrating on site.  We recommend this unit is professionally installed by one of our Electricaire installers.  Please see our website for more information. HB13-D0104 Thermostat sensing head Control  panel Air mixing flap Return air  through washable filter Plenum chamber Air outlet from freestanding unit Mains cable entry Centrifugal  fan Thermal core Core box  insulation dimplex.co.uk/commercial 38

Dimplex Commercial Range Dimplex heaters are ideal  for use in many commercial  and industrial applications  as outlined here. This table should be taken  as a guide only. Individual requirements will depend on  a number of factors including  size of building, insulation levels,  and heating level recommended.  Don’t forget heat pumps,  solar thermal and solar PV  are also ideal for a wide range  of commercial installations,  from offices through to schools. Commercial heating selection guide Application Product ranges Example uses Page Retail/offices Over door heaters Smaller doorways 10 & 11 Air curtains larger retail entrances 12 & 13  16 & 17 Architectural air curtains Office entrances, corporate receptions 14 & 15 Compact commercial fan heaters Small office heaters 22 Wall fan convectors Meeting room heating 31 Hospitality Outdoor patio heating Restaurant dining areas 30 Hotel Restaurant Leisure Air curtains Building entrances 12 - 17 Quartz radiant and ceramic heaters Gymnasiums, sports halls 28 & 29 Wall fan convectors Meeting room heating 31 Commercial  Over door heaters Smaller entrances/doors 10 & 11 Churches Halls Libraries Museums Air curtains Frequently open entrances/doors 12 - 13 Compact commercial fan heaters Workshops/garages 22 Wall fan convectors Waiting rooms 31 Ceramic heaters Church heating 29 Large  Commercial Air curtains Supermarket entrances 12 - 18 AirportsHospitals Architectural air curtains Prestigious receptions, corporate HQs 14 & 15 Wall fan convectors Waiting rooms 31 Commercial fan heaters Atriums 23 - 25 Quartz radiant and ceramic heaters Baggage handling, unheated spaces 28 & 29 Large   industrial Air curtains Warehouse and factory entrances 12 - 18 Warehousing Factories Commercial fan heaters Warehouse and factory heating 23 - 25 Quartz radiant and ceramic heaters Workstation heating 28 & 29 Air warmers Equipment frost protection 32 Electricaire Warm air heating 33 Other Wall fan convectors Temporary building heating 31   May require the use of additional product guards.   A small selection of possible applications. dimplex.co.uk/commercial 39

After Sales Service After sales service if required is absolutely no problem   with Dimplex – we have a network of appointed Service   Engineers spread throughout the country who are qualified   and trained to repair or service any of our appliances.   Please visit www.dimplex.co.uk/support for further details. Bathrooms and washrooms Any electrical appliances installed in a bathroom or washroom  should be fitted by a competent electrician in accordance with   the current I.E.E. Regulations.Portable heaters are nOT suitable for use in a bathroom   or washroom.Unless otherwise specified in this brochure, heaters that can   be permanently fixed have to be so mounted that any controls   cannot be reached by a person using a bath or shower.  Safety Dimplex products are designed to comply with En60335   the British Standard covering the safety requirements of   electric heating appliances. However, in order to be effective,   heaters of any type do get hot especially (if applicable) around   the air outlet grille. Therefore if aged or infirm persons,   or young children, are likely to be left unsupervised in the   vicinity of a heater we advise that precautions should be taken. We recommend that a guard is fitted around the heater,   as is normal with many types of heating appliance in similar  circumstances, to ensure contact with the heater is avoided   and objects cannot be inserted into the product. Heating appliances should never be covered or positioned   where objects may fall onto them.  Specifications Dimplex policy is one of continuous improvement; the Company  therefore reserves the right to alter specifications without notice.  Although every care has been taken in the reproduction of product  finishes in this brochure, the colour photographs should be taken  only as a guide. The information contained in this brochure is  correct at the time of printing. You are advised to consult your  dealer before purchasing. CE Mark Products carrying the CE mark comply with European safety  standards and the European Standard for electro-magnetic  compatibility. Installation Guidance This brochure is designed to assist you with your choice of  Dimplex products and it is not intended as an installation guide.For safety, products should only be installed by a competent  person, in accordance with current regulations and the manufacturers  instructions. If you require further advice concerning the installation  of our products – especially where the installed dimensions may   be critical to your choice and the location of the product –   please consult your installer.Please note that the dimensions contained within this brochure   do not in all cases include clearances required around installed  products for safe operation. The Dimplex Range Dimplex offers the widest range of electric space, water heating  and renewable solutions in the UK. In addition to this publication,  we have a number of more focused brochures as shown below.  These can be ordered via our website: www.dimplex.co.uk/support For more information on these products and copies of the brochures please visit   www.dimplex.co.uk/commercial  or call 0844 879 3587 A division of the GDC Group, Millbrook House, Grange Drive, Hedge End, Southampton SO30 2DF Tel: 0844 879 3587  For northern Ireland, contact Glen Dimplex n.I. limited, 5 Charlestown Ave., Charlestown Ind. Est., Craigavon, Co. Armagh BT63 5zF Tel: 02838 337317 For Republic of Ireland, contact Dimpco on +353 (0)1 8424 277, email [email protected] or visit www.dimpco.ie D1657/0513 12 17 laminated using bio-degradable film. © Dimplex. All rights reserved. Material contained in this publication may not be produced in whole or in part without prior permission in writing from Dimplex.   Electric fires brochure Solid fuel brochure Domestic heating  brochure Quantum brochure EC-Eau Cylinder  brochure Heat pump brochure SmartRad brochure Solar Thermal  brochure Designer range  brochure Towel rail brochure Solar PV brochure
