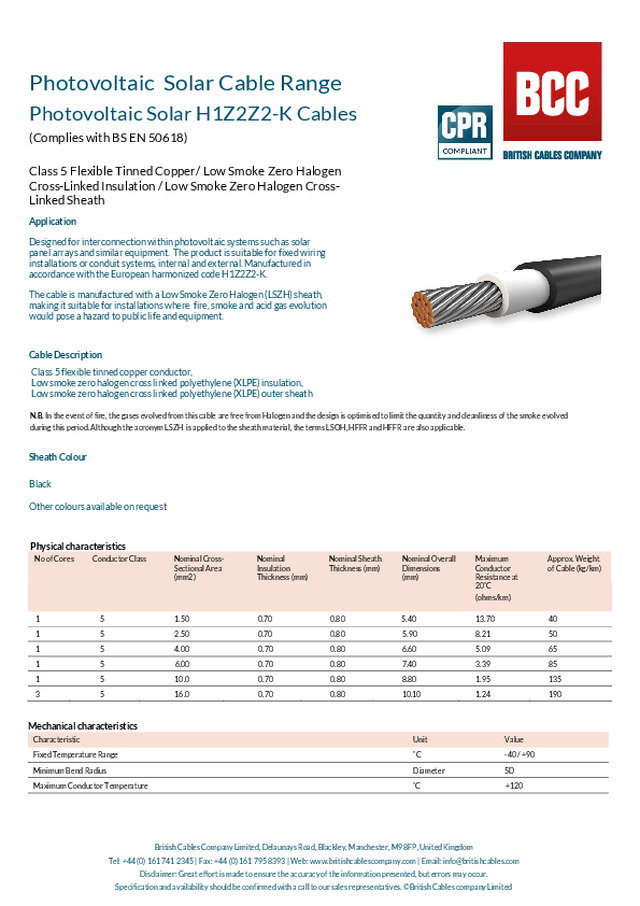

Photovoltaic Solar Cable Range Photovoltaic Solar H1Z2Z2-K Cables

British Cables Company

Photovoltaic Solar Cable Range Photovoltaic Solar H1Z2Z2-K Cables

Published: 24 April 2023 · Category: Product Catalogues & Brochures

From this document

Photovoltaic Solar Cable Range Photovoltaic Solar H1Z2Z2-K Cables (Complies with BS EN 50618) Class 5 Flexible Tinned Copper/ Low Smoke Zero Halogen Cross-Linked Insulation / Low Smoke Zero Halogen CrossLinked Sheath Application Designed for interconnection within photovoltaic systems such as solar panel arrays and similar equipment. The product is suitable for fixed wiring installations or conduit systems, internal and external. Manufactured in accordance with the European harmonized code H1Z2Z2-K. The cable is manufactured with a Low Smoke Zero Halogen (LSZH) sheath, making it suitable for installations where fire, smoke and acid gas evolution would pose a hazard to public life and equipment. Cable Description Class 5 flexible tinned copper conductor, Low smoke zero halogen cross linked polyethylene (XLPE) insulation, Low smoke zero halogen cross linked polyethylene (XLPE) outer sheath N.B. In the event of fire, the gases evolved from this cable are free from Halogen and the design is optimised to limit the quantity and cleanliness of the smoke evolved during this period. Although the acronym LSZH is applied to the sheath material, the terms LSOH, HFFR and HFFR are also applicable. Sheath Colour Black Other colours available on request Physical characteristics No of Cores Conductor Class Nominal CrossSectional Area (mm2) Nominal Insulation Thickness (mm) Nominal Sheath Thickness (mm) Nominal Overall Dimensions (mm) Maximum Conductor Resistance at 20˚C (ohms/km) Approx....
