ABB - Product Catalogue - 2015 - Switchgear - Enclosed switch disconnectors, switch fuses and automatic transfer switches

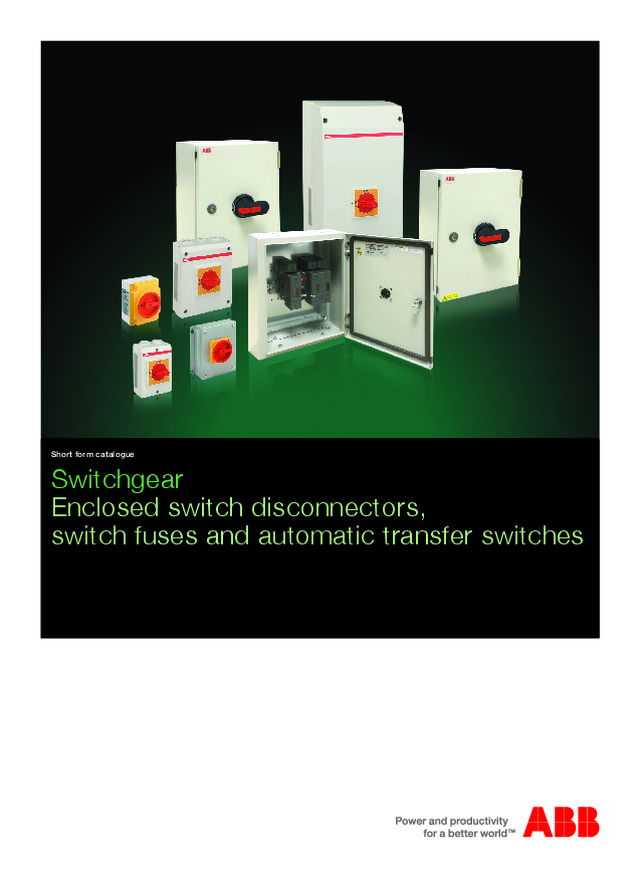

Switchgear Enclosed switch disconnectors,  switch fuses and automatic transfer switches Short form catalogue

3  Enclosed Switching Products 0115  ABB Low Voltage

3  Enclosed Switching Products 0115  ABB Low Voltage  Switchgear Enclosed OT switch disconnectors, OS switch fuses and  ATS Automatic transfer switches  Contents Double insulated enclosed switches & safety switches 4 Metal enclosed switches  5 Metal enclosed switch fuses  6 ATS switches 7

4  Enclosed Switching Products 0115  ABB Low Voltage  5  Enclosed Switching Products 0115  ABB Low Voltage  Load Break Switches 3 - 4 - 6 pole   16...125 amps   Description  •  IP65 rated •  Grey plastic enclosure •  Standard handle - Red/Yellow (padlockable in the off position) •  Cable entries top and bottom •  All OTP16 (excluding 3p) /25/32 all have 25/20mm reducers       Rating@415v Dimensions mm Part Number Product Hierarchy 4000002 Order Code 1th A AC22 AC23 kW No. Poles H W D 25 16 16 7.5 3 + solid neutral 150 130 60 OTP16BA3M OTP16BA3M 4 OTP16BA4MS OTP16BA4MS 6 OTP16BA6M OTP16BA6M 32 25 20 9 3+ solid neutral 150 130 60 OTP25BA3M OTP25BA3M 4 OTP25BA4M OTP25BA4M 6 OTP25BA6M OTP25BA6M 40 40 23 11 3+ neutral 150 130 60 OTP32BA3M OTP32BA3M 4 OTP32BA4M OTP32BA4M 6 OTP32BA6M OTP32BA6M 63 63 45 22 3+ solid neutral 200 145 90 OTP45BA3M OTP45BA3M 4 OTP45BA4M OTP45BA4M 6 OTP45BA6M OTP45BA6M 80 80 75 37 3+ solid neutral 200 145 90 OTP63BA3M OTP63BA3M 4 OTP63BA4M OTP63BA4M 6 OTP63BA6M OTP63BA6M 125 125 90 45 3+ solid neutral 400 200 140 OTP125BA3U OTP125BA3U 4 OTP125BA4U OTP125BA4U 6 OTP125BA6U OTP125BA6U Polycarbonate Enclosure  9kW ... 37kW   4 pole    32 25 9 125 100 107 S47K5N-A S47K5N-A 40 40 11 S415KN-A S415KN-A 63 63 22 170 140 108 S418KN-A S418KN-A 80 80 37 S426KN-A S426KN-A Safety Switches 3 pole   16...40 amps Rating@415v Dimensions mm Part Number Product Hierarchy 4000002 Order Code 1th A AC22 AC23 kW No. Poles H W D 25 16 16 7.5 3 150 130 60 OTP16B3M OTP16B3M 32 25 20 9 3 150 130 60 OTP16B3M OTP16B3M 40 40 23 11 3 150 130 60 OTP32B3U OTP32B3U Switchgear - Loadbreak & safety switches IP65 Double insulated enclosure Polycarbonate Enclosure  9kW ... 11kW   3 pole  Rating@415v Dimensions mm Part Number Product Hierarchy 4000002 Order Code 1th A AC22 kW H W D 32 25 9 125 100 107 S37K5N-A S37K5N-A 40 40 11 S315KN-A S315KN-A Load Break Switches 3 - 4 pole   9...37kW Description • IP65 three and four-pole switch disconnectors suitable for load break switching or isolation.  • Polycarbonate enclosure. IEC 60947-3

4  Enclosed Switching Products 0115  ABB Low Voltage  5  Enclosed Switching Products 0115  ABB Low Voltage  Load Break Switches  3 - 4 pole   20 ... 800A   •  IP65 rated (not suitable for external installation) •  Powder coated textured finish (RAL 7035) •  All 3 pole switches include detachable neutral link (OT160 solid link) •  Hinged lid complete with lock •  Padlockable pistol grip handle as standard •  Removable gland plates fitted top and bottom (see below for knockout configurations) •  Spreader boxes available see below     Rating@415v [A]        Dimensions Part Number Product Hierarchy 4000003  Order Code 1th A AC22 AC23 H W D No. Poles 32 25 20 300 200 150 3 + solid neutral OT20TPN-A OT20TPN-A 4 OT20FP-A OT20FP-A 40 40 23 300 200 150 3+ solid neutral OT32TPN-A OT32TPN-A 4 OT32FP-A OT32FP-A 80 80 75 300 300 150 3+ solid neutral OT63TPN-A OT63TPN-A 4 OT63FP-A OT63FP-A 115 100 80 400 300 150 3+ solid neutral OT100TPN-A OT100TPN-A 4 OT100FP-A OT100FP-A 125 125 90 400 300 150 3+ solid neutral OT125TPN-A OT125TPN-A 4 OT125FP-A OT125FP-A 160 160 135 500 400 200 3 + solid neutral OT160TPN-A OT160TPN-A 4 OT160FP-A OT160FP-A 200 200 200 500 400 200 3+ solid neutral OT200TPN-A OT200TPN-A 4 OT200FP-A OT200FP-A 315 315 315 500 400 200 3+ solid neutral OT315TPN-A OT315TPN-A 4 OT400FP-A OT400FP-A 500 500 500 500 400 200 3+ solid neutral OT400TPN-A OT400TPN-A 4 OT400TPN-A OT400TPN-A 630 630 630 600 400 250 3+ solid neutral OT630TPN-A OT630TPN-A 4 OT630FP-A OT630FP-A 800 800 800 600 400 250 3+ solid neutral OT800TPN-A OT800TPN-A 4 OT800TPN-A OT800TPN-A Switchgear - Loadbreak switches IP65 Steel enclosure Spreader Boxes  Suitable for Loadbreak Switches Product Hierarchy 3200003 Spreader Box  Order Code Spreader Box Gasket  Order Code OT20, OT32, OT63, OT100, OT125 Not Required OT160, OT200, OT315, OT400 SRN5420K GZ4020 OT630, OT800 SRN6425K GZ4025 Wall Mounting Brackets (Pack of 4) AA1206 Auxiliary Contacts 1 N/O OA1G10 OA1G10 1 N/C - only for OT20-125_ OA1G01 OA1G01 1 N/C - only for OT200 and above OA3G01 OA3G01 1 N/O - 1 N/C - OT20-125 and OT160 only OA2G11 OA2G11 Mounting module for OA2G11 - for OT160 only OAZX1 OAZX1

6  Enclosed Switching Products 0115  ABB Low Voltage  7  Enclosed Switching Products 0115  ABB Low Voltage  3 - 4 pole   20 ... 800A         AC23 [kW] Dimensions Part Number Product Hierarchy 4000003  Order Code 1thA 400V 500V 690V H W D No. Poles Fuse Type 20 7.5 11 15 300 300 150 3+detach neutral A1 OS20TPN-A OS20TPN-A 4 OS20FP-A OS20FP-A 32 15 18 25 300 300 150 3+detach neutral A2 OS32TPN-A OS32TPN-A 4 OS32FP-A OS32FP-A 63 30 37 55 400 300 150 3+detach neutral A2/A3 OS63TPN-A OS63TPN-A 4 OS63FP-A OS63FP-A 100 55 55 90 400 300 150 3+detach neutral A2/A3 OS100TPN-A OS100TPN-A 4 OS100FP-A OS100FP-A 125 55 75 110 400 300 150 3+detach neutral A2/A3 OS125TPN-A OS125TPN-A 4 OS125FP-A OS125FP-A 160 75 90 132 500 400 200 3+solid neutral A3/A4 OS160TPN-A OS160TPN-A 4 OS160FP-A OS160FP-A 200 110 132 200 600 400 250 3+detach neutral B1/B2 OS200TPN-A OS200TPN-A 4 OS200FP-A OS200FP-A 315 160 220 220 600 400 250 3+detach neutral B1/B4 OS315TPN-A OS315TPN-A 4 OS315FP-A OS315FP-A 400 220 280 400 600 400 250 3+detach neutral B1/B4 OS400TPN-A OS400TPN-A 4 OS400FP-A OS400FP-A 630 355 450 560 600 600 300 3+detach neutral C1/C2 OS630TPN-A OS630TPN-A 4 OS630FP-A OS630FP-A 800 450 560 710 800 600 300 3+detach neutral C1/C2 OS800TPN-A OS800TPN-A 4 OS800FP-A OS800FP-A   •  IP65 rated (not suitable for external installation)•  Powder coated textured finish (RAL 7035)•  All switches are supplied with fuses and removable gland plates•  All 3 pole switches include detachable neutral link (OT160 solid link)•  Switch Fuses are internally rated IP20 on incoming terminals up to 63A•  Hinged lid complete with lock •  Padlockable pistol grip handle as standard•  Switch Fuses 100A are supplied with incoming terminal shrouds  (NOT FITTED) to allow customer connections  •  Spreader boxes available see below Note: OT630 & OT800 TPN/FP products are made to order and are non-stock items Spreader Boxes  Spreader Box Spreader Box Gasket Suitable for Loadbreak Switches Part Number Product Hierarchy 3200003 Order Code Part Number Product Hierarchy 3200003  Order Code OS20 - OS125 Not Required - Not Required - OS160 SRN5420K SRN5420K GZ4020 GZ4020 OS200 - OS400 SRN6425K SRN6425K GZ4025 GZ4025 OS630 - OS800 SRN8530K SRN8530K GZ6030 GZ6030 Wall Mounting Brackets (Pack of 4) AA1206 AA1206 Auxiliary Contacts 1 N/O OA1G10 OA1G10 1 N/C OA3G01 OA3G01 1 N/O - 1 N/C OA2G11 OA2G11 1 x CO contact - only for products OS20_/OS32_ OA4B1C OA4B1C Mounting frame to fit OA1/OA3 aux on left side of OS20/0S32 switch fuse (only for OS20_/OS32_ OSZ4 OSZ4 Switchgear - Switch fuses IP65 Steel enclosure

6  Enclosed Switching Products 0115  ABB Low Voltage  7  Enclosed Switching Products 0115  ABB Low Voltage  Switchgear - BS fuses HRC fuse links, BS-type OFFNC 2 MADE IN AB B 415V 630A 2 / gG 80kA S04083 S04082 OFFNA 3 MADE IN AB B 415V 63A 3 / gG 80kA S04081 OFFNA 4 MADE IN AB B 415V 125A 4 / gG 80kA S04080 OFFNA 2 MADE IN AB B 415V 32A 2 / gG 80kA S04079 OFFNB 4 MADE IN AB B 415V 400A 4 / gG 80kA S04078 OFFNB 3 MADE IN AB B 415V 315A 3 / gG 80kA S04077 OFFNB 2 MADE IN AB B 415V 200A 2 / gG 80kA S04076 OFFNB 1 MADE IN AB B 415V 125A 1 / gG 80kA S04075 OFFNF 1 MADE IN AB B 415V 32A 1 / gG 80kA OFFNF1 OFFNA1 OFFNA2 OFFNA3 OFFNA4 OFFNB1 OFFNB2 OFFNB3 OFFNB4 OFFNC2 BS-fuse type In [A] Ph [W] Part Number Product Hierarchy  0002100007 Order Code Tag type: Offset F1 2 0.9 OFFNF1GG2 1SCA107786R1001 4 1.5 OFFNF1GG4 1SCA107787R1001 6 1.5 OFFNF1GG6 1SCA107788R1001 10 1.2 OFFNF1GG10 1SCA107789R1001 16 1.6 OFFNF1GG16 1SCA107790R1001 20 1.7 OFFNF1GG20 1SCA107791R1001 25 2.0 OFFNF1GG25 1SCA107792R1001 32 2.9 OFFNF1GG32 1SCA107793R1001 Tag type: Offset, two holes fixing 20 A1 2 0.9 OFFNA1GG2 1SCN833065R2012 4 1.5 OFFNA1GG4 1SCN833066R2012 6 1.5 OFFNA1GG6 1SCN833067R2012 10 1.2 OFFNA1GG10 1SCN833068R2012 16 1.6 OFFNA1GG16 1SCN833069R2012 20 1.7 OFFNA1GG20 1SCN833061R2012 25 2.0 OFFNA1GG25 1SCN833070R2012 32 2.9 OFFNA1GG32 1SCN833062R2012 A2 6 1.5 OFFNA2GG6 1SCA107795R1001 10 1.2 OFFNA2GG10 1SCA107796R1001 16 1.6 OFFNA2GG16 1SCA107798R1001 20 1.7 OFFNA2GG20 1SCA107827R1001 25 2.0 OFFNA2GG25 1SCA107800R1001 32 2.9 OFFNA2GG32 1SCA107801R1001 A3 40 3.0 OFFNA3GG40 1SCA107803R1001 50 3.6 OFFNA3GG50 1SCA107804R1001 63 4.7 OFFNA3GG63 1SCA107805R1001 A4 50 3.6 OFFNA4GG50 1SCA107806R1001 63 4.7 OFFNA4GG63 1SCA107807R1001 80 6.5 OFFNA4GG80 1SCA107808R1001 100 7.5 OFFNA4GG100 1SCA107809R1001 125 11.5 OFFNA4GG125 1SCA107810R1001 160 14.5 OFFNA4GG160 1SCN833063R2012 200 16.2 OFFNA4GG200 1SCN833064R2012 B1 50 4.8 OFFNB1GG50 1SCA107811R1001 63 5.9 OFFNB1GG63 1SCA107812R1001 80 6.5 OFFNB1GG80 1SCA107813R1001 100 7.5 OFFNB1GG100 1SCA107814R1001 B2 125 11.5 OFFNB2GG125 1SCA107816R1001 160 14.5 OFFNB2GG160 1SCA107817R1001 200 16.2 OFFNB2GG200 1SCA107818R1001 Tag type: Central, two holes fixing 10 B3 250 24.0 OFFNB3GG250 1SCA107819R1001 315 31.0 OFFNB3GG315 1SCA107820R1001 400 38.0 OFFNB4GG400 1SCA107822R1001 Tag type: Central, four holes fixing C1 400 38.0 OFFNC1GG400 1SCA107823R1001 C2 500 48.0 OFFNC2GG500 1SCA107824R1001 630 54.0 OFFNC2GG630 1SCA107825R1001 C3 800 68.0 OFFNC3GG800 1SCA107826R1001 S04082 OFFNA 1 MADE IN AB B 415V 32A 1 / gG 80kA BS Fuses

8  Enclosed Switching Products 0115  ABB Low Voltage  9  Enclosed Switching Products 0115  ABB Low Voltage  Switchgear - Automatic transfer switches Functionality & features  As industrial processes and IT  applications diversify, a secure  power supply is becoming an  increasingly important asset  in the drive to cut production  and maintenance costs.  In emergency situations,  the system logic of power  distribution can become  complex with mechanical  devices looking after the  making, breaking, conducting  and isolating of power. Loads  may sometimes need to be  transferred from one supply to  another — this will be the case  when energy use is restricted  or when the supply source is  overloaded.  High performance level In change-over applications where the loaded switch may need to be operated remotely, adequate durability has been ensured by testing against the IEC 60947-6-1 standard in the specification of endurance requirements. Utillisation categories: − AC-31 for non-inductive or slightly inductive load− AC-33 for motor loads or mixed loads including motors  ABB change-over switches are rated according to    IEC 60947-6-1 standard.

8  Enclosed Switching Products 0115  ABB Low Voltage  9  Enclosed Switching Products 0115  ABB Low Voltage  Functionality Includes automatic control unit OMD300_ OMD800_ Manual operation with handle x x Local operation with front panel keypad x x Measurements Three phase voltage measurement on LINE 1 & 2 x x Single phase voltage measurement on LINE 1 & 2 x x Frequency on LINE 1 & 2 x x Source failure detections No voltage x x Undervoltage x x Overvoltage x x Phase missing x x Voltage unbalance x x Invalid frequency x x Incorrect phase sequence x Configuration By DIP switches x By rotary switches x By keypad and LCD x Voltage threshold setting x x Voltage hysteresis setting x Frequency threshold setting x Frequency hysteresis setting x Time delays Switching delay x 1) x Delay on transfer 2) x Dead band time I-II (stop switching to position O) x Back-switching delay x 3) x Dead band time II-I (stop switching to position O) x Generator stop delay x 4) x Status of time delays on the LCD x Features Includes automatic control unit OMD300_ OMD800_ Generator start and stop x x Off-load test sequence x x On-load test sequence x x Source status via front panel x x Source status via digital outputs x Switch position via front panel x x Modbus interface x Event/alarm log x Counter for number of operations x Auxiliary voltage supply x Programmable digital inputs (eight) and digital outputs (six) x Secondary load control (load shedding) x Digital input - Allow transfer to secondary x Digital input - Generator alarm x Digital input - Remote control to positions I, O and II x Operating mode Line priority x 5) x 6) Manual back-switching x x Automatic operation to position O, in case of source failure x Switchgear - Automatic transfer switches Functionality & features  x = included as standard 1)  Four options: 0, 5, 10 or 30 seconds 2)  Delaying the switching sequence before transferring to generator, guaranteeing that in cold locations the generator is properly warmed up 3)  Two options: the duration of back-switching delay is the same as switching delay, i.e. the time delay is same for I - II and II - I, or the back-switching delay is fixed 300 seconds 4)  Two options: the duration of generator stop delay is the same as Switching delay or fixed 5 min 5)  Two options: No line priority, or Source 1 is the priority source 6)  Three options: No line priority, Source 1 or Source 2 is the priority source

10  Enclosed Switching Products 0115  ABB Low Voltage  Switchgear - Automatic transfer switches Selection Description Rated Current (A) Enclosure Size (mm) Controller OMD300 Controller OMD800 H W D Part Number Order Code Part Number Order Code ATS 40A 40 600 600 250 OTA40E4C3SR 1TVC004014S3000 OTA40E4C8SR 1TVC004014S8000 ATS 63A 63 600 600 250 OTA63E4C3SR 1TVC006314S3000 OTA63E4C8SR 1TVC006314S8000 ATS 125A 125 600 600 250 OTA125E4C3SR 1TVC012514S3000 OTA125E4C8SR 1TVC012514S8000 ATS 160A 160 600 600 250 OTA160E4C3SR 1TVC016014S3000 OTA160E4C8SR 1TVC016014S8000 ATS 250A 250 600 600 250 OTA250E4C3SR 1TVC025014S3000 OTA250E4C8SR 1TVC025014S8000 ATS 400A 400 800 600 300 OTA400E4C3SR 1TVC040014S3000 OTA400E4C8SR 1TVC040014S8000 ATS 630A 630 1000 800 400 OTA630E4C3AM 1TVC063024S3000 OTA630E4C8AM 1TVC063024S8000 ATS 800A 800 1000 800 400 OTA800E4C3AM 1TVC080024S3000 OTA800E4C8AM 1TVC080024S8000 ATS 1000A 1000 1400 800 500 OTA1000E4C3AM 1TVC100024S3000 OTA1000E4C8AM 1TVC100024S8000 ATS 1250A 1250 1400 800 500 OTA1250E4C3AM 1TVC125024S3000 OTA1250E4C8AM 1TVC125024S8000 ATS 1600A 1600 1400 800 500 OTA1600E4C3AM 1TVC160024S3000 OTA1600E4C8AM 1TVC160024S8000   Floor standing - plinths from accessories below.  Bypass options are available on request. Other wall mounting and floor standing  versions available on request. Optional extras Description Part Number Order Code 2 pilot lights ATS2PL 1TVC151800S2311 Door mounted controller complete with IP54 cover plate ATSDMC 1TVC151800S2312 Energy meter ATSEM 1TVC151800S2313 Aniti-condensation heater with thermostat ATSHT 1TVC151800S2314 Accessories Description Suitable switch Part Number Order Code N/O auxiliary for on right hand side of switch OTA40-1600 OA1G10 1SCA022673R1140 N/O auxiliary for on left hand side of switch OTA40-125 OA7G10 1SCA022744R2240 N/C auxiliary for on right hand side of switch OA8G01 1SCA022353R4890 N/C auxiliary for on left hand side of switch OA1G01 1SCA022456R1710 N/C auxiliary for on right hand side of switch OTA160-1600 OA3G01 1SCA022456R7410 Direct mounting handle, padlockable with 3 padlocks in ‘0‘ position. Includes shaft and   mech cover OTA40-125 OHB65D6CM 1SCA022870R9430 OTA160-250 OTV250ECMK 1SCA022804R0570 OTA400 OTV400ECMK 1SCA022843R2900 OTA630-800 OTV800ECMK 1SCA022804R3410 OTA1000-1600 OTV1000ECMK 1SCA111301R1001 Handle and spare fuse storage clip OTA40-125 OTVS0 1SCA117524R1001 OTA160-250 OTVS1 1SCA111413R1001 OTA400-1600 OTVS2 1SCA111414R1001 IP54 cover plate for door mounting ATS controller All OMZC2 1SCA101001R1001 Yale type key, 19mm dia box with security insert OTA40-400 AA8002 AA8002 Unique coded Yale insert lock OTA630-1600 EV1036 EV1036 A4 Document pocket All EV1075K EV1075K Blind plinth flanges (pair) H100 x W800mm OTA630-1600 ZN8000 ZN8000 Blind plinth flanges (pair) H100 x D400mm OTA630-800 ZN4011 ZN4011 Blind plinth flanges (pair) H100 x D500mm OTA1000-1600 ZN5011 ZN5011 Wall mounting brackets (4 off) OTA40-400 AA1206 AA1206 Anti tilting brackets (pair) OTA630-1600 TA1207 TA1207 Enclosed automatic transfer switches, I-O-II operation, open transition  • ATS 4 pole with OMD300 & OMD800 controller, blank door, wall mountable • Enclosed Automatic Transfer  Switch with ATS2PL &  ATSDMC optional extras Single Bypass and Dual Bypass ATS are available on request

10  Enclosed Switching Products 0115  ABB Low Voltage

12  Enclosed Switching Products 0115  ABB Low Voltage  ©  Copyright ABB Ltd   9AKK106354A1406 Contact us ABB Ltd Tower Court Foleshill Enterprise Park Courtaulds Way Coventry CV6 5NX Tel:  0333 999 9900 Fax:  0333 999 9901Email:   [email protected]  Twitter: @ABBUKLVP www.abb.co.uk/lowvoltage Note: We reserve the right to make technical changes or modify the contents of this document without prior notice. With regard to purchase orders, the agreed particulars shall prevail. ABB Ltd does not accept any responsibility whatsoever for potential errors or possible lack of information in this document. We reserve all rights in this document and in the subject matter and illustrations contained therein. Any reproduction, disclosureto third parties or utilization of its contents – in whole or in parts – is forbidden without prior written consent of ABB Ltd. Copyright © 2015 ABB LtdAll rights reserved Power and productivity for a better world TM
