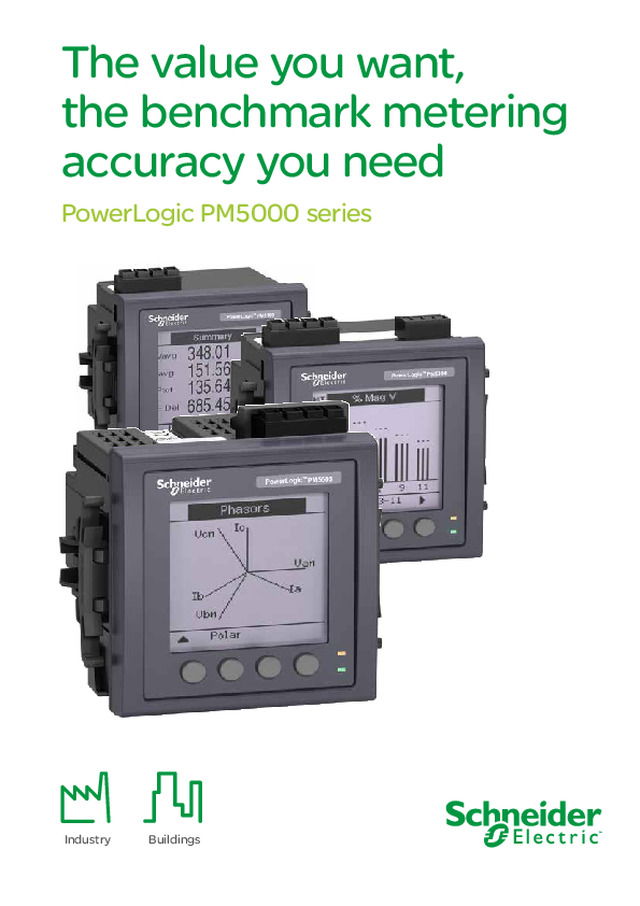

The value you want,   the benchmark metering  accuracy you need PowerLogic PM5000 series Industry Buildings

2 2 With it’s accuracy , simplicity, quality,  and rich feature set making the  PowerLogic PM5000 series meters the  industry’s performance benchmark  for cost management applications,   I’d have expected it to cost more”

3 3 The PowerLogic PM5000 series The PowerLogic PM5000 series More capability than you expected Budget conscious professionals have a new benchmark for   metering performance  The PowerLogic PM5000 series unites high quality and affordability in a compact meter. It is meticulously engineered to provide high-end cost management capabilities in a straightforward metering platform.  This means it’s both affordable and capable, while being simple to purchase, install and use. Use it to maximise operational efficiency, increase network reliability, and improve business performance. Optimised for energy cost management An essential combination of features, such as multiple tariffs and data logging, merges with industry-leading measurement accuracy to match the requirements of energy cost management applications, in buildings and industry. Compliant with MID, IEC 62052/53, and IEC 61557-12 metering standards, the PM5000 series meters remove any uncertainty in billing for energy costs and ensure a high level of performance that noncompliant devices cannot match. Complying with most demanding international metering standards IEC 61053-22 Class 0.5S / Class 0.2S ANSI 12.20 (0.5) Class 10  (PM5500 models) IEC 61557-12 PMD/S/K70/0.5   (PM5100 & PM5300 models) IEC 61557-12 PMD/S/K70/0.2   (PM5500 models) IEC 62052-11IEC 62053-24MID, EN50470-1/3 - Annexe B & Annexe DCE as per IEC 61010-1 Ed.3cULus as per UL 61010-1 Ed.3

4 4 Grocery st ore SHOPPING MALL Fashion Books Optimise energy use and costs across your entire organisation An ideal combination of features Affordable to buy and easy to choose, the highly-capable PowerLogic PM5000 series meters are designed to provide the best combination of features to match all your energy cost management needs. They provide the measurement capabilities needed to allocate energy usage, perform tenant metering and sub-billing, pinpoint energy savings, optimise equipment efficiency and utilisation, and perform a high level assessment of the power quality of the electrical network. 1 2 3 4 5 1 5 1 Energy cost management 1   Identify consumption to recoup energy costs   - reduce consumption of electricity and water - sub-bill tenants and identify process energy use - identify savings opportunities -  Integrate other water, air, gas, electricity   and steam meter data  2   Improve energy supply   - optimise energy procurement - billing verification  3   Reduce energy bills  - reduce billing penalties and    optimise energy procurement - shed unnecessary loads -  participate in demand response   and peak shaving programs  Electrical network management  4   Monitor to increase reliability   - receive fast fault alarms - identify underperforming electrical assets - increase productivity, comfort & safety - increase reliability and recover from outages faster - understand root failure causes -  increase maintenance personnel productivity   Asset management  5   Optimise asset usage to boost efficiencies   - assess operational efficiency - optimise preventative maintenance - avoid over building - identify spare network capacity -  detect and mitigate power quality issues to   increase equipment life PM5500 PM5300 PM5100

5 5 Grocery st ore SHOPPING MALL Fashion Books The PowerLogic PM5000 series The PowerLogic PM5000 series Optimise energy use and costs across your entire organisation 4 4 5 1 1 1 This example architecture shows only one of many application possibilities for PM5000 series meters. Consider the level of measurement accuracy and your information requirements at each metering point in order to select the most appropriate device.

6 6 Key features and capabilities for improved  metering performance  Installation and configuration   -  Easy, tool-free installation thanks to  two-clip mounting and one-piece construction in a standard DIN 96 x 96 mm cutout   -  Compact 72 mm depth  Graphical display   -  Back-lit, anti-glare display provides  easy reading in extreme lighting conditions and viewing angles   -  Intuitive menu-driven navigation,  large characters, icons, and graphics offer easy access to important information in English, Spanish, French, Italian, German, Portuguese, Chinese, and Russian   Onboard web pages   (PM5500 models)   -  View real-time and logged  information using any browser for easy information access without specialised software   -  Verify communications and easily  troubleshoot issues  Battery backed real-time clock   -  Continues operation during   power outages   -  Time-stamped alarms and events  Alarms   -  Meters offer a combination of  predefined and configurable alarms with 1 s time stamping, varies by meter model   -  Each meter has an alarm log   that contains the dated and  time-stamped active and  historical alarms   - Programmable alarms to trigger      digital outputs or mechanical relays      (select PM5300 models)  Digital I/O   -  Monitor alarms, synchronise  demand with external pulse, count pulses, calculate consumption from other WAGES meters   -  Use digital outputs to signal  another device or software, or execute automatic actions such as control of basic equipment or  alarm annunciation Back view

7 7 The PowerLogic PM5000 series The PowerLogic PM5000 series   4 current inputs (PM5500 models)   -  Measuring neutral current is  essential for avoiding device overload and network outage. Direct measurement is superior to calculated values since the latter are not accurate at higher harmonics.   -  Calculate ground current in a  3-phase, 4-wire system to determine all the possible current values   Data logging and internal memory   -  PM5500 models: Up to 14  selectable parameters with configurable interval and duration (e.g. 6 parameters for 90 days @15 minute interval)   -  PM5300 models: 2 parameters  (kWh and kVAh) with configurable interval and duration for a total of 60 days @ 15 minutes    Extended voltage range   -  Direct connection up to 690 V  L-L without voltage transformers for installations compliant with category III insulation level. Saves panel space by dispensing with transformers for control power or voltage inputs.  Multiple tariffs   -  Multiple tariffs offer the most  flexibility with billing structures. Support up to 4 tariffs on PM5300 models or 8 tariffs on PM5500 models.   -  Exported and imported real and  reactive energy, apparent energy, input metering accumulated values, peak real power demand, peak reactive power demand  Harmonics   -  THD and individual harmonics   to the 15th order for PM5100, 31st order for PM5300, and  63rd for PM5500  Dual Ethernet (PM5500 models)   -  Daisy chain meters together to  minimise both the wiring and the need for external switches or hubs. Each meter has a single  IP address. Front view

Features and Options PM5100 PM5300 PM5500 Short reference numbers  PM5100 PM5110 PM5310 PM5320 PM5330 PM5340 PM5560 PM5563 Commercial reference numbers METSE  PM5100 METSE  PM5110 METSE  PM5310 METSE  PM5320 METSE  PM5330 METSE  PM5340 METSE  PM5560 METSE  PM5563 Installation Fast installation, panel mount with integrated  display ■ ■ ■ ■ ■ ■ ■ – Fast installation, DIN rail mountable – – – – – – – ■ Accuracy CL 0.5S CL 0.5S CL 0.5S CL 0.5S CL 0.5S CL 0.5S CL 0.2S CL 0.2S Display Backlit LCD, multilingual, bar graphs, 6 lines,  4 concurrent values ■ ■ ■ ■ ■ ■ ■ ■ Power and energy metering 3-phase voltage, current, power, demand,  energy, frequency, power factor ■ ■ ■ ■ ■ ■ ■ ■ Multi-tariff – – 4 4 4 4 8 8 Power quality analysis THD, thd, TDD ■ ■ ■ ■ ■ ■ ■ ■ Harmonics, individual (odd) up to 15th 15th 31st 31st 31st 31st 63rd 63rd I/Os and relays I/Os 1DO 1DO 2DI/2DO 2DI/2DO 2DI/2DO 2DI/2DO 4DI/2DO 4DI/2DO Relays 0 0 0 0 2 2 0 0 Alarms and control Alarms 33 33 35 35 35 35 52 52 Set point response time, seconds 1 1 1 1 1 1 1 1 Single and multi-condition alarms – – ■ ■ ■ ■ ■ ■ Boolean alarm logic – – – – – – ■ ■ Memory for data logging 256KB 256KB 256KB 256KB 1.1 MB 1.1 MB Communications Serial ports with modbus protocol – 1 1 – 1 – 1 1 Ethernet port with Modbus TCP protocol – – – 1 – 1 2 2 Onboard web server with web pages – – – – – – ■ ■ MID ready compliance, EN50470-1/3, Annex B and Annex D Class C PM5111  METSEPM5111 PM5331   METSEPM5331 PM5341   METSEPM5341 PM5561   METSEPM5561 Feature selection table 2 Ethernet ports for daisy chain, one IP address. Schneider Electric Ltd Schneider Electric Limited is a company registered in England and Wales. Registered number: 1407228. Registered office: Stafford Park 5, Telford, Shropshire TF3 3BL. © 2014 Schneider Electric. All Rights Reserved. Schneider Electric, Active Energy Management,  Compact, EcoStruxure, ION Enterprise, iRIO, Make the most of your energy, Masterpact,  Micrologic, Power Plant To Plug, Modbus, and PowerLogic are owned by Schneider Electric   Industries SAS, or its affiliated companies in the United States and other countries.    998-1206078-GB As standards, specifications and designs change from time to time, please ask for confirmation  of the information given in this publication. SE8471   MAR  2014 United Kingdom Stafford Park 5, TelfordShropshire TF3 3BLTel: 0870 608 8 608Fax: 0870 608 8 606www.schneider-electric.com/uk Ireland Head office, Block aMaynooth Business CampusMaynooth, Co. KildareTel: (01) 601 2200Fax: (01) 601 2201www.schneider-electric.com/ie member of
