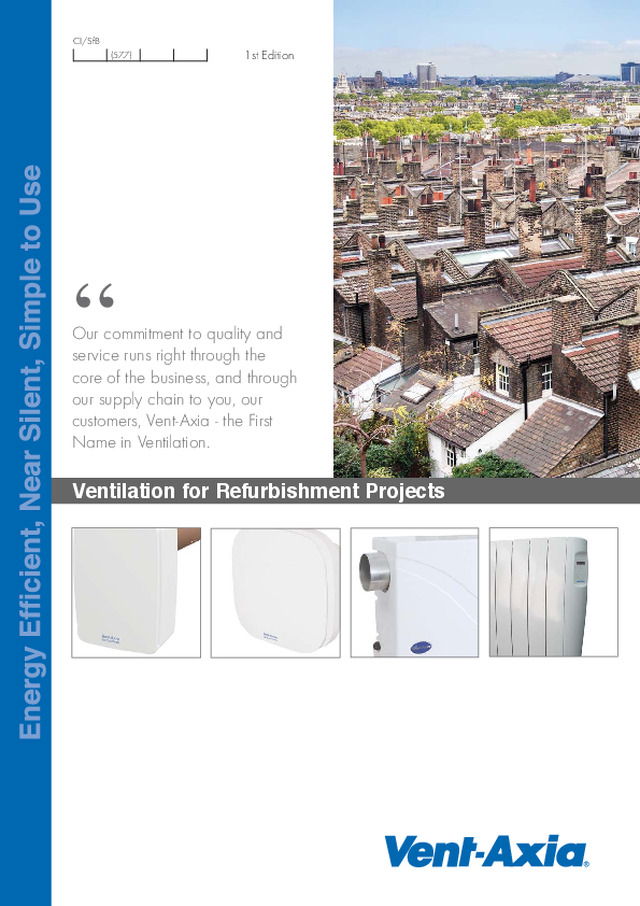

1st Edition (57.7) CI/SfB Ventilation for Refurbishment Projects Our commitment to quality and service runs right through the core of the business, and through our supply chain to you, our customers, Vent-Axia - the First Name in Ventilation. “

Lo-Carbon range on page 20 Positive Pressure units on page 32 Unparalleled Customer Service Dedicated Specification Team Positi e Press re nits on page 32 Why choose Vent-Axia Vent-Axia is here to help you right through the design, specification and installation process, whatever your application, backed by a strong sales team and an unrivalled technical support group based in Crawley.  Our commitment to quality and service runs right through the core of the business, and through our supply chain to you, our customers; Vent-Axia - the First Name in Ventilation. We are with you all the way •  Insight Visits – Our Specification team can write a full  specification that will guarantee the best indoor air quality for a comfortable home. The specification will also provide the best guidance for all housing regulations  •  Installation – To meet customer’s requirements, we can  support your project and specifically liaise with the Contractor, Distributor and Occupier to maintain a smooth installation •  Maintenance - Vent-Axia fans are designed for a long  trouble free life with low maintenance schedules. Should you require any maintenance support however, our service department are ready to help Availability •  With the widest distribution network of any manufacturer in the  UK we pride ourselves on having products available when and where you need them  Product solutions •  Whatever product category, we have the most energy efficient  solution available •  Unique solutions designed to fit into all your buildings •  With absolute focus on the end user we work hard to produce  the quietest, most comfortable products for occupiers to live with UK manufacture and unrivalled availability  Heating range on page 38

Introduction 4-11 How does Ventilation benefit you and  your tenant? 4 Continuous vs Intermittent Ventilation 5 Understanding Condensation 6 Understanding Mould 7 Case Study 8-9 CPD Courses 10-11 Corporate Social Responsibilty Statement 11 Carbon Footprint 11 Lo-Carbon Residential Fans 12-29 Lo-Carbon Centra/SELV 14-15 Lo-Carbon Response/SELV 16-17 Lo-Carbon Quadra/SELV 18-19 Lo-Carbon Tempra/SELV 20-21 Lo-Carbon Solo Plus/SELV 22-23 Lo-Carbon VA100/SELV 24-25 Lo-Carbon Silhouette 100/SELV 26-27 Lo-Carbon VA150 28 Lo-Carbon Silhouette 150 29 PIV Systems 30-35 Lo-Carbon Pozidry 32-33 Lo-Carbon Pozidry Compact 34-35 Electric Heating 36-43 Opal Aluminium Radiators 38 Optimax Plus Storage Heaters 39 Heated Towel Rails 40-41 Optimax Plus Panel Heaters 42 Downflow Heater 43 Portable Fan Heater 43 Convector Heater 43 Ventilation for Refurbishment

4  T:   0844 856 0590 Landlord’s Choice •  Solutions for all types of houses and every room situation •  Energy efficient solutions to tackle indoor air quality issues •  The 100/150mm spigot is common with traditional intermittent  extract fans, simplifying the specification process •  Easy to retrofit, reducing installation and make-good time •  Data Logger Function on most Lo-Carbon humidistat models. This  function allows the landlord to check the total number of days that the fan has been powered. The fan will start counting the first 24 Hour period once it is powered up. In the event of power failure the memory within the fan will hold the current days powered and will start counting again once the power has been restored •  5 year warranty on Lo-Carbon products  Tenant’s Choice •  Remove toxins, pollen, allergens and harmful dust •  Prevent moulds and other allergens •  A sensitive choice for asthma and allergy sufferers •  Improved air quality in the home  •  Mould on personal belongings and in wardrobes is reduced • Near  silent  design •  Guaranteed installed performance with flexible motor speed •  Lo-Carbon fans use up to 80% less energy than a standard fan  reducing the carbon footprint and saving on bills • Easy  to  maintain Installer’s Choice •  Easy to retrofit, reducing installation and make-good time •  Options that can replace any existing fan •  Surface or recess mounted options available •  Support available from the Vent-Axia team •  Easy to install and maintain saving time and money How does Ventilation benefit you and your tenant?

W: www.vent-axia.com  5 Ventilation for Refurbishment What is Continuous Ventilation? Continuous Ventilation works by extracting stale and moist air from the home at a low rate all of the time. Continuous ventilation uses less energy than traditional intermittent ventilation and is therefore a much more cost effective and low carbon option. Providing an ‘exit point’ in the form of a continuous extract fan stops the the moist air from seeping through the fabric of the building and therefore reduces the chances of mould forming. The table below shows the lower running costs of continuous ventilation vs intermittent ventilation. Hours a  day Motor  consump-tion watts kW/h  per  year Price per kW/h Total  cost per  year Kitchen Quadra 23 3.5 29.38 0.12 £3.53 1 4.1 1.50 0.12 £0.18 Bathroom Centra 23 1.4 11.46 0.12 £1.38 1 2.4 0.85 0.12 £0.10 Continuous  Total         £5.18 Kitchen Centrif Duo 2 60 43.80 0.12 £5.26 Bathroom Solo Plus 2 29 2.17 0.12 £2.54 Continuous fans running for 23 hours on trickle and 1 hour on boost Intermittent Total £7.80 The Benefits Traditional intermittent ventilation systems often provide peaks of high extract airflow which exceed the natural infiltration rates, this means we are simply warming indoor air and extracting it to atmosphere which is not energy efficient. This is shown below as the graph indicates the natural air change rate from a building with a leakage rate of  10m 3 h/m 2  @ 50Pa. Continuous ventilation products from Vent-Axia are designed to work with the natural air infiltration and control the air path from the building thus preventing migration of damaging humidity and pollutants. This is achieved by using continuous low speed running extract fans in the wet rooms (bathrooms, kitchen and utility rooms) with a boost via the light switch, an integral pullcord or sensor when higher ventilation rates are required.  By providing ventilation in this way the extract systems can run at a much lower rate all the time, rather than at a high rate for 1 or 2 hours a day.  This has a range of benefits including: •  Energy Efficiency – No over ventilation, so reducing unnecessary  heat loss •  Near Silent Ventilation – Low speeds mean very low noise levels •  No trickle vents needed – The low rates mean that adequate  replacement air is available naturally. Continuous vs Intermittent Ventilation

6  T:   0844 856 0590 Condensation affects millions of households in the UK. It is the most common cause of dampness in private, public and social housing and is the second most common complaint following mould.  What is Condensation? Condensation normally occurs during the winter periods as warm moist air in the property comes into contact with a cold surface such as a window or wall and the moisture forms droplets on the surface. The condensation builds up from simple activities such as cooking, showering or even just breathing and without adequate ventilating it can result in the appearance of mould. The drops of water on windows and walls are an immediate sign that the property suffers from condensation. Condensation leading to mould can ultimately damage and decay walls, surfaces, and valuable items if not treated properly and can cause health problems for the occupants. Interstitial Condensation This is a severe situation where the exposure to moisture builds up becuase of cold, damp air conditions. The wallpaper, plaster and timber are gradually penetrated by more and more moisture resulting in surface condensation. This ultimately leads to a vicious circle of colder surfaces, increased mould, corrosion of building materials and can cause electrical system problems.  How to remove Condensation To help alleviate condensation the property should be fitted with the correct ventilation, heating and insulation solutions. These solutions should allow air movement throughout the property so the moist air can be extracted. The best solution is a continuous running extractor fan in the kitchen or bathroom that will remove moisture from the two areas most responsible for condensation with minimal running costs. Other ways to reduce condensation:• Bedrooms/Living  Rooms – Pull furniture away from walls to  allow air to circulate • Kitchen  – Place lids on saucepans, close doors and open any  airbricks, window ventilators or other passive ventilators when you are cooking • Bathroom  – When bathing/showering, close doors and open  any airbricks, window ventilators or other passive ventilators • Laundry  Room - If possible dry your clothes outside, if this is not  possible close doors and open any airbricks, window ventilators or other passive ventilators  Understanding Condensation

W: www.vent-axia.com  7 Ventilation for Refurbishment There are thousands of known mould species which can have severe consequences to the occupants health if exposed. Mould is neither animal nor plant; they come as their own species known as the Fungi Kingdom. They all require moisture to grow and develop and therefore wet areas where condensation gathers are an ideal home for mould. Mould digests the material they grow on and break it down to decaying matter. The objects usually become discoloured and are an unpleasant sight to look at with colours such as black, yellow, greens or greys forming. Additionally, there is normally a damp odour which leads to hygiene and health issues.  Black Mould There are a number of recognised mould species that release mycotoxins; these toxins are normally harmful to animals and humans. The stachybotrys or chaetomium fungi are known as ‘Toxic Black Mould’ and are extremely dangerous as it grows in houses and buildings. However, not all black mould is toxic; and so if it appears it’s advised to get it tested by a specialist before taking any drastic measures.  General and severe symptoms caused by Black Mould • Respiratory  problems  • Skin  inflammation  •  Irritation of the mucous membranes  •  Damage to internal organs  • Memory  loss • Fatigue • Nausea  • Immune  system  suppression  • Heart  problems • Asthma Where does toxic mould grow and how can it be prevented? The conditions for Toxic Mould have to be exceedingly moist for a long period of time before it appears. The mould normally grows where there has been an on-going leakage in usually hidden places. Older properties that are not up to modern standards are much more prone to mould problems as the walls are not properly insulated.  Mould habitually grows: • Above  ceilings • Inside  walls  •  Basement – bottom of walls, corner under floors • Cracks  and  holes  •  Windows, sills and frames It is very important to monitor the humidity levels throughout your property. If there is a water leakage, pipe leak, roof leak, or condensation problem it will require urgent attention. Bathrooms are extremely prone to mould growth; the first step to removing unwanted mould is using a suitable ventilation system that suits the property’s needs.  Understanding Mould

8  T:   0844 856 0590 Vent-Axia Supplies Enegry Efficient Lo-Carbon Centra and Quadra fans into Stirling Council Homes.  Vent-Axia is delighted to supply housing association, Stirling Council with the energy efficient Lo-Carbon™ Centra and Quadra fans. These units have enabled Stirling Council to make dramatic savings on maintenance costs, cut carbon emissions and simplify product specification and installation whilst improving living conditions and reducing fuel bills for tenants. The Lo-Carbon™ Centra and Quadra have been fitted into the property’s bathrooms and kitchens to eliminate condensation which can result in mould growth and poor indoor air quality. Stirling Council is responsible for 7,500 homes around Stirling and the Central Region. Having worked with Vent-Axia for several years, the organisation has always rated the company’s ventilation products highly for performance, reliability and cost effective installation. Stirling Council continues to specify the Lo-Carbon™ Centra and Quadra as it provides continuous mechanical extract ventilation. This allows the extract systems to run continually at a much lower rate all the time, rather than at a high rate for 1 or 2 hours a day. This offers virtually silent operation and increases energy efficiency as it reduces unnecessary heat loss. These systems are designed to work with the natural air infiltration and control the air path from the building thus preventing migration of damaging humidity and pollutants. Electric Supervisor, Liam Wilkie mentions ‘Vent-Axia’s Lo-Carbon™ collection delivers up to 90% energy savings. This innovative technology enables the tenant to make significant savings over traditional intermittent fans. Continuous ventilation is approved with our tenants as they overcome condensation, energy costs, near silent operation and have a simple discrete styling.’ Case Study

W: www.vent-axia.com  9 Ventilation for Refurbishment The Lo-Carbon™  Centra has been awarded the Quiet Mark by the Noise Abatement Society. The Quiet Mark is given World-Wide to manufacturers of the quietest products on the market and is validated by the UK’s Association of Noise Consultants. The initiative’s objective is to reduce noise and so achieve a healthier stress-free living and working environment. Ideal for retrofitting, the Centra offers virtually silent operation in a clean design which fits discreetly and easily into any home. Vent-Axia’s Lo-Carbon™ Centra offers trickle ventilation and includes a boost feature which can be utilised as necessary based on specific room requirements. Adjustable ‘Normal’ running speeds make it suitable for continuous extract in kitchens, bathrooms, en-suites and utility rooms, so social housing specifiers only require one fan type for any dwelling. Vent-Axia’s Quadra is a domestic fan suited to through-the-wall or ducted applications. Also designed for quick and straightforward installation in multiple rooms, Quadra provides a guaranteed installed performance thanks to an innovative switch and fit feature in the fan. It offers a range of advanced control options to boost efficiency, and ease installation and commissioning.  Both fans incorporate energy saving Vent-Axia Lo-Carbon™ DC motors, contributing to a 90% reduction in fuel consumption over traditional AC fans. Designed to operate as a continuous running fan, the Centra and Quadra offers trickle ventilation but comprises a boost feature which can be utilised as necessary based on specific room requirements.  The Centra and Quadra fit discreetly in modern homes and are simple to install. Each fan provides provides an easy and effective form of ventilation and both are fitted with 100mm spigots, common to traditional intermittent extract fan. A switched live input allows the fan to be boosted by a range of Vent-Axia’s switches and sensors, or a single light switch.  Both Centra and Quadra are part of Vent-Axia’s Lo-Carbon™ collection. The aim of the Lo-Carbon™ initiative is to offer the latest low carbon ventilation technology in order to reduce building energy consumption and carbon emissions.  Lo-Carbon Centra   (see page 14) Lo-Carbon Quadra   (see page 18)

10  T:   0844 856 0590 What is CPD? Continuing Personal or Professional Development (CPD) is the term given to the commitment to lifelong learning. Employers and construction institutions in all disciplines require the wide adoption of a structured approach to learning and look for evidence of progress meeting clearly specified career objectives.  Those working in construction are therefore looking for opportunities to broaden and deepen their knowledge and keep up to date on all facets of design and construction. Specifying organisations throughout the industry make use of the Construction CPD Certification Service. Vent-Axia’s CPD Modules are suitable for a wide range of organisations including e.g. client bodies, multi-disciplinary practices, architectural practices, main and specialist contractors, facility managers, chartered surveyors, building surveyors, quantity surveyors, local authorities, housing associations and house builders. When and where are the courses run? If you are interested in our CPD seminars, please contact us and we will arrange a representative to come and present at your chosen premises. This normally takes place during a lunch hour or after working hours thus not taking up too much of the working day.  Following the seminar each delegate will receive a 1 hour CPD certificate for their records. To arrange a CPD course, please contact us on: E-mail:   [email protected] Telephone:   0844 856 0590 Web:  www.vent-axia.com/cpd CPD Modules - Offline Vent-Axia have a number of CPD Modules available in the form of PowerPoint based seminars covering both the Residential and Commercial sectors: Residential•   1h Part F & L for Ventilation  This seminar will outline Parts L1A and F1A and demonstrate how they work together. The seminar will take you through the various ventilation solutions within the ADF 2010 document with animations showing how they work.   •  1h Indoor Air Quality & Ventilation  This seminar covers issues and options relating to indoor air quality and ventilation, together with the implications of Part F of the Building Regulations.   •  Installation Guide to MEV & MVHR Ventilation  1h   This seminar will give guidance to existing or new installations of MEV and MVHR ventilation systems. It takes the installer through the various stages of the process from ductwork runs and jointing to installing the units and commissioning the system. There is also a section on system faults and the possible causes. •  Scottish Building Standards for Ventilation 2010   This seminar outlines the changes to the Scottish Building Standards and Technical Handbooks 3 and 6. 1h CPD Courses

W: www.vent-axia.com  11 Ventilation for Refurbishment Commercial•  Energy Efficient Commercial Ventilation   This seminar introduces Energy Efficient Ventilation design. It explains the drivers behind efficient ventilation and how the correct use of controls, high efficiency fans and heat exchangers can benefit both the environment and the building owner. Other•  4h Factory Visit The factory visit will provide a valuable insight into how a ventilation company runs, from research and development to customer after-care.  It will demonstrate how ventilation systems are developed with regard to safety, legislation compliance and sustainability. For further details of the above module agendas, go online to www.vent-axia.com/cpd CPD Modules - Online Vent-Axia also offers a selection of CPD material online. With the addition of a questionnaire, you can independently complete your chosen module at your own convenience. If you achieve a pass, you will receive a 1 hour CPD certificate for your records.  Login/register: www.vent-axia.com/cpd/login  Vent-Axia is founded upon the excellence of its people, products and technology. We are committed to operating in a manner that protects basic human rights, provides real opportunities for our employees, protects the environment and makes a positive contribution to the community. We embrace a culture of continuous improvement in all aspects of our business. We will endeavour to ensure that all goods, machinery, equipment and services are procured from organisations that treat their employees equally and fairly and in accordance with all local legislation.Where appropriate, Vent-Axia will make sure that any materials used in the production of goods are from sustainable sources, subject to availability and value for money. In addition we will ensure that any materials, equipment or machinery bought by the Company are produced in environments that ensure the health and safety of their workforce. At all times, Vent-Axia will produce products that are as energy efficient as possible and will continue to research and develop energy efficient solutions for the market place. Carbon Footprint We also seek to protect the environment which we all share. Our product development programme is focused around our Lo-Carbon initiative, using technology which reduces power consumption and recovers, recycles and re-uses energy that would otherwise be wasted.  •  99% of our products are produced in the UK•  Introduced the first Lo-Carbon (Low Wattage) fan •  5 year motor guarantee on all Lo-Carbon products•  Award winning innovation in Heat Recovery systems•  The only ventilation company who can supply a full Lo-Carbon  range of products in the UK •  Our carriers use Eco low emission vehicles•  The use of water and utilities are monitored to ensure that we use  them efficiently 1h Corporate Responsibility Statement

Continuing our commitment to Lo-Carbon we are proud to introduce the latest additions to the range. In this section you will find Lo-Carbon solutions for any intermittent and continuous fan application. In axial or centrifugal, wall, ceiling or window applications in bathrooms or kitchens we now have a Lo-Carbon fan offering up to 90% energy saving over the equivalent traditional fan. We are the first manufacturer in the UK to provide such a complete offer at a price point which makes these products a real alternative. Lo-Carbon Centra/SELV  dMEV Unit 14-15 NEW Lo-Carbon Response /SELV dMEV Unit 16-17 Lo-Carbon Quadra/SELV  Centrifugal Fans 18-19 Lo-Carbon Tempra/SELV  Single Room Heat Recovery Unit 20-21 Lo-Carbon Solo Plus/SELV  Centrifugal Bathroom/Toilet Fans 22-23 Lo-Carbon VA100/SELV  Axial Bathroom/Toilet Fans 24-25 Lo-Carbon Silhouette 100/SELV Bathroom/Toilet Fans 26-27 Lo-Carbon VA150  Axial Kitchen & Utility Room Fans 28 Lo-Carbon Silhouette 150  Axial Kitchen Fans 29 Lo-Carbon  Residential Fans

Lo-Carbon Residential

14    T:   0844 856 0590 Lo-CarbonCentra ® /SELV dMEV Unit Features & Benefits •  Building Regulations Approved Documents  F and L compliant, System 3 Continuous mechanical extract •  Recognised in SAP Appendix Q   - Low SFP on SAP Q •  Quietest dMEV available•  Discreet, tasteful styling•  Single fan for use in all applications•  IPX4 rated - IPX7 rated (SELV)•  Pressure detection device•  Normal and Boost speeds•  Lo-Carbon motor offering 90% energy  savings and long life •  5 Year Motor Guarantee•  Suitable for wall, ceiling, panel and  window mounting •  SELV Models - Supplied with a remote  transformer •  SELV Models Suitable for ‘Zone 1’  installation What is de-centralised MEV (dMEV) The Building Regulations Approved Document F gives examples of four main methods of ventilation. System 3, Continuous mechanical extract ventilation can be achieved using a single centralised extract unit such as the Sentinel Multivent ducted to ‘wet’ rooms (kitchen, bathroom, en-suite and WC) or by decentralised individual fans, such as the Lo-Carbon Centra in the ‘wet’ rooms. The fans run continuously at near silent levels providing a simple and effective form of ventilation. SELV (Safety Extra Low Voltage) is designed for areas where a fan can be installed within Zone 1 in a room where there is a fixed bath or shower. Ingress Protected (IP) to IPX7 Lo-Carbon Centra SELV can be fitted safely within the spray area. The separate transformer can be mounted away from the spray zone and out of reach from the bath or shower. The Lo-Carbon Centra meets the latest requirements of the Building Regulations Approved Document F for wholehouse system ventilation. Selection of the two normal flow rates (6l/s or 9l/s) is via a simple ‘jumper’ on the control board. Different methods are available for operating boost speed from a simple switched live to integral humidistat or CO 2  sensor. See individual models for  further details. The attractive and discreet styling of the Vent-Axia Lo-Carbon Centra will complement the décor of any new home while virtually silent operation ensures optimum ventilation is achieved without    intrusive noise. Lo-Carbon Centra Recognised in SAP Appendix Q Lo-Carbon Centra has a specific fan power of only 0.18 W/l/s in through-the-wall kitchen applications. Models Lo-Carbon Centra    CAS Auto speed selection at installation. The integral air pressure sensor checks the airflow when first installed and also helps the fan to compensate for external wind pressure.Stock Ref    £Trade 441782     107.52 Lo-Carbon Centra/SELV T   DOM (Timer)Ideal for bathroom and toilet applications, this unit runs continuously on trickle setting and may be boosted by the switched live input which activates the adjustable timer (5-30 minutes).Model  Stock Ref   £Trade T  442954   121.85 SELV T  443175 149.49 Lo-Carbon Centra/SELV TP   DOM (Pullcord/Timer)For bathroom/toilet applications, the continuous running TP model is boosted by the pullcord which activates the adjustable timer (5-30 minutes).Model  Stock Ref   £Trade TP  447127 136.75 SELV TP    447128   163.79 Lo-Carbon Centra/SELV HT  DOM (Humidistat/Timer)For bathroom/toilet applications, the continuous running HT model is automatically boosted by the built-in humidistat or by a switched live input which activates the adjustable timer (5-30 minutes). Data Logger as standard on all Lo-carbon humidity controlled Centra fans.Model   Stock Ref  £Trade HT   442955 159.29 SELV HT   443176    187.16 Lo-Carbon Centra/SELV HTP   DOM (Humidistat/Pullcord)For bathroom/toilet applications, the continuous running HTP model is automatically boosted by the built-in humidistat or by the pullcord which activates the adjustable timer (5-30 minutes). Datalogger as standard.Model  Stock Ref   £Trade HTP  443045 159.29 SELV HTP    443177   187.16 Lo-Carbon Centra CO 2  and Humidity   CAS Continuous running, automatically boosted with integral CO 2  and humidistat sensor. This as ambient  response feature - detects rapid change in %RH and boosts immediately, or will boost slowly and proportionally with %RH or CO 2 . Datalogger as  standard.Stock Ref     £Trade 444672      236.95 150mm Conversion Kit    GEN Stock Ref     £Trade 443334     25.01 Wall Kit     DOM Stock Ref    £Trade 254102 (White)     18.81 254100 (Brown)    18.81 Window Kit    DOM Stock Ref    £Trade 442947     20.34 Ceiling Kit    DOM Stock Ref  £Trade 443800   13.82

W:   www.vent-axia.com  15 Lo-Carbon Residential WINNER 2011 Winners of the Energy Efficiency Initiative 2011 Award  with our Lo-Carbon Continuous Ventilation Product Range DØ A A B C Dimensions (mm) Extract Performance (l/s) Power Consumption (Watts) Sound dB(A)@ 3m Trickle  Trickle Trickle  Trickle Trickle  Trickle  Model low high Boost low high Boost low high Boost Lo-Carbon Centra/SELV T/TP/HT/HTP 6 9 15 1.4 1.6 2.4 10.8 15.5 25.2 Systems With Rigid Ductwork Installation Only Unit Configuration Location Fan Speed Setting Flow Rate (l/s) SFP (W/l/s) In Room (Ducted) Kitchen  High 13.2 0.32 In Room (Ducted) Wet Room 9 l/s 8.4 0.28 Through Wall Kitchen  High 13.5 0.18 Through Wall Wet Room 9 l/s 8.6 0.20 Systems With Flexible Or Mixed Ductwork Installation Only Unit Configuration Location Fan Speed Setting Flow Rate (l/s) SFP (W/l/s) In Room (Ducted) Kitchen  High 13.2 0.37 In Room (Ducted) Wet Room 9 l/s 8.6 0.31 Through Wall Kitchen  High 13.5 0.18 Through Wall Wet Room 9 l/s 8.6 0.20 SAP Appendix Q Performance A B C DØ 160 35 115 99 Transformer 87 x 87 x 33mm (W x H x D)  (SELV models only)

16    T:   0844 856 0590 Lo-Carbon   Response/SELV dMEV Unit Features & Benefits •  Recognised in SAP Appendix Q • Constant  volume •  Display showing airflow and system pressure  (Patent pending) •  Switched live connection for external  switches/sensors • 220-240V  input •  Data Logger feature on Humidistat models•  6l/s or 8l/s trickle speed selection•  13l/s boost speed• IPX4  rated •  Multi-orientation grille – grille can be  rotated by 90/180 degrees to suit ceiling configuration requirements •  New comfort control option (patent pending) Lo-Carbon Response Continuous running, constant volume dMEV unit with switched live (LS) and innovative digital display. Quiet running and with high pressure development, the Response is best in class.  The New Response fan from Vent-Axia Following the introduction of the new Domestic Ventilation Compliance Guide within Part F 2010, and the requirement to test the installed airflow of extract fans, the new Response fan from Vent-Axia provides the easiest install available. The unique display (patent pending) provides the calibrated installed airflow and pressure of the installation meaning that there is no need to test the installation with an airflow measuring device. The constant volume technology automatically adjusts the speed of the fan to ensure the desired airflow is delivered. With the new silent higher pressure axial impellor this can meet the requirements of many domestic installations without the need to use a centrifugal fan. Axial, rather than centrifugal? Using the new high pressure silent axial impellor has enabled the fan to not only develop great installed performance over duct runs, but to do it in the most energy efficient way. Response can provide excellent pressure whilst still maintaining the energy efficiency and not wasting energy on high pressure at low air volumes.  Configuration Location Alternative  Centrifugal  Fan SFP Vent-Axia  Response  SFP In room Kitchen 0.38 0.17 Wet Room 0.29 0.18 Through Wall Kitchen 0.36 0.13 Wet Room 0.28 0.15 Existing centrifugal fans often develop pressure but the actual installed airflows can mean that the pressure is of no use as the airflow falls below the requirement. This enables the fan to save up to 64% of the specific fan power (SFP) of the SAP Appendix Q data for existing centrifugal alternatives. 0 20 40 0 5 10 15 20 25 30 Pr es su er P a Volume Flow l/s 60 80 100 Example  Pressure Loss  (6m flexible  ducting, 2x  90 bends) Unnecessary  pressure  which wastes  energy Vent-Axia Lo-Carbon Response Fan Competitor Product 2 2 1 1 Side view of airflow display Be confident that the Response is delivering the right performance with our innovative digital display showing the airflow and system pressure of the installed product.  SAP Appendix Q Performance Unit Configuration Location SFP (W/l/s) In room (rigid duct) Kitchen 0.17 In room (rigid duct) Wet Room 0.18 In room (flex duct) Kitchen 0.17 In room (flex duct) Wet Room 0.16 Through wall Kitchen 0.13 Through wall Wet Room 0.15 Model Lo-Carbon Response dMEV   CAS Auto speed selection at installation. The integrated ambient response sensor senses the speed of the rise in humidity and controls the fan accordingly.Stock Ref    £Trade 404535     119.52

W:   www.vent-axia.com  17 Lo-Carbon Residential Lo-Carbon Response/SELV TP(Timer/Pullcord)   DOM For kitchen, utility and bathroom/toilet application, the continuous running TP model incorporates an adjustable overrun timer. This adjusts the time the fan will continue to run on boost after the LS connection has been deactivated.  This is also the run time period for the pullcord.Model Stock  Ref  £Trade TP  404876  148.75 SELV TP    404878  175.29 Lo-Carbon Response/SELV HTP(Humidistat/Pullcord)   DOM For kitchen, utility and bathroom/toilet applications, the continuous running HTP model incorporates an adjustable ambient response humidistat. The fan will increase the extract rate if the humidity rises above the point set at installation. Datalogger as standard.Model Stock  Ref  £Trade HTP  404877  171.29 Response SELV HTP    404879  199.16 Wall Kit     DOM Model Stock  Ref  £Trade White  254102   18.81 Brown  254100    18.81 Dimensions (mm) D D A B CØ D 90 45 99 190 B A CØ Performance Curve 0 20 10 30 40 50 0 5 10 15 20 25 30 Pr e ssu re  P a Volume Flow l/s 13l/s Constant Volume Maximum pressure available to deliver airflow 6l/s Constant Volume 8l/s Constant Volume 1 2 3 4 1 2 3 4 Performance Curve Extract Performance l/s (m 3 /h) - FID Watts dB(A) @ 3m  Model Trickle Low Trickle  High Boost Trickle  Low Trickle  High Boost Trickle  Low Trickle  High Boost Lo-Carbon Response 6 (21) 8 (29) 13 (43) 1.0 1.2 1.7 12 17 32.5

18    T:   0844 856 0590 Lo-CarbonQuadra ® /SELV  ‘One Fan fits all’ Centrifugal Fan Features & Benefits •  Single fan for use in toilets, bathrooms,  utility rooms and kitchens •  Meets current Building Regulations  Approved Document F & L for intermittent or continuous use •  Guaranteed installed performance•  Recognised in SAP Appendix Q   - Low SFP on SAP Q 0.38 W/l/s •  100mm circular spigot for easy installation  and replacement of any existing fan •  Filterless technology and maintenance free•  Lo-Carbon motors offering 90% energy  savings and long life •  Motor cassette cartridge for simple  replacement •  Suitable for flush or surface mounting•  5 Year Motor Guarantee •  IPX4 rated - IPX7 rated (SELV)•  Suitable for wall, ceiling and panel  mounting •  Datalogger standard on HTP versions Lo-Carbon Quadra SELV The Lo-Carbon Quadra SELV has been designed to meet building requirements where there is a need to fit in Zone 1 containing a fixed bath or shower according to IEE wiring regulations. The Lo-Carbon Quadra SELV can be safely installed within the spray area with the 24VDC Safety Isolating Power Supply situated away from the spray zone and out of reach of the person using the facility. Ventilation for any room The Lo-Carbon Quadra offers a single fan suitable for surface or flush mounting. Low speed selectable between 6, 9 and 12l/s and high between 15, 30 and 60l/s all with through the wall or two ducted selections to ensure installed performance is met.  Discrete With discrete aesthetics and low noise levels due  to an accurately balanced impeller, it is also one of the most unobtrusive centrifugal kitchen fans available. The front cover design also provides no area for dirt to build up so it stays looking better for longer.  Models Lo-Carbon Quadra TP/SVTP   DOM   (Timer/Pullcord)Dual speed: continuous running or intermittent to high speed. High speed via pullcord (On/Off) or switch live (with overrun timer). Model Stock  Ref    £ Trade TP (surface only)  439251    213.56 TP (flush only)  405133    226.06 SVTP   442865    245.58 SVTP Datalogger  446269  279.08 Lo-Carbon Quadra HTP/SVHTP  DOM   (Humidistat/Timer/Pullcord)Dual speed: continuous running or intermittent to high speed. High speed via integral pullcord (On/Off), integral adjustable humidity sensor or switch live (with overrun timer). Data Logger as standard on all  Lo-Carbon humidity controlled Quadra fans.Model Stock  Ref    £ Trade HTP (surface only)  439181    250.61 HTP (flush only)  405134  263.11 SVHTP   442866    287.47  SVHTP Datalogger   446270  320.97 Lo-Carbon Quadra TM/SVTM  DOM (Timer/PIR) Dual speed: continuous running or intermittent to high speed. High speed via integral PIR sensor or switch live (both with overrun timer).Model  Stock Ref   £ Trade TM (surface only)  439253    295.21 TM (flush only)  405135  307.71 SVTM   442867    339.17 Flush Mounting Kit (for SELV only)  DOM Stock Ref     £ Trade 439256      12.50 Filter (optional)    DOM Stock Ref    £ Trade 439927      6.25 Decoration Frame    GEN Stock Ref    £ Trade 442551      17.71 Wall Kit    DOM Stock Ref    £ Trade 254102 (White)    18.81 254100 (Brown)    18.81 Mounting Options Mains Mounting Options Surface Mounted Only Flush Mounted Only Lo-Carbon Quadra TP 439251 405133 Lo-Carbon Quadra HTP 439181 405134 Lo-Carbon Quadra TM 439253 405135 SELV Mounting Options Surface Mounted Only Flush Mounted Only Lo-Carbon Quadra SVTP 442865 442865 + 439256 Lo-Carbon Quadra SVTP Datalogger 446269 446269 + 439256 Lo-Carbon Quadra SVHTP 442866 442866 + 439256 Lo-Carbon Quadra SVHTP Datalogger 446270 446270 + 439256 Lo-Carbon Quadra SVTM 442867 442867 + 439256 Please note seperate flush mounting kit must ordered in conjunction with the fan on SELV versions as shown above

W:   www.vent-axia.com  19 Lo-Carbon Residential WINNER 2011 Winners of the Energy Efficiency Initiative 2011 Award  with our Lo-Carbon Continuous Ventilation Product Range. Performance Curve 1 2 3 Quadra 6 l/s  Quadra 9 l/s  Quadra 12 l/s  4 5 6 Quadra 15 l/s  Quadra 30 l/s  Quadra 60 l/s  A   B C D EØ F G H 230 260 112 67 98 27 58 79 Performance Guide Extract Performance Power Sound High  Low High Low dB(A) @ 3m Model m 3 /h l/s m 3 /h l/s Watts Watts High Low Lo-Carbon Quadra/SELV  TP/ HTP/ TM 223 63 22 6 38 3.8 50 20 Tested in through the wall installation  A C F D EØ B H G Rear View Front View Side View Dimensions (mm) 0 50 100 150 200 250 300 0 10 20 30 40 50 60 70 Volume (l/s) Pressure (P a) 4 5 6 Boost Speed Volume (l/s) Pressure (P a) 0 10 5 15 20 0 10 15 5 20 3 2 1 Continuous Trickle Speed SAP Appendix Q Performance Systems With Rigid Ductwork Installation Only Unit  Configuration Location Fan Speed  Setting Flow Rate (l/s) SFP (W/l/s) In Room Kitchen  15 l/s 15.8 0.41 In Room Wet Room 9 l/s 14.6 0.61 Through Wall Kitchen  15 l/s 21.4 0.38 Through Wall Wet Room 9 l/s 19.5 0.50 Systems With Flexible Or Mixed Ductwork Installation Only Unit  Configuration Location Fan Speed  Setting Flow Rate (l/s) SFP (W/l/s) In Room Kitchen  15 l/s 13.7 0.41 In Room Wet Room 9 l/s 12.9 0.63 Through Wall Kitchen  15 l/s 21.4 0.38 Through Wall Wet Room 9 l/s 19.5 0.50

20    T:   0844 856 0590 Lo-CarbonTempra/SELV  Single Room Heat Recovery Unit Features & Benefits •  Fits in 100mm diameter hole – ideal for  refurbishments •  Up to 84% heat recovery•  Available in 2 wall depths: 320mm and  460mm •  Reduces the home’s carbon footprint•  Choice of control options•  Suitable for refurbishment• Summer  setting •  Helps prevent noise ingress•  Continuous running or intermittent extract•  Meets current Building Regulations  Approved Documents F and L  •  Low SFP of 0.3W/l/s• IPX4  rated Through-The-Wall Mounted HeatRecovery Unit The Vent-Axia Lo-Carbon Tempra is designed to fit in a 100mm diameter hole and is suitable for refurbishment, kitchen, bathroom, toilet or utility applications. The unit meets the performance requirements for continuous extract fans under the current Building Regulations Approved Document F.  The Tempra is available in three models, a P version with pullcord control, a T version with overrun timer and an HTP version with built-in pullcord, overrun timer  and humidistat. Two spigot lengths are available; 320mm and 460mm. The manual summer setting allows the unit to be set to extract only, helping to prevent a dwelling becoming too warm in hot summer conditions. Performance Tempra can be set to run continuously at 6 l/s or 9 l/s, boosting up to 15 l/s, recovering heat from extracted air and returning it to the dwelling. The unique, compact heat exchanger has a temperature efficiency up to 84%, saving energy and reducing your carbon footprint. For intermittent extract the Tempra is set to 15 l/s. The Tempra is also designed so that the replacement air being introduced is at a reduced rate ensuring that the room being ventilated is still under a slight negative pressure. This ensures that fresh air is bought into the room from the rest of the house preventing humid air migrating to the rest of the house. The Lo-Carbon ECDC motor with twin impellers consumes as little as 3.2 Watts on trickle rate and runs almost silently at only 20dB(A).  Typical Installation The unique heat exchanger design allows the Tempra to be fitted in a 100mm diameter hole, allowing it to replace standard 100mm extract fans while giving all the benefits of heat recovery. Maximum wall thickness is 460mm. A longer version of the Tempra is available, designed for installations where the wall thickness is between 320mm and 460mm. 460mm models are identified by an ‘L’. Models  Lo-Carbon Tempra P (Pullcord)  CAS Constant trickle speed with pullcord to boost or intermittent operation by pullcord.Model Stock  Ref  £ Trade 320mm P  443312  443312 320mm SELV P  444368  444368  460mm LP  403832   403822 460mm SELV LP  403833   403833 Lo-Carbon Tempra T    CAS   (Timer)Constant trickle speed with switch live to boost or intermittent operation by switch live.Model Stock  Ref  £ Trade 320mm T  443310  443310 320mm SELV T  444369  444369 460mm LT  403834   403834 460mm SELV LT  403835   403835 Lo-Carbon Tempra HTP (Humidistat/Timer/Pullcord)  CAS Constant trickle speed with humidistat and linked overrun timer to boost or intermittent operation by switch live.Model Stock  Ref  £ Trade 320mm HTP  443311  443311 320mm SELV HTP  444370  444370   460mm LHTP  403836   403836 460mm SELV LHTP  403837   403837 Accessories 100mm High Rise Kit - 320mm white duct with black seal    DOM Stock Ref    £ Trade 449011     449011 Tempra wall sleeve - suitable for 320mm and 460mm versionsStock Ref 445529

W:   www.vent-axia.com  21 Lo-Carbon Residential Warm air  from dwelling Cool  air out Cold air in Warmed air  returned to  dwelling Stale Stale Fresh Fresh Performance A B C D E F G Dimensions (mm) Extract Performance l/s Power Consumption Watts Sound @dB(A) Model Trickle Low Trickle High Boost Trickle Low Trickle High Boost Trickle Low Trickle High Boost Lo-Carbon Tempra (All Models) 6 9 15 3.2 5.7 26.6 20 22 36 Octave band frequency range of 250Hz to 4KHz at 3m. Unit mounted on a reflective surface. Heat Exchange (what is heat recovery?)     A B C D E F G Standard 266 190 262 117 496 99 321 Long 266 190 262 117 636 99 461

22    T:   0844 856 0590 Lo-CarbonSolo Plus/SELV Centrifugal Bathroom/Toilet Fan Features & Benefits •  Up to 70% energy saving•  Filterless as standard - innovative impeller  design means no need for a filter •  Integral Lo-Carbon power supply•  Meets current Building Regulations Approved  Documents F & L •  IPX4 rated - IPX7 rated (SELV)•  Flush or surface mountable•  Adjustable rear or side exit spigot•  Lo-Carbon Solo Plus SELV is suitable for  installation over or within reach of a shower or bath  •  Extremely low sound levels•  5 Year Motor Guarantee •  Suitable for wall, ceiling and panel mounting•  SELV Models - Supplied with a remote  transformer Long Life Ventilation The Lo-Carbon Solo Plus range from Vent-Axia has been specially designed for through the wall and ducted applications, suitable for internal bathrooms, toilets and other small rooms. Finished in white, the Lo-Carbon Solo Plus can be flush or surface mounted, with a 2 position 100mm circular spigot for rear entry or connecting to a vertical ducting system. The powerful centrifugal impeller allows installations using 100mm ducting in straight runs, whilst still achieving 15l/s as required by Building Regulations Approved Document F.  Continuous running products, such as the Solo Plus, installed in all wet areas of a dwelling are classed as a wholehouse ventilation system and therefore only need to move the amount of air as outlined in table 5.1a and 5.1b of Building Regulations Approved  Document F. The Lo-Carbon Solo Plus has an adjustable boost speed which is set at installation variable between a wall or duct setting for boost/override operation to meet Building Regulations thus ensuring minimum energy usage and low sound levels. All models have  an optional speed for constant trickle ventilation (12l/s), selectable at installation. Depending on the model, the fan will switch from trickle (if selected) to boost via the pullcord/light switch/humidity sensor/PIR. All models can be wall, panel or ceiling mounted and can be connected to either circular, rectangular or Vent-Axia’s flat ducting. Enclosure of the electrical components is manufactured from flame retardant grade material.  Safety Extra Low Voltage Fan (SELV) Designed for areas where a fan has to be fitted over or within Zone 1 in a room containing a fixed bath or shower according to IEE wiring regulations (BS 7671), the Lo-Carbon Solo Plus SELV fan can be safely installed within the spray area. The fan is rated IPX7. Control is by mains safety isolating transformer unit with 12V DC SELV output, which is sited away from any source of spray and out of reach of a person using a fixed bath or shower. Controller Supply voltage 220-240V/1/50Hz.  Output to fan SELV 12V DC. Models Lo-Carbon Solo Plus/SELV P   DOM   (Pullcord)  Flush or surface mountable. Control by Pullcord. 2 Speed. Constant trickle option. Adjustable boost.  In-built Lo-Carbon controller.Model Stock  Ref    £ Trade P  427481   131.82 SELV P  427485    139.82 Lo-Carbon Solo Plus/SELV T   DOM   (Timer) Flush or surface mountable. Control by room light or switch. 2 Speed. Constant trickle option. Adjustable boost. Adjustable timer overrun. Delay on timer.  In-built Lo-Carbon controller.Model Stock  Ref    £ Trade T  427482   151.04 SELV T   427486    159.79 Lo-Carbon Solo Plus/SELV HT   DOM (Humidistat-Timer) Flush or surface mountable. Humidity controlled fan with override pullcord. Constant trickle option. Adjustable boost. Adjustable timer overrun. Delay on timer. Adjustable humidity sensor. In-built    Lo-Carbon controller. Data Logger as standard on all Lo-Carbon humidity controlled Solo Plus fans. Model  Stock Ref   £ Trade HT  427483    213.04 SELV HT   427487    219.72 Lo-Carbon Solo Plus/SELV TM   DOM   (Timer/PIR) Flush or surface mountable. Control by integral PIR detector. 2 Speed. Constant trickle option. Adjustable boost. In-built Lo-Carbon controller.Model Stock  Ref    £ Trade TM  427484 299.60 SELV TM   427488    306.26 Lo-Carbon Solo Plus Bezel   SP Used when flush mounting - reduces the need to make good.Stock Ref    £ Trade 404106      9.99 Wall Kit     DOM Stock Ref     £ Trade 254102 (White)    18.81 254100 (Brown)    18.81 Filter pack (1 per pack)The design of the Solo Plus means that is does not need a filter. However, if you are going to install the product in a heavily greasy environment, you may want to protect the product by fitting a filter.Stock Ref    £ Trade 449265   5.13

W:   www.vent-axia.com  23 Lo-Carbon Residential Performance Curve (Duct Mode) Extract Performance l/s (m 3 /h) Power consumption - Watts dB(A) @ 3m SFP (W/l/s)   Model Boost High trickle Low Trickle Boost High trickle Low Trickle Boost High trickle Low Trickle @ 0Pa Lo-Carbon Solo Plus/SELV P/T/HT/TM Wall mode 18 (64.8) 12 (43.2) 8 (28.8) 6 2.9 2.3 33.5 27 23.5 0.33 Duct mode 21 (75.6) 17 (61.2) 11 (39.6) 8.4 5.3 3.2 35.5 33 26 0.40 Tested at 240VAC @ 50Hz Performance Guide 1 2 3 0 20 40 60 80 100 120 0 5 10 15 20 25 Pr e ssu e r P a Volume Flow l/s Boost Low Trickle High Trickle 1 2 3 Dimensions (mm)  A B C D EØ 263 224 106 55 98   F G H I J 62 65 98 21 34 Weight 2.2kg, SELV Weight 2.7kg. Lo-Carbon SELV controller dimensions: (W x H x D) 87x87x33mm. B D C A E F H I J G

24    T:   0844 856 0590 Lo-CarbonVA100 ® /SELV Axial Bathroom/Toilet Fans Features & Benefits •  Meets current Building Regulations Approved Document F & L  •  Suitable for wall, ceiling, panel and window mounting •  Fitted with a motorised shutter •  5 Year Motor Guarantee  •  Protected against low energy lighting circuits  •  Reduces your carbon footprint •  IPX4 rated - IPX7 rated (SELV)  •  Efficient long life DC motor  •  Uses up to 87% less energy •  Low sound levels •  1 of 2 speeds selectable at installation  •  Low specific fan power •  SELV Models - Supplied with a remote transformer •  Datalogger as standard on all models Long Life Ventilation VA100 The improved Vent-Axia Lo-Carbon VA100 range features Lo-Carbon long life DC motors that are more efficient than conventional motors whilst delivering up to 87% energy savings. Shutters The Vent-Axia Lo-Carbon VA100 range is fitted with a motorised shutter mechanism that uses no extra power in operation or off. Installation Fitted with integral protection against low energy lighting circuits, the VA100 is a 100mm axial fan suitable for use in the bathroom or toilet. VA100 is a quick and simple to fit product with easy-wire on one line terminals. Suitable for installation in window, walls or panels/ceilings at any angle using kits available. The 100mm telescopic wall kit fit walls 225 to 360mm thick. The range meets the requirements of the current Building Regulations for the ventilation of toilets    6l/s and bathrooms 15l/s with a 15 minute overrun timer for internal rooms on the LT, XT and HTP models. Models Lo-Carbon VA100/SELV LP   DOM   (Pullcord) Ultra long life DC motor. Pullcord On/Off override switch with indication light. 2 speed options.Model Stock  Ref  £ Trade LP  443159  53.84    SELV LP   441614  114.52 Lo-Carbon VA100 XP/SELV  DOM (Shutter/Pullcord) Ultra long life DC motor. Pullcord and On/Off override switch with indication light. 2    speed options.Model Stock  Ref  £ Trade     XP  443160    74.17  SELV XP   459049    126.30  Lo-Carbon VA100/SELV LT   DOM   (Timer) Electronic adjustable overrun timer (5-30 minutes). Indication light. 2 speed options.Model Stock  Ref  £ Trade LT  443161    66.52 SELV LT   441615  122.50 Lo-Carbon VA100/SELV XT   DOM (Shutter/Timer) Integral electronic adjustable overrun timer (5-30 minutes). Indication light. 2 speed options.Model Stock  Ref  £ Trade XT  443162  98.11 SELV XT     459050    150.06 Lo-Carbon VA100/SELV LHTP   DOM   (Integral Humidity Sensor/Pullcord)Complete with integral humidity control with pullcord override. Indication light which operates on the manual override only. 2 speed options.Model Stock  Ref  £ Trade   LHTP  443163  170.85 SELV LHTP   441616   197.07 Lo-Carbon VA100/SELV XHTP   DOM (Shutter/Integral Humidity Sensor/Pullcord) Complete with integral humidity control with pullcord override. Indication light which operates on the manual override only. IPX4 rated. 2    speed options.Model Stock  Ref  £ Trade  XHTP  443164  182.14 SELV XHTP   436064  209.60 Wall Kit     DOM Fixing hole diameter 105mmØ Stock Ref    £ Trade 254102 (White)     18.81 254100 (Brown)    18.81 Window Kit    DOM Fixing hole diameter 117mmØStock Ref    £ Trade 254101     18.81

W:   www.vent-axia.com  25 Lo-Carbon Residential Dimensions (mm)  A A A B C DØ E 200 F G 200 Panel Wall Window A B C DØ E F G Bathroom/Toilet 155 47 63 98 31 32 76 SELV Transformer (W x H x D) 87 x 87 x 33 Weight 1kg Performance   Extract Performance - FID Sound dB(A)  SFP (W/l/s)  Area  Models m 3 /h  l/s Watts @ 3m @ 0Pa Toilet Lo-Carbon VA100/SELV LP/XP/LHTP/XHTP/LT/XT 60 17 3.4 32 0.20 Bathrooms Lo-Carbon VA100/SELV LP/XP/LHTP/XHTP/LT/XT 74 21 6.1 36 0.90 Lo-Carbon Residential

26    T:   0844 856 0590 Lo-CarbonSilhouette ®  100/SELV Bathroom/Toilet Fans Features & Benefits •  Models Basic/Timer/Humidity - Installation  options •  Low power consumption - Lower running  costs • Quiet  running •  Fully opening and closing shutters - Improved  insulation •  Meets current Building Regulations Approved  Document F & L •  1 of 2 speeds selectable at installation•  Non transparent shutters - Enhanced privacy•  Blue power indication light - Modern  aesthetics •  Ball bearing motors for vertical or horizontal  application •  Unique humidity sensor track - Improved  response •  5 Year Motor Guarantee •  IPX4 rated - IPX7 rated (SELV)•  Suitable for wall, ceiling, panel   and window mounting  •  SELV Transformer to BS EN 60742•  SELV Models - Supplied with a remote  transformer Slimline Bathroom Ventilation With a slim profile of only 17mm, Silhouette blends in with the wall surface to provide an unobtrusive installation. Silhouette has an FID performance of up to 24 l/s. Silhouette can be ceiling/panel mounted and connected to an appropriate duct run to    the outside. Safety Extra Low Voltage (SELV) is designed for areas where a fan has to be fitted within zone 1 in a room containing a fixed bath or shower according to IEE wiring regulations. The Silhouette SELV can be safely installed within the spray area. The fan is rated IPX7, control is by a mains safety isolating transformer with 12V DC SELV output, which is sited away from any source of spray and out of reach of a person using a fixed bath or shower. Models Lo-Carbon Silhouette 100B/SELV 100SVB  DOM 100mm bathroom/toilet fan with indicator light and back draught shutter.Model  Stock Ref   £ Trade 100B  441624    53.27  SELV 100SVB  441511    103.85  Lo-Carbon Silhouette 100T/ SELV 100SVT  DOM (Timer)100mm bathroom/toilet fan with integral adjustable electronic overrun timer (5-30 minutes), indicator light which operates on manual override only, and back draught shutter.Model  Stock Ref   £ Trade 100T  441625    66.57 SELV 100SVT  441512    126.51  Lo-Carbon Silhouette 100HT   DOM   (Humidistat/Timer) 100mm bathroom/toilet fan with adjustable auto humidity sensor from 60-90% RH and overrun timer, indicator light which operates on manual override only, and back draught shutter. Data Logger as standard on all    Lo-Carbon humidity controlled Silhouette fans. Model Stock  Ref    £ Trade 100HT  441626    110.53 Lo-Carbon Silhouette 100H SELV  DOM (Humidistat)100mm bathroom/toilet fan with adjustable auto humidity sensor from 60-90% RH, indicator light which operates on manual override only, and back draught shutter.  Safety Extra Low Voltage version.Model  Stock Ref   £ Trade SELV 100SVH  441513    170.43 Wall Kit     DOM Fixing hole diameter 117mmØ Stock Ref    £ Trade 254102 (White)     18.81 254100 (Brown)    18.81 Window Kit    DOM Fixing hole diameter 117mmØStock Ref    £ Trade 442947    20.35 17mm actual profile Back  draught  prevention vanes fitted on discharge

W:   www.vent-axia.com  27 Lo-Carbon Residential Performance Curve Performance Guide   Extract Performance - FID Sound dB(A)  SFP (W/l/s)  Area Model Curve Ref m 3 /h l/s Watts @  3m @ 0Pa Toilet Lo-Carbon Silhouette 100 B/T/H/SVB/SVT/SVH 1 60 17 3.4 34 0.20 Bathrooms Lo-Carbon Silhouette 100 B/T/H/SVB/SVT/SVH 2 108 30 8.7 38 0.30 For window mounting shutter cannot be used and must be removed   A BØ C D E F 160 99 115 132 200 32 SELV Transformer (WXHXD) 87X87X33  Weight 0.6kg Panel  Wall Kit  A ØB C D A E F E Dimensions (mm) 0 5 10 15 20 25 0 5 10 15 20 30 Air Volume l/s Pressure Pa 30 35 25 35 1 2

Lo-Carbon Residential 28    T:   0844 856 0590 Features & Benefits •  Reduces the home’s carbon footprint•  Long life Lo-Carbon motor lasts up to 5 times  longer than conventional motors •  Up to 60% energy saving •  Meets current Building Regulations Approved  Document F & L when installed • IP44  rated •  Low sound levels•  5 Year Motor Guarantee •  Suitable for wall, ceiling, window and panel  mounting •  Fitted with a motorised shutter•  1 of 2 speeds selectable at installation Long Life Ventilation Vent-Axia Lo-Carbon VA150 fans feature Lo-Carbon long life DC energy saving motors that last up to 5  times longer than conventional motors, whilst    delivering up to 60% energy savings. The extended life of Lo-Carbon fans is due to the use of a new generation of high quality electronically controlled ball-bearing motors especially developed for this range. The motors are perfectly designed for the wet conditions of utility rooms and kitchens, extracting stale, moisture-laden air quietly and efficiently. Shutters The Vent-Axia Lo-Carbon VA150 range is fitted with a motorised shutter mechanism that uses no extra power in operation or off. Installation The Lo-Carbon VA150 range is suitable for installation in panels, walls or windows using the kits available. Lo-Carbon fans are quick and simple to fit using reversible grommets and easy-wire terminals, and are suitable for wall or ceiling mounting at  any angle.  150mm telescopic wall kits are available with a white or brown outside grille. The kit is supplied with a telescopic wall sleeve to fit walls 225–360mm thick. Hole diameter 152mm. Window fitting kits are available for use with all  Lo-Carbon 150mm models through single or double glazed windows up to 40mm thick. Hole  diameter 152mm. Models Lo-Carbon VA150P  DOM (Shutter/Pullcord)  Ultra long life DC energy saving motor. Fitted with a motorised shutter. Controlled via pullcord  On/Off switch. Stock Ref    £ Trade   459123      179.45 Lo-Carbon VA150T   DOM   (Shutter/Timer) Ultra long life DC energy saving motor. Fitted with a motorised shutter. Controlled via integral power supply with electronic adjustable overrun timer    (5-30 minutes).Stock Ref    £ Trade 459124      221.32 Lo-Carbon VA150HP   DOM (Shutter/Humidistat) Ultra long life DC energy saving motor. Fitted with a motorised shutter. Controlled via integral power supply with pullcord override switch and adjustable humidity sensor (60-95% RH).Stock Ref    £ Trade 459125      273.42 Wall Kit   DOM Stock Ref     £ Trade 140902 (White)    21.56 140903 (Brown)    21.56 Window Kit  DOM  Stock Ref    £ Trade 140901   21.56 Dimensions (mm) A B C DØ E 216 224 80 146 60 Weight 1.2kg B A A E C DØ Lo-CarbonVA150 Axial Kitchen &  Utility Room Fans Extract Performance  Sound dB(A) SFP (W/l/s)  Setting Model m 3 /h l/s @ 3m Watts @ 0Pa Utility Setting Lo-Carbon VA150P/T/HP 160 46 33 7.5 0.16 Kitchen Setting Lo-Carbon VA150P/T/HP 230 64 36 11.5 0.18 Performance

Lo-Carbon Residential W:   www.vent-axia.com  29 Lo-CarbonSilhouette ®  150 Axial Kitchen Fans Features & Benefits •  Stylish ultra low profile grille•  Downstream airflow guide vanes for  improved pressure development •  Ball bearing motors for vertical or  horizontal application •  Wall kit design meets Building Regulations  Approved Document F requirements •  5 Year Motor Guarantee •  1 of 2 speeds selectable at installation• IPX4  rated •  Low Specific Fan Power •  Suitable for wall, ceiling and panel mounting Slimline Lo-Carbon Kitchen Ventilation The Lo-Carbon Silhouette range is designed for modern living. With a profile of only 19mm on the kitchen models, Lo-Carbon Silhouette blends in with the wall surface to provide an    unobtrusive installation.  Mounted in the centre of the fan, beneath the ultra slim profile grille, are the electronics, incorporating a humidistat (HT model) for detecting a change in internal humidity or an overrun timer option that is adjustable between 5 and 30 minutes.  FID performance of 67l/s, double insulated. Power consumption only 8.2 Watts. Models Lo-Carbon Silhouette 150B  DOM 150mm kitchen fan with indicator light and back draught shutter. Stock Ref  £Trade 441628   104.26 Lo-Carbon Silhouette 150T   DOM   (Timer)150mm kitchen fan with integral adjustable electronic overrun timer (5-30 minutes), indicator light which operates on manual override only and spring back draught shutter.Stock Ref  £Trade 441629    117.18 Lo-Carbon Silhouette 150HT   DOM (Humidistat/Timer)150mm with integral adjustable auto humidity sensor from 60-90% RH and overrun timer, indicator light which operates on manual override only and back draught shutter. Data Logger as standard on all Lo-Carbon humidity controlled Silhouette fans. Stock Ref  £Trade 441630    207.20 Wall Kit   DOM Stock Ref  £Trade 140902 (White)  21.56 140903 (Brown)  21.56 Performance Curve Dimensions (mm) A BØ C D G H 223 147 130 19 220 37  Weight 1.75kg A D C Ø  B A G H G Performance Guide Curve Extract Performance Sound dB(A) SFP (W/l/s)  Setting Model Ref m 3 /h l/s Watts @ 3m @ 0Pa Utility Setting Lo-Carbon Silhouette 150B/T/HT 1 200 55 6 35 0.11 Kitchen Setting Lo-Carbon Silhouette 150B/T/HT 2 234 65 9 43 0.14 Fixing hole diameter 152mmØ (when wall kit used) 0 5 10 15 20 25 0 10 20 30 40 60 Air Volume l/s Pressure Pa 30 35 40 50 70 2 1

For controlling condensation particularly in the refurbishment sector,  the Vent-Axia Lo-Carbon PoziDry offers a quick and simple solution. A positive input fan draws fresh air from atmosphere, filters it and pushes it into the dwelling via a ceiling mounted diffuser. Stale air in the property is forced out through the natural forms of ventilation, such as window mounted trickle vents. Lo-CarbonPIV Systems Lo-Carbon PoziDry  Positive Pressure Unit 32-33 Lo-Carbon PoziDry  Compact Positive Pressure Unit 34-35

Lo-Carbon PIV Systems

32    T:     0844 856 0590 Lo-Carbon PoziDry Positive Pressure Unit Features & Benefits •  Reduces your carbon footprint •  Selectable air capacities to suit floor area  up to 150m 2 •  Data logger feature as standard •  Uses latest Lo-Carbon technology motor for  low running costs •  Ultra low sound level•  Lo-Carbon PoziDry comes complete with  ceiling diffuser, flexible duct and worm drive clips  •  Standard 5 year guarantee•  Up to 5 year maintenance free G4 filter• IPX2  rated •  SFP of 0.22W/l/s Positive Pressure Ventilation For controlling condensation particularly in the refurbishment sector, the Vent-Axia Lo-Carbon PoziDry offers a quick and simple solution. A loft mounted positive input fan draws fresh air from atmosphere, filters it and pushes it into the dwelling via a ceiling mounted diffuser. Stale air in the property is forced out through the natural forms of ventilation, such as window mounted trickle vents. Without heater    DOM Stock Ref    £Trade 444075   362.58 With integral heater    DOM Stock Ref    £Trade 444766   387.58 Installation It is simply installed out of sight in the loft space. It can be suspended from a roof beam or be floor mounted, with a purpose-designed diffuser normally located over the stairwell of a conventional two storey dwelling or in the main hall of a bungalow. The Lo-Carbon PoziDry is set to the appropriate speed at installation based on the size of the dwelling, providing positive pressure input ventilation. Background ventilation openings provide the exhaust  points. Performance The robust construction of the Lo-Carbon PoziDry features a specially developed Lo-Carbon DC fan/motor arrangement which runs quietly and delivers incredibly low running costs. The Lo-Carbon PoziDry uses a sensor to monitor the temperature in the loft, automatically adjusting the air volume when necessary. ‘Trickle’ speed is automatically selected when the ambient loft temperature is up to 18°C. ‘Normal’ is automatically selected when the ambient loft temperature is between 18 and 27°C.  If the ambient loft temperature exceeds 27°C, the  Lo-Carbon PoziDry will automatically switch to standby (no airflow). The standby power consumption is 2W.  In the case of the integral 500W heater version, the heater element is automatically activated when necessary and tempers the supply air to 10°C. Can be used for air replacement in conjunction with an extract fan. Filter The unit includes a filter with up to 5 years maintenance intervals to reduce the number of call outs needed throughout its life span. Data Logger As standard. Measures the number of days the product has been switched on to provide precise running information. Speed Control With selection of 2 of 6 speeds available up to 50l/s, the unit is suitable for houses up to 360m 3 .  Heater An optional comfort heater is available for operation when the incoming air temperature becomes low.  Typical Specification The unit should be mounted in the loft space with a diffuser in self-extinguishing ABS positioned at the top of the stairwell. The unit meets the EMC and low voltage directives. Motor The electronically controlled DC motor is manufactured with long life ball bearings and is fitted with Standard Thermal Overload Protection (S.T.O.P.). Suitable for ambient operating temperatures of -25°C to +40°C. For complete peace of mind, the Vent-Axia Lo-Carbon PoziDry is backed by a 5 year guarantee. Twin Spigot Kit    DOM   An additional kit to allow an extra circular diffuser to  be installed near the PoziDry unit.   Stock Ref    £Trade 449071     53.99 Includes:     £Trade 1 x  436592  (200mm Duct)  BAS    73.57 2 x  561707  (Worm Clips)   GEN    3.29 1 x  452085  (200mm equal Y Piece)  GEN    43.70 1 x  10544200  (Diffuser)    GEN    32.27

W:    www.vent-axia.com  33 Lo-Carbon PIV Systems Dimensions (mm) A B C DØ Performance Speed FID (l/s) Power (W) Floor Area up to (m 2 ) 1 10 2.5 30 2 18 3 54 3 26 4 78 4 34 5 102 5 42 7 126 6 50 13 150 add 500W for heater version Sound Data Octave band, Hz, dB SWL SPL dB(A) Setting Test mode 63 125 250 500 1k 2k 4k 8k at 3m Speed 1 Supply 33.2 28.3 25.4 15.3 17.2 12.6 16.4 22.7 8.5 Breakout/Intake 36.7 25.3 26.9 16.1 28.6 30.4 18.4 23.8 13.5 Speed 6 Supply 65.2 57.2 60.8 67.6 62.2 59.7 50.8 41.2 19.0 Breakout/Intake 39.7 37.0 43.9 41.1 37.6 32.5 27.1 26.1 22.0 A B (depth) C DØ Weight 438 411 379 200 11.5kg

34    T:     0844 856 0590 Lo-Carbon PoziDry Compact Positive Pressure Unit Features & Benefits •  Ultra low sound level•  Selectable air capacities to suit volumes of  up to 34 l/s or floor area up to 100m 2 •  Extremely low running costs - from less  than one pence per day •  Washable, high capacity filter•  Data logger feature as standard •  Round to rectangular duct adaptor  included •  5 Year Guarantee•  Ideal for flats Positive Pressure Ventilation For those properties that do not have a loft,    Lo-Carbon PoziDry Compact provides an easy to install solution. The unit is duct mounted and can be fitted in a number of locations within a single floor flat or apartment.  Air is drawn into the Lo-Carbon PoziDry Compact unit via an external inlet and through a short length of duct. The specially developed fan/motor assembly (using the Lo-Carbon DC motor technology) draws the air through an integral, high capacity, washable filter. The backward curved impeller guarantees increased efficiency, lower sound levels and better performance. The fresh, filtered airflow passes along the ducting and terminates on an internal wall with a discreet grille. This directs the airflow upwards where the incoming air mixes with the warm air that gathers at ceiling height. The system automatically provides fresh, tempered airflow into the home. Creating an environment where the damaging effects of condensation find it hard to exist benefits both the occupants and the structure of the home. Can be used for air replacement in conjunction with an extract fan. G4 filter as standard.  Model Without heater     CAS Stock Ref    £ Trade 444076      443.84 With integral heater     CAS Stock Ref    £ Trade 444767 468.84 Performance The Lo-Carbon PoziDry uses a sensor to monitor the ambient temperature, automatically adjusting the air volume when necessary.  ‘Trickle’ speed is automatically selected when the ambient temperature is up to 18°C.  ‘Normal’ is automatically selected when the ambient temperature is between 18 and 27°C.  If the ambient temperature exceeds 27°C, the    Lo-Carbon PoziDry will automatically switch to standby (no airflow). The standby power consumption is 2W.  In the case of the integral 300W heater version, the heater element is automatically activated when necessary and tempers the supply air to 10°C.  Air Replacement Grille Set For air replacement through doors. Consists of a two-piece telescopic set, which fits unobtrusively on either side of the door panel. Minimum fixing thickness 30mm. Plastic. Dimensions: 454 x 90mm. Data Logger As standard. Measures the number of days the product has been switched on to provide precise running information. Installation Packs      CAS Stock Ref 453546  453547 453548  £ Trade 46.39 61.37 66.52 Quick Fit Grille (White) 1 1 1 Wall fitting kit (Brown) 1 1 1 Round to Rectangle Adaptor 1 3 3 Vertical 90° bend  2 2 2 Elbow/Spigot 1 1 1 1m Flat Channel  1 2 2 1.5m Flat Channel  1 2 2 Connector 1 4 4 Horizontal 90° Bend  - - 2 Channel Clip  4 6 2

W:    www.vent-axia.com  35 Lo-Carbon PIV Systems Dimensions (mm) A B DØ C E G F A B C Duct Adaptor (included)  Rear duct entry option. Performance Speed FID (l/s) Power (W) Floor Area (m 2 ) 1 10 5.7 30 2 18 12.2 54 3 26 24.6 78 4 34 49.8 100 add 300W for heater version Sound Data Octave band, Hz, dB SWL SPL dB(A) Setting Test mode 63 125 250 500 1k 2k 4k 8k  @ 3m Speed 1 Supply 37.6 32.7 33.4 35.0 29.8 27.5 18.2 22.6 18.0 Extract 37.0 32.3 32.5 32.4 21.9 25.3 16.8 22.6 15.5 Breakout 35.3 46.9 38.8 33.1 22.9 22.2 17.8 23.3 15.0 Speed 4 Supply 65.2 57.2 60.8 67.6 62.2 59.7 50.8 41.2 50.0 Extract 60.8 51.7 58.5 62.1 56.1 56.4 45.2 37.9 45.5 Breakout 57.2 55.2 55.5 63.3 55.1 52.2 44.1 32.9 41.5 A B  Ø C 180 105 55 x 110 A B C D E F G Weight 435 365 490 100 160 58 160 7kg

Opal Aluminium Radiators 38 Optimax Plus ®  Storage Heaters 39 Heated Towel Rails 40-41 Optimax Plus ®  Panel Heaters 42 Downflow Heater 43 Portable Fan Heater 43 Convector Heater 43 Vent-Axia heating is ideal for residential or commercial applications. So whether it’s a bedroom or hallway, office or shop, we can provide the solution.  The simplicity of installing electric heating, particularly in high rise apartments means it is the natural choice for your project.  Comfort Heating products with innovative charge and zone control features can provide energy savings for the occupier and property owner, without compromising comfort in the home. This, coupled with low capital outlay ensures that Vent-Axia are able to offer a cost effective heating solution for both parties. New Generation Heating from Vent-AxiaWith a slim, stylish design our Opal Aluminium Radiator range offers households attractive, energy efficient comfort. Featuring an advanced digitally controlled thermostat, the Opal range gives you one of the most cost effective and energy efficient electric heating systems available. Electric  Heating

Electric Heating

Heating Range 38    T:    0844 856 0590 Features & Benefits •  Aluminium block with innovative curved  elements  •  Digitally controlled thermostat •  Dynamic fluid with high thermal inertia •  Three temperature settings: Comfort,  Economy, Anti-Freeze  •  Seven pre-set lifestyle heating schedules,  including two programmable options  •  Outputs from 500W - 1500W •  Safety thermal regulator •  Ease of installation •  Safe, clean and easy to operate •  All radiators are powder coated externally  in white (RAL 9016)  •  No maintenance required •  These slim line radiators are 96mm deep •  All radiators are supplied with wall fixing  brackets  •  Each radiator is supplied with 0.70m length  power cable The Vent-Axia Opal range of Aluminium Radiators offers a slim stylish design with advanced digital thermostatic control giving you one of the most cost effective and energy efficient electric heating system you can have. Popular with specifiers, contractors and home owners, the Opal range is ideal for new build    and refurbishment. Available in five sizes, our range provides a solution for any size room with outputs from 500W - 1500W. All of the Opal Aluminium Radiators controllers are fully programmable offering closer management of energy control with resultant costs savings. This can be measured with the on board energy monitor allowing you to see how much energy you are using to heat your room. All standard units come with all the features and controls you would expect to see on an advanced heating system.  Energy Saving Electronic Control Accurate, fast acting control is essential for reducing temperature overrun and minimising energy consumption. The silent operating electronic thermostat is accurate to +/- 0.5˚C and acts quickly to maintain consistent temperature levels. Seven Pre-set Lifestyle Heat Schedules The heater is pre-programmed with seven plans during its manufacture, with two of them being configurable to meet your own needs. The five invariable programmes are adapted to most heating situations. The seven plans are described in the table on the right. Heating schedule PLnF is pre-programmed for when you are away from your home for a long period of time and would like to protect it against freezing. The green economy LED will flash. Heating schedule PLUE is designed for weekends. With this plan the heater is pre-programmed to work from Monday to Thursday in the antifreeze position. From Friday through to Sunday you can configure the programme according to your own needs. Should the pre-set schedules not meet your heating requirements, the PLCF heating plan enables you to create your own heating schedule. Working Days/hrs Weekend/hrs Comfort Economy Anti-freeze PLO1 PLO2 PLO3 PLO4 PLnF PLUE PLCF 0 6  12 18 24 0 6  12 18 24 Monday to Thursday Friday grammed for when Heating schedule PLnF is pre-pro Heating schedule PLnF is pre pro Weight Dimensions (mm) Output GEN Stock Ref Model kg H W D W Amps  £ Trade 448469 VAAR500 500W  11  584 460 96 500 2.3 296.07 448470 VAAR750 750W   15 584 620 96 750 3.4 340.57 448471 VAAR1000 1000W   19 584 780 96 1000 4.5 395.96 448472 VAAR1250 1250W   23 584 940 96 1250 5.7 452.33 448473 VAAR1500 1500W   27 584 1100 96 1500 6.8 512.18 Specification Opal  Aluminium Radiators

Heating Range W:    www.vent-axia.com  39 Optimax Plus ® Storage Heaters Features & Benefits •  Perfect for offices and homes•  Optimised charge period offers 15%   energy saving •  Reduced installation times•  Conveniently mounted controls•  Colour RAL 9001• IP20  rated • BEAB  approved Comfort Heating Vent-Axia Storage Heaters are an economic alternative for new build or in existing properties, particularly where no other fuel source is available. Vent-Axia Storage Heaters offer comfortable warmth around the clock taking advantage of low-cost night time electricity tariff.  The heaters are ideal for use in living rooms, hallways and landings.  They can also be installed in bathrooms outside Zone 2, provided that the installation complies with IEE regulations.  Vent-Axia Storage Heaters are slim,  compact and aesthetically pleasing. Their attractive  neutral finish blends in with most furnishings. Combination Storage Heaters Vent-Axia Combination Storage Heaters combine the benefit of a domestic storage heater and a convector heater in one casing.  The convector heater can be switched on at any time to offer additional heat when required, or used outside the normal heating season for instant heating. Combination Heaters require a permanent power supply for immediate convection heating when required. The storage heater section has a separate off-peak supply. Ease of Installation  Simple to install wall fixings and quick assembly mean that new installations or replacement of existing units are completed with minimum disruption. The cable entry is located at the back of the unit on the bottom right hand side. The controls are conveniently positioned on top of the storage heater for ease of use. Once the optimum settings are selected, no further adjustment is necessary. Models  Storage Heaters     GEN Manual and Automatic models available.Model Stock  Ref  £ Trade VASH 6  439355   215.89 VASH 12  439356   330.50 VASH 12A  439359   365.33 VASH 18  439357   422.60 VASH 18A  439360   460.48 VASH 24  439358   514.70 VASH 24A  439361  560.78 A=Automatic Combination Heaters      GEN Model Stock  Ref  £ Trade VACSH 12A  438919  481.03 VACSH 18A  438920  564.26 VACSH 24A  438921  678.81 A = Automatic     Input Width (A) Height (B) Depth (C) Weight Stock Ref  Model  Description kW mm mm mm kg 439355  VASH 6 Storage  Heaters 0.85 332 700 170 41 439356 / 439359  VASH 12/12A 1.70 560 700 170 77 439357 / 439360  VASH18/18A 2.55 788 700 170 110 439358 / 439361  VASH 24/24A 3.40 1016 700 170 145 438919 VACSH 12A Combination  Storage  Heaters 1.70 540 730 185 79 438920 VACSH 18A 2.55 765 730 185 116 438921 VACSH 24A 3.40 990 730 185 152  220-240V-50Hz. BEAB Approved. Specification M d l

40     T:    0844 856 0590 Heated Towel Rails Features & Benefits • IP55  rated •  Wall fixings included•  Plug and vent included•  Five year leakage warranty•  One year manufacturer’s guarantee•  Heating element included• Stylish  designs •  One year surface and element warranty•  Steel construction with high quality white  and chrome finishes •  Production is carried out using latest  technology resulting in absolute consistency in quality •  Complete fitting set supplied•  Pressure tested to 13 bar•  Comprehensive step by step fitting  instructions Vent-Axia Heated Towel Rails quickly warm and dry towels. Their presence on the wall also adds to the overall style, temperature and comfort of the room. This comprehensive range of white and chrome towel rails offers 10 different models across the flat, curved and designer ranges. The range offers sizes from 500 x 600mm to 500 x 1500mm available in four heat outputs of 100, 150, 250 and 400W matched to the size of the rail. The range is complemented by an advanced controller available in white and chrome giving you control of five heat outputs. The controller also offers an eco mode ideal for use when drying your towels to ensure minimal energy use. This feature turns on the rail on full power for 30 minutes then reduces the output to the user setting for a further 90 minutes before turning the towel rail off.  Controller • IPX4  rated •  White or chrome finish•  Five power settings•  Eco timed function•  Two year warranty Stock Ref Model Description Finish Dimensions   (W x H) / mm Output / W GEN £Trade Towel Rails 447854 VATRS100C ‘S’ Shape    Chrome 600 x 500 100 110.19 447855 VATRF150C Flat Chrome 400 x 700 150 147.04 447856 VATRF250W White 500 x 1100 250 138.15 447857 VATRF250C Chrome 500 x 1100 250 190.26 447858 VATRF400C Chrome 500 x 1500 400 270.33 447859 VATRC250C Curved  Chrome 500 x 1100 250 198.23 447860 VATRC400C Chrome 500 x 1500 400 281.23 447861 Atacama LS Designer  Chrome 400 x 700 150 225.14 447862 Atacama OS Chrome 300 x 650 150 231.53 447863 Atacama SS Chrome 500 x 1000 250 232.47 Accessories 447864 VATRCW Controller White single gang n/a 58.07 447865 VATRCC Chrome single gang n/a 78.62 447866 VATRDFK150 Replacement element /  dual fuel kit n/a n/a 150 54.15 447867 VATRDFK250 n/a n/a 250 56.32 447868 VATRDFK400 n/a n/a 400 58.44 Specification

W:    www.vent-axia.com  41 Heating Range Heated Towel Rail Range S-shaped chrome towel rail VATRS100CStock Ref  £Trade 447854  110.19 Flat chrome towel rail VATRF150CStock Ref  £Trade 447855  147.04 Flat white towel rail VATRF250WStock Ref  £Trade 447856  138.15 Flat chrome towel rail VATRF250CStock Ref  £Trade 447857  190.26 Flat chrome towel rail VATRF400CStock Ref  £Trade 447858  270.33 Curved chrome towel rail VATRC250CStock Ref  £Trade 447859  198.23 Curved chrome towel rail VATRC400CStock Ref  £Trade 447860  281.23 Flat designer towel rail Atacama LSStock Ref  £Trade 447861  225.14 Oval designer towel rail Atacama OSStock Ref  £Trade 447862  231.53 Flat designer towel rail Atacama SSStock Ref  £Trade 447863  232.47 S h d h t l l d i

Heating Range 42    T:    0844 856 0590 Optimax Plus ® Panel Heater Features & Benefits •  Integral adjustable thermostat•  Optional integral timer model •  Frost protection setting of 5˚C• BEAB  approved •  Unique quick fix wall bracket •  Colour RAL 9001•  Ideal compliment to storage heaters•  Brackets for panel included  Comfort Heating Vent-Axia’s Optimax Plus Panel Heaters are perfect for smaller rooms such as bedrooms, studies, conservatories and loft conversions.  Vent-Axia’s Panel Heaters offer a wide range of heat outputs from 750W to 2000W and every model is available with or without a timer.  Vent-Axia Panel Heaters look as good as they perform. Stylish and slim, they occupy minimal wall space and are finished in an attractive white finish.  Vent-Axia Panel Heaters are wall mounted and connected to the permanent electrical supply via a fused connection switched outlet. Vent-Axia Panel Heaters are supplied with mounting brackets and one metre of cable connected to the bottom right hand side of the unit. Adjustable Thermostat All Vent-Axia Panel Heaters have a built-in adjustable thermostat offering a full temperature range, including a frost protection setting of 5˚C.  For maximum safety there is a thermal cut-out on all models to prevent overheating, should the outlet grille be accidentally covered. Dimensions (mm) C Models Manual and Timer versions available.    GEN Model Stock  Ref  £ Trade VAPH 075  439034   91.43 VAPH 075T  439038   117.94 VAPH 125  439035   102.42 VAPH 125T  439039   128.90 VAPH 150  439036   111.53 VAPH 150T  439040   138.97 VAPH 200  439037   116.11 VAPH 200T  439041   145.35     Specification Output A Width B Depth C Height X Bracket Weight Stock Ref Model  kW mm mm mm mm kg 439034 / 439038 VAPH 075/T 0.75 620 108 430 288 6.2 439035 / 439039 VAPH 125/T 1.25 690 108 430 358 6.6 439036 / 439040 VAPH 150/T 1.5 690 108 430 358 6.6 439037 / 439041 VAPH 200/T 2 860 108 430 528 8.0 220-240V-50Hz.  BEAB Approved.

W:    www.vent-axia.com  43 Heating Range Downflow Heater Features & Benefits •  Stylish compact design• 2kW  output • Pullcord  operation • Indication  Light  •  Double Insulated Class II• IPX2  rated The Vent-Axia Downflow Heater will deliver a welcoming warmth when its most needed in all room applications including bathrooms and living spaces. The IPX2 rated Downflow Heater operates via a pullcord and is suitable for use within zone 2 of the bathroom. The Downflow Heater has a 2kW power loading and is designed to be permanently wall mounted for use with an AC electrical supply.      GEN Model Stock  Ref  £ Trade VADH2   455834   53.08 Specification Rating W H D Weight Model kW mm mm mm kg  VADH 2 2 229 242 109 1  220-240V-50Hz.   Portable Fan Heater Features & Benefits • Thermostat  control •  Fan only mode for summer cooling•  Two heat settings• Safety  cutout The Vent-Axia Portable Fan Heater is a floor standing heater with three settings; fan only, 1kW and 2kW outputs. Variable thermostat. The unit comes complete with a 13amp plug. Specification Rating W H D       Weight  Model kW mm mm mm kg VAFH2TC 2 220 110 220 1.6 Model     Portable Fan Heater     GEN Model Stock  Ref  £ Trade VAFH2TC  426715  33.06 Convector Heater Features & Benefits • Silent  operation •  Ideal for use where occasional   heating is required •  Three heat outputs• Thermostatic  control •  Safety thermal cutout• BEAB  Approved  The Vent-Axia Convector Heater is ideal for use in any domestic or commercial room where extra or occasional heating is required. The heater is suitable for use in the home, offices, shops and workshops, but is not recommended for use in bathrooms. The unit offers three heat outputs; 0.75kW, 1.25kW and 2kW, and is supplied with a thermostatic control.  The Vent-Axia Convector Heater is lightweight, portable and is supplied with a cable and plug. Stylish and versatile, the heater may be wall mounted or used as a floor standing unit using the feet included. This gives the benefit of moving the heater to an area where you want, when you want. To prevent overheating the Convector Heater includes a safety thermal cut-out feature.  Model    Convector Heater     GEN Model Stock  Ref  £ Trade VACH2-TC  426250  46.04 Specification  Rating W H D Weight Model kW mm mm mm kg  VACH2TC 2 530 370 110 2.3  220-240V-50Hz. BEAB Approved

VENT-AXIA CONTACT NUMBERS Free technical, installation  and  sales advice is available Sales Centre: Domestic & Commercial     Sales Tel:  0844 856 0590   Sales Fax:  01293 565169   Tech Support Tel:  0844 856 0594   Tech Support Fax:   01293 532814 Heating Support   Sales Tel:  0844 856 0596 Industrial   Sales Tel:  0844 856 0591   Web: www.vent-axia.com   Email: [email protected] Supply & Service All sales made by Vent-Axia Limited are made only upon  the terms of the Company’s Conditions of Sale, a copy of  which may be obtained on request. As part of the policy of  continuous product improvement Vent-Axia reserves the right  to alter specifications without notice. By Appointment to H.M. The Queen Suppliers of Unit Ventilation Equipment Vent-Axia, Crawley, West Sussex Vent-Axia Group Ltd Products you can trust A British company supporting British manufacturing 402285/0813
