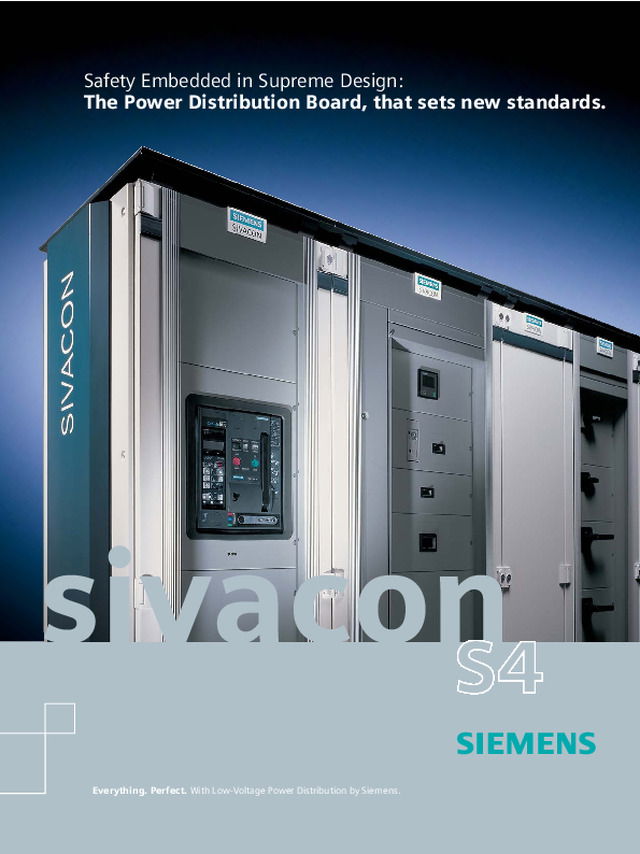

Everything. Perfect. With Low-Voltage Power Distribution by Siemens. sivacon Safety Embedded in Supreme Design:The Power Distribution Board, that sets new standards.

SIVACON S4 – the attractive power distribution board:design reinvented. Customized for applications in  functional and industrial buildings up to 4,000 A:  the new SIVACON S4 power distribution board. 2 | 3 Maximum safety and an appealing design are now optimally combined to form an efficient solution: with SIVACON S4, the new switchgear generation for a con- sistent and simple power distribution in functional and industrial buildings up to 4,000 A. As follow-up product of the proven SIKUS systems, SIVACON S4 offers a comprehensive pallet of advanta- ges. In addition to manifold features for the improve- ment of personal and plant safety, the control cabi- nets’ new design opens up completely new applicati- on areas and moreover offers particularly attractive views. See for yourself. SIVACON S4 is part of the comprehensive SIVACON product range, which covers all aspects of power distribution: from the switchgear to the busbar trunking system. The integra- tion in Totally Integrated Power assures full consistency in terms of planning and configuration.

Ergonomic concept, consistent advantages:  a new design for new possibilities. The architecture in functional and industrial buildings is in a phase of transition. Control cabinets are no  longer installed in the cellar, but increasingly taken to the top floors. This places new requirements upon design. How attractive an efficient power distribution can look is proven by the new SIVACON S4 power  distribution system: It represents industrial design in its supreme form. In addition, the new design elements exceed mere optical attractiveness by far: The new design of the ventilation system, for example, facilitates improved degrees of efficiency as well as eased maintenance. Moreover, the innovative and appealing locking system serves as the basis for maximum ergonomic operation. The SIVACON S4 system is rounded off by  a shapely glass door and a labelling system, which is harmoniously integrated in the design concept. The system’s distinctive design elements offer interesting possibilities of accentuation within the scope of inte- rior architecture. Locking system andventilation system

4 | 5 Safety redefined. Consistent protection, maximum benefits: new features for enhanced safety.As type-tested switchgear, SIVACON S4 stands for maximum reliabilityand a high degree of safety. High-quality, perfectly matched switchingdevices facilitate an easy integration in the building control technologyconcept thanks to the system’s outstanding feature: built-in intelligence. During operation, an efficient ventilation system prevents heat accu- mulation and heat pockets, thus assuring long-term system availability. A fast and easy access to the devices for setting purposes is facilitated through doors with central locking, swivel frames and quick-release locks. Thanks to the enormously powerful locking system, maximum personal safety is even guaranteed in fault cases.

In case of system conversions, the doors’ universal hinges facilitate a very easy exchange of the hinge sides: for a particularly fast and effective adaptation to the escape route plan. Not least, also the mature concept of the SIVACON S4 systems’ internal separa- tion offers genuine added value as the system safety can be accurately matched to the user’s require- ments. Possible system failures, e.g. caused by the accidental touching of live parts, are prevented. Swivel frames and masking frames facilitate aneasy access to the devices. The mature concept of internal separation faci-litates an individual adaptation to the user’srequirements. The central locking system guarantees maxi-mum safety as it assures a safe closure of allfixed points of the doors. New generation, new arguments:  SIVACON S4 advantages at a glance. Maximum system safety – thanks to type- tested system modules (TTA) Maximum personal safety thanks to powerful locking system Flexible adaptation of the internal separation to individual requirements Easy subsequent door hinge changes Fast device access for setting purposes Ventilation system with a high degree of  efficiency and maintenance advantages High-quality industrial design for a custom-fit integration in modern room concepts

6 | 7 Installation kit for moulded-case circuit-breakers Graded busbar trunking system Individual system layout, improved switching efficiency: new features for improved profitability. Ever more consumers and increasingly complex processes: To  be able to satisfy the daily requirements placed upon power  distribution in functional and industrial buildings, flexible solu- tions are continuously gaining importance. For this purpose, we support control cabinet manufacturers in the fields of planning, configuration and realisation. Our joint basis: a perfectly matched modular system which, in addition to a selection catalog, configuration software, mounting manual, operating instructions and technical support, accommodates a power distribution system that sets new standards in terms of design, safety and efficiency. For you, this implies a multitude  of advantages, which will generate considerable cost savings. Comprehensively tested, safely distributed:type-tested switchgear combination. SIVACON S4, e.g. with SENTRON 3WL or 3VL circuit- breakers, are type-tested in accordance with  IEC 60439-1 or EN 60439 Part 1. The type test serves as proof regarding: Compliance with limit overtemperature Short-circuit strength Insulation strength PE conductor efficiency Clearances and creepage distances Mechanical function IP degree of protection Prerequisite: The system must be constructed in accordance with the EN 60439 Part 1 standard and according to the instructions of the system supplier. Efficiency redeveloped.

Technical data Standards and regulationsType-tested low-voltage- IEC 60439-1, EN 60439-1 switchgear combination (TTA) Clearances and creepage distancesRated impulse withstand voltage (U imp ) 12 kV Overvoltage category IV Pollution degree 3 Type of internal separation 1, 2b, 3b, 4a, 4b Rated insulation voltage (U i ) 1,000 V Rated operational voltage (U e ) Up to 690 V Rated frequency 50/60 Hz Rated currents  (I n ) Busbars (3-pole and 4-pole)Main busbars horizontal Rated current Up to 4,000 A Rated peak withstand current (I pk ) Up to 220 kA Rated short-time withstand current (I cw ) Up to 100 kA, 1s Surface treatmentFrame parts, extension parts Zinc-plated Enclosure parts Powder-coated RAL 7035, light grey Design parts Powder-coated blue-green basic Protection classIn acc. with IEC 61140, EN 61140 I Degree of protectionIn acc. with IEC 60529, EN 60529 IP30, IP31, IP40, IP41, IP55 Operating conditionsAmbient temperature 1) 35°C Installation altitudes  ≤ 2,000 m Framework components2.5 mm sheet-steel with 25 mm hole matrix in acc. with DIN 43660 DimensionsOutside framework dimensions Height  2,000 mm Width 400/600/800/1,000/1,200 mm Depth 400/600/800 mm Equipping dimensions Equippingheight 1,800 mm Module 36 modules of 50 mm each Base Height 100/200 mm 1) Observe the correction factors with deviating operating conditions and installation altitudes New technology, proven standards: efficiency in detail. Expanded portfolio of type-tested  switchgear combinations (TTA) Flexible modular system with low  component variance Room-optimised installation kits for  compact device assembly Easy realisation of the required internal  separation with standard components Variable busbar systems for the easy  and efficient realisation of various  requirements Graded vertical busbar system for easy  device connection without boring Captive quick-release lock for easy  frame mounting Efficient design thanks to the combination of various installation technologies

Subject t o  c hange without prior no tice 07/06  |  Or der No. E20001- A250-P309-X -7600  |  DISPO 27606  |  21C9639 EVPT .52.6.05 W S  0 706pdf  |  Print ed in German y  |  © Siemens A G  2006 w w w . s i e m e n s . c o m / s i v a c o n Siemens AG Automation and Drives Low-Voltage Controls and Distribution P.O. Box 48 48, 90327 NUREMBERG GERMANY Fax order +49 (911) 978-3321 Any further information? No problem! The information provided in this brochure contains merely general des-criptions or characteristics of performance which in case of actual use do not always apply as described or which may change as a result of further development of the products. An obligation to provide the respective characteristics shall only exist if expressly agreed in the terms of contract. All product designations may be trademarks or product names of Siemens AG or supplier companies whose use by third parties for their own purposes could violate the rights of the owners. The easy way to more information on Siemens  low-voltage power distribution: Copy and fill in this page and fax it to +49 (911) 978-3321. Yes, please send me further information material. Switching and protecting with SENTRON switch disconnectors SENTRON circuit-breakers Distributing with SIVACON power distribution boards and motor control centers SIVACON busbar trunking systems Planning, configuring and managing with SIMARIS design SIMARIS manager Totally Integrated Power If you require further information, please contactyour regional Siemens sales partner. In case of technical questions, please contact: Technical Assistance Phone: +49 (911) 895-5900 E-mail: [email protected] Please send the selected information material to the following address: Last name First name Function Company Street/No./P.O. Box Zip code/city Country Phone Fax E-mail PUBLICIS
