Technical Data
Main Features
Mounting method
DIN rail (top hat rail) 35 mm
Colour
Grey
Width
5 mm
Height
90.5 mm
Depth
63.5 mm
Rated voltage
250 V
Colour light source
None
Operating temperature
105 - 105 °C
Inflammability class of insulation material according to UL94
V0
Closing plate required
yes
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
With PE connection
yes
With shield connection
no
With power supply function
no
LED switching for
No
Number of levels
1
Number of clamp positions per level
5
Internally connected stages
no
Cross connectable
no
Disconnect function
no
Connectable conductor cross section solid-core
0.08 - 2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.25 - 1.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.08 - 2.5 mm²
Connectable conductor cross section multi-wired
0.08 - 2.5 mm²
Material insulation body
Thermoplastic
Rated current In
6 A
Explosion-tested version 'Ex e'
no
Downloads

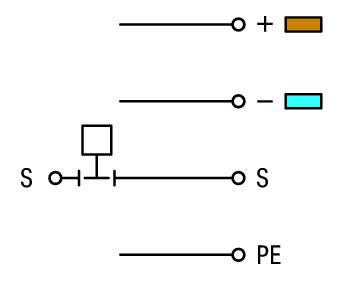

4-conductor sensor terminal block;with ground contact;for component plugs;gray
Product details
SKU Code: 280-571
EAN Code: 4045454093716
Minimum order: 50
This product is currently unavailable in any shop. Please contact the manufacturer for information on where it can be sourced.
No Availability (0 sellers)
