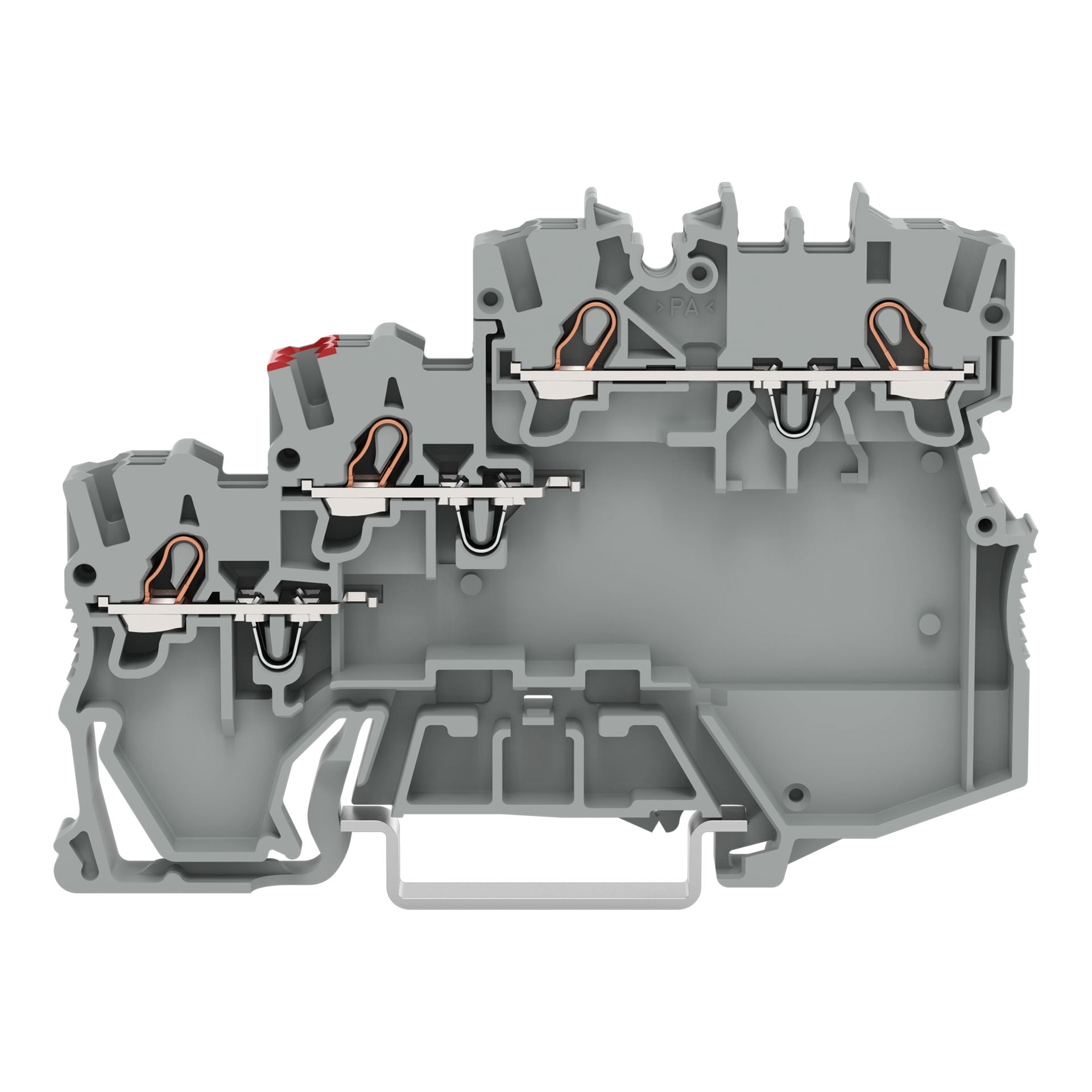

3-conductor actuator supply terminal block for NPN-(low-side) switching actuators with ground connection via push-in type jumper bars gray
3-conductor actuator supply terminal block; for NPN-(low-side) switching actuators; with ground connection via push-in type jumper bars; with colored conductor entries; 1 mm²; Push-in CAGE CLAMP®; 1,00 mm²; gray
Product identifiers
SKU: 2000-5310/101-000
EAN: 4055143442282
GTIN: 4055143442282
MPN: 2000-5310/101-000
Loyalty points:
5
Price range: £ 4.88 - £ 4.98 Excl. VAT
Categories
Features
|
Depth
|
52.4
|
|
Width
|
7
|
|
Colour
|
Grey
|
|
Height
|
81.1
|
|
Rated voltage
|
250
|
|
Mounting method
|
DIN rail (top hat rail) 35 mm
|
|
Number of levels
|
3
|
|
Rated current In
|
13.5
|
|
Cross connectable
|
yes
|
|
LED switching for
|
NPN
|
|
With PE connection
|
yes
|
|
Colour light source
|
Other
|
|
Disconnect function
|
no
|
|
Operating temperature
|
105 - 105
|
|
Closing plate required
|
yes
|
|
With shield connection
|
no
|
|
Material insulation body
|
Thermoplastic
|
|
With power supply function
|
no
|
|
Internally connected stages
|
no
|
|
Explosion-tested version 'Ex e'
|
no
|
|
Type of electrical connection 1
|
Spring clamp connection
|
|
Type of electrical connection 2
|
Spring clamp connection
|
|
Number of clamp positions per level
|
2
|
|
Connectable conductor cross section solid-core
|
0.5 - 1.5
|
|
Connectable conductor cross section multi-wired
|
0.14 - 1
|
|
Inflammability class of insulation material according to UL94
|
V0
|
|
Connectable conductor cross section fine-strand with cable end sleeve
|
0.5 - 0.75
|
|
Connectable conductor cross section fine-strand without cable end sleeve
|
0.14 - 1.5
|
