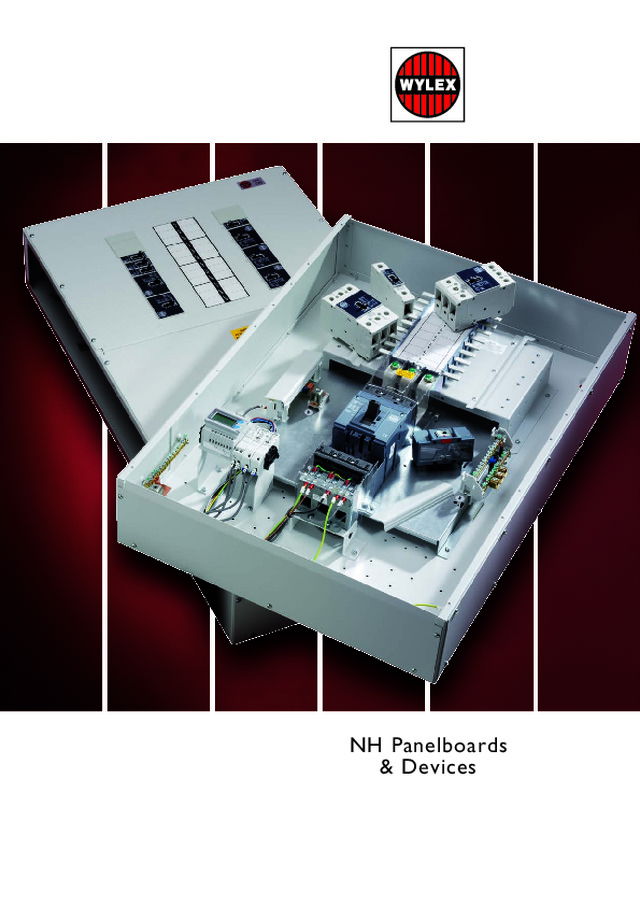

Wylex - NH Panelboards & Devices
Wylex
NH Panelboards & Devices
The NH125 Panelboard system offers 250A and 400A rated, fully shrouded busbar systems in a modular enclosure which includes integral incoming metering facility. The enclosure system combined with NHGG MCCBs, outgoing metering and a range of accessories, provides a competent flexible main or sub-main panelboard. l NHGG125 MCCBs 15A-125A ratings l 25kA breaking capacity l Max conductor cross sections: up to and including 40 amp rating - 16mm 2 above 40 amp rating - 50mm 2 l Comprehensive range of accessories l Fully shrouded bus bars l Excellent access to N/E bars for cabling l Full or partial lockable doors l Conforms fully with BSEN 61439-2 form 3b type 2 l Enclosure supplied with factory fitted incoming switching unit where applicable NH125 MCCB PANELBOARDS
Panelboards (includes TP switching unit) Panelboards (direct connection) 250A NHPBG6SW250 NHPBG8SW250 NHPBG12SW250 NHPBG16SW250 400A NHPBG6SW400 NHPBG8SW400 NHPBG12SW400 NHPBG16SW400 250A NHPBG6DC250 NHPBG8DC250 NHPBG12DC250 NHPBG16DC250 400A NHPBG6DC400 NHPBG8DC400 NHPBG12DC400 NHPBG16DC400 6 way 8 way 12 way 16 way 6 way 8 way 12 way 16 way Overcurrent Release Modules (required for each incomer) TP Cableways 3 mod 12 mod 17 mod Add-on unit NHPB3MW 250A 6 Way NHPB12MW 250A 8 Way NHPB13MW 400A 6 Way NHPB14MW 250A 12 Way/400A 8 Way NHPB15MW 250A 16 Way/400A 12 Way NHPB17MW400A 16 Way NHPB19MW Outgoing Metering Standard MID Meter Kit Meter Kit 63A NHPB63CTM - 125A NHPB125CTM NHPB125CTMID Each metering cableway of outgoing meterkits requires power supply cable NHPBOCL CARLO GA V AZZI kWh M21 Door Kits Add-on Units NHPBG3DR Half door - 6 Way NHPBG5DR Half door - 8 Way NHPBG6DR Half door - 250A incomer NHPBG7DR Half door - 12 Way NHPBG8DR Half door - 400A incomer NHPBG9DR Half door - 16 Way NHPBG10DR Full door - 250A 6 Way NHPBG12DR Full door - 250A 8 Way NHPBG13DR Full door - 400A 6 Way NHPBG14DR Full door - 250A 12 Way/400A 8 Way NHPBG15DR Integral Lightning /Surge Protection Combination Kit NHPBCLSA Lightning Arrester Kit NHPBLA Surge Arrester Kit NHPBSA Cableways Integral Incoming Meter Kits 250A 400A Std NHPB250CTINM NHPB400CTINMMID NHPB250CTINMID NHPB400CTINMID CARLO GA V AZZI kWh M21 Add-on Units Add-on 100A SPN Distribution Board NHPBGDB Add-on Control Module - 24 mod NHPBGAB Add-on 250A Panelboard Metering Kit NHPBG250MP Add-on 400A Panelboard Metering Kit NHPBG400MP Cable Spreader Box NHPBGCSB 250A 400A 63A - 160A NHJ631603ELI - 100A - 250A NHJ1002503ELI NHL1002503ELI 160A - 400A - NHL1604003ELI Switch Disconnector NHJ2503SWDM NHL630SWDM NHPB250CTINM Std 250A Integral Incoming Meter Kits NHPB400CTINM NHPB250CTINM 400A Integral Incoming Meter Kits M21 AZZI kWh V CARLO GA Add-on 250A Panelboar ol Module - 24 mod Add-on Contr Add-on 100A SPN Distribution Boar Add-on Units d Metering Kit Add-on 250A Panelboar ol Module - 24 mod d Add-on 100A SPN Distribution Boar Cableways Cableways 17 mod 12 mod NHPB250CTINMID MID (includes TP switching unit) Panelboar 17 mod NHPB400CTINMID NHPB250CTINMID (includes TP switching unit) ds Panelboar eader Box Cable Spr Add-on 400A Panelboar d Metering Kit Add-on 400A Panelboar 3 mod ay 250A 6 W Add-on unit 3 mod NHPB12MW ay NHPB3MW Add-on unit 6 way NHPB12MW NHPB3MW 8 way 6 way 12 way ay 400A 16 W ay/400A 12 W 250A 16 W ay/400A 8 W 250A 12 W ay 400A 6 W ay 250A 8 W Outgoing Metering NHPB19MW ay NHPB17MW ay ay/400A 12 W NHPB15MW ay ay/400A 8 W NHPB14MW ay NHPB13MW ay Outgoing Metering NHPBG6SW400 400A NHPBG6SW250 250A curr Over NHPB19MW NHPB17MW NHPB15MW NHPB14MW NHPB13MW NHPBG8SW400 NHPBG6SW400 NHPBG8SW250 NHPBG6SW250 ent Release Modules curr NHPBG16SW400 NHPBG12SW400 NHPBG8SW400 NHPBG16SW250 NHPBG12SW250 NHPBG8SW250 ent Release Modules NHPB125CTM 125A NHPB63CTM 63A Meter Kit Standar Outgoing Metering NHPB125CTMID NHPB125CTM - NHPB63CTM Meter Kit Meter Kit MID d Standar Outgoing Metering M21 AZZI kWh V CARLO GA ed for each incomer) equir (r curr Over 100A - 250A NHPB125CTMID 63A - 160A ed for each incomer) ent Release Modules curr TP NHJ1002503ELI NHJ631603ELI 250A ent Release Modules NHL1002503ELI - 400A es power supply cable NHPBOCL equir kits r Each metering cableway of outgoing meter es power supply cable NHPBOCL Each metering cableway of outgoing meter Switch Disconnector es power supply cable NHPBOCL Each metering cableway of outgoing meter 160A - 400A NHJ2503SWDM Switch Disconnector - NHL630SWDM NHL1604003ELI 2 NH125 PANELBOARD SELECTION GUIDE
Panelboards (includes TP switching unit) Panelboards (direct connection) 250A NHPBG6SW250 NHPBG8SW250 NHPBG12SW250 NHPBG16SW250 400A NHPBG6SW400 NHPBG8SW400 NHPBG12SW400 NHPBG16SW400 250A NHPBG6DC250 NHPBG8DC250 NHPBG12DC250 NHPBG16DC250 400A NHPBG6DC400 NHPBG8DC400 NHPBG12DC400 NHPBG16DC400 6 way 8 way 12 way 16 way 6 way 8 way 12 way 16 way Overcurrent Release Modules (required for each incomer) TP Cableways 3 mod 12 mod 17 mod Add-on unit NHPB3MW 250A 6 Way NHPB12MW 250A 8 Way NHPB13MW 400A 6 Way NHPB14MW 250A 12 Way/400A 8 Way NHPB15MW 250A 16 Way/400A 12 Way NHPB17MW400A 16 Way NHPB19MW Outgoing Metering Standard MID Meter Kit Meter Kit 63A NHPB63CTM - 125A NHPB125CTM NHPB125CTMID Each metering cableway of outgoing meterkits requires power supply cable NHPBOCL CARLO GA V AZZI kWh M21 Door Kits Add-on Units NHPBG3DR Half door - 6 Way NHPBG5DR Half door - 8 Way NHPBG6DR Half door - 250A incomer NHPBG7DR Half door - 12 Way NHPBG8DR Half door - 400A incomer NHPBG9DR Half door - 16 Way NHPBG10DR Full door - 250A 6 Way NHPBG12DR Full door - 250A 8 Way NHPBG13DR Full door - 400A 6 Way NHPBG14DR Full door - 250A 12 Way/400A 8 Way NHPBG15DR Integral Lightning /Surge Protection Combination Kit NHPBCLSA Lightning Arrester Kit NHPBLA Surge Arrester Kit NHPBSA Cableways Integral Incoming Meter Kits 250A 400A Std NHPB250CTINM NHPB400CTINMMID NHPB250CTINMID NHPB400CTINMID CARLO GA V AZZI kWh M21 Add-on Units Add-on 100A SPN Distribution Board NHPBGDB Add-on Control Module - 24 mod NHPBGAB Add-on 250A Panelboard Metering Kit NHPBG250MP Add-on 400A Panelboard Metering Kit NHPBG400MP Cable Spreader Box NHPBGCSB 250A 400A 63A - 160A NHJ631603ELI - 100A - 250A NHJ1002503ELI NHL1002503ELI 160A - 400A - NHL1604003ELI Switch Disconnector NHJ2503SWDM NHL630SWDM NHPBG250MP NHPBGAB NHPBGDB NHPBG250MP NHPBGAB NHPBGDB Surge Pr Integral Lightning / Combination Kit otection Surge Pr Integral Lightning / NHPBCLSA Combination Kit NHPBCLSA NHPBGCSB NHPBG400MP 16 way NHPBGCSB NHPBG400MP ect connection) (dir ds Panelboar 12 way 8 way ester Kit Surge Arr Lightning Arr 16 way 12 way NHPBSA ester Kit NHPBLA ester Kit Lightning Arr Cableways 6 way Cableways 8 way NHPBG16SW400 NHPBG16SW250 NHPBG16SW400 NHPBG16SW250 Door Kits NHPBG6DC400 400A NHPBG6DC250 250A NHPBG12DC400 NHPBG8DC400 NHPBG12DC250 NHPBG8DC250 NHPBG16DC400 NHPBG12DC400 NHPBG16DC250 NHPBG12DC250 NHPBG16DC400 NHPBG16DC250 Door Kits Full door - 400A 6 W ay Full door - 250A 8 W ay Full door - 250A 6 W ay Half door - 16 W Half door - 400A incomer ay Half door - 12 W Half door - 250A incomer ay Half door - 8 W ay Half door - 6 W Add-on Units NHPBG14DR NHPBG13DR NHPBG12DR NHPBG10DR NHPBG9DR Half door - 400A incomer NHPBG8DR NHPBG7DR Half door - 250A incomer NHPBG6DR NHPBG5DR NHPBG3DR NHPBG14DR NHPBG13DR NHPBG12DR NHPBG10DR NHPBG9DR NHPBG8DR NHPBG7DR NHPBG6DR NHPBG5DR NHPBG3DR ay/400A 8 W Full door - 250A 12 W ay Full door - 400A 6 W NHPBG15DR ay ay/400A 8 W NHPBG14DR NHPBG15DR NHPBG14DR 3
4 PANELBOARD WITH TP SWITCHING UNIT (PLUG-IN MODULE REQUIRED) DESCRIPTION 250A CAT REF. 400A CAT REF. 6 Way NHPBG6SW250 NHPBG6SW400 8 Way NHPBG8SW250 NHPBG8SW400 12 Way NHPBG12SW250 NHPBG12SW400 16 Way NHPBG16SW250 NHPBG16SW400 Fault rating: 25kA Icc 25kA for 1 sec Max 4c Incoming Cu Cable Size: 150mm ² see note below Max cable lug connection: see note below 32mm wide DIRECT CONNECTED PANELBOARDS DESCRIPTION 250A CAT REF. 400A CAT REF. 6 Way NHPBG6DC250 NHPBG6DC400 8 Way NHPBG8DC250 NHPBG8DC400 12 Way NHPBG12DC250 NHPBG12DC400 16 Way NHPBG16DC250 NHPBG16DC400 Fault rating: 25kA Icc 25kA for 1 sec Max 4c Incoming Cu Cable Size: see note below see note below Available lug connection: on 30mm wide Cu bar M8 M10 NHPBG6SW250 NHPBG8DC400 NH125 P anel boar d s PLUG-IN MODULES FOR 250A INCOMER 250A CAT REF. DESCRIPTION NHJ631603ELI 63A - 160A Overcurrent release NHJ1002503ELI 100A - 250A Overcurrent release NHJ2503SWDM 250A Switch disconnector PLUG-IN MODULES FOR 400A INCOMER 400A CAT REF. DESCRIPTION NHL1002503ELI 100A - 250A Overcurrent release NHL1604003ELI 160A - 400A Overcurrent release NHL630SWDM 400A Switch disconnector NHJ1002503ELI NHL1604003ELI The 400A switching unit accepts cable lug connections up to 32mm wide. Dependant on the size & type of cable lug selected the potential maximum cable capacity of the cable lug can be up to 300mm ².
DOOR BLANKS CAT REF. DESCRIPTION NHPB1TS NHGG SP MCCB door blank with busbar insulator 5 NH125 Outg oing MC CBs 1 POLE OUTGOING G FRAME MCCBs CAT REF. DESCRIPTION NHGGPCB151 15A MCCB NHGGPCB201 20A MCCB NHGGPCB251 25A MCCB NHGGPCB301 30A MCCB NHGGPCB401 40A MCCB NHGGPCB501 50A MCCB NHGGPCB601 60A MCCB NHGGPCB801 80A MCCB NHGGPCB1001 100A MCCB NHGGPCB1251 125A MCCB NHGGPCB201 3 POLE OUTGOING G FRAME MCCBs CAT REF. DESCRIPTION NHGGPCB153 15A MCCB NHGGPCB203 20A MCCB NHGGPCB253 25A MCCB NHGGPCB303 30A MCCB NHGGPCB403 40A MCCB NHGGPCB503 50A MCCB NHGGPCB603 60A MCCB NHGGPCB803 80A MCCB NHGGPCB1003 100A MCCB NHGGPCB1253 125A MCCB NHGGPCB1253 NHPB1TS
OUTGOING METER KITS STANDARD CAT REF. MID CAT REF. DESCRIPTION NHPB63CTM - 63A Energy Meter Kit NHPB125CTM NHPB125CTMID 125A Energy Meter Kit Each metering cableway of outgoing meter kits requires: NHPBOCL Meter Kit Voltage Supply Cable Loom Current transformer internal dimensions: Standard versions: MID versions: 63A & 125A - 16mm W x 31mm H slot 125A - 21mm diameter INCOMING INTEGRAL METER KITS 250A CAT REF. 400A CAT REF. DESCRIPTION NHPB250CTINM NHPB400CTINM Energy Meter Kit - Standard NHPB250CTINMID NHPB400CTINMID Energy Meter Kit - MID Each kit contains: Digital meter offering Amps, Volts, kWh readout plus pulsed output, block current transformer (MID option - 3CTs), fuses, mounting plates & cable looms. Supplied loose for assembly and connection by others. Current transformer internal dimensions: Standard Versions: MID Versions: 250A - 21mm W x 25mm H slot 250A - 28mm diameter 400A - 31mm W x 36mm H slot 400A - 31mm W x 36mm H slot INTEGRAL LIGHTNING & SURGE ARRESTERS CAT REF. DESCRIPTION NHPBCLSA Combination Lightning & Surge Arrester Kit NHPBLA Lightning Arrester Kit NHPBSA Surge Arrester Kit Each kit contains: Lightning, Surge or Combination arrester, MCCB, mounting plate & cable loom. Supplied loose for assembly and connection by others. Only one of these three options is possible per panelboard. MCCB mounted in bottom right hand outgoing way. NHPB250CTINM NHPBCLSA NHPB125CTM 6 NH125 P anel boar d Met er & S ur ge Ar r es ter Ki ts
CABLEWAYS (WITH METER KNOCK-OUTS) PANEL BOARD AVAILABLE CAT REF. DESCRIPTION TYPE KNOCK-OUTS NHPB3MW 3 mod Add-on unit - NHPB12MW 12 mod 250A 6 Way 6 NHPB13MW 13 mod 250A 8 Way 6 NHPB14MW 14 mod 400A 6 Way 6 NHPB15MW 15 mod 250A 12W/400A 8 Way 6 NHPB17MW 17 mod 250A 16W/400A 12 Way 8 NHPB19MW 19 mod 400A 16 Way 9 Dimensions: Height as listed, width: 250mm, depth: 180mm ADD-ON UNITS CAT REF. DESCRIPTION NHPBGDB Add-on 100A SPN Distribution Board NHPBGAB Add-on Control Module - 24 mod NHPBG250MP Add-on 250A Panelboard Metering Kit NHPBG400MP Add-on 400A Panelboard Metering Kit NHPBGCSB Cable Spreader Box Dimensions: 228mm H x 630mm W x 164mm D DOOR KITS PANEL BOARD CAT REF. DESCRIPTION TYPE NHPBG3DR 3 mod Add-on Units NHPBG5DR 5 mod Half door - 6 Way NHPBG6DR 6 mod Half door - 8 Way NHPBG7DR 7 mod Half door - 250A incomer NHPBG8DR 8 mod Half door - 12 Way NHPBG9DR 9 mod Half door - 400A incomer NHPBG10DR 10 mod Half door - 16 Way NHPBG12DR 12 mod Full door - 250A 6 Way NHPBG13DR 13 mod Full door - 250A 8 Way NHPBG14DR 14 mod Full door - 400A 6 Way NHPBG15DR 15 mod Full door - 250A 12 Way/400A 8 Way NHPBDL Standard door lock (2 keys) NHPB3MW NHPB15MW NHPB13MW NHPBGDB NHPBG3DR NHPBG10DR 7 NH125 P anel boar d Acces s ories NHPBG15DR
The NH250 Panelboard system offers 400A and 630A rated, fully shrouded busbar systems in a modular enclosure, which includes integral incoming metering facility. The enclosure system combined with either NHJ or NHGG MCCBs, outgoing metering and a range of accessories, provides a competent flexible main or sub-main panelboard. NH250 MCCB PANELBOARDS l NHJ250 MCCBs 40A-250A rating J frame with a 36kA or 65kA fault breaking capacity l NHGG125 MCCBs 15A-125A rating G frame with a 25kA fault breaking capacity l Comprehensive range of accessories including sealable terminal covers l Fully shrouded busbars l Excellent access to N/E bars for cabling l Full or partial lockable doors l Conforms fully with BSEN 61439-2 form 3b type 2
Panelboards (includes TP or 4P switching unit) TP 4P 400A NHPBJ2W400MU3 NHPBJ4W400MU3 NHPBJ6W400MU3 630A NHPBJ2W630MU3 NHPBJ4W630MU3 NHPBJ6W630MU3 400A NHPBJ2W400MU4 NHPBJ4W400MU4 NHPBJ6W400MU4 630A NHPBJ2W630MU4 NHPBJ4W630MU4 NHPBJ6W630MU4 2 way 4 way 6 way Extension Units G frame Extension Unit J frame Panelboard Cableways Integral Incoming Meter Kits 2 way 4 way 6 way 2 way 4 way 6 way Metered2 way - NHPBJ2MCW4 way - NHPBJ4MCW 6 way - NHPBJ6MCW Standard2 way - NHPBJ2CW4 way - NHPBJ4CW 6 way - NHPBJ6CW Extension Cableways G frame 4 way 8 way 12 way 4 way 8 way 12 way Metered4 way - NHPBG4MCWA8 way - NHPBG8MCWA 12 way - NHPBG12MCWA Standard4 way - NHPBG4CW8 way - NHPBG8CW 12 way - NHPBG12CW 400A NHPBG4W400AU NHPBG8W400AU NHPBG12W400AU 630A NHPBG4W630AU NHPBG8W630AU NHPBG12W630AU NHPBJ8W400AU 400A NHPBJ8W630AU 630A 4 way 8 way 8 way 12 way Extension Cableways J frame only Standard Metered 8 way Metered - NHPBJ8MCWAStandard - NHPBJ8CW 400A 630AStd NHPBJIMK400 NHPBJIMK630MID NHPBJMIDIMK400 NHPBJMIDIMK630 Outgoing Metering Standard MID 63A G frame Meter Kit NHPBJOMK63 - 125A G frame Meter Kit NHPBJOMK125 NHPBJMIDOMK125 160A J frame Meter Kit NHPBJOMK160 NHPBJMIDOMK160 250A J frame Meter Kit NHPBJOMK250 NHPBJMIDOMK250 Each metering cableway of outgoing meter kits requires powersupply cable NHPBOCL Outgoing Metering Outgoing Metering CARLO GA V AZZI kWh M21 CARLO GA V AZZI kWh M21 Integral Lightning / Surge Protection Combination Kit NHPBCSAR1/2 Lightning Arrester Kit NHPBLAR1 Surge Arrester Kit NHPBSAR2 OvercurrentRelease Modules (required for each incomer) 160A - 400A NHL1604003ELI NHL1604004ELI 100A - 250A NHL1002503ELI NHL1002504ELI Switch Disconnector NHL630SWDM On Application TP 4P 400A 160A - 400A NHL1604003ELI NHL1604004ELI 100A - 250A NHL1002503ELI NHL1002504ELI 250A - 630A NHL2506303ELI NHL2506304ELI Switch Disconnector NHL630SWDM On Application 630A Extension Units rating must match the rating of the Panelboard being extended. G frame Extension Cableways 4 way Extension Cableways 12 way 8 way 12 way 8 way 4 way G frame Extension Units d being extended. 12 way Panelboar match the rating of the Extension Units rating must Extension Units 4 way d being extended. match the rating of the Extension Units rating must Panelboar 12 way - NHPBG12MCW 8 way - NHPBG8MCW 4 way - NHPBG4MCW ed Meter d Cableways Panelboar 6 way A 12 way - NHPBG12MCW 12 way - NHPBG12MCWA A Metering 8 way - NHPBG8MCW 8 way - NHPBG8MCWA A 4 way - NHPBG4MCW 4 way - NHPBG4MCWA Outgoing 6 way 12 way - NHPBG12CW 8 way - NHPBG8CW 4 way - NHPBG4CW d Standar 630A (includes TP or 4P Panelboar 6 way 400A (includes TP or 4P ds Panelboar NHPBG4W630AU NHPBG4W400AU 2 way 6 way 4 way 4 way 2 way switching unit) 6 way switching unit) 2 way 6 way - NHPBJ6MCW 4 way - NHPBJ4MCW 2 way - NHPBJ2MCW ed Meter 6 way - NHPBJ6MCW 4 way - NHPBJ4MCW 2 way - NHPBJ2MCW 6 way - NHPBJ6CW 4 way - NHPBJ4CW 2 way - NHPBJ2CW d Standar 4P TP 630A 400A 630A 400A NHPBJ2W630MU4 NHPBJ2W400MU4 NHPBJ2W630MU3 NHPBJ2W400MU3 160A J frame Meter Kit 125A G frame Meter Kit 63A G frame Meter Kit Outgoing Metering NHPBJOMK160 160A J frame Meter Kit NHPBJOMK125 125A G frame Meter Kit NHPBJOMK63 63A G frame Meter Kit Standar Outgoing Metering NHPBJMIDOMK160 NHPBJOMK160 NHPBJMIDOMK125 NHPBJOMK125 - NHPBJOMK63 MID d Standar M21 AZZI kWh V CARLO GA NHPBJMIDOMK160 NHPBJMIDOMK125 ed for each incomer) equir (r Release Modules ent curr Over Switch Disconnector 100A - 250A 160A - 400A 400A ed for each incomer) Release Modules ent Switch Disconnector 100A - 250A 160A - 400A supply cable NHPBOCL Each metering cableway of outgoing meter kits r 250A J frame Meter Kit 160A J frame Meter Kit supply cable NHPBOCL Each metering cableway of outgoing meter kits r NHPBJOMK250 250A J frame Meter Kit NHPBJOMK160 160A J frame Meter Kit es power equir Each metering cableway of outgoing meter kits r NHPBJMIDOMK250 NHPBJOMK250 NHPBJMIDOMK160 NHPBJOMK160 NHPBJMIDOMK250 NHPBJMIDOMK160 630A Switch Disconnector 250A - 630A 100A - 250A 160A - 400A Switch Disconnector 250A - 630A 100A - 250A 160A - 400A NH250 PANELBOARD SELECTION GUIDE 10
Panelboards (includes TP or 4P switching unit) TP 4P 400A NHPBJ2W400MU3 NHPBJ4W400MU3 NHPBJ6W400MU3 630A NHPBJ2W630MU3 NHPBJ4W630MU3 NHPBJ6W630MU3 400A NHPBJ2W400MU4 NHPBJ4W400MU4 NHPBJ6W400MU4 630A NHPBJ2W630MU4 NHPBJ4W630MU4 NHPBJ6W630MU4 2 way 4 way 6 way Extension Units G frame Extension Unit J frame Panelboard Cableways Integral Incoming Meter Kits 2 way 4 way 6 way 2 way 4 way 6 way Metered2 way - NHPBJ2MCW4 way - NHPBJ4MCW 6 way - NHPBJ6MCW Standard2 way - NHPBJ2CW4 way - NHPBJ4CW 6 way - NHPBJ6CW Extension Cableways G frame 4 way 8 way 12 way 4 way 8 way 12 way Metered4 way - NHPBG4MCWA8 way - NHPBG8MCWA 12 way - NHPBG12MCWA Standard4 way - NHPBG4CW8 way - NHPBG8CW 12 way - NHPBG12CW 400A NHPBG4W400AU NHPBG8W400AU NHPBG12W400AU 630A NHPBG4W630AU NHPBG8W630AU NHPBG12W630AU NHPBJ8W400AU 400A NHPBJ8W630AU 630A 4 way 8 way 8 way 12 way Extension Cableways J frame only Standard Metered 8 way Metered - NHPBJ8MCWAStandard - NHPBJ8CW 400A 630AStd NHPBJIMK400 NHPBJIMK630MID NHPBJMIDIMK400 NHPBJMIDIMK630 Outgoing Metering Standard MID 63A G frame Meter Kit NHPBJOMK63 - 125A G frame Meter Kit NHPBJOMK125 NHPBJMIDOMK125 160A J frame Meter Kit NHPBJOMK160 NHPBJMIDOMK160 250A J frame Meter Kit NHPBJOMK250 NHPBJMIDOMK250 Each metering cableway of outgoing meter kits requires powersupply cable NHPBOCL Outgoing Metering Outgoing Metering CARLO GA V AZZI kWh M21 CARLO GA V AZZI kWh M21 Integral Lightning / Surge Protection Combination Kit NHPBCSAR1/2 Lightning Arrester Kit NHPBLAR1 Surge Arrester Kit NHPBSAR2 OvercurrentRelease Modules (required for each incomer) 160A - 400A NHL1604003ELI NHL1604004ELI 100A - 250A NHL1002503ELI NHL1002504ELI Switch Disconnector NHL630SWDM On Application TP 4P 400A 160A - 400A NHL1604003ELI NHL1604004ELI 100A - 250A NHL1002503ELI NHL1002504ELI 250A - 630A NHL2506303ELI NHL2506304ELI Switch Disconnector NHL630SWDM On Application 630A Extension Units rating must match the rating of the Panelboard being extended. 8 way 12 way 8 way J frame Extension Unit 12 way 8 way Extension Unit J frame only Extension Cableways J frame only Extension Cableways ed Meter d Standar Extension Cableways NHPBG8W630AU NHPBG8W400AU NHPBG12W630AU 6 way 4 way NHPBG8W630AU NHPBG12W400AU NHPBG8W400AU NHPBJ8W630AU 6 way NHPBJ8W400AU NHPBG12W630AU NHPBG12W400AU 630A Integral Incoming Meter Kits NHPBJ8W630AU 400A NHPBJ8W400AU Outgoing Integral Incoming Meter Kits d - NHPBJ8CW Standar A ed - NHPBJ8MCW ed - NHPBJ8MCWA Meter 8 way Metering Outgoing Integral Incoming Meter Kits NHPBJMIDIMK400 MID NHPBJIMK400 Std 400A Integral Lightning / NHPBJMIDIMK630 NHPBJMIDIMK400 NHPBJIMK630 NHPBJIMK400 630A 400A M21 AZZI kWh V CARLO GA Integral Lightning / NHPBJMIDIMK630 NHPBJIMK630 NHPBJ6W630MU4 NHPBJ4W630MU4 NHPBJ6W400MU4 NHPBJ4W400MU4 NHPBJ6W630MU3 NHPBJ4W630MU3 NHPBJ6W400MU3 NHPBJ4W400MU3 NHPBJ6W630MU4 NHPBJ6W400MU4 NHPBJ6W630MU3 NHPBJ6W400MU3 ester Kit Surge Arr ester Kit Lightning Arr Combination Kit otection Surge Pr NHPBSAR2 ester Kit NHPBLAR1 ester Kit NHPBCSAR1/2 otection NHPBCSAR1/2 On Application NHL630SWDM NHL1002504ELI NHL1002503ELI NHL1604004ELI NHL1604003ELI TP On Application NHL1002504ELI NHL1604004ELI 4P On Application NHL630SWDM NHL2506304ELI NHL2506303ELI NHL1002504ELI NHL1002503ELI NHL1604004ELI NHL1604003ELI On Application NHL2506304ELI NHL1002504ELI NHL1604004ELI 11
12 PANELBOARD WITH TP SWITCHING UNIT (PLUG-IN MODULE REQUIRED) DESCRIPTION 400A CAT REF. 630A CAT REF. 2 Way NHPBJ2W400MU3 NHPBJ2W630MU3 4 Way NHPBJ4W400MU3 NHPBJ4W630MU3 6 Way NHPBJ6W400MU3 NHPBJ6W630MU3 Fault rating: 35kA for 1 sec 50kA for 1 sec Max cable lug connection: 32mm wide 32mm wide see note below PLUG-IN INCOMER OVERCURRENT RELEASE & SWITCH DISCONNECTOR MODULES DESCRIPTION 400A CAT REF. 630A CAT REF. 100A - 250A Overcurrent Release NHL1002503ELI NHL1002503ELI 160A - 400A Overcurrent Release NHL1604003ELI NHL1604003ELI 250A - 630A Overcurrent Release - NHL2506303ELI Switch Disconnector NHL630SWDM NHL630SWDM PANELBOARD WITH 4P SWITCHING UNIT (PLUG-IN MODULE REQUIRED) DESCRIPTION 400A CAT REF. 630A CAT REF. 2 Way NHPBJ2W400MU4 NHPBJ2W630MU4 4 Way NHPBJ4W400MU4 NHPBJ4W630MU4 6 Way NHPBJ6W400MU4 NHPBJ6W630MU4 Fault rating: 35kA for 1 sec 50kA for 1 sec Max cable lug connection: 32mm wide 32mm wide see note below PLUG-IN INCOMER OVERCURRENT RELEASE & SWITCH DISCONNECTOR MODULES DESCRIPTION 400A CAT REF. 630A CAT REF. 100A - 250A Overcurrent Release NHL1002504ELI NHL1002504ELI 160A - 400A Overcurrent Release NHL1604004ELI NHL1604004ELI 250A - 630A Overcurrent Release - NHL2506304ELI Switch Disconnector On Application On Application NHPBJ6W630MU3 NHPBJ2W400MU4 NHL1002503ELI NH250 P anel boar d s NHL160400ELI The 400A/630A switching units accept cable lug connections up to 32mm wide. Dependant on the size & type of cable lug selected the potential maximum cable capacity of the cable lug can be up to 300mm ².
13 NH250 P anel boar d Met er & S urge Arr ester Kits INTEGRAL LIGHTNING & SURGE ARRESTERS CAT REF. DESCRIPTION NHPBCSAR1/2 Combination Lightning & Surge Arrester Kit NHPBLAR1 Lightning Arrester Kit (Type 1) NHPBSAR2 Surge Arrester Kit (Type 2) Each kit contains: Lightning, Surge or Combination arrester, MCCB, mounting plate & cable loom. Supplied loose for assembly and connection by others. Only one of these three options is possible per panelboard. MCCB mounted in bottom left hand NHJ position. OUTGOING METER KITS STANDARD MID CAT REF. CAT REF. DESCRIPTION NHPBJOMK63 - 63A Energy Meter Kit - G frame NHPBJOMK125 NHPBJMIDOMK125 125A Energy Meter Kit - G frame NHPBJOMK160 NHPBJMIDOMK160 160A Energy Meter Kit - J frame NHPBJOMK250 NHPBJMIDOMK250 250A Energy Meter Kit - J frame Each kit contains: Digital meter offering Amps, Volts, kWh readout plus pulsed output, block current transformer (MID option - 3 separate CTs), fuses, mounting plates & cable looms. Supplied loose for assembly and connection by others. Each metering cableway of outgoing meter kits requires: NHPBOCL Meter Kit Voltage Supply Cable Loom Current transformer internal dimensions Standard versions: MID versions: 63A & 125A - 16mm W x 31mm H slot 125A & 160A - 21mm diameter 160A & 250A - 21mm W x 25mm H slot 250A - 28mm diameter NHPBSAR2 NHPBJOMK250 INTEGRAL INCOMING METER KITS 400A CAT REF. 630A CAT REF. DESCRIPTION NHPBJIMK400 NHPBJIMK630 Energy Meter Kit - Standard NHPBJMIDIMK400 NHPBJMIDIMK630 Energy Meter Kit - MID Each kit contains: Digital meter offering Amps, Volts, kWh readout plus pulsed output, block current transformer, fuses, mounting plates & cable looms. Supplied loose for assembly and connection by others. Cable Connection Information: 30mm x 10mm copper bar - M10 connection NHPBJIMK400
14 OUTGOING J FRAME MCCBs CAT REF. DESCRIPTION NHJ2503VTX 36kA rated TP MCCBs 250A TP Switching Unit NHJS2503VTX 65kA rated TP MCCBs 250A TP Switching Unit The switching unit must be fitted with a Plug-In Overcurrent Release module PLUG-IN OVERCURRENT RELEASE MODULES CAT REF. DESCRIPTION NHJ401003ELI 40A - 100A Overcurrent Release NHJ631603ELI 63A - 160A Overcurrent Release NHJ1002503ELI 100A - 250A Overcurrent Release OUTGOING J FRAME MCCBS SELECTION 36kA RATING TRIP UNIT 36kA SWITCHING UNIT 40A 50A 63A NHJ401003ELI 80A 100A NHJ2503VTX 125A NHJ631603ELI 160A 200A 220A NHJ1002503ELI 250A DOOR BLANKS CAT REF. DESCRIPTION NHPB1TS NHGG SP MCCB door blank with busbar insulators NHJ3 NHJ TP MCCB door blank with busbar insulators ACCESSORIES CAT REF. DESCRIPTION NHJVT3TS 3P terminal shields J frame NHJLAUXCO Auxiliary contact NHJLUVR110230 110/230V undervoltage release NHJLUVR230 230V undervoltage release NHJLD Handle padlock for J frame 250A NHLLD Handle padlock for L frame 400/630A NHJLST2448 24/48 shunt trip NHJLST230 230V shunt trip NHPB1TS NHJ3 NH250 O ut g oi ng MC C Bs OUTGOING J FRAME MCCBS SELECTION 65kA RATING TRIP UNIT 65kA SWITCHING UNIT 40A 50A 63A NHJ401003ELI 80A 100A NHJS2503VTX 125A NHJ631603ELI 160A 200A 220A NHJ1002503ELI 250A NHJ1002503ELI NHJ2503VTX + +
15 NH250 P anel boar d G F r am e Ext ens ion Units , MC CBs & Cabl e wa ys NH250 ADD-ON EXTENSION UNITS DESCRIPTION 400A CAT REF. 630A CAT REF. 4 Way G Frame Extension Unit NHPBG4W400AU NHPBG4W630AU 8 Way G Frame Extension Unit NHPBG8W400AU NHPBG8W630AU 12 Way G Frame Extension Unit NHPBG12W400AU NHPBG12W630AU Fault rating: 25kA for 1 sec 25kA for 1 sec Outgoing MCCB G Frame selection see below. DESCRIPTION 400A CAT REF. 630A CAT REF. 8 Way J Frame Extension Unit NHPBJ8W400AU NHPBJ8W630AU Fault rating: 35kA for 1 sec 50kA for 1 sec Outgoing MCCB J Frame selection page 14. CABLE WAYS STANDARD METER KNOCK-OUTS CAT REF. CAT REF. DESCRIPTION NHPBJ2CW NHPBJ2MCW 2 Way Panelboard NHPBJ4CW NHPBJ4MCW 4 Way Panelboard NHPBJ6CW NHPBJ6MCW 6 Way Panelboard NHPBG4CW NHPBG4MCWA 4 Way G Frame Extension NHPBG8CW NHPBG8MCWA 8 Way G Frame Extension NHPBG12CW NHPBG12MCWA 12 Way G Frame Extension NHPBJ8CW NHPBJ8MCWA 8 Way J Frame Extension NHPBG12W630AU NHPBJ4CW NHPBG8CW NHPBJ4MCW NHPBG8MCW OUTGOING G FRAME MCCBs SINGLE POLE CAT REF. TRIPLE POLE CAT REF. DESCRIPTION NHGGPCB151 NHGGPCB153 15A MCCB NHGGPCB201 NHGGPCB203 20A MCCB NHGGPCB251 NHGGPCB253 25A MCCB NHGGPCB301 NHGGPCB303 30A MCCB NHGGPCB401 NHGGPCB403 40A MCCB NHGGPCB501 NHGGPCB503 50A MCCB NHGGPCB601 NHGGPCB603 60A MCCB NHGGPCB801 NHGGPCB803 80A MCCB NHGGPCB1001 NHGGPCB1003 100A MCCB NHGGPCB1251 NHGGPCB1253 125A MCCB NHGGPCB201 NHGGPCB1253
ApproximateOverallwith Doors 193 630 164 525 250 62.5 62.5 62.5 62.5 B A M8 Fixing Holes 630 164 525 59 228 239 NH125-250A Incomer Inc CTs Std CTs - 195mmMID CTs - 135mm We would recommend the use of a cable spreader box forincoming 4c copper cables in excess of 70mm 2 when used in conjunction with the 250A integral MID meter option 253mm NH125-400A Incomer Inc Std/MID CTs - 207mm 325mm CTs Incomer: 150mm 2 Cu Cable Meter CTs: Std - 21mm x 25mm slots MID - 28mm diameter Incomer:Max Lug Connection: 32mm Std or MID CTs 31mm x 36mm slots Cableways Main Units 110 ApproximateOverallwith Doors 193 630 164 525 250 62.5 62.5 62.5 62.5 B A M8 Fixing Holes 630 164 525 59 228 239 NH125-250A Incomer Inc CTs Std CTs - 195mmMID CTs - 135mm We would recommend the use of a cable spreader box forincoming 4c copper cables in excess of 70mm 2 when used in conjunction with the 250A integral MID meter option 253mm NH125-400A Incomer Inc Std/MID CTs - 207mm 325mm CTs Incomer: 150mm 2 Cu Cable Meter CTs: Std - 21mm x 25mm slots MID - 28mm diameter Incomer:Max Lug Connection: 32mm Std or MID CTs 31mm x 36mm slots Cableways Main Units 110 ApproximateOverallwith Doors 193 630 164 525 250 62.5 62.5 62.5 62.5 B A M8 Fixing Holes 630 164 525 59 228 239 NH125-250A Incomer Inc CTs Std CTs - 195mmMID CTs - 135mm We would recommend the use of a cable spreader box forincoming 4c copper cables in excess of 70mm 2 when used in conjunction with the 250A integral MID meter option 253mm NH125-400A Incomer Inc Std/MID CTs - 207mm 325mm CTs Incomer: 150mm 2 Cu Cable Meter CTs: Std - 21mm x 25mm slots MID - 28mm diameter Incomer:Max Lug Connection: 32mm Std or MID CTs 31mm x 36mm slots Cableways Main Units 110 250A PANELBOARD DIMENSIONS H W D Modules 6 Way 912 630 164 12 8 Way 988 630 164 13 12 Way 1140 630 164 15 16 Way 1292 630 164 17 250A CABLE WAYS 6 Way 912 250 180 12 8 Way 988 250 180 13 12 Way 1140 250 180 15 16 Way 1292 250 180 17 400A PANELBOARD DIMENSIONS H W D Modules 6 Way 1064 630 164 14 8 Way 1140 630 164 15 12 Way 1292 630 164 17 16 Way 1444 630 164 19 400A CABLE WAYS 6 Way 1064 250 180 14 8 Way 1140 250 180 15 12 Way 1292 250 180 17 16 Way 1444 250 180 19 MAIN UNITS 250A DIMENSIONS A B 6 Way 912 787 8 Way 988 863 12 Way 1140 1015 16 Way 1292 1167 MAIN UNITS 400A 6 Way 1064 939 8 Way 1140 1015 12 Way 1292 1167 16 Way 1444 1319 NH125 PANELBOARD DIMENSIONS (mm) MAIN UNITS ADD-ON UNITS AVAILABLE SPREADING ROOM FOR INCOMING CABLES 16 NH125 P anel boar d s
17 NH250 P anel boar d s ApproximateOverallwith Doors 250 185 250 185 250 185 700 900 400 Mtd 250 Std 400 Mtd 250 Std 400 Mtd 250 Std 700 900 700 900 125 125 265 125 125 537.5 125 125 125 A 125 125 A NH250-400A & 630A Incomers Inc CTs Std/MID CTs 270mm 410mm Incomer: Max Lug Connection - 32mm wideStd & MID CTs: 30mm x 10mm copper bar, M10 connections ApproximateOverallwith Doors 250 185 250 185 250 185 700 900 400 Mtd 250 Std 400 Mtd 250 Std 400 Mtd 250 Std 700 900 700 900 125 125 265 125 125 537.5 125 125 125 A 125 125 A NH250-400A & 630A Incomers Inc CTs Std/MID CTs 270mm 410mm Incomer: Max Lug Connection - 32mm wideStd & MID CTs: 30mm x 10mm copper bar, M10 connections ApproximateOverallwith Doors 250 185 250 185 250 185 700 900 400 Mtd 250 Std 400 Mtd 250 Std 400 Mtd 250 Std 700 900 700 900 125 125 265 125 125 537.5 125 125 125 A 125 125 A NH250-400A & 630A Incomers Inc CTs Std/MID CTs 270mm 410mm Incomer: Max Lug Connection - 32mm wideStd & MID CTs: 30mm x 10mm copper bar, M10 connections ApproximateOverallwith Doors 250 185 250 185 250 185 700 900 400 Mtd 250 Std 400 Mtd 250 Std 400 Mtd 250 Std 700 900 700 900 125 125 265 125 125 537.5 125 125 125 A 125 125 A NH250-400A & 630A Incomers Inc CTs Std/MID CTs 270mm 410mm Incomer: Max Lug Connection - 32mm wideStd & MID CTs: 30mm x 10mm copper bar, M10 connections 400A PANELBOARD DIMENSIONS H W D 2 Way 1050 900 250 4 Way 1155 900 250 6 Way 1260 900 250 400A STANDARD CABLE WAYS 2 Way 1050 250 185 4 Way 1155 250 185 6 Way 1260 250 185 400A METERED CABLE WAYS 2 Way 1050 400 185 4 Way 1155 400 185 6 Way 1260 400 185 630A PANELBOARD DIMENSIONS H W D 2 Way 1050 900 250 4 Way 1155 900 250 6 Way 1260 900 250 630A STANDARD CABLE WAYS 2 Way 1050 250 185 4 Way 1155 250 185 6 Way 1260 250 185 630A METERED CABLE WAYS 2 Way 1050 400 185 4 Way 1155 400 185 6 Way 1260 400 185 NH250 PANELBOARD DIMENSIONS (mm) MAIN UNITS DIMENSION A 2 Way 1050 4 Way 1155 6 Way 1260 EXTENSION UNITS DIMENSION A 8 Way NHGG 420 12 Way NHGG 580 8 Way NHJ 580 MAIN UNITS 4 WAY NGG EXTENSION UNIT 8 & 12 WAY EXTENSION UNIT AVAILABLE SPREADING ROOM FOR INCOMING CABLES
NHGG TIME / CURRENT CHARACTERISTICS 125A 80-100A 60-70A 50A 45A 30-35A 15A NHGG 15, 20, 25, 30, 40, 50, 60, 80, 100, 110, 125 Amp 65kA 25kA 240V Symmetrical RMS Amperes 480V Type Maximum Trip Unit Rating n FROM THE 5 SEC VALUE FOR THE 125A BREAKER, THE ABOVE CURVE SUGGESTS A OHMIC VALUE OF 0,33 OHMS 5 SEC VALUES (230V / 5.5X IN) FOR OTHER RATINGS ARE AS FOLLOWS Ampere 20 25 30 40 50 60 80 100 125 Ohm 2.09 1.67 1.39 1.05 0.84 0.70 0.52 0.42 0.33 18 NHGG MC C B C har act er is ti cs
19 NHJ MC CB Char act eris ti cs NHJ TIME / CURRENT CHARACTERISTICS NHL TIME / CURRENT CHARACTERISTICS x I n 1 2 5 20 50 10 0.1 0.2 0.5 0.01 0.01 10 100 1000 10000 t [s] 0.01 0.1 0.1 0.1 1 x 4x 4x 8x 8x 4x 4x 8x 8x 4x 4x 8x 8x I L I i I i I i I n = 100 A I n = 160 A I n = 250 A I n = 100 A I n = 160 A I n = 250 A I r I i 3 3 I r min. max. x I n 1 2 5 20 50 10 0.1 0.2 0.5 Ir = 575 A.630 A ~ Ii = 7 kA 4x 12.5x 4x 12.5x 4x 12.5x 4x 12.5x 4x 12.5x 4x 12.5x I I n = 250 A I n = 400 A I n = 630 A I i I i I i I n = 250 A I n = 400 A I n = 630 A L I r I i 0.01 0.01 10 100 1000 10000 t [s] 0.01 0.1 0.1 0.1 1 I r min. max. 3 3 IR & II SET AT MINIMUM CURRENT VALUE (A) OHMIC VALUE 0.4 5 0.4 5 AMPS SECONDS SECONDS VOLTAGE SECONDS SECONDS 100 150A 150A 230V 1.533Ω 1.533Ω 160 240A 240A 230V 0.958Ω 0.958Ω 250 375A 375A 230V 0.613Ω 0.613Ω IR SET AT MINIMUM & II SET AT MAXIMUM 100 320A 230A 230V 0.719Ω 1.000Ω 160 512A 368A 230V 0.449Ω 0.625Ω 250 800A 575A 230V 0.288Ω 0.400Ω IR & II SET AT MAXIMUM 100 800A 600A 230V 0.288Ω 0.383Ω 160 1280A 960A 230V 0.180Ω 0.240Ω 250 2000A 1500A 230V 0.115Ω 0.153Ω IR SET AT MAXIMUM & II SET AT MINIMUM 100 400A 400A 230V 0.575Ω 0.575Ω 160 640A 640A 230V 0.359Ω 0.359Ω 250 1000A 1000A 230V 0.230Ω 0.230Ω IR & II SET AT MINIMUM CURRENT VALUE (A) OHMIC VALUE 0.4 5 0.4 5 AMPS SECONDS SECONDS VOLTAGE SECONDS SECONDS 250 375A 375A 230V 0.613Ω 0.613Ω 400 600A 600A 230V 0.383Ω 0.383Ω 630 945A 945A 230V 0.243Ω 0.243Ω IR SET AT MINIMUM & II SET AT MAXIMUM 250 1250A 575A 230V 0.184Ω 0.400Ω 400 2000A 920A 230V 0.115Ω 0.250Ω 630 3150A 1449A 230V 0.073Ω 0.159Ω IR & II SET AT MAXIMUM 250 3125A 1500A 230V 0.074Ω 0.153Ω 400 5000A 2400A 230V 0.046Ω 0.096Ω 630 7875A 3780A 230V 0.029Ω 0.061Ω IR SET AT MAXIMUM & II SET AT MINIMUM 250 1000A 1000A 230V 0.230Ω 0.230Ω 400 1600A 1600A 230V 0.144Ω 0.144Ω 630 2520A 2520A 230V 0.091Ω 0.091Ω
DOMESTIC COMMERCIAL PV ISOLATION PV METEREDCONSUMER UNIT LIGHTING CONTROL SUPPLY ISOLATOR SURGE PROTECTION HEATING CONTROL ADDITIONAL RCD PROTECTION CONSUMER UNIT 100A 250A METERING SUB DISTRIBUTION SINGLE PHASE SUB DISTRIBUTION THREE PHASE SUB DISTRIBUTION THREE PHASE MAIN DISTRIBUTION SUB DISTRIBUTION
COMMERCIAL 250A INDUSTRIAL H&V ISOLATION LIGHTING CONTROL LIFT ISOLATION CONSUMER UNIT CONSUMER UNIT CONSUMER UNIT 630A MAIN ISOLATION LOCAL ISOLATION SUB DISTRIBUTION THREE PHASE INTEGRAL METERING SURGE PROTECTION SUB DISTRIBUTION THREE PHASE METERING METERING MAINDISTRIBUTION SUB DISTRIBUTION SINGLE PHASE SUB DISTRIBUTION LOCAL ISOLATION
ELECTRIUM SALES LIMITED A SIEMENS COMPANY Commercial Centre, Lakeside Plaza, Walkmill Lane, Bridgtown, Cannock WS11 0XE. eMail: [email protected] Web: www.electrium.co.uk UK SALES Telephone: 01543 455020 Facsimile: 01543 455021 eMail: [email protected] TECHNICAL Telephone: 01543 438320 Facsimile: 01543 438321 eMail: [email protected] EXPORT SALES Telephone: +44 1543 455049 Facsimile: +44 1543 455048 eMail: [email protected] DUBAI OFFICE Telephone: +971 4 3660687 Facsimile: +971 4 3660676 eMail: [email protected] Although every effort has been made to ensure accuracy in the compilation of the technical detail within this publication, specifications and performance data are constantly changing. Latest details can be obtained from Wylex. Publication No. WY2075 11/12 Printed in England.
