VELA RANGE - GreenBrook - 2017
GreenBrook are pleased to introduce their ‘Vela’ Range of IP65 Dimmable LED, Fire Rated, Low Profile, Downlights.

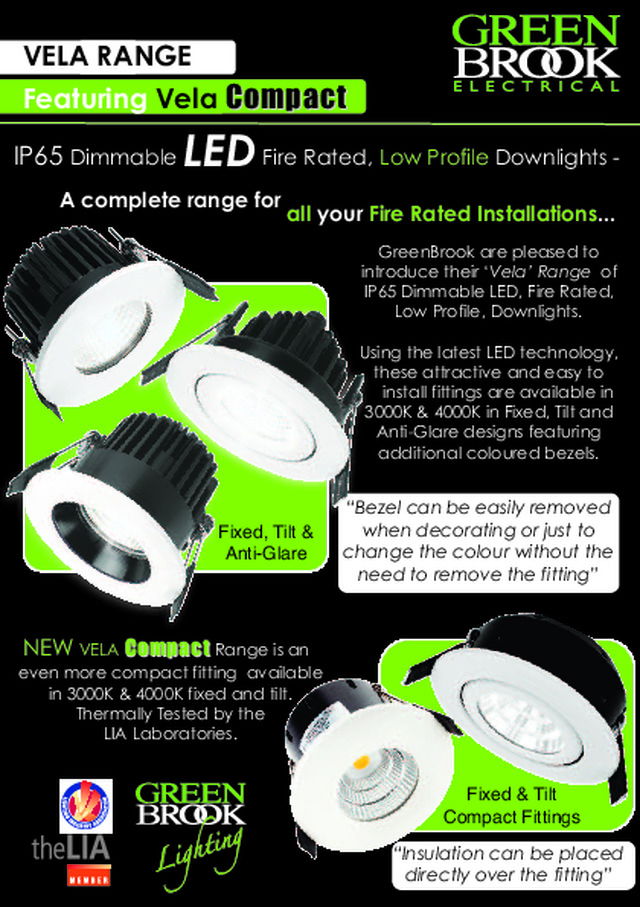

VELA RANGE Featuring Vela Compact Compact Ligh ting Light ing “Insulation can be placed directly over the fitting” IP65 Dimmable LED Fire Rated, Low Profile Downlights - A complete range for all your Fire Rated Installations ... NEW VELA Compact Compact Range is an even more compact fitting available in 3000K & 4000K fixed and tilt. Thermally Tested by the LIA Laboratories. GreenBrook are pleased to introduce their ‘Vela’ Range of IP65 Dimmable LED, Fire Rated, Low Profile, Downlights. Using the latest LED technology, these attractive and easy to install fittings are available in 3000K & 4000K in Fixed, Tilt and Anti-Glare designs featuring additional coloured bezels. “Bezel can be easily removed when decorating or just to change the colour without the need to remove the fitting” Fixed, Tilt & Anti-Glare Fixed & Tilt Compact Fittings
VELA RANGE +44 (0) 1279 422 007 6 +44 (0) 1279 772 772 ( Fixed Technical Information LEDDLT3000W LEDDLT4000W 630 Lumens DIMMABLE Fixed - LEDDL3000W / LEDDL4000W Cut Out: 70mm Colour Temp: 3000K / 4000K Luminaire Lumens Output: LEDDL3000W = 617lm, 69 lm/W LEDDL4000W = 659lm, 73 lm/W Tilt Technical Information Tilt - LEDDLT3000W / LEDDLT4000W Cut Out: 83mm Colour Temp: 3000K / 4000K Luminaire Lumens Output: LEDDLT3000W = 616lm, 69 lm/W LEDDLT4000W = 630lm, 70 lm/W LEDDL3000W LEDDL4000W + IP65+ 9W+ 55 ° Beam angle + Low profile - depth from 57mm+ Includes LED dimmable driver+ Supplied with white bezel+ Conforms to EN 60598-2-1, -2-2, EN61347-2-13 Fixed & Tilt Style Fittings - Available in 3000K & 4000K 659 Lumens 5 Year Warranty
www.greenbrook.co.uk : 608 Lumens LEDDLAG3000W LEDDLAG4000W All fittings supplied with white bezel. Other bezel finishes available: ENERGY EFFICIENT Bezels - FIXED Colour Part No Gold LEDDLBEZG Matt Black LEDDLBEZMB Satin Chrome LEDDLBEZSC Polished Chrome LEDDLBEZPC Bezels - TILT Colour Part No Gold LEDDLTBEZG Matt Black LEDDLTBEZMB Satin Chrome LEDDLTBEZSC Polished Chrome LEDDLTBEZPC Bezels - ANTI-GLARE Colour Part No Gold LEDDLAGBEZG Matt Black LEDDLAGBEZMB Satin Chrome LEDDLAGBEZSC Polished Chrome LEDDLAGBEZPC Anti-Glare Technical Information Anti-Glare - LEDDLAG3000W / LEDDLAG4000W Cut Out: 70mm Colour Temp: 3000K / 4000K Luminaire Lumens Output: LEDDLAG3000W = 595lm, 66 lm/W LEDDLAG4000W = 608lm, 68 lm/W Vela Range - Replacement Bezels [email protected] 8 Anti-Glare Style Fittings - Available in 3000K & 4000K 5 Year Warranty Anti-glare option offers a high light output whilst the matt black baffle reduces glare.
VELA RANGE Product Finish White White White Downlight Style Fixed Anti-Glare Tilt Product Dimensions 70mm cut out 70mm cut out 83mm cut out Depth H57 x W80mm H70 x W85mm H63 x W95mm Product weight 290g 256g 302g Barcode 5012739 641190 5012739 641220 5012739 641565 5012739 643422 5012739 641572 5012739 643439 Building Regs Conforms to Part B, C, E and L IP Rating IP65 Lamp Type LED - Sharp COB Beam Angle 55° CRI 85 Colour Temp 3000K 4000K 3000K 4000K 3000K 4000K Luminaire Lumens Output 617, 69 lm/W 659, 73 lm/W 595, 66 lm/W 608, 68 lm/W 616, 69 lm/W 630, 70 lm/W Voltage 230V AC - 50Hz Wattage 9W Main housing material Aluminium Alloy Ballast Type LED Driver Guarantee 5 Year Certification & Conformity EN 60598-2-1,-2-2, EN61347-2-13 LE D D L4 00 0W LE D D LA G 30 00 W LE D D LA G 40 00 W LE D D LT 30 00 W LE D D LT 40 00 W IP65 Dimmable LED Fire Rated Downlights LE D D L3 00 0W +44 (0) 1279 422 007 6 +44 (0) 1279 772 772 ( Independently T E S T E D 5 Year Warranty
www.greenbrook.co.uk : [email protected] 8 Dimmers N.B GreenBrook are not responsible for any changes of specification of these dimmer models since the time of testing. Any component tolerances or changes of specification remain the responsibility of the dimmer manufacturer and are beyond our control. The Vela range of downlights are designed to be compatible with both leading edge and trailing edge dimmers.GreenBrook have tested a selection of dimmers for compatibility with our product range... Dimmer Specification Number of Fittings Manufacturer Name Dimmer Model 1 2 3 4 5 6 7 8 9 10 11 12 Varilight JQP401W 3 3 3 3 3 3 3 3 3 3 3 3 Hamilton H-LEDSTAT 3 3 3 3 3 3 3 3 3 3 3 3 Hamilton LEDITB100 3 3 3 3 3 3 3 3 3 3 3 3 Zano ZGRIDLED 3 3 3 3 3 3 3 3 3 3 3 3 Schneider GU6012C 3 3 3 3 3 3 3 3 3 3 3 3 Schneider GUBL6012LS 3 3 3 3 3 3 3 3 3 3 3 3 Danlers DQDGEU400W 3 3 3 3 3 3 3 3 3 3 3 3 British Electric Lamps KDM250PL 3 3 3 3 3 3 3 3 3 3 3 3 Deta S1253 x 3 3 3 3 3 3 3 3 3 3 3 MK K4511V x 3 3 3 3 3 3 3 3 3 3 3 BG DM400AP x 3 3 3 3 3 3 3 3 3 3 3 RPP RPP-DSP400X 3 3 3 3 3 3 3 3 3 3 3 3
VELA COMPACT COMPACT RANGE +44 (0) 1279 422 007 6 +44 (0) 1279 772 772 ( Fixed - Available in 3000K & 4000K + IP65+7W+55 ° Beam angle + Low profile - depth only 51mm+ Includes LED dimmable driver + Supplied with white bezel - Satin Chrome & Polished Chrome Bezels available+ Conforms to EN 60598-2-1, -2-2, EN61347-2-13 Fixed Technical Information Fixed - Cut Out: 60mm Colour Temp: 3000K / 4000K Luminaire Lumens Output: LEDDLC3000W = 600lm, 86 lm/W LEDDLC4000W = 620lm, 89 lm/W LEDDLC3000W LEDDLC4000W Insulation can be placed directly over the fitting Vela Compact fittings have been independently thermal tested by the LIA Test Laboratories DIMMABLE 3 Year Warranty White
[email protected] 8 www.greenbrook.co.uk : 3 Year Warranty LEDDLTC3000W LEDDLTC3000PC LEDDLTC4000W White LEDDLTC4000SC Satin Chrome LEDDLTC3000SC Polished Chrome Tilt Technical Information Tilt - Cut Out: 76mm Colour Temp: 3000K / 4000K Luminaire Lumens Output: LEDDLTC3000W/PC/SC = 600lm, 86 lm/W LEDDLTC4000W /PC/SC= 620lm, 89 lm/W + IP44+ 7W+ 40 ° Beam angle + Low profile - depth only 40mm+ Includes LED dimmable driver+ Available in White, Polished or Satin Chrome+ Conforms to EN 60598-2-1, -2-2, EN61347-2-13 Tilt - Available in 3000K & 4000K LEDDLTC4000PC
+44 (0) 1279 422 007 6 +44 (0) 1279 772 772 ( VELA COMPACT COMPACT RANGE Product Finish White White Polished or Satin Chrome Downlight Style Fixed Tilt Tilt Product Dimensions 60mm cut out 76mm cut out 76mm cut out Depth H51 x 80Wmm H40 x W86.5 mm H40 x 86.5 W mm Product weight 0.18kg 0.22kg 0.22kg Building Regs Conforms to Part B, C, E and L IP Rating IP65 Fixed - IP44 TIlt Lamp Type LED - COB Beam Angle 55° Fixed 40° Tilt CRI 80 Colour Temp 3000K 4000K 3000K 4000K 3000K 4000K Luminaire Lumens Output 600, 86 lm/W 620, 89 lm/W 600, 86 lm/W 620, 89 lm/W 600, 86 lm/W 620, 89 lm/W Voltage 230V AC - 50Hz Wattage 7W Main housing material Aluminium Alloy Ballast Type LED Driver Guarantee 3 Year Certification & Conformity EN 60598-2-1,-2-2, EN61347-2-13 VELA Compact LED Fire Rated Downlights LE D D LC 30 00 W LE D D LC 40 00 W LE D D LT C 30 00 W LE D D LT C 40 00 W LE D D LT C 40 00 PC /S C LE D D LT C 40 00 PC /S C 3 Year Warranty
[email protected] 8 www.greenbrook.co.uk : Dimmers for VELA COMPACT COMPACT RANGE N.B GreenBrook are not responsible for any changes of specification of these dimmer models since the time of testing. Any component tolerances or changes of specification remain the responsibility of the dimmer manufacturer and are beyond our control. The Vela Compact range of downlights are designed to be compatible with trailing edge dimmers.GreenBrook have tested a selection of dimmers for compatibility with our product range... Dimmer Specification Number of Fittings Manufacturer Name Dimmer Model 1 2 3 4 5 6 7 8 9 10 11 12 Varilight JQP401W 3 3 3 3 3 3 3 3 3 3 3 3 Hamilton H-LEDSTAT 3 3 3 3 3 3 3 3 3 3 3 3 Hamilton LEDITB100 3 3 3 3 3 3 3 3 3 3 3 3 Zano ZGRIDLED 3 3 3 3 3 3 3 3 3 3 3 3 Schneider GUBL6012LS 3 3 3 3 3 3 3 3 3 3 3 x Danlers DQDGEU400W 3 3 3 3 3 3 3 3 3 3 3 3
Vela Compact downlights have been independently tested to the British Standard 60598-1 Clause 12.4 by the Lighting Industry Association Thermal Testing +44 (0) 1279 422 007 6 +44 (0) 1279 772 772 ( 0 10 20 30 40 50 60 70 80 Temperature Time in seconds Graph Showing thermal characteristics of Vela compact over five 24 hour cycles Room temp ( °C )Vela compact heat sink ( °C )Vela compact driver case ( °C )Vela compact case ( °C )Vela compact front bezel ( °C )box temp ( °C ) Vela Compact fittings have been independently thermal tested by the LIA Test Laboratories. Contact us for copies of the full test report. Insulation can be placed directly over the fitting
Beam Angle Light Distance Output (3000K Vela Fitting) A full photometric report and IES files for these fittings are available from our Technical Department. Should you need to see any further information please call us on the number below. Photometric Data [email protected] 8 www.greenbrook.co.uk : Unit:cd C0/180 56.6° C30/210 56.1° C60/240 55.4° C90/270 55.7° Average Beam Angle (50%) : 55.9 Deg
T 01279 772 772 F 01279 422 007 E [email protected] W www.greenbrook.co.uk Dealer Stamp Ligh ting Light ing Iss ue N o: 7 04 84 1 20 Amp Lighting Connector LCGN3P LEDLEP + Built in battery supplying 3 hours emergency operation in light of a mains failure + Quick & easy to connect to all VELA fittings + Compact & lightweight - screwless assembly + Seperate small green LED indicator giving status of battery charge + Bezel mount for LED - for ease of installation in ceilings + Time saving product for all your connecting requirements + Male connector 1 x 2.5mm 2 3 core flex and screw cord grip + Female connector 3 x 2.5mm 2 Twin and Earth and Loop terminal VELA Emergency Pack
