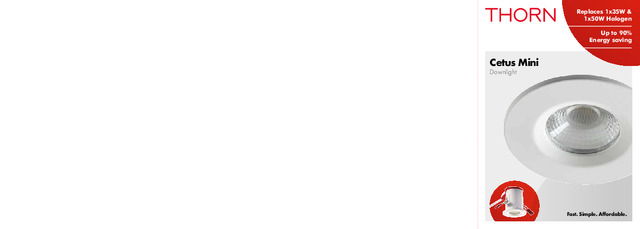

Thorn - Product Brochure - Cetus Mini - 2015
Thorn - Product Brochure - Cetus Mini - 2015
Thorn Contractor Range Fast. Simple. Affordable. We offer products with outstanding quality, easy installation and competitive prices. All of this is provided to you in close cooperation with your local wholesaler. Save time. Save money. Save energy. With our comprehensive portfolio you can realise smaller and larger projects in a fast, cost-effective and energy-efficient manner. According to project requirements, solutions with conventional technology as well as high performance LED luminaires can be realised - depending on your budget. For more product information, download our free Thorn Lighting Contractor app Suitable for mobile and tablet. CONTACT DETAILS Ordering Guide Sample Layouts Product Dimensions Fast. Simple. Affordable. Cetus Mini Downlight Replaces 1x35W & 1x50W Halogen Up to 90% Energy saving Ø67 100 Ø87 Ø77 Ø75 Ø100 111 Ø87 16˚ Description Weight (kg) SAP Code Cat. No. Fire rated dimmable fixed downlight IP65CETUS MINI FH LED550-840 IP65 WH 0.5 96272518 CMP550W4K CETUS MINI FH LED550-830 IP65 WH 0.5 96272519 CMP550W3K CETUS MINI FH LED550-840 IP65 CHR 0.5 96272522 CMP550C4K CETUS MINI FH LED550-830 IP65 CHR 0.5 96272523 CMP550C3K Fire rated dimmable fixed downlight IP20CETUS MINI FH LED550-840 IP20 WH 0.5 96272526 CMF550W4K CETUS MINI FH LED550-830 IP20 WH 0.5 96272527 CMF550W3K CETUS MINI FH LED550-840 IP20 CHR 0.5 96272528 CMF550C4K CETUS MINI FH LED550-830 IP20 CHR 0.5 96272529 CMF550C3K Fire rated dimmable adjustable downlight IP20CETUS MINI FH LED550-840 AJ IP20 WH 0.6 96272520 CMA550W4K CETUS MINI FH LED550-830 AJ IP20 WH 0.6 96272521 CMA550W3K CETUS MINI FH LED550-840 AJ IP20 CHR 0.6 96272524 CMA550C4K CETUS MINI FH LED550-830 AJ IP20 CHR 0.6 96272525 CMA550C3K Mounting height 2.8m Work plane Floor Maintenance factor 0.80 Reflectances Ceiling: 70% Wall: 50% Floor: 20% Luminaire CETUS MINI LED 550-840 IP20 CHR Lamp LED Lumens 550lm Lux 100lx Mounting height 3.0m Work plane 0.75m Maintenance factor 0.80 Reflectances Ceiling: 70% Wall: 50% Floor: 20% Luminaire CETUS MINI LED 550-840 IP20 CHR Lamp LED Lumens 550lm Lux 200lx 21m 2m 10m 6m Reception Area - 10m x 6m x 3m - 30 luminaires Corridor - 21m x 2m x 2.8m - 12 luminaires FH Fire hood AJ Adjustable WH White CHR Chrome Fire rated fixed Fire rated adjustable telephone: UK: 0844 855 4810 IRE: +353 (0) 1 4922877 email: [email protected] website: www.thornlighting.co.uk/CTUM www.thornlighting.ie/CTUM 5 Year WarrantyAs a globally leading luminaire manufacturer, Thorn Lighting provides a five-year warranty for its complete product range within all European Countries. www.thornlighting.com/warranty Publication Date: 10/15
Installation Energy and cost savings Performance Construction Highly efficient and economical downlight range with 30, 60 & 90 minute fire rating • White steel body with choice of white or chrome bezel • IP20 and IP65 (suitable for bathroom applications) • Integrated phase-cut dimmable LED driver • 550Llm LED downlight range • Only 6W total load with up to 90% energy savings compared to traditional downlights • Highly efficient with 95Llm/W • 30, 60 and 90 minute fire rated variants • 40 000 hours rated life, equivalent to 11 years at 10 hours per day operation • Choice of 3000K warm white or 4000K cool white to suit application use Standards LED • Flexible installation - suitable for 13-35mm ceiling thickness • Simple installation with through wiring and integrated cable gland • Cut-out diameters: fire rated fixed: 77mm fire rated adjustable: 87mm 90% EnErgy Saving £2,643 annual Saving 4.6 yEARS liFE TiME Based on:Hotel entrance hall size: 10x6x3mLux level: 100lxLuminaires: 30 LED vs. 30 MR16 50W (Chalice MV_QR50W)Usage: 24h/day, 7 days per week, 8760hrs/ yearEnergy price - €£0.15/kWh Fixed and adjustable version IP65 fixed version
Installation Energy and cost savings Performance Construction Highly efficient and economical downlight range with 30, 60 & 90 minute fire rating • White steel body with choice of white or chrome bezel • IP20 and IP65 (suitable for bathroom applications) • Integrated phase-cut dimmable LED driver • 550Llm LED downlight range • Only 6W total load with up to 90% energy savings compared to traditional downlights • Highly efficient with 95Llm/W • 30, 60 and 90 minute fire rated variants • 40 000 hours rated life, equivalent to 11 years at 10 hours per day operation • Choice of 3000K warm white or 4000K cool white to suit application use Standards LED • Flexible installation - suitable for 13-35mm ceiling thickness • Simple installation with through wiring and integrated cable gland • Cut-out diameters: fire rated fixed: 77mm fire rated adjustable: 87mm 90% EnErgy Saving £2,643 annual Saving 4.6 yEARS liFE TiME Based on:Hotel entrance hall size: 10x6x3mLux level: 100lxLuminaires: 30 LED vs. 30 MR16 50W (Chalice MV_QR50W)Usage: 24h/day, 7 days per week, 8760hrs/ yearEnergy price - €£0.15/kWh Fixed and adjustable version IP65 fixed version
Installation Energy and cost savings Performance Construction Highly efficient and economical downlight range with 30, 60 & 90 minute fire rating • White steel body with choice of white or chrome bezel • IP20 and IP65 (suitable for bathroom applications) • Integrated phase-cut dimmable LED driver • 550Llm LED downlight range • Only 6W total load with up to 90% energy savings compared to traditional downlights • Highly efficient with 95Llm/W • 30, 60 and 90 minute fire rated variants • 40 000 hours rated life, equivalent to 11 years at 10 hours per day operation • Choice of 3000K warm white or 4000K cool white to suit application use Standards LED • Flexible installation - suitable for 13-35mm ceiling thickness • Simple installation with through wiring and integrated cable gland • Cut-out diameters: fire rated fixed: 77mm fire rated adjustable: 87mm 90% EnErgy Saving £2,643 annual Saving 4.6 yEARS liFE TiME Based on:Hotel entrance hall size: 10x6x3mLux level: 100lxLuminaires: 30 LED vs. 30 MR16 50W (Chalice MV_QR50W)Usage: 24h/day, 7 days per week, 8760hrs/ yearEnergy price - €£0.15/kWh Fixed and adjustable version IP65 fixed version
Installation Energy and cost savings Performance Construction Highly efficient and economical downlight range with 30, 60 & 90 minute fire rating • White steel body with choice of white or chrome bezel • IP20 and IP65 (suitable for bathroom applications) • Integrated phase-cut dimmable LED driver • 550Llm LED downlight range • Only 6W total load with up to 90% energy savings compared to traditional downlights • Highly efficient with 95Llm/W • 30, 60 and 90 minute fire rated variants • 40 000 hours rated life, equivalent to 11 years at 10 hours per day operation • Choice of 3000K warm white or 4000K cool white to suit application use Standards LED • Flexible installation - suitable for 13-35mm ceiling thickness • Simple installation with through wiring and integrated cable gland • Cut-out diameters: fire rated fixed: 77mm fire rated adjustable: 87mm 90% EnErgy Saving £2,643 annual Saving 4.6 yEARS liFE TiME Based on:Hotel entrance hall size: 10x6x3mLux level: 100lxLuminaires: 30 LED vs. 30 MR16 50W (Chalice MV_QR50W)Usage: 24h/day, 7 days per week, 8760hrs/ yearEnergy price - €£0.15/kWh Fixed and adjustable version IP65 fixed version
Thorn Contractor Range Fast. Simple. Affordable. We offer products with outstanding quality, easy installation and competitive prices. All of this is provided to you in close cooperation with your local wholesaler. Save time. Save money. Save energy. With our comprehensive portfolio you can realise smaller and larger projects in a fast, cost-effective and energy-efficient manner. According to project requirements, solutions with conventional technology as well as high performance LED luminaires can be realised - depending on your budget. For more product information, download our free Thorn Lighting Contractor app Suitable for mobile and tablet. CONTACT DETAILS Ordering Guide Sample Layouts Product Dimensions Fast. Simple. Affordable. Cetus Mini Downlight Replaces 1x35W & 1x50W Halogen Up to 90% Energy saving Ø67 100 Ø87 Ø77 Ø75 Ø100 111 Ø87 16˚ Description Weight (kg) SAP Code Cat. No. Fire rated dimmable fixed downlight IP65CETUS MINI FH LED550-840 IP65 WH 0.5 96272518 CMP550W4K CETUS MINI FH LED550-830 IP65 WH 0.5 96272519 CMP550W3K CETUS MINI FH LED550-840 IP65 CHR 0.5 96272522 CMP550C4K CETUS MINI FH LED550-830 IP65 CHR 0.5 96272523 CMP550C3K Fire rated dimmable fixed downlight IP20CETUS MINI FH LED550-840 IP20 WH 0.5 96272526 CMF550W4K CETUS MINI FH LED550-830 IP20 WH 0.5 96272527 CMF550W3K CETUS MINI FH LED550-840 IP20 CHR 0.5 96272528 CMF550C4K CETUS MINI FH LED550-830 IP20 CHR 0.5 96272529 CMF550C3K Fire rated dimmable adjustable downlight IP20CETUS MINI FH LED550-840 AJ IP20 WH 0.6 96272520 CMA550W4K CETUS MINI FH LED550-830 AJ IP20 WH 0.6 96272521 CMA550W3K CETUS MINI FH LED550-840 AJ IP20 CHR 0.6 96272524 CMA550C4K CETUS MINI FH LED550-830 AJ IP20 CHR 0.6 96272525 CMA550C3K Mounting height 2.8m Work plane Floor Maintenance factor 0.80 Reflectances Ceiling: 70% Wall: 50% Floor: 20% Luminaire CETUS MINI LED 550-840 IP20 CHR Lamp LED Lumens 550lm Lux 100lx Mounting height 3.0m Work plane 0.75m Maintenance factor 0.80 Reflectances Ceiling: 70% Wall: 50% Floor: 20% Luminaire CETUS MINI LED 550-840 IP20 CHR Lamp LED Lumens 550lm Lux 200lx 21m 2m 10m 6m Reception Area - 10m x 6m x 3m - 30 luminaires Corridor - 21m x 2m x 2.8m - 12 luminaires FH Fire hood AJ Adjustable WH White CHR Chrome Fire rated fixed Fire rated adjustable telephone: UK: 0844 855 4810 IRE: +353 (0) 1 4922877 email: [email protected] website: www.thornlighting.co.uk/CTUM www.thornlighting.ie/CTUM 5 Year WarrantyAs a globally leading luminaire manufacturer, Thorn Lighting provides a five-year warranty for its complete product range within all European Countries. www.thornlighting.com/warranty Publication Date: 10/15
Thorn Contractor Range Fast. Simple. Affordable. We offer products with outstanding quality, easy installation and competitive prices. All of this is provided to you in close cooperation with your local wholesaler. Save time. Save money. Save energy. With our comprehensive portfolio you can realise smaller and larger projects in a fast, cost-effective and energy-efficient manner. According to project requirements, solutions with conventional technology as well as high performance LED luminaires can be realised - depending on your budget. For more product information, download our free Thorn Lighting Contractor app Suitable for mobile and tablet. CONTACT DETAILS Ordering Guide Sample Layouts Product Dimensions Fast. Simple. Affordable. Cetus Mini Downlight Replaces 1x35W & 1x50W Halogen Up to 90% Energy saving Ø67 100 Ø87 Ø77 Ø75 Ø100 111 Ø87 16˚ Description Weight (kg) SAP Code Cat. No. Fire rated dimmable fixed downlight IP65CETUS MINI FH LED550-840 IP65 WH 0.5 96272518 CMP550W4K CETUS MINI FH LED550-830 IP65 WH 0.5 96272519 CMP550W3K CETUS MINI FH LED550-840 IP65 CHR 0.5 96272522 CMP550C4K CETUS MINI FH LED550-830 IP65 CHR 0.5 96272523 CMP550C3K Fire rated dimmable fixed downlight IP20CETUS MINI FH LED550-840 IP20 WH 0.5 96272526 CMF550W4K CETUS MINI FH LED550-830 IP20 WH 0.5 96272527 CMF550W3K CETUS MINI FH LED550-840 IP20 CHR 0.5 96272528 CMF550C4K CETUS MINI FH LED550-830 IP20 CHR 0.5 96272529 CMF550C3K Fire rated dimmable adjustable downlight IP20CETUS MINI FH LED550-840 AJ IP20 WH 0.6 96272520 CMA550W4K CETUS MINI FH LED550-830 AJ IP20 WH 0.6 96272521 CMA550W3K CETUS MINI FH LED550-840 AJ IP20 CHR 0.6 96272524 CMA550C4K CETUS MINI FH LED550-830 AJ IP20 CHR 0.6 96272525 CMA550C3K Mounting height 2.8m Work plane Floor Maintenance factor 0.80 Reflectances Ceiling: 70% Wall: 50% Floor: 20% Luminaire CETUS MINI LED 550-840 IP20 CHR Lamp LED Lumens 550lm Lux 100lx Mounting height 3.0m Work plane 0.75m Maintenance factor 0.80 Reflectances Ceiling: 70% Wall: 50% Floor: 20% Luminaire CETUS MINI LED 550-840 IP20 CHR Lamp LED Lumens 550lm Lux 200lx 21m 2m 10m 6m Reception Area - 10m x 6m x 3m - 30 luminaires Corridor - 21m x 2m x 2.8m - 12 luminaires FH Fire hood AJ Adjustable WH White CHR Chrome Fire rated fixed Fire rated adjustable telephone: UK: 0844 855 4810 IRE: +353 (0) 1 4922877 email: [email protected] website: www.thornlighting.co.uk/CTUM www.thornlighting.ie/CTUM 5 Year WarrantyAs a globally leading luminaire manufacturer, Thorn Lighting provides a five-year warranty for its complete product range within all European Countries. www.thornlighting.com/warranty Publication Date: 10/15
Thorn Contractor Range Fast. Simple. Affordable. We offer products with outstanding quality, easy installation and competitive prices. All of this is provided to you in close cooperation with your local wholesaler. Save time. Save money. Save energy. With our comprehensive portfolio you can realise smaller and larger projects in a fast, cost-effective and energy-efficient manner. According to project requirements, solutions with conventional technology as well as high performance LED luminaires can be realised - depending on your budget. For more product information, download our free Thorn Lighting Contractor app Suitable for mobile and tablet. CONTACT DETAILS Ordering Guide Sample Layouts Product Dimensions Fast. Simple. Affordable. Cetus Mini Downlight Replaces 1x35W & 1x50W Halogen Up to 90% Energy saving Ø67 100 Ø87 Ø77 Ø75 Ø100 111 Ø87 16˚ Description Weight (kg) SAP Code Cat. No. Fire rated dimmable fixed downlight IP65CETUS MINI FH LED550-840 IP65 WH 0.5 96272518 CMP550W4K CETUS MINI FH LED550-830 IP65 WH 0.5 96272519 CMP550W3K CETUS MINI FH LED550-840 IP65 CHR 0.5 96272522 CMP550C4K CETUS MINI FH LED550-830 IP65 CHR 0.5 96272523 CMP550C3K Fire rated dimmable fixed downlight IP20CETUS MINI FH LED550-840 IP20 WH 0.5 96272526 CMF550W4K CETUS MINI FH LED550-830 IP20 WH 0.5 96272527 CMF550W3K CETUS MINI FH LED550-840 IP20 CHR 0.5 96272528 CMF550C4K CETUS MINI FH LED550-830 IP20 CHR 0.5 96272529 CMF550C3K Fire rated dimmable adjustable downlight IP20CETUS MINI FH LED550-840 AJ IP20 WH 0.6 96272520 CMA550W4K CETUS MINI FH LED550-830 AJ IP20 WH 0.6 96272521 CMA550W3K CETUS MINI FH LED550-840 AJ IP20 CHR 0.6 96272524 CMA550C4K CETUS MINI FH LED550-830 AJ IP20 CHR 0.6 96272525 CMA550C3K Mounting height 2.8m Work plane Floor Maintenance factor 0.80 Reflectances Ceiling: 70% Wall: 50% Floor: 20% Luminaire CETUS MINI LED 550-840 IP20 CHR Lamp LED Lumens 550lm Lux 100lx Mounting height 3.0m Work plane 0.75m Maintenance factor 0.80 Reflectances Ceiling: 70% Wall: 50% Floor: 20% Luminaire CETUS MINI LED 550-840 IP20 CHR Lamp LED Lumens 550lm Lux 200lx 21m 2m 10m 6m Reception Area - 10m x 6m x 3m - 30 luminaires Corridor - 21m x 2m x 2.8m - 12 luminaires FH Fire hood AJ Adjustable WH White CHR Chrome Fire rated fixed Fire rated adjustable telephone: UK: 0844 855 4810 IRE: +353 (0) 1 4922877 email: [email protected] website: www.thornlighting.co.uk/CTUM www.thornlighting.ie/CTUM 5 Year WarrantyAs a globally leading luminaire manufacturer, Thorn Lighting provides a five-year warranty for its complete product range within all European Countries. www.thornlighting.com/warranty Publication Date: 10/15
