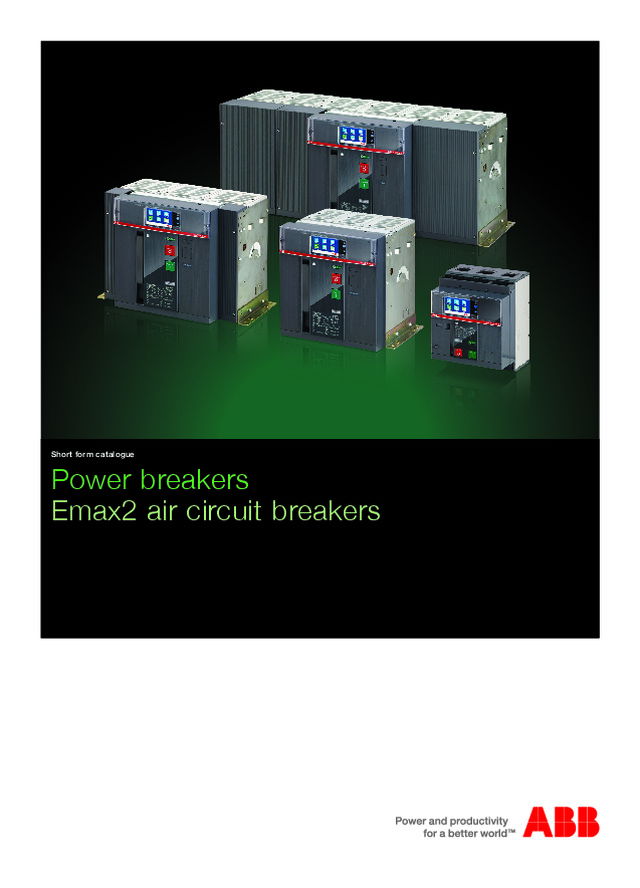

Power breakers Emax2 air circuit breakers - ABB - 2015

Power breakers Emax2 air circuit breakers Short form catalogue

3  Air Circuit Breakers 0115  ABB Low Voltage

3  Air Circuit Breakers 0115  ABB Low Voltage Contents The new Emax 2 4 Overview 10 Ekip power controller 12 E1.2 14 E2.2 18 E2.4 20 E2.6 23 Disconnectors 27 Fixed parts 29 Electrical accessories 30 Mechanical accessories 33 Power breakers Air circuit breakers

4 Air Circuit Breakers 0115  ABB Low Voltage 5  Air Circuit Breakers 0115  ABB Low Voltage

4 Air Circuit Breakers 0115  ABB Low Voltage 5  Air Circuit Breakers 0115  ABB Low Voltage Emax 2 is the new benchmark of air circuit breakers. Efficient and simple to use, the range offers innovative  solutions for today’s needs, while anticipating those of  tomorrow.  The air circuit breaker becomes a Power Manager with  unique performance that is able to control electrical  installations. It is simply integrated into all projects: from  standard systems to the most complex and automated  networks. Lighting up the future of energy. Air circuit breakers switch power  Emax 2 manages it

6 Air Circuit Breakers 0115  ABB Low Voltage 7  Air Circuit Breakers 0115  ABB Low Voltage Efficiency and control Power needed, when needed Emax 2 air circuit-breakers up to 6300A have been designed to  increase efficiency in all installations: from industrial and naval  applications to traditional and renewable power generation  installations, buildings, data centers and shopping centers.  Reliable protection and systems managed with competence.

6 Air Circuit Breakers 0115  ABB Low Voltage 7  Air Circuit Breakers 0115  ABB Low Voltage Thanks to the exclusive  Power Controller  function, the  available power can be utilized more efficiently and cleaner  energy can be used. The Power Controller, patented by  ABB, disconnects non-priority utilities during the times when  consumption limits need to be respected and connects them  again as soon as it is appropriate. When required, Emax  2 automatically activates auxiliary power supplies such as  generator sets.  The Ekip Touch trip units measure power and energy with  precision and save the most recent alarms, events and  measurements in order to prevent faults to the installation or  trip effectively when necessary.  The exclusive  Network Analyser  function controls the quality  of energy in real time. The innovative  Ekip Touch  and  Hi Touch  protection trip units  in the G version include all functions of generator protection  switchgear, offering a safe control solution that is ready to use and  requires no external devices, wiring or inspections.  Productivity, efficiency, and savings, are guaranteed.

8 Air Circuit Breakers 0115  ABB Low Voltage 9  Air Circuit Breakers 0115  ABB Low Voltage Connectivity Integration is easy, even from afar Emax 2 series circuit-breakers have been designed to be  integrated directly into all types of switchgear and automation  and energy management systems to improve productivity and  energy consumption. Complete integration into smart grids, in  buildings and industrial plants is possible.

8 Air Circuit Breakers 0115  ABB Low Voltage 9  Air Circuit Breakers 0115  ABB Low Voltage All circuit-breakers can be equipped with communication  units for use with Modbus, Profibus and Devicenet protocols  and with the modern Modbus TCP, Profinet and Ethernet IP  protocols, which can be installed directly on the terminal box  at any time. The integrated IEC61850 communication module enables  connection to automation systems and intelligent networks  (Smart Grids). Accurate measurements of current, voltage, power and  energy are all available by means of the communication  modules and allow the trip units to be used as multimeters.   All circuit-breaker functions are also accessible via the  Internet, in complete safety, through the Ekip Link switchgear  supervision system and the Ekip Control Panel operator panel. The power and auxiliary connections are optimized to simplify  connection to the switchgear. The power terminals, which can  be oriented horizontally or vertically, have been designed for  the most common busbars, while the push-in connections of  the auxiliaries ensure immediate and safe wiring.

10 Air Circuit Breakers 0115  ABB Low Voltage 11  Air Circuit Breakers 0115  ABB Low Voltage Emax 2 power distribution ACBs  Overview

10 Air Circuit Breakers 0115  ABB Low Voltage 11  Air Circuit Breakers 0115  ABB Low Voltage

12 Air Circuit Breakers 0115  ABB Low Voltage 13  Air Circuit Breakers 0115  ABB Low Voltage Protection trip units for power control Ekip power controller  The exclusive Ekip Power Controller function, patented by ABB and available on  new Emax 2 circuit-breakers, monitors installation loads and generators, permitting  the power consumed to be limited and allowing savings on electricity bills.  Ekip Power Controller, which can be used with all Ekip Touch trip units of the Emax 2 series, effectively helps to improve energy  efficiency by managing the entire low voltage electrical system. It is, in fact, able to adapt the demand for power according to  the availability of the energy source, the time of day and the costs indicated in the current pricing plan.  In this way Ekip Power Controller is able to maintain power consumption within the limits defined, thereby optimizing the costs  of managing the installation and reducing emissions.  Controllable  load Controllable  generator Non-controllable  load Non-controllable  generator Transformer Energy meter Control  circuit Emax 2 with  Ekip Power   Controller

12 Air Circuit Breakers 0115  ABB Low Voltage 13  Air Circuit Breakers 0115  ABB Low Voltage Distinctive features Reduction of energy costs with minimum impact. The loads are disconnected from the power supply for short periods, in  the minimum number necessary and in a fixed order of priority, enabling power consumption peaks to be limited. This allows  the contract drawn up with the energy provider to be renegotiated, reducing the power allocated, with a consequent reduction  in total energy costs.   Power limited only when necessary. Ekip Power Controller manages up to four different time bands: it is therefore possible  to respect a particular power limit according to whether it is during the day (peak) or night (off peak). In this way, consumption  during the day when rates are at their highest can be limited.   Simple to install. Ekip Power Controller allows the installation to be managed efficiently with a simple architecture. Thanks to  a patented  design, it is sufficient to measure the total power of the installation without having to measure the power consumed  by each load. Installation costs and times are thereby reduced to a minimum.  Ready to use. Ekip Power Controller does not require the writing, implementation and testing of complicated programmes for  PLC or computer because the logic has already been implemented in the protection unit and is ready to use; it is sufficient to  set the installation parameters from a smartphone or directly from the circuit-breaker display. Improvement of the efficiency of the electrical system. Ekip Power Controller significantly helps to flatten the load curve,  limiting the use of peaking power plants in favour of base load power plants with greater efficiency.  Graph of daily load Perfect integration into intelligent networks. Thanks to integrated communication modules, Ekip Power Controller can  receive the maximum absorbable power directly from the medium voltage control system, determining consumption for the next  15 minutes. Ekip Power Controller, according to the information received, manages the switching off of non-priority loads or  the switching on of reserve generators. Ekip Power Controller gives maximum priority to non-programmable preferred energy  sources, such as wind and solar, and they are therefore considered uninterruptable. In the event the production of internal  power to the controlled network is reduced, due, for example, to decreased production of solar power, Ekip Power Controller  will disconnect the necessary loads to respect the consumption limit set.  Perfect integration in self-generation systems. This benefit is used, for example, in installations with a system of cogeneration.  Ekip Power Controller controls the total consumption drawn from the electrical network, interrupting non-indispensable loads  when production is reduced and reconnecting them when generator power is sufficient to not exceed limits. There are multiple  advantages: reduction in energy costs, maximum use of local production and greater overall energy efficiency. 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 500 600 400 100 200 300 Power (kW) Time Load graphAverage P P 15 minP 1 h

14 Air Circuit Breakers 0115  ABB Low Voltage 15  Air Circuit Breakers 0115  ABB Low Voltage Emax 2 power distribution ACBs   Type E1.2B Emax E1.2B Product Hierarchy 1700009 Order Code Size Iu  Icu (440 V) Icw(1s) Type Fixed Breaker Front Connection (F) Moving Portion (MP) 3 poles 4 poles 3 poles 4 poles E1.2B  630  42 42 E1.2B  630  Ekip Dip LI 1SDA070701R1 1SDA071331R1 1SDA072051R1 1SDA072681R1 E1.2B  630  Ekip Dip LSI 1SDA070702R1 1SDA071332R1 1SDA072052R1 1SDA072682R1 E1.2B  630  Ekip Dip LSIG 1SDA070703R1 1SDA071333R1 1SDA072053R1 1SDA072683R1 E1.2B  630  Ekip Dip LI 1SDA070704R1 1SDA071334R1 1SDA072054R1 1SDA072684R1 E1.2B  630  Ekip Dip LSI 1SDA070705R1 1SDA071335R1 1SDA072055R1 1SDA072685R1 E1.2B  630  Ekip Dip LSIG 1SDA070706R1 1SDA071336R1 1SDA072056R1 1SDA072686R1 E1.2B  630  Ekip Hi-Touch LSI 1SDA070708R1 1SDA071338R1 1SDA072058R1 1SDA072688R1 E1.2B  630  Ekip Hi-Touch LSIG 1SDA070709R1 1SDA071339R1 1SDA072059R1 1SDA072689R1  800  42 42 E1.2B  800  Ekip Dip LI 1SDA070741R1 1SDA071371R1 1SDA072091R1 1SDA072721R1 E1.2B  800  Ekip Dip LSI 1SDA070742R1 1SDA071372R1 1SDA072092R1 1SDA072722R1 E1.2B  800  Ekip Dip LSIG 1SDA070743R1 1SDA071373R1 1SDA072093R1 1SDA072723R1 E1.2B  800  Ekip Dip LI 1SDA070744R1 1SDA071374R1 1SDA072094R1 1SDA072724R1 E1.2B  800  Ekip Dip LSI 1SDA070745R1 1SDA071375R1 1SDA072095R1 1SDA072725R1 E1.2B  800  Ekip Dip LSIG 1SDA070746R1 1SDA071376R1 1SDA072096R1 1SDA072726R1 E1.2B  800  Ekip Hi-Touch LSI 1SDA070748R1 1SDA071378R1 1SDA072098R1 1SDA072728R1 E1.2B  800  Ekip Hi-Touch LSIG 1SDA070749R1 1SDA071379R1 1SDA072099R1 1SDA072729R1  1000 42 42 E1.2B  1000  Ekip Dip LI 1SDA070781R1 1SDA071411R1 1SDA072131R1 1SDA072761R1 E1.2B  1000  Ekip Dip LSI 1SDA070782R1 1SDA071412R1 1SDA072132R1 1SDA072762R1 E1.2B  1000  Ekip Dip LSIG 1SDA070783R1 1SDA071413R1 1SDA072133R1 1SDA072763R1 E1.2B  1000  Ekip Dip LI 1SDA070784R1 1SDA071414R1 1SDA072134R1 1SDA072764R1 E1.2B  1000  Ekip Dip LSI 1SDA070785R1 1SDA071415R1 1SDA072135R1 1SDA072765R1 E1.2B  1000  Ekip Dip LSIG 1SDA070786R1 1SDA071416R1 1SDA072136R1 1SDA072766R1 E1.2B  1000  Ekip Hi-Touch LSI 1SDA070788R1 1SDA071418R1 1SDA072138R1 1SDA072768R1 E1.2B  1000  Ekip Hi-Touch LSIG 1SDA070789R1 1SDA071419R1 1SDA072139R1 1SDA072769R1  1250 42 42 E1.2B  1250  Ekip Dip LI 1SDA070821R1 1SDA071451R1 1SDA072171R1 1SDA072801R1 E1.2B  1250  Ekip Dip LSI 1SDA070822R1 1SDA071452R1 1SDA072172R1 1SDA072802R1 E1.2B  1250  Ekip Dip LSIG 1SDA070823R1 1SDA071453R1 1SDA072173R1 1SDA072803R1 E1.2B  1250  Ekip Dip LI 1SDA070824R1 1SDA071454R1 1SDA072174R1 1SDA072804R1 E1.2B  1250  Ekip Dip LSI 1SDA070825R1 1SDA071455R1 1SDA072175R1 1SDA072805R1 E1.2B  1250  Ekip Dip LSIG 1SDA070826R1 1SDA071456R1 1SDA072176R1 1SDA072806R1 E1.2B  1250  Ekip Hi-Touch LSI 1SDA070828R1 1SDA071458R1 1SDA072178R1 1SDA072808R1 E1.2B  1250  Ekip Hi-Touch LSIG 1SDA070829R1 1SDA071459R1 1SDA072179R1 1SDA072809R1  1600 42 42 E1.2B  1600  Ekip Dip LI 1SDA070861R1 1SDA071491R1 1SDA072211R1 1SDA072841R1 E1.2B  1600  Ekip Dip LSI 1SDA070862R1 1SDA071492R1 1SDA072212R1 1SDA072842R1 E1.2B  1600  Ekip Dip LSIG 1SDA070863R1 1SDA071493R1 1SDA072213R1 1SDA072843R1 E1.2B  1600  Ekip Dip LI 1SDA070864R1 1SDA071494R1 1SDA072214R1 1SDA072844R1 E1.2B  1600  Ekip Dip LSI 1SDA070865R1 1SDA071495R1 1SDA072215R1 1SDA072845R1 E1.2B  1600  Ekip Dip LSIG 1SDA070866R1 1SDA071496R1 1SDA072216R1 1SDA072846R1 E1.2B  1600  Ekip Hi-Touch LSI 1SDA070868R1 1SDA071498R1 1SDA072218R1 1SDA072848R1 E1.2B  1600  Ekip Hi-Touch LSIG 1SDA070869R1 1SDA071499R1 1SDA072219R1 1SDA072849R1

14 Air Circuit Breakers 0115  ABB Low Voltage 15  Air Circuit Breakers 0115  ABB Low Voltage Emax E1.2C Product Hierarchy 1700009 Order Code Size Iu  Icu (440 V) Icw(1s) Type Fixed Breaker Front Connection (F) Moving Portion (MP) 3 poles 4 poles 3 poles 4 poles E1.2C  630  50 42 E1.2C  630  Ekip Dip LI 1SDA070711R1 1SDA071341R1 1SDA072061R1 1SDA072691R1 E1.2C  630  Ekip Dip LSI 1SDA070712R1 1SDA071342R1 1SDA072062R1 1SDA072692R1 E1.2C  630  Ekip Dip LSIG 1SDA070713R1 1SDA071343R1 1SDA072063R1 1SDA072693R1 E1.2C  630  Ekip Touch  LI 1SDA070714R1 1SDA071344R1 1SDA072064R1 1SDA072694R1 E1.2C  630  Ekip Touch LSI 1SDA070715R1 1SDA071345R1 1SDA072065R1 1SDA072695R1 E1.2C  630  Ekip Touch LSIG 1SDA070716R1 1SDA071346R1 1SDA072066R1 1SDA072696R1 E1.2C  630  Ekip Hi-Touch LSI 1SDA070718R1 1SDA071348R1 1SDA072068R1 1SDA072698R1 E1.2C  630  Ekip Hi-Touch LSIG 1SDA070719R1 1SDA071349R1 1SDA072069R1 1SDA072699R1  800  50 42 E1.2C  800  Ekip Dip LI 1SDA070751R1 1SDA071381R1 1SDA072101R1 1SDA072731R1 E1.2C  800  Ekip Dip LSI 1SDA070752R1 1SDA071382R1 1SDA072102R1 1SDA072732R1 E1.2C  800  Ekip Dip LSIG 1SDA070753R1 1SDA071383R1 1SDA072103R1 1SDA072733R1 E1.2C  800  Ekip Touch  LI 1SDA070754R1 1SDA071384R1 1SDA072104R1 1SDA072734R1 E1.2C  800  Ekip Touch LSI 1SDA070755R1 1SDA071385R1 1SDA072105R1 1SDA072735R1 E1.2C  800  Ekip Touch LSIG 1SDA070756R1 1SDA071386R1 1SDA072106R1 1SDA072736R1 E1.2C  800  Ekip Hi-Touch LSI 1SDA070758R1 1SDA071388R1 1SDA072108R1 1SDA072738R1 E1.2C  800  Ekip Hi-Touch LSIG 1SDA070759R1 1SDA071389R1 1SDA072109R1 1SDA072739R1  1000 50 42 E1.2C  1000  Ekip Dip LI 1SDA070791R1 1SDA071421R1 1SDA072141R1 1SDA072771R1 E1.2C  1000  Ekip Dip LSI 1SDA070792R1 1SDA071422R1 1SDA072142R1 1SDA072772R1 E1.2C  1000  Ekip Dip LSIG 1SDA070793R1 1SDA071423R1 1SDA072143R1 1SDA072773R1 E1.2C  1000  Ekip Touch  LI 1SDA070794R1 1SDA071424R1 1SDA072144R1 1SDA072774R1 E1.2C  1000  Ekip Touch LSI 1SDA070795R1 1SDA071425R1 1SDA072145R1 1SDA072775R1 E1.2C  1000  Ekip Touch LSIG 1SDA070796R1 1SDA071426R1 1SDA072146R1 1SDA072776R1 E1.2C  1000  Ekip Hi-Touch LSI 1SDA070798R1 1SDA071428R1 1SDA072148R1 1SDA072778R1 E1.2C  1000  Ekip Hi-Touch LSIG 1SDA070799R1 1SDA071429R1 1SDA072149R1 1SDA072779R1  1250 50 42 E1.2C  1250  Ekip Dip LI 1SDA070831R1 1SDA071461R1 1SDA072181R1 1SDA072811R1 E1.2C  1250  Ekip Dip LSI 1SDA070832R1 1SDA071462R1 1SDA072182R1 1SDA072812R1 E1.2C  1250  Ekip Dip LSIG 1SDA070833R1 1SDA071463R1 1SDA072183R1 1SDA072813R1 E1.2C  1250  Ekip Touch  LI 1SDA070834R1 1SDA071464R1 1SDA072184R1 1SDA072814R1 E1.2C  1250  Ekip Touch LSI 1SDA070835R1 1SDA071465R1 1SDA072185R1 1SDA072815R1 E1.2C  1250  Ekip Touch LSIG 1SDA070836R1 1SDA071466R1 1SDA072186R1 1SDA072816R1 E1.2C  1250  Ekip Hi-Touch LSI 1SDA070838R1 1SDA071468R1 1SDA072188R1 1SDA072818R1 E1.2C  1250  Ekip Hi-Touch LSIG 1SDA070839R1 1SDA071469R1 1SDA072189R1 1SDA072819R1  1600 50 42 E1.2C  1600  Ekip Dip LI 1SDA070871R1 1SDA071501R1 1SDA072221R1 1SDA072851R1 E1.2C  1600  Ekip Dip LSI 1SDA070872R1 1SDA071502R1 1SDA072222R1 1SDA072852R1 E1.2C  1600  Ekip Dip LSIG 1SDA070873R1 1SDA071503R1 1SDA072223R1 1SDA072853R1 E1.2C  1600  Ekip Touch  LI 1SDA070874R1 1SDA071504R1 1SDA072224R1 1SDA072854R1 E1.2C  1600  Ekip Touch LSI 1SDA070875R1 1SDA071505R1 1SDA072225R1 1SDA072855R1 E1.2C  1600  Ekip Touch LSIG 1SDA070876R1 1SDA071506R1 1SDA072226R1 1SDA072856R1 E1.2C  1600  Ekip Hi-Touch LSI 1SDA070878R1 1SDA071508R1 1SDA072228R1 1SDA072858R1 E1.2C  1600  Ekip Hi-Touch LSIG 1SDA070879R1 1SDA071509R1 1SDA072229R1 1SDA072859R1 Emax 2 power distribution ACBs   Type E1.2C

16 Air Circuit Breakers 0115  ABB Low Voltage 17  Air Circuit Breakers 0115  ABB Low Voltage Emax E1.2N Product Hierarchy 1700009 Order Code Size Iu  Icu (440 V) Icw(1s) Type Fixed Breaker Front Connection (F) Moving Portion (MP) 3 poles 4 poles 3 poles 4 poles E1.2N  250  66 50 E1.2N  250  Ekip Dip LI 1SDA070691R1 1SDA071321R1 1SDA072041R1 1SDA072671R1 E1.2N  250  Ekip Dip LSI 1SDA070692R1 1SDA071322R1 1SDA072042R1 1SDA072672R1 E1.2N  250  Ekip Dip LSIG 1SDA070693R1 1SDA071323R1 1SDA072043R1 1SDA072673R1 E1.2N  250  Ekip Touch  LI 1SDA070694R1 1SDA071324R1 1SDA072044R1 1SDA072674R1 E1.2N  250  Ekip Touch  LSI 1SDA070695R1 1SDA071325R1 1SDA072045R1 1SDA072675R1 E1.2N  250  Ekip Touch  LSIG 1SDA070696R1 1SDA071326R1 1SDA072046R1 1SDA072676R1 E1.2N  250  Ekip Hi-Touch LSI 1SDA070698R1 1SDA071328R1 1SDA072048R1 1SDA072678R1 E1.2N  250  Ekip Hi-Touch LSIG 1SDA070699R1 1SDA071329R1 1SDA072049R1 1SDA072679R1  630  66 50 E1.2N  630  Ekip Dip LI 1SDA070721R1 1SDA071351R1 1SDA072071R1 1SDA072701R1 E1.2N  630  Ekip Dip LSI 1SDA070722R1 1SDA071352R1 1SDA072072R1 1SDA072702R1 E1.2N  630  Ekip Dip LSIG 1SDA070723R1 1SDA071353R1 1SDA072073R1 1SDA072703R1 E1.2N  630  Ekip Touch  LI 1SDA070724R1 1SDA071354R1 1SDA072074R1 1SDA072704R1 E1.2N  630  Ekip Touch  LSI 1SDA070725R1 1SDA071355R1 1SDA072075R1 1SDA072705R1 E1.2N  630  Ekip Touch  LSIG 1SDA070726R1 1SDA071356R1 1SDA072076R1 1SDA072706R1 E1.2N  630  Ekip Hi-Touch LSI 1SDA070728R1 1SDA071358R1 1SDA072078R1 1SDA072708R1 E1.2N  630  Ekip Hi-Touch LSIG 1SDA070729R1 1SDA071359R1 1SDA072079R1 1SDA072709R1  800  66 50 E1.2N  800  Ekip Dip LI 1SDA070761R1 1SDA071391R1 1SDA072111R1 1SDA072741R1 E1.2N  800  Ekip Dip LSI 1SDA070762R1 1SDA071392R1 1SDA072112R1 1SDA072742R1 E1.2N  800  Ekip Dip LSIG 1SDA070763R1 1SDA071393R1 1SDA072113R1 1SDA072743R1 E1.2N  800  Ekip Touch  LI 1SDA070764R1 1SDA071394R1 1SDA072114R1 1SDA072744R1 E1.2N  800  Ekip Touch  LSI 1SDA070765R1 1SDA071395R1 1SDA072115R1 1SDA072745R1 E1.2N  800  Ekip Touch  LSIG 1SDA070766R1 1SDA071396R1 1SDA072116R1 1SDA072746R1 E1.2N  800  Ekip Hi-Touch LSI 1SDA070768R1 1SDA071398R1 1SDA072118R1 1SDA072748R1 E1.2N  800  Ekip Hi-Touch LSIG 1SDA070769R1 1SDA071399R1 1SDA072119R1 1SDA072749R1  1000 66 50 E1.2N  1000  Ekip Dip LI 1SDA070801R1 1SDA071431R1 1SDA072151R1 1SDA072781R1 E1.2N  1000  Ekip Dip LSI 1SDA070802R1 1SDA071432R1 1SDA072152R1 1SDA072782R1 E1.2N  1000  Ekip Dip LSIG 1SDA070803R1 1SDA071433R1 1SDA072153R1 1SDA072783R1 E1.2N  1000  Ekip Touch  LI 1SDA070804R1 1SDA071434R1 1SDA072154R1 1SDA072784R1 E1.2N  1000  Ekip Touch  LSI 1SDA070805R1 1SDA071435R1 1SDA072155R1 1SDA072785R1 E1.2N  1000  Ekip Touch  LSIG 1SDA070806R1 1SDA071436R1 1SDA072156R1 1SDA072786R1 E1.2N  1000  Ekip Hi-Touch LSI 1SDA070808R1 1SDA071438R1 1SDA072158R1 1SDA072788R1 E1.2N  1000  Ekip Hi-Touch LSIG 1SDA070809R1 1SDA071439R1 1SDA072159R1 1SDA072789R1  1250 66 50 E1.2N  1250  Ekip Dip LI 1SDA070841R1 1SDA071471R1 1SDA072191R1 1SDA072821R1 E1.2N  1250  Ekip Dip LSI 1SDA070842R1 1SDA071472R1 1SDA072192R1 1SDA072822R1 E1.2N  1250  Ekip Dip LSIG 1SDA070843R1 1SDA071473R1 1SDA072193R1 1SDA072823R1 E1.2N  1250  Ekip Touch  LI 1SDA070844R1 1SDA071474R1 1SDA072194R1 1SDA072824R1 E1.2N  1250  Ekip Touch  LSI 1SDA070845R1 1SDA071475R1 1SDA072195R1 1SDA072825R1 E1.2N  1250  Ekip Touch  LSIG 1SDA070846R1 1SDA071476R1 1SDA072196R1 1SDA072826R1 E1.2N  1250  Ekip Hi-Touch LSI 1SDA070848R1 1SDA071478R1 1SDA072198R1 1SDA072828R1 E1.2N  1250  Ekip Hi-Touch LSIG 1SDA070849R1 1SDA071479R1 1SDA072199R1 1SDA072829R1  1600 66 50 E1.2N  1600  Ekip Dip LI 1SDA070881R1 1SDA071511R1 1SDA072231R1 1SDA072861R1 E1.2N  1600  Ekip Dip LSI 1SDA070882R1 1SDA071512R1 1SDA072232R1 1SDA072862R1 E1.2N  1600  Ekip Dip LSIG 1SDA070883R1 1SDA071513R1 1SDA072233R1 1SDA072863R1 E1.2N  1600  Ekip Touch  LI 1SDA070884R1 1SDA071514R1 1SDA072234R1 1SDA072864R1 E1.2N  1600  Ekip Touch  LSI 1SDA070885R1 1SDA071515R1 1SDA072235R1 1SDA072865R1 E1.2N  1600  Ekip Touch  LSIG 1SDA070886R1 1SDA071516R1 1SDA072236R1 1SDA072866R1 E1.2N  1600  Ekip Hi-Touch LSI 1SDA070888R1 1SDA071518R1 1SDA072238R1 1SDA072868R1 E1.2N  1600  Ekip Hi-Touch LSIG 1SDA070889R1 1SDA071519R1 1SDA072239R1 1SDA072869R1 Emax 2 power distribution ACBs   Type E1.2N

16 Air Circuit Breakers 0115  ABB Low Voltage 17  Air Circuit Breakers 0115  ABB Low Voltage Emax E1.2L-B Product Hierarchy 1700009 Order Code Size Iu  Icu (440 V) Icw(1s) Type Fixed Breaker Front Connection (F) Moving Portion (MP) 3 poles 4 poles 3 poles 4 poles E1.2L 630  130 15 E1.2L  630  Ekip Dip LI 1SDA070731R1 1SDA071361R1 1SDA072081R1 1SDA072711R1 E1.2L  630  Ekip Dip LSI 1SDA070732R1 1SDA071362R1 1SDA072082R1 1SDA072712R1 E1.2L  630  Ekip Dip LSIG 1SDA070733R1 1SDA071363R1 1SDA072083R1 1SDA072713R1 E1.2L  630  Ekip Touch LI 1SDA070734R1 1SDA071364R1 1SDA072084R1 1SDA072714R1 E1.2L  630  Ekip Touch LSI 1SDA070735R1 1SDA071365R1 1SDA072085R1 1SDA072715R1 E1.2L  630  Ekip Touch LSIG 1SDA070736R1 1SDA071366R1 1SDA072086R1 1SDA072716R1 E1.2L  630  Ekip Hi-Touch LSI 1SDA070738R1 1SDA071368R1 1SDA072088R1 1SDA072718R1 E1.2L  630  Ekip Hi-Touch LSIG 1SDA070739R1 1SDA071369R1 1SDA072089R1 1SDA072719R1 800  130 15 E1.2L  800  Ekip Dip LI 1SDA070771R1 1SDA071401R1 1SDA072121R1 1SDA072751R1 E1.2L  800  Ekip Dip LSI 1SDA070772R1 1SDA071402R1 1SDA072122R1 1SDA072752R1 E1.2L  800  Ekip Dip LSIG 1SDA070773R1 1SDA071403R1 1SDA072123R1 1SDA072753R1 E1.2L  800  Ekip Touch LI 1SDA070774R1 1SDA071404R1 1SDA072124R1 1SDA072754R1 E1.2L  800  Ekip Touch LSI 1SDA070775R1 1SDA071405R1 1SDA072125R1 1SDA072755R1 E1.2L  800  Ekip Touch LSIG 1SDA070776R1 1SDA071406R1 1SDA072126R1 1SDA072756R1 E1.2L  800  Ekip Hi-Touch LSI 1SDA070778R1 1SDA071408R1 1SDA072128R1 1SDA072758R1 E1.2L  800  Ekip Hi-Touch LSIG 1SDA070779R1 1SDA071409R1 1SDA072129R1 1SDA072759R1 1000 130 15 E1.2L  1000  Ekip Dip LI 1SDA070811R1 1SDA071441R1 1SDA072161R1 1SDA072791R1 E1.2L  1000  Ekip Dip LSI 1SDA070812R1 1SDA071442R1 1SDA072162R1 1SDA072792R1 E1.2L  1000  Ekip Dip LSIG 1SDA070813R1 1SDA071443R1 1SDA072163R1 1SDA072793R1 E1.2L  1000  Ekip Touch LI 1SDA070814R1 1SDA071444R1 1SDA072164R1 1SDA072794R1 E1.2L  1000  Ekip Touch LSI 1SDA070815R1 1SDA071445R1 1SDA072165R1 1SDA072795R1 E1.2L  1000  Ekip Touch LSIG 1SDA070816R1 1SDA071446R1 1SDA072166R1 1SDA072796R1 E1.2L  1000  Ekip Hi-Touch LSI 1SDA070818R1 1SDA071448R1 1SDA072168R1 1SDA072798R1 E1.2L  1000  Ekip Hi-Touch LSIG 1SDA070819R1 1SDA071449R1 1SDA072169R1 1SDA072799R1 1250 130 15 E1.2L  1250  Ekip Dip LI 1SDA070851R1 1SDA071481R1 1SDA072201R1 1SDA072831R1 E1.2L  1250  Ekip Dip LSI 1SDA070852R1 1SDA071482R1 1SDA072202R1 1SDA072832R1 E1.2L  1250  Ekip Dip LSIG 1SDA070853R1 1SDA071483R1 1SDA072203R1 1SDA072833R1 E1.2L  1250  Ekip Touch LI 1SDA070854R1 1SDA071484R1 1SDA072204R1 1SDA072834R1 E1.2L  1250  Ekip Touch LSI 1SDA070855R1 1SDA071485R1 1SDA072205R1 1SDA072835R1 E1.2L  1250  Ekip Touch LSIG 1SDA070856R1 1SDA071486R1 1SDA072206R1 1SDA072836R1 E1.2L  1250  Ekip Hi-Touch LSI 1SDA070858R1 1SDA071488R1 1SDA072208R1 1SDA072838R1 E1.2L  1250  Ekip Hi-Touch LSIG 1SDA070859R1 1SDA071489R1 1SDA072209R1 1SDA072839R1 E2.2B  1600 42 42 E2.2B  1600 Ekip Dip LI 1SDA070981R1 1SDA071611R1 1SDA072331R1 1SDA072961R1 E2.2B  1600 Ekip Dip LSI 1SDA070982R1 1SDA071612R1 1SDA072332R1 1SDA072962R1 E2.2B  1600 Ekip Dip LSIG 1SDA070983R1 1SDA071613R1 1SDA072333R1 1SDA072963R1 E2.2B  1600 Ekip Touch LI 1SDA070984R1 1SDA071614R1 1SDA072334R1 1SDA072964R1 E2.2B  1600 Ekip Touch LSI 1SDA070985R1 1SDA071615R1 1SDA072335R1 1SDA072965R1 E2.2B  1600 Ekip Touch LSIG 1SDA070986R1 1SDA071616R1 1SDA072336R1 1SDA072966R1 E2.2B  1600  Ekip Hi-Touch LSI 1SDA070988R1 1SDA071618R1 1SDA072338R1 1SDA072968R1 E2.2B  1600  Ekip Hi-Touch LSIG 1SDA070989R1 1SDA071619R1 1SDA072339R1 1SDA072969R1  2000 42 42 E2.2B  2000 Ekip Dip LI 1SDA071021R1 1SDA071651R1 1SDA072371R1 1SDA073001R1 E2.2B  2000 Ekip Dip LSI 1SDA071022R1 1SDA071652R1 1SDA072372R1 1SDA073002R1 E2.2B  2000 Ekip Dip LSIG 1SDA071023R1 1SDA071653R1 1SDA072373R1 1SDA073003R1 E2.2B  2000 Ekip Touch LI 1SDA071024R1 1SDA071654R1 1SDA072374R1 1SDA073004R1 E2.2B  2000 Ekip Touch LSI 1SDA071025R1 1SDA071655R1 1SDA072375R1 1SDA073005R1 E2.2B  2000 Ekip Touch LSIG 1SDA071026R1 1SDA071656R1 1SDA072376R1 1SDA073006R1 E2.2B  2000  Ekip Hi-Touch LSI 1SDA071028R1 1SDA071658R1 1SDA072378R1 1SDA073008R1 E2.2B  2000  Ekip Hi-Touch LSIG 1SDA071029R1 1SDA071659R1 1SDA072379R1 1SDA073009R1 Emax 2 power distribution ACBs   Type E1.2L-B

18 Air Circuit Breakers 0115  ABB Low Voltage 19  Air Circuit Breakers 0115  ABB Low Voltage Emax E2.2N Product Hierarchy 1700009 Order Code Size Iu  Icu (440 V) Icw(1s) Type Fixed Breaker Rear Connection (HR) Moving Portion (MP) 3 poles 4 poles 3 poles 4 poles E2.2N  800  66 66 E2.2N  800 Ekip Dip LI 1SDA070891R1 1SDA071521R1 1SDA072241R1 1SDA072871R1 E2.2N  800 Ekip Dip LSI 1SDA070892R1 1SDA071522R1 1SDA072242R1 1SDA072872R1 E2.2N  800 Ekip Dip LSIG 1SDA070893R1 1SDA071523R1 1SDA072243R1 1SDA072873R1 E2.2N  800 Ekip Touch LI 1SDA070894R1 1SDA071524R1 1SDA072244R1 1SDA072874R1 E2.2N  800 Ekip Touch LSI 1SDA070895R1 1SDA071525R1 1SDA072245R1 1SDA072875R1 E2.2N  800 Ekip Touch LSIG 1SDA070896R1 1SDA071526R1 1SDA072246R1 1SDA072876R1 E2.2N  800  Ekip Hi-Touch LSI 1SDA070898R1 1SDA071528R1 1SDA072248R1 1SDA072878R1 E2.2N  800  Ekip Hi-Touch LSIG 1SDA070899R1 1SDA071529R1 1SDA072249R1 1SDA072879R1  1000 66 66 E2.2N  1000 Ekip Dip LI 1SDA070921R1 1SDA071551R1 1SDA072271R1 1SDA072901R1 E2.2N  1000 Ekip Dip LSI 1SDA070922R1 1SDA071552R1 1SDA072272R1 1SDA072902R1 E2.2N  1000 Ekip Dip LSIG 1SDA070923R1 1SDA071553R1 1SDA072273R1 1SDA072903R1 E2.2N  1000 Ekip Touch LI 1SDA070924R1 1SDA071554R1 1SDA072274R1 1SDA072904R1 E2.2N  1000 Ekip Touch LSI 1SDA070925R1 1SDA071555R1 1SDA072275R1 1SDA072905R1 E2.2N  1000 Ekip Touch LSIG 1SDA070926R1 1SDA071556R1 1SDA072276R1 1SDA072906R1 E2.2N  1000  Ekip Hi-Touch LSI 1SDA070928R1 1SDA071558R1 1SDA072278R1 1SDA072908R1 E2.2N  1000  Ekip Hi-Touch LSIG 1SDA070929R1 1SDA071559R1 1SDA072279R1 1SDA072909R1  1250 66 66 E2.2N  1250 Ekip Dip LI 1SDA070951R1 1SDA071581R1 1SDA072301R1 1SDA072931R1 E2.2N  1250 Ekip Dip LSI 1SDA070952R1 1SDA071582R1 1SDA072302R1 1SDA072932R1 E2.2N  1250 Ekip Dip LSIG 1SDA070953R1 1SDA071583R1 1SDA072303R1 1SDA072933R1 E2.2N  1250 Ekip Touch LI 1SDA070954R1 1SDA071584R1 1SDA072304R1 1SDA072934R1 E2.2N  1250 Ekip Touch LSI 1SDA070955R1 1SDA071585R1 1SDA072305R1 1SDA072935R1 E2.2N  1250 Ekip Touch LSIG 1SDA070956R1 1SDA071586R1 1SDA072306R1 1SDA072936R1 E2.2N  1250  Ekip Hi-Touch LSI 1SDA070958R1 1SDA071588R1 1SDA072308R1 1SDA072938R1 E2.2N  1250  Ekip Hi-Touch LSIG 1SDA070959R1 1SDA071589R1 1SDA072309R1 1SDA072939R1  1600 66 66 E2.2N  1600 Ekip Dip LI 1SDA070991R1 1SDA071621R1 1SDA072341R1 1SDA072971R1 E2.2N  1600 Ekip Dip LSI 1SDA070992R1 1SDA071622R1 1SDA072342R1 1SDA072972R1 E2.2N  1600 Ekip Dip LSIG 1SDA070993R1 1SDA071623R1 1SDA072343R1 1SDA072973R1 E2.2N  1600 Ekip Touch LI 1SDA070994R1 1SDA071624R1 1SDA072344R1 1SDA072974R1 E2.2N  1600 Ekip Touch LSI 1SDA070995R1 1SDA071625R1 1SDA072345R1 1SDA072975R1 E2.2N  1600 Ekip Touch LSIG 1SDA070996R1 1SDA071626R1 1SDA072346R1 1SDA072976R1 E2.2N  1600  Ekip Hi-Touch LSI 1SDA070998R1 1SDA071628R1 1SDA072348R1 1SDA072978R1 E2.2N  1600  Ekip Hi-Touch LSIG 1SDA070999R1 1SDA071629R1 1SDA072349R1 1SDA072979R1  2000 66 66 E2.2N  2000 Ekip Dip LI 1SDA071031R1 1SDA071661R1 1SDA072381R1 1SDA073011R1 E2.2N  2000 Ekip Dip LSI 1SDA071032R1 1SDA071662R1 1SDA072382R1 1SDA073012R1 E2.2N  2000 Ekip Dip LSIG 1SDA071033R1 1SDA071663R1 1SDA072383R1 1SDA073013R1 E2.2N  2000 Ekip Touch LI 1SDA071034R1 1SDA071664R1 1SDA072384R1 1SDA073014R1 E2.2N  2000 Ekip Touch LSI 1SDA071035R1 1SDA071665R1 1SDA072385R1 1SDA073015R1 E2.2N  2000 Ekip Touch LSIG 1SDA071036R1 1SDA071666R1 1SDA072386R1 1SDA073016R1 E2.2N  2000  Ekip Hi-Touch LSI 1SDA071038R1 1SDA071668R1 1SDA072388R1 1SDA073018R1 E2.2N  2000  Ekip Hi-Touch LSIG 1SDA071039R1 1SDA071669R1 1SDA072389R1 1SDA073019R1  2500 66 66 E2.2N  2500 Ekip Dip LI 1SDA071061R1 1SDA071691R1 1SDA072411R1 1SDA073041R1 E2.2N  2500 Ekip Dip LSI 1SDA071062R1 1SDA071692R1 1SDA072412R1 1SDA073042R1 E2.2N  2500 Ekip Dip LSIG 1SDA071063R1 1SDA071693R1 1SDA072413R1 1SDA073043R1 E2.2N  2500 Ekip Touch LI 1SDA071064R1 1SDA071694R1 1SDA072414R1 1SDA073044R1 E2.2N  2500 Ekip Touch LSI 1SDA071065R1 1SDA071695R1 1SDA072415R1 1SDA073045R1 E2.2N  2500 Ekip Touch LSIG 1SDA071066R1 1SDA071696R1 1SDA072416R1 1SDA073046R1 E2.2N  2500  Ekip Hi-Touch LSI 1SDA071068R1 1SDA071698R1 1SDA072418R1 1SDA073048R1 E2.2N  2500  Ekip Hi-Touch LSIG 1SDA071069R1 1SDA071699R1 1SDA072419R1 1SDA073049R1 Emax 2 power distribution ACBs   Type E2.2N

18 Air Circuit Breakers 0115  ABB Low Voltage 19  Air Circuit Breakers 0115  ABB Low Voltage Emax E2.2S Product Hierarchy 1700009 Order Code Size Iu  Icu (440 V) Icw(1s) Type Fixed Breaker Rear Connection (HR) Moving Portion (MP) 3 poles 4 poles 3 poles 4 poles E2.2S 250 85 66 E2.2S  250  Ekip Dip LI 1SDA073628R1 1SDA073638R1 1SDA073648R1 1SDA073658R1 E2.2S  250  Ekip Dip LSI 1SDA073629R1 1SDA073639R1 1SDA073649R1 1SDA073659R1 E2.2S  250  Ekip Dip LSIG 1SDA073630R1 1SDA073640R1 1SDA073650R1 1SDA073660R1 E2.2S  250 Ekip Touch LI 1SDA073631R1 1SDA073641R1 1SDA073651R1 1SDA073661R1 E2.2S  250  Ekip Touch LSI 1SDA073632R1 1SDA073642R1 1SDA073652R1 1SDA073662R1 E2.2S  250  Ekip Touch LSIG 1SDA073633R1 1SDA073643R1 1SDA073653R1 1SDA073663R1 E2.2S  250  Ekip Hi-Touch LSI 1SDA073635R1 1SDA073645R1 1SDA073655R1 1SDA073665R1 E2.2S  250  Ekip Hi-Touch LSIG 1SDA073636R1 1SDA073646R1 1SDA073656R1 1SDA073666R1  800  85 66 E2.2S  800  Ekip Dip LI 1SDA070901R1 1SDA071531R1 1SDA072251R1 1SDA072881R1 E2.2S  800  Ekip Dip LSI 1SDA070902R1 1SDA071532R1 1SDA072252R1 1SDA072882R1 E2.2S  800  Ekip Dip LSIG 1SDA070903R1 1SDA071533R1 1SDA072253R1 1SDA072883R1 E2.2S  800 Ekip Touch LI 1SDA070904R1 1SDA071534R1 1SDA072254R1 1SDA072884R1 E2.2S  800  Ekip Touch LSI 1SDA070905R1 1SDA071535R1 1SDA072255R1 1SDA072885R1 E2.2S  800  Ekip Touch LSIG 1SDA070906R1 1SDA071536R1 1SDA072256R1 1SDA072886R1 E2.2S  800  Ekip Hi-Touch LSI 1SDA070908R1 1SDA071538R1 1SDA072258R1 1SDA072888R1 E2.2S  800  Ekip Hi-Touch LSIG 1SDA070909R1 1SDA071539R1 1SDA072259R1 1SDA072889R1  1000 85 66 E2.2S  1000  Ekip Dip LI 1SDA070931R1 1SDA071561R1 1SDA072281R1 1SDA072911R1 E2.2S  1000  Ekip Dip LSI 1SDA070932R1 1SDA071562R1 1SDA072282R1 1SDA072912R1 E2.2S  1000  Ekip Dip LSIG 1SDA070933R1 1SDA071563R1 1SDA072283R1 1SDA072913R1 E2.2S  1000 Ekip Touch LI 1SDA070934R1 1SDA071564R1 1SDA072284R1 1SDA072914R1 E2.2S  1000  Ekip Touch LSI 1SDA070935R1 1SDA071565R1 1SDA072285R1 1SDA072915R1 E2.2S  1000  Ekip Touch LSIG 1SDA070936R1 1SDA071566R1 1SDA072286R1 1SDA072916R1 E2.2S  1000  Ekip Hi-Touch LSI 1SDA070938R1 1SDA071568R1 1SDA072288R1 1SDA072918R1 E2.2S  1000  Ekip Hi-Touch LSIG 1SDA070939R1 1SDA071569R1 1SDA072289R1 1SDA072919R1  1250 85 66 E2.2S  1250  Ekip Dip LI 1SDA070961R1 1SDA071591R1 1SDA072311R1 1SDA072941R1 E2.2S  1250  Ekip Dip LSI 1SDA070962R1 1SDA071592R1 1SDA072312R1 1SDA072942R1 E2.2S  1250  Ekip Dip LSIG 1SDA070963R1 1SDA071593R1 1SDA072313R1 1SDA072943R1 E2.2S  1250 Ekip Touch LI 1SDA070964R1 1SDA071594R1 1SDA072314R1 1SDA072944R1 E2.2S  1250  Ekip Touch LSI 1SDA070965R1 1SDA071595R1 1SDA072315R1 1SDA072945R1 E2.2S  1250  Ekip Touch LSIG 1SDA070966R1 1SDA071596R1 1SDA072316R1 1SDA072946R1 E2.2S  1250  Ekip Hi-Touch LSI 1SDA070968R1 1SDA071598R1 1SDA072318R1 1SDA072948R1 E2.2S  1250  Ekip Hi-Touch LSIG 1SDA070969R1 1SDA071599R1 1SDA072319R1 1SDA072949R1  1600 85 66 E2.2S  1600  Ekip Dip LI 1SDA071001R1 1SDA071631R1 1SDA072351R1 1SDA072981R1 E2.2S  1600  Ekip Dip LSI 1SDA071002R1 1SDA071632R1 1SDA072352R1 1SDA072982R1 E2.2S  1600  Ekip Dip LSIG 1SDA071003R1 1SDA071633R1 1SDA072353R1 1SDA072983R1 E2.2S  1600 Ekip Touch LI 1SDA071004R1 1SDA071634R1 1SDA072354R1 1SDA072984R1 E2.2S  1600  Ekip Touch LSI 1SDA071005R1 1SDA071635R1 1SDA072355R1 1SDA072985R1 E2.2S  1600  Ekip Touch LSIG 1SDA071006R1 1SDA071636R1 1SDA072356R1 1SDA072986R1 E2.2S  1600  Ekip Hi-Touch LSI 1SDA071008R1 1SDA071638R1 1SDA072358R1 1SDA072988R1 E2.2S  1600  Ekip Hi-Touch LSIG 1SDA071009R1 1SDA071639R1 1SDA072359R1 1SDA072989R1  2000 85 66 E2.2S  2000  Ekip Dip LI 1SDA071041R1 1SDA071671R1 1SDA072391R1 1SDA073021R1 E2.2S  2000  Ekip Dip LSI 1SDA071042R1 1SDA071672R1 1SDA072392R1 1SDA073022R1 E2.2S  2000  Ekip Dip LSIG 1SDA071043R1 1SDA071673R1 1SDA072393R1 1SDA073023R1 E2.2S  2000 Ekip Touch LI 1SDA071044R1 1SDA071674R1 1SDA072394R1 1SDA073024R1 E2.2S  2000  Ekip Touch LSI 1SDA071045R1 1SDA071675R1 1SDA072395R1 1SDA073025R1 E2.2S  2000  Ekip Touch LSIG 1SDA071046R1 1SDA071676R1 1SDA072396R1 1SDA073026R1 E2.2S  2000  Ekip Hi-Touch LSI 1SDA071048R1 1SDA071678R1 1SDA072398R1 1SDA073028R1 E2.2S  2000  Ekip Hi-Touch LSIG 1SDA071049R1 1SDA071679R1 1SDA072399R1 1SDA073029R1  2500 85 66 E2.2S  2500  Ekip Dip LI 1SDA071071R1 1SDA071701R1 1SDA072421R1 1SDA073051R1 E2.2S  2500  Ekip Dip LSI 1SDA071072R1 1SDA071702R1 1SDA072422R1 1SDA073052R1 E2.2S  2500  Ekip Dip LSIG 1SDA071073R1 1SDA071703R1 1SDA072423R1 1SDA073053R1 E2.2S  2500 Ekip Touch LI 1SDA071074R1 1SDA071704R1 1SDA072424R1 1SDA073054R1 E2.2S  2500  Ekip Touch LSI 1SDA071075R1 1SDA071705R1 1SDA072425R1 1SDA073055R1 E2.2S  2500  Ekip Touch LSIG 1SDA071076R1 1SDA071706R1 1SDA072426R1 1SDA073056R1 E2.2S  2500  Ekip Hi-Touch LSI 1SDA071078R1 1SDA071708R1 1SDA072428R1 1SDA073058R1 E2.2S  2500  Ekip Hi-Touch LSIG 1SDA071079R1 1SDA071709R1 1SDA072429R1 1SDA073059R1 Emax 2 power distribution ACBs   Type E2.2S

20 Air Circuit Breakers 0115  ABB Low Voltage 21  Air Circuit Breakers 0115  ABB Low Voltage Emax E2.2H Product Hierarchy 1700009 Order Code Size Iu  Icu (440 V) Icw(1s) Type Fixed Breaker Rear Connection (HR) Moving Portion (MP) 3 poles 4 poles 3 poles 4 poles E2.2H  800  100 85 E2.2H  800  Ekip Dip LI 1SDA070911R1 1SDA071541R1 1SDA072261R1 1SDA072891R1 E2.2H  800 Ekip Dip LSI 1SDA070912R1 1SDA071542R1 1SDA072262R1 1SDA072892R1 E2.2H  800 Ekip Dip LSIG 1SDA070913R1 1SDA071543R1 1SDA072263R1 1SDA072893R1 E2.2H  800 Ekip Touch LI 1SDA070914R1 1SDA071544R1 1SDA072264R1 1SDA072894R1 E2.2H  800 Ekip Touch LSI 1SDA070915R1 1SDA071545R1 1SDA072265R1 1SDA072895R1 E2.2H  800 Ekip Touch LSIG 1SDA070916R1 1SDA071546R1 1SDA072266R1 1SDA072896R1 E2.2H  800  Ekip Hi-Touch LSI 1SDA070918R1 1SDA071548R1 1SDA072268R1 1SDA072898R1 E2.2H  800  Ekip Hi-Touch LSIG 1SDA070919R1 1SDA071549R1 1SDA072269R1 1SDA072899R1  1000 100 85 E2.2H  1000  Ekip Dip LI 1SDA070941R1 1SDA071571R1 1SDA072291R1 1SDA072921R1 E2.2H  1000 Ekip Dip LSI 1SDA070942R1 1SDA071572R1 1SDA072292R1 1SDA072922R1 E2.2H  1000 Ekip Dip LSIG 1SDA070943R1 1SDA071573R1 1SDA072293R1 1SDA072923R1 E2.2H  1000 Ekip Touch LI 1SDA070944R1 1SDA071574R1 1SDA072294R1 1SDA072924R1 E2.2H  1000 Ekip Touch LSI 1SDA070945R1 1SDA071575R1 1SDA072295R1 1SDA072925R1 E2.2H  1000 Ekip Touch LSIG 1SDA070946R1 1SDA071576R1 1SDA072296R1 1SDA072926R1 E2.2H  1000  Ekip Hi-Touch LSI 1SDA070948R1 1SDA071578R1 1SDA072298R1 1SDA072928R1 E2.2H  1000  Ekip Hi-Touch LSIG 1SDA070949R1 1SDA071579R1 1SDA072299R1 1SDA072929R1  1250 100 85 E2.2H  1250  Ekip Dip LI 1SDA070971R1 1SDA071601R1 1SDA072321R1 1SDA072951R1 E2.2H  1250 Ekip Dip LSI 1SDA070972R1 1SDA071602R1 1SDA072322R1 1SDA072952R1 E2.2H  1250 Ekip Dip LSIG 1SDA070973R1 1SDA071603R1 1SDA072323R1 1SDA072953R1 E2.2H  1250 Ekip Touch LI 1SDA070974R1 1SDA071604R1 1SDA072324R1 1SDA072954R1 E2.2H  1250 Ekip Touch LSI 1SDA070975R1 1SDA071605R1 1SDA072325R1 1SDA072955R1 E2.2H  1250 Ekip Touch LSIG 1SDA070976R1 1SDA071606R1 1SDA072326R1 1SDA072956R1 E2.2H  1250  Ekip Hi-Touch LSI 1SDA070978R1 1SDA071608R1 1SDA072328R1 1SDA072958R1 E2.2H  1250  Ekip Hi-Touch LSIG 1SDA070979R1 1SDA071609R1 1SDA072329R1 1SDA072959R1  1600 100 85 E2.2H  1600  Ekip Dip LI 1SDA071011R1 1SDA071641R1 1SDA072361R1 1SDA072991R1 E2.2H  1600 Ekip Dip LSI 1SDA071012R1 1SDA071642R1 1SDA072362R1 1SDA072992R1 E2.2H  1600 Ekip Dip LSIG 1SDA071013R1 1SDA071643R1 1SDA072363R1 1SDA072993R1 E2.2H  1600 Ekip Touch LI 1SDA071014R1 1SDA071644R1 1SDA072364R1 1SDA072994R1 E2.2H  1600 Ekip Touch LSI 1SDA071015R1 1SDA071645R1 1SDA072365R1 1SDA072995R1 E2.2H  1600 Ekip Touch LSIG 1SDA071016R1 1SDA071646R1 1SDA072366R1 1SDA072996R1 E2.2H  1600  Ekip Hi-Touch LSI 1SDA071018R1 1SDA071648R1 1SDA072368R1 1SDA072998R1 E2.2H  1600  Ekip Hi-Touch LSIG 1SDA071019R1 1SDA071649R1 1SDA072369R1 1SDA072999R1  2000 100 85 E2.2H  2000  Ekip Dip LI 1SDA071051R1 1SDA071681R1 1SDA072401R1 1SDA073031R1 E2.2H  2000 Ekip Dip LSI 1SDA071052R1 1SDA071682R1 1SDA072402R1 1SDA073032R1 E2.2H  2000 Ekip Dip LSIG 1SDA071053R1 1SDA071683R1 1SDA072403R1 1SDA073033R1 E2.2H  2000 Ekip Touch LI 1SDA071054R1 1SDA071684R1 1SDA072404R1 1SDA073034R1 E2.2H  2000 Ekip Touch LSI 1SDA071055R1 1SDA071685R1 1SDA072405R1 1SDA073035R1 E2.2H  2000 Ekip Touch LSIG 1SDA071056R1 1SDA071686R1 1SDA072406R1 1SDA073036R1 E2.2H  2000  Ekip Hi-Touch LSI 1SDA071058R1 1SDA071688R1 1SDA072408R1 1SDA073038R1 E2.2H  2000  Ekip Hi-Touch LSIG 1SDA071059R1 1SDA071689R1 1SDA072409R1 1SDA073039R1  2500 100 85 E2.2H  2500  Ekip Dip LI 1SDA071081R1 1SDA071711R1 1SDA072431R1 1SDA073061R1 E2.2H  2500 Ekip Dip LSI 1SDA071082R1 1SDA071712R1 1SDA072432R1 1SDA073062R1 E2.2H  2500 Ekip Dip LSIG 1SDA071083R1 1SDA071713R1 1SDA072433R1 1SDA073063R1 E2.2H  2500 Ekip Touch LI 1SDA071084R1 1SDA071714R1 1SDA072434R1 1SDA073064R1 E2.2H  2500 Ekip Touch LSI 1SDA071085R1 1SDA071715R1 1SDA072435R1 1SDA073065R1 E2.2H  2500 Ekip Touch LSIG 1SDA071086R1 1SDA071716R1 1SDA072436R1 1SDA073066R1 E2.2H  2500  Ekip Hi-Touch LSI 1SDA071088R1 1SDA071718R1 1SDA072438R1 1SDA073068R1 E2.2H  2500  Ekip Hi-Touch LSIG 1SDA071089R1 1SDA071719R1 1SDA072439R1 1SDA073069R1 Emax 2 power distribution ACBs   Type E2.2H

20 Air Circuit Breakers 0115  ABB Low Voltage 21  Air Circuit Breakers 0115  ABB Low Voltage Emax E4.2N Product Hierarchy 1700009 Order Code Size Iu  Icu (440 V) Icw(1s) Type Fixed Breaker Rear Connection (HR) Moving Portion (MP) 3 poles 4 poles 3 poles 4 poles E4.2N  3200 66 66 E4.2N  3200 Ekip Dip LI 1SDA071141R1 1SDA071771R1 1SDA072491R1 1SDA073121R1 E4.2N  3200 Ekip Dip LSI 1SDA071142R1 1SDA071772R1 1SDA072492R1 1SDA073122R1 E4.2N  3200 Ekip Dip LSIG 1SDA071143R1 1SDA071773R1 1SDA072493R1 1SDA073123R1 E4.2N  3200 Ekip Touch LI 1SDA071144R1 1SDA071774R1 1SDA072494R1 1SDA073124R1 E4.2N  3200 Ekip Touch LSI 1SDA071145R1 1SDA071775R1 1SDA072495R1 1SDA073125R1 E4.2N  3200 Ekip Touch LSIG 1SDA071146R1 1SDA071776R1 1SDA072496R1 1SDA073126R1 E4.2N  3200  Ekip Hi-Touch LSI 1SDA071148R1 1SDA071778R1 1SDA072498R1 1SDA073128R1 E4.2N  3200  Ekip Hi-Touch LSIG 1SDA071149R1 1SDA071779R1 1SDA072499R1 1SDA073129R1  4000 66 66 E4.2N  4000 Ekip Dip LI 1SDA071191R1 1SDA071821R1 1SDA072541R1 1SDA073171R1 E4.2N  4000 Ekip Dip LSI 1SDA071192R1 1SDA071822R1 1SDA072542R1 1SDA073172R1 E4.2N  4000 Ekip Dip LSIG 1SDA071193R1 1SDA071823R1 1SDA072543R1 1SDA073173R1 E4.2N  4000 Ekip Touch LI 1SDA071194R1 1SDA071824R1 1SDA072544R1 1SDA073174R1 E4.2N  4000 Ekip Touch LSI 1SDA071195R1 1SDA071825R1 1SDA072545R1 1SDA073175R1 E4.2N  4000 Ekip Touch LSIG 1SDA071196R1 1SDA071826R1 1SDA072546R1 1SDA073176R1 E4.2N  4000  Ekip Hi-Touch LSI 1SDA071198R1 1SDA071828R1 1SDA072548R1 1SDA073178R1 E4.2N  4000  Ekip Hi-Touch LSIG 1SDA071199R1 1SDA071829R1 1SDA072549R1 1SDA073179R1 E4.2S  3200 85 66 E4.2S  3200 Ekip Dip LI 1SDA071151R1 1SDA071781R1 1SDA072501R1 1SDA073131R1 E4.2S  3200 Ekip Dip LSI 1SDA071152R1 1SDA071782R1 1SDA072502R1 1SDA073132R1 E4.2S 3200 Ekip Dip LSIG 1SDA071153R1 1SDA071783R1 1SDA072503R1 1SDA073133R1 E4.2S  3200 Ekip Touch LI 1SDA071154R1 1SDA071784R1 1SDA072504R1 1SDA073134R1 E4.2S  3200 Ekip Touch LSI 1SDA071155R1 1SDA071785R1 1SDA072505R1 1SDA073135R1 E4.2S  3200 Ekip Touch LSIG 1SDA071156R1 1SDA071786R1 1SDA072506R1 1SDA073136R1 E4.2S  3200  Ekip Hi-Touch LSI 1SDA071158R1 1SDA071788R1 1SDA072508R1 1SDA073138R1 E4.2S  3200  Ekip Hi-Touch LSIG 1SDA071159R1 1SDA071789R1 1SDA072509R1 1SDA073139R1  4000 85 66 E4.2S  4000 Ekip Dip LI 1SDA071201R1 1SDA071831R1 1SDA072551R1 1SDA073181R1 E4.2S  4000 Ekip Dip LSI 1SDA071202R1 1SDA071832R1 1SDA072552R1 1SDA073182R1 E4.2S 4000 Ekip Dip LSIG 1SDA071203R1 1SDA071833R1 1SDA072553R1 1SDA073183R1 E4.2S  4000 Ekip Touch LI 1SDA071204R1 1SDA071834R1 1SDA072554R1 1SDA073184R1 E4.2S  4000 Ekip Touch LSI 1SDA071205R1 1SDA071835R1 1SDA072555R1 1SDA073185R1 E4.2S  4000 Ekip Touch LSIG 1SDA071206R1 1SDA071836R1 1SDA072556R1 1SDA073186R1 E4.2S  4000  Ekip Hi-Touch LSI 1SDA071208R1 1SDA071838R1 1SDA072558R1 1SDA073188R1 E4.2S  4000  Ekip Hi-Touch LSIG 1SDA071209R1 1SDA071839R1 1SDA072559R1 1SDA073189R1 E4.2H  3200 100 85 E4.2H  3200 Ekip Dip LI 1SDA071161R1 1SDA071791R1 1SDA072511R1 1SDA073141R1 E4.2H  3200 Ekip Dip LSI 1SDA071162R1 1SDA071792R1 1SDA072512R1 1SDA073142R1 E4.2H  3200 Ekip Dip LSIG 1SDA071163R1 1SDA071793R1 1SDA072513R1 1SDA073143R1 E4.2H  3200 Ekip Touch LI 1SDA071164R1 1SDA071794R1 1SDA072514R1 1SDA073144R1 E4.2H  3200 Ekip Touch LSI 1SDA071165R1 1SDA071795R1 1SDA072515R1 1SDA073145R1 E4.2H  3200 Ekip Touch LSIG 1SDA071166R1 1SDA071796R1 1SDA072516R1 1SDA073146R1 E4.2H  3200  Ekip Hi-Touch LSI 1SDA071168R1 1SDA071798R1 1SDA072518R1 1SDA073148R1 E4.2H  3200  Ekip Hi-Touch LSIG 1SDA071169R1 1SDA071799R1 1SDA072519R1 1SDA073149R1  4000 100 85 E4.2H  4000 Ekip Dip LI 1SDA071211R1 1SDA071841R1 1SDA072561R1 1SDA073191R1 E4.2H  4000 Ekip Dip LSI 1SDA071212R1 1SDA071842R1 1SDA072562R1 1SDA073192R1 E4.2H  4000 Ekip Dip LSIG 1SDA071213R1 1SDA071843R1 1SDA072563R1 1SDA073193R1 E4.2H  4000 Ekip Touch LI 1SDA071214R1 1SDA071844R1 1SDA072564R1 1SDA073194R1 E4.2H  4000 Ekip Touch LSI 1SDA071215R1 1SDA071845R1 1SDA072565R1 1SDA073195R1 E4.2H  4000 Ekip Touch LSIG 1SDA071216R1 1SDA071846R1 1SDA072566R1 1SDA073196R1 E4.2H  4000  Ekip Hi-Touch LSI 1SDA071218R1 1SDA071848R1 1SDA072568R1 1SDA073198R1 E4.2H  4000  Ekip Hi-Touch LSIG 1SDA071219R1 1SDA071849R1 1SDA072569R1 1SDA073199R1 Emax 2 power distribution ACBs   Type E4.2N/H for power distribution

22 Air Circuit Breakers 0115  ABB Low Voltage 23  Air Circuit Breakers 0115  ABB Low Voltage Emax 2 power distribution ACBs   Type E4.2V Emax E4.2V Product Hierarchy 1700009 Order Code Size Iu  Icu (440 V) Icw(1s) Type Fixed Breaker Rear Connection (HR) Moving Portion (MP) 3 poles 4 poles 3 poles 4 poles E4.2V  2000 150 100 E4.2S  2000 Ekip Dip LI 1SDA071101R1 1SDA071731R1 1SDA072451R1 1SDA073081R1 E4.2S  2000 Ekip Dip LI 1SDA071102R1 1SDA071732R1 1SDA072452R1 1SDA073082R1 E4.2V  2000 Ekip Dip LSIG 1SDA071103R1 1SDA071733R1 1SDA072453R1 1SDA073083R1 E4.2V  2000 Ekip Touch LI 1SDA071104R1 1SDA071734R1 1SDA072454R1 1SDA073084R1 E4.2V  2000 Ekip Touch LSI 1SDA071105R1 1SDA071735R1 1SDA072455R1 1SDA073085R1 E4.2V  2000 Ekip Touch LSIG 1SDA071106R1 1SDA071736R1 1SDA072456R1 1SDA073086R1 E4.2V  2000  Ekip Hi-Touch LSI 1SDA071108R1 1SDA071738R1 1SDA072458R1 1SDA073088R1 E4.2V  2000  Ekip Hi-Touch LSIG 1SDA071109R1 1SDA071739R1 1SDA072459R1 1SDA073089R1  2500 150 100 E4.2V  2500 Ekip Dip LI 1SDA071121R1 1SDA071751R1 1SDA072471R1 1SDA073101R1 E4.2V  2500 Ekip Dip LSI 1SDA071122R1 1SDA071752R1 1SDA072472R1 1SDA073102R1 E4.2V  2500 Ekip Dip LSIG 1SDA071123R1 1SDA071753R1 1SDA072473R1 1SDA073103R1 E4.2V  2500 Ekip Touch LI 1SDA071124R1 1SDA071754R1 1SDA072474R1 1SDA073104R1 E4.2V  2500 Ekip Touch LSI 1SDA071125R1 1SDA071755R1 1SDA072475R1 1SDA073105R1 E4.2V  2500 Ekip Touch LSIG 1SDA071126R1 1SDA071756R1 1SDA072476R1 1SDA073106R1 E4.2V  2500  Ekip Hi-Touch LSI 1SDA071128R1 1SDA071758R1 1SDA072478R1 1SDA073108R1 E4.2V  2500  Ekip Hi-Touch LSIG 1SDA071129R1 1SDA071759R1 1SDA072479R1 1SDA073109R1  3200 150 100 E4.2V  3200 Ekip Dip LI 1SDA071171R1 1SDA071801R1 1SDA072521R1 1SDA073151R1 E4.2V  3200 Ekip Dip LSI 1SDA071172R1 1SDA071802R1 1SDA072522R1 1SDA073152R1 E4.2V  3200 Ekip Dip LSIG 1SDA071173R1 1SDA071803R1 1SDA072523R1 1SDA073153R1 E4.2V  3200 Ekip Touch LI 1SDA071174R1 1SDA071804R1 1SDA072524R1 1SDA073154R1 E4.2V  3200 Ekip Touch LSI 1SDA071175R1 1SDA071805R1 1SDA072525R1 1SDA073155R1 E4.2V  3200 Ekip Touch LSIG 1SDA071176R1 1SDA071806R1 1SDA072526R1 1SDA073156R1 E4.2V  3200  Ekip Hi-Touch LSI 1SDA071178R1 1SDA071808R1 1SDA072528R1 1SDA073158R1 E4.2V  3200  Ekip Hi-Touch LSIG 1SDA071179R1 1SDA071809R1 1SDA072529R1 1SDA073159R1  4000 150 100 E4.2V  4000 Ekip Dip LI 1SDA071221R1 1SDA071851R1 1SDA072571R1 1SDA073201R1 E4.2V  4000 Ekip Dip LSI 1SDA071222R1 1SDA071852R1 1SDA072572R1 1SDA073202R1 E4.2V  4000 Ekip Dip LSIG 1SDA071223R1 1SDA071853R1 1SDA072573R1 1SDA073203R1 E4.2V  4000 Ekip Touch LI 1SDA071224R1 1SDA071854R1 1SDA072574R1 1SDA073204R1 E4.2V  4000 Ekip Touch LSI 1SDA071225R1 1SDA071855R1 1SDA072575R1 1SDA073205R1 E4.2V  4000 Ekip Touch LSIG 1SDA071226R1 1SDA071856R1 1SDA072576R1 1SDA073206R1 E4.2V  4000  Ekip Hi-Touch LSI 1SDA071228R1 1SDA071858R1 1SDA072578R1 1SDA073208R1 E4.2V  4000  Ekip Hi-Touch LSIG 1SDA071229R1 1SDA071859R1 1SDA072579R1 1SDA073209R1

22 Air Circuit Breakers 0115  ABB Low Voltage 23  Air Circuit Breakers 0115  ABB Low Voltage Emax 2 power distribution ACBs   Type E6.2H/V Emax E6.2H Product Hierarchy 1700009 Order Code Size Iu  Icu (440 V) Icw(1s) Type Fixed Breaker Rear Connection (HR) Moving Portion (MP) 3 poles 4 poles 3 poles 4 poles E6.2H  4000 100 100 E6.2H  4000 Ekip Dip LI 1SDA071231R1 1SDA071861R1 1SDA072581R1 1SDA073211R1 E6.2H  4000 Ekip Dip LSI 1SDA071232R1 1SDA071862R1 1SDA072582R1 1SDA073212R1 E6.2H  4000 Ekip Dip LSIG 1SDA071233R1 1SDA071863R1 1SDA072583R1 1SDA073213R1 E6.2H  4000 Ekip Touch LI 1SDA071234R1 1SDA071864R1 1SDA072584R1 1SDA073214R1 E6.2H  4000 Ekip Touch LSI 1SDA071235R1 1SDA071865R1 1SDA072585R1 1SDA073215R1 E6.2H  4000 Ekip Touch LSIG 1SDA071236R1 1SDA071866R1 1SDA072586R1 1SDA073216R1 E6.2H  4000 Ekip Hi-Touch LSI 1SDA071238R1 1SDA071868R1 1SDA072588R1 1SDA073218R1 E6.2H  4000 Ekip Hi-Touch LSIG 1SDA071239R1 1SDA071869R1 1SDA072589R1 1SDA073219R1  5000 100 100 E6.2H  5000 Ekip Dip LI 1SDA071261R1 1SDA071891R1 1SDA072611R1 1SDA073241R1 E6.2H  5000 Ekip Dip LSI 1SDA071262R1 1SDA071892R1 1SDA072612R1 1SDA073242R1 E6.2H  5000 Ekip Dip LSIG 1SDA071263R1 1SDA071893R1 1SDA072613R1 1SDA073243R1 E6.2H  5000 Ekip Touch LI 1SDA071264R1 1SDA071894R1 1SDA072614R1 1SDA073244R1 E6.2H  5000 Ekip Touch LSI 1SDA071265R1 1SDA071895R1 1SDA072615R1 1SDA073245R1 E6.2H  5000 Ekip Touch LSIG 1SDA071266R1 1SDA071896R1 1SDA072616R1 1SDA073246R1 E6.2H  5000 Ekip Hi-Touch LSI 1SDA071268R1 1SDA071898R1 1SDA072618R1 1SDA073248R1 E6.2H  5000 Ekip Hi-Touch LSIG 1SDA071269R1 1SDA071899R1 1SDA072619R1 1SDA073249R1  6300 100 100 E6.2H  6300 Ekip Dip LI 1SDA071291R1 1SDA071921R1 1SDA072641R1 1SDA073271R1 E6.2H  6300 Ekip Dip LSI 1SDA071292R1 1SDA071922R1 1SDA072642R1 1SDA073272R1 E6.2H  6300 Ekip Dip LSIG 1SDA071293R1 1SDA071923R1 1SDA072643R1 1SDA073273R1 E6.2H  6300 Ekip Touch LI 1SDA071294R1 1SDA071924R1 1SDA072644R1 1SDA073274R1 E6.2H  6300 Ekip Touch LSI 1SDA071295R1 1SDA071925R1 1SDA072645R1 1SDA073275R1 E6.2H  6300 Ekip Touch LSIG 1SDA071296R1 1SDA071926R1 1SDA072646R1 1SDA073276R1 E6.2H  6300 Ekip Hi-Touch LSI 1SDA071298R1 1SDA071928R1 1SDA072648R1 1SDA073278R1 E6.2H  6300 Ekip Hi-Touch LSIG 1SDA071299R1 1SDA071929R1 1SDA072649R1 1SDA073279R1 E6.2V  4000 150 100 E6.2V  4000 Ekip Dip LI 1SDA071241R1 1SDA071871R1 1SDA072591R1 1SDA073221R1 E6.2V  4000 Ekip Dip LSI 1SDA071242R1 1SDA071872R1 1SDA072592R1 1SDA073222R1 E6.2V  4000 Ekip Dip LSIG 1SDA071243R1 1SDA071873R1 1SDA072593R1 1SDA073223R1 E6.2V  4000 Ekip Touch LI 1SDA071244R1 1SDA071874R1 1SDA072594R1 1SDA073224R1 E6.2V  4000 Ekip Touch LSI 1SDA071245R1 1SDA071875R1 1SDA072595R1 1SDA073225R1 E6.2V  4000 Ekip Touch LSIG 1SDA071246R1 1SDA071876R1 1SDA072596R1 1SDA073226R1 E6.2V  4000 Ekip Hi-Touch LSI 1SDA071248R1 1SDA071878R1 1SDA072598R1 1SDA073228R1 E6.2V  4000 Ekip Hi-Touch LSIG 1SDA071249R1 1SDA071879R1 1SDA072599R1 1SDA073229R1  5000 150 100 E6.2V  5000 Ekip Dip LI 1SDA071271R1 1SDA071901R1 1SDA072621R1 1SDA073251R1 E6.2V  5000 Ekip Dip LSI 1SDA071272R1 1SDA071902R1 1SDA072622R1 1SDA073252R1 E6.2V  5000 Ekip Dip LSIG 1SDA071273R1 1SDA071903R1 1SDA072623R1 1SDA073253R1 E6.2V  5000 Ekip Touch LI 1SDA071274R1 1SDA071904R1 1SDA072624R1 1SDA073254R1 E6.2V  5000 Ekip Touch LSI 1SDA071275R1 1SDA071905R1 1SDA072625R1 1SDA073255R1 E6.2V  5000 Ekip Touch LSIG 1SDA071276R1 1SDA071906R1 1SDA072626R1 1SDA073256R1 E6.2V  5000 Ekip Hi-Touch LSI 1SDA071278R1 1SDA071908R1 1SDA072628R1 1SDA073258R1 E6.2V  5000 Ekip Hi-Touch LSIG 1SDA071279R1 1SDA071909R1 1SDA072629R1 1SDA073259R1  6300 150 100 E6.2V  6300 Ekip Dip LI 1SDA071301R1 1SDA071931R1 1SDA072651R1 1SDA073281R1 E6.2V  6300 Ekip Dip LSI 1SDA071302R1 1SDA071932R1 1SDA072652R1 1SDA073282R1 E6.2V  6300 Ekip Dip LSIG 1SDA071303R1 1SDA071933R1 1SDA072653R1 1SDA073283R1 E6.2V  6300 Ekip Touch LI 1SDA071304R1 1SDA071934R1 1SDA072654R1 1SDA073284R1 E6.2V  6300 Ekip Touch LSI 1SDA071305R1 1SDA071935R1 1SDA072655R1 1SDA073285R1 E6.2V  6300 Ekip Touch LSIG 1SDA071306R1 1SDA071936R1 1SDA072656R1 1SDA073286R1 E6.2V  6300 Ekip Hi-Touch LSI 1SDA071308R1 1SDA071938R1 1SDA072658R1 1SDA073288R1 E6.2V  6300 Ekip Hi-Touch LSIG 1SDA071309R1 1SDA071939R1 1SDA072659R1 1SDA073289R1

24 Air Circuit Breakers 0115  ABB Low Voltage 25  Air Circuit Breakers 0115  ABB Low Voltage Emax E6.2X Product Hierarchy 1700009 Order Code Size Iu  Icu (440 V) Icw(1s) Type Fixed Breaker Rear Connection (HR) Moving Portion (MP) 3 poles 4 poles 3 poles 4 poles E6.2X  4000 200 120 E6.2X  4000 Ekip Dip LI 1SDA071251R1 1SDA071881R1 1SDA072601R1 1SDA073231R1 E6.2X  4000 Ekip Dip LSI 1SDA071252R1 1SDA071882R1 1SDA072602R1 1SDA073232R1 E6.2X  4000 Ekip Dip LSIG 1SDA071253R1 1SDA071883R1 1SDA072603R1 1SDA073233R1 E6.2X  4000 Ekip Touch LI 1SDA071254R1 1SDA071884R1 1SDA072604R1 1SDA073234R1 E6.2X  4000 Ekip Touch LSI 1SDA071255R1 1SDA071885R1 1SDA072605R1 1SDA073235R1 E6.2X  4000 Ekip Touch LSIG 1SDA071256R1 1SDA071886R1 1SDA072606R1 1SDA073236R1 E6.2X  4000 Ekip Hi-Touch LSI 1SDA071258R1 1SDA071888R1 1SDA072608R1 1SDA073238R1 E6.2X  4000 Ekip Hi-Touch LSIG 1SDA071259R1 1SDA071889R1 1SDA072609R1 1SDA073239R1  5000 200 120 E6.2X  5000 Ekip Dip LI 1SDA071281R1 1SDA071911R1 1SDA072631R1 1SDA073261R1 E6.2X  5000 Ekip Dip LSI 1SDA071282R1 1SDA071912R1 1SDA072632R1 1SDA073262R1 E6.2X  5000 Ekip Dip LSIG 1SDA071283R1 1SDA071913R1 1SDA072633R1 1SDA073263R1 E6.2X  5000 Ekip Touch LI 1SDA071284R1 1SDA071914R1 1SDA072634R1 1SDA073264R1 E6.2X  5000 Ekip Touch LSI 1SDA071285R1 1SDA071915R1 1SDA072635R1 1SDA073265R1 E6.2X  5000 Ekip Touch LSIG 1SDA071286R1 1SDA071916R1 1SDA072636R1 1SDA073266R1 E6.2X  5000 Ekip Hi-Touch LSI 1SDA071288R1 1SDA071918R1 1SDA072638R1 1SDA073268R1 E6.2X  5000 Ekip Hi-Touch LSIG 1SDA071289R1 1SDA071919R1 1SDA072639R1 1SDA073269R1  6300 200 120 E6.2X  6300 Ekip Dip LI 1SDA071311R1 1SDA071941R1 1SDA072661R1 1SDA073291R1 E6.2X  6300 Ekip Dip LSI 1SDA071312R1 1SDA071942R1 1SDA072662R1 1SDA073292R1 E6.2X  6300 Ekip Dip LSIG 1SDA071313R1 1SDA071943R1 1SDA072663R1 1SDA073293R1 E6.2X  6300 Ekip Touch LI 1SDA071314R1 1SDA071944R1 1SDA072664R1 1SDA073294R1 E6.2X  6300 Ekip Touch LSI 1SDA071315R1 1SDA071945R1 1SDA072665R1 1SDA073295R1 E6.2X  6300 Ekip Touch LSIG 1SDA071316R1 1SDA071946R1 1SDA072666R1 1SDA073296R1 E6.2X  6300 Ekip Hi-Touch LSI 1SDA071318R1 1SDA071948R1 1SDA072668R1 1SDA073298R1 E6.2X  6300 Ekip Hi-Touch LSIG 1SDA071319R1 1SDA071949R1 1SDA072669R1 1SDA073299R1 Emax 2 power distribution ACBs   Type E6.2X

24 Air Circuit Breakers 0115  ABB Low Voltage 25  Air Circuit Breakers 0115  ABB Low Voltage Emax E6.2H/f Product Hierarchy 1700009 Order Code Size Iu Icu (440V) Icw (1s) Type  Fully Rated 4th Pole Fixed Breaker Rear Connection (HR) Moving Portion (MP) E6.2H/f  4000 100 100 E6.2H/f  4000 Ekip Dip LI 1SDA071951R1 1SDA073301R1 E6.2H/f  4000 Ekip Dip LSI 1SDA071952R1 1SDA073302R1 E6.2H/f  4000 Ekip Dip LSIG 1SDA071953R1 1SDA073303R1 E6.2H/f  4000 Ekip Touch LI 1SDA071954R1 1SDA073304R1 E6.2H/f  4000 Ekip Touch LSI 1SDA071955R1 1SDA073305R1 E6.2H/f  4000 Ekip Touch LSIG 1SDA071956R1 1SDA073306R1 E6.2H/f  4000 Ekip Hi-Touch LSI 1SDA071958R1 1SDA073308R1 E6.2H/f  4000 Ekip Hi-Touch LSIG 1SDA071959R1 1SDA073309R1  5000 100 100 E6.2H/f  5000 Ekip Dip LI 1SDA071981R1 1SDA073331R1 E6.2H/f  5000 Ekip Dip LSI 1SDA071982R1 1SDA073332R1 E6.2H/f  5000 Ekip Dip LSIG 1SDA071983R1 1SDA073333R1 E6.2H/f  5000 Ekip Touch LI 1SDA071984R1 1SDA073334R1 E6.2H/f  5000 Ekip Touch LSI 1SDA071985R1 1SDA073335R1 E6.2H/f  5000 Ekip Touch LSIG 1SDA071986R1 1SDA073336R1 E6.2H/f  5000 Ekip Hi-Touch LSI 1SDA071988R1 1SDA073338R1 E6.2H/f  5000 Ekip Hi-Touch LSIG 1SDA071989R1 1SDA073339R1  6300 100 100 E6.2H/f  6300 Ekip Dip LI 1SDA072011R1 1SDA073361R1 E6.2H/f  6300 Ekip Dip LSI 1SDA072012R1 1SDA073362R1 E6.2H/f  6300 Ekip Dip LSIG 1SDA072013R1 1SDA073363R1 E6.2H/f  6300 Ekip Touch LI 1SDA072014R1 1SDA073364R1 E6.2H/f  6300 Ekip Touch LSI 1SDA072015R1 1SDA073365R1 E6.2H/f  6300 Ekip Touch LSIG 1SDA072016R1 1SDA073366R1 E6.2H/f  6300 Ekip Hi-Touch LSI 1SDA072018R1 1SDA073368R1 E6.2H/f  6300 Ekip Hi-Touch LSIG 1SDA072019R1 1SDA073369R1 E6.2V/f  4000 150 100 E6.2V/f  4000 Ekip Dip LI 1SDA071961R1 1SDA073311R1 E6.2V/f  4000 Ekip Dip LSI 1SDA071962R1 1SDA073312R1 E6.2V/f  4000 Ekip Dip LSIG 1SDA071963R1 1SDA073313R1 E6.2V/f  4000 Ekip Touch LI 1SDA071964R1 1SDA073314R1 E6.2V/f  4000 Ekip Touch LSI 1SDA071965R1 1SDA073315R1 E6.2V/f  4000 Ekip Touch LSIG 1SDA071966R1 1SDA073316R1 E6.2V/f  4000 Ekip Hi-Touch LSI 1SDA071968R1 1SDA073318R1 E6.2V/f  4000 Ekip Hi-Touch LSIG 1SDA071969R1 1SDA073319R1  5000 150 100 E6.2V/f  5000 Ekip Dip LI 1SDA071991R1 1SDA073341R1 E6.2V/f  5000 Ekip Dip LSI 1SDA071992R1 1SDA073342R1 E6.2V/f  5000 Ekip Dip LSIG 1SDA071993R1 1SDA073343R1 E6.2V/f  5000 Ekip Touch LI 1SDA071994R1 1SDA073344R1 E6.2V/f  5000 Ekip Touch LSI 1SDA071995R1 1SDA073345R1 E6.2V/f  5000 Ekip Touch LSIG 1SDA071996R1 1SDA073346R1 E6.2V/f  5000 Ekip Hi-Touch LSI 1SDA071998R1 1SDA073348R1 E6.2V/f  5000 Ekip Hi-Touch LSIG 1SDA071999R1 1SDA073349R1  6300 150 100 E6.2V/f  6300 Ekip Dip LI 1SDA072021R1 1SDA073371R1 E6.2V/f  6300 Ekip Dip LSI 1SDA072022R1 1SDA073372R1 E6.2V/f  6300 Ekip Dip LSIG 1SDA072023R1 1SDA073373R1 E6.2V/f  6300 Ekip Touch LI 1SDA072024R1 1SDA073374R1 E6.2V/f  6300 Ekip Touch LSI 1SDA072025R1 1SDA073375R1 E6.2V/f  6300 Ekip Touch LSIG 1SDA072026R1 1SDA073376R1 E6.2V/f  6300 Ekip Hi-Touch LSI 1SDA072028R1 1SDA073378R1 E6.2V/f  6300 Ekip Hi-Touch LSIG 1SDA072029R1 1SDA073379R1 Emax 2 power distribution ACBs   Type E6.2H/V/f

26 Air Circuit Breakers 0115  ABB Low Voltage 27  Air Circuit Breakers 0115  ABB Low Voltage Emax E6.2X/f Product Hierarchy 1700009 Order Code Size Iu Icu (440V) Icw (1s) Type  Fully Rated 4th Pole Fixed Breaker Rear Connection (HR) Moving Portion (MP) E6.2X/f  4000 200 120 E6.2X/f  4000 Ekip Dip LI 1SDA071971R1 1SDA073321R1 E6.2X/f  4000 Ekip Dip LSI 1SDA071972R1 1SDA073322R1 E6.2X/f  4000 Ekip Dip LSIG 1SDA071973R1 1SDA073323R1 E6.2X/f  4000 Ekip Touch LI 1SDA071974R1 1SDA073324R1 E6.2X/f  4000 Ekip Touch LSI 1SDA071975R1 1SDA073325R1 E6.2X/f  4000 Ekip Touch LSIG 1SDA071976R1 1SDA073326R1 E6.2X/f  4000 Ekip Hi-Touch LSI 1SDA071978R1 1SDA073328R1 E6.2X/f  4000 Ekip Hi-Touch LSIG 1SDA071979R1 1SDA073329R1  5000 200 120 E6.2X/f  5000 Ekip Dip LI 1SDA072001R1 1SDA073351R1 E6.2X/f  5000 Ekip Dip LSI 1SDA072002R1 1SDA073352R1 E6.2X/f  5000 Ekip Dip LSIG 1SDA072003R1 1SDA073353R1 E6.2X/f  5000 Ekip Touch LI 1SDA072004R1 1SDA073354R1 E6.2X/f  5000 Ekip Touch LSI 1SDA072005R1 1SDA073355R1 E6.2X/f  5000 Ekip Touch LSIG 1SDA072006R1 1SDA073356R1 E6.2X/f  5000 Ekip Hi-Touch LSI 1SDA072008R1 1SDA073358R1 E6.2X/f  5000 Ekip Hi-Touch LSIG 1SDA072009R1 1SDA073359R1  6300 200 120 E6.2X/f  6300 Ekip Dip LI 1SDA072031R1 1SDA073381R1 E6.2X/f  6300 Ekip Dip LSI 1SDA072032R1 1SDA073382R1 E6.2X/f  6300 Ekip Dip LSIG 1SDA072033R1 1SDA073383R1 E6.2X/f  6300 Ekip Touch LI 1SDA072034R1 1SDA073384R1 E6.2X/f  6300 Ekip Touch LSI 1SDA072035R1 1SDA073385R1 E6.2X/f  6300 Ekip Touch LSIG 1SDA072036R1 1SDA073386R1 E6.2X/f  6300 Ekip Hi-Touch LSI 1SDA072038R1 1SDA073388R1 E6.2X/f  6300 Ekip Hi-Touch LSIG 1SDA072039R1 1SDA073389R1 Emax 2 power distribution ACBs   Type E6.2X/f

26 Air Circuit Breakers 0115  ABB Low Voltage 27  Air Circuit Breakers 0115  ABB Low Voltage Emax E1.2B-N/MS Product Hierarchy 1700009 Order Code Size Iu Icw (1s) Type Fixed Breaker Rear Connection (HR) Moving Portion (MP) 3 poles 4 poles 3 poles 4 poles E1.2B/MS  630  42 E1.2B/MS  630   1SDA073392R1 1SDA073431R1 1SDA073476R1 1SDA073515R1  800  42 E1.2B/MS  800   1SDA073394R1 1SDA073433R1 1SDA073478R1 1SDA073517R1  1000 42 E1.2B/MS  1000  1SDA073396R1 1SDA073435R1 1SDA073480R1 1SDA073519R1  1250 42 E1.2B/MS  1250  1SDA073398R1 1SDA073437R1 1SDA073482R1 1SDA073521R1  1600 42 E1.2B/MS  1600  1SDA073400R1 1SDA073439R1 1SDA073484R1 1SDA073523R1 E1.2N/MS  250  50 E1.2N/MS  250   1SDA073391R1 1SDA073430R1 1SDA073475R1 1SDA073514R1  630  50 E1.2N/MS  630   1SDA073393R1 1SDA073432R1 1SDA073477R1 1SDA073516R1  800  50 E1.2N/MS  800   1SDA073395R1 1SDA073434R1 1SDA073479R1 1SDA073518R1  1000 50 E1.2N/MS  1000  1SDA073397R1 1SDA073436R1 1SDA073481R1 1SDA073520R1  1250 50 E1.2N/MS  1250  1SDA073399R1 1SDA073438R1 1SDA073483R1 1SDA073522R1  1600 50 E1.2N/MS  1600  1SDA073401R1 1SDA073440R1 1SDA073485R1 1SDA073524R1 E2.2B-N-H/MS E2.2B/MS  1600 42 E2.2B/MS  1600  1SDA073408R1 1SDA073447R1 1SDA073492R1 1SDA073531R1  2000 42 E2.2B/MS  2000  1SDA073411R1 1SDA073450R1 1SDA073495R1 1SDA073534R1 E2.2N/MS  800  66 E2.2N/MS  800   1SDA073402R1 1SDA073441R1 1SDA073486R1 1SDA073525R1  1000 66 E2.2N/MS  1000  1SDA073404R1 1SDA073443R1 1SDA073488R1 1SDA073527R1  1250 66 E2.2N/MS  1250  1SDA073406R1 1SDA073445R1 1SDA073490R1 1SDA073529R1  1600 66 E2.2N/MS  1600  1SDA073409R1 1SDA073448R1 1SDA073493R1 1SDA073532R1  2000 66 E2.2N/MS  2000  1SDA073412R1 1SDA073451R1 1SDA073496R1 1SDA073535R1  2500 66 E2.2N/MS  2500  1SDA073414R1 1SDA073453R1 1SDA073498R1 1SDA073537R1 E2.2H/MS  800  85 E2.2H/MS  800   1SDA073403R1 1SDA073442R1 1SDA073487R1 1SDA073526R1  1000 85 E2.2H/MS  1000  1SDA073405R1 1SDA073444R1 1SDA073489R1 1SDA073528R1  1250 85 E2.2H/MS  1250  1SDA073407R1 1SDA073446R1 1SDA073491R1 1SDA073530R1  1600 85 E2.2H/MS  1600  1SDA073410R1 1SDA073449R1 1SDA073494R1 1SDA073533R1  2000 85 E2.2H/MS  2000  1SDA073413R1 1SDA073452R1 1SDA073497R1 1SDA073536R1  2500 85 E2.2H/MS  2500  1SDA073415R1 1SDA073454R1 1SDA073499R1 1SDA073538R1 Switch disconnectors   Type E1& E2  E1 E2

28 Air Circuit Breakers 0115  ABB Low Voltage 29  Air Circuit Breakers 0115  ABB Low Voltage Emax E4.2N-H-V Product Hierarchy 1700009 Order Code Size Iu Icw (1s) Type Fixed Breaker Rear Connection (HR) Moving Portion (MP) 3 poles 4 poles 3 poles 4 poles E4.2N/MS  3200 66 E4.2N/MS  3200  1SDA073418R1 1SDA073457R1 1SDA073502R1 1SDA073541R1  4000 66 E4.2N/MS  4000  1SDA073421R1 1SDA073460R1 1SDA073505R1 1SDA073544R1 E4.2H/MS  3200 85 E4.2H/MS  3200  1SDA073419R1 1SDA073458R1 1SDA073503R1 1SDA073542R1  4000 85 E4.2H/MS  4000  1SDA073422R1 1SDA073461R1 1SDA073506R1 1SDA073545R1 E4.2V/MS  2000 100 E4.2V/MS  2000  1SDA073416R1 1SDA073455R1 1SDA073500R1 1SDA073539R1  2500 100 E4.2V/MS  2500  1SDA073417R1 1SDA073456R1 1SDA073501R1 1SDA073540R1  3200 100 E4.2V/MS  3200  1SDA073420R1 1SDA073459R1 1SDA073504R1 1SDA073543R1  4000 100 E4.2V/MS  4000  1SDA073423R1 1SDA073462R1 1SDA073507R1 1SDA073546R1 Emax E6.2H-X/MS E6.2H/MS  4000 100 E6.2H/MS  4000  1SDA073424R1 1SDA073463R1 1SDA073508R1 1SDA073547R1  5000 100 E6.2H/MS  5000  1SDA073426R1 1SDA073465R1 1SDA073510R1 1SDA073549R1  6300 100 E6.2H/MS  6300  1SDA073428R1 1SDA073467R1 1SDA073512R1 1SDA073551R1 E6.2X/MS  4000 120 E6.2X/MS  4000  1SDA073425R1 1SDA073464R1 1SDA073509R1 1SDA073548R1  5000 120 E6.2X/MS  5000  1SDA073427R1 1SDA073466R1 1SDA073511R1 1SDA073550R1  6300 120 E6.2X/MS  6300  1SDA073429R1 1SDA073468R1 1SDA073513R1 1SDA073552R1 Emax E6.2H-X/MS/f Full size Size Iu Icw (1s) Type  Fully Rated 4th Pole Product Hierarchy 1700009 Order Code Fixed Breaker Rear Connection (HR) Moving Portion (MP) E6.2H/MS/f  4000 100 E6.2H/MS/f  4000  1SDA073469R1 1SDA073553R1  5000 100 E6.2H/MS/f  5000  1SDA073471R1 1SDA073555R1  6300 100 E6.2H/MS/f  6300  1SDA073473R1 1SDA073557R1 E6.2X/MS/f  4000 120 E6.2X/MS/f  4000  1SDA073470R1 1SDA073554R1  5000 120 E6.2X/MS/f  5000  1SDA073472R1 1SDA073556R1  6300 120 E6.2X/MS/f  6300  1SDA073474R1 1SDA073558R1 E4 E6 Switch disconnectors   Type E4 & E6

28 Air Circuit Breakers 0115  ABB Low Voltage 29  Air Circuit Breakers 0115  ABB Low Voltage Emax 2 power distribution ACBs   Fixed parts Size Performance Iu Type of terminal Type Product Hierarchy 2900004 Order Code 3 pole 4 pole E1.2 B, C, N, L 1600 HR - HR E1.2 W FP Iu=1600  HR HR 1SDA073907R1 1SDA073908R1 E2.2 B, N, S, H 2000 HR - HR E2.2 W FP Iu=2000  HR HR 1SDA073909R1 1SDA073910R1 E2.2 N, S, H 2500 HR - HR E2.2 W FP Iu=2500  HR HR 1SDA073911R1 1SDA073912R1 E4.2 N, S, H 3200 HR - HR E4.2 W FP Iu=3200  HR HR 1SDA073913R1 1SDA073914R1 E4.2 N, S, H, V 4000 HR - HR E4.2 W FP Iu=4000 ou version V HR HR 1SDA073915R1 1SDA073916R1 E6.2 H, V 5000 HR - HR E6.2 W FP Iu=5000  HR HR 1SDA073917R1 1SDA073918R1 E6.2/f H, V 5000 HR - HR E6.2 W FP Iu=5000  HR HR 1SDA073919R1 E6.2  H, V, X 6300 HR - HR E6.2X W FP Iu=6300 ou X HR HR version 1SDA073920R1 1SDA073921R1 E6.2/f  H, V, X 6300 HR - HR E6.2 W FP Iu=6300 ou X HR HR version 1SDA073922R1

30 Air Circuit Breakers 0115  ABB Low Voltage 31  Air Circuit Breakers 0115  ABB Low Voltage Emax 2 power distribution ACBs   Electrical accessories  First and second opening release - YO Product Hierarchy 2900004 Order Code Size Type E1.2..E6.2 YO  E1.2..E6.2 24V AC/DC 1SDA073668R1 E1.2..E6.2 YO  E1.2..E6.2 30V AC/DC 1SDA073669R1 E1.2..E6.2 YO  E1.2..E6.2 48V AC/DC 1SDA073670R1 E1.2..E6.2 YO  E1.2..E6.2 60V AC/DC 1SDA073671R1 E1.2..E6.2 YO  E1.2..E6.2 110-120V AC/DC 1SDA073672R1 E1.2..E6.2 YO  E1.2..E6.2 120-127V AC/DC 1SDA073673R1 E1.2..E6.2 YO  E1.2..E6.2 220-240V AC/DC 1SDA073674R1 E1.2..E6.2 YO  E1.2..E6.2 240-250V AC/DC 1SDA073675R1 E1.2..E6.2 YO  E1.2..E6.2 380-400V AC 1SDA073677R1 E1.2..E6.2 YO  E1.2..E6.2 415-440V AC 1SDA073678R1 E1.2..E6.2 YO  E1.2..E6.2 480-500V AC 1SDA073679R1 E1.2..E6.2 YO  E1.2..E6.2 500-550V AC 1SDA073680R1 First and second opening release - YC E1.2..E6.2 YC  E1.2..E6.2 24V AC/DC 1SDA073681R1 E1.2..E6.2 YC  E1.2..E6.2 30V AC/DC 1SDA073682R1 E1.2..E6.2 YC  E1.2..E6.2 48V AC/DC 1SDA073683R1 E1.2..E6.2 YC  E1.2..E6.2 60V AC/DC 1SDA073684R1 E1.2..E6.2 YC  E1.2..E6.2 110-120V AC/DC 1SDA073685R1 E1.2..E6.2 YC  E1.2..E6.2 120-127V AC/DC 1SDA073686R1 E1.2..E6.2 YC  E1.2..E6.2 220-240V AC/DC 1SDA073687R1 E1.2..E6.2 YC  E1.2..E6.2 240-250V AC/DC 1SDA073688R1 E1.2..E6.2 YC  E1.2..E6.2 380-400V AC 1SDA073690R1 E1.2..E6.2 YC  E1.2..E6.2 415-440V AC 1SDA073691R1 E1.2..E6.2 YC  E1.2..E6.2 480-500V AC 1SDA073692R1 E1.2..E6.2 YC  E1.2..E6.2 500-550V AC 1SDA073693R1 YO/YC test unit E1.2...E6.2 YO/YC test unit  E1.2...E6.2 1SDA073707R1 Undervoltage release - YU E1.2..E6.2 YU E1.2..E6.2 24V AC/DC 1SDA073694R1 E1.2..E6.2 YU E1.2..E6.2 30V AC/DC 1SDA073695R1 E1.2..E6.2 YU E1.2..E6.2 48V AC/DC 1SDA073696R1 E1.2..E6.2 YU E1.2..E6.2 60V AC/DC 1SDA073697R1 E1.2..E6.2 YU E1.2..E6.2 110-120V AC/DC 1SDA073698R1 E1.2..E6.2 YU E1.2..E6.2 120-127V AC/DC 1SDA073699R1 E1.2..E6.2 YU E1.2..E6.2 220-240V AC/DC 1SDA073700R1 E1.2..E6.2 YU E1.2..E6.2 240-250V AC/DC 1SDA073701R1 E1.2..E6.2 YU E1.2..E6.2 380-400V AC 1SDA073703R1 E1.2..E6.2 YU E1.2..E6.2 415-440V AC 1SDA073704R1 E1.2..E6.2 YU E1.2..E6.2 480-500V AC 1SDA073705R1 E1.2..E6.2 YU E1.2..E6.2 500-550V AC 1SDA073706R1 Electronic time-delay device for undervoltage release - UVD E1.2...E6.2 24...30V DC 1SDA074623R1 E1.2...E6.2 48V AC/DC 1SDA074624R1 E1.2...E6.2 60V AC/DC 1SDA074625R1 E1.2...E6.2 110...127V AC/DC 1SDA074626R1 E1.2...E6.2 220...250V AC/DC    1SDA074627R1

30 Air Circuit Breakers 0115  ABB Low Voltage 31  Air Circuit Breakers 0115  ABB Low Voltage Emax 2 power distribution ACBs   Electrical accessories  Remote Reset - YR Product Hierarchy 2900004 Order Code Size Type E1.2 YR 24V DC E1.2 1SDA073744R1 E1.2 YR 110V AC/DC E1.2 1SDA073745R1 E1.2 YR 250V AC/DC E1.2 1SDA073746R1 E2.2...E6.2 YR 24V AC/DC E2.2...E6.2 1SDA073747R1 E2.2...E6.2 YR 110V AC/DC E2.2...E6.2 1SDA073748R1 E2.2...E6.2 YR 220V AC/DC E2.2...E6.2 1SDA073749R1 when YR is used in DC, the activation of YR must be done with a maximum impulse time of 50ms. The YR cannot be powered permanently. Motor - M E1.2 M  E1.2 24-30V AC/DC 1SDA073708R1 E1.2 M  E1.2 48-60V AC/DC 1SDA073709R1 E1.2 M  E1.2 100-130V AC/DC 1SDA073710R1 E1.2 M  E1.2 220-250V AC/DC 1SDA073711R1 E1.2 M  E1.2 380-415V AC 1SDA073713R1 E2.2...E6.2 M  E2.2...E6.2 24-30V AC/DC 1SDA073722R1 E2.2...E6.2 M  E2.2...E6.2 48-60V AC/DC 1SDA073723R1 E2.2...E6.2 M  E2.2...E6.2 100-130V AC/DC 1SDA073724R1 E2.2...E6.2 M  E2.2...E6.2 220-250V AC/DC 1SDA073725R1 E2.2...E6.2 M  E2.2...E6.2 380-415V AC 1SDA073727R1 E2.2...E6.2 M  E2.2...E6.2 440-480V AC 1SDA073728R1 E1.2 M  E1.2 24-30V AC/DC + S33 M/2 24V DC 1SDA073715R1 E1.2 M  E1.2 48-60V AC/DC + S33 M/2 24V DC 1SDA073716R1 E1.2 M  E1.2 100-130V AC/DC + S33 M/2 24V DC 1SDA073717R1 E1.2 M  E1.2 220-250V AC/DC + S33 M/2 24V DC 1SDA073718R1 E1.2 M  E1.2 380-415V AC + S33 M/2 24V DC 1SDA073720R1 E2.2...E6.2 M  E2.2...E6.2 24-30V AC/DC + S33 M/2 24V DC 1SDA073729R1 E2.2...E6.2 M  E2.2...E6.2 48-60V AC/DC + S33 M/2 24V DC 1SDA073730R1 E2.2...E6.2 M  E2.2...E6.2 100-130V AC/DC + S33 M/2 24V DC 1SDA073731R1 E2.2...E6.2 M  E2.2...E6.2 220-250V AC/DC + S33 M/2 24V DC 1SDA073732R1 E2.2...E6.2 M  E2.2...E6.2 380-415V AC + S33 M/2 24V DC 1SDA073734R1 E2.2...E6.2 M  E2.2...E6.2 440-480V AC + S33 M/2 24V DC 1SDA073735R1 Current sensor for neutral conductor outside the circuit-breaker E1.2 Ext CS N E1.2 E2.2 2000A 1SDA073736R1 E2.2 Ext CS N E2.2 2500A 1SDA073737R1 E4.2 Ext CS N E4.2 3200A 1SDA073738R1 E6.2 Ext CS N E4.2 4000A E6.2 50% 1SDA073739R1 E6.2 Ext CS N E6.2 1SDA073740R1 Homopolar toroid for the earthing conductor of main power supply E1.2..E6.2 Homopolar toroid E1.2 … E6.2 1SDA073743R1 Toroid for differential protection E1.2 - E2.2 3p Toroid RC E1.2, E2.2 3p 1SDA073741R1 E2.2 4p - E4.2 Toroid RC E2.2 4p, E4.2 1SDA073742R1

32 Air Circuit Breakers 0115  ABB Low Voltage 33  Air Circuit Breakers 0115  ABB Low Voltage Open/closed auxiliary contacts - AUX Product Hierarchy 2900004 Order Code Taille Type E1.2 AUX 4Q 400V E1.2 1SDA073750R1 E1.2 AUX 4Q 24V E1.2 1SDA073751R1 E1.2 AUX 2Q 400V + 2Q 24V E1.2 1SDA073752R1 E2.2...E6.2 AUX 4Q 400V E2.2...E6.2 1SDA073753R1 E2.2...E6.2 AUX 4Q 24V E2.2...E6.2 1SDA073754R1 E2.2...E6.2 AUX 2Q 400V + 2Q 24V E2.2...E6.2 1SDA073755R1 E2.2...E6.2 AUX 6Q 400V E2.2...E6.2 1SDA073756R1 E2.2...E6.2 AUX 6Q 24V E2.2...E6.2 1SDA073757R1 E2.2...E6.2 AUX 3Q 400V AC + 3Q 24V DC E2.2...E6.2 1SDA075973R1 E1.2 AUX 15Q 400V E1.2 1SDA073758R1 E1.2 AUX 15Q 24V E1.2 1SDA073759R1 E2.2...E6.2 AUX 15Q 400V (for fixed/withdrawable with signalling in racked in) E2.2..E6.2 1SDA073760R1 E2.2...E6.2 AUX 15Q 24V (for fixed/withdrawable with signalling in racked in) E2.2..E6.2 1SDA073761R1 E2.2...E6.2 AUX 15Q 400V (for fixed/withdrawable with signalling in racked in/test isolated) E2.2..E6.2 1SDA073846R1 E2.2...E6.2 AUX 15Q 24V (for fixes /débrochables avec signalization de embroché/essai)  E2.2..E6.2 1SDA073847R1 not compatible with mechanical locks on compartment doors or mechanical interlocks. For E1.2 you need to order also one of the following items: Plate for fixed  Plate for fixed - on bottom  Plate for withdrawable 1SDA062129R1 1SDA062130R1 1SDA062131R1 Auxiliary position contacts - AUP Size Type Product Hierarchy 2900004 Order Code E1.2 AUP 6 contacts 400V E1.2 1SDA073762R1 E1.2 AUP 6 contacts 24V E1.2 1SDA073763R1 E2.2...E6.2 AUP 5 contacts 400V E2.2...E6.2 - côté gauche 1SDA073764R1 E2.2...E6.2 AUP 5 contacts 24V E2.2...E6.2 - côté gauche 1SDA073765R1 E2.2...E6.2 AUP 5 suppl. contacts 400V E2.2...E6.2 - côté droite 1SDA073766R1 E2.2...E6.2 AUP 5 suppl. contacts 24V E2.2...E6.2 - côté droite 1SDA073767R1 E1.2...E6.2 AUX 15Q 24V (for fixed/withdrawable with signalling in racked in/test isolated) E2.2..E6.2 1SDA073768R1 Ready to close signalling contact-RTC E1.2 RTC 250V E1.2 1SDA073770R1 E1.2 RTC 24V E1.2 1SDA073771R1 E1.2 RTC Ekip 24V E1.2 1SDA073772R1 E2.2...E6.2 RTC 250V E2.2...E6.2 1SDA073773R1 E2.2...E6.2 RTC 24V E2.2...E6.2 1SDA073774R1 E2.2...E6.2 RTC Ekip 24V E2.2...E6.2 1SDA073775R1 Contact signalling tripping of Ekip protection trip unit - S51 E1.2 S51 250V E1.2 1SDA073776R1 E1.2 S51 24V E1.2 1SDA073777R1 E2.2...E6.2 S51 250V E2.2...E6.2 1SDA073778R1 E2.2...E6.2 S51 24V E2.2...E6.2 1SDA073779R1 Terminals for auxiliary connection E1.2..E6.2 Prices 10 pieces 1SDA073906R1 Emax 2 power distribution ACBs   Electrical accessories

32 Air Circuit Breakers 0115  ABB Low Voltage 33  Air Circuit Breakers 0115  ABB Low Voltage Mechanical operation counter - MOC Product Hierarchy 2900004 Order Code Size Type E1.2 MOC Mechanical operation counter 1SDA073780R1 E2.2...E6.2 MOC Mechanical operation counter  1SDA073781R1 Key lock in open position - KLC E1.2 E1.2 KLC-D Bl. Key lock open E1.2 1SDA073782R1 E1.2 E1.2 KLC-S Bl. Key lock open N.20005 E1.2 1SDA073783R1 E1.2 E1.2 KLC-S Bl. Key lock open N.20006 E1.2 1SDA073784R1 E1.2 E1.2 KLC-S Bl. Key lock open N.20007 E1.2 1SDA073785R1 E1.2 E1.2 KLC-S Bl. Key lock open N.20008 E1.2 1SDA073786R1 E1.2 E1.2 KLC-S Bl. Key lock open N.20009 E1.2 1SDA073787R1 E1.2 E1.2 KLA Bl. Castell key lock open E1.2 1SDA073788R1 E1.2 E1.2 KLA Bl. Kirk key lock open E1.2 1SDA073789R1 E1.2 E1.2 KLA Bl. Ronis Profalux key lock open 1SDA073790R1 E2.2...E6.2 E2.2...E6.2 KLC-D Bl. Key lock open E2.2...E6.2 1SDA073791R1 E2.2...E6.2 E2.2...E6.2 KLC-S Bl. key lock AP N.20005 E2.2..E6.2 1SDA073792R1 E2.2...E6.2 E2.2...E6.2 KLC-S Bl. key lock AP N.20006 E2.2..E6.2 1SDA073793R1 E2.2...E6.2 E2.2...E6.2 KLC-S Bl. key lock AP N.20007 E2.2..E6.2 1SDA073794R1 E2.2...E6.2 E2.2...E6.2 KLC-S Bl. key lock AP N.20008 E2.2..E6.2 1SDA073795R1 E2.2...E6.2 E2.2...E6.2 KLC-S Bl. key lock AP N.20009 E2.2..E6.2 1 1SDA073796R1 E2.2...E6.2 E2.2...E6.2 KLA Bl. Castell key lock open E2.2...E6.2 1SDA073797R1 E2.2...E6.2 KLA Bl. Kirk key lock open E2.2..E6.2 1SDA073798R1 E2.2...E6.2 KLA Bl. Ronis Profalux key lock open E2.2..E6.2 1SDA073799R1 Padlocks in open position - PLC E1.2 PLC E1.2 Bl. Padlocks in open position D=4mm 1SDA073800R1 E1.2 PLC E1.2 Bl. Padlocks in open position D=7mm 1SDA073801R1 E1.2 PLC E1.2 Bl. Padlocks in open position D=8mm 1SDA073802R1 E2.2...E6.2 PLC E2.2..E6.2 Bl. Padlocks in open position D=4mm 1SDA073803R1 E2.2...E6.2 PLC E2.2..E6.2 Bl. Padlocks in open position D=7mm 1SDA073804R1 E2.2...E6.2 PLC E2.2..E6.2 Bl. Padlocks in open position D=8mm 1SDA073805R1 Emax 2 power distribution ACBs   Mechanical accessories

34 Air Circuit Breakers 0115  ABB Low Voltage 35  Air Circuit Breakers 0115  ABB Low Voltage Key lock in racked-in / test / racked-out position- KLP Product Hierarchy 2900004 Order Code Size Type E1.2 KLC-D Racked in/out E1.2 - 1st key 1SDA073822R1 E1.2 KLP-S Racked in/out N.20005 E1.2 - 1st key 1SDA073823R1 E1.2 KLP-S Racked in/out N.20006 E1.2 - 1st key 1SDA073824R1 E1.2 KLP-S Racked in/out N.20007 E1.2 - 1st key 1SDA073825R1 E1.2 KLP-S Racked in/out N.20008 E1.2 - 1st key 1SDA073826R1 E1.2 KLP-S Racked in/out N.20009 E1.2 - 1st key 1SDA073827R1 E1.2 KLP-D Racked in/out E1.2 - 2nd key 1SDA073828R1 E1.2 KLP-S Racked in/out N.20005 E1.2 - 2nd key 1SDA073829R1 E1.2 KLP-S Racked in/out N.20006 E1.2 - 2nd key 1SDA073830R1 E1.2 KLP-S Racked in/out N.20007 E1.2 - 2nd key 1SDA073831R1 E1.2 KLP-S Racked in/out N.20008 E1.2 - 2nd key 1SDA073832R1 E1.2 KLP-S Racked in/out N.20009 E1.2 - 2nd key 1SDA073833R1 E1.2 KLP-A Racked in/out RonProf Kirk E1.2 - 1st key 1SDA073834R1 E1.2 KLP-A Racked in/out RonProf Kirk E1.2 - 2nd key 1SDA073835R1 E1.2 KLP-A Racked in/out Castell E1.2 - 1st key 1SDA073836R1 E1.2 KLP-A Racked in/out Castell E1.2 - 2nd key 1SDA073837R1 E2.2...E6.2 KLP-D Racked in/out E2.2...E6.2 - 1st key 1SDA073806R1 E2.2...E6.2 KLP-S Racked in/out N.20005 E2.2...E6.2 - 1st key 1SDA073807R1 E2.2...E6.2 KLP-S Racked in/out N.20006 E2.2...E6.2 - 1st key 1SDA073808R1 E2.2...E6.2 KLP-S Racked in/out N.20007 E2.2...E6.2 - 1st key 1SDA073809R1 E2.2...E6.2 KLP-S Racked in/out N.20008 E2.2...E6.2 - 1st key 1SDA073810R1 E2.2...E6.2 KLP-S Racked in/out N.20009 E2.2...E6.2 - 1st key 1SDA073811R1 E2.2...E6.2 KLP-D Racked in/out E2.2...E6.2 - 2nd key 1SDA073812R1 E2.2...E6.2 KLP-S Racked in/out N.20005 E2.2...E6.2 - 2nd key 1SDA073813R1 E2.2...E6.2 KLP-S Racked in/out N.20006 E2.2...E6.2 - 2nd key 1SDA073814R1 E2.2...E6.2 KLP-S Racked in/out N.20007 E2.2...E6.2 - 2nd key 1SDA073815R1 E2.2...E6.2 KLP-S Racked in/out N.20008 E2.2...E6.2 - 2nd key 1SDA073816R1 E2.2...E6.2 KLP-S Racked in/out N.20009 E2.2...E6.2 - 2nd key 1SDA073817R1 E2.2...E6.2 KLP-A Racked in/out  RoProKirk E2.2..E6.2 - 1st key 1SDA073818R1 E2.2...E6.2 KLP-A Racked in/out  RoProKirk E2.2..E6.2 - 2nd key 1SDA073819R1 E2.2...E6.2 KLP-A Racked in/out Castell E2.2..E6.2E1.2 - 1st key 1SDA073820R1 E2.2...E6.2 KLP-A Racked in/out  Castell E2.2..E6.2 - 2nd key 1SDA073821R1 When the PLP is already present, you have to order the KLP 2nd key and not the KLP 1st key Accessory for supplementary lock in racked-out position E1.2 Suppl. locks in racked-out E1.2 1SDA073838R1 E2.2...E6.2 Suppl. locks in racked-out E2.2...E6.2 1SDA073839R1 Padlock in racked-in / test / racked-out position - PLP E1.2 PLP Bl. padlocks Racked in/out D=4/6/8mm E1.2 1SDA073840R1 E2.2...E6.2 PLP Bl. padlocks Racked in/out D=4/6/8mm E2.2..E6.2 1SDA073841R1 External shutter lock- SLE E2.2 SLE Bl. shutter lock D=4/6/8mm E2.2 1SDA073842R1 E4.2 SLE Bl. shutter lock D=4/6/8mm E4.2 1SDA073843R1 E6.2 SLE Bl. shutter lock D=4/6/8mm E6.2 1SDA073844R1 Emax 2 power distribution ACBs   Mechanical accessories

34 Air Circuit Breakers 0115  ABB Low Voltage 35  Air Circuit Breakers 0115  ABB Low Voltage Full range of product  and technical  information place  this part number in  a search engine and  download1SDC200009D0203 Key lock in racked-in / test / racked-out position- KLP Product Hierarchy 2900004 Order Code Size Type E2.2...E6.2 DLR E2.2..E6.2 1SDA073845R1 Lock to prevent door opening when circuit-breaker is in racked-in / test position - DLP E2.2...E6.2 DLP E2.2...E6.2 1SDA073849R1 Lock to prevent door opening when circuit-breaker is in closed position - DLC E1.2 DLC Interlock cable door cable  E1.2 1SDA073850R1 E1.2 DLC Interlock direct door E1.2 1SDA073851R1 E2.2...E6.2 DLC Interlock cable door cable   E2.2...E6.2 1SDA073852R1 E2.2...E6.2 LC Interlock direct door E2.2...E6.2 1SDA073853R1 Protection device for opening and closing pushbuttons - PBC E1.2 PPBC Prot. Pushbuttons AP/CH E1.2 1SDA073854R1 E1.2 PPBC Prot. Pushbuttons AP/CH D=4mm E1.2 1SDA073855R1 E1.2 PPBC Prot. Pushbuttons AP/CH D=7mm E1.2 1SDA073856R1 E1.2 PPBC Prot. Pushbuttons AP/CH D=8mm E1.2 1SDA073857R1 E2.2...E6.2 PPBC Prot. Pushbuttons AP/CH E2.2...E6.2 1SDA073858R1 E2.2...E6.2 PPBC Prot. Pushbuttons AP/CH D=4mm E2.2..E6.2 1SDA073859R1 E2.2...E6.2 PPBC Prot. Pushbuttons AP/CH D=7mm E2.2..E6.2 1SDA073860R1 E2.2...E6.2 PPBC Prot. Pushbuttons AP/CH D=8mm E2.2..E6.2 1SDA073861R1 Circuit-breaker flange E1.2 IP30 Flange E1.2 F 1SDA073862R1 E1.2 IP30 Flange E1.2 W 1SDA073863R1 E2.2...E6.2 IP30 Flange E2.2...E6.2 F 1SDA073864R1 E2.2...E6.2 IP30 Flange E2.2...E6.2 W 1SDA073865R1 E1.2 Flange IP54 different keys E1.2 1SDA073866R1 E2.2...E6.2 Flange IP54 different keys E2.2...E6.2 1SDA073867R1 E1.2 Flange IP54 keys N. 20005 E1.2 1SDA073868R1 E2.2...E6.2 Flange IP54 keys  N.20005 E2.2...E6.2 1SDA073869R1 E2.2...E6.2 Sealable trip unit cover 1SDA073870R1 High or low terminal covers- HTC/LTC 3 poles 4 poles E1.2 HTC high terminal covers E1.2 2pcs 1SDA073871R1 1SDA073872R1 E1.2 E1.2 LTC low terminal covers E1.2 F 2pcs 1SDA073873R1 1SDA073874R1 Separators - PB E1.2 PB Separators H=100mm 4pcs E1.2 F 3P 1SDA073877R1 E1.2 PB Separators H=100mm 6pcs E1.2 F 4P 1SDA073878R1 E1.2 PB Separators H=200mm 4pcs E1.2 F 3P 1SDA073879R1 E1.2 PB Separators H=200mm 6pcs E1.2 F 4P 1SDA073880R1 E1.2 PB Separators 2 pz E1.2 W FP 3P 1SDA076164R1 E1.2 PB Separators 3 pz E1.2 W FP 4P 1SDA076165R1 E2.2...E6.2 PB Separators 2 pz E2.2..E6.2 F 3P 1SDA076166R1 E2.2...E6.2 PB Separators 3 pz E2.2..E6.2 F 4P 1SDA076167R1 E2.2...E6.2 PB Separators 2 pz E2.2..E6.2 W FP 3P 1SDA076168R1 E2.2...E6.2 PB Separators 3 pz E2.2..E6.2 W FP 4P 1SDA076169R1 Emax 2 power distribution ACBs   Mechanical accessories

36 Air Circuit Breakers 0115  ABB Low Voltage 37  Air Circuit Breakers 0115  ABB Low Voltage Full range of product  and technical  information place  this part number in  a search engine and  download1SDC200009D0203 Cables for mechanical interlock [Group 1] Product Hierarchy 2900004 Order Code Size Type E1.2..E6.2 Type A  horizontal  1SDA073881R1 E2.2..E6.2 Type B,C,D horizontal 1SDA073882R1 E1.2..E6.2 Type A vertical  1SDA073885R1 E2.2..E6.2 Type B,C,D vertical 1SDA073886R1 Order one type of cable for each interlock. The cable must be ordered on the fixed circuit-breaker or on the fixed part of withdrawable circuit-breaker. Lever for mechanical interlock of fixed circuit-breaker or mobile part [Group 2] Taille Type 3 Pôles 4 Pôles E2.2 Lever for mechanical interlock 1SDA073889R1 1SDA073889R1 E4.2 Lever for mechanical interlock 1SDA073890R1 1SDA073890R1 E6.2 Lever for mechanical interlock 1SDA073891R1 1SDA073892R1 The lever for mechanical interlock is not required for E1.2 Support for mechanical interlock of fixed circuit-breaker [Group 3] E1.2  Type A 1SDA073893R1 E1.2  Type A - installé sur plaque de fond 1SDA073894R1 E2.2 … E6.2  Type A / B / D 1SDA073895R1 E2.2 … E6.2   Type C 1SDA073897R1 Support for mechanical interlock of fixed part [Group 4] E1.2 Type A 1SDA073896R1 E2.2 … E6.2   Type A / B / D 1SDA073895R1 E2.2 … E6.2   Type C 1SDA073897R1 Automatic transfer switch E1.2..E6.2 ATS021 1SDA065523R1 E1.2..E6.2 ATS022 1SDA065524R1 Emax 2 power distribution ACBs   Mechanical accessories

36 Air Circuit Breakers 0115  ABB Low Voltage 37  Air Circuit Breakers 0115  ABB Low Voltage Notes

38 Air Circuit Breakers 0115  ABB Low Voltage Notes

38 Air Circuit Breakers 0115  ABB Low Voltage

40  Air Circuit Breakers 0115  ABB Low Voltage ©  Copyright ABB Ltd   9AKK106354A1409 Contact us ABB Ltd Tower Court Foleshill Enterprise Park Courtaulds Way Coventry CV6 5NX Tel:  0333 999 9900 Fax:  0333 999 9901Email:   [email protected]  Twitter: @ABBUKLVP www.abb.co.uk/lowvoltage Note: We reserve the right to make technical changes or modify the contents of this document without prior notice. With regard to purchase orders, the agreed particulars shall prevail. ABB Ltd does not accept any responsibility whatsoever for potential errors or possible lack of information in this document. We reserve all rights in this document and in the subject matter and illustrations contained therein. Any reproduction, disclosureto third parties or utilization of its contents – in whole or in parts – is forbidden without prior written consent of ABB Ltd. Copyright © 2015 ABB LtdAll rights reserved Power and productivity for a better world TM
