OSRAM - Product Catalogue - Discover the premium quality - 2015

Discover the premium quality LED lamps by OSRAM for multifaceted applications

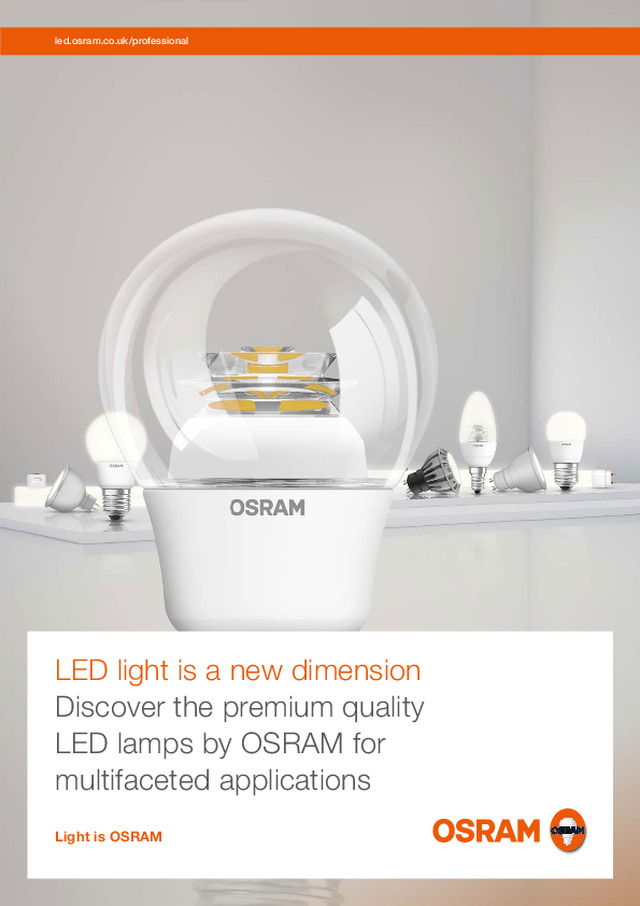

led.osram.co.uk/professional LED light is a new dimension Discover the premium quality LED lamps by OSRAM for multifaceted applications Light is OSRAM

1 Available from fall 2014 2 Exception: OSRAM PARATHOM ® PRO LEDOTRON Classic A Our LED expertise for your successful light business Fully compatible: Dimming of OSRAM LED lamps OSRAM PARATHOM ® PRO advanced and OSRAM PARATHOM ® advanced LED lamps feature analog dimming and are compatible with many dimmers available on the market. OSRAM has tested all lamps, depending on the intended applications, with up to 35 internationally available analog brand dimmers, and the dimming range was precisely measured and evaluated. With the OSRAM PARATHOM ® PRO advanced LED lamps, LEDOTRON versions are also available enabling digital dimming together with a LEDOTRON control unit. LEDOTRON is the new digital dimming standard marketed by leading lamp and control unit manufacturers. www.osram.co.uk/ledotron All compatibility lists and more detailed information about dimming can be found at: www.osram.co.uk/dim Our guarantee Maximum lighting expertise, the highest quality materials and consistent quality assurance make it possible: OSRAM provides a guarantee of ﬁ ve years on PARATHOM ® PRO advanced, PARATHOM ® advanced and SubstiTUBE ® Advanced LED lamps and four years’ guarantee on PARATHOM ® LED lamps, providing the lamps are operated in accordance with OSRAM speciﬁ cations. For more information and precise guarantee conditions, see: www.osram.co.uk/guarantee PARATHOM ® PRO advanced PARATHOM ® advanced SubstiTUBE ® Advanced PARATHOM ® An overview of the new LED product range highlights — Unique OSRAM LED lamp design: The unique “Lightguide” optics enable a 300° beam angle with especially uniform light distribution for all CLASSIC A40 and A60 advanced lamps — “Made in Germany” 1 for all CLASSIC A40 and A60 types 2 , LEDinestra ® and PRO AR111 advanced — A genuine replacement: CLASSIC A40 with identical shapes and dimensions to standard light bulbs — High-quality OSRAM appearance and feel for all types — Various segments for a wide range of requirements A comprehensive and diverse LED lamp portfolio MADE IN GERMANY 1

OSRAM PARATHOM ® PRO advanced High quality LED lamps for professional requirements — Dimmable 1 — Very long lifespan of up to 50,000 hours — Good to very good color rendering of up to R a ≥ 90 — Very good binning (SDCM ≤ 4) — Can withstand extremely high on/off switching frequency of up to one million switching cycles — 5-year guarantee 2 OSRAM PARATHOM ® PRO LEDOTRON LED lamps with modern, digital dimming standard — Compatibility of LED lamp with control unit is ensured — Equipped with Flexible scene control — Digital dimming 3 , controllable over the complete dimming range without ﬂ ickering or noise — Simple installation – immediatelyready for use: Use of existing cables without chiseling or plaster work OSRAM PARATHOM ® advanced Reliable LED lamps for stringent requirements — Dimmable 1 — Long lifespan of up to 40,000 hours — Good color rendering of R a 80 — Good binning — Can withstand high on/off switching frequency of up to 100,000 switching cycles — 5-year guarantee 2 OSRAM PARATHOM ® Special LED lamps for special applications — OSRAM PARATHOM ® Special T26 – for luminaires with very small dimensions for example — OSRAM LEDinestra ® – replacement for standard incandescent tubes — OSRAM PARATHOM ® LED PIN G4 – ideal for “starry sky” applications — OSRAM PARATHOM ® LED PIN G9 – for atmospheric light accents in living rooms and party areas for example OSRAM PARATHOM ® Versatile LED lamps for standard applications — Comprehensive basic product range — Long lifespan of up to 30,000 hours — Good color rendering of R a 80 — Good binning — Can withstand high on/off switching frequency of up to 100,000 switching cycles — 4-year guarantee 2 — Very good price-performance ratio OSRAM SubstiTUBE ® LED lamps as an alternative to the T8 ﬂ uorescent lamp 4 — SubstiTUBE ® Value for lower-cost lighting tasks — SubstiTUBE ® Basic for simple lighting tasks — SubstiTUBE ® Advanced for sophisticated lighting tasks with high luminous ﬂ ux — Simple, rapid replacement in CCG luminaires without rewiring — Long lifespan of up to 50,000 hours An overview of segment highlights 1 LED lamps can be operated with a wide variety of commercially-available dimmers; details and results of compatibility tests can be seen at www.osram.co.uk/dim and in the additional technical product information sheets linked there 2 Detailed guarantee conditions at www.osram.co.uk/guarantee 3 With LEDOTRON control unit 4 Total energy efﬁ ciency and light distribution of a system depend on system design

3 MADE IN GERMANY 2 MADE IN GERMANY 2 MADE IN GERMANY 2 MADE IN GERMANY 2 MADE IN GERMANY 2 MADE IN GERMANY 2 OSRAM PARATHOM ® PRO advanced OSRAM PARATHOM ® PRO LEDOTRON OSRAM PARATHOM ® advanced PRO PAR16 PRO LEDOTRON PAR16 PAR16 advanced Classic A advanced Classic P advanced Classic B advanced PRO MR16 PRO LEDOTRON Classic A PAR20 advanced PRO LEDOTRON Classic B PAR30 advanced PAR38 advanced MR16 advanced PRO AR111 PRO LEDOTRON Classic P 1 35/50 W replacement 7 35 W replacement 8 50 W replacement 12 35/50 W replacement 19 40 W replacement frosted 24 25/40 W replacement frosted 25 25/40 W replacement clear sparkling 26 25/40 W replacement frosted 28 25/40 W replacement frosted 27 25/40 W replacement clear sparkling 29 25/40 W replacement clear sparkling 20 40 W replacement clear sparkling 21 60 W replacement frosted 22 60 W replacement clear sparkling 23 75 W replacement frosted 2 20 W replacement 9 60 W replacement 3 42 W replacement 10 25 W replacement 11 25 W replacement 13 65 W replacement 14 83 W replacement 4 50 W replacement 15 50 W replacement 5 50 W replacement 16 100 W replacement 17 120 W replacement 18 20/35 W replacement 6 75 W replacement Dimmable1 5 Dimmable1

MADE IN GERMANY 2 MADE IN GERMANY 2 MADE IN GERMANY 2 MADE IN GERMANY 2 Dimmable1 MADE IN GERMANY 2 Dimmable1 MADE IN GERMANY 2 OSRAM LED Lamps | Overview OSRAM PARATHOM ® OSRAM PARATHOM ® for special applications OSRAM SubstiTUBE ® PAR16 Special T26 SubstiTUBE ® Value/Basic/Advanced Special LED PIN G9 Special LED PIN G4 LEDinestra ® S14s LEDinestra ® S14d MR16 MR11 R50 Classic A Classic B Classic P 30 20/35 W replacement 45 — 50 Replacement for ﬂ uorescent lamps: 590 mm/1200 mm/1500 mm 4 46 15 W replacement 47 15 W replacement 48 Replacement for 300/500 mm incandescent tubes 49 Replacement for 300/500 mm incandescent tubes 32 20/35 W replacement 33 43 W replacement 31 83 W replacement 34 20 W replacement 35 40 W replacement 36 40 W replacement frosted 41 25 W replacement clear sparkling 43 25 W replacement frosted 38 60 W replacement frosted 37 40 W replacement clear sparkling 42 40 W replacement frosted 39 60 W replacement clear sparkling 40 75 W replacement frosted 1 LED lamps can be operated with a wide variety of commercially-available dimmers; details and results of compatibility tests can be seen at www.osram.co.uk/dim and in the additional technical product information sheets linked there 2 Available from fall 2014 3 PARATHOM ® advanced CL A40 clear sparkling. Red Dot Award 2014 – Winner lighting design 4 Total energy efﬁ ciency and light distribution of a system depend on system design 5 With LEDOTRON control unit 44 40 W replacement frosted

OSRAM LED Lamps | Technical Data OSRAM PARATHOM ® PRO advanced Item name Product number(EAN) 1 Replacementfor 1 2 OSRAM PARATHOM ® PRO PAR16 advanced – GU10, 220–240 V, 24°, folding carton box PRO PAR16 35 24° advanced 4052899902213 5.2 35 W 230 900 2700 90 ✓ 50000 A 1 PRO PAR16 50 24° advanced 4052899901384 6.8 50 W 350 1700 2700 90 ✓ 30000 A 1 OSRAM PARATHOM ® PRO PAR16 advanced – GU10, 220–240 V, 36°, folding carton box PRO PAR16 35 36° advanced 4052899902244 5.2 35 W 230 600 2700 90 ✓ 50000 A 1 PRO PAR16 35 36° advanced 4052899902251 5.2 35 W 230 600 3000 90 ✓ 50000 A 1 PRO PAR16 35 36° advanced 4052899902268 5.2 35 W 230 600 4000 90 ✓ 50000 A 1 PRO PAR16 50 36° advanced 4052899901414 6.8 50 W 350 900 2700 90 ✓ 30000 A 1 PRO PAR16 50 36° advanced 4052899901421 6.8 50 W 350 900 3000 90 ✓ 30000 A 1 PRO PAR16 50 36° advanced 4052899901438 6.8 50 W 350 900 4000 90 ✓ 30000 A 1 OSRAM PARATHOM ® PRO MR16 advanced – GU5.3, 12 V, 24°, folding carton box PRO MR16 20 24° advanced 4052899904668 5 20 W 210 900 2700 90 ✓ 50000 A 2 PRO MR16 20 24° advanced 4052899904675 5 20 W 210 900 3000 90 ✓ 50000 A 2 OSRAM PARATHOM ® PRO MR16 advanced – GU5.3, 12 V, 36°, folding carton box PRO MR16 20 36° advanced 4052899904699 5 20 W 210 500 2700 90 ✓ 50000 A 2 PRO MR16 20 36° advanced 4052899904705 5 20 W 210 500 3000 90 ✓ 50000 A 2 PRO MR16 20 36° advanced 4052899904712 5 20 W 210 500 4000 90 ✓ 50000 A 2 PRO MR16 42 36° advanced 4052899014312 8 42 W 470 1200 2700 80 ✓ 30000 A 3 PRO MR16 42 36° advanced 4052899014350 8 42 W 470 1200 3000 80 ✓ 30000 A 3 PRO MR16 42 36° advanced 4052899014381 8 42 W 470 1200 4000 80 ✓ 30000 A 3 PRO MR16 50 36° advanced 4052899906198 12 50 W 620 1600 2700 80 ✓ 30000 A 4 PRO MR16 50 36° advanced 4052899906204 12 50 W 620 1600 3000 80 ✓ 30000 A 4 PRO MR16 50 36° advanced 4052899906211 12 50 W 620 1600 4000 80 ✓ 30000 A 4 OSRAM PARATHOM ® PRO AR111 advanced – G53, 12 V, 9°, folding carton box PRO AR111 50 9° advanced 4052899907690 8.5 50 W 450 8500 2700 90 ✓ 45000 A 5 PRO AR111 75 9° advanced 4052899907782 12.5 75 W 740 11000 2700 80 ✓ 45000 A 6 OSRAM PARATHOM ® PRO AR111 advanced – G53, 12 V, 24°, folding carton box PRO AR111 50 24° advanced 4052899907720 8.5 50 W 450 3200 2700 90 ✓ 45000 A 5 PRO AR111 50 24° advanced 4052899907737 8.5 50 W 450 3200 3000 90 ✓ 45000 A 5 PRO AR111 50 24° advanced 4052899907744 8.5 50 W 500 3600 4000 90 ✓ 45000 A 5 PRO AR111 75 24° advanced 4052899907812 12.5 75 W 740 4800 2700 80 ✓ 45000 A 6 PRO AR111 75 24° advanced 4052899907829 12.5 75 W 740 4800 3000 80 ✓ 45000 A 6 PRO AR111 75 24° advanced 4052899907836 12.5 75 W 820 5500 4000 80 ✓ 45000 A 6 OSRAM PARATHOM ® PRO AR111 advanced – G53, 12 V, 40°, folding carton box PRO AR111 50 40° advanced 4052899907751 8.5 50 W 450 1400 2700 90 ✓ 45000 A 5 PRO AR111 50 40° advanced 4052899907768 8.5 50 W 450 1400 3000 90 ✓ 45000 A 5 PRO AR111 75 40° advanced 4052899907843 12.5 75 W 740 2200 2700 80 ✓ 45000 A 6 PRO AR111 75 40° advanced 4052899907850 12.5 75 W 740 2200 3000 80 ✓ 45000 A 6 1 All technical parameters apply to the complete lamp. Due to the complex manufacturing process of light emitting diodes, the speciﬁ ed typical values of the LED parameters merely represent purely statistical variables. They do not necessarily correspond to the actual technical parameters or each individual product, which can deviate from the typical value 2 LED lamps can be operated with a wide variety of commercially-available dimmers; details and results of compatibility tests can be seen at www.osram.co.uk/dim and in the additional technical product information sheets linked there

OSRAM PARATHOM ® PRO LEDOTRON Item name Product number(EAN) 1 Replacementfor 1 2 OSRAM PARATHOM ® PRO LEDOTRON PAR16 – GU10, 220–240 V, 36°, folding carton box PRO LEDOTRON PAR16 35 36° 4052899914735 5 35 W 230 600 2700 90 LEDOTRON 50000 A 7 PRO LEDOTRON PAR16 50 36° 4008321988560 6.8 50 W 350 900 2700 80 LEDOTRON 30000 A 8 OSRAM PARATHOM ® PRO LEDOTRON Classic A – E27, 220–240 V, folding carton box PRO LEDOTRON CL A60 4008321988553 12 60 W 810 — 2700 80 LEDOTRON 30000 A 9 OSRAM PARATHOM ® PRO LEDOTRON Classic B – E14, 220–240 V, folding carton box PRO LEDOTRON CL B25 4052899914759 4 25 W 250 — 2700 80 LEDOTRON 25000 A+ 10 OSRAM PARATHOM ® PRO LEDOTRON Classic P – E14, 220–240 V, folding carton box PRO LEDOTRON CL P25 4052899914742 4 25 W 250 — 2700 80 LEDOTRON 25000 A+ 11 OSRAM PARATHOM ® advanced Item name Product number(EAN) 1 Replacementfor 1 3 OSRAM PARATHOM ® PAR16 advanced – GU10, 220–240 V, 36°, folding carton box PAR16 35 36° advanced 4008321881960 3.6 35 W 230 600 2700 80 ✓ 35000 4 A+ 12 PAR16 35 36° advanced 4008321882035 3.6 35 W 230 600 3000 80 ✓ 35000 4 A+ 12 PAR16 35 36° advanced 4008321882066 3.6 35 W 230 600 4000 80 ✓ 35000 4 A+ 12 PAR16 50 36° advanced 4008321882097 5.3 50 W 350 850 2700 80 ✓ 35000 4 A+ 12 PAR16 50 36° advanced 4008321882158 5.3 50 W 350 850 4000 80 ✓ 35000 4 A+ 12 PAR16 50 36° advanced 4008321882127 5.3 50 W 350 850 3000 80 ✓ 35000 4 A+ 12 PAR16 65 36° advanced 4052899926929 8 65 W 460 1300 3000 80 ✓ 35000 4 A 13 PAR16 83 36° advanced 4052899203686 9 83 W 600 900 2700 80 ✓ 30000 A+ 14 OSRAM PARATHOM ® PAR20 advanced – E27, 220–240 V, 30°, folding carton box PAR20 50 30° advanced 4052899931299 6 50 W 350 1050 2700 80 ✓ 40000 A+ 15 OSRAM PARATHOM ® PAR30 advanced – E27, 220–240 V, 30°, folding carton box PAR30 100 30° advanced 4052899105829 13 100 W 870 2500 2700 80 ✓ 40000 A 16 OSRAM PARATHOM ® PAR38 advanced – E27, 220–240 V, 30°, folding carton box PAR38 120 30° advanced 4052899105669 17 120 W 1050 3000 2700 80 ✓ 40000 A+ 17 OSRAM PARATHOM ® MR16 advanced – GU5.3, 12 V, 24°, folding carton box MR16 20 24° advanced 4008321884695 3.7 20 W 210 877 2700 80 ✓ 35000 4 A+ 18 MR16 35 24° advanced 4008321884985 5.9 35 W 350 1550 2700 80 ✓ 35000 4 A 18 1 All technical parameters apply to the complete lamp. Due to the complex manufacturing process of light emitting diodes, the speciﬁ ed typical values of the LED parameters merely represent purely statistical variables. They do not necessarily correspond to the actual technical parameters or each individual product, which can deviate from the typical value 2 With LEDOTRON control unit 3 LED lamps can be operated with a wide variety of commercially-available dimmers; details and results of compatibility tests can be seen at www.osram.co.uk/dim and in the additional technical product information sheets linked there 4 Available from September 2014

OSRAM PARATHOM ® advanced Item name Product number(EAN) 1 Replacementfor 1 2 OSRAM PARATHOM ® MR16 advanced – GU5.3, 12 V, 36°, folding carton box MR16 20 36° advanced 4008321884923 3.7 20 W 210 558 2700 80 ✓ 35000 3 A+ 18 MR16 20 36° advanced 4008321884756 3.7 20 W 210 558 3000 80 ✓ 35000 3 A+ 18 MR16 20 36° advanced 4008321884954 3.7 20 W 220 558 4000 80 ✓ 35000 3 A+ 18 MR16 35 36° advanced 4008321885135 5.9 35 W 350 877 2700 80 ✓ 35000 3 A 18 MR16 35 36° advanced 4008321885166 5.9 35 W 350 877 3000 80 ✓ 35000 3 A 18 MR16 35 36° advanced 4008321885197 5.9 35 W 400 877 4000 80 ✓ 35000 3 A+ 18 OSRAM PARATHOM ® Classic A advanced – E27, 220–240 V, folding carton box CL A40 advanced frosted 4052899924444 6 40 W 470 — 2700 80 ✓ 25000 A+ 19 CL A40 advanced clear sparkling 4052899924437 6 40 W 470 — 2700 80 ✓ 25000 A+ 20 CL A40 advanced frosted 4052899924451 6 40 W 470 — 4000 80 ✓ 25000 A+ 19 CL A60 advanced frosted 4052899911208 10 60 W 806 — 2700 80 ✓ 25000 A+ 21 CL A60 advanced clear sparkling 4052899913820 10 60 W 806 — 2700 80 ✓ 25000 A+ 22 CL A60 advanced frosted 4052899924482 10 60 W 806 — 4000 80 ✓ 25000 A+ 21 CL A75 advanced frosted 4052899924499 11 75 W 1055 — 2700 80 ✓ 20000 A+ 23 OSRAM PARATHOM ® Classic B advanced – E14, 220–240 V, folding carton box CL B25 advanced frosted 4008321994035 4 25 W 250 — 2700 80 ✓ 25000 A+ 24 CL B25 advanced clear sparkling 4008321979230 4 25 W 250 — 2700 80 ✓ 25000 A+ 25 CL B40 advanced frosted 4052899911437 6 40 W 470 — 2700 80 ✓ 20000 A+ 24 CL B40 advanced clear sparkling 4052899911413 6 40 W 470 — 2700 80 ✓ 20000 A+ 25 OSRAM PARATHOM ® Classic P advanced – E14, 220–240 V, folding carton box CL P25 advanced frosted 4052899911444 4 25 W 250 — 2700 80 ✓ 25000 A+ 26 CL P25 advanced clear sparkling 4008321980373 4 25 W 250 — 2700 80 ✓ 25000 A+ 27 CL P40 advanced frosted 4052899911918 6 40 W 470 — 2700 80 ✓ 20000 A+ 26 CL P40 advanced clear sparkling 4052899911451 6 40 W 470 — 2700 80 ✓ 20000 A+ 27 OSRAM PARATHOM ® Classic P advanced – E27, 220–240 V, folding carton box CL P25 advanced frosted 4052899911468 4 25 W 250 — 2700 80 ✓ 25000 A+ 28 CL P25 advanced clear sparkling 4008321992352 4 25 W 250 — 2700 80 ✓ 25000 A+ 29 CL P40 advanced frosted 4052899911925 6 40 W 470 — 2700 80 ✓ 20000 A+ 28 CL P40 advanced clear sparkling 4052899911475 6 40 W 470 — 2700 80 ✓ 20000 A+ 29 OSRAM LED Lamps | Technical Data 1 All technical parameters apply to the complete lamp. Due to the complex manufacturing process of light emitting diodes, the speciﬁ ed typical values of the LED parameters merely represent purely statistical variables. They do not necessarily correspond to the actual technical parameters or each individual product, which can deviate from the typical value 2 LED lamps can be operated with a wide variety of commercially-available dimmers; details and results of compatibility tests can be seen at www.osram.co.uk/dim and in the additional technical product information sheets linked there 3 Available from September 2014

OSRAM PARATHOM ® Item name Product number(EAN) 1 Replacementfor 1 OSRAM PARATHOM ® PAR16 – GU10, 220–240 V, 36°, folding carton box PAR16 20 36° 4052899910362 1.8 20 W 110 250 2700 80 — 15000 A++ 30 PAR16 35 36° 4052899910379 3.9 35 W 230 600 2700 80 — 15000 A+ 30 PAR16 83 36° 4052899203549 9 83 W 600 900 2700 80 — 30000 A+ 31 OSRAM PARATHOM ® MR16 – GU5.3, 12 V, 36°, folding carton box MR16 20 36° 4052899910409 3.5 20 W 210 558 2700 80 — 15000 A+ 32 MR16 35 36° 4052899910782 5.6 35 W 350 885 2700 80 — 15000 A+ 32 MR16 43 36° 4052899203488 7.5 43 W 500 900 2700 80 — 25000 A 33 OSRAM PARATHOM ® MR11 – GU4, 12 V, 30°, folding carton box MR11 20 30° 4052899910423 3.7 20 W 200 550 2700 80 — 15000 A+ 34 OSRAM PARATHOM ® R50 – E14, 220–240 V 30°, folding carton box R50 40 30° 4052899920514 3.9 40 W 196 540 2700 80 — 15000 A+ 35 OSRAM PARATHOM ® Classic A – E27, 220–240 V, folding carton box CL A40 frosted 4052899924574 6 40 W 470 — 2700 80 — 15000 A+ 36 CL A40 clear sparkling 4052899924567 6 40 W 470 — 2700 80 — 15000 A+ 37 CL A40 frosted 4052899924581 6 40 W 470 — 4000 80 — 15000 A+ 36 CL A60 frosted 4052899924604 10 60 W 806 — 2700 80 — 15000 A+ 38 CL A60 clear sparkling 4052899924598 10 60 W 806 — 2700 80 — 15000 A+ 39 CL A60 frosted 4052899924611 10 60 W 806 — 4000 80 — 15000 A+ 38 CL A75 frosted 4052899926639 12 75 W 1060 — 2700 80 — 15000 A+ 40 CL A75 frosted 4052899924703 12 75 W 1060 — 4000 80 — 15000 A+ 40 OSRAM PARATHOM ® Classic B – E14, 220–240 V, folding carton box CL B25 clear sparkling 4052899913639 4 25 W 250 — 2700 80 — 15000 A+ 41 CL B40 frosted 4052899912007 6 40 W 470 — 2700 80 — 15000 A+ 42 OSRAM PARATHOM ® Classic P – E27, 220–240 V, folding carton box CL P25 frosted 4052899032040 4 25 W 250 — 2700 80 — 15000 A+ 43 OSRAM PARATHOM ® Classic P – E14, 220–240 V, folding carton box CL P40 frosted 4052899912014 6 40 W 470 — 2700 80 — 15000 A+ 44 1 All technical parameters apply to the complete lamp. Due to the complex manufacturing process of light emitting diodes, the speciﬁ ed typical values of the LED parameters merely represent purely statistical variables. They do not necessarily correspond to the actual technical parameters or each individual product, which can deviate from the typical value

OSRAM PARATHOM ® for special applications Item name Product number(EAN) 1 Replacementfor 1 OSRAM PARATHOM ® Special T26 – E14, 220–240 V, folding carton box Special T26 4052899907157 1.4 — 100 — 5500 80 — 25000 A++ 45 Special T26 4052899907119 1.4 — 100 — 2700 80 — 25000 A++ 45 OSRAM PARATHOM ® Special LED PIN G9 – G9, 220–240 V, folding carton box Special LED PIN G9 4052899920590 1.9 15 W 140 — 3000 82 — 15000 A+ 46 OSRAM PARATHOM ® Special LED PIN G4 – G4, 12 V, folding carton box Special LED PIN G4 4052899196490 2.1 15 W 140 — 2700 80 — 15000 A+ 47 Item name Product number(EAN) 1 Replace-ment forincandescenttube 1 2 OSRAM LEDinestra ® – S14s, 220–240 V, folding carton box LEDinestr 6W advanced S14s 4052899110311 6 300 mm 250 — 2700 80 ✓ 20000 A 48 LEDinestra 9W advanced S14s 4008321979193 9 500 mm 450 — 2700 80 ✓ 20000 A 48 OSRAM LEDinestra ® – S14d, 220–240 V, folding carton box LEDinestra 6W advanced S14d 4052899110335 6 300 mm 250 — 2700 80 ✓ 20000 A 49 LEDinestra 9W advanced S14d 4008321979216 9 500 mm 450 — 2700 80 ✓ 20000 A 49 OSRAM LED Lamps | Technical Data 1 All technical parameters apply to the complete lamp. Due to the complex manufacturing process of light emitting diodes, the speciﬁ ed typical values of the LED parameters merely represent purely statistical variables. They do not necessarily correspond to the actual technical parameters or each individual product, which can deviate from the typical value 2 LED lamps can be operated with a wide variety of commercially-available dimmers; details and results of compatibility tests can be seen at www.osram.co.uk/dim and in the additional technical product information sheets linked there

OSRAM SubstiTUBE ® Item name Product number(EAN) 1 Replacementfor ﬂ uores-cent lamp 1 OSRAM SubstiTUBE ® Value – G13, 220–240 V, folding carton box ST8-HV2-065-830 4052899922280 8 590 mm 650 — 3000 160 80 — 30000 A 50 ST8-HV2-075-840 4052899922297 8 590 mm 750 — 4000 160 80 — 30000 A 50 ST8-HV2-075-865 4052899922303 8 590 mm 750 — 6500 160 80 — 30000 A 50 ST8-HV4-150-830 4052899922310 20 1200 mm 1500 — 3000 150 80 — 30000 A 50 ST8-HV4-170-840 4052899922327 20 1200 mm 1700 — 4000 150 80 — 30000 A 50 ST8-HV4-170-865 4052899922334 20 1200 mm 1700 — 6500 150 80 — 30000 A 50 ST8-HV5-180-830 4052899922341 22 1500 mm 1800 — 3000 150 80 — 30000 A 50 ST8-HV5-200-840 4052899922358 22 1500 mm 2000 — 4000 150 80 — 30000 A 50 ST8-HV5-200-865 4052899922365 22 1500 mm 2000 — 6500 150 80 — 30000 A 50 OSRAM SubstiTUBE ® Basic – G13, 220–240 V, folding carton box ST8-HB2-090-830 4052899922471 10 590 mm 900 — 3000 160 80 — 40000 A+ 2 50 ST8-HB2-100-840 4052899922488 10 590 mm 1000 — 4000 160 80 — 40000 A+ 50 ST8-HB2-100-865 4052899922495 10 590 mm 1000 — 6500 160 80 — 40000 A+ 50 ST8-HB4-190-830 4052899922501 21 1200 mm 1900 — 3000 150 80 — 40000 A+ 50 ST8-HB4-210-840 4052899922518 21 1200 mm 2100 — 4000 150 80 — 40000 A+ 50 ST8-HB4-210-865 4052899922525 21 1200 mm 2100 — 6500 150 80 — 40000 A+ 50 ST8-HB5-216-830 4052899922532 24 1500 mm 2160 — 3000 150 80 — 40000 A+ 2 50 ST8-HB5-240-840 4052899922549 24 1500 mm 2400 — 4000 150 80 — 40000 A+ 50 ST8-HB5-240-865 4052899922556 24 1500 mm 2400 — 6500 150 80 — 40000 A+ 50 OSRAM SubstiTUBE ® Advanced – G13, 220–240 V, folding carton box ST8-HA2-108-830 4052899922105 11 590 mm 1080 — 3000 160 80 — 50000 A+ 50 ST8-HA2-120-840 4052899922112 11 590 mm 1200 — 4000 160 80 — 50000 A+ 50 ST8-HA2-120-865 4052899922129 11 590 mm 1200 — 6500 160 80 — 50000 A+ 50 ST8-HA4-225-830 4052899922136 22 1200 mm 2250 — 3000 150 80 — 50000 A+ 50 ST8-HA4-250-840 4052899922143 22 1200 mm 2500 — 4000 150 80 — 50000 A+ 50 ST8-HA4-250-865 4052899922150 22 1200 mm 2500 — 6500 150 80 — 50000 A+ 50 ST8-HA5-306-830 4052899922167 28 1500 mm 3060 — 3000 150 80 — 50000 A+ 50 ST8-HA5-340-840 4052899922174 28 1500 mm 3400 — 4000 150 80 — 50000 A+ 50 ST8-HA5-340-865 4052899922181 28 1500 mm 3400 — 6500 150 80 — 50000 A+ 50 1 All technical parameters apply to the complete lamp. Due to the complex manufacturing process of light emitting diodes, the speciﬁ ed typical values of the LED parameters merely represent purely statistical variables. They do not necessarily correspond to the actual technical parameters or each individual product, which can deviate from the typical value 2 Energy efﬁ ciency class A for operation with magnetic control gear

Find the right lamp quickly – and intelligently led.osram.co.uk/professional 4 0 0 R 1 8 9 G B 0 9 /1 4 P d O S R A M S -G I M K E M S u b je c t t o t e c h n ic a l c h a n g e s a n d c o rr e c ti o n s . Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. Google Play is a trademark of Google Inc. The OSRAM Lamp Finder Professional as a free App The new “OSRAM Lamp Finder Professional” App is suitable for Apple and Android smartphones and tablets, helping professional users to identify the right lamp for their applications. www.osram.co.uk/lampﬁ nder-app Download here for free OSRAM Ltd Customer Service Centre Neills Road Bold Industrial Park St Helens WA9 4XG Phone +44 (0)1744 812221 Fax +44 (0)1744 831900 [email protected] www.osram.co.uk

Published: 15 December 2014 Category: Product Catalogues & Brochures
