OSRAM - Product Catalogue - Automotive Lamps

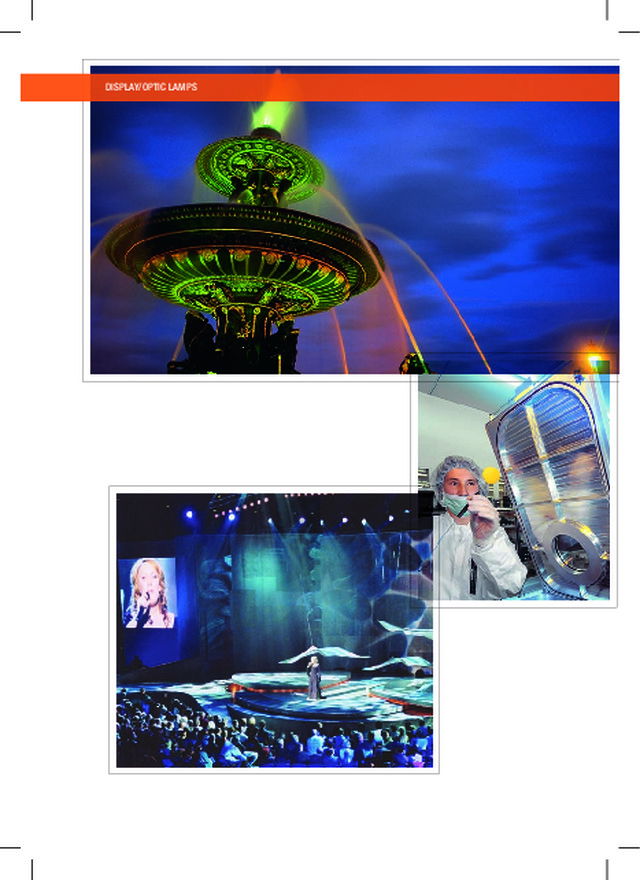

DISPLAY/OPTIC LAMPS
Display/Optic LampsContents. HMI ® single ended metal halide 191 HMI ® double ended metal halide 192 HTI ® single ended metal halide 193 HTI ® double ended metal halide 193 Baby SharXS ® HTI ® double ended metal halide 194 SharXS ® HTI ® double ended metal halide 195 Maxi SharXS ® HTI ® double ended metal halide 195 HTI ® metal halide with dichroic reflector 196 HSR ® metal halide 196 4ArXS HSD™ metal halide 197 Lok-it! ® metal halide lamps 197 EMH™ metal halide lamps (Classic Line) 198 Lampholders 199 Low voltage halogen without reflector (HLX) 200 Low voltage halogen without reflector (Krypton) 201 Halogen reflector lamps – MR11 35mm diameter 202 Halogen reflector lamps – MR16 51mm diameter 8-20V 202 Halogen reflector lamps – MR16 51mm diameter 21-120V 203 Halogen lamps, medium/high voltage single-ended 150-360W 203 Halogen lamps, medium/high voltage single-ended 400-1000W 204 Halogen studio lamps, single ended 300-650W 205 Halogen studio lamps, single ended 750-1000W 206 Halogen studio lamps, single ended 1200-20000W 207 Halogen lamps – double ended 208 HPL ® high performance single ended halogen lamps with special bases 209 STUDIOLINE 209 DOT-it Backstage Blue for entertainment 210 aluPAR ® 56 halogen lamps 210 aluPAR ® 64 halogen lamps 211 Halogen lamps current controlled – single ended 212 Halogen lamps current controlled with PK30d base 213 Halogen reflector current controlled halogen lamps with dichroic coating 214 Halogen lamps current controlled – double ended 215 Electronic control gear for medical applications 216 XBO ® Xenon short arc lamps with reflector 75-300W 217 XBO ® Xenon short arc lamps with reflector 450-10000W 218 XBO ® Classic Line for cinema projection 219 XBO ® Xtreme Life for cinema projection 220 XBO ® lamps for digital cinema projection 221 XSTAGE ® Xenon short arc lamps for entertainment 222 HBO ® Mercury short arc lamps 50-200W 222
CONTENTS Special lamps for IR applications 223 XERADEX ® lamps 223 XIS XERADEX ® irradiation system 224 DBD electronic control gear for XERADEX ® lamps 224 Microlithography lamps for i-line systems 225 Microlithography lamps for LCD systems 226 Other Microlithography lamps up to 1000W 226 HXP ® long life mercury short-arc lamps 227 Lamps without Halogen, low voltage 227 SPECTRAL lamps 228 Lamps for scientific purposes 228 HALOTHERM ® Infra-red Halogen lamps 229 RUBYSTAR ® Halogen infra-red lamps 230 SICCATHERM ® Infra-red lamps 230 THERATHERM ® INFRA-RED HEAT LAMPS 231 Fluorescent tubes with black glass bulbs 232 OSRAM DULUX ® BLUE AND BLUE UVA 232 HNS ® germicidal lamps producing no ozone 233
191 All orders must be multiples of sales pack Display/Optic Lamps 1 2 3 5 4 7 6 HMI ® single ended metal halide • 6000K – daylight colour temperature • Excellent colour rendering • Hot restart • Dimmable • Ideal for location, stage, studio and TV lighting Product EAN Product Description ID Code (Single Pack) HMI200SE 4008321299444 HMI 200W/SE 200 70 16000 GZY9.5 1 10 38 HMI250SE 4050300239064 HMI 250 W/SE 270 50 16200 FaX1.5 2 1 38 HMI400SE 4008321299468 HMI 400 W/ SE 400 70 33000 GZZ9.5 3 10 38 HMI575SEL 4050300603100 HMI 575 W/SEL XS 575 95 49000 G22 4 10 38 HMI700SEXS 4008321191601 HMI 700 W/SE XS 700 100 56000 G22 4 10 38 HMI1200SEL 4008321062109 HMI 1200 W/SE XS 1200 100 110000 G38 5 1 38 HMI1800SEXS 4008321378453 HMI 1800W/SE XS 1800 140 165000 G38 6 1 39 HMI2500SE 4050300284293 HMI 2500 W/SE XS 2500 115 240000 G38 7 1 38 HMI4000SE 4008321244314 HMI 4000 W/SE XS 4000 200 380000 G38 7 1 38 HMI6000SE 4050300564067 HMI 6000 W/SE XS 6000 123 600000 GX38 6 1 38 HMI12000SE 4050300650418 HMI 12000 W/SE XS 12000 160 1150000 GX38 6 1 38 HMI18000SEGX51 4008321098955 HMI 18000 W/SE/GX51 XS 18000 225 1600000 GX51 6 1 38 W = Watts SE = Single ended XS = eXtreme Seal (max. permissible foil temperature 450° C) 191-233 Display Optics:Layout 1 25/10/10 22:22 Page 191
192 All orders must be multiples of sales pack Display/Optic Lamps HMI ® double ended metal halide • 6000K – daylight colour temperature • Excellent colour rendering • Hot restart • Dimmable • Ideal for location, stage, studio and TV lighting Product EAN Product Description ID Code (Single Pack) HMI575DXS 4008321285102 HMI 575 W/DXS 575 95 49000 7 SFc10 1 1 38 HMI1200DXS 4008321931153 HMI 1200 W/DXS 1200 100 110000 13.8 SFc15.5 2 1 38 HMI2500S 4050300025780 HMI 2500 W/S XS 2500 115 240000 25.6 SFa21 3 1 38 HMI2500DXS 4008321182197 HMI 2500 W/DXS 2500 115 240000 25.6 SFa21 3 1 38 HMI4000DXS 4008321210203 HMI 4000 W/DXS 4000 200 380000 24 SFa21 3 1 38 HMI6000DXS 4008321210210 HMI 6000 W/DXS 6000 123 570000 55 S25.5 4 1 38 HMI12000DXS 4008321210227 HMI 12000 W/DXS 12000 160 1150000 84 S30 4 1 38 HMI18000DXS 4008321210234 HMI 18000 W/DXS 18000 225 1700000 88 S30 4 1 38 HMI24000DXS 4008321355805 HMI 24000W/DXS 24000 280 2300000 86 S30 4 1 38 1 2 3 4 W = Watts S = Short XS = eXtreme Seal (max. permissible foil temperature 450° C) 191-233 Display Optics:Layout 1 25/10/10 22:22 Page 192
193 All orders must be multiples of sales pack Display/Optic Lamps 1 3 5 2 4 6 7 HTI ® single ended metal halide • Metal halide lamp similar to HMI • Short arc technology • Ideal for fibre optic applications, effect spot lights and slide projectors Product EAN Product Description ID Code (Single Pack) HTIS35 4050300503578 HTI S 35/12 35 85 3200 2.2 P32d-2 1 10 38 HTI150 4050300301402 HTI 150 W 150 90 10000 1.8 GY9.5 2 12 38 HTI152 4050300461519 HTI 152 W 150 95 10000 1.8 GY9.5 3 12 38 HTI700SE 4008321061096 HTI 700 W/SE/75 XS 700 70 59000 10 GY9.5 4 1 38 HTI705SE 4050300618074 HTI 705 W/SE XS 700 70 59000 10 GY9.5 5 1 38 HTI1200SE 4050300371153 HTI 1200 W/SE XS 1200 100 105000 13.8 GY22 6 1 38 HTI2500SE 4050300371146 HTI 2500 W/SE XS 2500 115 240000 25.6 GY22 +cable 7 1 38 = Square-wave AC current XS = eXtreme Seal (max. permissible foil temperature 450° C) 2 1 HTI ® double ended metal halide • Metal halide lamp similar to HMI • Short arc technology • Ideal for fibre optic applications, effect spot lights and slide projectors Product EAN Product Description ID Code (Single Pack) HTI2500DEL 4050300596709 HTI 2500 W/DEL 2500 115 270000 26 Special 1 1 38 HTI4000DE 4050300519845 HTI 4000 W/DE 4000 115 360000 40 S25.5 2 1 38 ~ = Sine wave AC current XS = eXtreme Seal (max. permissible foil temperature 450° C) 191-233 Display Optics:Layout 1 25/10/10 22:22 Page 193
194 All orders must be multiples of sales pack Display/Optic Lamps Baby SharXS ® HTI ® double ended metal halide • 5600K, 5700K, 6000K, 6500K, 7500K & 8000K colour temperature • Short arc technology • Excellent colour rendering • Modular design • Ideal for location, stage, studio and TV lighting Product EAN Product Description ID Code (Single Pack) BSXHTI250D580 4008321129161 Baby SharXS HTI 250 W/D5/80 250 90 19000 3.2 SFc10-4 1 38 BSXHTI300D557 4008321129185 Baby SharXS HTI 300 W/D5/57 300 80 20000 4.4 SFc10-4 1 38 BSXHTI300D565 4008321129208 Baby SharXS HTI 300 W/D5/65 300 100 22000 3.6 SFc10-4 1 38 BSXHTI575D556 4008321129345 Baby SharXS HTI 575 W/D5/56 575 97 43000 6.9 SFc10-4 1 38 XS = eXtreme Seal (max. permissible foil temperature 450° C) 191-233 Display Optics:Layout 1 25/10/10 22:22 Page 194
195 All orders must be multiples of sales pack Display/Optic Lamps SharXS ® HTI ® double ended metal halide • 6000K, 7000K & 7500K colour temperature • Short arc technology • Excellent colour rendering • Modular design • Ideal for location, stage, studio and TV lighting Product EAN Product Description ID Code (Single Pack) SXHTI400D375 4008321285157 SharXS HTI 400 W/D3/75 400 49 26000 8.5 SFc10-4 1 38 SXHTI575D475 4008321285195 SharXS HTI 575 W/D4/75 575 64 44000 9 SFc10-4 1 38 SXHTI700D460 4008321285218 SharXS HTI 700 W/D4/60 700 70 59000 10 SFc10-4 1 38 SXHTI700D475 4008321285232 SharXS HTI 700 W/D4/75 700 70 59000 10 SFc10-4 1 38 SXHTI1200D760 4008321285256 SharXS HTI 1200 W/D7/60 1200 95 110000 12.7 SFc10-4 1 38 SXHTI1200D775 4008321285270 SharXS HTI 1200 W/D7/75 1200 95 110000 12.7 SFc10-4 1 38 SXHTI1500D7601 4008321285294 SharXS HTI 1200 W/D7/76 1500 110 165000 13.6 SFc10-4 1 38 XS = eXtreme Seal (max. permissible foil temperature 450° C) Maxi SharXS ® HTI ® double ended metal halide • A new addition to the SharXS ® family • 6000K colour temperature • Short arc technology • Excellent colour rendering • Modular design • Ideal for location, stage, studio and TV lighting Product EAN Product Description ID Code (Single Pack) MSXHTI2000D1060 4008321334947 Maxi SharXS HTI 2000 W/D10/60 2000 105 200000 19 SFc15.5 1 38 XS = eXtreme Seal (max. permissible foil temperature 450° C) NEW 191-233 Display Optics:Layout 1 25/10/10 22:22 Page 195
196 All orders must be multiples of sales pack Display/Optic Lamps HTI ® metal halide with dichroic reflector • HTI lamp with dichroic prefocussed reflectors • Ideal for medical applications and entertainment lighting Product EAN Product Description ID Code (Single Pack) HTI25022 4050300367781 HTI 250 W/22 270 45 6 1 2 38 HTI25032 4050300226576 HTI 250 W/32 270 45 6 1 2 38 HTI40024 4050300228327 HTI 400 W/24 (with plug & cable) 400 55 7.3 2 2 38 HTI40324 4050300386331 HTI 403 W/24 (with plug & cable) 400 55 7.3 2 2 38 1 2 HSR ® metal halide • Single ended metal halide lamp similar to HTI lamp • Fitted with an outer bulb for ease of handling • Ideal for “architainment” applications Product EAN Product Description ID Code (Single Pack) HSR400 4050300315942 HSR 400/60 400 67 33000 6.9 GX9.5 1 10 38 HSR57560 4050300941776 HSR 575/60 575 97.5 49000 7 GX9.5 1 10 38 HSR57572 4050300651187 HSR 575/72 575 97.5 49000 7 GX9.5 1 10 38 HSR120060 4050300526836 HSR 1200/60 1200 100 110000 13.8 G22/28x50 2 20 38 1 2 191-233 Display Optics:Layout 1 25/10/10 22:22 Page 196
197 All orders must be multiples of sales pack Display/Optic Lamps 4ArXS HSD™ metal halide • Long life HSR lamp • Ideal for commercial and architectural applications Product EAN Product Description ID Code (Single Pack) HSD15070 4008321202147 4ArXS HSD 150W/70 150 97 12000 1.8 G12 1 10 38 HSD150UL75 4008321202116 4ArXS HSD 150W/UL/751) 150 97 11000 1.8 G12 1 10 38 HSD200 4050300424682 4ArXS HSD 200W/60 200 70 13000 3.3 GY9.5 2 10 38 HSD25060 4050300501925 4ArXS HSD 250W/60 250 90 17000 3.3 GY9.5 2 10 38 HSD25080 4050300808635 4ArXS HSD 250W/80 250 95 17000 3.3 GY9.5 2 10 38 HSD250UL75 4008321083586 4ArXS HSD 250W/UL/75 250 90 15000 3.3 GY9.5 2 10 38 HSD575 4050300593937 4ArXS HSD 575W/72 575 88 45000 7.4 GX9.5 3 10 38 1 2 3 Lok-it! ® metal halide lamps • Lamp system with bayonet cap • Lampholder ensures secure hold during transportation and has a bayonet lock for rapidinstallation and removal Product EAN Product Description ID Code (Single Pack) HSDLOKIT30080 4008321493989 Lok-it! HSD 300W/80/P28 300 95 27000 PGSx28 1 1 38 HTILOKIT700P50 4008321485205 Lok-it! HTI 700W/75/P50 700 100 50000 PGSx50 2 1 38 HTILOKIT700P28 4008321510549 Lok-it! HTI 700W/75/P28 700 100 50000 PGSx28 3 1 38 HTILOKIT1500 4008321344410 Lok-it! HTI 1500W/60/P50 1500 100 135000 PGSx50 2 1 38 LPHOLDLOCKITOGJX50 4008321404725 Lamp holder Lok-it! PGJX50 1500 250 – – – 1 38 LOKITPGJX28 4008321512079 Lamp holder Lok-it! PGJX28 700 250 – – – 20 38 1 3 2 NEW NEW NEW NEW NEW NEW 191-233 Display Optics:Layout 1 25/10/10 22:22 Page 197
198 All orders must be multiples of sales pack Display/Optic Lamps EMH™ metal halide lamps (Classic Line) • Economy Metal Halide short arc lamps • Economical versions of the most popular metal halide lamps • For use in enclosed luminaires only • Ideal for use in clubs, shops and small stages Product EAN Product Description ID Code (Single Pack) EMH150SE70 4008321345004 EMH 150W/SE/70 150 90 8000 GY9.5 1 10 38 – 4008321412294 EMH 250W/SE/80 250 94 15000 GY9.5 2 30 38 – 4008321412317 EMH 575W/DE/60 575 95 42000 SFc10-4 3 30 38 EMH575DE75 4008321345066 EMH 575W/DE/75 575 95 42000 SFc10-4 3 10 38 EMH575SE75 4008321345080 EMH 575W/SE/75 575 95 42000 GX9.5 4 10 38 – 4008321412379 EMH 1200W/DE/60 1200 100 95000 SFc15.5 3 30 38 In preparation at time of print. For further information please contact OSRAM. 1 3 2 4 191-233 Display Optics:Layout 1 25/10/10 22:22 Page 198
199 All orders must be multiples of sales pack Display/Optic Lamps Lampholders OSRAM lampholders for halogen and discharge lampsOptimum quality lampholders from the same source as the relevant lamps Product EAN Product Description ID Code (Single Pack) LAMPHOLDERSHARXS 4008321189042 Lampholder SharXs SFc1-4 1200 1000 1 38 LPHOLDTP22PAR 4008321335265 Lampholder TP22-H/CE PAR 1000 250 10 38 LPHOLDTP22S4 4008321335241 Lampholder TP22-H/CE 1000 250 10 38 LPHOLDPAR1 4008321355928 Lampholder PAR1 1000 250 10 38 LPHOLDG12 4008321355942 Lampholder G12 150 1000 4 38 LPHOLDG22 4008321355966 Lampholder G22 1200 1000 2 38 LPHOLDG38 4008321355980 Lampholder G38 5000 1000 1 38 LPHOLDGY9 4008321356000 Lampholder GY9.5 500 1000 2 38 LPHOLDS26 4008321388636 Lampholder S26 3000 600 20 38 LPHOLDS26A 4008321388674 Lampholder S26A 3000 600 20 38 LPHOLDTP22XL 4008321388735 Lampholder TP22-XL 1000 250 10 38 LPHOLDTP23H 4008321388711 Lampholder TP23-H 1200 250 20 38 LPHOLDTP61 4008321388698 Lampholder TP61 750 250 25 38 191-233 Display Optics:Layout 1 25/10/10 22:22 Page 199
200 All orders must be multiples of sales pack Display/Optic Lamps 1 2 3 4 Low voltage halogen without reflector (HLX) • XENOPHOT ® (HLX) lamps have a Xenon gas filling • Up to 10% greater luminous flux than a Krypton gas filled version • Ideal for stage and studio lighting Product EAN ID Code (Single Pack) 6V version HLX64250 4050300012407 ESB M30 20 6 460 G4 2 40 38 HLX64251 4050300338316 – – 20 6 500 PG22 1 30 38 HLX64265 4008321107053 – – 30 6 765 G4 2 40 38 12V version HLX64610 4050300006697 BRL A1220 50 12 1600 G6.35 2 40 38 HLX64611 4008321107091 – – 50 12 1350 G6.35 2 40 38 HLX62138 4050300242958 – – 100 12 2800 G6.35 3 40 38 HLX64621 4050300535531 – – 100 12 2750 PG22 1 30 38 HLX64623 4050300012018 EVA M28 100 12 2800 GY6.35 2 40 38 HLX64625 4050300006703 FCR A1215 100 12 3600 GY6.35 2 40 38 15V Version HLX64633 4050300006710 BRJ A1234 150 15 5600 G6.35 2 40 38 24V Version HLX64638 4050300283050 – – 100 24 2900 G6.35 2 40 38 HLX64640 4050300006727 FCS A1216 150 24 6000 G6.35 2 40 38 HLX64641 4050300048260 – – 150 24 2700 G6.35 2 40 38 HLX64642 4050300012025 FDV M184 150 24 5000 G6.35 2 40 38 HLX64654 4008321241399 – – 250 24 9000 GY9.5 4 12 38 HLX64655 4050300006734 EHJ A1223 250 24 10000 G6.35 2 40 38 HLX64657 4050300012001 EVC M33 250 24 9000 G6.35 2 40 38 HLX64656 4050300023120 FNT – 275 24 10000 G6.35 2 40 38 36V Version HLX64663 4050300006741 EVD A1239 400 36 16000 G6.35 2 40 38 HLX64664 4008321241474 – – 400 36 14500 G6.35 2 40 38 HLX64665 4008321099761 – – 400 36 12200 G6.35 2 12 38 LIF 191-233 Display Optics:Layout 1 25/10/10 22:22 Page 200
201 All orders must be multiples of sales pack Display/Optic Lamps 1 2 3 4 5 Low voltage tungsten halogen without reflector (Krypton) • Krypton gas filling • Clear finish • Ideal for stage and studio lighting and industrial applications Product EAN ID Code (Single Pack) 6V version 64222 4050300327273 – – 10 6 150 PG22 1 30 38 64223 4008321107039 – M43 10 6 150 G4 2 40 38 64225 4050300006758 ESA M29 10 6 200 G4 2 40 38 64275 4050300258690 – M137 35 6 760 G4 3 40 38 12V version 64258 4050300285153 – – 20 12 350 G4 2 40 38 64259 4008321352569 – – 20 12 400 G4 2 40 38 64260 4050300099798 – M185 30 12 800 PG22 1 30 38 64261 4050300220529 – M130 30 12 750 G6.35 2 40 38 64602 4008321107077 – M134 50 12 1000 G6.35 2 40 38 64628 4008321099549 FDT A1261 100 12 3000 GY9.5 4 12 38 22.8V version 64291 4008321330550 – – 40 22.8 1200 G6.35 5 40 38 64650 4008321107138 – – 50 22.8 1150 G6.35 3 40 38 64668 4008321331182 – – 80 22.8 3050 G6.35 5 40 38 64292XIR 4008321330598 – – 150 22.8 6000 G6.35 5 40 38 24V version 64647 4008321107114 – – 100 24 3600 G6.35 3 40 38 64643 4008321099648 FDS A1262 150 24 5000 GY9.5 4 12 38 Some lamp models are available as XENOPHOT ® versions (type HLX ® ). With xenon instead of krypton as the filler gas, a luminous flux up to 10 % higher is achieved with the same electrical lamp data for details refer topage 200 LIF 191-233 Display Optics:Layout 1 25/10/10 22:22 Page 201
202 All orders must be multiples of sales pack Display/Optic Lamps 1 2 Halogen reflector lamps – MR11 35mm diameter • Compact design • With prefocussed reflector • Ideal for theatre, film and TV lighting Product EAN ID Code (Single Pack) 64255 4050300006833 20 8 GZX4 1 20 38 64613 4050300241012 75 12 G5,3-4.8 2 20 38 64617 4050300231211 75 12 G5.3-4.8 2 20 38 64617S 4050300461106 75 12 G5.3-4.8 2 20 38 64624 4050300013916 100 12 G5.3-4.8 2 20 38 Halogen reflector lamps – MR16 51mm diameter 8-20V • Compact design • With prefocused reflector • Ideal for theatre, film and TV lighting Product EAN ID Code (Single Pack) 64607 4050300006789 EFM A1229 50 8 GZ6.35 20 38 HLX64615 4050300006796 EFN A1230 75 12 GZ6.35 20 38 HLX64627 4050300006802 EFP A1231 100 12 GZ6.35 20 38 64629 4050300943169 – – 100 12 GZ6.35 20 38 64637 4008321352071 – A1271 100 12 GZ6.35 20 38 64619 1) 4050300017273 EPX – 90 14.5 GX5.3 50 38 64620 4050300797397 EFR-5 – 150 15 GZ6.35 20 38 HLX64634 4050300006819 EFR A1232 150 15 GZ6.35 20 38 HLX64635 4050300238807 – – 150 15 GZ6.35 20 38 1) Available on request. For further information please contact OSRAM LIF 191-233 Display Optics:Layout 1 25/10/10 22:22 Page 202
203 All orders must be multiples of sales pack Display/Optic Lamps Halogen reflector lamps – MR16 51mm diameter 21-120V • Compact design • With prefocused reflector • Ideal for theatre, film and TV lighting Product EAN ID Code (Single Pack) 93637 4050300350097 EJV 150 21 GX5.3 24 38 93638 4050300456843 EKE 150 21 GX5.3 24 38 HLX64653 4008321540423 ELC 250 24 GX5.3 20 38 64659 4008321540188 ELC-10 250 24 GX5.3 20 38 93653 4050300636450 ELC-3 250 24 GX5.3 24 38 93506 4050300349930 ENH 250 120 GY5.3 24 38 1 2 3 Halogen lamps, medium/high voltage single-ended 150-360W • Maximum luminous efficacy • Suitable where colour temperature is required for 3400K sensitised material • Ideal for TV, video and film studios Product EAN ID Code (Single Pack) 64501 4050300279237 – – 150 120 GX6.35 1 25 38 64502 4050300289977 – – 150 230 GX6.35 1 25 38 64505 4008321098436 – – 200 230 GX6.35 2 12 38 24064505 4008321098610 – – 200 240 GX6.35 2 12 38 64512 4008321098634 FNS – 300 120 GX6.35 2 12 38 64514 4008321098672 – CP96 300 120 GX6.35 2 12 38 64515 4008321098696 – – 300 230 GX6.35 2 12 38 24064515 4008321098719 – – 300 240 GX6.35 2 12 38 64516 4008321098733 – – 300 230 GX6.35 2 12 38 24064516 4008321098757 – CP97 300 240 GX6.35 2 12 38 64662 4008321097873 – M38 300 230 GY9.5 3 12 38 LIF 191-233 Display Optics:Layout 1 25/10/10 22:22 Page 203
204 All orders must be multiples of sales pack Display/Optic Lamps 1 2 3 4 Halogen lamps, medium/high voltage single-ended 400-1000W • Maximum luminous efficacy • Enhanced filament design • Ideal for theatre, film and TV lighting Product EAN ID Code (Single Pack) 24093591 4050300481555 FSY – 400 240 GY9.5 1 24 38 93592 4050300481531 FSX – 400 230 GY9.5 1 24 38 64672 4008321098559 – M/40 500 230 GY9.5 2 12 38 24064672 4008321098535 – M/40 500 240 GY9.5 2 12 38 64680 4008321098573 – A1/244 500 230 GY9.5 3 12 38 24064680 4008321098597 – A1/244 500 240 GY9.5 3 12 38 64540 4008321098818 BVM P1/13 650 230 GX6.35 2 12 38 24064540 4008321098795 BVM P1/13 650 240 GX6.35 2 12 38 64686 4008321098498 DYR A1/233 650 230 GY9.5 4 12 38 24064686 4008321098511 DRY A1/233 650 240 GY9.5 4 12 38 64573 4008321098832 – – 1000 120 GX6.35 2 12 38 64575 4008321098856 EGY P115 1000 230 GX6.35 2 12 38 24064575 4008321098450 EGY P115 1000 240 GX6.35 2 12 38 LIF 191-233 Display Optics:Layout 1 25/10/10 22:22 Page 204
205 All orders must be multiples of sales pack Display/Optic Lamps 2 4 1 3 5 6 d l a 6 Halogen studio lamps, single ended 300-650W • Maximum luminous efficacy • Suitable where colour temperature is required for 3200K sensitised material • Ideal for professional film and TV recordings Product EAN ID Code (Single Pack) 64673 4008321099785 – CP81 300 230 7500 GY9.5 1 12 38 24064673 4008321099808 – CP81 300 230 7500 GY9.5 1 12 38 64670 4050300022536 – T25 500 230 11000 GY9.5 6 25 38 64674 4008321099822 – CP82 500 230 13500 GY9.5 1 12 38 24064674 4008321099846 – CP82 500 240 13500 GY9.5 1 25 38 64716 4050300506494 GKV – 600 230 14000 G9.5 2 25 38 24064716 4050300506517 GKV – 600 240 14000 G9.5 2 25 38 64717 4050300296692 FRK CP89 650 230 16250 GY9.5 3 25 38 24064717 4050300304953 FRK CP89 650 240 16250 GY9.5 3 25 38 64718 4050300022543 GCT T27 650 230 14500 GY9.5 3 25 38 24064718 4050300283463 GCT T27 650 240 14500 GY9.5 3 25 38 64719 4050300019154 – T12 650 230 12000 GX9.5 4 20 38 64720 4050300017716 – CP23 650 230 16800 GX9.5 4 20 38 64721 4050300217970 FKH CP39 650 230 16800 G22 5 20 38 LIF 191-233 Display Optics:Layout 1 25/10/10 22:22 Page 205
206 All orders must be multiples of sales pack Display/Optic Lamps Halogen studio lamps, single ended 750-1000W • Maximum luminous efficacy • Suitable where colour temperature is required for 3200K sensitised material • Ideal for professional film and TV recordings Product EAN ID Code (Single Pack) 64678 4050300609102 – – 800 230 G9.5 1 25 38 64576 4008321099860 – P217 1000 230 GX6.35 2 12 38 64743 4008321225702 FEL CP77 1000 120 G9.5 3 20 38 64744 4050300017723 FWP T19 1000 230 GX9.5 4 20 38 24064744 4050300283333 FWP T19 1000 240 GX9.5 4 20 38 64745 4050300213262 FVA CP70 1000 230 GX9.5 5 20 38 24064745 4050300283234 FVA CP70 1000 240 GX9.5 5 20 38 24064747 4050300283999 FKJ CP71 1000 240 G22 6 20 38 64748XS 4008321218483 – – 1000 230 GY9.5 5 25 38 24064748XS 4008321218506 – – 1000 240 GY9.5 5 25 38 93734 4050300350073 FEL CP77 1000 240 G9.5 3 12 38 LIF d a 6 1 2 3 4 5 6 XS = eXtreme Seal (max. permissible foil temperature 450° C) 191-233 Display Optics:Layout 1 25/10/10 22:22 Page 206
207 All orders must be multiples of sales pack Display/Optic Lamps 2 4 5 6 1 3 d 5 a 7 8 Halogen studio lamps, single ended 1200-20000W • Maximum luminous efficacy • Suitable where colour temperature is required for 3200K sensitised material • Ideal for professional film and TV recordings Product EAN ID Code (Single Pack) 93723 4008321370594 – CP/110 1200 80 37500 2PIN 1 12 38 64752 4050300296616 FWS T29 1200 230 28600 GX9.5 2 20 38 24064752 4050300305011 FWS T29 1200 240 28600 GX9.5 2 20 38 64754 4050300296746 – CP90 1200 230 30000 GX9.5 3 20 38 64756 4050300296722 – CP93 1200 230 30000 G22 1 20 38 64777 4050300367682 – CP92 2000 230 52000 G22 1 20 38 64787 4050300246154 – CP75 2000 230 52000 G22 1 20 38 64788 4050300213286 FTM CP72 2000 230 52000 GY16 4 20 38 24064788 4050300283258 FTM CP72 2000 240 52000 GY16 4 20 38 64789 4050300219103 FKK CP73 2000 220 52000 G38 5 1 38 24064789 4050300283371 FKK CP73 2000 240 52000 G38 5 1 38 64796 4050300406428 – CP91 2500 230 65000 G22 1 20 38 64805 4050300212609 – CP85 5000 230 135000 G38 6 1 38 24064805 4050300283401 – CP85 5000 240 135000 G38 6 1 38 64815 4050300780696 ECR CP83 10000 230 285000 G38 7 1 38 64818 4050300782713 BCM CP99 20000 230 580000 G38 8 1 38 LIF 191-233 Display Optics:Layout 1 25/10/10 22:22 Page 207
208 All orders must be multiples of sales pack Display/Optic Lamps 1 2 Halogen lamps – double ended • Maximum luminous efficacy • Suitable where colour temperature is required for 3200K sensitised material • Ideal for professional film and TV recordings Product EAN ID Code (Single Pack) 64571 4050300014180 DXX P213 800 230 21000 R7s 1 50 38 24064571 4050300283388 DXX P213 800 240 21000 R7s 1 50 38 64572 4008321325181 – P2/35 1000 230 25000 R7s 2 50 38 64579 4050300014104 FDG – 1000 120 33000 R7s 2 12 38 64580 4050300006888 – P112 1000 230 35000 R7s 2 15 38 24064580 4050300283173 – P112 1000 240 35000 R7s 2 15 38 64583 4050300249094 – P220 1000 230 27000 R7s 2 12 38 24064583 4050300411477 – P220 1000 240 27000 R7s 2 12 38 64741 4050300209333 EKM P27 1000 230 25000 R7s 2 12 38 64751 4050300214641 ELN P212 1250 230 33500 R7s 2 12 38 24064751 4050300283357 ELN P212 1250 240 33500 R7s 2 12 38 64781 4050300229997 FEX P227 2000 230 50000 RX7s 2 12 38 24064781 4050300283500 FEX P227 2000 240 50000 RX7s 2 12 38 LIF 191-233 Display Optics:Layout 1 25/10/10 22:22 Page 208
209 All orders must be multiples of sales pack Display/Optic Lamps HPL ® high performance single ended halogen lamps with special bases • Extended lamp life • Light output equal to 1000W lamp • The QXL ® halogen lamp with the special bayonet base can be changed without tools and without opening the spotlight • Ideal for entertainment and architectural applications Product EAN ID Code (Single Pack) 93728 4050300461816 575 230 14900 2PIN 1 12 38 24093728 4050300461830 575 240 14900 2PIN 1 12 38 93728LL 4008321090102 575 240 11780 2PIN 1 12 38 24093728LL 4008321174444 575 230 11780 2PIN 1 12 38 93729 4050300654201 750 230 19750 2PIN 1 12 38 24093729 4050300654225 750 240 19750 2PIN 1 12 38 93729LL 4008321090324 750 250 15600 2PIN 1 12 38 24093729LL 4008321174468 750 240 15600 2PIN 1 12 38 93721 4008321090195 750 77 22950 Bayonet 2 12 38 1 2 XS = eXtreme Seal (max. permissible foil temperature 450° C) STUDIOLINE • Compact fluorescent lamp • 3200K or 5600K colour temperature • Ideal for film and TV lighting Product EAN ID Code (Single Pack) STUDIOLINE55/3200 4050300575292 55 3800 G11 10 38 STUDIOLINE55/5600 4050300575278 55 3800 G11 10 38 191-233 Display Optics:Layout 1 25/10/10 22:22 Page 209
210 All orders must be multiples of sales pack Display/Optic Lamps DOT-it Backstage Blue for entertainment • Portable LED luminaire with bright blue LEDs • A mobile light source providing light where its needed • Ideal for film and TV lighting Product EAN Product Description ID Code (Single Pack) DOTITBACKSTAG 4008321411426 DOT-IT Backstage blue 0.23 4.5 6 38 aluPAR ® 56 halogen lamps • Lightweight aluminium reflector • Ideal for stage lighting Product EAN Product Description ID Code (Single Pack) 120ALUPAR56NSP 4008321369550 aluPAR 56 NSP 300 120 GX16d 6 38 120ALUPAR56MFL 4008321369574 aluPAR 56 MFL 300 120 GX16d 6 38 120ALUPAR56WFL 4008321369598 aluPAR 56 WFL 300 120 GX16d 6 38 230ALUPAR56NSP 4008321209788 aluPAR 56 NSP 300 230 GX16d 6 38 230ALUPAR56MFL 4008321209863 aluPAR 56 MFL 300 230 GX16d 6 38 230ALUPAR56WFL 4008321209801 aluPAR 56 WFL 300 230 GX16d 6 38 240ALUPAR300NSP 4008321107947 aluPAR 56 NSP 300 240 GX16d 6 38 240ALUPAR300MFL 4008321107985 aluPAR 56 MFL 300 240 GX16d 6 38 240ALUPAR56WFL 4008321209887 aluPAR 56 WFL 300 240 GX16d 6 38 191-233 Display Optics:Layout 1 25/10/10 22:23 Page 210
211 All orders must be multiples of sales pack Display/Optic Lamps aluPAR ® 64 halogen lamps • Lightweight aluminium reflector Product EAN Product Description ID Code (Single Pack) ALUPAR64500VNSPCP8 4008321341259 aluPAR 64 VNSP – CP86 500 230 GX16d 6 38 ALUPAR64500NSPCP87 4008321341273 aluPAR 64 NSP – CP87 500 230 GX16d 6 38 ALUPAR64500MFLCP88 4008321341327 aluPAR 64 MFL – CP88 500 230 GX16d 6 38 240ALUPAR64500VNSP 4008321341365 aluPAR 64 VNSP – CP86 500 240 GX16d 6 38 240ALUPAR64500NSPC 4008321341389 aluPAR 64 NSP – CP87 500 240 GX16d 6 38 240ALUPAR64500MFLC 4008321341402 aluPAR 64 MFL – CP88 500 240 GX16d 6 38 ALUPAR64VNSP 4008321205773 aluPAR 64 VNSP EXC – 1000 230 GX16d 6 38 ALUPAR64NSP 4008321205797 aluPAR 64 NSP EXD CP60 1000 230 GX16d 6 38 ALUPAR64MFL 4008321205858 aluPAR 64 MFL EXE CP61 1000 230 GX16d 6 38 ALUPAR641000WFL 4008321341921 aluPAR 64 WFL EXG CP62 1000 230 GX16d 6 38 240ALUPAR64VNSP 4008321205872 aluPAR 64 VNSP EXC – 1000 240 GX16d 6 38 240ALUPAR64NSP 4008321205896 aluPAR 64 NSP EXD – 1000 240 GX16d 6 38 240ALUPAR64MFL 4008321205919 aluPAR 64 MFL EXE – 1000 240 GX16d 6 38 240ALUPAR641000WFL 4008321341945 aluPAR 64 WFL EXG – 1000 240 GX16d 6 38 LIF 191-233 Display Optics:Layout 1 25/10/10 22:23 Page 211
212 All orders must be multiples of sales pack Display/Optic Lamps 1 2 3 Halogen lamps, current controlled – single ended • To be used in series connected systems • Emits bright, visual light • Ideal for airfield lighting Product EAN ID Code (Single Pack) 64322 4008321100146 EXL – 30 6.6A 430 GY9.5 1 12 38 64311UK 4008321106346 – J159 36 6.6A 600 G6.35 2 40 38 64321 4008321106360 – J157 45 6.6A 900 G6.35 2 40 38 64320 4008321100122 EXM – 45 6.6A 900 GZ9.5 1 12 38 64346 4008321106384 – J158 100 6.6A 2300 G6.35 3 40 38 64386 4008321106407 – J139 200 6.6A 4700 G6.35 3 40 38 58750 4008321100160 EZL – 200 6.6A 5200 GY9.5 1 12 38 LIF 191-233 Display Optics:Layout 1 25/10/10 22:23 Page 212
213 All orders must be multiples of sales pack Display/Optic Lamps 1 2 3 Halogen lamps, current controlled with PK30d base • To be used in series connected systems • Emits bright, visual light • Ideal for airfield lighting Product EAN Product Description ID Code (Single Pack) 64323C 4008321391582 64323 C 30-15 – 30 PK30d 300 PKX30d 1 100 38 64317C 4008321345493 64317 C 45-15 J1/76 45 PK30d 800 PKX30d 1 100 38 64317IRCC 4008321340139 64317 IRC-C 45-30 J1/76 45 PK30d 900 PKX30d 2 100 38 64318A 4008321345516 64318 A 45-15 J1/77 45 PK30d 800 PKX30d 1 100 38 64319Z 4008321345578 64319 Z/C 45-15 – 45 PK30d 800 PKX30d 1 100 38 64319IRCA 4008321340153 64319 IRC-A 45-30 – 45 PK30d 900 PKX30d 2 100 38 HLX64328A 4008321345592 64328 HLX-A 65-15 – 65 PK30d 1450 PKX30d 3 100 38 HLX64328Z 4008321345615 64328 HLX-Z/C 65-15 – 65 PK30d 1450 PKX30d 3 100 38 HLX64341A 4008321345639 64341 HLX-A 100-15 J1/79 100 PK30d 2700 PKX30d 3 100 38 HLX64341Z 4008321345653 64341 HLX-Z/C 100-15 J1/79 100 PK30d 2700 PKX30d 3 100 38 HLX64342 4008321345677 64342 HLX-C 100-15 J1/80 100 PK30d 2700 PKX30d 3 100 38 HLX64361A 4008321345691 64361 HLX-A 150-15 J1/83 150 PK30d 3600 PKX30d 3 100 38 HLX64361Z 4008321345714 64361 HLX-Z/C 150-15 J1/83 150 PK30d 3600 PKX30d 3 100 38 HLX64382A 4008321345738 64382 HLX-A 200-15 J1/84 200 PK30d 4800 PKX30d 3 100 38 HLX64382 4008321345752 64382 HLX-C 200-15 J1/84 200 PK30d 4800 PKX30d 3 100 38 LIF 191-233 Display Optics:Layout 1 25/10/10 22:23 Page 213
214 All orders must be multiples of sales pack Display/Optic Lamps Halogen lamps, current controlled with reflector • To be used in series connected systems • With dichroic coating for cooler heat projection • Ideal for airfield lighting Product EAN Product Description ID Code (Single Pack) 64331SPA 4008321102560 64331 SP-A 30-10 30 6.6A Cables 1 20 38 64333A 4008321166340 64333 A-40-15 40 6.6A Cables 1 20 38 64333B 4008321104731 64333 B 40 6.6A Cables 1 20 38 64333CUK 4008321104885 64333 C 40 6.6A Cables 1 20 38 64337A 4008321102515 64337A45-15 45 6.6A Cables 1 20 38 64337B45 4008321104700 64337B45-15 45 6.6A Cables 1 20 38 64337A 4008321102737 64337A48-15 48 6.6A Cables 1 20 38 64337B48 4008321105226 64337 IRC-LL-B 48 6.6A Cables 1 20 38 64337C48 4008321105240 64337C IRC-LL-C 48 6.6A Cables 1 20 38 64337IRC-C 4008321102492 64337 IRC-C 48-30 48 6.6A Cables 2 20 38 64338A 4008321105301 64338 A 48-10 48 6.6A Cables 1 20 38 64337IRC-A 4008321341174 64337 IRC-A 48-30 48 6.6A Cables 2 20 38 64336A 4008321186713 64336 A 62-15 62 6.6A Cables 3 20 38 64339A 4008321101600 64339-A 105-10 105 6.6A Cables 4 20 38 64339 4008321105424 64339-AC 105-10 105 6.6A Cables 4 20 38 64339B 4008321105462 64339-B 105-10 105 6.6A Cables 4 20 38 64339C 4008321105486 64339-C 105-10 105 6.6A Cables 4 20 38 1 2 3 4 191-233 Display Optics:Layout 1 25/10/10 22:23 Page 214
215 All orders must be multiples of sales pack Display/Optic Lamps 1 2 Halogen lamps, current controlled – double ended • To be used in series connected systems • Emits bright, visual light • Ideal for airfield lighting Product EAN ID Code (Single Pack) 64315 4050300206844 J1/78 45 6.6A R7s-15 1 25 38 64340 4050300017266 J182 100 6.6A R7s-15 2 25 38 64380 4050300209944 J140 200 6.6A R7s-18 2 25 38 LIF 191-233 Display Optics:Layout 1 25/10/10 22:23 Page 215
216 All orders must be multiples of sales pack Display/Optic Lamps Electronic control gear for medical applications • Various lamp types (eg HXP ® lamps) are designed exclusively for operation with series PT-VIP ECG • These ECGs operate the lamps in special patented operating modes which benefit lamp lifeand efficacy Product EAN Product Description ID Code (Single Pack) PTVIPO1XBO75 4008321502650 PT-VIP 01 Mega & PT HVI 16kV 5.5A for XBO 75W/AC 75 150 60 30 25 38 PTVIP2ACO1DIM 4008321040855 PT-VIP 2AC/380 01 DIM 120 120 150 60 32 25 38 PTVIP4ACO3DIM 4008321337276 PT-VIP 4AC/380 03 DIM 206 200 135 50 30 50 38 191-233 Display Optics:Layout 1 25/10/10 22:23 Page 216
217 All orders must be multiples of sales pack Display/Optic Lamps 1 2 3 5 4 7 6 XBO ® Xenon short arc lamps (75-300W) • Double ended short arc xenon lamp • Very high luminance, high colour rendering, dimmable long life lamps • Ideal for cinema projection Product EAN Product Description ID Code (Single Pack) Without reflector XBO752 4050300508801 XBO 75 W/2 DC 75 14 1 10 38 XBO752OFR 4050300508825 XBO 75W/2 OFR DC 75 14 1 10 38 XBO100OFR 4008321386328 XBO 100 W/OFR DC 100 14 2 10 38 XBO150CROFR 4050300508788 XBO 150 W/CR DC 150 16.5 3 10 38 XBO1501 4050300508344 XBO 150 W/1 DC 150 25 3 10 38 XBO1501OFR 4050300508368 XBO 150W/1 OFR DC 150 25 3 10 38 XBO1504 4050300508382 XBO 150W/4 DC 150 25 3 10 38 With reflector XBO75RAC 4008321964816 XBO R 75W/AC 34.5 75 – 4 2 38 XBOR10045C 4050300367767 XBO R 100W/45 C DC 100 – 5 2 38 XBOR10045OFR 4050300317205 XBO R 100W/45 OFR DC 100 – 6 2 38 XBOR10145C 4050300388458 XBO R 101W/45 C OFR DC 101 – 7 2 38 XBOR18045 4050300432175 XBO R 180 W/45 DC 180 – 6 2 38 XBOR18045C 4050300432199 XBO R 180W/ 45 C OFR DC 180 – 5 2 38 XBOR18145C 4050300450872 XBO R 180W/45 C OFR DC 180 – 7 2 38 XBOR300 4008321137722 XBO R 181W/45 C DC 181 – 4 2 38 191-233 Display Optics:Layout 1 25/10/10 22:23 Page 217
218 All orders must be multiples of sales pack Display/Optic Lamps XBO ® Xenon short arc lamps with reflector (450-10000W) • Double ended short arc xenon lamp • Very high luminance, high colour rendering, dimmable long life lamps • Ideal for cinema projection Product EAN Product Description ID Code (Single Pack) XBO450OFR 4008321082633 XBO 450 W OFR 450 17 1 1 38 XBO450 4008321082640 XBO 450W 450 17 2 1 38 XBO4501 4008321082510 XBO 450 W/1 450 17 2 1 38 XBO4502 4008321082626 XBO 450 W/2 OFR 450 17 1 1 38 XBO4504 4006584412990 XBO 450 W/4 450 17 3 1 38 XBO500HOFR 4008321082503 XBO 500 W/H OFR 500 17 4 1 38 XBO900OFR 4008321081346 XBO 900 W OFR 900 19 5 1 38 XBO1000HSOFR 4008321082114 XBO 1000 W/HS OFR 1000 19 6 1 38 XBO1000HSCOFR 4008321082107 XBO 1000 W/HSC OFR 1000 19 7 1 38 XBO1000HTPOFR 4008321081353 XBO 1000 W/HTP OFR 1000 21 4 1 38 XBO1600CAOFR 4008321064738 XBO 1600 W/CA OFR 1600 24 6 1 38 XBO2000HSOFR 4008321081360 XBO 2000 W/HS OFR 2000 24 10 1 38 XBO2000HTTOFR 4008321064769 XBO 2000 W/HTT OFR 2000 24 8 1 38 XBO2000SHSCOFR 4008321082077 XBO 2000 W/SHSC OFR 2000 27 1 1 38 XBO2000HCCOFR 4008321117250 XBO 2000 W/HCC OFR 2000 28 9 1 38 XBO2500OFR 4008321064783 XBO 2500 W OFR 2500 29 10 1 38 XBO3000HTCOFR 4008321064820 XBO 3000 W/HTC OFR 3000 29 2 1 38 XBO4000HSAOFR 4008321337030 XBO 4000 W/HAS OFR 4000 29 9 1 38 XBO4200CAOFR 4008321337047 XBO 4200 W/CA OFR 4200 29 2 1 38 XBO8000HSOFR 4008321552310 XBO 8000 W/HS OFR 8000 45 1 1 38 1 2 3 4 5 6 7 8 9 10 191-233 Display Optics:Layout 1 25/10/10 22:23 Page 218
219 All orders must be multiples of sales pack Display/Optic Lamps 2 1 3 4 5 6 7 XBO ® Classic Line for cinema projection • Double ended short arc xenon lamp • Very high luminance, high colour rendering, dimmable long life lamps • Ideal for cinema projection Product EAN Product Description ID Code (Single Pack) XBO1600CLOFR 4008321318022 XBO 1600 W CL OFR 1600 24 1 1 38 XBO1600HSCLOFR 4008321317940 XBO 1600 W/HS CL OFR 1550 23 2 1 38 XBO1600HSCCLOFR 4008321317957 XBO 1600 W/HSC CL OFR 1550 23 3 1 38 XBO2000HCLOFR 4008321209566 XBO 2000W/H CL OFR 2000 28 4 1 38 XBO2000HSCLOFR 4008321288653 XBO 2000 W/HS CL OFR 2000 24 6 1 38 XBO2000HTPCL 4008321288646 XBO 2000 W/HTP CL OFR 2000 27 5 1 38 XBO2000SHSCCLOFR 4008321317933 XBO 2000 W/SHSC CL OFR 2000 27 3 1 38 XBO2500HSCLOFR 4008321288660 XBO 2500 W/HS CL OFR 2500 28 6 1 38 XBO3000HCLOFR 4008321209573 XBO 3000 W/H CL/OFR 3000 29 6 1 38 XBO3000HSCLOFR 4008321210265 XBO 3000 W/HS CL OFR 3000 29 7 1 38 XBO3000HTPCL 4008321288677 XBO 3000 W/HTP CL OFR 3000 29 6 1 38 XBO4000HSCLOFR 4008321210272 XBO 4000 W/HS CL OFR 4000 28 6 1 38 XBO4000HTPCL 4008321288684 XBO 4000 W/HTP CL OFR 4000 30 5 1 38 XBO5000HCLOFR 4008321317988 XBO 5000 W/H CL OFR 5000 35 6 1 38 XBO5000HBMCLOFR 4008321317995 XBO 5000 W/HBM CL OFR 5000 34 6 1 38 XBO6000HSCLOFR 4008321318008 XBO 6000 W/HS CL OFR 6000 37 6 1 38 XBO7000HSCLOFR 4008321318015 XBO 7000 W/HS CL OFR 7000 42 6 1 38 191-233 Display Optics:Layout 1 25/10/10 22:23 Page 219
220 All orders must be multiples of sales pack Display/Optic Lamps 2 1 3 4 5 6 7 8 9 XBO ® Xtreme Life for cinema projection • Double ended short arc xenon lamp • Very high luminance, high colour rendering, dimmable long life lamps • Ideal for cinema projection Product EAN Product Description ID Code (Single Pack) XBO1600XLOFR 4008321299918 XBO 1600W XL OFR 1600 24 1 1 38 XBO1600HSXLOFR 4008321299925 XBO 1600W/HS XL OFR 1550 23 2 1 38 XBO1600HSCXLOFR 4008321299932 XBO 1600W/HSC XL OFR 1550 23 3 1 38 XBO2000HXLOFR 4008321211781 XBO 2000W/HXL OFR 2000 27 4 1 38 XBO2000HTPXL 4008321244031 XBO 2000W/HTP XL OFR 2000 28 5 1 38 XBO2500XLOFR 4008321372789 XBO 2500W XL OFR 2500 29 6 1 38 XBO2500HSXLOFR 4008321299963 XBO 2500W/HS XL OFR 2500 28 7 1 38 XBO3000HXLOFR 4008321226174 XBO 3000W/H XL OFR 3000 29 8 1 38 XBO3000HSXLOFR 4008321330031 XBO 3000W/HS XL OFR 3000 29 5 1 38 XBO3000HTPXL 4008321244017 XBO 3000 W/HTP XL OFR 3000 29 5 1 38 XBO4000HSOFR 4008321412812 XBO 4000W/HS XL OFR 4000 30 9 1 38 XBO4000HTPXL 4008321244024 XBO 4000 W/HTP XL OFR 4000 30 5 1 38 XBO6000HSXLOFR 4008321299987 XBO 6000 W/HS XL OFR 6000 37 5 1 38 XBO6000HTPXLOFR 4008321334923 XBO 6000 W/HTP XL OFR 6000 37 5 1 38 XBO7000HSXLOFR 4008321299970 XBO 7000 W/HS XL OFR 7000 42 5 1 38 XBO4500HSOFR 4008321412881 XBO 4500W/HS XL OFR 4500 32 5 1 38 XBO5000HOFR 4008321412829 XBO 5000W/H XL OFR 5000 35 8 1 38 XBO500HBMOFR 4008321412836 XBO 5000W/HBM XL OFR 5000 34 – 1 38 XBO4500HTPOFR 4008321412898 XBO 4500W/HTP XL OFR 4500 32 – 1 38 191-233 Display Optics:Layout 1 25/10/10 22:23 Page 220
221 All orders must be multiples of sales pack Display/Optic Lamps XBO ® lamps for digital cinema projection • Double ended short arc xenon lamp • Very high luminance, high colour rendering, dimmable long life lamps • Ideal for cinema projection Product EAN Product Description ID Code (Single Pack) DHP XBO1200DHPOFR 4008321396433 XBO 1200W/DHP OFR 1200 20 1 1 38 XBO2000DHPOFR 4008321244048 XBO 2000W/DHP OFR 2000 25 1 1 38 XBO3000DHPOFR 4008321330048 XBO 3000W/DHP OFR 3000 30 1 1 38 XBO3000DHPCLOFR 4008321309532 XBO 3000W/DHP XL OFR 3000 30 1 1 38 XBO3000DHSOFR 4008321330017 XBO 3000W/DHS OFR 3000 29 1 1 38 XBO4000DHPCLOFR 4008321309686 XBO 4000W/DHP XL OFR 4000 34 1 1 38 XBO4500DHPOFR 4008321372727 XBO 4500W/DHP OFR 4500 30 1 1 38 XBO6000DHPOFR 4008321549693 XBO 6000W/DHP OFR 6000 35 1 1 38 XBO6500DHPOFR 4008321549723 XBO 6500/DHP OFR 6500 37 1 1 38 XBO4000DHPOFR 4008321546272 XBO 4000W/DHP OFR 4000 33 1 1 38 XBO3000DHSOFR 4008321199065 XBO 3000W/DHS OFR 3000 29 1 1 38 DTP XBO2000DTPOFR 4008321191533 XBO 2000W/DTP OFR 2000 25 2 1 38 XBO3000DTPOFR 4008321191540 XBO 3000W/DTP OFR 3000 27 2 1 38 XBO4500DTPOFR 4008321372734 XBO 4500W/DTP OFR 4500 32 2 1 38 HPS XBO2000HPSOFR 4008321330000 XBO 2000W/HPS OFR 2000 25 3 1 38 XBO3000HPSOFR 4008321330062 XBO 3000W/HPS OFR 3000 29 3 1 38 XBO4200HPSOFR 4008321330086 XBO 4200W/HPS OFR 4200 35 3 1 38 HSLA XBO3000HSLAOFR 4008321330079 XBO 3000W/HSLA OFR1) 3000 29 4 1 38 XBO4500HSLAOFR 4008321372710 XBO 4500W/HSLA OFR1) 4500 30 4 1 38 XBO6000HSLAOFR 4008321549716 XBO 6000W/HSLA OFR 6000 35 4 1 38 XBO6500HSLAOFR 4008321549730 XBO 6500W/HSLA OFR 6500 38 4 1 38 XBO8000HSLAOFR 4008321549747 XBO 8000W/HSLA OFR 8000 43 4 1 38 1 2 3 4 191-233 Display Optics:Layout 1 25/10/10 22:23 Page 221
222 All orders must be multiples of sales pack Display/Optic Lamps XSTAGE ® Xenon short arc lamps for entertainment • Short arc xenon lamp • Optimised for outdoor use • Ideal for event and architectural lighting and large scale floodlighting Product EAN Product Description ID Code (Single Pack) XSTAGE2000 4008321288820 Xstage 2000W OFR 2000 23 1 1 38 XSTAGE3000 4008321199690 Xstage 3000W OFR 3000 30 1 1 38 XSTAGE4000 4008321199706 Xstage 4000W OFR 4000 30 1 1 38 XSTAGE7000 4008321199713 Xstage 7000W OFR 7000 40 2 1 38 1 2 2 1 3 4 5 6 HBO ® Mercury short arc lamps 50-200W • Short arc Mercury lamp • Ideal for UV generation in scientific and technical applications Product EAN Product Description ID Code (Single Pack) Without reflector HBO50ACL2 4050300507118 HBO 50 W/AC L2 50 1 1 38 HBO50ACL1 4050300507132 HBO 50 W/AC L1 50 1 1 38 HBO503 4050300506692 HBO 50 W/3 DC 50 2 1 38 HBO1002 4050300507095 HBO 100 W/2 DC 100 3 1 38 HBO1032 4050300382128 HBO 103 W/2 DC 103 3 1 38 HBO2004 4050300506715 HBO 200 W/4 AC 200 4 1 38 HBO2024 4050300507156 HBO 202 W/4 AC 202 4 1 38 HBO2002L2 4050300508283 HBO 200 W/2 L2 AC/DC 200 5 1 38 HBO2002L1 4050300508153 HBO 200 W/2 L1 AC/DC 200 5 1 38 HBO200DC 4050300506791 HBO 200 W/DC 200 5 1 38 HBO200DCTM 4008321137623 HBO 200 W/DC TM 200 5 1 38 With reflector HBOR10345 4050300405957 HBO R 103 W/45 DC 103 6 1 38 191-233 Display Optics:Layout 1 25/10/10 22:23 Page 222
223 All orders must be multiples of sales pack Display/Optic Lamps Special lamps for IR applications • Short wave halogen infrared lamp developed specifically for fast heating processes Product EAN Product Description ID Code (Single Pack) 54555 4008321216304 54555 – 1000 120 G9.5 1 12 38 64743HT 4050300506531 64743 HT FEL 1000 120 G9.5 2 12 38 VIPR120P24I 4050300563084 HXP R120W/ 17C – 120 82.5 – – 1 38 HXPR20045MP2 4008321180087 HXP R200W/ 45M – 200 78 – – 1 38 1 2 XERADEX ® lamps • Xenon excimer lamps Product EAN Product Description ID Code (Single Pack) Single ended XERADEX120SB4685 4008321190994 XERADEX L40/120/SB-S46/85 20 1 1 38 XERADEX120SBKF50 4008321191014 XERADEX L40/120/SB-SX48/KF50 20 2 1 38 XERADEX120SBKF50HV 4008321211255 XERADEX L40/120/SB-SX48/KF50HV 20 2 1 38 XERADEX175SB4595 4008321191052 XERADEX L40/175/SB-S45/95 20 1 1 38 XERADEX175SB4685 4008321191038 XERADEX L40/175/SB-S46/85 20 1 1 38 XERADEX175SBKF50HV 4008321243713 XERADEX L40/175/SB-SX48/KF50HV 20 2 1 38 Double ended XERADEX375DB 4008321939289 XERADEX L40/375/DB-AZ48/90 60 3 1 38 XERADEX620DB 4008321939296 XERADEX L40/620/DB-AZ48/90 100 3 1 38 1 2 3 191-233 Display Optics:Layout 1 25/10/10 22:23 Page 223
224 All orders must be multiples of sales pack Display/Optic Lamps XIS XERADEX ® irradiation system • Complete systems that can be used as stand alone units or integrated as partof an installation • The system comprises XERADEX ® 20W lamps, DBD 20 electronic control gear, special VUC compatible reflectors and a quartz front panel Product EAN Product Description ID Code (Single Pack) XTU70 4008321216328 XTU 70 30W 110-240V 180 94 56 1 1 38 XIS170S 4008321158253 XIS 170 60W 110-240V 320 230 75 2 1 38 1 2 DBD electronic control gear for XERADEX ® lamps • DBD electronic control gear designed exclusively for operating XERADEX ® lamps Product EAN Product Description ID Code (Single Pack) DBD20 4050300939469 DBD 20/110-240 110-240 240 17 95 1 38 DBD300DIM 4008321939357 DBD 300/100-240 DIM 110-240 250 166 125 1 38 191-233 Display Optics:Layout 1 25/10/10 22:23 Page 224
225 All orders must be multiples of sales pack Display/Optic Lamps Microlithography lamps for i-line systems Product EAN Product Description ID Code (Single Pack) For ASML i-line systems HBO1003PIL 4050300461380 HBO 1003W/PIL DC 700 27.1 1 8 38 HBO1500PIL 4050300461465 HBO 1500W/PIL DC 1500 23 2 6 38 HBO2100PIL 4050300800431 HBO 2100W/PIL DC 2100 24 2 6 38 HBO2500PIL 4050300947396 HBO 2500W/PIL DC 2500 28 3 1 38 HBO3500PIL 4008321355843 HBO 3500W/PIL DC 3400 23 4 4 38 For Canon i-line systems HBO1000CEL 4050300412627 HBO 1000W/CEL 750 47 5 1 38 HBO1002CEL 4050300412634 HBO 1002W/CEL 750 47 6 1 38 HBO1500CIEL 4050300624037 HBO 1500W/CIEL 1500 23 7 6 38 HBO1500CIEL 4050300538204 HBO 1500W/CIEL 1500 23 7 1 38 HBO2001CIEL 4050300972121 HBO 2001W/CIEL 2000 26 8 4 38 HBO2001CIELX 4008321122735 HBO 2001W/CIELX 2000 24 8 4 38 HBO2001CIL 4050300947235 HBO 2001W/CIL 2000 26 8 4 38 HBO2700CIL 4050300896588 HBO 2700W/CIL 2700 26 9 1 38 For Nikon i-line systems HBO1002NIL 4050300461403 HBO 1002W/NIL 750 25.8 10 8 38 HBO2000NIL 4050300490212 HBO 2000W/NIL 1750 26 11 1 38 HBO2001NIEL 4050300538211 HBO 2001W/NIEL 1750 26 12 1 38 HBO2001NIL 4050300461489 HBO 2001W/NIL 1750 26 12 6 38 HBO2002NIL 4050300772714 HBO 2002W/NIL 1750 26 13 1 38 HBO2011NIL 4050300652641 HBO 2011W/NIL 2000 25 13 6 38 HBO2011NILH 4050300991665 HBO 2011W/NILH 2000 25 13 6 38 HBO2501NIL 4050300628288 HBO 2501W/NIL 2500 23 14 4 38 HBO2510NIL 4050300628400 HBO 2510W/NIL 2500 23 15 4 38 1 2 3 4 10 11 12 13 14 15 5 6 7 8 9 191-233 Display Optics:Layout 1 25/10/10 22:23 Page 225
226 All orders must be multiples of sales pack Display/Optic Lamps Microlithography lamps for LCD systems Product EAN Product Description ID Code (Single Pack) For Canon LCD systems HBO8000C 4008321352323 HBO 8000W/C 8000 81 1 4 38 HBO8000CHL 4008321280282 HBO 8000W/CHL 8000 81 1 1 38 For Nikon LCD systems HBO4300NHLVS11 4008321281159 HBO 4300W/NHL 4300 54 2 4 38 HBO4300NHL 4008321281142 HBO 4300W/NHL 4300 54 2 1 38 1 2 Other Microlithography lamps up to 1000W Product EAN Product Description ID Code (Single Pack) HBO250BY 4050300803432 HBO 250W/BY DC 250 40 1 1 38 HBO250LS 4008321336668 HBO 250W/LS DC 250 39 2 1 38 HBO350 4050300351599 HBO 350W DC 350 67.5 3 1 38 HBO350S 4050300258041 HBO 350W/S DC 350 68 3 1 38 HBO1000D 4050300288857 HBO 1000W/D 1000 37.7 4 1 38 1 2 3 4 191-233 Display Optics:Layout 1 25/10/10 22:23 Page 226
227 All orders must be multiples of sales pack Display/Optic Lamps HXP ® long life mercury short-arc lamps • Pico 9 base • Gas filled incandescent lamp • Ideal for scientific applications Product EAN Product Description ID Code (Single Pack) HXPR12017CP50 4050300786476 HXP R 120W/17C AC 120 1 1 38 HXPR12045CVIS 4050300882772 HXP R 120W/45C VIS AC 120 2 1 38 HXPR12045CUV 4050300666525 HXP R 120W/45C UV AC 120 2 1 38 HXPR20045M 4008321180070 HXP R 200W/45M AC 200 2 1 38 1 2 Lamps without Halogen, low voltage • For optical and photo-electronic purposes Product EAN ID Code (Single Pack) 8013 4050300206356 10 6 BA15d 1 100 38 8014 4050300206370 10 6 BA15s 1 100 38 8017 4050300017327 15 6 B15d 2 100 38 8018 4050300206417 15 6 B15d 2 100 38 8022 4050300206677 50 12 BA20d 3 100 38 8024 4050300013817 40 12 BA20d 4 100 38 8100 4050300342122 5A 6 E14/SES 5 100 38 1 2 3 4 5 191-233 Display Optics:Layout 1 25/10/10 22:23 Page 227
228 All orders must be multiples of sales pack Display/Optic Lamps 1 2 3 4 SPECTRAL lamps • Pico 9 base • Gas filled incandescent lamp • Ideal for scientific applications Product EAN ID Code (Single Pack) CD10 4050300210353 AC Cadmium 15 1 1 38 CS10 4050300213842 AC Caesium 10 1 1 38 HE10 4050300212258 AC Helium 55 1 1 38 K10 4050300212197 AC Potassium 10 1 1 38 NA10 4008321417800 AC Sodium 15 1 1 38 NE10 4050300212210 AC Neon 30 1 1 38 HG100 4050300231310 AC/DC Mercury 22 2 1 38 HGCD10 4050300211459 AC Mercury/ Cadmium 25 1 1 38 RB10 4050300213866 AC Rubidium 10 1 1 38 TL10 4050300211435 AC Thallium 15 1 1 38 ZN10 4050300212234 AC Zinc 15 1 1 38 Lamps for scientific purposes • Used mainly for scientific purposes as comparison standards and calibration lamps • Ideal for photometry, colorimetry and physics Product EAN Product Description ID Code (Single Pack) WI17G 4050300209104 WI 17/G 9V 16A 9 E27/51X39 1 1 38 WI40G 4050300206783 WI 40/G 31V 6A 2856K 31 E27/51X39 2 1 38 WI41G 4050300206806 WI 41/G 31V 6A 2856K 31 E27/51X39 3 1 38 1a 1b 2 3 191-233 Display Optics:Layout 1 25/10/10 22:23 Page 228
229 All orders must be multiples of sales pack Display/Optic and Special Lamps HALOTHERM ® Infra-red halogen lamps • Ideal for plastics, paper and printing industries, for drying paint and restaurant food areas Product EAN Product Description ID Code (Single Pack) Quartz Clear ITT200 4008321203472 HALO ITT 200/235-0170 200 235 Quartz Clear R7s 1 12 38 ITT350 4008321204219 HALO ITT 350/235-0170 350 235 Quartz Clear R7s 1 12 38 ITT500CL 4008321203519 HALO ITT 500/235-0170 500 235 Quartz Clear R7s 1 12 38 ITT500 4008321206701 HALO ITT 500/235-0170 K 500 235 Quartz Clear R7s 1 12 38 ITT700 4008321203533 HALO ITT 700/235-0170 700 235 Quartz Clear R7s 1 12 38 ITT1000 4008321203557 HALO ITT 1000/235-0170 1000 235 Quartz Clear R7s 1 12 38 ITT100001ROL1 4008321555076 HALO ITT 1000/235-01X0 1000 235 Quartz Clear X 2 12 38 ITT2000ROL1 4008321555137 HALO ITT 2000/235-01Y0 K 2000 235 Quartz Clear Y 3 12 38 ITT2000 4008321555151 HALO ITT 2000/235-0103 K 2000 235 Quartz Clear – 4 12 38 ITT2200 4008321555175 HALO ITT 2300/235-0102 2200 235 Quartz Clear – 4 12 38 ITT3000UNV1 4008321387127 HALO ITT 3000/235-0102 K 3000 235 Quartz Clear – 4 60 38 400ITT3000 4008321507174 HALO ITT 3000/400-0102 K 3000 400 Quartz Clear – 4 60 38 ITT3000ROL1 4008321555199 HALO ITT 3000/235-01Y0 K 3000 235 Quartz Clear Y 3 12 38 ITT3000 4008321206725 HALO ITT 3000/235-01Y0 Z/K 3000 235 Quartz Clear Y/Z 5 30 38 White reflector ITT5000870 4008321206299 HALO ITT 500/235-0870 500 235 White reflector R7s 1 12 38 ITT50008 4008321555090 HALO ITT 500/235-08X0 500 235 White reflector X 2 12 38 ITT100008ROL1 4008321555113 HALO ITT 1000/235-08X0 1000 235 White reflector X 2 12 38 ITT1000S 4008321206275 HALO ITT 1000/235-0826 /S 1000 235 White reflector K9x15/21 6 12 38 ITT1000CL 4008321259738 HALO ITT 1000/235-0826 /S 600CL 1000 235 White reflector K9x15/21 6 60 38 ITT2000 4008321206350 HALO ITT 2000/235-0826 K/S 2000 235 White reflector K9x15/21 6 12 38 ITT2000CL 4008321259790 HALO ITT 2000/235-0826 K/S 600CL 2000 235 White reflector K9x15/21 6 60 38 ITP2500 4008321252944 HALO ITP 2500/235-0826 K/S 2500 235 White reflector K9x15/21 6 12 38 ITT2500 4008321206336 HALO ITT 2500/400-0826 K 2500 400 White reflector K9x15/21 6 12 38 ITT3000CL 4008321206312 HALO ITT 3000/400-0826 K 3000 400 White reflector K9x15/21 6 12 38 1 2 3 4 5 6 191-233 Display Optics:Layout 1 25/10/10 22:23 Page 229
230 All orders must be multiples of sales pack Display/Optic and Special Lamps RUBYSTAR ® Halogen Infra-red lamps • Rubied quartz Infra-red halogen lamp • Ideal for applications in which visible light would be a distraction Product EAN Product Description ID Code (Single Pack) RUBYST120026 4008321204233 RUBYSTAR 1200/235-0026 PH 1200 235 Rubied quartz K9x15/21 1 12 38 RUBYST130070 4008321203618 RUBYSTAR 1300/235-0070 1300 235 Rubied quartz R7s 2 12 38 RUBYST150028 4008321196804 RUBYSTAR 1500/235-0028 1500 235 Rubied quartz K9x15/21 1 12 38 RUBYST200023 4008321196620 RUBYSTAR 1500/235-0023 2000 235 Rubied quartz K9x15/21 1 12 38 1 2 SICCATHERM ® Infra-red lamps • Infra-red heat lamp • Ideal for in food processing for pasteurising and drying and keeping food warm Product EAN Product Description ID Code (Single Pack) 240SICCA100LR 4008321392145 SICCATHERM PAR38 Red 100W 100 240 Red filter E27 2 12 38 240SICCA150LR 4008321502094 SICCATHERM R125 Red 150W 150 240 Red filter E27 1 12 38 240SICCA175LR 4008321392190 SICCATHERM PAR38 Red 175W 175 240 Red filter E27 2 12 38 240SICCA250CL 4008321507051 SICCATHERM R125 CL 250W 250 240 Clear E27 1 12 38 240SICCA250FR 4008321507037 SICCATHERM R125 FR 250W 250 240 Frosted E27 1 12 38 240SICCA250LR 4008321507013 SICCATHERM R125 Red 250W 250 240 Red filter E27 1 12 38 240SICCA275CL 4008321507075 SICCATHERM R125 CL 275W 275 240 Clear E27 1 12 38 SICCA375 4050300206912 SICCATHERM R125 CL 375W 375 230 Clear E27 1 12 38 1 2 191-233 Display Optics:Layout 1 25/10/10 22:23 Page 230
231 All orders must be multiples of sales pack Display/Optic and Special Lamps THERATHERM ® Infra-red heat lamps • Infra-red heat lamp • Ideal for use in the cosmetic industry and as heat sources in saunas, swimming pools Product EAN Product Description ID Code (Single Pack) THERA150DL 4008321392213 THERA PAR 38 Red DL 150W 150 240 Red filter E27 2 12 38 THERA250 4008321507099 THERA R125 Red 250W 250 240 Red filter E27 1 12 38 1 2 191-233 Display Optics:Layout 1 25/10/10 22:23 Page 231
232 All orders must be multiples of sales pack Display/Optic and Special Lamps OSRAM DULUX ® BLUE AND BLUE UVA • DULUX ® Blue: Compact fluorescent lamp approved for use in medical applications • DULUX ® Blue UVA: Compact fluorescent lamp used mainly for curing plastics, dentistry, circuit board manufacture and scientific investigation Product EAN Product Description ID Code (Single Pack) DS971 4008321198860 DULUX S BLUE 9 G23 167mm 2 50 38 DL1871 4008321198884 DULUX L BLUE 18 2G11 217mm 1 10 38 DS778 4008321198907 DULUX S BLUE UVA 7 G23 137mm 2 50 38 DS978 4008321198938 DULUX S BLUE UVA 9 G23 167mm 2 50 38 DL1878 4008321198990 DULUX L BLUE UVA 18 2G11 217mm 1 10 38 1 2 Fluorescent tubes with black glass bulbs • Fluorescent tube that emits long wave UV radiation • Ideal for all applications involving fluorescence analysis such as criminal investigation, Foodand textiles industry and effect lighting Product EAN Product Description ID Code (Single Pack) L1873 4008321054685 L 18/73 18 G13 590 25 38 L3673 4008321054715 L 36/73 36 G13 1200 20 38 191-233 Display Optics:Layout 1 25/10/10 22:23 Page 232
233 All orders must be multiples of sales pack Display/Optic and Special Lamps HNS ® germicidal lamps producing no ozone • Germicidal lamps producing no ozone • Ideal for disinfecting water, air and surfaces, water purification in applications such asswimming pools, water treatment systems, drinking water Product EAN Product Description ID Code (Single Pack) HNS4 4008321378316 HNS 4W G5 4 G5 136 1 25 38 HNS6OFR 4008321378330 HNS 6W G5 6 G5 212 1 25 38 HNS8OFR 4008321378385 HNS 8W G5 8 G5 288 1 25 38 HNS11G5 4008321468796 HNS 11W G5 11 G5 212 1 25 38 HNS15G13 4008321398826 HNS 15W G13 15 G13 438 1 20 38 HNS25G13 4008321398857 HNS 25W G13 25 G13 438 1 20 38 HNS30OFR 4008321398888 HNS 30W G13 30 G13 895 1 10 38 HNS55G13 4008321398918 HNS 55W G13 55 G13 895 1 10 38 HNSL18 4008321220431 HNS L 18W 2G11 18 2G11 214 2 10 38 HNSL24 4008321220561 HNS L 24W 2G11 24 2G11 314 2 10 38 HNSL36 4008321220684 HNS L 36W 2G11 36 2G11 408 2 10 38 HNS5OFR 4008321229946 HNS S 5W G23 5 G23 108 3 10 38 HNS7OFR 4050300941202 HNS S 7W G23 7 G23 136 3 10 38 HNS9OFR 4050300941226 HNS S 9W G23 9 G23 166 3 10 38 HNS11OFR 4050300941240 HNS S 11W G23 11 G23 236 3 10 38 HNSSE7 4008321383891 HNS S/E 7W 2G7 7 2G7 112 4 10 38 HNSSE9 4008321384911 HNS S/E 9W 2G7 9 2G7 142 4 10 38 HNSSE11 4008321384935 HNS S/E 11W 2G7 11 2G7 212 4 10 38 1 2 3 4 191-233 Display Optics:Layout 1 25/10/10 22:23 Page 233
