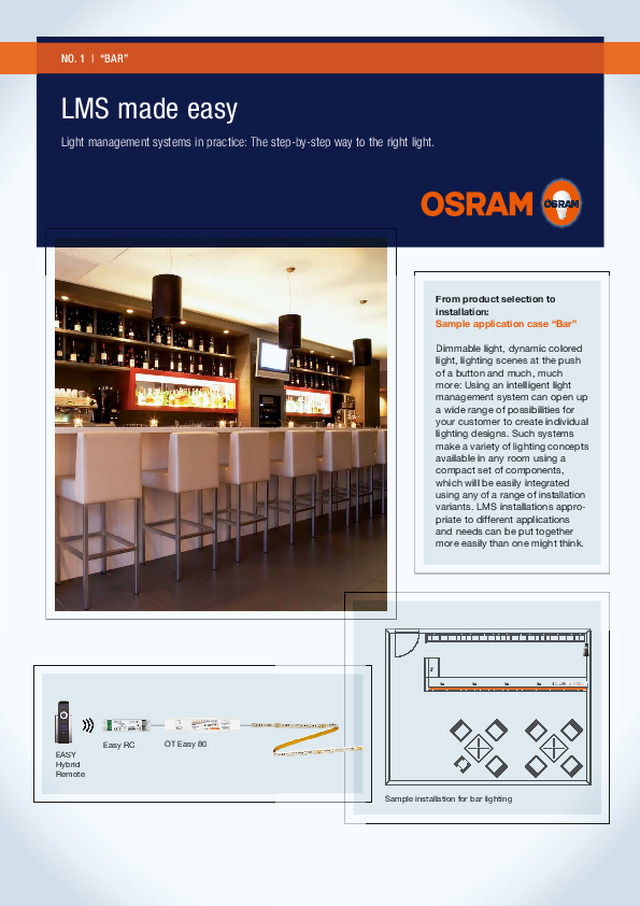

OT Easy 80 Easy RC EASY HybridRemote NO. 1 | “BAR” LMS made easy Light management systems in practice: The step-by-step way to the right light. Sample installation for bar lighting From product selection to installation:  Sample application case “Bar”  Dimmable light, dynamic coloredlight, lighting scenes at the pushof a button and much, much more: Using an intelligent lightmanagement system can open up a wide range of possibilities for your customer to create individual lighting designs. Such systemsmake a variety of lighting conceptsavailable in any room using a compact set of components, which will be easily integrated using any of a range of installationvariants. LMS installations appro-priate to different applicationsand needs can be put togethermore easily than one might think.

2 2 2 LMS BAR Atmospheric feel thanks tovariable RGB bar lighting The ideal solution: LMS for RGB bar lighting What does the owner want to do?• Use lighting to create atmosphere and mood• Lighting for a range of different occasions• Ease of operation• Automation functionalities – no excessive effort  required in operation What does the guest want?• Atmospheric light• Cozy atmosphere The benefi ts of the recommended light managementsystem• High level of fl exibility in lighting• Color control possible• Easy installation and commissioning• Feature allowing lighting to be grouped  • Easy, wireless operation using a central control element  (e. g. remote control) Ideal solution for RGB bar lighting • LINEARlight Colormix Flex ADVANCED LED strip: fl exible, self-adhesive and cuttable LED strip multicoloredLEDs: each LED contains a red, green and blue chip forthe best possible color mixing, easy connection usingthe optional CONNECT system • OT EASY 80 control unit: Power 80 W, distributable as desired to multiplechannels. New control unit, developed especially for use with RGB LED modules – 4 PWM terminals, RGB(W) sequencing control for up to 4 different sequences, up to 16 different lighting scenes with fade times indepen-dently adjustable for each sequence, up to 16 static lighting scenes can be stored and retrieved. Housingwith strain relief clamping for independent installation and integrated power supply for direct connection to24-V LED modules, allowing up to 64 controllers to be connected, output voltage 24 V • EASY Hybrid remote control:  Easy-to-use radio remote control for easy wireless control and personalization of lighting – continuous color and brightness adjustment using a rotary wheel,can store up to 8 lighting scenes, 8 lighting groupsand 4  sequences. Wall mounting included • EASY RC radio receiver: 868.3 MHz radio receiver – suitable for 8 EASY Hybridremote units, connection via 4-pole screw terminal ormodular 4p4c plug-in connection • Extensions to the system:  You can fi nd a wide range of optional accessoriessuch as touch panels and interfaces to DALI/DMX at www.osram.com/lms  additional components required Photo:  Rainer Rehfeld

3 STEP BY STEP: INSTALLATION INSTRUCTIONS Products/part list [1]  LED module: LINEARlight Colormix Flex Advanced [2] OT EASY 80 control unit [3]  EASY Hybrid remote control [4] EASY Hybrid (wall mounting) [5] EASY RC radio receiver [6]  Connection cable (included in EASY RC) Connecting  the LINEARlight Colormix Flex Advanced continuous LED strip (4 m). Where longer strips are required, up to 64 OT EASY 80 canbe  connected together Commissioning the LED module using  the push button (no PC etc. required) Installation of the radio receiver into the network behind the counter,  connecting the cable to the OT EASY 80 Teaching the wireless remote control using the push button Connecting the mains power  (at 230 V~) to the OT EASY 80 Installation of an OT Easy 80 behind the bar

Product information and technical datasheets about the products to be used are available at: www.osram.com/lmswww.osram.com/lms-easy Application brochures containing other sample uses can be found at: www.osram.com/hospitality Tip: Take a look at our YouTube channel, where you will always fi nd new installation videos: www.youtube.com/osram PRODUCT AND ORDER INFORMATION OSRAM GmbH Head Offi ce Hellabrunner Strasse 1 81543 Munich, Germany Pho ne +49 (0)89-6213-0 Fax  +49  (0)89-6213-20 20 www .os ram .com LED strip Productnumber (EAN) LINEARlight ColormixFlex ADVANCED – LF05CA2 4008321851536 RGB 2 72 24 3 120 ––– 1883 4000   8   3 Red 8.8 28 24 1.2 ––– 625 645 ––– ––– ––– Green 2 22 24 0.9 ––– 525 1025 ––– ––– ––– Blue 9.2 19 24 0.8 ––– 465   213 ––– ––– ––– Product descriptionControl unit Productnumber (EAN) IP Appli- ance class OT EASY 80 4008321808363 EASY 0 80 IP20 II II –20…+50 50–60 220–240 245 46 44 Product descriptionRemote control Productnumber (EAN) IP Appli- ance class EASY Hybrid remote 4008321421739 EASY 30 IP20 III black 187 67 23 5 Product descriptionReceiver Productnumber (EAN) IP EASY RC 4008321421753 EASY max.30 IP20 118 30 21 18 K   S ubject to technical modifica tions and errors . 7KZS 004 G B 02 /13  OS RAM  S -G I EM-M K
