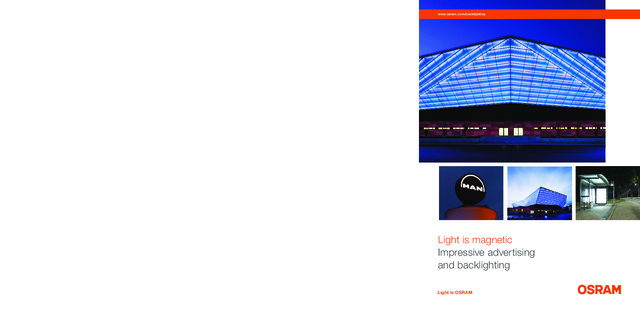

Light is magnetic Impressive advertising and backlighting - Osram - 2017

Light is magnetic Impressive advertising and backlighting

Light is OSRAM www.osram.com/backlighting Light is magnetic Impressive advertising and backlighting Light is OSRAM 1 E B W 0 0 5 G B O S R A M D S S M K 1 2 /1 6 Subject to change without notice. Err ors and omissions excepted. OSRAM GmbH Head ofﬁ ce: Marcel-Breuer-Strasse 6 80807 Munich, Germany Phone +49 89 6213-0 Fax +49 89 6213-2020 www.osram.com www.osram.com/backlighting Do you need professional support? Our experienced lighting professionals are at your service to consult you in the planning and successful implementation of your projects. For technical questions, please do not hesitate to send an e-mail to one of the following addresses: For FLEX, write to:ﬂ [email protected] For Signage, write to:[email protected] www.osram.com/backlighting www.osram.com/[email protected] Your support for … — Backlighting — Side lighting — Light ceilings ﬂ [email protected] Your support for … — Project planning — Implementation — Accessories www.osram.com/ﬂ ex

2 Backlighting | BackLED ® and BoxLED ® Attracting attention, transforming environments: BackLED ® and BoxLED ® create highlights In exterior as well as interior areas, impressive backlighting of surfaces is not only used in signage, but also, and increasingly, for the visual highlighting of buildings and products. In the development of corresponding light sources, the homogeneity of illumination, a uniform color effect and economic efﬁ ciency have top priority. With their brilliant light, the BackLED ® and BoxLED ® product families ensure impressive results as design elements, eye-catchers in advertising or for the accentuation of interiors. ww w.o sra m.co m/b ac kli gh tin g ww w.o sra m.c om/le d-d esi gner signage-suppor t@ osram.com You r s uppo rt f or … — Backligh ting — Side ligh ting — Lig ht c eili ng s ﬂ e x-s uppo rt@ os ra m.c om You r s uppo rt f or … — Pro je ct pla nnin g — Implem en tation — Ac ce ss orie s ww w.o sra m.c om /ﬂ ex

3 Backlighting | BackLED ® and BoxLED ®

Backlighting | BackLED ® and BoxLED ® applications Amazingly versatile: Light systems from OSRAM Perfect illumination for any shape In backlighting, the ﬂexible adaptation of LED modules to objects of various shapes, sizes and materials is a crucial factor. In order to make them perfectly adaptable to any given shape, the LEDs of the BackLED ® and BoxLED ® modules are placed on ﬂexible chains at regular distances. And because OSRAM offers a matching module for a broad range of transmissions or translucences, the material for backlighting, e.g. acrylic glass, foils or textiles, is of lesser importance and can be chosen freely.

5 Backlighting | BackLED ® and BoxLED ® applications Single-sided or double-sided light boxes — Homogeneous backlighting — High efﬁciency when replacing T5 or T8 lamps by LED modules City light posters — Homogeneous backlighting — High economic efﬁciency Billboards — Low maintenance for installations at great heights — Long switch-on times (up to 24 hours per day) — Long lifetime and reliable operation Indoor illuminated walls — Long switch-on times (up to 24 hours per day) — Long lifetime and reliable operation — Dimming capability Channel letters — Homogeneous backlighting — High recognition of the lettering — High color rendering index (CRI) Illuminated ceilings — Decorative backlighting — Change from warm white to cold white for daylight simulation — Changing ambiences in conference rooms and shops Kempinski Hotel Corvinus Budapest/MKV Design LTD. UK

6 Backlighting | BackLED ® and BoxLED ® system overview One-stop-shop components for full visual experiences A highly functional system not only requires high-performance LED modules, but also perfectly matched LED drivers, hands-on mounting accessories and an intelligent light management. For all of the above, OSRAM offers a complete portfolio, including comprehensive services and guaranteeing. As one of the world’s leading light manufacturers, OSRAM can support you during the implementation of your project: from system planning and the selection of matching com-ponents to the comprehensive product guarantee. AccessoriesMounting proﬁ les Complete systems from OSRAM: Perfection down to the smallest detail BackLED ® for direct backlighting Ideally suited for backlighting of ﬂ at and slim installations Mounting proﬁ les, matched to the in-dividual modules for quick and easy installation: they save about 25 % timein comparison to a screw connection of individual modules Details about our terms of guarantee can be found at www.osram.com/guarantee

7 Backlighting | BackLED ® and BoxLED ® system overview ServiceLED deSIGNer Light Management Systems (LMS) Guarantee BoxLED ® for backlighting by side injection OPTOTRONIC ® LED drivers High- Performance System Specially designed for light boxes of various dimensions, alternative to direct backlighting thanks to easier mounting with less modules Efﬁ cient constant-voltage LED drivers for 12-V and 24-V LED modules for indoor and outdoor areas The online tool helps calculat-ing the necessary amount of modules, drivers and mount-ing proﬁ les Effective light management systems for “dynamic back-lighting” and energy-saving installations Comprehensive guaranteeing for best product quality and high-quality lighting systems

8 Flat-Ray Technology from OSRAM is the key to optimized light distribution Special optics allow for a homogeneous light distribution between individual LEDs even when the pitch between these LEDs is large. Overall, this means you need less LEDs for a perfect result. Moreover, thanks to the large beam angle of 155°, the distance between the LED module and the backlit surface can be reduced. This means even small and ﬂ at installations, e.g. channel letters, can be perfectly backlit. Backlighting | Optics Homogeneous light distribution through Flat-Ray Technology Using optics for optimal light effects Optics improve illumination and reduce the number of required LED modules Flat-Ray Technology Square-Ray Technology Formation of shadows with black holes Homogeneous illumination by overlapping of the light-emitting surfaces with more modules Homogeneous illumination of the entire light box with fewer modules The new square lenses from OSRAM: More efﬁ ciency and reduced energy costs With the patented square lenses from OSRAM, you can reach a higher level of efﬁ ciency. Due to their quadrant symmetric light distribution, square lenses can be placed optimally to achieve an uninterrupted illumination, avoiding the shadows that occur with round batwing lenses. This results in a reduced number of LED modules and a lower energy consumption. Batwing lenses with a beam angle of 155° Square lenses with a beam angle of 160° Features: — Rotational symmetric light distribution — Batwing light distribution — State of the art Features: — Quadrant symmetric light distribution — Square light distribution — Innovative, patented lens technology from OSRAM Black holes Without optics W ithout o p tic s W ith o p tic s With Flat-Ray Technology

9 Backlighting | Mounting proﬁles Mounting proﬁles for quick, easy and precise installation Mounting provides the basis for the efﬁciency and economy of the entire system Time and precision play an important role in light installa-tions. Consequently, a quick mounting process, which is optimally supported by mounting proﬁles from OSRAM, is a proven means to reduce costs. For installation, the LED modules are simply snapped into the proﬁles which are then bolted down with screws driven through pre-drilled mounting holes. Thanks to the regular distances between the drill holes in the mounting proﬁles, the modules can be placed at even pitches without the need of measuring. Within the proﬁles, however, they can be moved back and forth ﬂexibly, as required. The even arrangement of the modules therefore ensures a homogeneous illumination of the entire surface. Moreover, thanks to the strong aluminum proﬁles, the entire construc-tion is very robust and maintenance-friendly. Functions and dimensions of the mounting proﬁles 1) Side injection (single-sided and double-sided) 2) Backlighting (single-sided) 3) Backlighting (double-sided) CLICK & PLAY Along the inner sides of the edges with BoxLED ® modules On the back wall of the light box with BackLED ® modules Special mounting proﬁle with mounting brackets for BackLED ® DS Plus 2000 20 8 2000 20 8 2000 14.5 8 2 4 1 1 1 3 Total length: 2000 mm Total length: 2000 mm All ﬁgures in mm Total length: 2365 mm 5 6 1 Slot holes for the mounting of the proﬁle on the rear board or side board of the light box. 2 Holes for the easy installation of a mounting grid. The constant hole spacing of 55/50 mm provides consistent pitches of LED modules without measuring. 3 Square holes for simple ﬁxing of electrical cables with cable ties. 4 Embossings/edges for the easy click-in of the individual LED modules (Click & Play). 5 Holes for the easy installation of a mounting grid. The constant hole spacing of 50 mm provides consistent pitches of LED modules without measuring. 6 Mounting brackets for BackLED ® DS Plus to connect the mounting proﬁles with the LED modules to the mounting proﬁles which are assembled on the side of the box. Mounting proﬁle BX-MP Mounting proﬁle BA-MP Mounting proﬁle BA-SM-MP Mounting system DS

Backlighting | BackLED ® product family The BackLED ® product family takes on the challenge The modules of the BackLED ® family offer a broad range of various versions for direct backlighting to signage manufacturers, electricians, lighting planners and architects The product range at a glance: BackLED ® Plus modules are designed for single-sided back- lighting in various dimensions, whereas BackLED ® DS Plus modules are suitable for double-sided light injection. Back-LED ® TW Plus presents a broad range of white light colors and the RGBW version is available for colorful light installa-tions. The portfolio is complemented by BackLED ® Basic in three different sizes. BackLED ® S–XL Plus G15 BackLED ® DS Plus G15 BackLED ® TW Plus G15 BackLED ® RGBW Plus G15 BackLED ® XS–L Basic G15 BackLED ® Eco M Plus G1

11 Backlighting | BackLED ® Plus and BackLED ® DS Plus BackLED ® Plus modules grow with their tasks – from S to XL The versions BackLED ® S, M, L and XL Plus have different dimensions and luminous ﬂuxes. Depending on the size of the channel letters and light boxes, you can thus ﬁnd the matching module for any requirement. All modules are equipped with optics that ensure homogeneous light distri-bution. BackLED ® Plus application areas: — Channel letters — Light boxes with high luminance requirements — Decorative lighting — Long-term outdoor application only in closed light boxes or channel letters BackLED ® DS Plus: Perfect light on both sides The BackLED ® DS Plus modules for backlighting double- sided light boxes are also suitable for various dimensions. BackLED ® DS Plus application areas: — Backlighting of double-sided light boxes and pylons — Long-term outdoor application only in closed light boxes or channel letters BackLED ® Plus – features and beneﬁts: — Quick and easy mounting with screws or by snap-in into mounting proﬁles — Homogeneous illumination thanks to Flat-Ray or Square Lens Technology, even with greater distances between LEDs — Signiﬁcantly better application efﬁciency than with systems without lenses (amount of required LED modules is lower) — Outstanding module efﬁciency — Very long lifetime — High color rendering index (CRI 80) BackLED ® S Plus G15 BackLED ® DS Plus G15 Luminous ﬂux and dimensions Product reference Luminous ﬂux per module at 6500 K [lm] Module dimensions L x W x H [mm] BackLED ® S Plus G15 37.8 45.5 x 12 x 6 BackLED ® M Plus G15 70 52 x 12 x 7.1 BackLED ® L Plus G15 150 72 x 17.5 x 7.4 BackLED ® XL Plus G15 298.3 110 x 35 x 12.3 BackLED ® DS Plus G15 609.8 (305 per side) 136 x 56 x 12 Flat-Ray Technology CLICK & PLAY BackLED ® S–XL Plus G15 BackLED ® DS Plus G15 Square-Ray Technology Square Lens Flat-Ray

12 Backlighting | BackLED ® TW Plus and BackLED ® RGBW Plus BackLED ® TW Plus for different hues of white Some applications require illumination with different hues of white. Due to their range from warm white to cool white, BackLED ® TW Plus modules are ideally suited to give rooms the right ambience, just as required. Features and beneﬁts: — High color rendering index (CRI 80) — Control from 2700 K to 6500 K Application areas: — Illuminated ceilings — Decorative accent lighting — Facade backlighting BackLED ® RGBW Plus: Impressive presentation with changing colors Through the application of BackLED ® RGBW Plus modules, backlit surfaces can be presented appealingly with chang-ing colors. These modules impress especially due to their uniform color effect, even when large surfaces are involved. Features and beneﬁts: — Control of individual channels: Red, green, blue and white (6500 K) — Different colors can be recalled individually Application areas: — Decorative backlighting — Architecture lighting — Facade backlighting BackLED ® TW Plus G15 BackLED ® RGBW Plus G15 Luminous ﬂux and dimensions Product reference Luminous ﬂux per module [lm] Dimensions L x W x H [mm] BackLED ® TW Plus G15 460 (2700–6500 K) 130 x 35 x 13 BackLED ® RGBW Plus G15 154 130 x 35 x 13 BackLED ® TW Plus G15 BackLED ® RGBW Plus G15 Flat-Ray Flat-Ray Technology CLICK & PLAY

13 Backlighting | BackLED ® Eco Plus and BackLED ® Basic BackLED ® Basic: Ideal for large spaces BackLED ® Basic modules are applied for direct backlight- ing of channel letters or light boxes. Since these LED mod-ules are not equipped with optics, they are used whenever the distance between the module and the backlit surface is large enough, i.e. when optics are not required for homo-geneous light distribution. The product range includes the versions XS, M and L. Features and beneﬁts: — Outstanding module efﬁciency — Long lifetime — Mounting proﬁles for M and L Basic Application areas: — Signage and illuminated advertising — Backlighting of large and/or deep channel letters — Backlighting of single-sided light boxes — Long-term outdoor application only in closed light boxes or channel letters BackLED ® Eco Plus: Optimized cost-beneﬁt factor BackLED ® Eco Plus modules are equipped with optics for a homogeneous light distribution together with an optimized cost-beneﬁt factor. Features and beneﬁts: — Homogeneous illumination thanks to optics — Outstanding module efﬁciency — Optimized cost-beneﬁt factor Application areas: — Channel letters — Light boxes with high luminance requirements — Decorative lighting BackLED ® M Basic G15 Luminous ﬂux and dimensions Product reference Luminous ﬂux per module [lm] Dimensions L x W x H [mm] BackLED ® Eco M Plus G1 72 45.5 x 12.5 x 6.7 BackLED ® XS Basic G15 22 28.5 x 9.5 x 7.5 BackLED ® M Basic G15 77.2 56 x 17.5 x 10 BackLED ® L Basic G15 121.5 76 x 17.5 x 10.6 BackLED ® XS–L Basic G15 CLICK & PLAY Batwing BackLED ® Eco M Plus G1 BackLED ® Eco M Plus G1

14 Backlighting | BoxLED ® Plus Bringing light boxes to life: BoxLED ® Plus Even, powerful and efﬁcient side lighting in high quality – for high-precision light distribution BoxLED ® Plus modules were developed for side injection into single-sided and double-sided light boxes which are painted or coated matt white inside, while elliptical optics provide homogeneous light distribution in the interior. Depending on the size of the light boxes and the required amount of light, the modules can be placed on one side, on two sides or on all four sides (see the illustrations below). More details: www.osram.com/download Single-sided light injectionFor low luminance Double-sided light injectionFor medium luminance Four-sided light injectionFor high luminance Direction of the light injection Direction of the light injection Direction of the light injection All products of the BoxLED ® Plus family comply with energy efﬁciency class A or higher

15 Backlighting | BoxLED ® Plus Features and beneﬁts: — Even illumination through optimized elliptical lenses — Quick and easy mounting with screws or snap-in into a mounting proﬁle — Outstanding module efﬁciency — Very long lifetime Application areas: — Signage and illuminated advertising — Backlighting of single-sided and double-sided light boxes — Long-term outdoor application only in closed light boxes BoxLED ® XS Plus G15 Luminous ﬂux and dimensions Product reference Luminous ﬂux per module at 6500 K [lm] Dimensions L x W x H [mm] Beam angle BoxLED ® XS Plus G15 135.5 100 x 17.5 x 15 12 x 34 BoxLED ® Side Plus G15 290 90 x 35 x 20.6 12 x 65 BoxLED ® L Plus G15 628.8 300 x 35 x 19.4 15 x 53.5 BoxLED ® Eco M Plus G3 315 110 x 35 x 25.1 12 x 60 SideLighting

16 Backlighting | OPTOTRONIC ® LED drivers Reliable all-rounders: OPTOTRONIC ® LED drivers OPTOTRONIC ® LED drivers are perfectly matched to the BackLED ® and BoxLED ® modules in order to achieve maximum efﬁciency, reliability and economy Together with the LED modules, the LED drivers form a perfect entity, which ensures long-term, safe operation. In order to fulﬁll the heavy-duty requirements that characterize outdoor applications, the drivers meet high quality standards for best possible weather resistance and per formance. Especially in indoor applications, our versatile LED drivers provide multiple output characteristics for color control and tunable white. Thanks to their high reliability, efﬁciency and ﬂexibility, the entire product portfolio opens up a wide range of applications and is the best choice for demanding conditions. Features and beneﬁts: — Broad range of application areas thanks to output powers of up to 120 W for 12-V modules and 240 W for 24-V modules — Very high efﬁciency and reliability — High ingress protection rating (up to IP67) — Temperature range from -25 to +55 °C — High overvoltage protection: up to 3 kV (L-N)/4 kV (L/N-PE) — SPS – Smart Power Supply Application areas: — Installations in indoor and outdoor areas — Ideal for mounting in tight spaces

17 Backlighting | OPTOTRONIC ® LED drivers These LED drivers offer long-lasting durability even in severe weather conditions. Characterized by their robust design, the drivers meet the highest requirements regarding expo-sure to liquids or salt spray and high variations in tempera-ture. The 12-V portfolio ranges from 15 W to 120 W, the 24-V portfolio from 6 W to 240 W. Features and beneﬁts: — Very high efﬁciency and reliability — High ingress protection rating — High surge protection — Dimmable via fully isolated 1…10-V interface Application areas: — Signage — Facades — Cruise boats — Wellness areas Providing high-performance LED power supply, these LED drivers are best suited for architectural lighting and interior design. Due to their 4-channel DALI converter, they enable multi-channel output for color control and tunable white. In order to create the desired atmosphere, the light can be dimmed down to 0.1 %. Therefore, these LED drivers achieve perfect results in installations with changing colors or different levels of daylight. Features and beneﬁts: — DALI 2.0 and Tunable White — TouchDIM ® functionality — Lamp failure detection — DC capability and emergency mode Application areas: — Cove lighting — Illuminated ceilings — Wall washers — Handrails Outdoor drivers OPTOTRONIC ® 12 and 24 V PROTECTED Indoor drivers OPTOTRONIC ® OTi DALI 50 and 80 24 V 1-4 CH Dimensions Product reference Dimensions L x W x H [mm] OT 6/200-240V/24 CE 51 x 50 x 22 OT 30/220-240/24 P 220 x 40 x 22 OT 50/220-240/24 P 220 x 40 x 22 OT 80/220-240/24 P 250 x 50 x 34 OT 120/220-240/24 P 250 x 60 x 39 OT 240/220-240/24 P 250 x 80 x 39 OT 80/220-240/24 DIM P 250 x 50 x 34 OT 120/220-240/24 DIM P 250 x 60 x 39 OT 240/220-240/24 DIM P 250 x 80 x 39 OT 15/220-240/12 P 237 x 20 x 22 OT 30/220-240/12 P 220 x 40 x 22 OT 60/220-240/12 P 180 x 50 x 34 OT 60/220-240/12 DIM P 211 x 50 x 34 OT 120/220-240/12 P 241 x 60 x 39 Dimensions Product reference Dimensions L x W x H [mm] OTi DALI 50/220-240/24 1-4 CH 235 x 32 x 22 OTi DALI 80/220-240/24 1-4 CH 235 x 32 x 22

18 Backlighting | OSRAM services Our services: Fast response and long-term support In order to ensure the sustainable success of our customers, OSRAM offers practical support, direct assistance and a long-term product policy We know about the challenges that you face on a daily basis and therefore adapt our services precisely to your requirements. In combination with the know-how of our experts, this practical experience is the foundation of successful and future-proof projects. Safety with the 3 or 5-year guarantee Based on the high quality of our products in terms of re liability, workmanship and functionality, we give you a guarantee of 3 or 5 years on all LED modules and drivers as well as LMS components. No registration is required for this. This ensures that you remain on the safe side and that you can rely on OSRAM as a partner who offers you state-of-the-art lighting systems. Terms of guarantee can be found at www.osram.com/guarantee Perfect planning with the OSRAM LED deSIGNer Find the best overall package with the OSRAM LED deSIGNer, easily and quickly, and even for very demanding lighting projects. After entering only a few data, the free online software recommends the required amount of LED modules and LED drivers that enable homogeneous backlighting within the application. Further beneﬁts of the LED desSIGNer: — Luminance calculation for BackLED ® products (S, M, L, XL Plus; XS, M, L Basic and Eco Plus) — Selection of more than 100 acrylic glasses and more than 50 different PVC/textiles — Can be used to create sales quotes — Calculation of the required BoxLED ® products for light boxes Start your planning now at www.osram.com/led-designer

www.osram.com/backlighting Light is magnetic LED backlighting: Product portfolio and technical data Light is OSRAM

Backlighting | Technical data 2 1) Chain (module) 2) Square lens BackLED ® Plus G15 Modules EAN No. of modules 1) 1) BackLED ® S Plus G15 BA-S-PL 865 4052899300576 white 90 3 12 33.8 (0.38) 155 2) 6500 3400 (37.8) 5 BA-S-PL 840 4052899300590 white 90 3 12 33.8 (0.38) 155 2) 4000 3400 (37.8) 5 BA-S-PL 830 4052899300613 white 90 3 12 33.8 (0.38) 155 2) 3000 3140 (34.9) 5 BA-S-PL BL 4052899300675 blue 45 3 12 16.9 (0.38) 155 2) – 255 (5.7) 5 BA-S-PL GN 4052899300651 green 45 3 12 16.9 (0.38) 155 2) – 1110 (24.7) 5 BA-S-PL RD 4052899300637 red 90 3 12 33.8 (0.38) 155 2) – 1215 (13.5) 5 BackLED ® M Plus G15 BA-M-PL 865 4052899300491 white 40 3 12 30 (0.75) 155 2) 6500 2800 (70) 5 BA-M-PL 840 4052899300514 white 40 3 12 30 (0.75) 155 2) 4000 2800 (70) 5 BA-M-PL 830 4052899300538 white 40 3 12 30 (0.75) 155 2) 3000 2600 (65) 5 BA-M-PL RD 4052899300552 red 40 3 12 25 (0.62) 155 2) – 907 (22.7) 5 BackLED ® L Plus G15 BA-L-PL 865 4052899442672 white 32 3 12 52 (1.56) 150 6500 4772 (150.0) 5 BA-L-PL 840 4052899442658 white 32 3 12 52 (1.56) 150 4000 4697 (146.8) 5 BA-L-PL 830 4052899442634 white 32 3 12 52 (1.56) 150 3000 4349 (135.9) 5 BackLED ® XL Plus G15 BA-XL-PL 865 4052899442733 white 32 6 24 99.8 (3.1) 150 6500 9544 (298.3) 5 BA-XL-PL 840 4052899442719 white 32 6 24 99.8 (3.1) 150 4000 9394 (293.6) 5 BA-XL-PL 830 4052899442696 white 32 6 24 99.8 (3.1) 150 3000 8697 (271.8) 5 BackLED ® DS Plus G15 BA-DS-PL 865 4052899245891 white 16 12 24 99.8 (6.2) 150 6500 9756 (609.8) 5 BackLED ® TW Plus G2 BA-TW-PL 827-865 4052899452954 white 20 12 24 96 (4.8) 150 2700... 6500 9200 (460) 5 BackLED ® RGBW Plus G2 BA-RGBW-PL 4052899452930 RGBW 15 8 24 55.2 (3.7) 150 RGBW 2310 (154) 5 BackLED ® Eco M Plus G1 BA-ECO-M-PL 865 4052899392465 white 40 3 12 28.8 (0.72) 155 6500 2880 (72) 5

Backlighting | Technical data 3 1) Chain (module) BackLED ® Basic G15 Modules EAN No. of modules 1) 1) BackLED ® XS Basic G15 BA-XS-BC 865 4052899226241 white 50 3 12 12.5 (0.25) 120 6500 1101 (22) 5 BackLED ® M Basic G15 BA-M-BC 865 4052899231979 white 40 3 12 30 (0.75) 120 6500 3090 (77.2) 5 BackLED ® L Basic G15 BA-L-BC 865 4052899231931 white 36 3 12 45 (1.25) 120 6500 4374 (121.5) 5 BoxLED ® Plus G15 Modules EAN No. of modules 1) 1) BoxLED ® XS Plus G15 BX-XS-PL-765 4052899438903 white 32 3 12 60 (1.9) 12 x 34 6500 4336 (135.5) 5 BX-XS-PL-840 4052899438989 white 32 3 12 60 (1.9) 12 x 34 4000 3652 (114.1) 5 BX-XS-PL-830 4052899438965 white 32 3 12 60 (1.9) 12 x 34 3000 3652 (114.1) 5 BoxLED ® Side Plus BX06SA-W4F-765 4008321828606 white 32 6 24 115.2 (3.6) 12 x 67 6500 9280 (290) 1 BX06SA-W4F-840 4008321828682 white 32 6 24 115.2 (3.6) 12 x 67 4000 7680 (240) 1 BX06SA-W4F-830 4008321828767 white 32 6 24 115.2 (3.6) 12 x 67 3000 7680 (240) 1 BoxLED ® L Plus G15 BX-L-PL-765 4052899201088 white 8 3 12 60 (7.5) 15 x 53.5 6500 5030 (628.8) 5 BX-L-PL-840 4052899200968 white 8 3 12 60 (7.5) 15 x 53.5 4000 4350 (543.8) 5 BX-L-PL-830 4052899200517 white 8 3 12 60 (7.5) 15 x 53.5 3000 4040 (505) 5 BoxLED ® Eco M Plus G3 BX-ECO-M-PL 865 4052899946996 white 32 6 24 99.8 (3.1) 12 x 60 6500 10094 (315) 5 BX-ECO-M-PL 840 4052899947016 white 32 6 24 99.8 (3.1) 12 x 60 4000 10474 (327) 5 BX-ECO-M-PL 830 4052899947030 white 32 6 24 99.8 (3.1) 12 x 60 3000 10474 (327) 5

Backlighting | Technical data 4 Matrix: Combination of accessories and modules AccessoriesEAN BA-SM-MP4052899264540 BA-MP4052899145863 BX-MP4008321981110 BX-DS-MP4008321880307 BX-DS-MB4008321872173 Packaging unit 24 24 24 24 30 (15 left/ 15 right) BackLED S Plus G15BackLED M Plus G15BackLED L Plus G15BackLED XL Plus G15BackLED DS Plus G15BackLED TW Plus G2BackLED RGBW Plus G2BoxLED XS Plus G15BoxLED Side PlusBoxLED L Plus G15BoxLED Eco M Plus G3BackLED Eco M Plus G1BackLED XS Basic G15BackLED M Basic G15BackLED L Basic G15 2000 20 8 2000 20 8 2000 14.5 8 Total length: 2000 mm Total length: 2000 mm All ﬁgures in mm Total length: 2365 mm Mounting proﬁle BX-MP Mounting proﬁle BA-MP Mounting proﬁle BA-SM-MP Mounting proﬁle BX-DS-MP Mounting brackets BX-DS-MB

Backlighting | Technical data 5 LED drivers Product reference EAN Overload protection 12 VOT 15/220-240/12 P 4052899905559 12.5 66 15 -/0.50 automatic, reversible OT 30/220-240/12 P 4052899905542 12.5 66 30 0.95/0.90 automatic, reversible OT 60/220-240/12 P 4008321790811 12.5 67 60 0.93/0.98 automatic, reversible OT 60/220-240/12 DIM P 4052899947054 12.5 67 60 0.95/0.90 automatic, reversible OT 120/220-240/12 P 4008321790835 12.5 67 120 0.98/0.95 automatic, reversible 24 VOT 30/220-240/24 P 4052899043497 24 66 30 0.94/0.98 automatic, reversible OT 50/220-240/24 P 4052899043510 24 66 50 0.94/0.98 automatic, reversible OT 80/220-240/24 P 4008321981684 24 67 80 0.90/0.95 automatic, reversible OT 80/220-240/24 DIM P 4008321981677 24 67 80 0.90/0.95 automatic, reversible OT 120/220-240/24 P 4008321981707 24 67 120 0.90/0.95 automatic, reversible OT 120/220-240/24 DIM P 4008321981691 24 67 120 0.90/0.95 automatic, reversible OTe 120/220-240/24 P 4008321645715 24 64 120 0.95/0.90 automatic, reversible OT 240/220-240/24 P 4008321981721 24 67 240 0.90/0.95 automatic, reversible OT 240/220-240/24 DIM P 4008321981714 24 67 240 0.90/0.95 automatic, reversible OT EASY 80 4008321808363 24 20 80 -/0.95 automatic, reversible OTi DALI 75/220… 240/24 1…4 CH 4008321371560 24 20 75 0.95/0.90 automatic, reversible

Backlighting | Technical data 6 Matrix: Combination of drivers and modules O T 1 5/2 20 -2 40 /1 2 P O T 3 0/2 20 -2 40 /1 2 P O T 3 0/2 20 -2 40 /2 4 P O T 5 0/2 20 -2 40 /2 4 P O T 8 0/2 20 -2 40 /2 4 P , O T 8 0/2 20 -2 40 /2 4 D IM P O T 1 20 /2 20 -2 40 /2 4 P , O T 1 20 /2 20 -2 40 /2 4 D IM P , O Te 1 20 /2 20 -2 40 /2 4 P O T 2 40 /2 20 -2 40 /2 4 P , O T 2 40 /2 20 -2 40 /2 4 D IM P O T E A S Y 8 0 O T i D A LI 7 5/2 20 … 24 0/2 4 1 … 4 C H BackLED S Plus G15 white/red 40 80 BackLED S Plus G15 green/blue 40 80 BackLED M Plus G15 20 40 BackLED L Plus G15 9 18 BackLED XL Plus G15 9 16 25 38 76 BackLED DS Plus G15 4 8 12 19 38 BackLED TW Plus G2 15 15 BackLED RGBW Plus G2 21 20 BackLED XS Basic G15 60 120 BackLED Eco M Plus G1 21 41 BackLED M Basic G15 20 40 BackLED L Basic G15 12 24 BoxLED XS Plus G15 8 16 BoxLED Side Plus 8 14 22 33 66 BoxLED L Plus G15 2 4 BoxLED Eco M Plus G3 9 16 25 38 77 Please note: Max. one chain in series

Backlighting | Technical data 7 Mounting depth in mm 1) BackLED ® S Plus G15 BackLED ® XS Basic G15 BackLED ® M Plus G15 BoxLED ® XS Plus G15 2) BackLED ® Eco M Plus G1 BackLED ® L Plus G15 BoxLED ® L Plus G15 2) BackLED ® M Basic G15 BackLED ® XL Plus G15 BoxLED ® Eco M Plus G3 BoxLED ® Side Plus BackLED ® TW Plus G15 BackLED ® RGBW Plus G15 BackLED ® DS Plus G15 50 40 60 120 150 150–200 200 150 150 BackLED ® L Basic G15 1) The speciﬁed installation depths are only approximate values; the LED deSIGNer provides detailed information2) The given installation depth is only valid if the modules are installed in the middle of the box

www.osram.com/backlighting Color No. of LEDs per module Voltage in V Power in W Beam angle in ° Color temperature in K Luminous ﬂux in lm Standard pack in pcs. Output voltage in V Type of protection Power factor Symbols OSRAM GmbH Head ofﬁce: Marcel-Breuer-Strasse 680807 Munich, Germany Phone +49 89 6213-0Fax +49 89 6213-2020 www.osram.com 1E B W 0 0 5G B O S R A M D S S M K 1 2 /1 6 S ub je ct t o c ha ng e w ith o ut n ot ic e. E rr o rs a nd o m is si o ns e xc ep te d .

Published: 20 April 2017 Category: White Papers and technical guides
