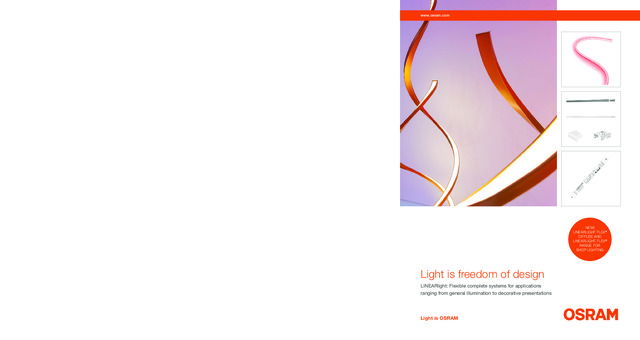

Light is freedom of design

LINEARlight: Flexible complete systems for applications ranging from general illumination to decorative presentations

Light is freedom of design LINEARlight: Flexible complete systems for applications ranging from general illumination to decorative presentations www.osram.com Light is OSRAM NEW! LINEARLIGHT FLEX ® DIFFUSE AND LINEARLIGHT FLEX ® RANGE FOR SHOP LIGHTING www.osram.com 420W022GB OSRAM DS SMK 02/17 Subject to change without notice. Err ors and omissions excepted. OSRAM GmbH Head ofﬁ ce: Marcel-Breuer-Strasse 6 80807 Munich, Germany Phone +49 89-6213-0 Fax +49 89-6213-2020 www.osram.com Do you need professional support? Our experienced lighting professionals are at your service to consult you in the planning and successful implementation of your projects. For technical questions, please do not hesitate to send an e-mail to one of the following addresses: For Flex, write to:ﬂ [email protected] For Signage, write to:[email protected] www.osram.com/backlighting www.osram.com/led-designerwww.osram.com/[email protected] Your support for … — Backlighting — Side lighting — Light ceilings www.osram.com/ﬂ exﬂ [email protected] Your support for … — Project planning — Implementation — Accessories www.osram.com/ﬂ ex

Rigid LINEARlight LED modules | Technical data, accessories and LED drivers = Combination options between rigid LINEARlight LED modules and accessories LINEARlight POWER LED modules (LR21P) LINEARlight Colormix LED modules (LR18CP) LINEARlight overall LED modules (POWER, Colormix) Description Product reference Product number (EAN) Plug LR-4PIN-500 4008321971852 Connector LR-4CONN-250 4008321994400 Connector LR-4CONN-45 4008321971814 Aluminum rail LT-280 4008321975973 Aluminum rail LT-560 4008321975997 End cap LT-ENDCAP-G2 4052899076358 Mounting clip LD-MB 4008321225672 Optics tray OTR-280-LR21P 4008321976062 Optics tray OTR-280-LR14A/E/LR28CA 4008321994448 Optics OPLR1x1-20X50 4008321976048 Optics OPLR1x1-30 4008321976000 Optics OPLR1x1-70 4008321976024 OPTOTRONIC ® Product reference Product number (EAN) Interface for dimming IP Interface OPTOTRONIC OT 8/200-240/24 4008321040169 IP20 OPTOTRONIC OT 20/220-240/24 4050300618111 IP20 OPTOTRONIC OT 50/220-240/24 4052899905566 IP20 OPTOTRONIC OT 75/220-240/24 4050300817477 IP20 OPTOTRONIC OTi DALI 75/220-240/24 4008321371560 IP20 DALI OPTOTRONIC OT EASY 80/220-240/24 RGB 4008321808363 IP20 EASY White 830/840 LED modules – possible combinations Product family Wattage OT 8 200-240/24 OT 20 (S) 220-240/24 OT 50 220-240/24 OT 75 220-240/24 OTi DALI 75 220-240/24 LINEARlight POWER 7.8 W 1 LED module 1–2 LED modules 1–5 LED modules 1–6 LED modules 1–6 LED modules Colormix LED modules – possible combinations Product family Wattage OT EASY 80 220-240/24 RGB LINEARlight POWER Colormix 19.1 W 3–4 LED modules Accessories Symbols Accessories 19 ww w.o sra m.co m/b ac kli gh tin g ww w.o sra m.c om/le d-d esi gner ww w.o sra m.c om /bac kli gh tin g signage-suppor t@ osram.com You r s uppo rt f or … — Backligh ting — Side ligh ting — Lig ht c eili ng s ww w.o sra m.c om /ﬂ e x ﬂ e x-s uppo rt@ os ra m.c om You r s uppo rt f or … — Pro je ct pla nnin g — Implem en tation — Ac ce ss orie s ww w.o sra m.c om /ﬂ ex Color Color temperature in Kelvin Voltage in volts Watts Power factor/wavelength Watts per meter Lumens per meter Lumens per watt Lumens Number of LED modules per meter Length in mm Height in mm Beam angle Width in mm Minimum length in mm Length l 1 in mm Diameter in mm LINEARlight LED modules are the best choice when it comes to economic and design-oriented solutions for a broad range of possible lighting requirements and interior designs. To name just a few potential application areas: Shops can present their goods in the right light with cabinet and shelf lighting. Ofﬁ ces can ﬁ nd options for orientation lighting in corridors or general illumination in conference rooms. Hotel and hospitality businesses can illuminate corridors and conference zones, create the right atmosphere in ballrooms, provide soft indirect cove lighting in the guest rooms or simply shape a lasting colorful guest experience in restaurant and bar areas. LINEARlight LED modules can even be used in outdoor areas: Our outdoor modules accentuate façades with elegant lighting effects. Using LINEARlight Flex ® LED modules, homogeneous and ﬂ exible lines of light are easily integrated into architecture, furniture or any other object. Customized light for sophisticated tasks LINEARlight | Product range Cover image: Design study ﬂ exible luminaire, OSRAM "Re-Generationenhaus", Brandenburg/Havel, Germany SGL Carbon, Wiesbaden, Germany 2

LINEARlight | Product range LINEARlight Flex ® Rigid LINEARlight modules INDIVIDUAL CONFIGURATION ACCORDING TO MODULAR PRINCIPLE In comparison to standard luminaires and T5 ﬂ uo-rescent tubes, the complete LINEARlight product range offers important advantages. — Low maintenance effort Highly durable LEDs with comparable efﬁ ciency — Convenient lighting solutions Plug & play and future-safe solutions thanks to LED technology and modular design — Optimum illumination level Also ideal for installations that are difﬁ cult to access or offer only little room — Durable technologyMany ﬂ exible LED strips that are suitable for outdoor applications with a protection rating up to IP67 — Scalable 24 V systemLess driver complexity in comparison to T5 installations — More freedom of design in comparison to luminaires No separate driver required per LED module, expandable due to modular system design — Improved display and accentuation lighting Directional light via optics, no shadowing with rigid LED modules as it may occur with T5 ﬂ uorescent tubes — Wide application rangeLED modules with different shades of white light for general illumination and RGB versions for decorative lighting — Simple installationSafe due to 24 V, ready for connection — Wide range of accessoriesCombine dedicated aluminum proﬁ les with ﬁ tting covers and other accessories Features and beneﬁ ts — Up to 3 850 lm/m — Tunable white (from warm to cold white), monochromatic and RGB — Matching systems with suitable 24 V drivers — Dimmable — With or without IP protection — Various lengths possible — Wide range of accessories 3

4 LINEARlight Flex ® | Product overview LINEARlight Flex ® LED modules help you create the desired lighting atmosphere in a building, set decorative accents or highlight products. The bendable and cuttable LINEARlight Flex ® LED modules are easy to adjust and blend harmoniously into the architecture. They may draw attention to the bar, upgrade handrails to elegant orientation lights and guide customers to the right products in a shelf. When integrated into the architecture, they highlight the façade, create decorative lines of light or provide indirect cove lighting. Common characteristics — Flexible, cuttable LED strip — Seamless light without shadowing — Fine White Binning (3SDCM) — Dimmable (PWM) — Self-adhesive back for easy mounting — Flexessories ® – dedicated accessories for Flex modules – for quick installation and homogeneous light distribution — 24 V technology for easy dimensioning — Recommended in system use with OPTOTRONIC ® LED drivers — Lifespan of up to 60 000 h (L70B50) — 5-year guarantee LINEARlight Flex ® : Versatile use for brilliant lighting

5 LINEARlight Flex ® — Luminous ﬂ ux of up to 3 850 lm/m LINEARlight Flex ® Protect — Minimalistic white design with hidden electronics — IP67 protection rating — High-performance silicone for extremely long lifespan and bendability — Highly UV-resistant — Salt-mist-proof — Simple contacting due to pre-assembled connector — Luminous ﬂ ux of up to 3 000 lm/m LINEARlight Flex ® Diffuse — Diffused light lines without visible spots — IP67 protection with high-performance silicone — Outdoor use possible: UV-resistant and salt-mist-proof — Long operational length per single power feed possible (up to 6 m) — Increased reliability due to single-piece reel-to-reel technology VALUE Flex ® for private and semi-professional applications — Simple contacting due to pre-assembled wires — Many models with IP66 protection rating — Fine White Binning (4SDCM) — Lifespan of up to 35 000 h (L70B50) — 3-year guarantee LINEARlight Flex ® For conditions and detailed information, see www.osram.com/guarantee . LINEARlight Flex ® | Product overview LINEARlight Flex ® Protect Easy installation using Flexessories ® (see compatibility table, page 14) VALUE Flex ® LINEARlight Flex ® Diffuse Together with OSRAM LED drivers, ﬂ exible LED modules from OSRAM make a perfect system match. +

Naming systematicLearn about the logic behind the product reference code. This naming systematic is valid for all product launches 2016/2017 onwards and will be adapted for existing products in the course of updating. Sub-segment P = Protect D = Diffuse Segmentation LF = LINEARlight Flex VF = VALUE Flex Classiﬁ cation ﬂ ux level 900 = 900 lm/m (“formerly VF POWER”) CRI+CCT 830 = CRI 80; 3000 K Length per reel 05 = 5 meters Addtl. differentiator S = Shortpitch M = Monochromatic C = Colormix T = Top bending (for Diffuse only) S = Side bending (for Diffuse only) X = Non-speciﬁ ed Generation 6 LINEARlight Flex ® | Technical data Flexible LINEARlight LED modules LED drivers OPTOTRONIC ® Product reference Product number (EAN) Interface for dimming IP Interface OPTOTRONIC OT 6/200-240/24 CE 4008321113269 IP65 OPTOTRONIC OT 8/200-240/24 4008321040169 IP20 OPTOTRONIC OT 20/220-240/24 4050300618111 IP20 OPTOTRONIC OT 30/220-240/24 P 4052899043497 IP66 OPTOTRONIC OT 50/220-240/24 4052899905566 IP20 OPTOTRONIC OT 50/220...240/24 P 4052899043510 IP66 OPTOTRONIC OT 75/220-240/24 4050300817477 IP20 OPTOTRONIC OT 75/220-240/24 E 4008321362476 IP64 OPTOTRONIC OT 80/220-240/24 P 4008321981684 IP67 OPTOTRONIC OT 120/220-240/24 P 4008321981707 IP67 OPTOTRONIC OT 240/220-240/24 P 4008321981721 IP67 OPTOTRONIC OT EASY 80 4008321808363 IP20 EASY OPTOTRONIC OTi DALI 75/220-240/24 1-4 CH 4008321371560 IP20 DALI OPTOTRONIC OTi DALI 50/220-240/24 TW 4052899490772 IP20 DALI OPTOTRONIC OTi DALI 80/220-240/24 TW 4052899490758 IP20 DALI OPTOTRONIC OT 80/220-240/24 DIM P 4008321981677 IP67 1-10 V OPTOTRONIC OT 120/220-240/24 DIM P 4008321981691 IP67 1-10 V OPTOTRONIC OT 240/220-240/24 DIM P 4008321981714 IP67 1-10 V OPTOTRONIC OTe 120/220…240/24 E 4008321645715 IP64 ELEMENT 30/220...240/24 4052899463776 IP20 ELEMENT 60/220...240/24 4052899463790 IP20 ELEMENT 90/220...240/24 4052899463813 IP20 LF S - - - G3 830 10 800 LF S - - - G3 927 04 2000 P VF - - - G2 830 05 1500 VF - - - G2 830 05 1300 P

7 LINEARlight Flex ® | Technical data LINEARlight Flex ® Diffuse – the new integration-ready diffused light Product reference Product number (EAN) / Top bending (LFD400T, LFD400MT) LFD400T-G1-827-06 4052899953512 White 2700 K 24 7.2 490 68 60 6000 50 14.1 10 A+ LFD400T-G1-830-06 4052899953529 White 3000 K 24 7.2 490 68 60 6000 50 14.1 10 A+ LFD400T-G1-840-06 4052899953536 White 4000 K 24 7.2 480 67 60 6000 50 14.1 10 A+ LFD400T-G1-865-06 4052899953543 White 6500 K 24 7.2 460 64 60 6000 50 14.1 10 A+ LFD400MT-G1-BL-06 4052899953550 Blue 457-467 24 12.0 60 5 60 6000 40 14.1 10 - LFD400MT-G1-GR-06 4052899953567 Green 525-539 24 12.0 285 24 60 6000 40 14.1 10 - LFD400MT-G1-GR-03 4052899450851 Green 525-539 24 12.0 285 24 30 3000 40 14.1 10 - LFD400MT-G1-RE-06 4052899953574 Red 612-626 24 12.0 320 27 60 6000 40 14.1 10 - LFD400MT-G1-YE-06 4052899953581 Yellow 586-594 24 12.0 162 14 60 6000 40 14.1 10 - LFD400MT-G1-OR-06 4052899953598 Orange 603-611 24 12.0 175 15 60 6000 40 14.1 10 - Side bending (LFD400S, LFD400MS) LFD400S-G1-827-06 4052899953611 White 2700 K 24 7.2 410 57 60 6000 50 10 14.1 A+ LFD400S-G1-830-06 4052899953628 White 3000 K 24 7.2 410 57 60 6000 50 10 14.1 A+ LFD400S-G1-840-06 4052899953635 White 4000 K 24 7.2 410 57 60 6000 50 10 14.1 A+ LFD400S-G1-865-06 4052899953642 White 6500 K 24 7.2 350 52 60 6000 50 10 14.1 A LFD400MS-G1-BL-06 4052899953659 Blue 457-467 24 12.0 55 5 60 6000 40 10 14.1 - LFD400MS-G1-GR-06 4052899953666 Green 525-539 24 12.0 260 22 60 6000 40 10 14.1 - LFD400MS-G1-GR-03 4052899450882 Green 525-539 24 12.0 260 22 30 3000 40 10 14.1 - LFD400MS-G1-RE-06 4052899953673 Red 612-626 24 12.0 240 20 60 6000 40 10 14.1 - LFD400MS-G1-YE-06 4052899953680 Yellow 586-594 24 12.0 150 13 60 6000 40 10 14.1 - LFD400MS-G1-OR-06 4052899953697 Orange 603-611 24 12.0 160 13 60 6000 40 10 14.1 - Due to the complex manufacturing process of light-emitting diodes, the above-speciﬁ ed typical values of the technical LED parameters merely represent purely statistical variables. They do not necessarily correspond to the actual technical parameters of each individual product, which may deviate from typical values. Based on measurements of a 500 mm module LINEARlight Flex ® Product reference Product number (EAN) Power (LF4000) LF4000-G3-827-03 4052899952867 White 2700 24 28.9 3750 130 70 3000 100 8 1.4 A+ LF4000-G3-830-03 4052899952874 White 3000 24 28.9 3750 130 70 3000 100 8 1.4 A+ LF4000-G3-840-03 4052899952881 White 4000 24 28.9 3850 133 70 3000 100 8 1.4 A+ LF4000-G3-850-03 4052899952898 White 5000 24 28.9 3850 133 70 3000 100 8 1.4 A+ LF4000-G3-865-03 4052899952904 White 6500 24 28.9 3850 133 70 3000 100 8 1.4 A+ Power (LF3000) LF3000-G3-820-03 4052899952911 White 2000 24 28.9 2500 87 70 3000 100 8 1.4 A LF3000-G3-824-03 4052899952928 White 2400 24 28.9 3000 104 70 3000 100 8 1.4 A+ LF3000-G3-827-03 4052899952935 White 2700 24 23.7 3000 127 70 3000 100 8 1.4 A+ LF3000-G3-830-03 4052899952942 White 3000 24 23.7 3000 127 70 3000 100 8 1.4 A+ LF3000-G3-840-03 4052899952959 White 4000 24 21.8 3000 138 70 3000 100 8 1.4 A++ LF3000-G3-850-03 4052899952966 White 5000 24 21.8 3000 138 70 3000 100 8 1.4 A++ LF3000-G3-865-03 4052899952973 White 6500 24 21.8 3000 138 70 3000 100 8 1.4 A++ LF3000-G3-927-03 4052899963948 White 2700 24 28.9 2700 93 70 3000 100 8 1.4 A+ LF3000-G3-930-03 4052899963955 White 3000 24 28.9 3000 104 70 3000 100 8 1.4 A+ LF3000-G3-940-03 4052899963962 White 4000 24 26.5 3000 113 70 3000 100 8 1.4 A+ CRI 90 CRI 90 CRI 90

8 LINEARlight Flex ® | Technical data LINEARlight Flex ® Product reference Product number (EAN) Power (LF2000) LF2000-G3-820-04 4052899952980 White 2000 24 17.9 1650 92 70 4500 100 8 1.4 A+ LF2000-G3-824-04 4052899952997 White 2400 24 17.9 2000 112 70 4500 100 8 1.4 A+ LF2000-G3-827-04 4052899953000 White 2700 24 15 2000 134 70 4500 100 8 1.4 A++ LF2000-G3-830-04 4052899953017 White 3000 24 15 2000 134 70 4500 100 8 1.4 A++ LF2000-G3-840-04 4052899953024 White 4000 24 13.6 2000 147 70 4500 100 8 1.4 A++ LF2000-G3-850-04 4052899953031 White 5000 24 13.6 2000 147 70 4500 100 8 1.4 A++ LF2000-G3-865-04 4052899953048 White 6500 24 13.6 2000 147 70 4500 100 8 1.4 A++ LF2000-G3-927-04 4052899963993 White 2700 24 17.9 1800 101 70 4500 100 8 1.4 A+ LF2000-G3-930-04 4052899964006 White 3000 24 17.9 2000 112 70 4500 100 8 1.4 A+ LF2000-G3-940-04 4052899964013 White 4000 24 16.3 2000 123 70 4500 100 8 1.4 A+ Power (LF1200) LF1200-G3-820-09 4052899953055 White 2000 24 10.6 1000 94 70 9000 100 8 1.4 A+ LF1200-G3-824-09 4052899953062 White 2400 24 10.6 1200 113 70 9000 100 8 1.4 A+ LF1200-G3-827-09 4052899953079 White 2700 24 8.9 1200 135 70 9000 100 8 1.4 A++ LF1200-G3-830-09 4052899953086 White 3000 24 8.9 1200 135 70 9000 100 8 1.4 A++ LF1200-G3-840-09 4052899953093 White 4000 24 8.1 1200 147 70 9000 100 8 1.4 A++ LF1200-G3-850-09 4052899953291 White 5000 24 8.1 1200 147 70 9000 100 8 1.4 A++ LF1200-G3-865-09 4052899953314 White 6500 24 8.1 1200 147 70 9000 100 8 1.4 A++ LF1200-G3-927-09 4052899953321 White 2700 24 10.6 1100 103 70 9000 100 8 1.4 A+ LF1200-G3-930-09 4052899953338 White 3000 24 10.6 1200 113 70 9000 100 8 1.4 A+ LF1200-G3-940-09 4052899953345 White 4000 24 10.0 1200 120 70 9000 100 8 1.4 A+ Power Tunable White (LFxxxx-TW) Set the right color temperature of white light to simulate natural daylight. LF4000TW-G3-82765-02 4052899953260 Dynamic 2700-6500 24 36.8 3800 103 160 2100 75 8 1.45 A+ LF3000TW-G3-82765-03 4052899953277 Dynamic 2700-6500 24 30 3000 100 160 3000 75 8 1.45 A+ LF2000TW-G3-82765-04 4052899953284 Dynamic 2700-6500 24 18.5 2000 108 160 4500 75 8 1.45 A+ LF1200TW-G3-82765-09 4052899953161 Dynamic 2700-6500 24 10.5 1200 114 160 9000 75 8 1.45 A+ Based on measurements of a 500 mm module Power Shop White (LFxxxx-SW) Reproducing vivid whites whitout yellowing effect. LF3000-G3-SW30-03 4052899963979 White 3000 24 27.6 3000 109 70 3000 100 8 1.4 A+ LF3000-G3-SW40-03 4052899963986 White 4000 24 27.6 3000 109 70 3000 100 8 1.4 A+ LF2000-G3-SW30-04 4052899964020 White 3000 24 17.9 2000 112 70 4500 100 8 1.4 A+ LF2000-G3-SW40-04 4052899964037 White 4000 24 17.9 2000 112 70 4500 100 8 1.4 A+ LF1200-G3-SW30-09 4052899964044 White 3000 24 10.0 1200 120 70 9000 100 8 1.4 A+ LF1200-G3-SW40-09 4052899964051 White 4000 24 10.0 1200 120 70 9000 100 8 1.4 A+ Due to the complex manufacturing process of light-emitting diodes, the above-speciﬁ ed typical values of the technical LED parameters merely represent purely statistical variables. They do not necessarily correspond to the actual technical parameters of each individual product, which may deviate from typical values. Power Meat White (LFxxxx-MW) A high quality of light focusing on red, making reds more true to their color. LF2000-G3-MW-03 4052899492028 White 5200 24 26.5 2000 75.5 70 3000 100 8 1.4 A LF2000-G3-MWR-03 4052899492080 White 5300 24 28.9 1450 50.2 70 3000 100 8 1.4 B LF1200-G3-MW-04 4052899492103 White 5200 24 15 1200 80 70 4500 100 8 1.4 A+ LF1200-G3-MWR-04 4052899492165 White 5300 24 21.8 1100 50.5 70 4500 100 8 1.4 A Power Veggie White (LFxxxx-VW) A high quality of color, emphasizing the three primary colors of the light spectrum: blue, green and red. LF2000-G3-VW40-03 4052899492042 White 4000 24 26.5 2000 75.5 70 3000 100 8 1.4 A LF2000-G3-VW30-03 4052899492066 White 3000 24 28.9 2000 69.2 70 3000 100 8 1.4 A LF1200-G3-VW40-04 4052899492127 White 4000 24 15 1200 80 70 4500 100 8 1.4 A+ LF1200-G3-VW30-04 4052899492141 White 3000 24 21.8 1150 70.6 70 4500 100 8 1.4 A CRI 90 CRI 90 CRI 90 CRI 90 CRI 90 CRI 90

9 LINEARlight Flex ® | Technical data Advanced (LF05A2) LF05A2-B3 4052899924123 Blue 467 24 7.2 80 11 50 10000 100 8 2.4 - LF05A2-R3 4052899924086 Red 625 24 8.3 120 14 50 10000 100 8 2.4 - LF05A2-T3 4052899924116 Green 525 24 4.9 180 37 50 10000 100 8 2.4 - LF05A2-Y3 4052899924109 Yellow 587 24 8.3 110 13 50 10000 100 8 2.4 - LF05A2-O3 4052899924093 Orange 602 24 8.3 130 16 50 10000 100 8 2.4 - LINEARlight Flex ® Product reference Product number (EAN) / Based on measurements of a 500 mm module Eco (LF05E2, LF05E) LF05E2-W2F-824 4052899942790 White 2400 K 24 3.0 220 73 50 10000 100 8 2.5 A+ LF05E2-W2F-827 4008321971357 White 2700 K 24 3.6 205 57 50 10000 100 8 2.5 A+ LF05E2-W2F-830 4052899928435 White 3000 K 24 3.6 220 61 50 10000 100 8 2.5 A+ LF05E2-W2F-840 4052899928442 White 4000 K 24 3.6 240 67 50 10000 100 8 2.5 A+ LF05E2-W2F-865 4008321971418 White 6500 K 24 3.6 220 61 50 10000 100 8 2.5 A+ LF05E-B2 4008321955425 Blue 470 24 4.1 40 10 33 6000 150 8 2.5 - LF05E-R1 4008321955418 Red 625 24 6.0 80 13 33 6000 150 8 2.5 - LF05E-T2 4008321955449 Green 525 24 4.1 120 29 33 6000 150 8 2.5 - LF05E-Y1 4008321955432 Yellow 587 24 6.0 75 13 33 6000 150 8 2.5 - Colormix (LF05CA2,LF05CE) LF05CA2-RGB3 4008321851536 RGB 625/525/467 24 18.0 470 26 50 4000 100 8 2.2 - LF05CE-RGB1 4008321593375 RGB 625/525/467 24 6.5 180 28 33 6000 150 8 2.2 - Due to the complex manufacturing process of light-emitting diodes, the above-speciﬁ ed typical values of the technical LED parameters merely represent purely statistical variables. They do not necessarily correspond to the actual technical parameters of each individual product, which may deviate from typical values. Shortpitch (LF800S) LF800S-G3-824-10 4052899953109 White 2400 K 24 8.9 800 90 120 10000 50 8 2.1 A+ LF800S-G3-827-10 4052899953116 White 2700 K 24 8.9 800 90 120 10000 50 8 2.1 A+ LF800S-G3-830-10 4052899953123 White 3000 K 24 8.3 800 96 120 10000 50 8 2.1 A+ LF800S-G3-840-10 4052899953130 White 4000 K 24 8.6 850 99 120 10000 50 8 2.1 A+ LF800S-G3-850-10 4052899953147 White 5000 K 24 8.6 850 99 120 10000 50 8 2.1 A+ LF800S-G3-865-10 4052899953154 White 6500 K 24 8.6 850 99 120 10000 50 8 2.1 A+ Advanced (LF06A) LF06A-W3F-824 4052899942783 White 2400 K 24 4.5 380 84 60 10000 100 8 2.1 A+ LF06A-W3F-827 4008321973986 White 2700 K 24 4.8 390 81 60 10000 100 8 2.1 A+ LF06A-W3F-830 4008321973993 White 3000 K 24 4.8 390 81 60 10000 100 8 2.1 A+ LF06A-W3F-840 4008321974006 White 4000 K 24 4.8 425 88 60 10000 100 8 2.1 A+ LF06A-W3F-850 4008321974013 White 5000 K 24 4.8 425 88 60 10000 100 8 2.1 A+ LF06A-W3F-865 4008321974020 White 6500 K 24 4.8 425 88 60 10000 100 8 2.1 A+

10 LINEARlight Flex ® | Technical data LINEARlight Flex ® Protect with IP67 protection rating Product reference Product number (EAN) Protect Power (LFP3000) LFP3000-G3-824-03 4052899481299 White 2400 24 28.9 2800 97 70 3000 100 11 3.7 A+ LFP3000-G3-827-03 4052899481312 White 2700 24 28.9 3000 104 70 3000 100 11 3.7 A+ LFP3000-G3-830-03 4052899481336 White 3000 24 28.9 3000 104 70 3000 100 11 3.7 A+ LFP3000-G3-840-03 4052899481350 White 4000 24 23.7 3000 127 70 3000 100 11 3.7 A+ LFP3000-G3-860-03 4052899481374 White 6000 24 21.8 2800 128 70 3000 100 11 3.7 A+ LFP3000-G3-930-03 4052899481398 White 3300 24 28.9 2850 99 70 3000 100 11 3.7 A++ LFP3000-G3-940-03 4052899481411 White 3800 24 28.9 3000 104 70 3000 100 11 3.7 A+ LFP3000-G3-960-03 4052899481435 White 5800 24 26.5 3000 113 70 3000 100 11 3.7 A+ Protect Power (LFP2000) LFP2000-G3-824-04 4052899481138 White 2400 24 17.9 1800 101 70 4500 100 11 3.7 A+ LFP2000-G3-827-04 4052899481152 White 2700 24 17.9 1900 106 70 4500 100 11 3.7 A+ LFP2000-G3-830-04 4052899481176 White 3000 24 17.9 1900 106 70 4500 100 11 3.7 A+ LFP2000-G3-840-04 4052899481190 White 4000 24 15 1900 127 70 4500 100 11 3.7 A++ LFP2000-G3-860-04 4052899481213 White 6000 24 13.6 1800 132 70 4500 100 11 3.7 A++ LFP2000-G3-930-04 4052899481237 White 3300 24 17.9 1800 101 70 4500 100 11 3.7 A+ LFP2000-G3-940-04 4052899481251 White 3800 24 17.9 1900 106 70 4500 100 11 3.7 A+ LFP2000-G3-960-04 4052899481275 White 5800 24 16.3 1900 117 70 4500 100 11 3.7 A+ Protect Power (LFP1200) LFP1200-G3-824-09 4052899481640 White 2400 24 10.6 1100 104 70 9000 100 11 3.7 A+ LFP1200-G3-827-09 4052899481626 White 2700 24 10.6 1150 108 70 9000 100 11 3.7 A+ LFP1200-G3-830-09 4052899481664 White 3000 24 10.6 1200 113 70 9000 100 11 3.7 A+ LFP1200-G3-840-09 4052899481688 White 4000 24 8.9 1200 135 70 9000 100 11 3.7 A++ LFP1200-G3-860-09 4052899481701 White 6000 24 8.1 1100 135 70 9000 100 11 3.7 A++ LFP1200-G3-930-09 4052899481725 White 3300 24 10.6 1100 104 70 9000 100 11 3.7 A+ LFP1200-G3-940-09 4052899481749 White 3800 24 10.6 1200 113 70 9000 100 11 3.7 A+ LFP1200-G3-960-09 4052899481763 White 5800 24 10 1200 120 70 9000 100 11 3.7 A++ Protect Power (LFP800) LFP800-G3-824-09 4052899481565 White 2400 24 7.6 800 106 70 9000 100 11 3.7 A+ LFP800-G3-827-09 4052899481589 White 2700 24 7.1 800 113 70 9000 100 11 3.7 A++ Based on measurements of a 500 mm module Due to the complex manufacturing process of light-emitting diodes, the above-speciﬁ ed typical values of the technical LED parameters merely represent purely statistical variables. They do not necessarily correspond to the actual technical parameters of each individual product, which may deviate from typical values. CRI 90 CRI 90 CRI 90 CRI 90 CRI 90 CRI 90 CRI 90 CRI 90 CRI 90

11 LINEARlight Flex ® | Technical data LINEARlight Flex ® Protect with IP67 protection rating Product reference Product number (EAN) / Protect Shortpitch (LFP800S) LFP800S-G3-830-10 4052899953352 White 3000 K 24 8.3 760 92 120 10000 50 11 3.7 A+ LFP800S-G3-840-10 4052899953369 White 4000 K 24 7.7 760 99 120 10000 50 11 3.7 A+ LFP800S-G3-856-10 4052899953376 White 5600 K 24 8.3 810 98 120 10000 50 11 3.7 A+ LFP800S-G3-880-10 4052899953383 White 8000 K 24 8.3 810 98 120 10000 50 11 3.7 A+ Protect Advanced (LF06A-P) LF06A-W3F-830-P 4008321789983 White 3000 K 24 5.0 350 70 60 10000 100 11 3.7 A+ LF06A-W3F-840-P 4008321790125 White 4000 K 24 5.0 390 78 60 10000 100 11 3.7 A+ LF06A-W3F-870-P 4008321790149 White 7000 K 24 5.0 390 78 60 10000 100 11 3.7 A+ LF05A-B3-P 4008321617804 Blue 467 24 7.3 85 - 50 9900 100 11 4.5 - Protect Eco (LF06E-P/LF05E-P) LF06E-830-P 4052899475724 White 3000 K 24 2.0 200 100 60 10000 100 11 3.7 A LF06E-840-P 4052899475809 White 4000 K 24 2.0 200 100 60 10000 100 11 3.7 A LF06E-880-P 4052899475847 White 8000 K 24 2.0 190 95 60 10000 100 11 3.7 A LF05E-B2-P 4008321616913 Blue 467 24 4.1 40 - 33 6000 150 11 4.5 - LF05E-R1-P 4008321616937 Red 625 24 6.0 80 - 33 6000 150 11 4.5 - LF05E-T2-P 4008321616951 Green 522 24 4.1 120 - 33 6000 150 11 4.5 - LF05E-Y1-P 4008321616975 Yellow 587 24 6.0 75 - 33 6000 150 11 4.5 - Protect Colormix (LF05CA-P, LF05CE-P) LF05CA-RGB3-P 4008321977205 RGB 625/525/467 24 18.0 435 - 50 4000 100 11 4.5 - LF05CE-RGB1-P 4008321977182 RGB 625/525/467 24 6.5 180 - 33 6000 150 11 4.5 - Based on measurements of a 500 mm module Due to the complex manufacturing process of light-emitting diodes, the above-speciﬁ ed typical values of the technical LED parameters merely represent purely statistical variables. They do not necessarily correspond to the actual technical parameters of each individual product, which may deviate from typical values.

12 LINEARlight Flex ® | Technical data VALUE Flex Protect (VFP1300) VFP1300-G1-827-05 4052899316621 White 2700 24 16.7 1300 78 44 5010 138.33 12 5.8 A VFP1300-G1-830-05 4052899316645 White 3000 24 16.7 1300 78 44 5010 138.33 12 5.8 A VFP1300-G1-840-05 4052899316669 White 4000 24 16.7 1400 84 44 5010 138.33 12 5.8 A+ VFP1300-G1-865-05 4052899316683 White 6500 24 16.7 1400 84 44 5010 138.33 12 5.8 A+ VALUE Flex Protect (VFP900) VFP900-G2-827-05 4052899316461 White 2700 24 12.2 850 69 55 4965 109 12 5.8 A VFP900-G2-830-05 4052899316485 White 3000 24 12.2 850 69 55 4965 109 12 5.8 A VFP900-G2-840-05 4052899316508 White 4000 24 12.2 900 74 55 4965 109 12 5.8 A+ VFP900-G2-865-05 4052899316522 White 6500 24 12.2 900 74 55 4965 109 12 5.8 A+ VALUE Flex Protect (VFP600) VFP600-G2-827-06 4052899316782 White 2700 24 7.7 575 75 36 6018 166 12 5.8 A+ VFP600-G2-830-06 4052899316829 White 3000 24 7.7 575 75 36 6018 166 12 5.8 A+ VFP600-G2-840-06 4052899316805 White 4000 24 7.7 600 78 36 6018 166 12 5.8 A+ VFP600-G2-865-06 4052899316843 White 6500 24 7.7 600 78 36 6018 166 12 5.8 A+ VALUE Flex Protect Eco (VFEPG1) VFEPG1-FLX-300-830-6000-DC 4052899084971 White 3000-3500 24 4.2 250 60 42 6051 144 11 4 A++ VFEPG1-FLX-300-860-6000-DC 4052899085077 White 6000 24 4.2 280 67 42 6051 144 11 4 A++ Relative to the smallest operable unit VALUE Flex ® IP with IP66 protection rating Product reference Product number (EAN) Due to the complex manufacturing process of light-emitting diodes, the above-speciﬁ ed typical values of the technical LED parameters merely represent purely statistical variables. They do not necessarily correspond to the actual technical parameters of each individual product, which may deviate from typical values. VALUE Flex ® Product reference Product number (EAN) VALUE Flex (VF1500) VF1500-G1-827-05 4052899316546 White 2700 24 16.7 1500 90 44 4990 138.33 8 1.8 A+ VF1500-G1-830-05 4052899316560 White 3000 24 16.7 1500 90 44 4990 138.33 8 1.8 A+ VF1500-G1-840-05 4052899316584 White 4000 24 16.7 1650 99 44 4990 138.33 8 1.8 A+ VF1500-G1-865-05 4052899316607 White 6500 24 16.7 1650 99 44 4990 138.33 8 1.8 A+ VALUE Flex (VF900) VF900-G2-827-05 4052899316379 White 2700 24 12.2 950 78 54 4945 109 8 1.8 A+ VF900-G2-830-05 4052899316409 White 3000 24 12.2 950 78 54 4945 109 8 1.8 A+ VF900-G2-840-05 4052899316423 White 4000 24 12.2 1100 90 54 4945 109 8 1.8 A+ VF900-G2-865-05 4052899316447 White 6500 24 12.2 1100 90 54 4945 109 8 1.8 A+ VALUE Flex (VF600) VF600-G2-827-06 4052899316706 White 2700 24 7.7 600 78 36 5998 166 8 1.8 A+ VF600-G2-830-06 4052899316720 White 3000 24 7.7 600 78 36 5998 166 8 1.8 A+ VF600-G2-840-06 4052899316744 White 4000 24 7.7 700 91 36 5998 166 8 1.8 A+ VF600-G2-865-06 4052899316768 White 6500 24 7.7 700 91 36 5998 166 8 1.8 A+ VALUE Flex Eco (VFEG1) VFEG1-FLX-300-827-10000-DC 4052899085176 White 2700 24 4.2 300 72 42 9939 144 8 1.7 A++ VFEG1-FLX-300-830-10000-DC 4052899085275 White 3000 24 4.2 330 80 42 9939 144 8 1.7 A++ VFEG1-FLX-300-865-10000-DC 4052899085350 White 6500 24 4.2 340 82 42 9939 144 8 1.7 A++

To support the installation of Flex LED modules, a whole range of Flexessories ® – dedicated accessories for Flex LED modules – are available. Our new extended range of Flexessories ® facilitate a quick and easy installation. 13 LINEARlight Flex ® | Flexessories ® Flexessories ® Track End cap Aluminum proﬁ les are designed to facilitate compact applications such as furniture, interior design and industrial design. Combine them with covers and other accessories to obtain a homogeneous light distribution. LINEARlight Flex ® LED modules LED drivers Flexessories ® OPTOTRONIC ® Cover Mounting bracket + + A complete and matching system

LINEARlight Flex (unprotected) Flex Protect VALUE Flex = Combination options between Flex LED modules and accessories = Additionally required accessories, see data sheets for detailed information = Combination possible only without cover = Full compatibility, tested in recessed conditions including cover at T amb = 25 °C = Compatibility in free-air conditions including cover at T amb = 25 °C LF06A, LF05A2 LF800S, LF1200 LF05E2, LF05E LF05CA2 LF05CE LF1200-TW LF2000-TW LF3000-TW LF4000-TW LF2000 , LF2000SW , LF1200MW , LF1200MWR, LF2000VW LF3000 , LF3000SW , LF2000MW , LF2000MWR, LF2000VW LF06P2-P , LF06A-P , LFP800S LF05A-P LF05E-P , LF06E-P LF05CA-P , LF05CE-P VF1500, VF900, VF600, VFEG1 VFP1300, VFP900, VFP600, VFEPG1 Ordering code Short description Product number (EAN) SLIM TRACK System LF-LTS-2100 Slim track 4008321978981 LF-LTS-MB Mounting bracket 4008321979025 LF-LTS Cover diffuse 4008321979001 LF-LTS End cap 4008321979049 LF-LTS Cover C (clear) 4008321790187 LF-LTS Cover S (shortpitch-diff) 4008321790200 QUICK MOUNTING TRACKS FX-QMS-G1-TU15H6-300 Slim track 4052899448865 FX-QMS-G1-TU15H6W3-300 Slim track 4052899448889 FX-QMS-G1-TU16H12-300 Slim track 4052899448964 FX-QMS-G1-TU16H12W3-300 Slim track 4052899448988 FX-QMS-G1-TR19H16-300 Slim track 4052899449008 FX-QMS-G1-TU16H12LS Slim track 4052899449046 FX-QMS-G1-T45D19H19-300 Slim track 4052899448667 FX-QMH-G1-TU15H23W4-105 Handrail track 4052899449022 FX-QMW-G1-TK30D46H27-300 Wide track 4052899448827 FX-QMW-G1-TU26H25W10-300 Wide track 4052899448773 FX-QMW-G1-TU26H8-300 Wide track 4052899448643 FX-QMW-G1-TU26H25W2-300 Wide track 4052899448841 FX-QMW-G1-TU26H25-300 Wide track 4052899448803 FX-QME-G1-T6G10H25-300 Edge lighting track 4052899448711 FX-QME-G1-T810G12H25-300 Edge lighting track 4052899448759 VALUE TRACK System VF-TR1000 Track 4008321867636 VI-TR1000 Track 4008321893789 SLIMCONNECTsystem Flex G2 (Generation 2) FX-SC08-G2-CT2PF-0500 2-pin feeder 4052899464735 FX-SC08-G2-CT2PF-1000 2-pin feeder 4052899464766 FX-SC08-G2-CT3PF-0500HF 3-pin feeder 4052899482999 FX-SC08-G2-CT3PFE-0500HF 3-pin feeder 4052899483026 FX-SC08-G2-CT4PF-0500 4-pin feeder 4052899464797 FX-SC08-G2-CT4PF-1000 4-pin feeder 4052899464827 FX-SC08-G2-CT4PJ 4-pin jumper 4052899464858 FX-SC08-G1-FW4P-LIN-0030 Extension wire 30 mm 4008321875587 FX-SC08-G1-FW4P-LIN-0150 Extension wire 150 mm 4008321875563 FX-SC08-G2-C2PF-IP54-0500 2-pin feeder IP54 4052899464889 FX-SC08-G2-BTJ-IP54 Silicone boot for jumper 4052899464919 to add IP54 protection For a full overview on Flexessories ® , please visit www.osram.com/ﬂ exessories Dedicated tracks for LINEARlight Flex ® Diffuse are available summer 2017. LF4000 has the same CONNECTsystem as LF2000 and LF3000. 14 LINEARlight Flex ® | Flexessories ®

LINEARlight Flex ® | Flexessories ® LINEARlight Flex (un- protected) Flex Protect VALUE Flex Flex Diffuse = Combination options between Flex LED modules and accessories = Additionally required accessories, see data sheets for detailed information LF06A, LF05A2 LF05E2, LF05E LF05CE LFP3000, LFP2000, LFP1200, LFP800, LF06P2-P , LF06A-P , LFP800S LF05A-P LF05E-P , LF06E-P LF05CA-P , LF05CE-P VF1500, VF900, VF600, VFEG1 VFP1300, VFP900, VFP600, VFEPG1 LFD400T , LFD400MT LFD400S, LFD400MS Ordering code Short description Product number (EAN) CONNECTsystem Flex LF-2PIN FLEX 2-pin feeder 4008321955326 LF-4PIN FLEX 4-pin feeder 4008321514585 LF-CONN-10 FLEX Bridge 10 mm 4008321955333 LF-CONN-150 FLEX Bridge 150 mm 4008321955340 LF-2TERM FLEX 2-pin terminal 4008321955357 CONNECTsystem Flex IP67 LP (low profile) LF-ENDCAP IP67 LP End cap IP67 LP 4052899902565 LF-2CONN IP67 LP 2-pin jumper IP67 LP 4052899125735 LF-2PIN IP67 LP 2-pin feeder IP67 LP 4052899125711 CONNECTsystem Flex IP67 LF-ENDCAP-PROTECT End cap IP67 4008321977106 LF-CLIP FIXTURE PROTECT Mounting clip IP67 4008321644749 LF-2PIN-PROTECT 2-pin feeder IP67 4008321977069 LF-4PIN-PROTECT 4-pin feeder IP67 4008321977076 LF-2CONN-PROTECT 2-pin jumper IP67 4008321977083 LF-4CONN-PROTECT 4-pin jumper IP67 4008321977090 CONNECTsystem Diffuse (top bending) FX-DCS-G1-CM2PF-IP67-0500-X5 Middle power feeder 4052899451971 FX-DCS-G1-CM2PJ-IP67-0190-X5 Module-to-module middle jumper 4052899452039 FX-DCS-G1-CM2PF-IP67-TOPKIT5 Feeder kit with end caps & glue 4052899451995 FX-DCS-G1-CM2PJ-IP67-TOPKIT5 Jumper kit with end caps & glue 4052899452053 FX-DCS-G1-ECT-KIT20 End caps & glue 4052899452107 FX-DCS-G1-EHT-KIT20 Double-sided end caps & glue 4052899452176 FX-DCS-G1-GL-25 Silicone glue 25 g 4052899452244 CONNECTsystem Diffuse (side bending) FX-DCS-G1-CM2PF-IP67-0500-X5 Middle power feeder 4052899451971 FX-DCS-G1-CM2PJ-IP67-0190-X5 Module-to-module middle jumper 4052899452039 FX-DCS-G1-CM2PF-IP67-SIDEKIT5 Feeder kit with end caps & glue 4052899452015 FX-DCS-G1-CM2PJ-IP67-SIDEKIT5 Jumper kit with end caps & glue 4052899452077 FX-DCS-G1-ECS-KIT20 End caps & glue 4052899452121 FX-DCS-G1-EHS-KIT20 Double-sided end caps & glue 4052899452206 FX-DCS-G1-GL-25 Silicone glue 25 g 4052899452244 Diffuse Mounting System FX-LFDM-G1-BT-17H11 Mounting bracket 4052899452480 FX-LFDM-G1-BTL-17H11E9 Mounting bracket with 4052899452510 additional wing FX-LFDM-G1-BS-12H13 Mounting bracket 4052899452541 FX-LFDM-G1-BSL-12H13E9 Mounting bracket with 4052899452572 additional wing Optional V ALUE Flex SLIMCONNECT system IP54 available, please check data sheet for information 15

Rigid LINEARlight LED modules | Flexibility with modular principle Rigid LINEARlight LED modules can be combined to create highly efﬁ cient complete systems by using our accesso-ries. The modular design means that single components can be rapidly and simply combined to create continuous lines. This results in ready-to-use overall modules and convenient, time-saving installations. With rigid LINEARlight LED modules, you can illuminate linear structures such as shelving or coves with seamless, interconnectable continuous light. Illumination is homogeneous, without shadows and even with directional light through the use of optics. Thanks to their long lifespan, LINEARlight LED modules require only little maintenance effort – a signiﬁ cant advantage especially when installed in applications that are difﬁ cult to access. Applications with long operating hours beneﬁ t the most from the long lifespan – e.g. in retail stores, ofﬁ ce buildings and hotels. The pre-installed overall modules provide efﬁ cient plug-&-play solutions for simple, rapid on-site mounting. The LEDs are already equipped with suitable optics, connectors and an elegant aluminum casing that serves as a heat sink. LINEARlight overall LED module 24 VCommon characteristics — Attractive design with total height of only 13 mm — Seamless light without shadowing — Fine White Binning (3SDCM) — Dimmable (PWM) — Lifespan of up to 50 000 h (L70B50) — Integral cooling via elegant aluminum proﬁ le — Various brand optics available — IP20-protected electronics — VDE-certiﬁ ed — On-board SMD connector for simple installation of continuous light LINEARlight POWER — Luminous ﬂ ux: up to 570 lm/280 mm (up to 2 250 lm/m) — 21 LEDs — Alternative to T5 ﬂ uorescent lamps — Main application: General illumination, coves Rigid LINEARlight LED modules: Matching systems for your application 16

17 Rigid LINEARlight LED modules | Flexibility with modular principle 1 2 4 5 6 3 Assemble your individual overall LED modules OSRAM provides you with all components needed for efﬁ cient and durable continuous lighting. Choose and combine the components that match your installation. Based on the required length of continuous light, you can select the desired light intensity, suitable optics and suitable connection accessories. This gives you a completely customizable total package with high quality, which optimally fulﬁ lls your speciﬁ cations. Our module components1 Optics tray 2 Optics 3 Module PCB with SMD connector 4 LINEARlight Track 280/560 mm 5 LINEARlight Track end cap 6 M3 screws Mounting bracket (no image)

Rigid LINEARlight LED modules | Technical data, accessories and LED drivers Rigid LINEARlight LED modules Rigid LINEARlight LED modules Product reference Product number (EAN) LINEARlight POWER LED modules LR21P-W2F-830 4008321971470 3000 24 2250 21 7.8 630 120 280 20 2 3.2 13.3 A+ LR21P-W2F-840 4008321971494 4000 24 2250 21 7.8 630 120 280 20 2 3.2 13.3 A+ LINEARlight Advanced LED modules LR14A-W2F-830 4008321978400 3000 24 1400 14 4.7 400 120 280 20 2 3.2 20 A+ LR14A-W2F-840 4008321971531 4000 24 1400 14 4.7 400 120 280 20 2 3.2 20 A+ LINEARlight POWER overall LED modules LR21P-W2F-830-L30 4008321971630 3000 24 2050 21 7.8 570 30 280 36 13 - 13.3 A LR21P-W2F-830-L70 4008321978707 3000 24 2050 21 7.8 570 70 280 36 13 - 13.3 A LR21P-W2F-840-L30 4008321971654 4000 24 2050 21 7.8 570 30 280 36 13 - 13.3 A LR21P-W2F-840-L70 4008321978721 4000 24 2050 21 7.8 570 70 280 36 13 - 13.3 A LINEARlight Advanced overall LED modules LR14A-W2F-830-L30 4008321971678 3000 24 1250 14 2.3 350 30 285 30 12 - 20 A+ LR14A-W2F-830-L70 4008321978424 3000 24 1250 14 2.3 350 70 285 36 13 - 20 A+ LR14A-W2F-840-L30 4008321971692 4000 24 1250 14 2.3 350 30 285 36 13 - 20 A+ LR14A-W2F-840-L70 4008321978448 4000 24 1250 14 2.3 350 70 285 36 13 - 20 A+ Product reference Product number (EAN) LINEARlight Colormix LED modules LR28CA 4008321978547 RGB 24 640 28 10.1 360 120 560 20 2 3.2 31 LR18CP 4008321971593 RGB 24 1420 18 19.1 800 150 560 20 2 3.2 31 LINEARlight Colormix overall LED modules LR28CA 560-L2050 4008321978561 RGB 24 600 28 10.1 380 20x50 560 36 13 - 31 LR18CP 560-L2050 4008321971753 RGB 24 1300 18 19.1 730 20x50 560 36 13 - 31 Due to the complex manufacturing process of light-emitting diodes, the above-speciﬁ ed typical values of the technical LED parameters merely represent purely statistical variables. They do not necessarily correspond to the actual technical parameters of each individual product, which may deviate from typical values. 18

Rigid LINEARlight LED modules | Technical data, accessories and LED drivers = Combination options between rigid LINEARlight LED modules and accessories LINEARlight POWER LED modules (LR21P) LINEARlight Colormix LED modules (LR18CP) LINEARlight overall LED modules (POWER, Colormix) Description Product reference Product number (EAN) Plug LR-4PIN-500 4008321971852 Connector LR-4CONN-250 4008321994400 Connector LR-4CONN-45 4008321971814 Aluminum rail LT-280 4008321975973 Aluminum rail LT-560 4008321975997 End cap LT-ENDCAP-G2 4052899076358 Mounting clip LD-MB 4008321225672 Optics tray OTR-280-LR21P 4008321976062 Optics tray OTR-280-LR14A/E/LR28CA 4008321994448 Optics OPLR1x1-20X50 4008321976048 Optics OPLR1x1-30 4008321976000 Optics OPLR1x1-70 4008321976024 OPTOTRONIC ® Product reference Product number (EAN) Interface for dimming IP Interface OPTOTRONIC OT 8/200-240/24 4008321040169 IP20 OPTOTRONIC OT 20/220-240/24 4050300618111 IP20 OPTOTRONIC OT 50/220-240/24 4052899905566 IP20 OPTOTRONIC OT 75/220-240/24 4050300817477 IP20 OPTOTRONIC OTi DALI 75/220-240/24 4008321371560 IP20 DALI OPTOTRONIC OT EASY 80/220-240/24 RGB 4008321808363 IP20 EASY White 830/840 LED modules – possible combinations Product family Wattage OT 8 200-240/24 OT 20 (S) 220-240/24 OT 50 220-240/24 OT 75 220-240/24 OTi DALI 75 220-240/24 LINEARlight POWER 7.8 W 1 LED module 1–2 LED modules 1–5 LED modules 1–6 LED modules 1–6 LED modules Colormix LED modules – possible combinations Product family Wattage OT EASY 80 220-240/24 RGB LINEARlight POWER Colormix 19.1 W 3–4 LED modules Accessories Symbols Accessories 19 www.osram.com/backlighting www.osram.com/led-designerwww.osram.com/[email protected] Your support for … — Backlighting — Side lighting — Light ceilings www.osram.com/ﬂ exﬂ [email protected] Your support for … — Project planning — Implementation — Accessories www.osram.com/ﬂ ex Color Color temperature in Kelvin Voltage in volts Watts Power factor/wavelength Watts per meter Lumens per meter Lumens per watt Lumens Number of LED modules per meter Length in mm Height in mm Beam angle Width in mm Minimum length in mm Length l 1 in mm Diameter in mm LINEARlight LED modules are the best choice when it comes to economic and design-oriented solutions for a broad range of possible lighting requirements and interior designs. To name just a few potential application areas: Shops can present their goods in the right light with cabinet and shelf lighting. Ofﬁ ces can ﬁ nd options for orientation lighting in corridors or general illumination in conference rooms. Hotel and hospitality businesses can illuminate corridors and conference zones, create the right atmosphere in ballrooms, provide soft indirect cove lighting in the guest rooms or simply shape a lasting colorful guest experience in restaurant and bar areas. LINEARlight LED modules can even be used in outdoor areas: Our outdoor modules accentuate façades with elegant lighting effects. Using LINEARlight Flex ® LED modules, homogeneous and ﬂ exible lines of light are easily integrated into architecture, furniture or any other object. Customized light for sophisticated tasks LINEARlight | Product range Cover image: Design study ﬂ exible luminaire, OSRAM "Re-Generationenhaus", Brandenburg/Havel, Germany SGL Carbon, Wiesbaden, Germany 2
