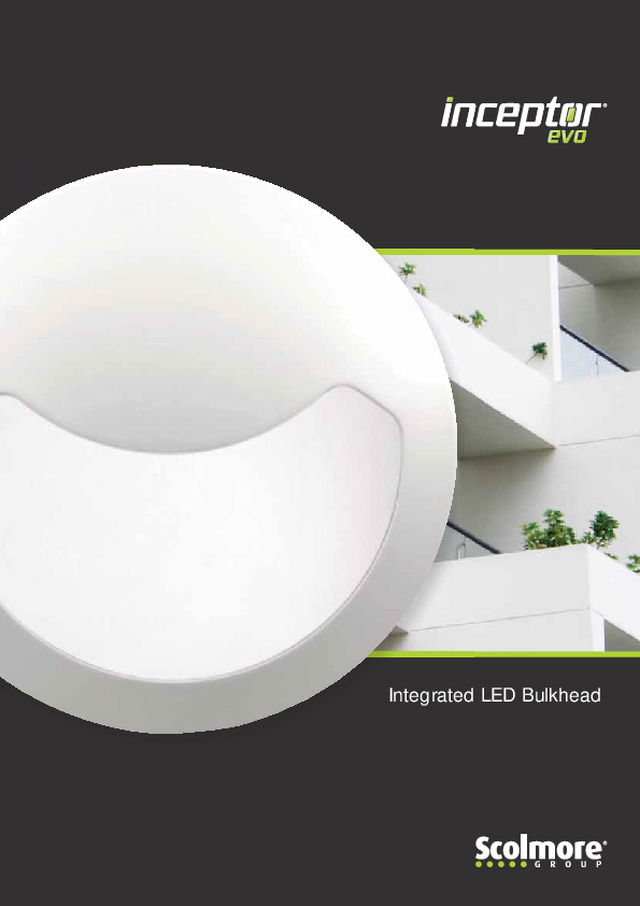

Inceptor Evo - Integrated LED Bulkhead - Scolmore - 2017

Integrated LED Bulkhead

IntegratedLED Bulkhead The Inceptor ®  Evo was born with the contractor  in mind, installation of the bulkhead is made faster with the addition of the Flow ™ connector.  Simple removal of the surface mount adaptor ring allows the product to be semi-recess mounted with ease. Available in two designs; circular and eyelid. Both utilise opal optical-grade polycarbonate diffusers and a reinforced, impact-resistant polycarbonate body. The product is double insulated and an earth-loop terminal is provided for convenience. As well as providing 2 styles of fascias, theEvo is also available with 4 distinct modesof operation: •  3 hour emergency & microwave sensor •  3 hour emergency •  Microwave sensor •  Standard driver An integrated 4 Pole Flow ™  connector allows for  quick and simple connection & disconnection for initial and periodic testing to be carried out. The Flow ™  connector offers loop-in and out facility  with large terminals accepting up to 3 x 2.5mm 2 . Flow ™  Connector

With an A+ Energy rating and  an L70 LED lifetime of 50,000  opportunities for cost savings  compared to traditional lamp types.   Prevent unauthorised access,  theft or removal of the luminaire.  This makes the Evo particularly  suitable for public areas such as  schools and shopping malls.   The twist and lock process saves time during the installation which  servicing of the luminaire.     Rear cable access can be achieved via the rubber grommet located in the centre. Suitable for use with  Dust tight and protected against low pressure water jets. A cool white colour temperature for a natural appearance. 4200k IP65 RATING SMD LED technology which creates less heat than standard LED’s. LED Circular Eyelid Grille Metal Enclosures The robust polycarbonate construction (IK08) can be enhanced further by encasing the body in an additional metal enclosure, providing excellent vandal resistant protection (IK10).

Creates an even spread of light  which eliminates bright spots and  reduces glare from LED array. Attaches to base using twist  and lock mechanism. Secures  diffuser in position. Contains up to 170 LED’s to  create a uniform spread of light. The Inceptor ®  Evo range has been designed with the installer  in mind, each component is specially designed to make the Evo quick, simple and effective to use. The energy saving LED’s provide a cool white output whilst achieving up to 1370 lumens making the Inceptor ®  Evo   Inceptor ®  Evo Construction  Built with the contractor in mind.

into place for semi-recess  mount installations. to be semi-recess mounted or for  installing within the metal enclosure. The driver converts mains AC voltage input to DC voltage output to the LED array. ™ •   Saves time during install. •   Integrated LED driver prewired      to a 4 pole Flow ™  connector to aid        installation and future maintenance.   •  Allows simple maintenance/     servicing of the luminaire. •  Quick & convenient wiring. •  Multiple base mounting options allow   •  4 side entry points & 1 rear entry point. •  Includes moisture seal to achieve       IP65 rating. •  Switches bulkhead on when presence is detected. •  Reduces unnecessary energy use. •  Time adjustment between 8 secs to 20 minutes. •  Daylight sensor adjustment between 2 – 2000 lux.  •  Detection adjustment between 1 to 10 meters. •  Suitable for switching loads of up to 1000W.  •  Microwave sensor controls orientated to allow easy      adjustment during installation. •  Provision for over 3 hours reduced light output in the       event of mains power failure.   •  Also allows for consistency throughout installation i.e.      the emergency luminaire looks the same as that of the      mains only luminaires. A Company Standard 3 Year Warranty Covers the product in the case of a manufacturing defect. nverts main put to DC voltag o the LED array.

  For architectural & design settings the Grille is a perfect fascia which also reduces glare. The Eyelid fascia reduces upward glare, providing greater direction and emphasis of illumination. A Circular fascia allows light to be distributed at an optimum beam angle of 120°. Distinct Aluminium Designs de desi gn  set ting s d d i t ti t fa fasc ia w hich   pwa rd   up pw re ecti on   re e tio on. t •  Corridors •  Walkways •  Underpasses •  Communal Areas •  Stairs •  Balconies •  Urban Spaces  •  Courtyards & Patios The Inceptor ®  Evo can be used in a wide range  of places and environments. The choice of three different metal fascias grants the opportunity to create a perfect look for the following areas:

Manufactured using high quality UV stabilised polycarbonate. This makes the Inceptor ®  Evo suitable for  the harshest of environments including installations in direct sunlight. With removal of the PC rear outer housing, the circular internal body can be installed in to the metal enclosure. To aid security, all cover retaining bolts have a hex key head as standard. A die cast aluminium body ensures a high  the bulkhead protected from any damage that may occur, especially in commercial areas. The metal enclosures offer the same cable entry locations as the Evo’s polycarbonate main body; with the four side entries sealed with removable inserts. Having a steel base plate at the back of the enclosure keeps the luminaire as secure as possible whilst keeping any damage to a minimum.  The PC cover can be locked using the tamper-proof screw. The metal enclosure is also supplied with four cover retaining screws.

Product Range 10W LED Utility Bulkhead – Standard 12W LED Utility Bulkhead – Emergency 12W LED Utility Bulkhead – Microwave Sensor 17W LED Utility Bulkhead – Microwave Sensor & Emergency  10W LED Utility Bulkhead – Eyelid – Standard 12W LED Utility Bulkhead – Eyelid – Emergency 12W LED Utility Bulkhead – Eyelid – Microwave Sensor 17W LED Utility Bulkhead – Eyelid – Microwave Sensor & Emergency  Technical Information Input Parameters Standard Version Emergency Version Input Voltage 230V 230V Input Current 0.063A 0.090A Input Wattage Total Power: 10W Total Power: 12W Input Frequency 50Hz~60Hz 50Hz~60Hz Output Parameters No. of LED’s 150 PCS 170 PCS Colour Temperature 4200K 4200K CRI 68.4 68.4 121lm/W 100.8lm/W LED Power 9W 9W Lumen Output (Mains) Without Diffuser (lm): 1790lm With Diffuser (lm): 1210lm 2m Without Diffuser (lux): 81lux 2m With Diffuser (lux): 56lux Without Diffuser (lm): 1790lm With Diffuser (lm): 1210lm 2m Without Diffuser (lux): 81lux 2m With Diffuser (lux): 56lux Lumen Output (Emergency) N/A Without Diffuser (lm): 494lm With Diffuser (lm): 349lm 2m Without Diffuser (lux): 38lux 2m With Diffuser (lux): 27lux Light Beam Angle 120° 120° Area of Diffuser 490m² 490m² Warranty 3 Years 3 Years Operating Temperature  -5 - +45°C  -5 - +45°C Weight 1.43 kg 1.48 kg Fixture Parameters Fixture Class II II Mode of Mounting  Ceiling Mount, Wall Mount Ceiling Mount, Wall Mount IP Rating IP65 IP65 UV Stabilised  Yes Yes

Microwave Sensor Version Emergency & Microwave Sensor Version 230V 230V 0.095A 0.133A Total Power: 12W Total Power: 17W 50Hz~60Hz 50Hz~60Hz 150 PCS 170 PCS 4200K 4200K 68.4 68.4 100.8lm/W 80.6lm/W 9W 9W Without Diffuser (lm): 1790lm With Diffuser (lm): 1210lm 2m Without Diffuser (lux): 81lux 2m With Diffuser (lux): 56lux Without Diffuser (lm): 2080lm With Diffuser (lm): 1370lm 2m Without Diffuser (lux): 96lux 2m With Diffuser (lux): 75lux N/A Without Diffuser (lm): 494lm With Diffuser (lm): 349lm 2m Without Diffuser (lux): 38lux 2m With Diffuser (lux): 27lux 120° 120° 490m² 490m² 3 Years 3 Years  -5 - +45°C  -5 - +45°C 1.78 kg 1.83 kg II II Ceiling Mount, Wall Mount Ceiling Mount, Wall Mount IP65 IP65 Yes Yes When surface mounted the overall product depth is a shallow 94mm.The diameter of the metal enclosure is 350mm. The circular and grille enclosures are 96mm whereas the eyelid enclosure is 98mm in depth. When semi-recessed, the product protrudes by 49mm. In semi-recessed installations, the metal bracket holds the bracket in position. Eyelid Housing Grille Housing Circular Housing Ø308mm Circular: 93mm Eyelid: 95mm Ø348.5mm Circular & Grill: 96mm Eyelid: 98mm
