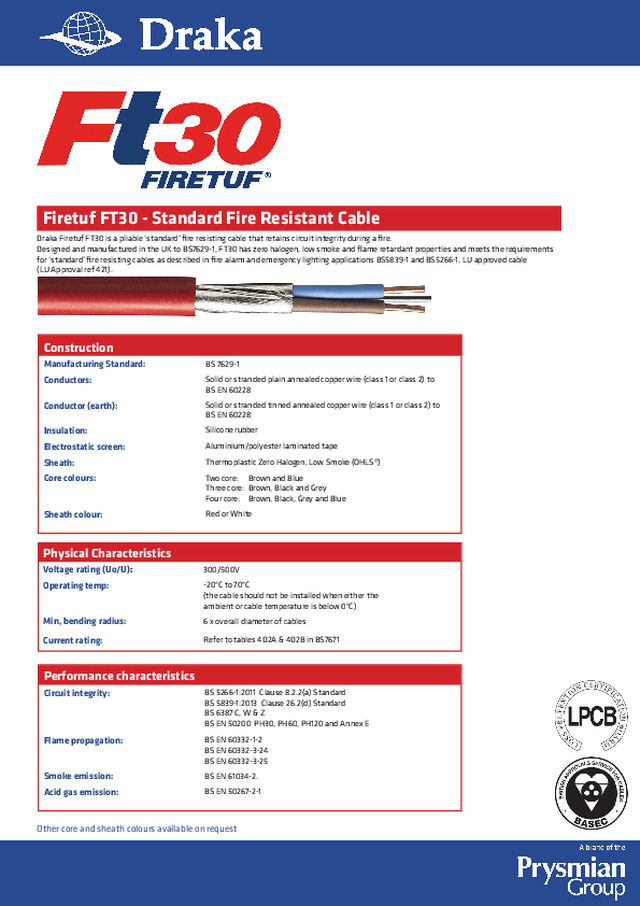

Firetuf FT30 - Standard Fire Resistant Cable Draka Firetuf FT30 is a pliable ‘standard’ fire resisting cable that retains circuit integrity during a fire. Designed and manufactured in the UK to BS7629-1, FT30 has zero halogen, low smoke and flame retardant properties and meets the requirements  for ‘standard’ fire resisting cables as described in fire alarm and emergency lighting applications BS5839-1 and BS5266-1. LU approved cable  (LU Approval ref 421).  Construction   Manufacturing Standard: BS 7629-1 Conductors: Solid or stranded plain annealed copper wire (class 1 or class 2) to BS EN 60228 Conductor (earth): Solid or stranded tinned annealed copper wire (class 1 or class 2) to  BS EN 60228 Insulation: Silicone rubber Electrostatic screen: Aluminium/polyester laminated tape Sheath: Thermoplastic Zero Halogen, Low Smoke (OHLS®) Core colours: Two core:    Brown and Blue Three core:  Brown, Black and Grey Four core:    Brown, Black, Grey and Blue Sheath colour: Red or White  Physical Characteristics Voltage rating (Uo/U) : 300/500V Operating temp: -20°C to 70°C   (the cable should not be installed when either the  ambient or cable temperature is below 0°C) Min, bending radius: 6 x overall diameter of cables Current rating: Refer to tables 4D2A & 4D2B in BS7671 Performance characteristics Circuit integrity: BS 5266-1:2011  Clause 8.2.2(a) Standard BS 5839-1:2013  Clause 26.2(d) Standard BS 6387 C, W & Z BS EN 50200  PH30, PH60, PH120 and Annex E Flame propagation: BS EN 60332-1-2 BS EN 60332-3-24 BS EN 60332-3-25 Smoke emission:  BS EN 61034-2. Acid gas emission: BS EN 50267-2-1 Other core and sheath colours available on request

Two core FTES2EH Prysmian Group, Chickenhall Lane, Eastleigh, SO50 6YU Sales Telephone 01332 345431 Dr ak aFT3019112013 www.drakauk.com Nominal  area of  conductor mm² Conductor  class Nominal  area of CPC mm² Maximum  conductor  resistance at  20°C Ω /km Approx.  overall  diameter mm Approx.  cable  weight kg/km Approx. capacitance values Core-core nF/km Core-screen nF/km 1.5 1 1.5 12.1 8.1 130 95 150 2.5 1 2.5 7.4 9.7 190 100 165 4 2 4 4.6 11.6 270 125 205 1.5 1 1.5 12.1 9.1 155 95 150 2.5 1 2.5 7.4 10.9 230 100 165 4 2 4 4.6 13.0 330 125 205 Four core FTES4EH Three core FTES3EH 1.5 1 1.5 12.1 7.7 110 95 150 2.5 1 2.5 7.4 8.9 155 100 165 4 2 4 4.6 10.7 220 125 205 These values are approximate as they are not required by the manufacturing standard and should be  verified by measurement
