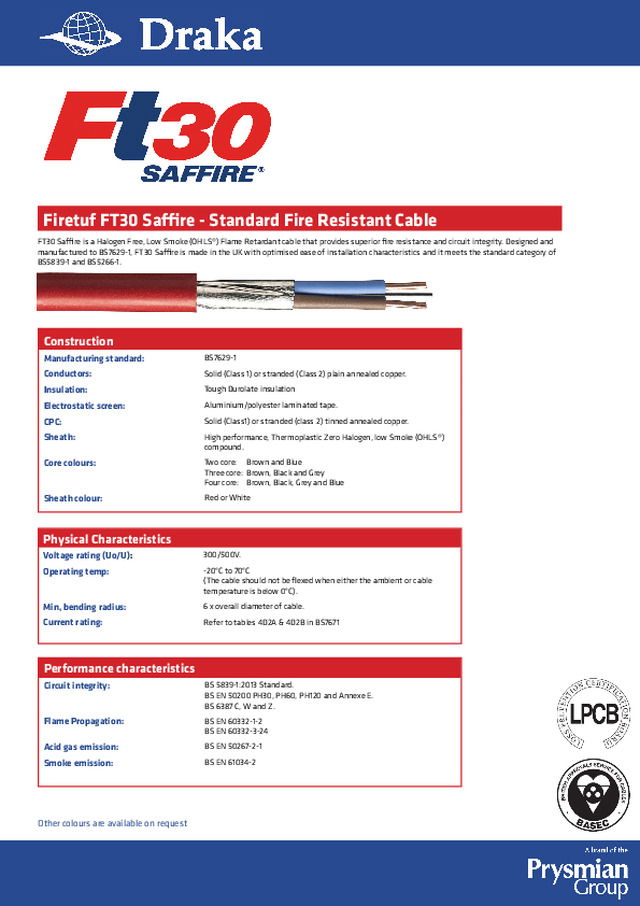

Firetuf FT30 Saffire - Standard Fire Resistant Cable FT30 Saffire is a Halogen Free, Low Smoke (OHLS®) Flame Retardant cable that provides superior fire resistance and circuit integrity. Designed and  manufactured to BS7629-1, FT30 Saffire is made in the UK with optimised ease of installation characteristics and it meets the standard category of  BS5839-1 and BS5266-1. Construction   Manufacturing standard: BS7629-1 Conductors: Solid (Class 1) or stranded (Class 2) plain annealed copper. Insulation: Tough Durolate insulation Electrostatic screen: Aluminium/polyester laminated tape. CPC: Solid (Class1) or stranded (class 2) tinned annealed copper. Sheath:  High performance, Thermoplastic Zero Halogen, low Smoke (OHLS®)  compound. Core colours: Two core:    Brown and Blue Three core:  Brown, Black and Grey Four core:    Brown, Black, Grey and Blue Sheath colour: Red or White Physical Characteristics Voltage rating (Uo/U) : 300/500V. Operating temp: -20°C to 70°C  (The cable should not be flexed when either the ambient or cable  temperature is below 0°C). Min, bending radius: 6 x overall diameter of cable. Current rating: Refer to tables 4D2A & 4D2B in BS7671 Performance characteristics Circuit integrity: BS 5839-1:2013 Standard. BS EN 50200 PH30, PH60, PH120 and Annexe E. BS 6387 C, W and Z. Flame Propagation: BS EN 60332-1-2 BS EN 60332-3-24 Acid gas emission:  BS EN 50267-2-1 Smoke emission:  BS EN 61034-2 Other colours are available on request

Prysmian Group, Chickenhall lane, Eastleigh, SO50 6YU Sales Telephone 01332 345431 www.drakauk.com Dr ak aFT30S AFFIRE05 112013 Two core FTSF2EH 1.5 1 1.5 12.1 8.4 120 95 150 2.5 1 2.5 7.4 10.4 180 100 165 4 2 4 4.6 12.3 250 125 205 1.5 1 1.5 12.1 10.0 145 95 150 2.5 1 2.5 7.4 11.9 225 100 165 4 2 4 4.6 13.5 310 125 205 Four core FTSF4EH Three core FTSF3EH 1.5 1 1.5 12.1 8.1 95 95 150 2.5 1 2.5 7.4 9.5 140 100 165 4 2 4 4.6 11.6 195 125 205 Nominal  area of  conductor mm² Conductor  class Nominal  area of CPC mm² Maximum  conductor  resistance at  20°C Ω /km Approx.  overall  diameter mm Approx.  cable  weight kg/km Approx. capacitance values Core-core nF/km Core-screen nF/km
