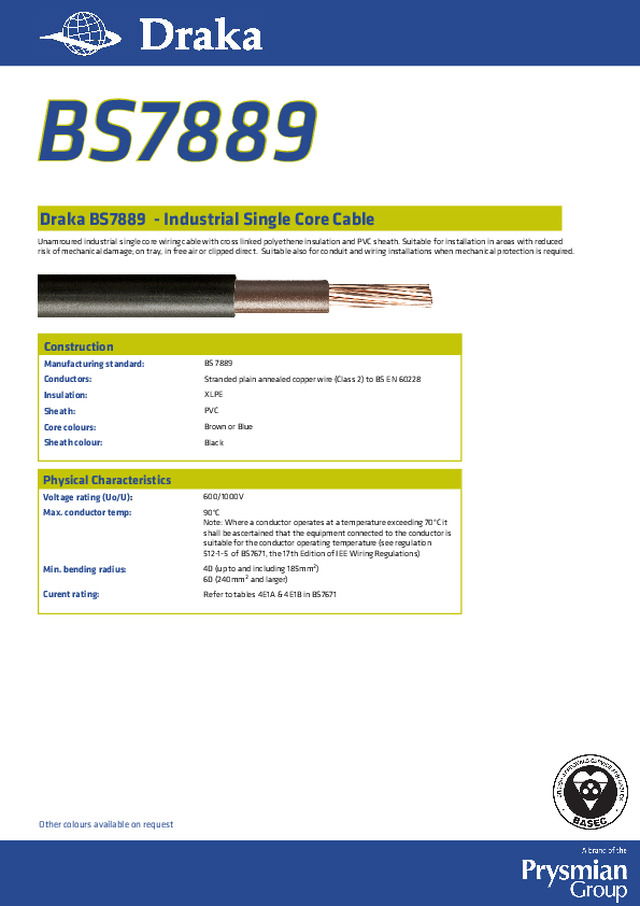

Draka BS7889  - Industrial Single Core Cable Unamroured industrial single core wiring cable with cross linked polyethene insulation and PVC sheath. Suitable for installation in areas with reduced  risk of mechanical damage; on tray, in free air or clipped direct.  Suitable also for conduit and wiring installations when mechanical protection is required. Construction   Manufacturing standard: BS 7889 Conductors: Stranded plain annealed copper wire (Class 2) to BS EN 60228 Insulation: XLPE Sheath: PVC Core colours: Brown or Blue Sheath colour: Black  Physical Characteristics Voltage rating (Uo/U) : 600/1000V Max. conductor temp: 90°C   Note: Where a conductor operates at a temperature exceeding 70°C it  shall be ascertained that the equipment connected to the conductor is  suitable for the conductor operating temperature (see regulation  512-1-5  of BS7671, the 17th Edition of IEE Wiring Regulations) Min. bending radius: 4D (up to and including 185mm²) 6D (240mm² and larger) Curent rating: Refer to tables 4E1A & 4E1B in BS7671 BS7889 Other colours available on request

Prysmian Group, Chickenhall Lane, Eastleigh, SO50 6YU Sales Telephone 01332 345431 www.drakauk.com BS7889 Nominal  area of  conductor mm² Insulation  thickness mm Insulation sheath  thickness mm Mean overall  diameter (upper limit) mm Approx.  weight of  cable kg/km Maximum  conductor  resistance  @ 20°C Ω /km 1.5 0.7 1.4 5.9 50 12.10 2.5 0.7 1.4 6.4 65 7.41 4 0.7 1.4 6.8 80 4.61 6 0.7 1.4 7.5 105 3.08 10 0.7 1.4 8.4 150 1.83 16 0.7 1.4 9.0 200 1.15 25 0.9 1.4 10.6 295 0.727 35 0.9 1.4 11.6 390 0.524 50 1.0 1.4 13.2 515 0.387 70 1.1 1.4 14.9 715 0.268 95 1.1 1.5 16.7 970 0.193 120 1.2 1.5 18.9 1235 0.153 150 1.4 1.6 20.9 1510 0.124 185 1.6 1.6 22.9 1860 0.0991 240 1.7 1.7 25.4 2410 0.0754 300 1.8 1.8 28.1 3010 0.0601 400 2.0 1.9 32.0 3030 0.0470 500 2.2 2.0 36.0 4915 0.0366 630 2.4 2.2 40.7 6320 0.0283 800 2.6 2.3 45.8 8210 0.0221 1000 2.8 2.4 50.8 10290 0.0176 Dr ak aBS7 88 93010 2013 Single core 6U81SH
